OWNER'S MANUAL
GARAGE
STORAGE SYSTEM
MG30244BC/MG30242BC/MG3024STBC/
MG30201WC/MG30202WC/MG3024TBC/
MGPB01/MGPST01/GVTOP3024/SSTOP3024
www.montezumastorage.com

2
LIFE ORGANIZED
Montezuma is committed to helping you succeed in both your work
and personal life by being organized, prepared and equipped with
the right tools, gear and home supplies at your finger tips.
We are here to ensure that your life is organized.
Thank you for your purchase of this Montezuma Garage Storage System.
ATTENTION
TO REDUCE THE RISK OF INJURY, THE USER MUST READ AND
UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THIS
PRODUCT FOR THE FIRST TIME. SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Fill in the following information and retain
this owner's manual for future reference:
MODEL(S):
DATE OF PURCHASE:
PLACE OF PURCHASE:
RECEIPT NO:

3
SPECIFICATIONS

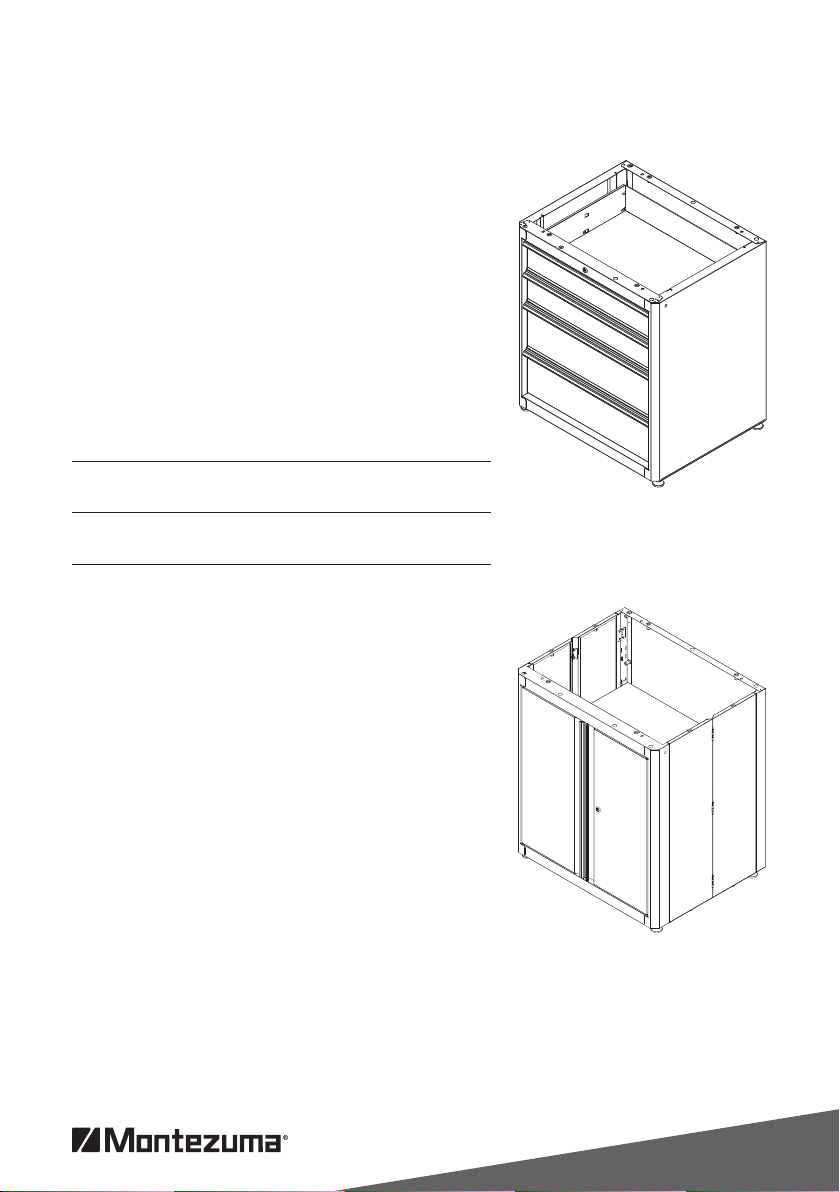

4-DRAWER BASE CABINET
MG30244BC
OVERALL DIMENSIONS:
30-1/2" W x 24-1/8" D x 34-3/4" H
(77.6 cm W x 61.3 cm D x 88.1 cm H)
NET WEIGHT: 125.66 lb (57 kg)
MAXIMUM WEIGHT CAPACITY: 500 lb (227 kg)
MAXIMUM DRAWER CAPACITY: 100 lb (45 kg)
INSIDE DRAWER DIMENSIONS:
REF DIMENSIONS QTY
A26-3/8" W x 20-3/4" D x 5-1/4" H
(67.1 cm W x 52.8 cm D x 13.4 cm H) 2
B26-3/8" W x 20-3/4" D x 8-1/4" H
(67.1 cm W x 52.8 cm D x 20.9 cm H) 2
* Dimensions do not include adjustable feet.
2-DOOR BASE CABINET
MG30242BC
OVERALL DIMENSIONS:
30-1/2" W x 24" D x 34-3/4" H
(77.6 cm W x 61 cm D x 88.1 cm H)
NET WEIGHT: 77.16 lb (35 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 100 lb (45 kg)
* Dimensions do not include adjustable feet.
B
A

4

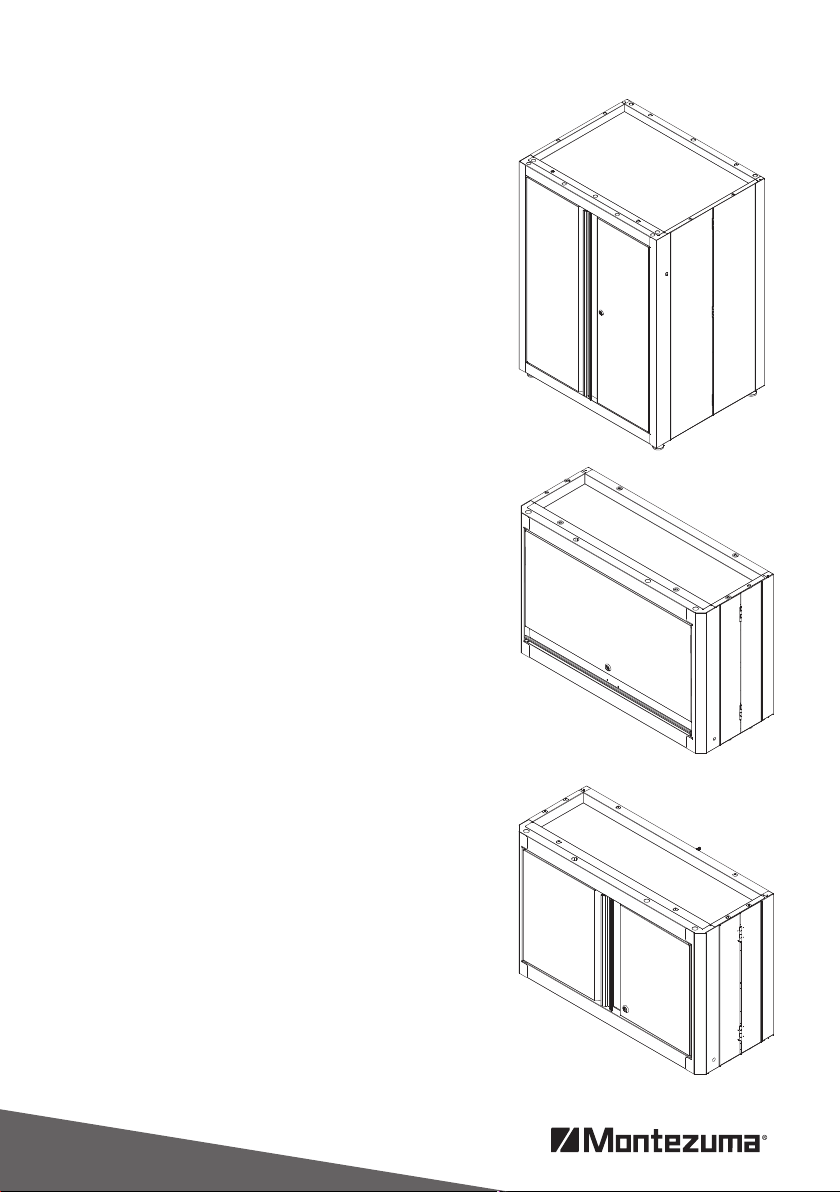

2-DOOR STACKING CABINET
MG3024STBC
OVERALL DIMENSIONS:
30-1/2" W x 24" D x 40" H
(77.6 cm W x 61 cm D x 101.6 cm H)
NET WEIGHT: 62.83 lb (28.5 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 100 lb (45 kg)
* Dimensions do not include adjustable feet.
1-DOOR WALL CABINET
MG30201WC
OVERALL DIMENSIONS:
30-1/2" W x 12" D x 20-1/8" H
(77.6 cm W x 30.5 cm D x 51 cm H)
NET WEIGHT: 28.66 lb (13 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 50 lb (23 kg)
2-DOOR WALL CABINET
MG30202WC
OVERALL DIMENSIONS:
30-1/2" W x 12" D x 20-1/8" H
(77.6 cm W x 30.5 cm D x 51 cm H)
NET WEIGHT: 28.66 lb (13 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 50 lb (23 kg)

5
2-DOOR TALL CABINET
MG3024TBC
OVERALL DIMENSIONS:
30-1/2" W x 24" D x 80" H
(77.6 cm W x 61 cm D x 203.1 cm H)
NET WEIGHT: 119.05 lb (54 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 100 lb (45 kg)
* Dimensions do not include adjustable feet.
PEGBOARD BACK WALL
MGPB01
OVERALL DIMENSIONS:
30-1/2" W x 12-5/8" D x 7/8" H
(77.5 cm W x 32 cm D x 2.2 cm H)
NET WEIGHT: 4.41 lb (2 kg)
MAXIMUM WEIGHT CAPACITY: 50 lb (23 kg)
* per each pegboard

6

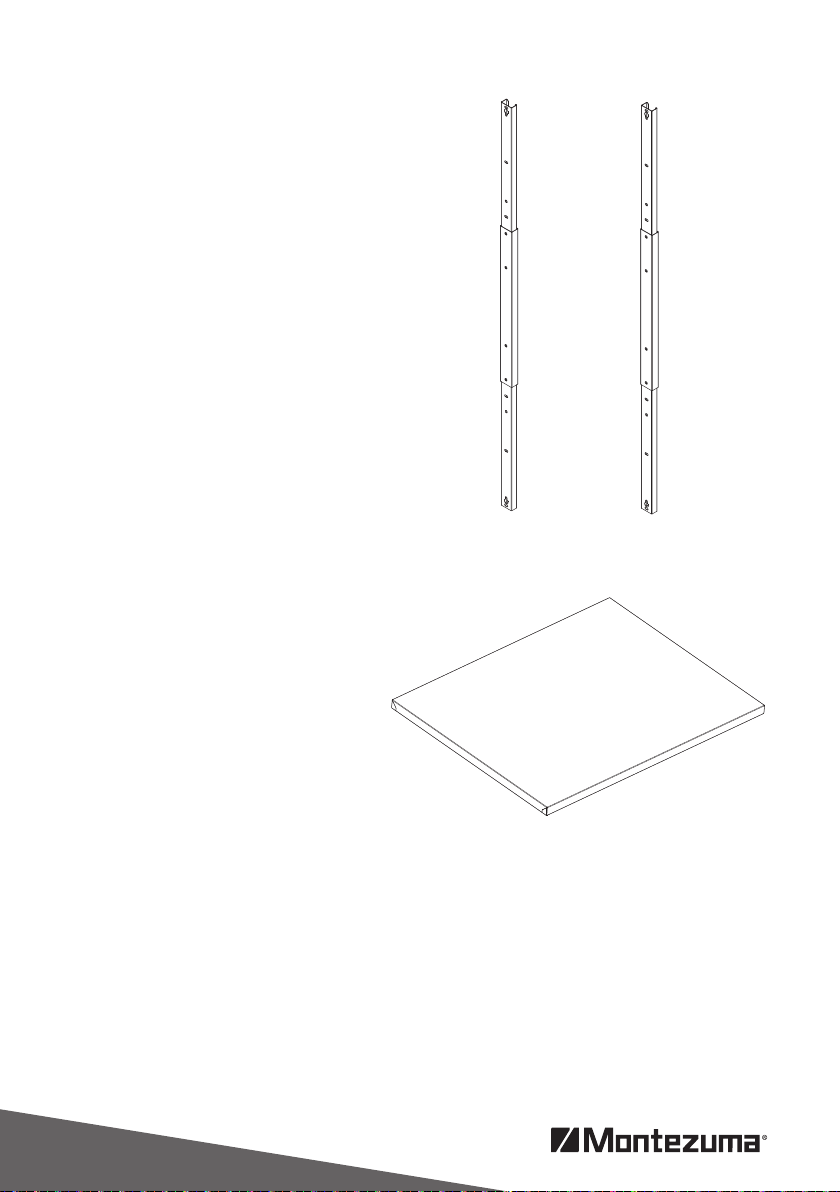

POSTS
MGPST01
OVERALL DIMENSIONS:
2-1/8" W x 1-1/4" D x 65-3/8" H
(5.5 cm W x 3.1 cm D x 166.1 cm H)
NET WEIGHT: 5.73 lb (2.6 kg)
WORKTOPS
Galvanized Steel: GVTOP3024
Stainless Steel: SSTOP3024
OVERALL DIMENSIONS:
30-1/2" W x 24" D x 1" H
(77.6 cm W x 61 cm D x 2.7 cm H)
NET WEIGHT: 25.35 lb (11.5 kg)

7
4-DRAWER BASE CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 5
2Washer 324050 3
3M6 x 65 Hex Tapping Screw 320316 3
4End Cover 314195 2
5Adjustable Feet 110 0 6 8 4
6Slide Set 300176 –300177 4
7Drawer Liner 552120 4
8Lock and Key 304178 1
9M6 Hex Flange Nut 323085 1
4
6
5
7
8
9
1
2
3
1
x x x
The keys are
taped to the
top drawer of
the cabinet.
Galvanized steel
and stainless
steel worktops
available.
See page 6.

8

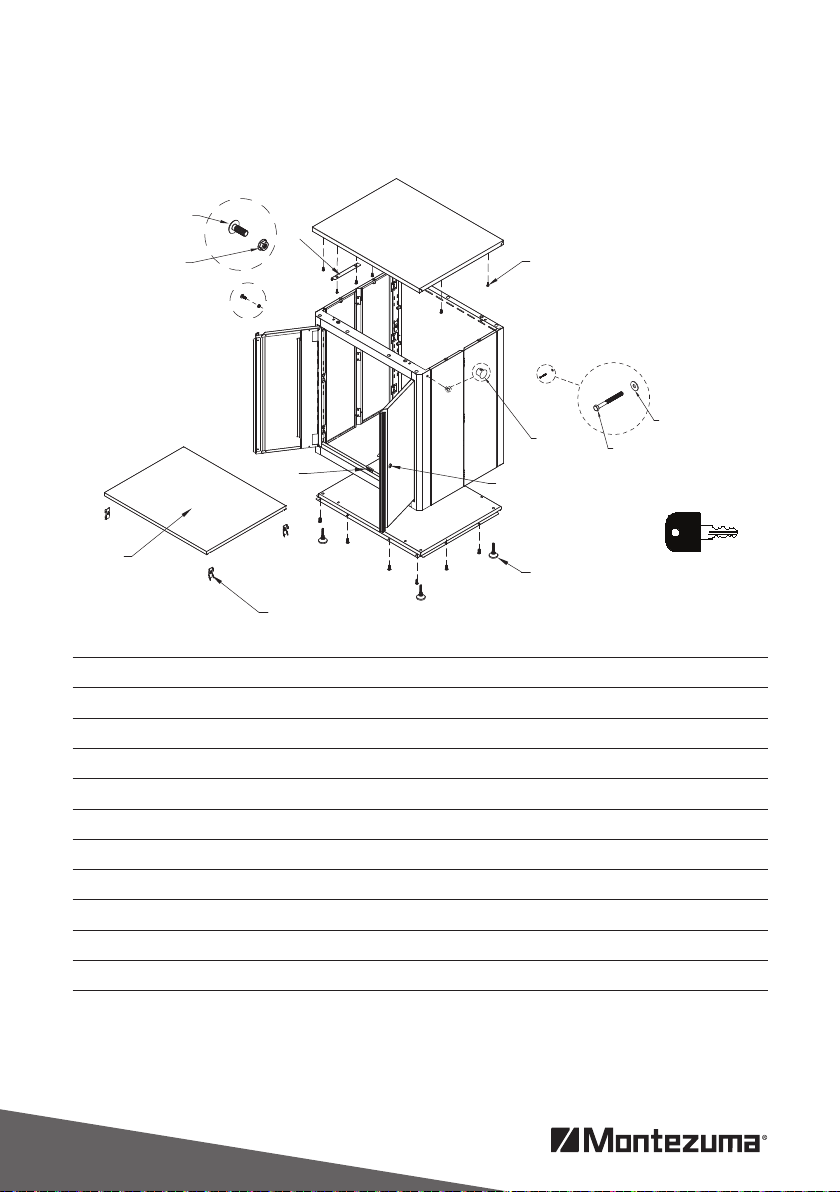

2-DOOR BASE CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 20
2Washer 324050 3
3M6 x 65 Hex Tapping Screw 320316 3
4End Cover 314195 2
5Lock and Key 304178 1
6Adjustable Feet 110 0 6 8 4
7Shelf Support 226078 4
8Shelf 116214 1
9Magnet 312033 2
10 M6 Hex Flange Nut 323085 1
11 Bracket 234542 2
1
4
5
6
7
8
10
111
9
2
3
x x x
The keys are
taped inside
the cabinet.
Galvanized steel
and stainless
steel worktops
available.
See page 6.

9
2-DOOR STACKING CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 20
2M6 x 35 Hex Flange Bolt 321208 4
3Washer 324050 3
4M6 x 65 Hex Tapping Screw 320316 3
5End Cover 314195 2
6Lock and Key 304178 1
7Adjustable Feet 110 0 6 8 4
8Shelf Support 226078 4
9Shelf 116214 1
10 Magnet 312033 2
11 M6 Hex Flange Nut 323085 1
1
6
2
7
9
8
5
3
4
10
11
1
x x x
The keys are
taped inside
the cabinet.

10

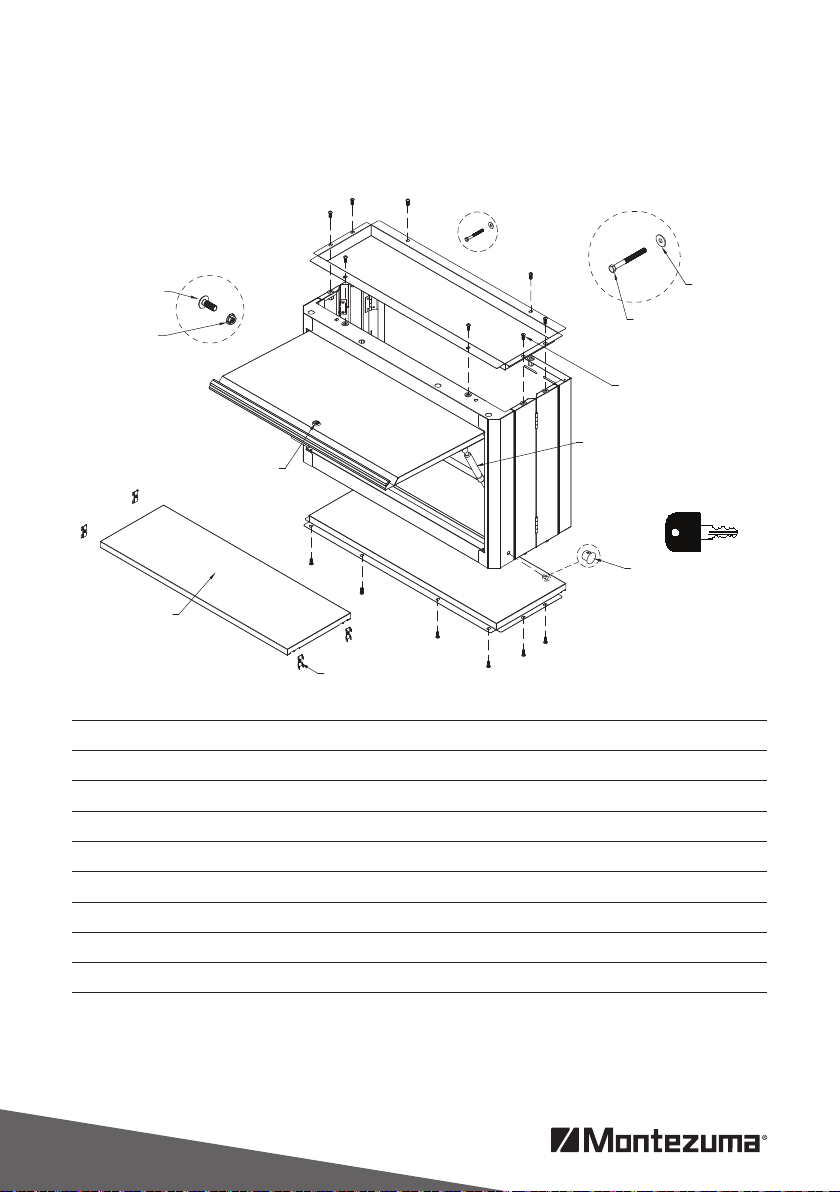

1-DOOR WALL CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 20
2Gas Strut 303002 2
3End Cover 314195 2
4Shelf Support 226078 4
5Shelf 233955 1
6Lock and Key 304178 1
7M6 Hex Flange Nut 323085 1
8M6 x 65 Hex Tapping Screw 320316 3
9Washer 324050 3
1
2
4
6
7
1
3
9
8
5
x x x
The keys are
taped inside
the cabinet.

11
2-DOOR WALL CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 20
2Washer 324050 3
3M6 x 65 Hex Tapping Screw 320316 3
4End Cover 314195 2
5Lock and Key 304178 1
6Magnet 312033 2
7Shelf 233955 1
8Shelf Support 226078 4
9M6 Hex Flange Nut 323085 1
4
2
3
9
1
1
7
86
5
x x x
The keys are
taped inside
the cabinet.

12
2-DOOR TALL CABINET
PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 16 Hex Socket Head Screw 320327 53
2Washer 324050 3
3M6 x 65 Hex Tapping Screw 320316 3
4Shelf 118 986 3
5Shelf Support 226078 12
6Adjustable Feet 110 0 6 8 4
7M4 x 12 Phillips Head Bolt 320202 16
8Lock and Key 304178 1
9M6 Hex Flange Nut 323085 4
10 Magnet 312033 2
6
5
4
8
1
7
9
2
3
10
x x x
The keys are
taped inside
the cabinet.

13

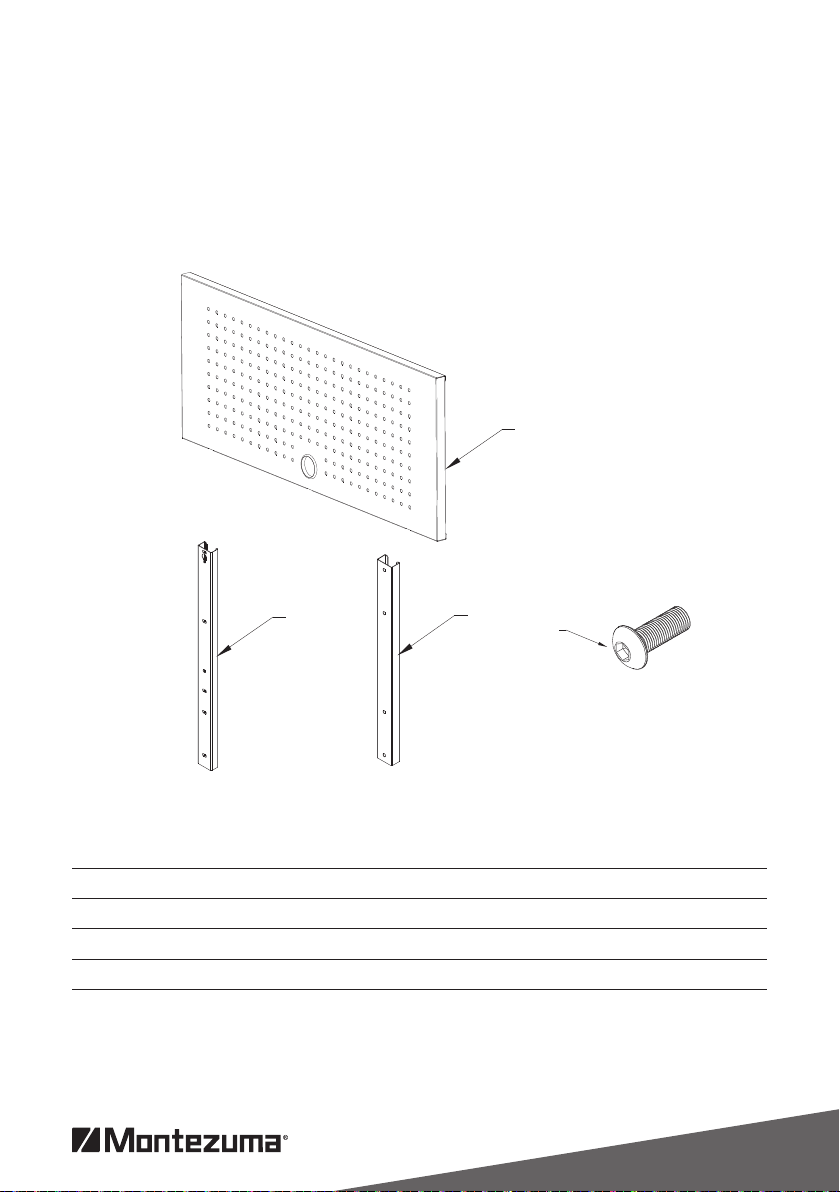

PEGBOARD BACK WALL
AND POSTS PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1Pegboard 226913 2
2Post A 226 911 4
3Post B 240368 2
4M6 x 16 Hex Socket Head Screw 320327 18
2
1
34
These parts are sufficient to attach one base cabinet to one wall cabinet.
Pegboards and posts are sold separately.

14
4-DRAWER BASE CABINET
A S S E M B LY
Carefully lay the cabinet on its back, with a
soft mat underneath for protection.
Screw the four adjustable feet into the
cabinet bottom. Turn the cabinet upright.
To add a worktop, remove the top drawer
from the cabinet.
Attach the worktop to the cabinet using four
M6 x 16 hex socket head screws.
WARNING: DO NOT STACK A BASE 4-DRAWER CABINET ON TOP OF ANOTHER
CABINET.
IF YOU HAVE PURCHASED A PEGBOARD BACK WALL AND POST COMBINATION,
PLEASE SEE PEGBOARD BACK WALL AND POST ASSEMBLY ON PAGE 35 TO
COMPLETE ASSEMBLY.
SEE FINISHING INSTALLATION ON PAGE 37 FOR HOW TO
INSTALL YOUR ASSEMBLED UNIT IN YOUR GARAGE.

15
4-DRAWER BASE CABINET
OPERATION

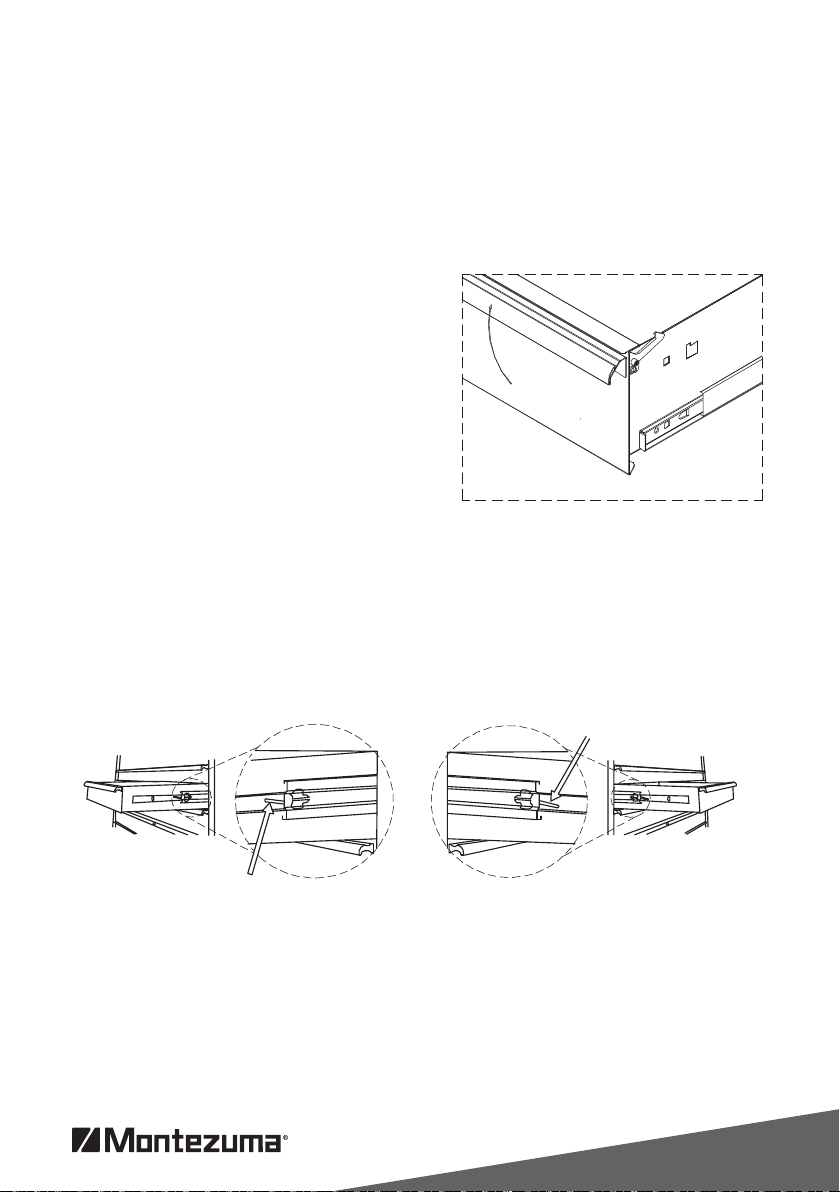

RAISE AND RELEASE DRAWER FRONTS
These units are equipped with raise and
release drawer fronts. To open, lift up on the
drawer front while pulling towards you. To
close, shut the drawer firmly until the latch
engages.
If the drawer does not stay closed, the hook
may be bent, or it may be rubbing against
the drawer slides. To fix this problem, lightly
bend the hook until the drawer will engage
in the slide.
Lift
DRAWER REMOVAL
Pull the drawer out so that it’s almost fully extended. Push up on the black release lever
on one side, while pushing down on the black release lever on the other side. While
holding the levers in these positions, pull the drawer outward until it is released from the
drawer slide.
ONE SIDE – PUSH UP OTHER SIDE – PUSH DOWN
DRAWER REPLACEMENT
Extend the drawer slides from the unit. Insert the brackets on each side of the drawer
into the slots in the slides, being careful that they are properly positioned. Once properly
inserted, completely close the drawer to set the slides in position.

16
2-DOOR BASE CABINET
A S S E M B LY

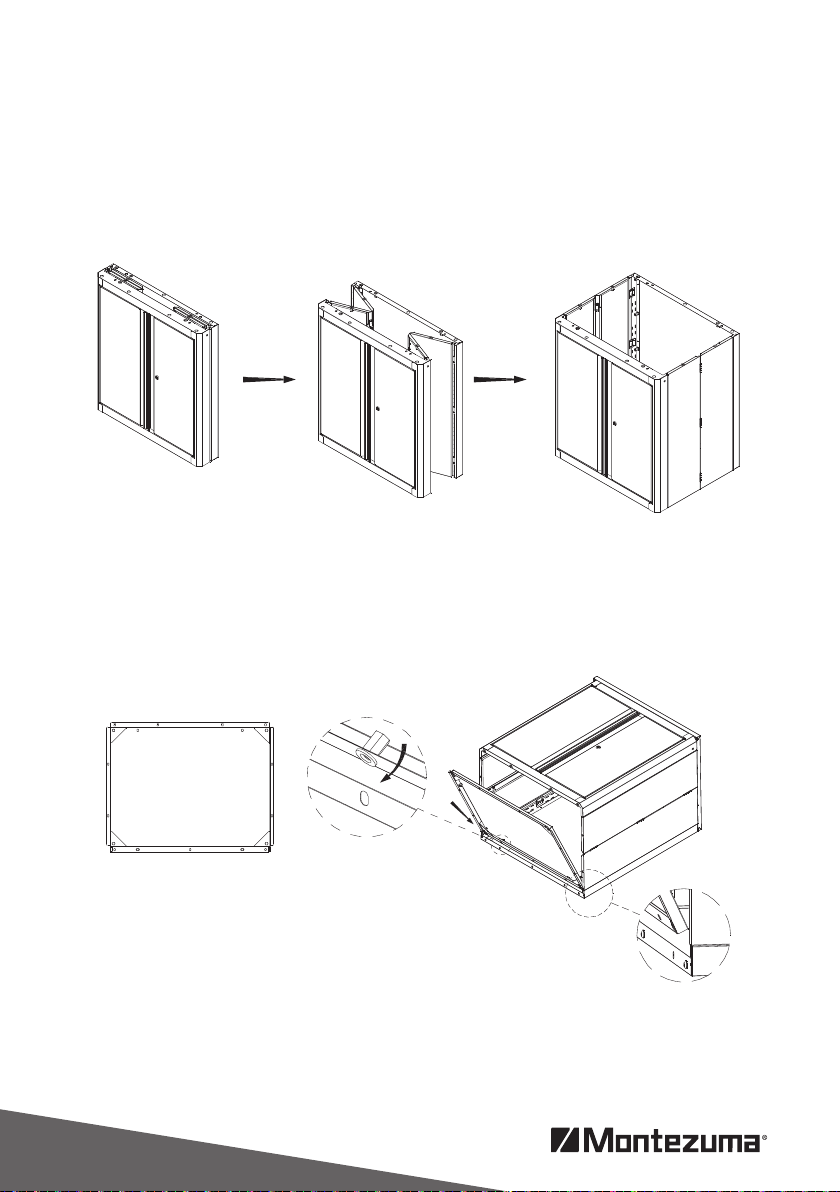

Carefully separate the front and back panels, allowing the side panels to unfold
completely.
Carefully lay the cabinet on its back, with a soft mat underneath for protection.
Insert the lip of the bottom panel into the slot in the back of the cabinet. Tilt the bottom
panel onto the bottom of the cabinet. Make sure the holes align.
Up
Down

17
Attach the bottom panel using eleven
M6 x 16 hex socket head screws.
Screw the four adjustable feet into the
cabinet bottom. Turn the cabinet upright.
To add a worktop, attach a bracket on either
side of the worktop using two M6 x 16 hex
socket head screws per bracket. Make sure
the lip of each bracket is secured under the
lip of the cabinet.
Attach the worktop to the front and back of
the cabinet using four M6 x 16 hex socket
head screws. Not the correct holes in the
cabinet.

18

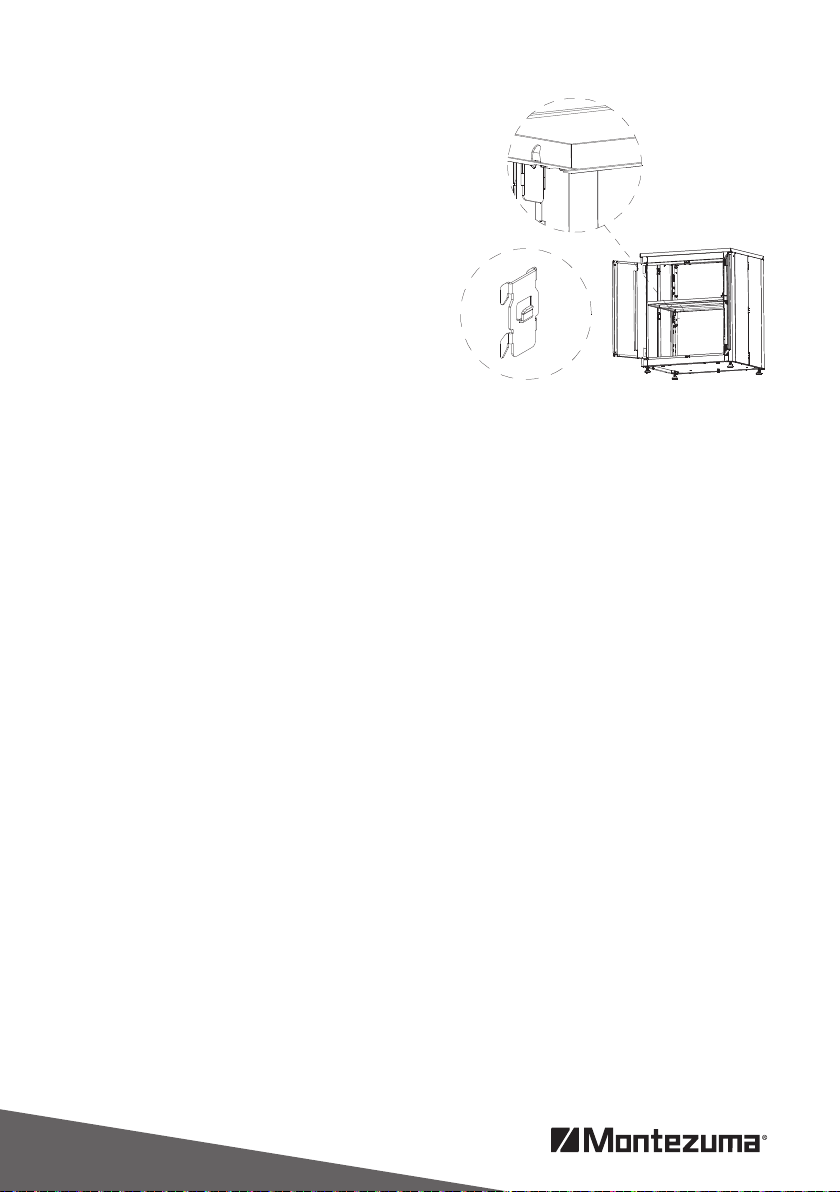

Insert four shelf supports inside the cabinet
at the desired height.
Place the shelf on the shelf supports.
WARNING: DO NOT STACK A 2-DOOR BASE CABINET ON TOP OF ANOTHER
CABINET.
IF YOU HAVE PURCHASED A PEGBOARD BACK WALL AND POST COMBINATION,
PLEASE SEE PEGBOARD BACK WALL AND POST ASSEMBLY ON PAGE 35 TO
COMPLETE ASSEMBLY.
SEE FINISHING INSTALLATION ON PAGE 37 FOR HOW TO
INSTALL YOUR ASSEMBLED UNIT IN YOUR GARAGE.

19
2-DOOR STACKING CABINET
A S S E M B LY
BOTTOM CABINET ASSEMBLY
Choose one cabinet to be the bottom cabinet in your stack.
Carefully separate the front and back panels, allowing the side panels to unfold
completely.
Carefully lay the cabinet on its back, with a soft mat underneath for protection.
Insert the lip of the bottom panel into the slot in the back of the cabinet. Tilt the bottom
panel onto the bottom of the cabinet. Make sure the holes align.
Up
Down

20
Attach the bottom panel using eleven
M6 x 16 hex socket head screws.
Screw the four adjustable feet into the
cabinet bottom. Turn the cabinet upright.
Place the top panel on the cabinet, but do
not attach.
