Montigo Edvwspv47 Instruction Manual

www.montigo.com

XG1303 Canadian Heating Products Inc. Langley, BC V4W 4A Montigo Del Ray Corp. Ferndale, WA 98248 062010

Installation Operation & Maintenance Manual

Check local codes and read all instructions prior to installation.

BF-Series SS Gas Fireplace

f i r e f e a t u r e

EDVWSPV Wall Power Vent System EDVWSPV47

EDVWSPV58

For Your Safety:

Do not store or use gasoline or other ammable vapors and liquids in the

vicinity of this or any other appliance.

Safety Notice:

Glass doors on gas replaces are extremely hot while the replace is on and remain

hot even after the replace has been turned off. Safety screens are available and

can reduce the risks of severe burns.

Please keep children away from the replace at all times.

Warning:

Improper installation, adjustment, alteration, service or maintenance can cause

injury or property damage. Refer to this manual. For assistance or additional

information consult a qualied installer, service agency or the gas supplier.

Warning:

What to do if you smell gas

• Do not try to light any appliance.

• Do not touch any electrical

switch; do not use any phone in

your building.

• Immediately call your gas

supplier from a neighbor's

phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas

supplier, call the re department.

• Installer: Leave this manual

with the appliance.

• Consumer: Leave this

manual for future reference.

Page 2

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Warning:

Read this manual before installing, operating or troubleshooting this appli-

ance. Please retain this owner's manual for future reference.

Safety Alert Key:

• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

• NOTICE: Used to address practices not related to personal injury.

• Important: Used to address practices not related to personal injury.

Table Of Contents

Important:

All dimensions, and design specications are

subject to approval upon quotation of re-

place and associated equipment.

Congratulations

Safety Alert Key

Table of Contents ..................................................................... 2

Specications ............................................................... 2

Introduction ............................................................................... 3

Dimensions ............................................................................4-5

Installation

General Information ..................................................... 6

Selecting and Installing the Fireplace ........................ 6

Vent Installation............................................................ 6

Power Vent Installation ...........................................6 - 7

Wiring ......................................................................8 - 9

Warranty ......................................................................... 10

Appendix

A. Termination Locations .......................................... 11

B State of Massachusetts / Amendment ................. 12

Specications

Motor Model Number: M2E068DF

Manufacturer : EBM Germany

Voltage: 110 Volts

Frequency: 50 Hz

Current draw: 1.41 Amp

Power consumption: 155 W

Speed: 2850 RPM

Maximum air movement: 400 CFM at zero restriction

Minimum air movement: 50CFM at 2.2" WC

Protection: Thermal switch

Bearings Ball bearings

Page 3

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Introduction

CAUTION!

Due to its high operating temperatures, the appliance

should be located in a well ventilated area / space. See

the clearancespecications on Page 8.

 Children and adults should be alerted to the hazards

of the high surface temperature, which could cause

burns or clothing ignition.

 Young children should be carefully supervised when

they are in the same room as the appliance.

 Clothing or other ammable materials should not be

placed on or near the appliance.

Before You Begin

■ Minimum clearances 1” from vent to all combustible materials

must be maintained. Clearances listed in the replace’s Instal-

lation Operation and Maintenance Instructions supersede this

number.

CAUTION:

Ensure Perforated Air Holes in the New Pipe Adapter / Restrictor

are not Covered when installing New Pipe Connection.

CAUTION:

When cold air enters the warmer building interior, primarily at the

air intake end, condensation may occur on the exterior of the ex

pipe. To limit this condensation, install insulation over the last

twenty feet of ex pipe. Also, by sloping the last 20'-0" feet of ex

pipe downward toward the exterior of the building, elimination of

most of the condensation problems should occur. Ensure the ter-

mination is securely fastened, and sealed to the ex pipe. Fasten

the termination to exterior of the building with water tight sealant

and the appropriate fasteners.

General Information

This installation guide covers installation of the External Power Vent

System only. This system is designed to allow installation of gas re-

places that cannot be done with a standard Direct Vent gas replace

installation.

Also, read through the replace's Installation Operation and Mainte-

nance Instructions, as it must also be adhered to.

Power Cord Harnesses:

EPVH10 -10 foot power cord and harness

EPVH20 -20 foot power cord and harness

EPVH30 -30 foot power cord and harness

EPVH40 -40 foot power cord and harness

EPVH50 -50 foot power cord and harness

EPVH60 -60 foot power cord and harness

EPVH70 -70 foot power cord and harness

EPVH80 -80 foot power cord and harness

EPVH90 -90 foot power cord and harness

EPVH100 -100 foot power cord and harness

Selecting and Installing the

Fireplace

When selecting a gas replace for use with the External Power Vent

System, take into consideration the various requirements and limita-

tions in the venting installation section for the following models:

Models Equipped with Hot Surface Ignition (HSI)

It is recommended that this system be used with a gas replace

equipped with a Hot Surface Ignition System. Because there is not a

pilot in this system, there is more exibilty on venting requirements.

For example downward vertical vet runs are possible with an HSI

system, as outlined in the Venting Section.

Models Equipped with Millivolt/ Standing Pilot

If a standing pilot model must be used, then the millivot wiring har-

ness must be installed, see the Wiring Section for more information.

Also, downward vertical vet runs are not possible with a standing pilot

system, as outlined in the Venting Section.

Page 4

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Dimensions

9 3/4"

REF.

11 1/16"

9 3/4"

10 9/16"

9.0

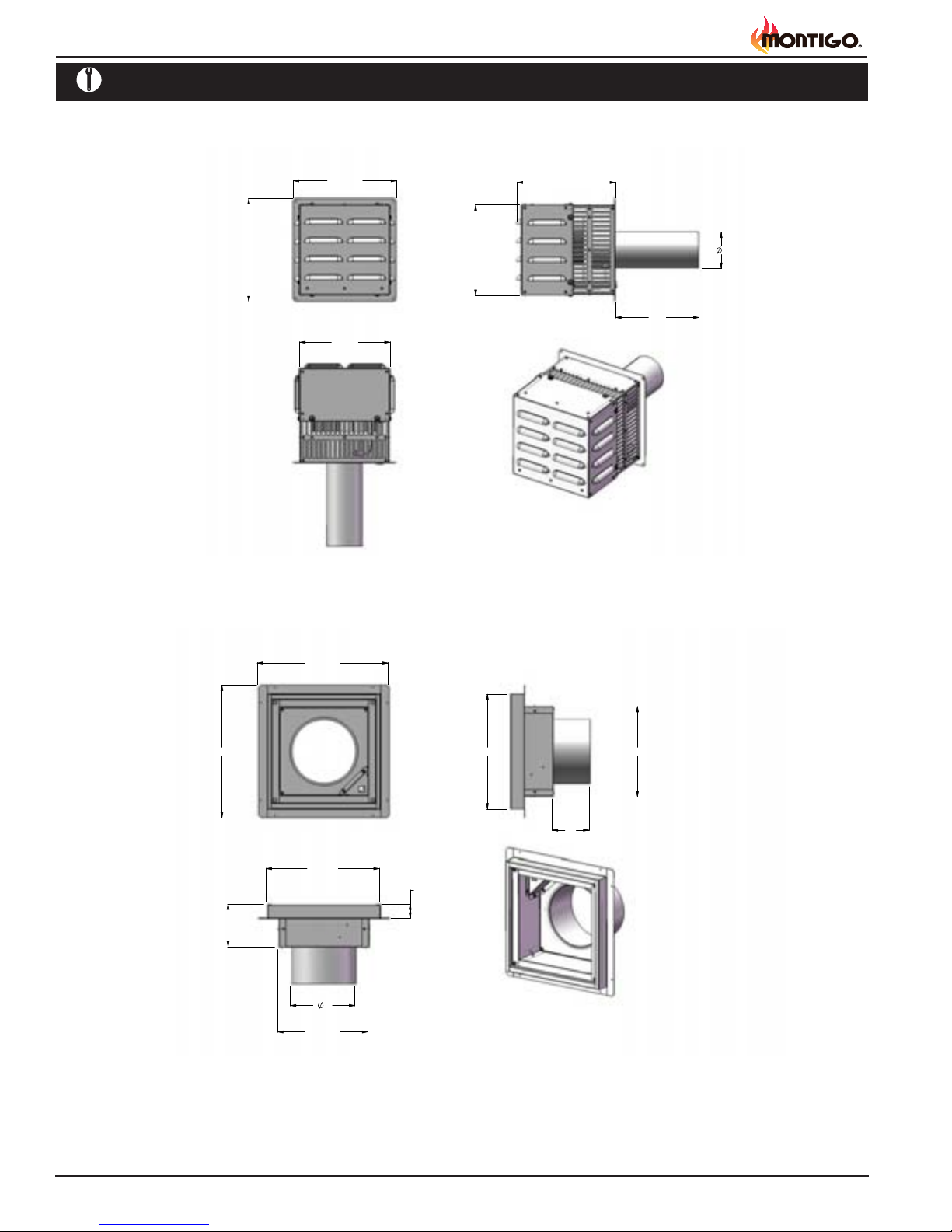

Dimensions EDVWSPV47.

Dimensions EPVF47 mounting frame for EDVWSPV47.

14 1/4"

14 1/16"

12 1/8"

1 1/2"

9 11/16"

4 9/16"

12 5/16"

9 11/16"

Page 5

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

9 3/4"

10 9/16"

9.0

11 1/16"11 1/16"

11 1/16"

10 9/16"

9.0

Dimensions

Dimensions EDVWSPV58.

Dimensions EPVF58 mounting frame for EDVWSPV58.

14 1/4"

14 1/16"

1 1/2"

4 9/16"

12 1/8"

9 11/16"

12 5/16"

9 11/16"

Page 6

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Installation

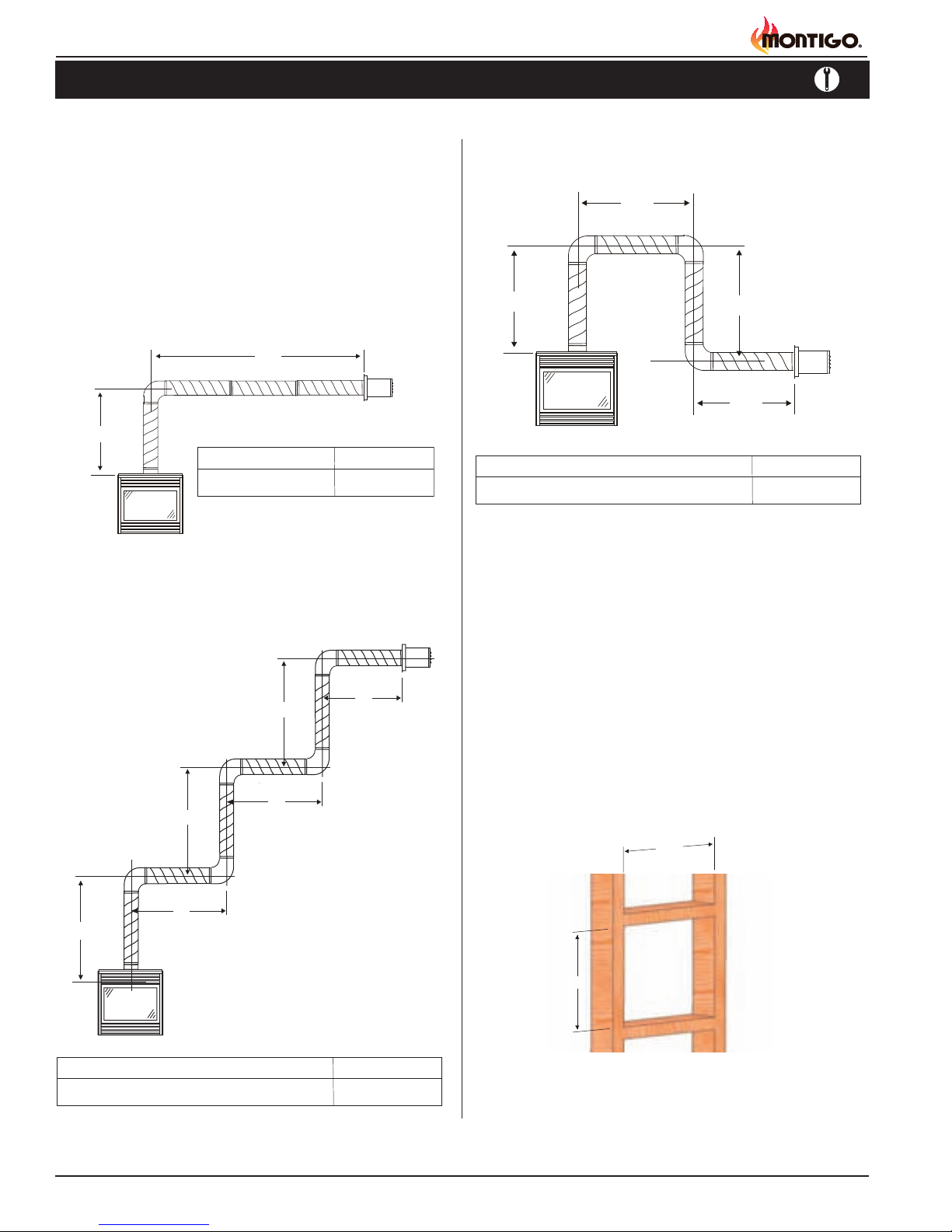

Figure 1. Typical Venting Installations.

Venting Installation

It is recommended that the External Power Vent System be used with

a gas replace that is equipped with HSI. When installing the venting,

the installation must adhere to the Vent Installation Section in the re-

place's Installation Operation and Maintenance Instructions, as well

as the following guidelines:

■Ensure that the planned termination location is acceptable as

shown in Appendix A.

■ Maximum allowed vent run is 100 feet.

Figure 2. Multi-elbow Venting Installations.

Multi-Elbow Installations

Multi-elbow installations are possible up to a maximum of six 90°

elbows.

Figure 3. Downward Venting Installations.

Downward Vertical Venting (HSI Models Only)

Downward venting installations are only possible with gas replaces

equipped with Electronic or Hot Surface Ignition (HSI).

Elbow 1

Elbow 2

Elbow 3

Elbow 5

Elbow 4

Elbow 6

Installing the Power Vent

Figure 4. Framing the Opening for Power Vent

Selecting A Termination Location

Before installing the termination, ensure that the proper air ow

restrictor is installed as shown on page 5, and check to ensure the

planned termination location is acceptable. For a detailed illustration

of allowed termination locations, see Appendix A.

Installing the External PV Termination

Step 1. Construct a frame for the termination opening to

12 1/2" x 12 1/2".3.

12 ‰

Step 2.

Insert the Power Vent Rough-in Box as shown in Figure 5. Fasten

the Box securely in place with Screws or nails, Figure 5. Apply

exterior sheathing and nishing if required. (Figure 6).

Restr

ctor #1

Max V1 + H1 + V2 + H2 + V3 + H3 Max Elbows

80’ feet six 90

Restr

ctor #1

Max V1 + H1 + D + H2 Max Elbows

40 ’ feet six 90

Restr

ctor #1

Max V + H Max Elbows

80’feet six 90

Page 7

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Installation

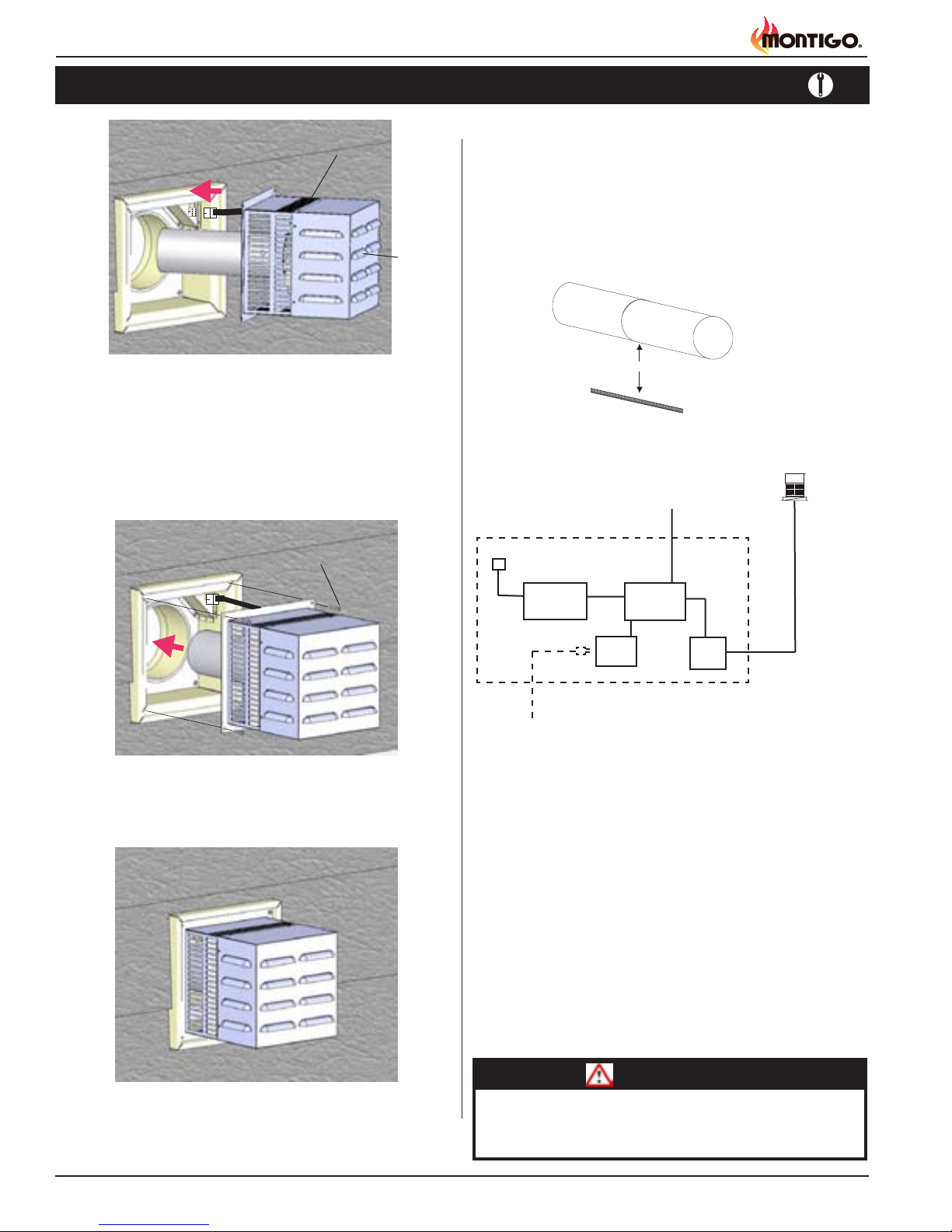

Figure 6. Installation of Rough-in Kit

Figure 7. Installation of Power Vent Conduit

Step 3.

Next, remove the bottom collar and conduit mounting frame as

shown Figure 6. (Place removed hardware in a handy location

for re-assembly).

Figure 5. Orientation, Placing the Power Vent Inner Box

Framing

Rough-in Frame

Fasteners

Power Vent Conduit

Strain Relief

Nut

Step 4.

Insert the conduit from the Power Vent Module into the rough-in

frame through the two top right entry holes. Remove the nut from

the supplied strain relief and place as shown, Figure 7.

Strain Relief

Figure 7. (Installing Conduit connector & conduit mounting frame)

Figure 8. (Assembled Rough-in Kit)

Step 7.

Fasten Conduit mounting frame into place using existing hard-

ware, (6-pcs). (Coil conduit in behind cover.)

Step 8.

Install the Power Vent Power / communication harness. Hold the

Power Vent in close proximity of the assembled Rough-in Kit,

and plug in the Power Vent communication / Power Cord. (Note

the direction and orientation of the pins inside the Power Vent

connector, snap together). (Figure 9).

Power Vent Conduit

Strain Relief & tightened nut

Power Vent

Connector

Conduit

mounting

frame

Step 5.

Securely fasten bottom Collar pan into the Rough-in frame using

the existing hardware, (4-pcs). Tighten Strain Relief nut onto

Strain relief.

Step 6.

Pull Power Vent Connector, (from behind) half-way through

supplied hole in conduit mounting frame, and snap into place,

(notches in two plastic wing clips. Orientation not critical).

Tightened hardware,

6-pcs.

Installed Power

Vent Connector

Tightened hardware,

4-pcs.

Page 8

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Installation

WARNING:

Montigo will not be held responsible for any water damage that

may occur from not installing the equipment as specied by

this document.

Figure 11. Conduit and Wiring Clearances.

Wiring Installation

Connect the wiring to the external power vent termination as outlined

in the previous section, and connect the wiring to the replace as

outlined in the schematic below. Ensure that the proper clearances

are maintaned for the wiring and conduit.

■ When installing the wiring it must never run above the vent run

and it must be at least 1" clear of all venting.

1" min.

Vent

Cable

Figure 12. Wiring Diagram for Power Vent System.

Control Cable Installation

for Vertical

Termination

EXPVH 10 - 100.

Honeywell

SV9501M

PPO

Box

Power Vent

EDVRP47

PVFCB

ECB005

Pilot

Inside Fireplace

Wall Switch

120V

Step 10.

Completed installation.

Step 9.

Install the Power Vent. Place the Power Vent into the Rough-in

frame, aligning the Power Vent into nal position. Ensure the

Harness is placed down in the Rough-in box when placing the

Power Vent. (Secure the Power Vent in Place with the supplied

hardware).

Figure 9. (Installation of Power Vent communication harness)

Figure 10. (Installation of Power Vent)

TOP of Power Vent,

(Note Quantity of

louvers).

Note louver

direction

Tightened hardware,

4-pcs.

Figure 11. (Completed Installation of Power Vent)

Page 9

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Installation

WARNING! If you do not follow these instructions exactly, a re or

explosion may result causing property damage, personal injury or loss of life.

Figure 13. Standard ECB006 Wiring Schematic for Power Vent System.

Page 10

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

The Warranty

The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a

ten-year warranty on the rebox and its components, a ve-year warranty on the main burner, and a one-year warranty on the pilot burner, gas control valve and

bre logs. Glass, plated/painted nishes, and refractory lining are exempt.

Remedy And Exclusions

The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Companies.

This Warranty only covers Montigo Gas Appliances installed in the United States or Canada.

If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Companies right of investigation

outlined below). The Companies will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Companies at no charge,

and will also pay for reasonable labour costs incurred in replacing or repairing components. If repair or replacement is not commercially practical, The Companies

will, at its option, refund the purchase price of the Montigo Gas Appliance.

This Warranty covers only parts and labour as provided above. In no case shall The Companies be responsible for materials, components, or construction which

are not manufactured or supplied by The Companies, or for the labour necessary to install, repair or remove such materials, components or construction. All

replacement or repair components will be shipped F.O.B. the nearest The Companies factory.

Qualications To The Warranty

The Gas Appliance Warranty outlined above is further subject to the following qualications:

(1) The Gas Appliance must be installed in accordance with The Companies installation instructions and local building codes. The Warranty on this Montigo Gas

Appliance covers only the component parts manufactured by The Companies. The use of components manufactured by others with this Montigo Gas Appliance

could create serious safety hazards, may result in the denial of certication by recognized national safety agencies, and could be in violation of local building

codes. This warranty does not cover any damages occurring from the use of any components not manufactured or supplied by The Companies

(2) The Montigo Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional replace fuels such

as wood, coal or any other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a re hazard.

Limitations On Liability

It is expressly agreed and understood that The Companies sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty,

expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specied above.

In no event shall The Companies be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs

or is discovered before or after replacement or repair, and whether or not such damage is caused by The Companies negligence. Some states do not allow the

exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty

with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty

lasts, so the above may not apply to you.

Investigation Of Claims Against Warranty

The Companies reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.

The Companies Are Not Responsible For Work Done Without Written Consent

The Companies shall in no event be responsible for any warranty work done without rst obtaining The Companies written consent.

Dealers Have No Authority To Alter This Warranty

The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated above.

How To Register A Claim Against Warranty

In order for any claim under this Warranty to be valid, The Companies must be notied of the claimed defect in writing or by telephone, as soon as reasonably

possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect.

Other Rights

This Warranty gives you specic legal rights, and you may also have other rights which vary from state to state.

NOTE: The Companies as stated above refer to - Canadian Heating Products Inc. and/or Montigo Del Ray Corp.

Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without notice, in design,

materials, specications, prices and also to discontinue colors, styles and products.

Warranty

Page 11

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Appendix A - Termination Locations

A= clearance to the termination frame above grade, veranda, porch, deck, or balcony

[30 inches (75 cm) minimum]

B= clearance to door, or sides and top of window, that may be opened [30 inches (75

cm) minimum for appliances.

C= clearancetobottom of windowthat maybeopenedhorizontally [36inches(92 cm)

minimum for appliances.

D= no clearance to permanently closed window when installed with approved glass

penetration termination

E= clearancetopermanentlyclosed window[30inches75cmrecommendedtoprevent

condensation on window]

F= distance of [30 inches 75 cm] from the centreline of the termination [30 inches (75

cm) minimum]

G= [30 inches (75 cm) minimum to combustibles]

H= clearance to outside corner [30 inches (75 cm) minimum]

I= clearance to inside corner [30 inches (75 cm) minimum]

J= * not to be installed above a meter/regulator assembly within

40" (103 cm) horizontally from the centreline of the regulator

K= clearanceto service regulatorvent outlet[3 feet minimum inthe United States][*6

feet (1.8 m) minimum in Canada]

L = clearance to non-mechanical air supply inlet to building or the combustion air inlet

toanyotherappliance[16inches(41cm)minimumforappliances≤100000BTU/H

(30kW)]

M= clearance to mechanical air supply inlet [*6 feet (1.8 m) minimum]

N= †clearance above paved sidewalk or a paved driveway located on public property

[*7 feet (2.1 m) minimum]

P= clearanceunderveranda, porch, deck, or balcony [30 inches (75 cm) minimum‡to

non-combustibles] [30 inches (75 cm) minimum‡to combustibles]

Q= clearance above a roof [24 inches (61 cm) minimum]

R= clearancetoadjacentwallsandneighboringbuildings[30inches(75cm)minimum]

S= clearance from corner in recessed location [30 inches (75 cm) minimum]

T= maximum depth in recessed location [48 inches (122 cm) minimum]

U= minimum width for back wall of recessed location [60 inches (150 cm) minimum]

V= [30 inches (75 cm) minimum] horizontal clearance between the frames of two

terminations that are level.

W= horizontalclearance betweenthe framesoftwo terminationsthatare notlevel. [30

inches (75 cm) minimum]

†a vent shall not terminate directly above a sidewalk or paved driveway which is

located between two single family dwellings and serves both dwellings

‡only permitted if veranda, porch, deck, or balcony has an open side that is equal

to or greater than the depth of the enclosed area

*require different clearance.

Page 12

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

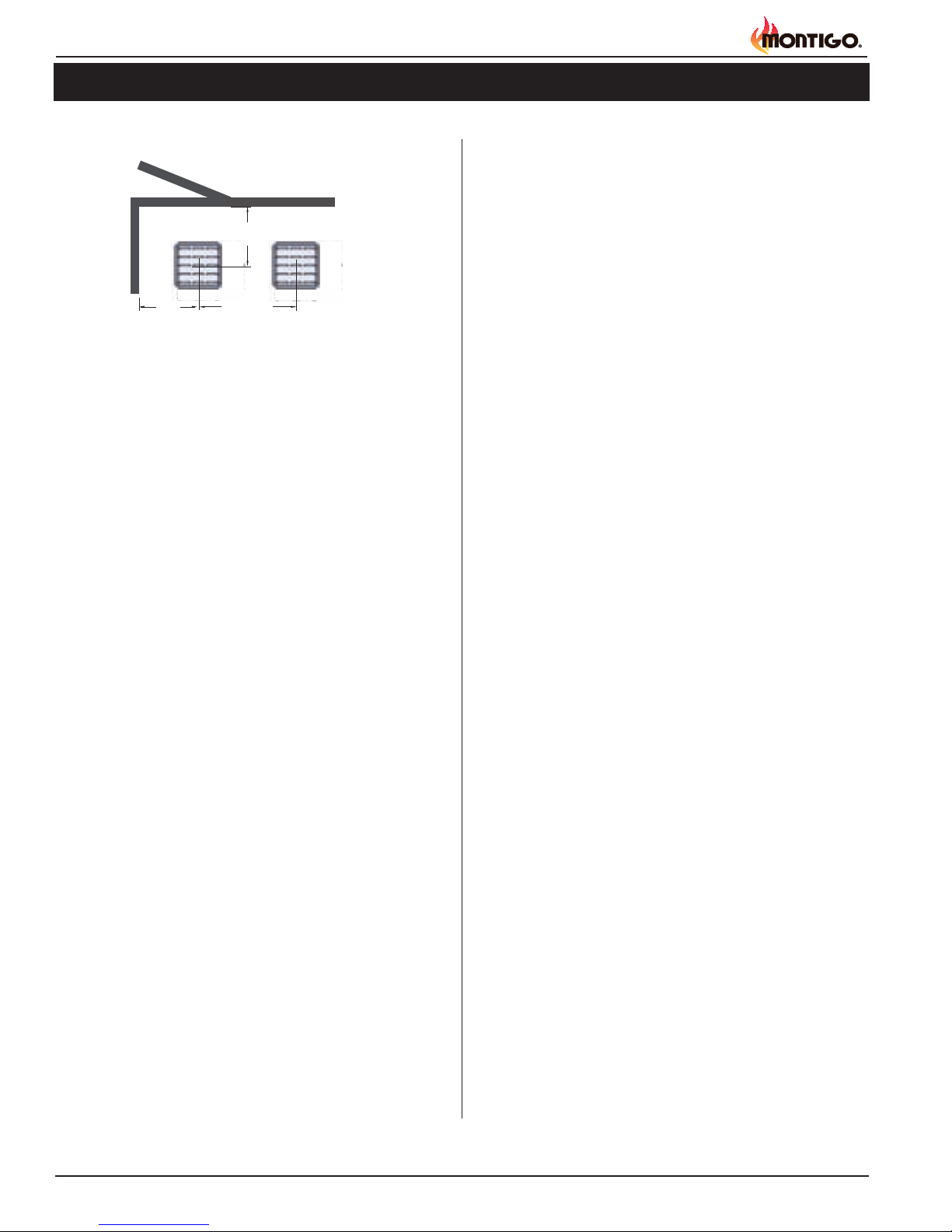

EDVWSPV58 Horizontal Power Vent

Detail

Front View

30”

Min.

30”Min.

Eaves / Overhang

Wall

“F” & “G”

“H” & “I”

30” (75cm)

Min. “V”

Appendix A - Termination Locations cont'd.

Page 13

EDVWSPV Horizontal Power Vent System

Part No. XG1303 - 120110

Amendment

(Gas Fireplace / Equipment sold in the State of Massachusetts)

5.08: Modications to NFPA-54, Chapter 10

(1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows:

Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device

that will automatically shut off the gas to the burner in the event of a sustained back-draft.

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes,

including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above nished grade in

the area of the venting, including but not limited to decks and porches, the following requirements shall be satised:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equip-

ment, the installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor

level where the gas equipment is to be installed. In addition, the installing plumber or gas tter shall observe that a battery operated or hard wired carbon

monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled

equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of hard wired carbon

monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with

alarm and battery back-up may be installed on the next adjacent oor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days

to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm

shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certied.

3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet

above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print

size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless,

upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the

Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or struc-

ture used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions

provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Prod-

uct Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ue gases, but identies “special venting systems”,

the following requirements shall be satised by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for

venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

(3) After NFPA-54 section 10.10.4.2 add a new section 10.10.4.3 as follows:

When more than four gas appliances are to be vented through a common gas vent or common horizontal vent manifold, a plan of the proposed vent installation

shall be submitted to the Inspector and the serving gas supplier for review and approval.

Extraction from: Massachusets Rules and Regulations

5.00: Amendments To 2002 Edition Of ANSI Z223.1-NFPA-54

Appendix B - State of Massachusetts
