montpellier MDC600FW User manual

Installation and Operating Instructions
MODELS: MDC600FW, MDC600FS & MDC600FK
White, Silver or Black Free-Standing
60cm Ceramic Double Oven
(Line Drawing shown for indicative purposes only)
Please read these instructions carefully before attempting to install or use this
appliance. It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to
book a service call without your unique serial number which can be found on the
last page of this manual.

Introduction
Thank you for choosing this branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety information
in addition to guidelines and recommendations that will enable
you to take full advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit,
do not use it, contact your retailer immediately.
2

3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new appliance carries a free guarantee which protects you
against the cost of repairs during the first 24 months from date of purchase
provided that:
Any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
● Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
● Any appliance that is used for anything other than domestic purposes.
● Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
● Cost of Call-out where a fault cannot be found with the appliance.
● Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
● Cost of Call-out for work required to correct the alignment of doors
following door reversal procedures carried out by you.
● Use of the appliance by anyone other than the Householder.
● Use in any commercial environment.
● Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
● Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it
with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number,
serial number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

4

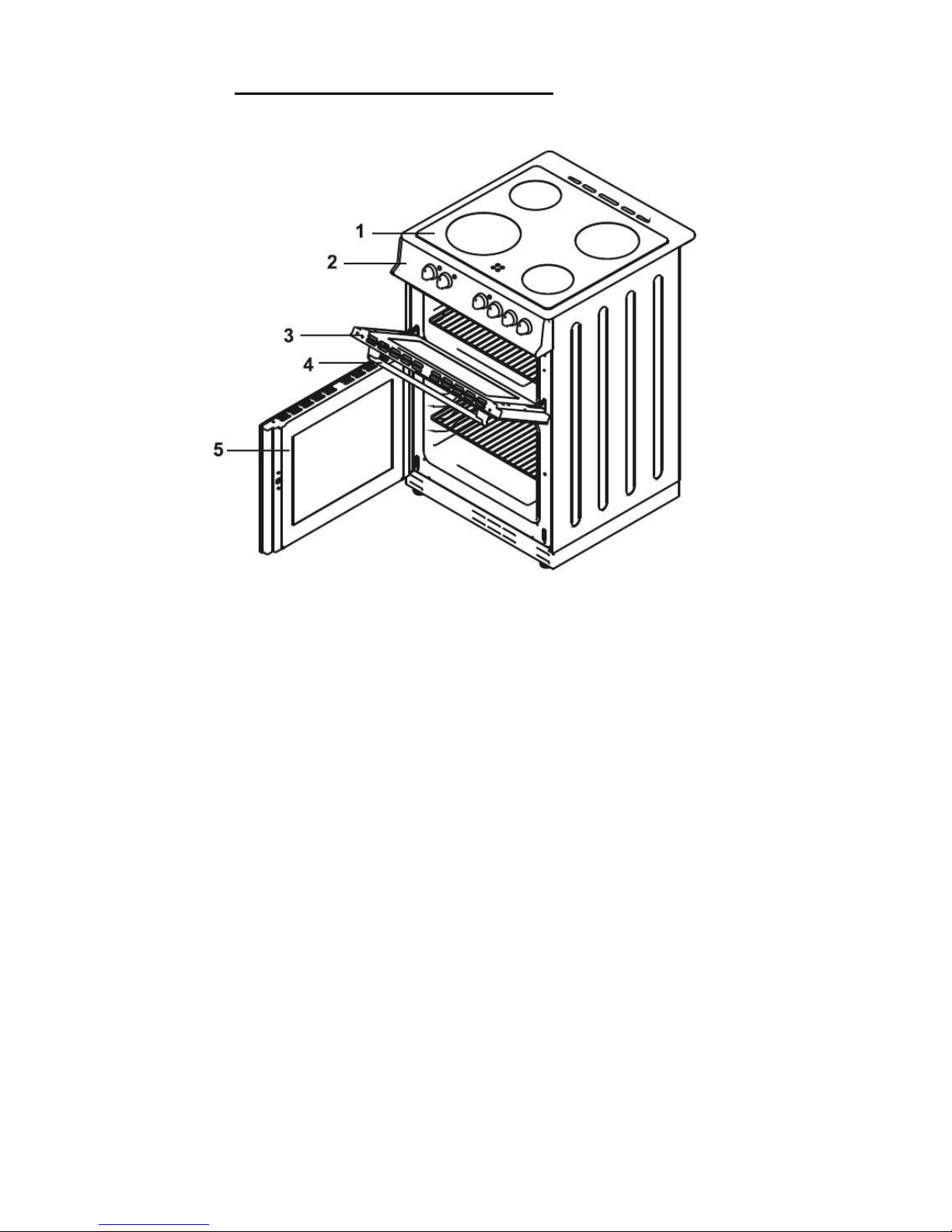

Description Of The Appliance
1. Hotplate
2. Control Panel
3. Top Oven Door
4. Door Handle
5. Main Oven Door
(Line Drawing indicative of model supplied)
(N.B. Model supplied my not have all features shown in this User Manual).

5
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
- This appliance must be installed by a qualified electrician.
- Remove all packaging, protective film and securing tape from
the appliance.
- Position the appliance in a dry atmosphere.
- The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
- Your electrician will connect the cooker in accordance with the
current regulations.
To install this appliance, please proceed as follows:
1.1. Positioning the Cooker
You must ensure a minimum gap of 2cm between the back
of the appliance and the rear wall to allow for ventilation. You
must ensure a minimum distance of 70cm between the
hotplate and overhanging cupboards or a cooker hood (as
shown above).

7
Adjust the height and stability of the cooker by adjusting the
two front feet as shown below. Rotate in a clockwise direction
to decrease the height and in an anti-clockwise direction to
increase the height.
1.2. Electrical Connection
This appliance must be ‘hard wired’ into a suitable 32A fused
spur (Fuse Connection Unit) adjacent to the appliance
housing. The product must be installed by a Qualified
Electrician.
Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off.
1.3. Technical Specifications
Please refer to the Rating Label affixed to the appliance
for all relevant technical data.
Appliance connection terminal

8
Section 2. Safety Advice
- This appliance must be installed by a qualified
electrician.
- It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling.
Never allow cookware and/or utensils to come into
contact with the top heating element/grill.
Do not use melamine or plastic containers when cooking
or grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
- It is important that you use only metal pans specifically
designed and/or approved for use on Ceramic Hobs.
Never allow melamine or plastic containers to come in
contact with the heat zones.
- Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
- This appliance is guaranteed for Domestic Use Only.
- This appliance shall not be used by children aged from 8
years and above and persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction on how
to use the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
-
- This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
- Do not twist or bend the connection/power cable, and keep it
away from hot surfaces.
- Following installation make sure that the power cable is not
trapped underneath the appliance.
- Keep the appliance surfaces clean. Failure to do this could
lead to the appliance malfunctioning.

9
- The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well
away.
- The interior and surface of this appliance will remain hot after
it has been turned off. Do not touch or clean the appliance
until it has completely cooled down.
- Never lift this appliance using the door handle or ‘open’ door.
- If the power supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

10
Section 3. Operating the Appliance
3.1. Control Panel (N.B. Model supplied my not have all features shown in this UserManual).
1. Grill/Top Oven Control Knob
2. Main Oven Control Knob
3. Left Hand Rear Heat Zone Control Knob
4. Left Hand Front Heat Zone Control Knob
5. Right Hand Front Heat Zone Control Knob
6. Right Hand Rear Heat Zone Control Knob
7. Top/Main Oven (a) & Heat Zone (b) Warning Lights
3.2. Using the Hotplate & Oven
- It is important that you use only ‘oven proof’ pans and
dishes when using the appliance for cooking or grilling.
Never allow cookware and/or utensils to come into
contact with the top heating element/grill.
Do not use melamine or plastic containers when cooking
or grilling.
Always take care when removing ovenware from the oven
and in particular avoid touching the Grill Element.
- It is important that you use only metal pans specifically
designed and/or approved for use on Ceramic Hobs.
Never allow melamine or plastic containers to come in
contact with the heat zones.
7a. 7b.
1. 2. 3. 4. 5. 6.

11
3.2.1. Using The Hob Heat Zones
Turn the required heat zone control knob (3, 4, 5 or 6) to
the required heat setting between 1 (Low) and 6 (High). Whilst
one or more of the heat zones are in use, the heat zone warning
light will be on.
When you have finished, turn the control knob(s) back to the off
position.

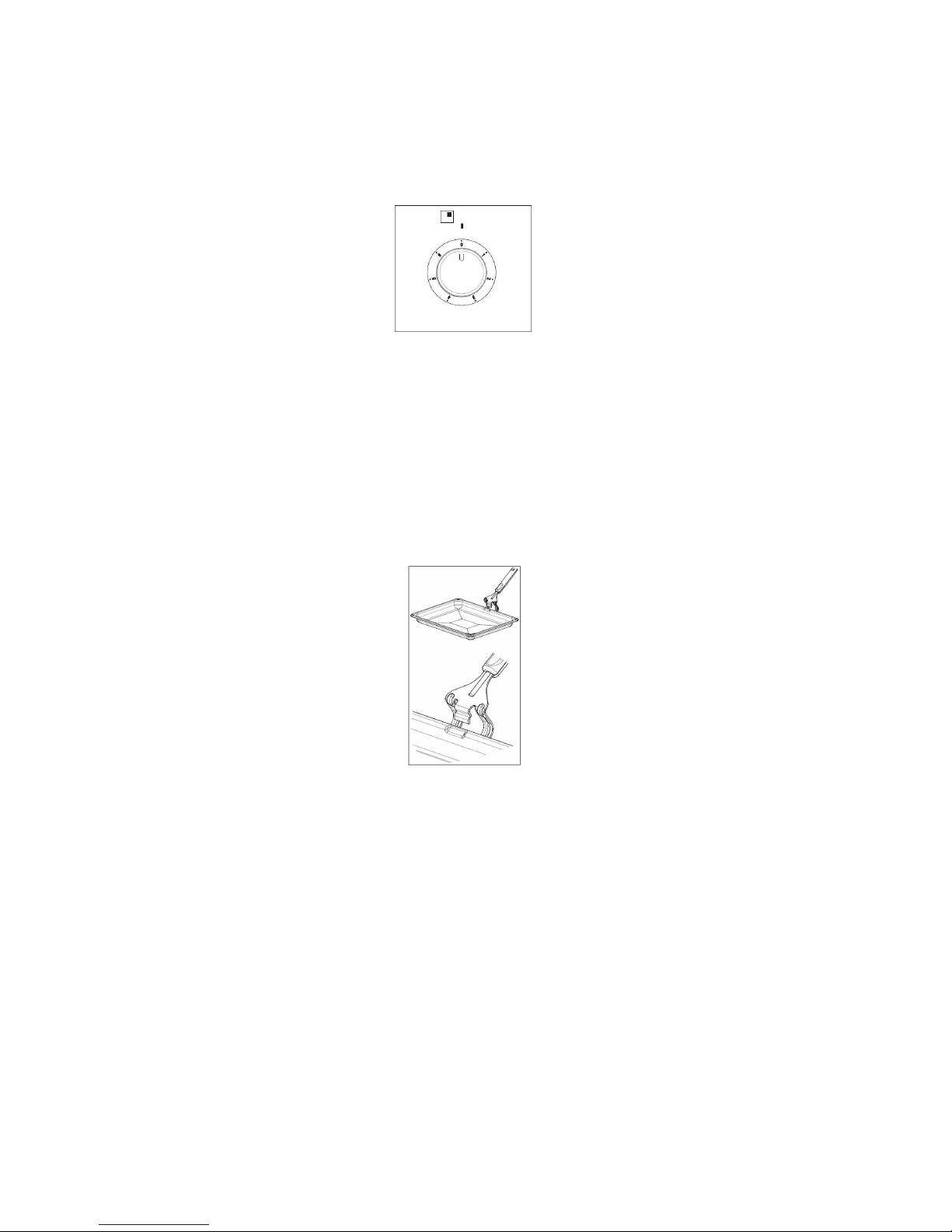

3.2.2. Operating the Grill/Top Oven
Turn the control knob to the required heat setting: top/bottom
heat, top heat, single grill or double grill functions. The
warning light will come on whilst the grill is being used.
To grill, pre-heat the oven to the required temperature for 5
minutes and then insert the grill pan, ensuring that you leave
the door open whilst grilling. When using the grill, you are
strongly advised to fit the handle to the grill pan as shown in
the pictures below.
When you have finished using the grill, turn the control knob back
to the off position.

12

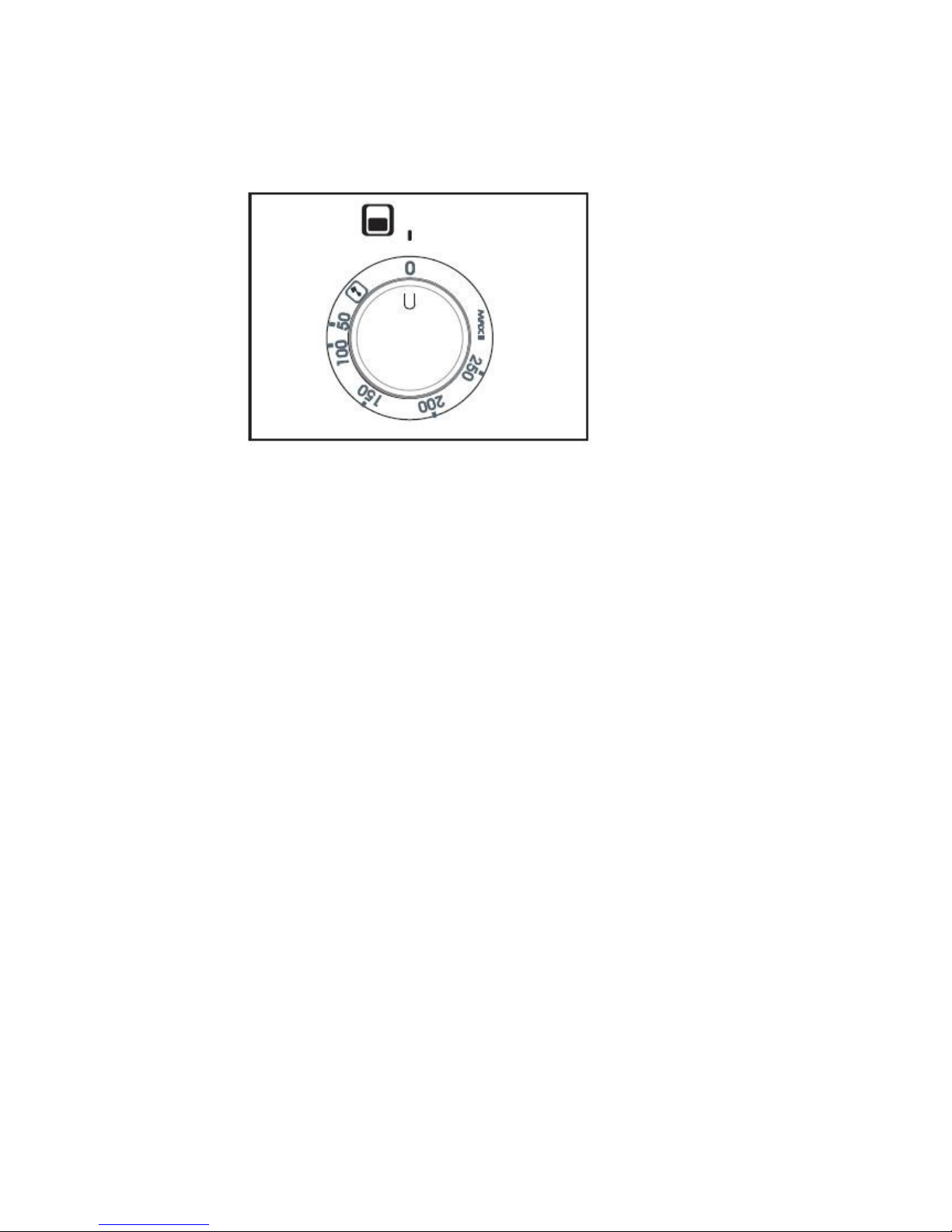

3.2.3. Main Oven
To operate the oven, turn the control knob to the required heat
setting. The thermostat light will come on until the required heat
setting is achieved.
When you have finished using the oven, turn the control knob
back to the off position.
When adding or removing items to an from the Oven you are
strongly advised to use Oven Gloves!

13
Section 4. Maintenance
Before any maintenance or cleaning work is carried out,
DISCONNECT the appliance from the ELECTRICITY supply and
ensure that the appliance is completely cool.
4.1. Cleaning the Oven & Grill
Clean spillages from inside the oven and grill as soon as possible
after use. Always ensure that the surfaces have cooled down before
cleaning.
Use a cloth with warm soapy water to clean the surface. If the
spillage has dried on the surface you may need to use a specialist
oven cleaner, available from all good supermarkets.
Clean the glass doors with warm soapy water – always ensure the
glass is cool before you clean it!
4.2. Cleaning the Ceramic Heat Zones
Clean spillages from the hob surface as soon as possible after use.
Always ensure that the surface has cooled down before cleaning.
Use a soft cloth or kitchen paper to clean the surface. If the spillage
has dried on the surface you may need to use a specialist Ceramic
hob cleaner.
Do not use other abrasive cleaners and/or wire wool etc as this may
scratch the surface of the hob.

14
4.3. What to do if something goes wrong
There is no power to the appliance:
- Check there is not a power cut
- Check there is power to the electric socket/appliance
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and
return it with a stamp affixed or Alternatively you can Register online at
www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model
number, serial number, date of purchase and your retailer’s details before
registering a fault.
Your service call cannot progress without this information.

15

16
Important Note:
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, the Crossed Out Wheelie Bin,
indicates that this appliance may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local
environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our
customers.
For this reason we reserve the right to make changes to any product
at any time, without notice
Issue: 16/09/2016 - WB
52178468 11/15
