montpellier MBUL101 User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Built Under Larder Fridge
MBUL101

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

2 | Instruction Manual
Contents
IMPORTANT: Please read the user instructions carefully before
using the appliance for the first time and before installing it.
Failure to install the appliance, or to have it installed, asper
the user manual could invalidate the warranty. Any service
calls relating to misuse or incorrect installation could incur a
service charge.
3
5
6
7
8
9
10
11
12
14
15
1 7
19
22
23
Important information
Important safety and usage instructions
Before first use
General use of the fridge
Storage and use
Controls
Care and cleaning
Defrosting the fridge
Troubleshooting
Installation and ventilation
Mounting the fascia doors
Reversing the fridge door
Electrical information
Changing the light bulb
Climate range
Practical tips
Energy Efficiency information
Warranty and service
21
21
24

3 | Instruction Manual
Important Information
The Manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that the Manufacturer reserves the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse
of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have
had supervision or instructions on how to use the appliance by
someone who is responsible for theirsafety.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee
purposes.
EU Declarations of Conformity
This appliance has been manufactured to the strictest standards
and complies with all applicable legislation, including Electrical
safety(LVD)2014/35/EUandElectromagnetic interference (EMC)
2014/30/EU. Parts intended to come into contact with food conform
to 1935/2004/EC.
Appliance Model
Serial Number
MBUL101

Instruction Manual | 4
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of
as urban waste. The refrigeration system contains insulating gases
and refrigerants, which require specialised waste disposal. The
valuable materials contained in this appliance can be recycled.
It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Before disposing of an old appliance, remove the door seals, latch
or bolt lock to avoid the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both
energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a
crossed-out wheeled dustbin

5| Instruction Manual
Important Safety and Usage
Instructions
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This is a household appliance, which is produced in accordance
with the national standard. It is intended for food storage only,
not for storage of blood, medicine and biological products.
To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
To prevent risk of electromagnetic interference or other
accidents, do not place a microwave oven on top of the
refrigerator or use any electric appliance inside therefrigerator.
Do not allow children to play with or near the appliance.
The internal surfaces of the fridge compartment may be very cold
when the appliance is running. Avoid touching, if possible, the
surfaces especially when hands are wet.
Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
This appliance is designed to be used in ambient temperatures
between 18˚C and 38˚C. Use outside of this range may cause the
appliance to fail.

Instruction Manual | 6
Before first use
You must allow the fridge to settle for at least twenty four hours
prior to switching the power on.
It is recommended that you clean the interior of the appliance prior
to first use, using a solution of bicarbonate of soda and warm water
and then thoroughly drying the interior.
The fridge may have an odour to it at first use. This will disappear
as the appliance cools.
When first switching the appliance on it is advisable to set the
fridge to setting 3 and leavethe fridge to settle for 24 hours
before adjusting the temperature to the preferred setting.
Please note:
The appliance will work continuously until it comes down to the
correct temperature.
If the appliance is switched off, you should allow five minutes
before switching it on again to prevent unnecessary damage to the
compressor.
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This fridge cools your food by making the inside back of the
cavity cold. It is normal for frost to build up on this surface; it then
dissipates and drains through a small drain at the bottom, where it
evaporates harmlessly. The presence of frosting at the back is not a
malfunction of the fridge.
This refrigeration appliance is intended for use as a built-in
appliance

General use of the fridge
Fridge
• Never put liquids in the refrigerator uncovered
• Never put hot foods in the refrigerator. Warm food should
be allowed to cool to room temperature before being put
into the refrigerator
• Nothing should rest against the rear wall of the refrigerator as this
is a wet wall appliance which during normal usage will form

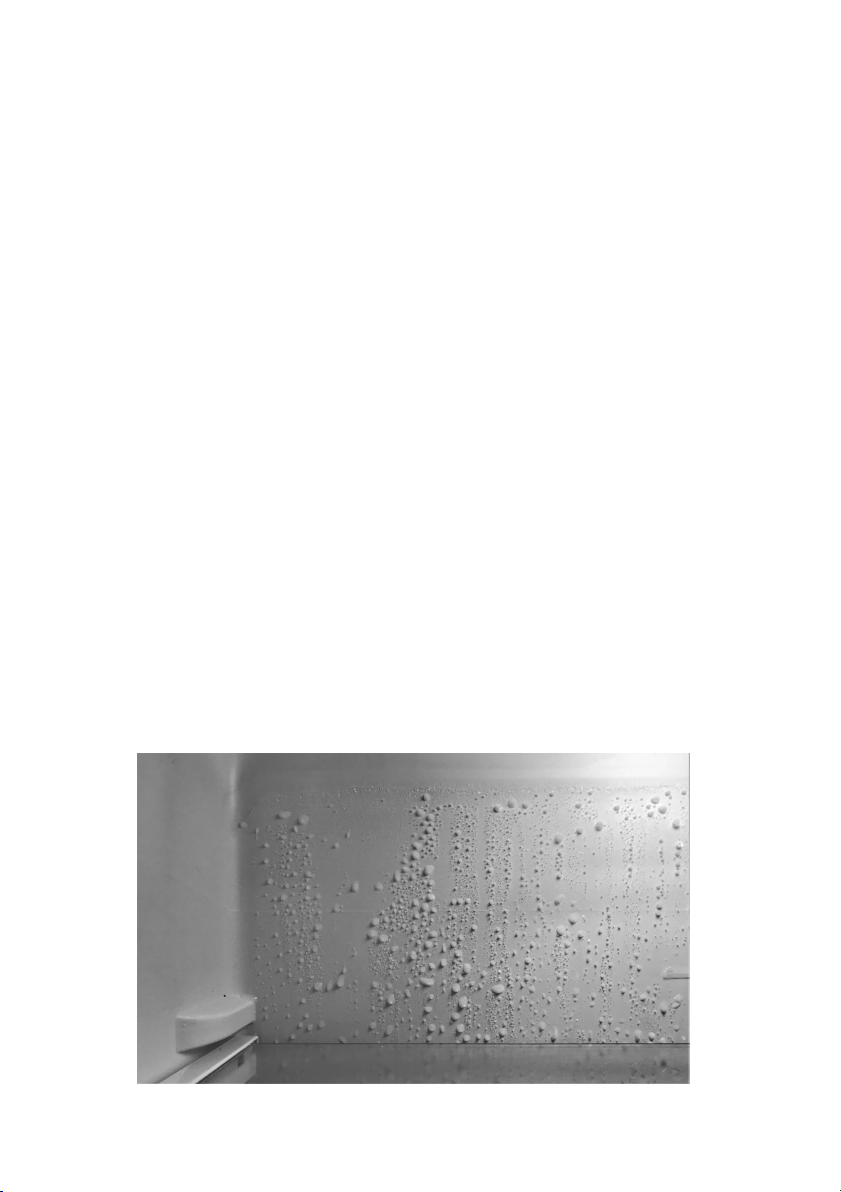

droplets of ice on the rear wall(ref to image on Page13)and
cause items to freeze to the back wall.
• Make sure food is clean and any extra water is wiped away before
putting into the fridge
• Wrap or cover food before putting into the fridge. This will help
prevent the loss of moisture, keep food fresh and avoid
unpleasant odours
• Sort foods prior to storing. Any foods to be used soon should be
stored at the front of the shelf to prevent deterioration caused
by the door being open for prolonged periods
• Do not overfill the fridge. There should be sufficient space
between the foods to allow the cool air to circulate
• Thawing frozen foods in the fridge compartment will help to keep
the temperature low and save energy
7| Instruction Manual
)
Note: If the appliance does not have a freezer compartment (
it is not suitable for freezingfoodstuffs.

Instruction Manual | 8
Storage and use
The fridge is for short term food storage. Although the
temperature can be maintained between 0-10˚C, extended
periods of food storage is notrecommended.
As the cold air circulates within the fridge, the temperature can
vary between the different sections. As such, foods should be
stored in different sections according to type.
1. Butter and eggs
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yoghurts and cheese
6. Fresh meat and fish
7. Fruit and vegetables
The fridge shelves can be moved according to the storage
requirements within the fridge section. To move the shelf, lift up
the front section and then pull it outwards. To replace, slide the
shelf back into the slot, and lower the front section.
When storing root vegetables with leaves, such as carrots or
turnips, their leaves should be removed. This prevents the leaves
from absorbing nutrients from within the vegetables.
Fig.1
3
7 7
1
2
4
5
6

9 | Instruction Manual
Controls
Temperature control
The temperature controls for this fridge are simple and easy to
use. To change the temperature simply press the adjust button on
the right hand side of the unit to cycle through settings 1 to 5. The
warmest setting being 1 and the coldest being 5.
After changing the temperature setting, the time taken to achieve
the new temperature will depend on how big the change is
from the previous setting.
Switching on andoff
When the fridge is connected to a power supply the lights
below the setting numbers will illuminate, indicating which setting is
currently being used.
To switch the appliance on and off simply press and hold the
power button on the left hand side of the unit for approximately
5 seconds

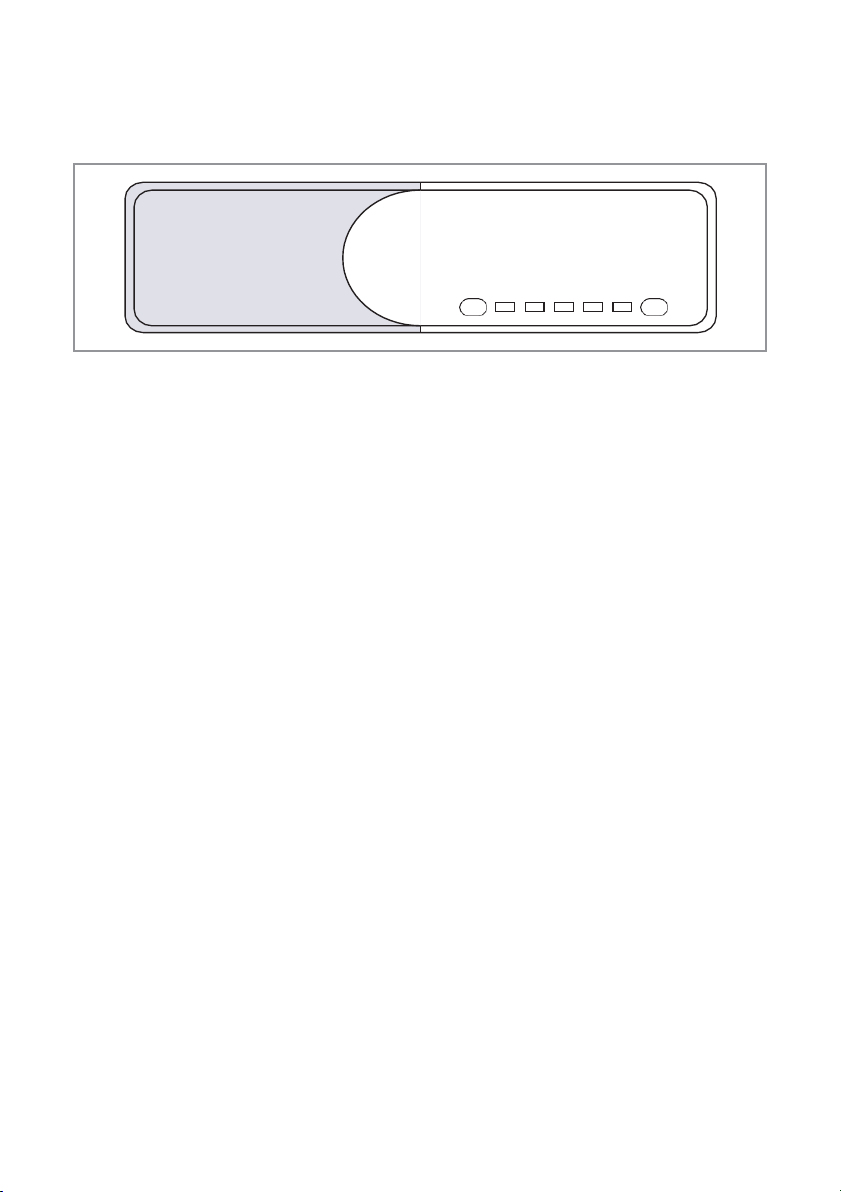

Fig. 2
Adjust
Power
1 2 3 4 5

Instruction Manual | 10
Care and cleaning
Always disconnect the appliance
from the power supply before any
cleaning or maintenance.
The fridge and crisper sections
should be cleaned using a solution
of bicarbonate of soda and lukewarm
water. Do not use abrasive products or
detergents. After washing, rinse and
dry thoroughly.
Clean the shelves, drawers and
balconies separately by hand with a
mild solution of washing up liquid and water. Do not put them
in the dishwasher.
The water drain hole at the back of the fridge compartment and
the evaporating tray should be cleaned periodically to prevent the
defrosted water from collecting inside the fridge compartment. The
cleaning rod can be used to clean the drain hole. Always ensure
that the drainage channel, visible at the rear of the appliance,
is kept clear of debris. If you notice that the drain hole/ channel
is iced over, use warm (not boiling) water to remove the ice
blockage.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours.
Cleaning Rod
Water Outlet
Fig. 3
Drain Hole

11| InstructionManual
Defrosting the fridge
The fridge is self-defrosting. Any water created will run out of the
fridge through the channel at the back of the fridge.
It is important to keep the channel clear at all times using the
cleaning tool supplied.
The defrosted water is collected in the evaporating tray at the back
of the appliance and dissipated by evaporation.
If you notice a heavy build up of ice, refer to the
troubleshooting section on ice on page 11.

Instruction Manual | 12
Troubleshooting
If you have any problems with your appliance, you should check
the troubleshooting guide prior to calling the Customer Care to
prevent unnecessary service calls and potential cost. Contact
details are on the back cover of this manual
If the appliance is not working, check the following:
• There is power to the appliance
• The house fuses are intact and the fuse in the plug has not
blown
• The on/off switch is not set to off
• The plug socket is functioning FRUUHFWO\. To check this, plug
anotherelectrical appliance in to see if the socket is faulty
If the appliance is working, but not very well, check the
following:
• The appliance is not overloaded
• The thermostat is set to an appropriate temperature
• The doors are closing properly
• The cooling system at the rear of the appliance is clean and free
of dust, and not touching the rearwall
• There is enough ventilation at the siderear wallsDQG
XQGHUQHDWK
• The lower vents are neither blocked nordirty
If the appliance is noisy, check the following:
• The appliance is level and stable
• The side and rear walls are clear, and there is nothing resting on
the appliance
• Note: The cooling gas in the refrigerator may make a slight
bubbling or gurgling noise, even when the compressor is not
running

13| InstructionManual
If there is water in the lower part of the refrigerator
compartment:
• Check the drain hole in the channel at the back of the
refrigerator is clear. If this is blocked refer back to Care and
Cleaning (page10)
• Make sure no food or items are touching the back wall of the
fridge as this may cause items to freeze to the back wall and
during the automatic de-frost function water may run on to the
shelves as well as in to the lower part of the fridge.
If ice has formed on the back wall of the fridge:
• It is normal for some ice droplets to form on the back wall of the
fridge(see below image) as this is a wet wall fridge. This does not
constitute a fault with the appliance
• Check that there is some resistance when opening the door of
the appliance. If it opens at the slightest touch it may mean that
the door seal needs to be replaced or the appliance is not
correctly installed
• Check the door seal for any kinks, debris or damage. If you
notice any, and are unable to resolve the issue yourself, contact
the Customer Care so that the seal can be replaced

Instruction Manual | 14
Installation and ventilation
This appliance must never be installed close to heat sources,
e.g. heating elements, cookers or in damp places.
• To ensure the appliance is level, you should use the height
adjustable feet at the front and rear of theappliance
• The ventilation system at the bottom of the appliance must not
be blocked
• Fig. 4 shows the installation requirements for your appliance. All
measurements are in millimetres. Failure to install the appliance
correctly can lead to increased running costs, premature failure
and may invalidate the warranty provided with the appliance
Fig. 4

15| InstructionManual
Mounting the fascia doors
Fig. 6 - Fitting the decor door bracket
Remove the white decorative cover (Fig. 5) by lifting it upwards.
Obtain the below measurements:
Dimension B = Measure
from the underside surface
of kitchen unit to the
bottom of fixing bracket.
Dimension C = Measure
from the underside surface
of kitchen unit to the top
of next unit door.
Unscrew and remove the
Fig. 5
1
2
Fig. 7
nuts and washers from the
top of the appliance door to remove
the bracket.
Fig. 7 - Fitting the decor door bracket
Subtract C from B and put the
fixing bracket (2) in place using this
measurement for the vertical position
and place to the centre for horizontal
position. Secure the fixing bracket (2)
using screws(1).
Fig. 8 - Fitting the decor door
Place the decor door onto the
appliance door by inserting adjustment
bolts into the slots on the
fixing
bracket. Locate the washers and screw
the nuts onto the adjustment bolts. Fig. 8

Instruction Manual | 16
Fitting the decor door base fixings
With the appliance door open, locate the metal decor door base
fixing brackets and screw the fixings to the decor door. You may
need to remove and re-fit these brackets depending upon the
decor door used.
Fitting the decorative cover
Re-fit the decorative cover, that you removed in the first step, on
to the decor door fixing bracket. Check that the whole door
assembly operates smoothly and that the door seal of the
refrigerator is still creating a seal.
3
4
Fig.9-Aligningthedecordoor
Close the door and check the
alignment with the other unit doors.
Adjust the decor door by screwing or
unscrewing the adjustment bolts (3)
for vertical adjustment and by the
help of the slots on the fixing bracket
for other directions. Lock the screws
into place(4) once the door is
correctly positioned.
Fig. 9

17| InstructionManual
Reversing the fridge door
We recommend you seek the help of another individual to support
the doors whilst performing thisoperation.
1. Open the door
2. Carefully prise off the white cover
caps for the side that you wish to
switch the hinges to
3. Loosen the screws that hold the
hinges to the fridge cabinet and
remove the door
4. Remove the screws that secure the
hinge to the door
5. Place the door somewhere
safe where it will not cause or
receive damage

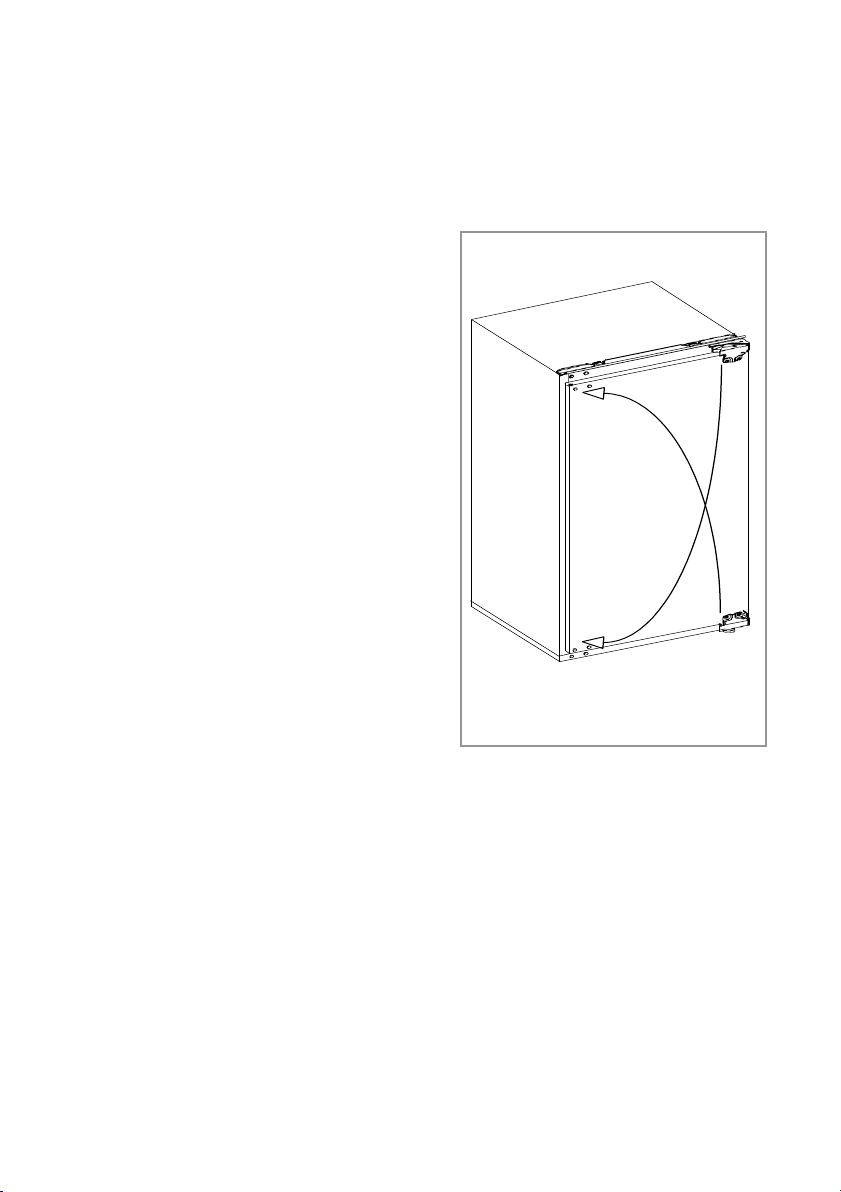

6. Relocate the hinges to their
opposing corners as shown in Fig.
10
7. Refit the door to the hinges.
Do not turn the door upside
down
8. Insert the cover caps (3) on the
opposite side in the exposed
holes
9. Ensure that the door seal is
correct, as per page 17
Fig. 10

Instruction Manual | 18
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been
reversed.
With the door closed, use a hair dryer to expand the seal and fill the
gap between the door and the body of the appliance.
Take care not to use the hair dryer too close to the appliance, which
could damage the seal. A distance of approximately 10cm should be
adequate.
When completed, allow the seal and door to cool before touching
them.
Once done, the seal will remain in position.

19| InstructionManual
Electrical information
Warning! This appliance must be earthed.
The mains lead of this appliance has been fitted with a BS 1363A
13A fused plug. To change a fuse in this type of plug, follow the
steps below:
1. Remove the fuse cover(A) and fuse(B)
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into
the fuse cover
3. Replace fuse cover
Important: Do not use the appliance without the fuse cover in
position.
How to connect an alternative plug
If the fitted plug is not suitable for your socket outlet, then it
should be cut off and disposed of safely to avoid possible shock
hazard. A suitable alternative plug of at least 13 amp rating to BS
1363 should be used.
Fig.11
Blue toNeutral
13A Fuse
Cord Clamp
B
Brown to live
A
Green and yellow to earth
13 A
