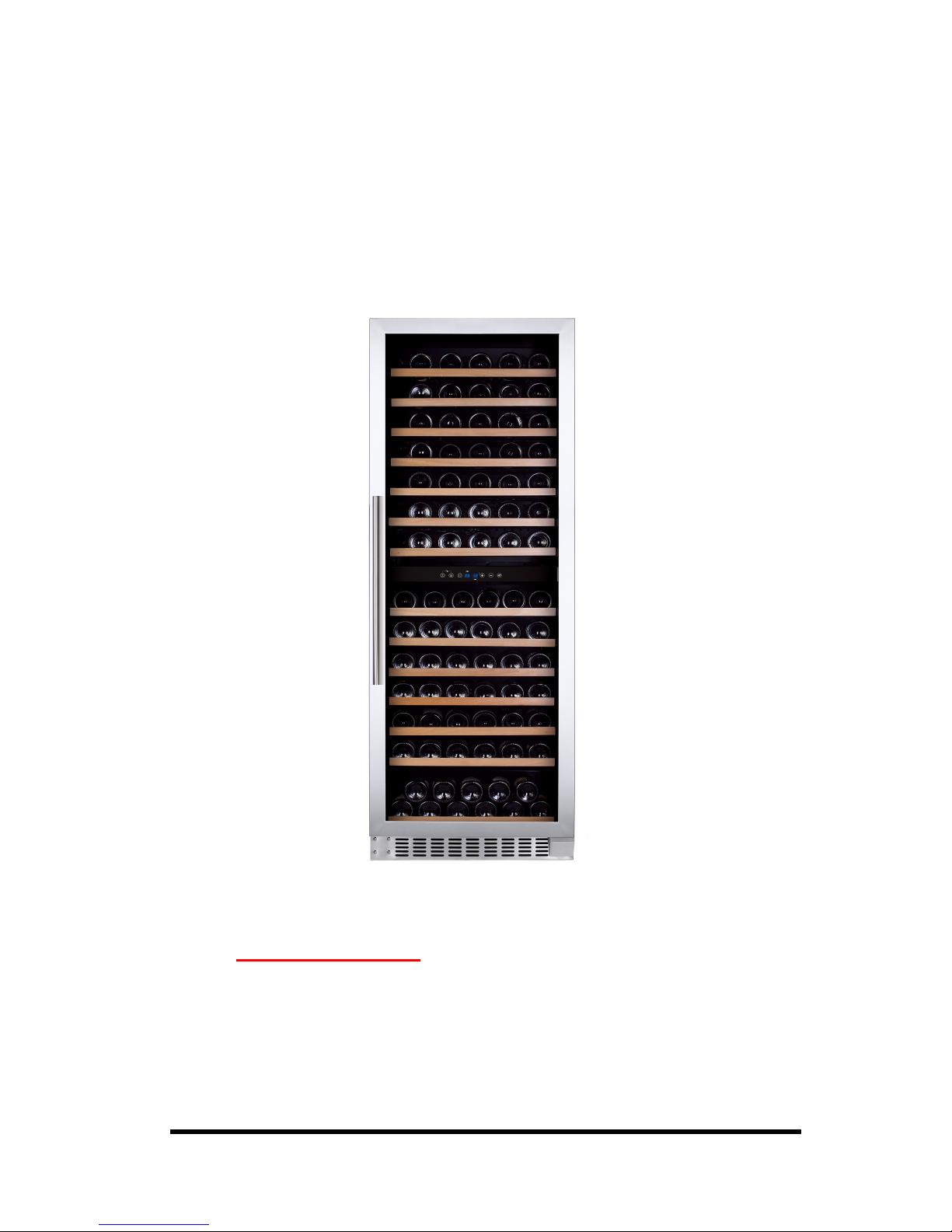

montpellier MON-WS166SDX User manual

montpellier
Installation and Operating Instructions
MODEL: MON-WS166SDX
WINE COOLER
N.B. This appliance is intended to be used exclusively for the storage of wine
and is for DOMESTIC USE ONLY and specifically excludes, but is not limited to
use in Wine Bars, Pubs, Restaurants, Guest Houses, Hotels and Catering
Services.
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
this manual.

2
Introduction
Thank you for choosing this montpellier appliance. It has been
designed to give years of trouble-free use provided it is installed
and maintained correctly.
N.B. This appliance is intended to be used exclusively for the
storage of wine and is for DOMESTIC USE ONLY and
specifically excludes, but is not limited to use in Wine Bars,
Pubs, Restaurants, Guest Houses, Hotels and Catering
Services.
Please read these instructions carefully before installing or using
your appliance. It is advisable to keep your purchase and installation
receipts with these instructions in a safe place for future reference.
Included is some important safety information in addition to
guidelines and recommendations that will enable you to take full
advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in accordance
with current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do not
use it, contact your retailer immediately.

3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you against
the cost of repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number
and proof of purchase, such as a Sales Receipt, showing that the appliance was
purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or inexpert
repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors following
door reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a
stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

4
Description of the Appliance
1. Control Panel & LED Display
2. Shelves (x 14)
3. Tempered Glass Door
4. Door Handle
5. Levelling Feet
6. Ventilation Panel
2.
2.
3.
1.
4.
5.
6.

5
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
This appliance is intended to be used exclusively for the storage of wine.
This appliance is designed for domestic use only and should be operated in
ambient temperatures (surrounding air temperature) between 16°C and 32°C
(61-90°F). If these temperatures are exceeded i.e. colder or warmer, the
appliance will not operate correctly.
1.1. Before Use
Remove all securing tapes. Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml to 0.5 litre of water). Do not
use soap or detergent as the smell may linger. Dry the appliance thoroughly.
1.2. Installing the Door Handle
Carefully ease the door seal to one side
Attach the door handle using the two screws
Ease the door seal back into place
1.3. Installation & Ventilation Requirements
To ensure correct operation this appliance must not be located where the
temperatures may fall below 16°C or rise above 32°C.
Avoid the following locations: unheated kitchen, outhouse, conservatory,
garage.
For correct operation this appliance must be installed:
-In a dry atmosphere
-Out of direct sunlight.
-Away from extreme temperature (not next to a cooker or other sources of
heat)
Ensure the following points are observed during installation:
-The appliance must be placed on a strong floor
-The appliance must be level. Adjust the level by screwing the adjustable
foot up or down (use your fingers or a suitable spanner)
-The appliance must be upright and in firm contact with the floor so that
the cabinet is stable.
-You must ensure that the Front Ventilation Panel remains clear.

7
1.4. Shelves
The shelves can be pulled out by approximately 1/3 in order to facilitate
access to your wine.
Depending on the model supplied, your wine cooler will be fitted with
non-telescopic or telescopic shelves (see image below).
Always ensure that the door is fully open before pulling out the shelves.
Failure to do this may damage the door seal which may not be covered
under the guarantee.
Do not place any form of material across the shelves as this will prevent
air-circulation inside the unit and prevent your wine cooler from operating
correctly.

8
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
-If this appliance is to replace an old refrigerator with a lock; as a safety
measure break or remove the lock and/or door before disposal.
-Your old appliances contain insulation gases and refrigerant that must be
disposed of correctly. Please ensure that the refrigerant circuit is not
damaged before the appliance is taken away for correct disposal in line
with current legislation. If there is any doubt contact your Local Authority
for instructions.
-This appliance may contain the refrigerant isobutene (R600a). This is a
natural gas with a high level of environmental compatibility; however,
caution is required as isobutene is a flammable gas. It is essential to ensure
that refrigerant tubes are not damaged during transportation and the
installation of the appliance. In the event that the refrigerant circuit is
damaged, avoid naked flames or sources of ignition and ventilate the room
in which the appliance is situated.
-Do not damage the refrigerant circuit.
-The appliance shall not be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction on how to use the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision.
-Do not allow children to play with the appliance. Children must never
play in or around the appliance.
-If using an adaptor, this must be used in accordance with the
manufacturer’s instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot surfaces.
-Do not plug ın or unplug this appliance with wet hands.
-Following installation make sure that the power cable is not trapped
underneath the appliance.
-If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in order to
avoid a hazard.

9
Section 3. Operating the Appliance
3.1. Switching on the Appliance
-Allow the appliance to stand for a minimum of 4 hours after installation.
-Plug in the appliance and switch on at the mains supply.
-Press and hold the Power button for 10 seconds (To turn the unit off,
simply press and hold the Power button for 10 seconds).
-Set the temperature control to the required setting as detailed in the
Temperature Control section.
-Leave the appliance for approximately 4 hours for the correct
temperature to be reached.
-To lock the control panel, press and hold the Power & Lighting buttons
for 3 seconds. (Press and hold for 3 seconds to de-activate).
3.2. Temperature Control
Please note that this is a wine cooler and not a fridge. This appliance is
intended to be used exclusively for the storage of wine. The interior of this
appliance will not get as cold as a fridge – it is designed to maintain wines
at the correct temperature. The temperature range is 2°- 12°C (36-54°F) for
the Upper Zone and 12°- 20°C (54-68°F) for the Lower Zone.
-Press the °C/°F Interchange button to change between Fahrenheit (°F)
& Celsius (°C).
-Press the ‘Lighting’ button to turn on or turn off the interior light.
-Select the Zone by pressing the ‘Zone Select’ button
-Adjust the temperature by pressing ‘+’ or ‘-’
-After approximately 10 seconds, the display will revert to showing the
current temperature inside the cabinet. N.B. It will take a period of time
for the appliance to reach the actual required temperature following
the setting or adjustment of the temperature on the control panel.

10
3.3. Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out.
3.4. Energy Saving Advice
Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator. Locate the appliance in a cool well-ventilated room and
make sure that the air vents are clear.
Try to avoid keeping the door open for long time, warm air will enter the cabinet,
and may cause condensation as well as affecting the energy consumption.
Ensure there are no obstructions preventing the door from closing properly
3.5. In the Event of a Power Failure
If there is a power failure, keep the door closed. When the power has been
restored the appliance will start to operate but it may take some time to achieve
the pre-set operating temperature.

11
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply.
4.1. Internal Cleaning
Clean the inside and accessories with warm water and bicarbonate of soda (5ml
to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents,
abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
4.2. External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive
products. There may be sharp edges on the underside of the product, so care
should be taken when cleaning. Once or twice a year dust the condenser (black
grille) and the compressor at the back of the appliance, with a brush or vacuum
cleaner, as an accumulation of dust will affect the performance of the appliance
and cause increased energy consumption.
4.3. When the appliance is not in use
When the appliance is not in use for long periods, i.e. nothing is being stored
in the appliance, disconnect from the electricity supply, clean the appliance,
leaving the door ajar until you wish to use the appliance again.
4.4. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
-Check the fuse in the plug (Must be 13 amp)
-Check that the Temperature Control has been set correctly (section 3.2.)
The compressor runs continuously:
-Is the door closed correctly?
-Have large quantities of bottles recently been added to the appliance? –
if yes, allow the interior temperature to recover
-Has the appliance door been opened frequently? – if yes, allow the
interior temperature to recover
-Check that the Temperature Control has not been set to maximum
There is excessive condensation and/or frost build-up:
-Ensure that the door has been closed correctly
-Ensure that the door seal is clean and sealing correctly
-Check that the Temperature Control has not been set to maximum

12
The appliance is making a noise:
-Refer to Normal Operating Sounds, section 3.3.
-Ensure that the appliance has been installed correctly (see section 1)
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack
and return it with a
stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model
number, serial
number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.
DOMESTIC APPLIANCE DISTRIBUTORS;
HENRY JOHN HOUSE
NORTHWAY LANE
ASHCHURCH
TEWKESBURY
GLOUCESTERSHIRE
GL20 8JH

13
Insurance
!
Any warranty provided with this product does not cover loss of
!
content
.
PLEASE NOTE: The manufacturer’s guarantee does not cover loss of content
and the manufacturer will not accept any claim for loss. It is strongly advised
that the contents of your wine cooler be added to your house insurance prior to
installation. Losses can result from deterioration following breakdown or
accidental failure of the appliance, fuses, plugs or public electricity supply, these
can be covered by your standard home insurance or might require extra cover.
Check with your insurance provider. We strongly recommend that you inspect
your fridge/freezer regularly to check that it is working correctly.
Important Note:
This appliance is marked according to the European directive 2002/96/EC
on Waste Electrical and Electronic Equipment (WEEE). By ensuring this
product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the
product, the Crossed Out Wheelie Bin, indicates that this appliance may
not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time,
without notice
Issue: 05/15-10-2015
