Mooer Radar User manual

Speaker CAB Simulator

CONTENTS
PRECAUTIONS 01
INTRODUCTION 02
MAIN FEATURES 02
03-04
SETUP
06
PRESET PAGE
07
EDITING PRESETS
POWER AMP SCREEN 07
CAB/MIC SCREEN 08
SAVING PRESETS
11
USB 12
CAB MODEL 13
SPECIFICATIONS 15
MIC MODEL 14
EQ SCREEN
09-11
PEDAL LAYOUT 05

PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Interference with other electrical devices and Cleaning
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
Clean only with a soft, dry cloth.
Power Supply
Please connect the designated AC adapter to an AC outlet of the correct voltage.
Please be sure to use only an AC adapter which supplies 12V DC, ,center
negative. Unplug the AC power adapter when not in use or during electrical storms.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metal, or other objects into this unit.
Take care not to drop the unit, and do not subject it to shock or excessive pressure.
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
Connections
Always turn off the power and all other equipment before connecting or
disconnecting. This will help prevent malfunction and damage to any of the devices.
Make sure to unplug all connection cables and power cords before moving this unit.
To avoid deformation, discoloration, or other serious damage,
do not expose this unit to the following conditions:
Direct sunlight
Magnetic fields
Excessively dusty or dirty location
Strong vibration or shock
Extreme temperature or humidity
High humidity or moisture
Heat sources
01

MAIN FEATURES
30 different speaker cab models
11 mic models
4 power amp models
Customizable EQ stage
Capable of loading custom IRS
Store and recall up to 36 user presets
Connect to PC editor via USB
Supports headphones and lineout
The MOOER RADAR is a full-featured professional speaker simulator which can
be a permanent resident at the end of your pedalboard. Not only does it carry 30
cab models but it also has optional microphone and power amp simulation. Ideal
for recording or hooked up to your favourite headphones for practice. The RADAR
will transform your pedalboard into a complete guitar rig.
INTRODUCTION
02

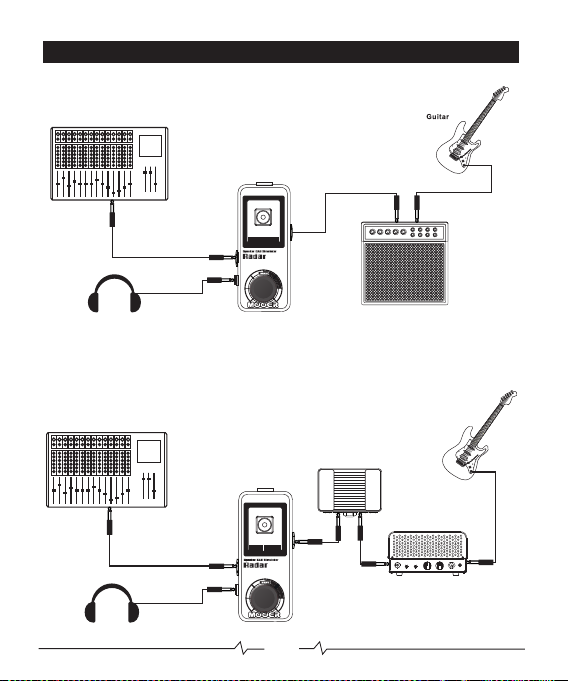

SETUP
U0 1
1x8
Cha mper
POWE R CAB E Q
PREAMP
PEDALBOARD
PEDALBOARD
U0 1
1x8
Cha mper
POWE R CAB E Q
CH/ CAB
DC9V
CH/ CAB
MICRO PREAMP
Radar
Radar
03

AMPLIFIER PREAMP
U0 1
1x8
Cha mper
POWE R CAB E Q
AMPLIFIER EFFECTS
SEND
U0 1
1x8
Champer
POWE R CAB E Q
AMPLIFIER SPEAKER OUT
Radar
Radar
Speaker out
Load
Box
Line out
AMP
04
SETUP

PEDAL LAYOUT
1.INPUT
Connect to your pedalboard
or preamp output using
a ¼” jack cable
2.OUTPUT
Connect to a soundcard or
mixing desk using a¼” jack cable
for unbalanced output
1/4” TRS stereo jack cable
for balanced output
3.HEADPHONE
Connect to your headphones or
soundcard using a 1/8” jack cable
4.SCREEN
Displays all menu’s and relevant
information
5.MENU
Used to programme and edit RADAR
6.DC IN
Connect to a12V DC power source
7.MICRO USB
Connect to a computer via micro USB
cable for loading custom IR models and
editing via the PC software
1
2
12V
3
4
5
5
7
6
U01
1x8
Champer
POWER C AB E Q
05

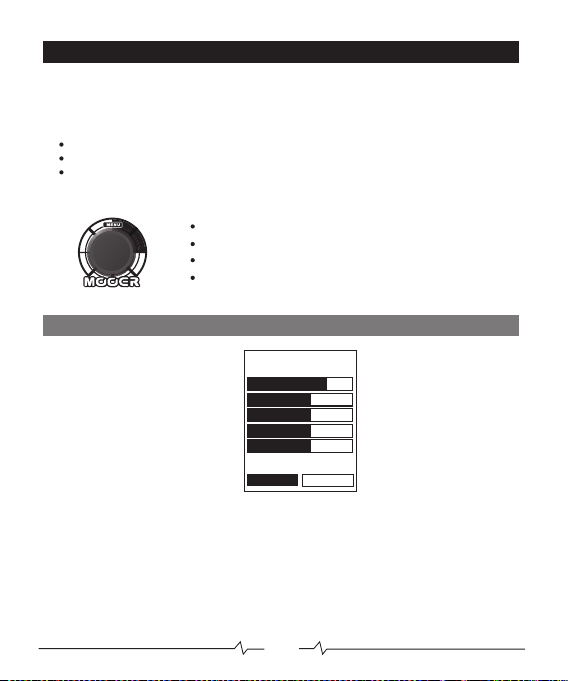

PRESET PAGE
In the preset selection page the screen will display various information
1. PRESET NUMBER
2. CAB MODEL
3. POWER AMP ON/OFF
4. CAB ON/OFF
5. EQ ON/OFF
01
02
05
03
ROTATE the MENU control to scroll through presets
PRESS to access master volume
ROTATE to adjust master volume
PRESS to return to PRESET PAGE
PRESS + HOLD for a second
to edit preset (see below)
PRESS + HOLD for 2 seconds to bypass
PRESS to return to PRESET PAGE
Bypass
NEXTSAVE
U01
ONPOWER AMP
INPUT
PRESENCE
TUBE 6V6
5.2
6.6
OUTPUT 6.7
Bypass
U01
100%
MASTER
U01
1x8
Champer
POWER CAB EQ
04
06

EDITING PRESETS
Editing presets is very easy with the RADAR. All of the parameters and settings
are spread out across 3 different edit screens. POWER AMP SCREEN, CAB/MIC
SCREEN, EQ SCREEN
To edit a preset
Select the preset you wish to edit on the PRESET PAGE
Press and hold the menu control for 1 second to edit the preset
Press and hold the menu control for 1 second at any point during editing
to return to the PRESET PAGE
Rotate the menu control to scroll through parameters
Press the menu control to select parameter
Rotate the menu control to adjust parameter value
Press the menu control to confirm
POWER AMP SCREEN
POWER AMP: Turn the power amp modelling on/off
TUBE: Select which power tubes are in the power amp
INPUT: Adjust the power amp input gain
PRESENCE: Adjust the power amp presence
OUTPUT: Adjust the power amp output volume
SAVE: Save the preset
NEXT: Move to CAB/MIC screen
NEXTSAVE
U01
ONPOWER AMP
INPUT
PRESENCE
TUBE 6V6
5.2
6.6
OUTPUT 6.7
07

CAB/MIC SCREEN
CAB
Turn the speaker cabinet modelling on/off
MODEL
Select the cabinet model
MIC
Select the microphone type
MIC VOL
Adjust the microphone gain level
C-EDGE
Adjust the horizontal position of the microphone in relation to cabinet driver
0 = Centre of speaker cone 30 = Edge of speaker cone
DISTANCE
Adjust the distance between the microphone and the speaker cabinet
0 = Close mic’d cab 50 =Far mic’d cab
BACK
Move to POWER AMP screen
SAVE
Save the preset
NEXT
Move to EQ screen
BACK SAVE NEXT
U01
ON
CAB
MODEL
1.Champer 1x8
C-EDGE 25
MIC VOL +04
DISTANCE
MIC
5
08

EQ SCREEN
RADAR contains 3 different post EQ sections which can be activated on the EQ screen.
GRAPHIC G – Designed for use with Guitar
GRAPHIC B – Designed for use with Bass Guitar
PARAMETRIC – Fully customizable parametric EQ
EQ/Hz
Select EQ type or deactivate the EQ section by selecting OFF
BACK
Move to CAB/MIC screen
SAVE
Save the preset
BACK SAVE
U01
EQ/Hz OFF
09

BACK SAVE
U01
Graphic.G
EQ/Hz
Graphic.G
110 -2.9
330 -0.5
800 -1.6
1.35K +5.3
2.00K +2.9
HP OUT LP 5.00K
BACK SAVE
U01
Graphic.B
EQ/Hz
50 0.0
120 0.0
360 0.0
800 0.0
4.00K 0.0
HP OUT LP OUT

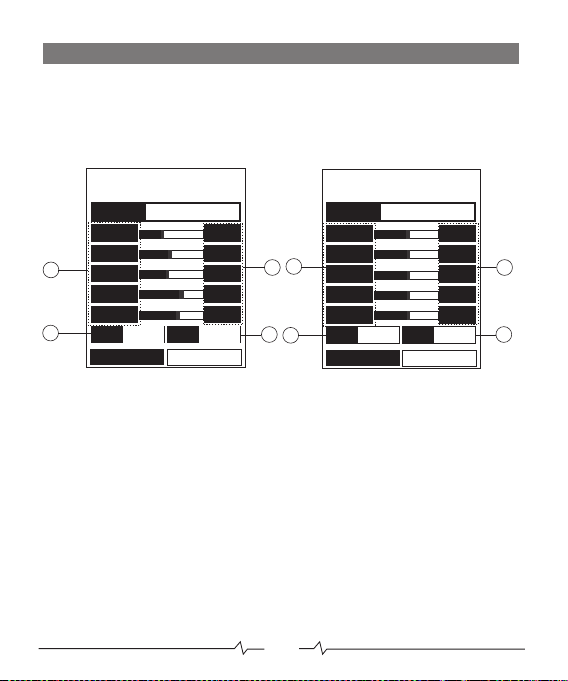

1. FREQUENCIES
Select the frequency for each band. These units are measured in Hz.
2. GAIN
Adjust the level of boost or attenuation. These units are measured in +/- dB.
0.0 = no boost or attenuation
3. HP
Activate and adjust a high pass filter
4. LP
Activate and adjust a low pass filter
Graphic.B
10
01 02
03 04
01 02
03 04
EQ SCREEN

SAVING PRESETS
Select SAVE to enter
the saving screen
BACK SAVE NEXT
U01
ON
CAB
MODEL
1.Champer 1x8
C-EDGE 25
MIC VOL +04
DISTANCE
MIC
5
SAVE CAN CEL
U01
PRE SET
U01
Select the PRESET space
you wish to save to
SAVE CAN CEL
U01
PRE SET
U01
Select save to confirm
Select CANCEL to exit
FREQ:Select the frequency for each band
DB:Adjust the level of boost or attenuation
Q:Adjust the Q value of the selected frequency adjustment
HP:Activate and adjust a high pass filter
LP:Activate and adjust a low pass filter
BACK SAVE
U01
Parametric
EQ/Hz
HP OUT HP OUT
FREQ Q
DB
A40 0.50
0.0
B40 0.50
0.0
C40 0.50
0.0
D40 0.50
0.0
Parametric
11
EQ SCREEN

USB
Connecting your RADAR cab sim to a Windows PC opens up a lot of nice extra features:
Preset management for importing/exporting presets
Fast and easy editing of preset parameters
rd
Downloading your favorite 3 party IR cab models to the device
Download the PC software from WWW.MOOERAUDIO.COM and follow the
instructions to get RADAR connected to your PC.
12
46
El34
4.5
5.5
6.7
U-1
U-2
U-3
U-4
U-5
U-6
U-7
U-8
U-9
U-10
U-11
U-12
U-13
U-14
U-15
U-16
U-16
U-17
U-18
U-19
OFF

Champer 1x8
V.Champer 1x8
Prince.B 1x10
Prince.S 1x10
65DLX 1x12
57DLX 1x12
Kitty 1x12
Ac15 1x12
Twinverb.S 2x12
Twinverb.B 2x12
Matchbox 2x12
AC30.B 2x12
AC30.S 2x12
Superverb 4x10
59Baseman 4x10
1960AG 4x12
1960BT 4x12
1960BV 4x12
UK.Citrus 4x12
Solo.L 4x12
Solo.S 4x12
Rect.S 4x12
Rect.T 4x12
German.V 4x12
German.G 4x12
B.SVT 1x15
B.SVT.S 1x15
B.SVT 4x10
B.SVT.S 4x10
B.SVT 8x10
Fender Champ Silverface
Fender Vibro Champ Silverface
Fender Princeton Tweed
Fender 65'princeton reverb
Fender 65 deluxe reverb
Fender 57 tweed deluxe
Bad cat
Vox AC15C1
Fender 70'twin reverb silverface
Fender 67'twin reverb blackface
Matchless chieftain
Vox V212H Alnico blue
Vox AC30 Jimi212 Silver bell
Fender 64'super reverb
Fender 59'bassman Tweed
Marshall 1960A Green back
Marshall 1960B G12T-75
Marshall 1960B V30
Orange ppc412
Soldano 4x12 Lucky
Soldano 4x12 Slant
Mesa boogie recto standard
Mesa boogie recto traditional
Diezel Rearloaded V30
Diezel Rearloaded G12-65Heritage
AMPEG SVT 15E
AMPEG SVT 15E (Subkick)
AMPEG SVT 410HE
AMPEG SVT 410HE(Subkick)
AMPEG SVT 810E
CAB MODEL
13
CAB MODEL
MODEL
Pleas e Note: All manufacturers and br and names mentioned above a re not
affiliated with MO OER or RADAR
BASED ON

MIC MODEL
14
Sm57
Sm58
Md421
Md441
U47
U87
RodeNT1
MXL2001P
MXL2003
C3000
C4000B
Shure SM 57 Dynamic
Shure SM 58 Dynamic
Sennheiser MD 421 Dynamic
Sennheiser MD 441U Dynamic
Neumann U47
Neumann U87
Rode NT-1
Marshall MXL 2001P
Marshall MXL 2003
AKG C3000
AKG C4000B
MIC MODEL
Pleas e Note: All manufacturers and br and names mentioned above a re not
affiliated with MO OER or RADAR
MODEL BASED ON

SPECIFICATIONS
Input:1/4” mono audio jack.(Impedance: 100k Ω)
Output:1/4” mono audio jack (Impedance: 470 Ω)
1/8” stereo audio jack (Impedance: 10 Ω)
Sampling rate: 44.1K
Sampling accuracy: 24bit
Signal to noise ratio: 100dB
Frequency Range: 20Hz~20KHz
Power requirements:12V DC
Only use the power supply provided
Current Draw:300mA
Dimensions:93.5mm(D) x 42mm(W) x 52mm(H)
Weight:150g
Accessories:Owner’s Manual, Power Supply
*Notes：Any specification’s update will not be amended in this manual.
15

MOOER AUDIO CO.,LTD
Shenzhen, China
www.mooeraudio.com
Part No:2030501257
