Moosoo TC1 Series User manual

User
Manual
TC1 Series
TC1 Mate/TC1 Pro Cordless Vacuum...
[email protected]
Mon. - Fri. 9am - 6pm (CST)
Contact us
We are here to help!
[email protected]

IMPORTANT SAFETY INSTRUCTIONS
WHAT'S IN THEBOX
OVERVIEW
ASSEMBLY
SPECIFICATION
OPERATING INSTRUCTIONS
CLEANING AND MAINTENANCE
CLEANING A CLOG
TROUBLESHOOTING
WARRANTY
1
3
4
5
6
7
14
19
20
21
1
2
3
4
5
6
7
8
9
10
TABLE OF
CONTENTS

1
1 2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
DAMAGE, OR INJURY:
1. To protect against electrical shock, do not immerse the power cord or plug in
water or any other liquid. Please always operate it with dry hands to avoid the
risk of electrical shock or serious personal injury.
2. Close supervision is necessary when any appliance is used by or near
children. This vacuum is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
common sense unless they are supervised or have been given instructions on
using the vacuum by a person responsible for their safety.
3. Do not use the vacuum outdoors. It is for household use only.
4. Do not use the vacuum if it has been dropped, damaged, left outdoors, or
dropped in water. Please contact customer service for help when the appliance
or the adapter is damaged.
5. Use the vacuum only as described in this manual. The use of accessory
attachments not recommended may cause damage to the vacuum or personal
injuries.
6. Do not use abrasive materials to clean the vacuum. Do not use spirits or other
solvents to clean the appliance.
7. Do not use the appliance to vacuum any of the items below:
•Water, flammable, or combustible liquids such as gasoline.
•Lighted stubs, matches, hot ashes, or other combustible items.
• Needles, pins, or other sharp items.
•Wood pieces, gesso, cement, calcimine, or other tiny granules.
•Pieces of string or fabric.
8. Do not pick up liquids with the vacuum or use it on wet floors. Do not immerse
the vacuum in water.
9. Do not use the vacuum on concrete, tar, or similar rough surfaces.
10. Do not vacuum frayed carpets or carpet tassels.
11. Do not use the vacuum without the dust cup lid in place.
12. Do not put any objects into openings of the vacuum. Do not use when any
openings are blocked. Keep free of dust, lint, hair, or anything that may reduce
air flow.
13. Keep hair, loose clothing, fingers, and all body parts away from openings and
moving parts.
14. Store the vacuum indoors. Store after use to prevent accidents.
15. Keep the vacuum cleaner away from stoves and heat-emitting appliances.
Heat can deform and discolor the plastic parts of the unit. Please use the vacuum
at the temperatures between 14ºF-104ºF.
16. Always remove the adapter from the power socket when the appliance is not
being charged.
17. Unplug charging cord from the appliance and power it off before cleaning or
performing maintenance, making tool adjustments, changing accessories, or
storing, to avoid powering it on accidentally.
18. The battery must be removed from the appliance before disposing of it.
19. The battery must be disposed of safely.
20. The appliance includes Li-ion batteries. Do not incinerate the batteries or
expose them to high temperatures, as they may explode.
21. The thermal cutout will switch off the vacuum automatically when it over-
heats. If this happens, turn off the power switch, and wait for 45 minutes to restart
the vacuum.
22. Use only the adapter provided by the manufacturer.
Keep the adapter away
from liquids.
Do not vacuum large
pieces of paper.
Do not vacuum flames
or flammable
substances.
Do not vacuum water
or liquids.
Do not remove the
plug by grasping the
cord.

23
Vacuum Main Body
Extend Tube
Electric Floor Brush
2-in-1 Crevice Tool
Electric Sofa Brush
Charging Wall Mount
Adapter
Pet Brush
Hose
Battery Pack
TC1-Mate TC1-Pro
3 4
Name Model
Vacuum Main Body Extend Tube Electric Floor Brush
2-in-1 CreviceTool
Electric Sofa Brush
Charging Wall Mount Adapter
Pet Brush TC1-Pro HoseTC1-Mate Hose
AirOutlet
FilterCase
DustCupLidLock
Button
ExtendTube
DustCup
BatteryPackButton
BatteryPack
ElectricSofaBrush
ChargingWallMount
ElectricFloorBrush
VacuumMainBody
TubeReleaseButton
DustCupRelease
Button
FloorBrushRelease
Button
PowerSwitch
2-in-1CreviceTool
SuctionLevelSwitch

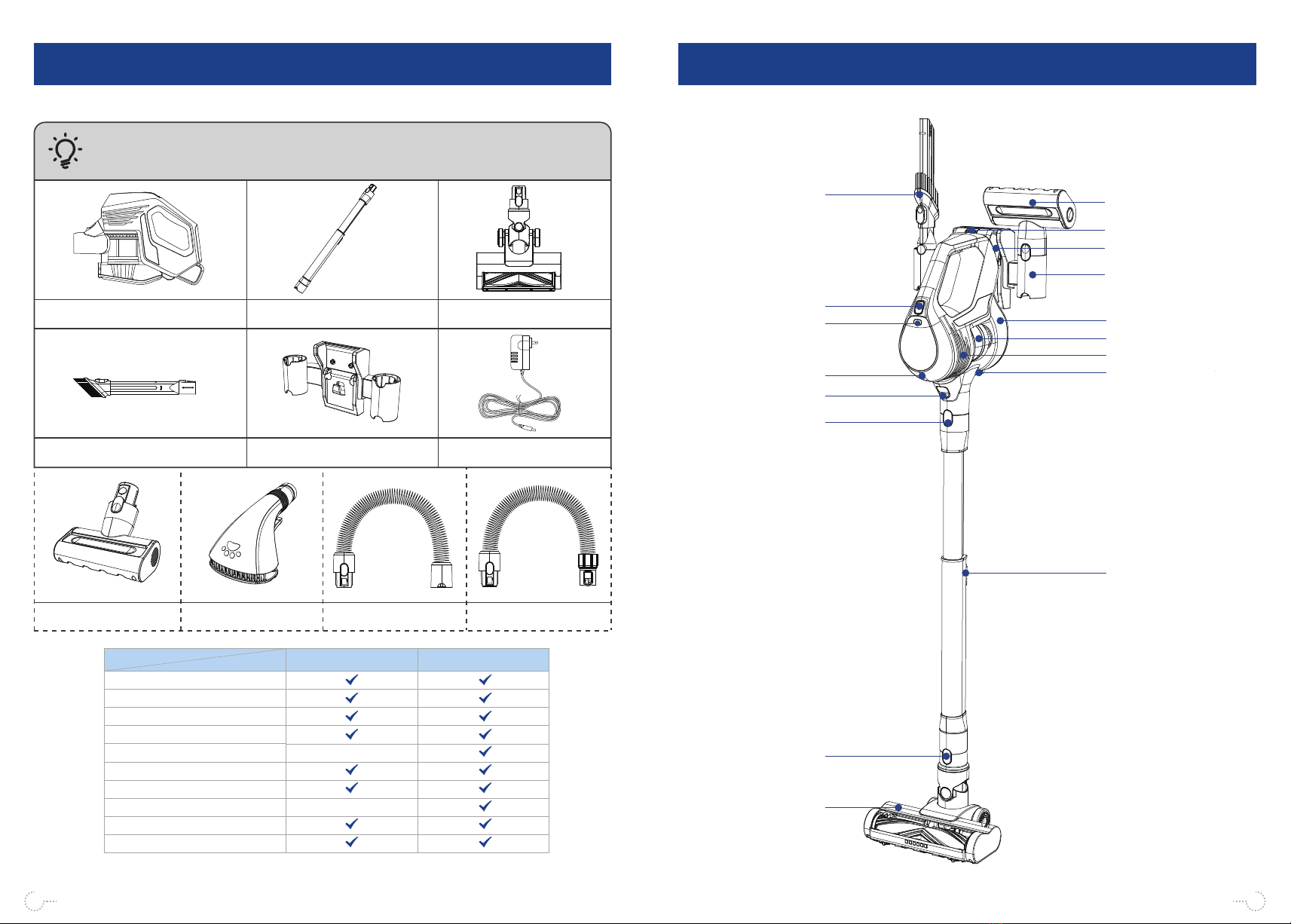

WHAT'S IN THE BOX
CAUTION:
Assemble the vacuum according to the "Assembly" section.
OVERVIEW

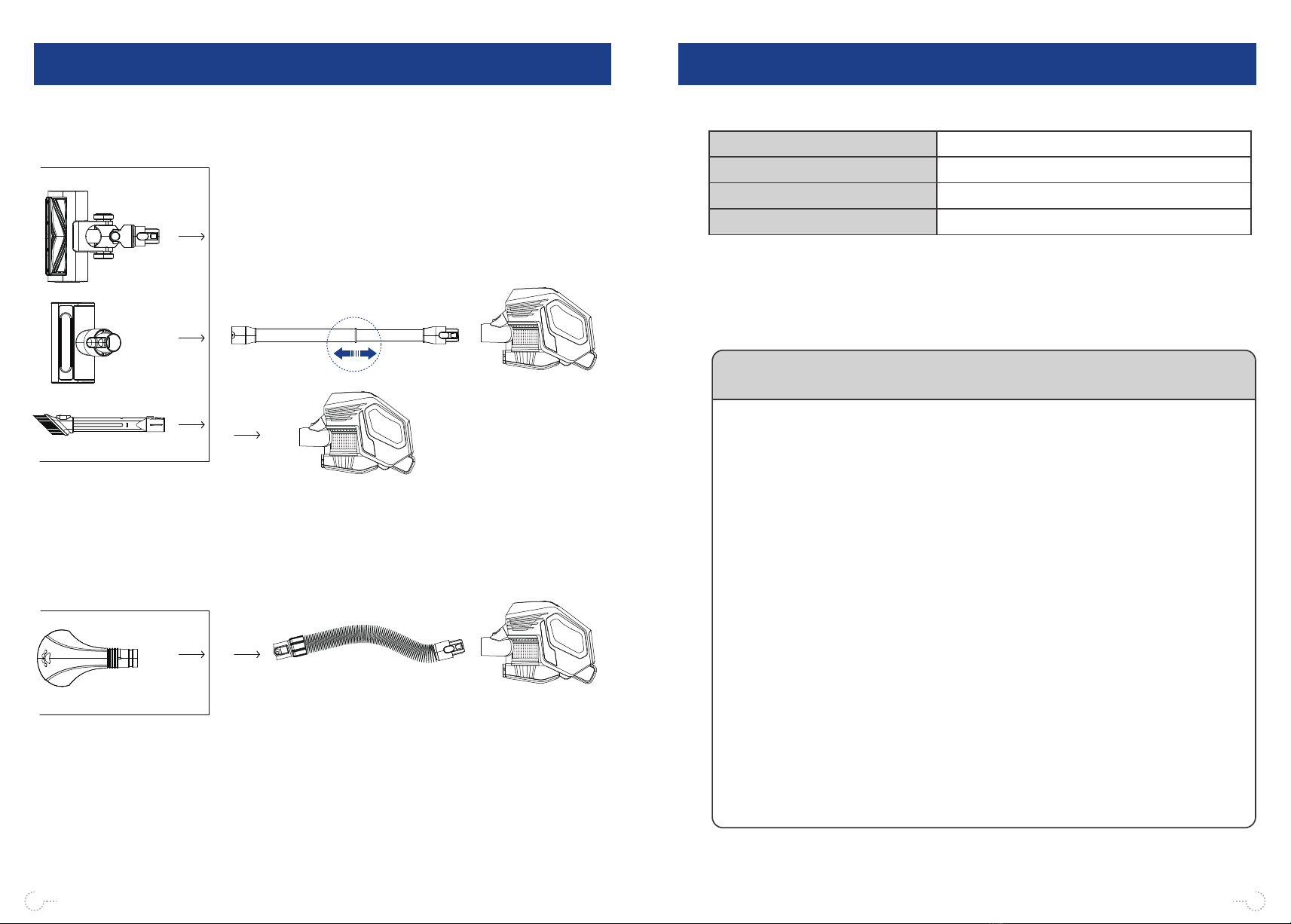

SPECIFICATIONS
54
5 6
Name
Model
Adapter Input Voltage
Adapter Output Voltage
Vacuum Cleaner
100V~240V 50/60Hz
31V 0.5A
TC1 Series
The chemical substances contained in the built-in lithium-ion battery of this
product will pollute the environment. Before scrapping the product, the
battery must be removed and handed over to a professional waste battery
recycling station for disposal. Do not dispose of old electrical appliances
with household waste discard.
Before disposing of your old machine, remove the dust cup and inner dust
cup filter assembly, which can be disposed of with normal household
waste.
CAUTION:
1. When discarding the machine, the battery pack must be removed and
disposed of properly, according to your area battery disposal regulations
or the universal waste management rule. Batteries contain materials that
are harmful to the environment.
2. Discarded batteries should be handled properly. Don't put them into
water, fire, or soil.
3. If the battery leakage touches skin or eyes, flush with water immediately
and seek the professional medical help.
Disposal：
ASSEMBLY

6
1 2
7 8
OPERATING INSTRUCTIONS

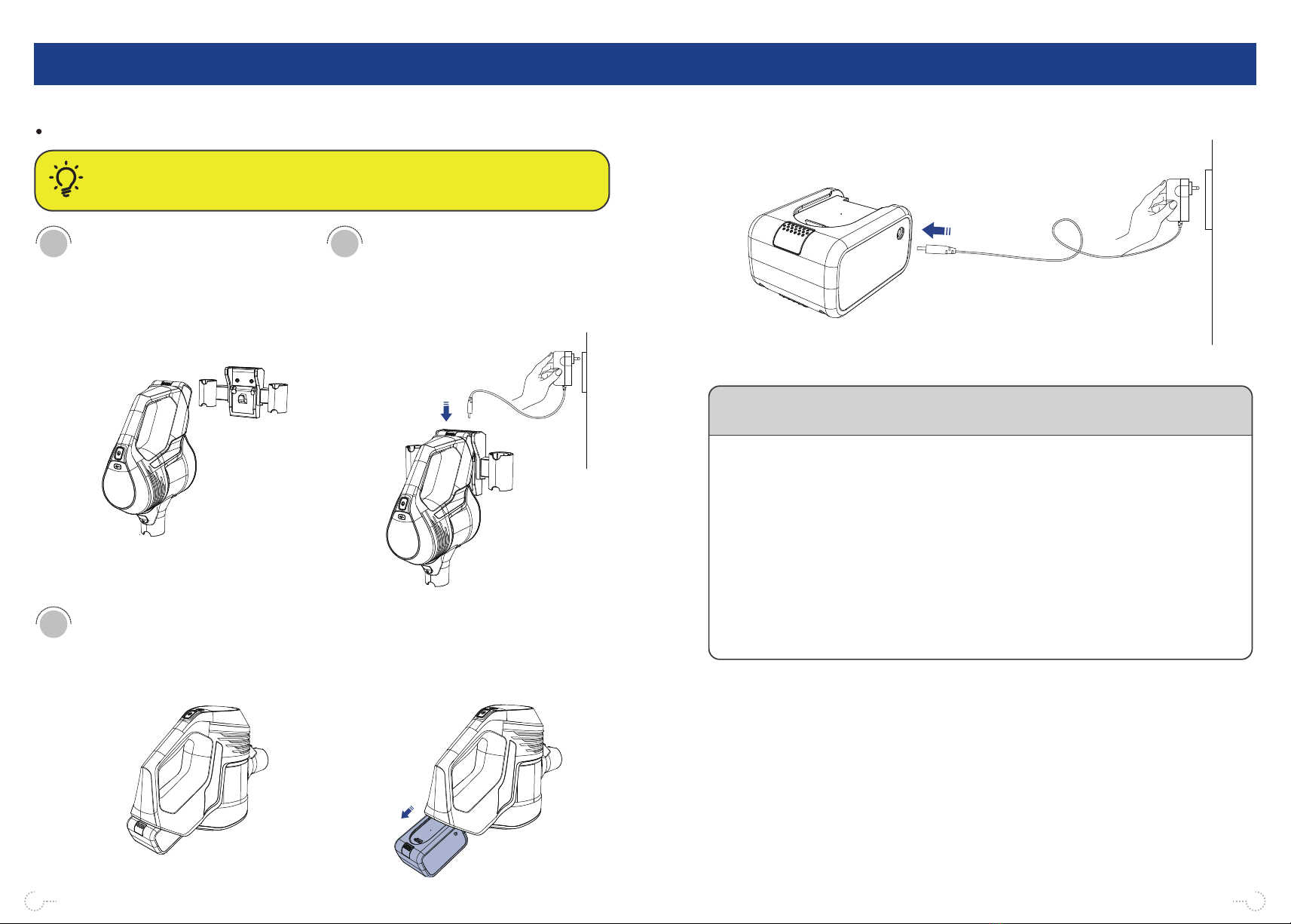

Charging Instruction
CAUTION:
It is important to fully charge your machine before using it for the first time and after every use.
Charging Wall Mount
To charge the machine, place
it directly on the charging wall
mount after every use.
Plug the adapter into a wall
outlet and connect to the wall
mount charging port.
Conecting the Adapter
with Wall Mount
Battery Pack Charging
(1) Press the battery pack
elease button.
(2) Take out the battery pack.
3
(3) Connect the adapter jack to the charging port of the battery pack.
Battery icon: usually white light steadily on , when the battery is lower
than 10%, the red light flashes until battery dead.
While charging:
Percent icon: white light always on.
Digital icon: according to the percentage of power white light steadily on.
Battery icon: white light flashing.
After fully charged: the battery icon white light steadily on.
Description of the Charging Indicator：

6
Normal Operation:
After power on, if the machine is running normally, the number in the middle of
the screen displays the remaining usage time (percentage), and the corresponding
suction icon is always on.
Indicator Troubleshooting:
1. “Brushroll Jam Indicator” — Check for and clear out blockage in the floor
brush if:
·The “Brushroll Jam Indicator” flashes until the screen goes off.
·The LED light on the floor brush is off.
·The floor brush stops rotating.
2. “Suction Blockage Indicator” — Clear out blockage in the suction port, dust
cup, and filters if:
·The “Suction Blockage Indicator” flashes until the screen goes off.
·The LED light on the floor brush is off.
·The floor brush stops rotating.
3. Charging Indicator
When the charging prompt icon on the screen turns red and flashes, it
means the charge is below 10%. At this time, it should be charged in time.
910
Crevice Tool Instruction
Extend Instruction
With brush: Press the button to move
the brush back to the fixed position to
clean the dust.
Without brush: Push the brush
forward to the fixed position to clean
the particles from the crevices
Tube Blockage
Indicator
Low Battery Alarm
Brushroll Jam Indicator
Suction Power Mode
(After turned on, the white light
steadily (no flashing). And flashing
red quickly when the battery is
below 10%.)
Press the button and pull the tube to
extend the length you need.
Press the button and shrink the
length of the tube .
OPERATING INSTRUCTIONS

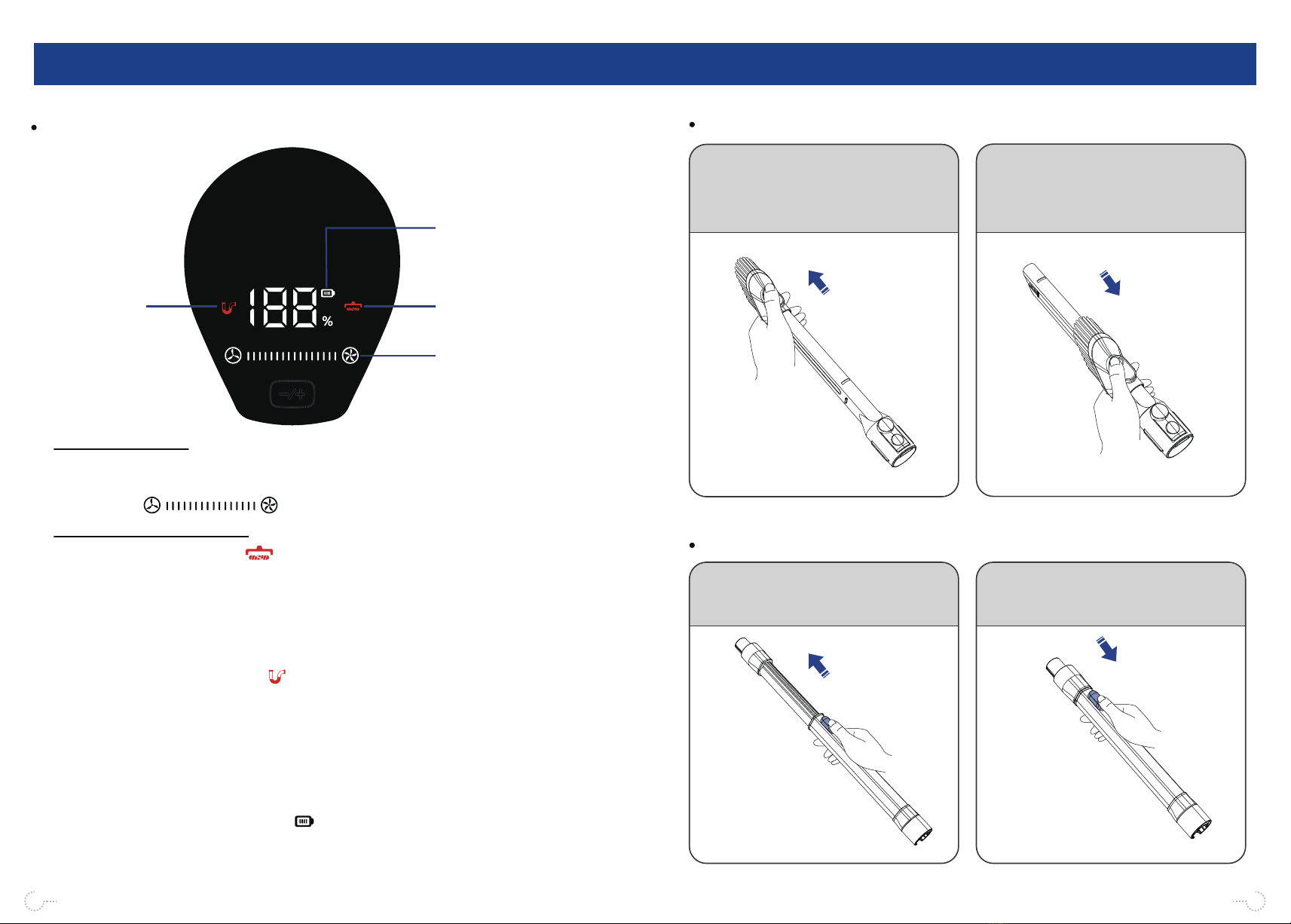

Indicator Light Instruction

Charging Wall Mount Instruction
Usingscrewstoconnectthetwosidestothemainboard.
6
1
11 12
OPERATING INSTRUCTIONS
Accessories Usage Guide
Floor Brush: suitable for carpets, floors, and other flat, horizontal surfaces.
Sofa Brush: suitable for surface dust, pet hair, mites, etc., on soft surfaces,
such as sofas or mattresses.
Crevice Tool: suitable for cleaning up dust and large particles in window
sills, door gaps, baseboards, and car interiors.
1
2
3
Pet Grooming Brush: suitable for removing floating hair from pets.
4

67
2
3
2
3
4
13 14
OPERATING INSTRUCTIONS
Plug the adapter into the wall socket and connect it to the charging port on
the charging base.
Charging the vacuum or storage the vacuum and accessories.
Please storage accessories on charging wall mount as illustrated below.
CLEANING AND MAINTENANCE
Clean the Dust Cup
Empty the dust cup when the dust inside has exceeded the MAX line.
Otherwise, the suction may be weakened.
CAUTION:
Always switch the vacuum OFF before attempting to empty the dust cup.
1
Remove the telescopic tube from the main body before maintaining and
cleaning the dust cup.
Open the dust cup lid to dump dust, Close the lid after emptying.

7
4
15 16
≥60℃
CLEANING AND MAINTENANCE

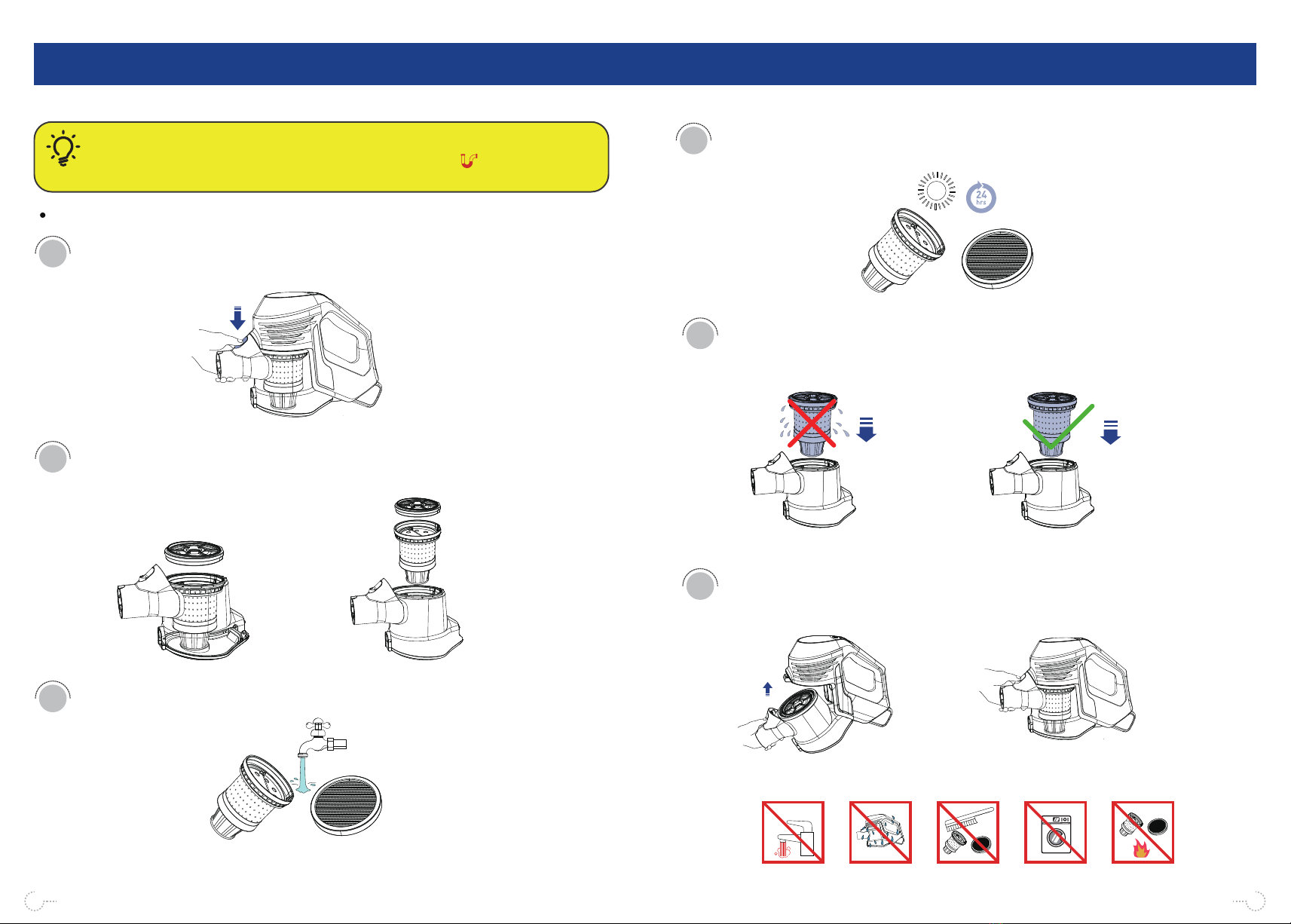

Cleaning the Filter Device
1Press the dust cup release button and remove the dust cup.
2After taking out the dust cup, take out the pre-filter and filter sponge.
6Reinstall the dust cup, first step to align the bottom part
then push the top part until hearing "lock" sounds
3Clean the pre-filter, filte sponge under water.
Air dry at least 24 hours before reinstalling.
Wet Dry
5Assemble the pre filter, filter sponge back. Do not assemble them until
completely dry.
CAUTION:
If you find that the suction is weak or the “Suction Blockage Indicator" on the LED screen
flashes, then please wash the filter.

7
17 18
CAUTION:
Whenthe"BrushrollJamIndicator"""ontheLEDscreenflashesuntilthescreenis
off,whiletheLEDlightonthefloorbrushisoffandthefloorbrushstopsrotating,itmeans
thatthefloorbrushisblocked.Checkthefloorbrushandcleartheblockage.
1
2 2
1 2
34
5 6
CLEANING AND MAINTENANCE
Turn the switch to the " "
sign.
Turn the switch to the " "
sign.

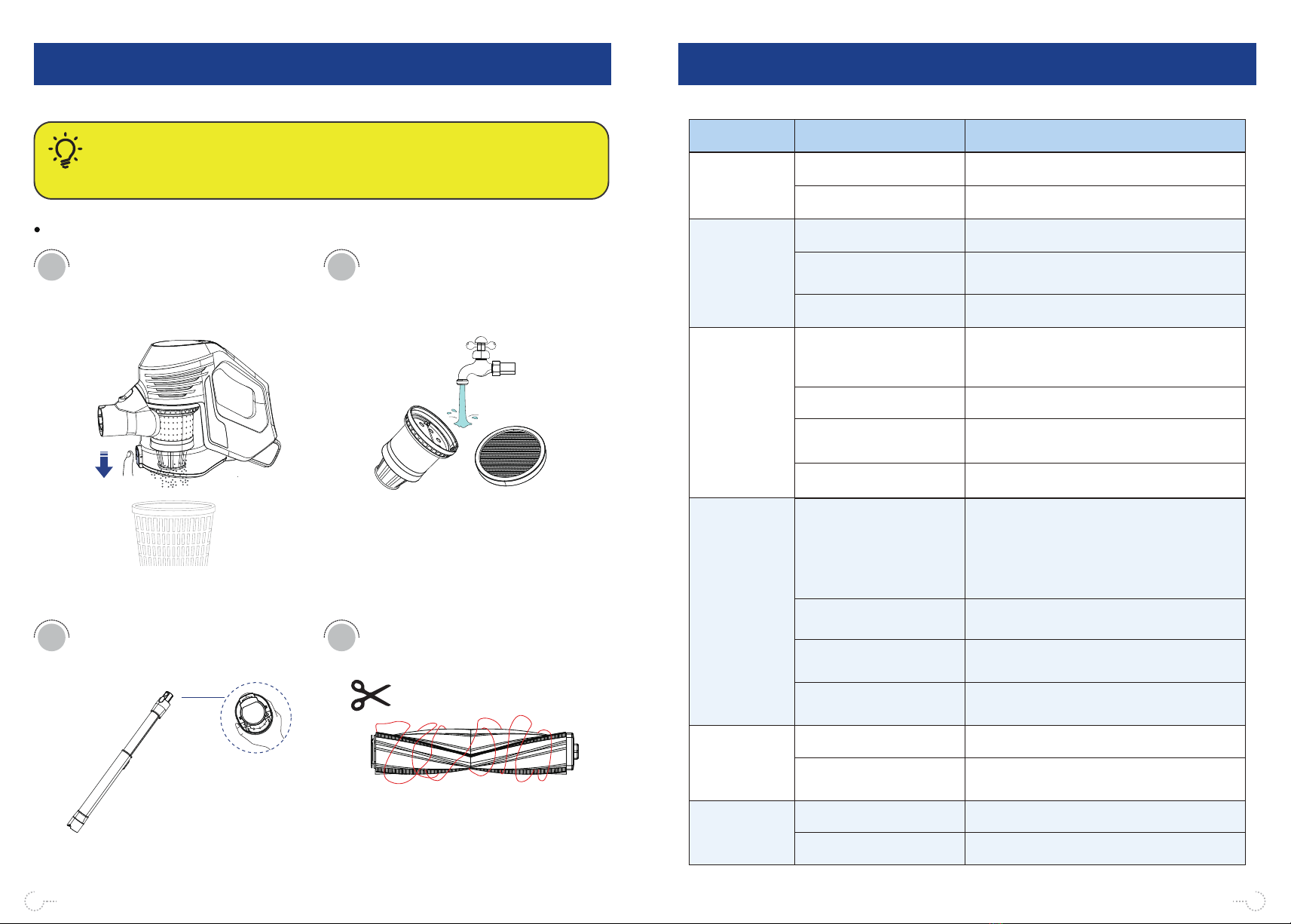

Clean the Floor Brush
Press the release button and hold to pull out to detach the tube from the
bloor brush.
3Rotate the catch upwards and
remove the floor brush. 4Use scissors to remove hair
and strings entangled on the
floor brush.
5Make sure the triangle groove
of the floor brush suits the bulge
the floor brush.
6Install the roller into the floor
brush and rotate the buckle down
to complete the installation.
Clean the Sofa Brush
Press and turn the buckle counter-
clockwise to the " " sign.
Pull out the buckle, and then take
out the brushroll.
Wash the brushroll under
running water. Air dry the brushroll thoroughly.
Put the brushroll back into the
sofa brush, and then press the
buckle inward.
Press the groove and turn
clockwise to the " " lock mark

98
Troubleshooting
CAUTION:
Low suction or vacuum failure caused by overheating may be due to a clog in the vacuum.
Please check and clear clogs in the dust cup, mesh shell, pre-motor filter, post-motor filter,
metal tube, and floor brush.
1 2
3 4
19 20
CLEANING A CLOG
Check and rinse the filter and
sponge. Do not assemble them
until completely dry.
Check and clean tangles on
roller brushes, remove with
scissors.
Cleaning a Clog
Check and empty the dust cup.
Check for clogs inside the
telescopic tube.
TROUBLESHOOTING
The used adapteris not the
original one
The battery pack/adapter
malfunctions
The battery runsout
The battery packis not
attached correctly
Other malfunctions
The battery has drained
The floor brush gets stuck
1. The air duct is blocked
2. The dust cup is full
Other malfunctions
Incorrect useofthe vacuum
The battery runsout
1.The air duct is blocked
2.The dust cup is full
The sponge is not
completely dry
There is too much dust
inside the dustcup
The vacuum runs with much
static
The floor brush gets stuck
Other malfunctions
The vacuum
cannot be
charged
The vacuum
cannot be
powered on
The vacuum
stops working
suddenly
The cleaning
results are not
satisfactory
There is static
during
vacuuming
The electric
floorbrush
stops working
PROBLEM POSSIBLE REASONS SOLUTIONS
Charge the vacuum with the original adapter.
Contact customer service for help.
Charge the vacuum with the original adapter.
Remove and reattach the battery pack and make
sure it is securely attached in place.
Contact customer service for help.
Clean foreign objects entangled on the floor
brush.
Clean the floor brush, tube, dust cup, and the
sponge regularly.
Contact customer service for help.
Please charge the vacuum fully and try to turn
it on again.
Clean the floor brush, tube, dust cup and the
sponge regularly.
Detach and air dry the sponge completely. It is
recommended to clean and replace it regularly.
Empty the dust cup.
It's normal for there to be much static in the air
in winter and in dry regions.
Clean foreign objects entangled on the floor
brush.
Contact customer service for help.
1. Use the high suction mode for cleaning
complicated environments.
2. Use the crevice tool for better pickup of
heavy objects such as beans.
3. Use the floor brush for cleaning stains.
Use the original adapter for charging. It is
recommended to charge the vacuum after each
use, and use the low-suction mode for longer
runtime.

10
21 22
WARRANTY
CUSTOMER CARE
The 1-year Limited Warranty is valid for Products.
If your machine is used correctly according to the instruction manual and
there is a quality failure during the warranty period, we will provide you
with free warranty service once you contact us.
*If service parts are no longer available or discontinued,they will be replaced with
functional replacements
WARRANTY SERVICE
1. If you have a query about your Maircle appliance, please contact
customer service at: [email protected]
2. Please inform us of your model name/number, purchased date, order
number, machine malfunction details and your request for reparations.
3. Your model number can be found on the rating plate.
4. Please keep your purchase receipt in a safe place to ensure you have
this information.
Service rendered under this warranty will not extend the term of the
warranty.
WHAT IS NOT COVERED
1. Under your machine guarantee, warrenty shall not be liable for costs of
repair or replacement of a product incurred as a result of:Accidental
damage, faults caused by negligent use or care, misuse, neglect, careless
operation or any handling of the appliance which is not in accordance with
this Instruction Manual.
2. Machines purchased from an unauthorized dealer.
3. Use of parts and accessories other than those produced or recommended
by unauthorized parties or agents.
4. Repairs or alterations carried out by unauthorized parties or agents.
5. Use of the machine other than for normal domestic purposes, e.g., for
commercial or rental purposes.
6. Reduction in battery run time due to battery age or usage.
