K6861156R
K
IT
c
lespecif
i
Rev.1
i
c

1
RHBNAVIGATIONRADIOKIT
NITRO
CALLOUTDESCRIPTIONQUANTITY
1Harness1
2Antennabaseandantennawhip1
3RHBRadio1
4ZipTies10
TOOLSREQUIRED
10mmSocket(1/4in
Drive)
1/4DriveRatchetPhillipsHeadScrew
Driver
FiberTrimStick1/4DriveTorque
Wrench
Vehiclebeingupgradedfrom(AM/FMonly)youwillneedtodothefollow:
•RADIOREPLACEMENT
•SDARS/NAVIGATIONANTENNACABLEANDANTENNAINSTALLATION
Vehiclebeingupgradedfrom(AM/FMandSATELLITEAudio(SDARS))youwillneedtodothefollow:
•RADIOREPLACEMENT
•ANTENNAREPLACEMENT
Dec31,2010K6861156Rev.1

2
RADIOREPLACEMENT
1.Disconnectandisolatethebatterynegativecable.
2.Settheparkbrakeandmovethetransmissiongear
selectorintothemostrearwardposition.
3.Removethestoragebinmat(1).
4.Removethescrews(1).
Dec31,2010K6861156Rev.1

3
5.UsingatrimstickC4755orequivalent,removethe
storagebin(1).
6.UsingatrimstickC4755orequivalent,releasethe
topmostretainingclips(1)
CAUTION:Toavoiddamagetothebezeldonotpull
onthebezeltoreleasetheretainingclips(2).
7.UsingatrimstickC4755orequivalent,carefullyre
leasetheretainingclips(2).
8.Releasetheremainingretainingclips(3and4)and
separatethebezelfromtheinstrumentpanel.
Dec31,2010K6861156Rev.1

4
9.Reachbehindthebezeltoaccessanddisconnectall
electricalconnections.
10.Removethecenterbezelfromtheinstrumentpanel.
11.Removetheradiomountingfasteners.
CAUTION:Pullingtheantennacablestraightoutofthe
radiowithoutpullingonthelockingantennaconnec
torcoulddamagethecableorradio.
12.Pulltheradiooutfarenoughtoaccessthebackofthe
radio.
13.DisconnecttheAM/FMantenna(2)andelectricalcon
nectors(1).
14.Ifequipped,disconnectthenavigationantenna(3).
15.Ifequipped,disconnecttheUSBconnectors(4).
16.Removetheradiofromtheinstrumentpanel.
NOTE:Vehiclebeingupgradedfrom(AM/FMonly),
continueonto"SDARS/NAVIGATIONANTENNA
CABLEANDANTENNAINSTALLATION"
NOTE:Vehiclebeingupgradedfrom(AM/FMand
SATELLITEAudio(SDARS)),continuetothenext
step.
17.Positionthenewradiototheinstrumentpanel.
18.ConnecttheAM/FMantenna(2)andelectricalcon
nectors(1).
19.Connectthesatellite/navigationantenna(3).
20.Ifequipped,connecttheUSBconnectors(4).
Dec31,2010K6861156Rev.1

5
21.Positionthecenterbezelbackintothevehicleand
connecttheelectricalconnectors.
22.Positionthebezelupovertheradioandseatthere
tainingclips(14)fully.
Dec31,2010K6861156Rev.1

6
23.Positionthestoragebin(1)intoplaceandseatfully.
24.Installthestoragebinscrews(1).
Dec31,2010K6861156Rev.1

7
25.Installthestoragebinmat(1)andseatfully.
26.Connectthenegativebatterycable.
SDARS/NAVIGATIONANTENNACABLEANDANTENNAINSTALLATION
1.Opentheliftgate.
NOTE:AlignsecondclipfromRight(CrossCarLoca
tor)toitsslotfirst.Thishelpslineuptherestofclips.
2.Pulldownatthecenteroftheheadlinermolding(3)
onlyenoughtoallowthetab(2)tobereleasedfrom
thequartertrimmolding.
3.Carefullypulldowntoremovetheremainingclips(4)
attachingthemoldingtothebodythenmovethemold
ingtothelefttoreleasedthetab(1)fromthequarter
trimmolding.
4.Removethetwoheadlinerpushpins.
5.Ifequipped,releasethesunroofopeningtrimring.
Dec31,2010K6861156Rev.1

8
6.Insertthetipofasmallflatbladedscrewdriverintothe
notch(5)betweenthelens(2)andthehousing(1)on
onesideofthesecondrowdomelampunit.
7.Gentlyprytheendofthelensdownwarduntilitun
snapsfromthehousing.
8.Swingthelensdownwarduntilitisperpendicularto
thehousing.
9.Pullthelenshinge/retainer(3)endofthehousing
downwardslightlyfromtheheadliner,thenslidethe
exposedendofthehousingawayfromthemounting
holefarenoughtodisengagethefixedretainer(4)on
thenotchedendfromtheheadliner.
10.Pullthelampawayfromtheheadlinermountinghole
farenoughtoaccessanddisconnectthewireharness
connectorfromthebackofthelamp.
11.Removethelampfromthevehicle.
12.Removeretainerfromthesunvisorhook.
13.Removethetwoscrewsandremovethesunvisor(2)
fromtheheadliner/roofassembly(1).
14.Ifequipped,disconnecttheilluminatedvanitymirror
wireharnessconnector.
15.Disconnectandisolatethebatterynegativecable.
16.Usingyourfingertips,graspthesidesoftheoverhead
console(1)andpullstraightdownevenlytodisengage
thethreesnapclipsfromthemountingbracket.
Dec31,2010K6861156Rev.1

9
17.Lowertheoverheadconsole(1)farenoughtoaccess
thewireharnessconnector(2).
18.Ifequipped,disconnectthecourtesylamps,infrared
temperaturesensorandpowersunroofswitchelectri
calconnectors.
19.Removetheoverheadconsole(1)assemblyfromthe
vehicle.
20.Usingasmallprytoolorequivalent,pulltheApillar
trimpaneltowardstheinsideofthevehicle.
NOTE:Thetoptetheredcliphasalockingtabthat
needstobeliftedinorderforcliptoslideoutofthe
trimattachmentpoint.
21.RemovetheApillartrimpanel(1).
22.Removethelowerseatbeltbolt.
23.UsingatrimstickC4755orequivalent,pryoutthe
screwcoverfromthetopofthetrimpanel(1),remove
thescrew.
24.Removethetrim(2)byslidingupandoutoftheBpil
larlowertrim.
25.Removethetrimbyfeedingtheseatbeltwebbing
throughtheupperBpillaruppertrim(2).
Dec31,2010K6861156Rev.1

10
26.Removetheseatbeltbolt(3).
27.UsingatrimstickC4755orequivalent,pryoutthe
screwcoverfromthetopofthetrimpanel(1),remove
thescrew.
28.Removethetrim(2)byslidingupandoutofthequar
tertrimmolding.
29.Removethetrimbyfeedingtheseatbeltwebbing
throughtheupperCpillaruppertrim(2).
30.Ifequipped,disconnecttheelectricalconnector(1)
fromthemirror(2).
31.Disconnectthesunroofmotorjumper(5).
32.UsingatrimstickC4755orequivalent,separatethe
duellockfasteners(1)oftheheadliner(4)toremove
theheadlinerfromthesunroof(2).
Dec31,2010K6861156Rev.1

11

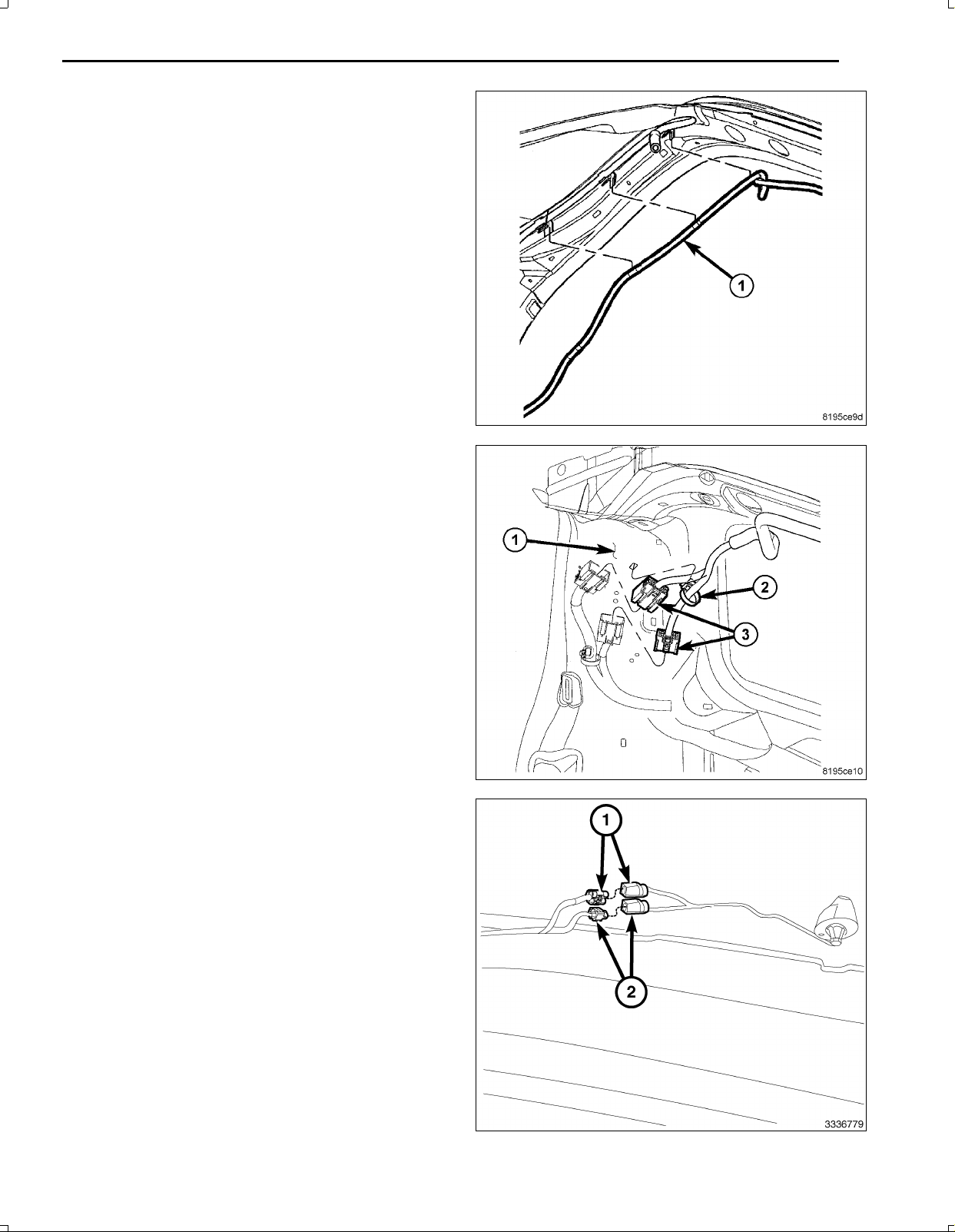

33.Cuttheliftgatewasherhose(1)attheApillar.
34.Removetheharnessclip(2)fromtheDpillarbody(1).
35.Ifequipped,disconnecttheDVDelectricalconnectors
(3).
36.Disconnectthepowerconnector(1).
37.DisconnecttheAM/FMantennaconnector(2).
Dec31,2010K6861156Rev.1

12

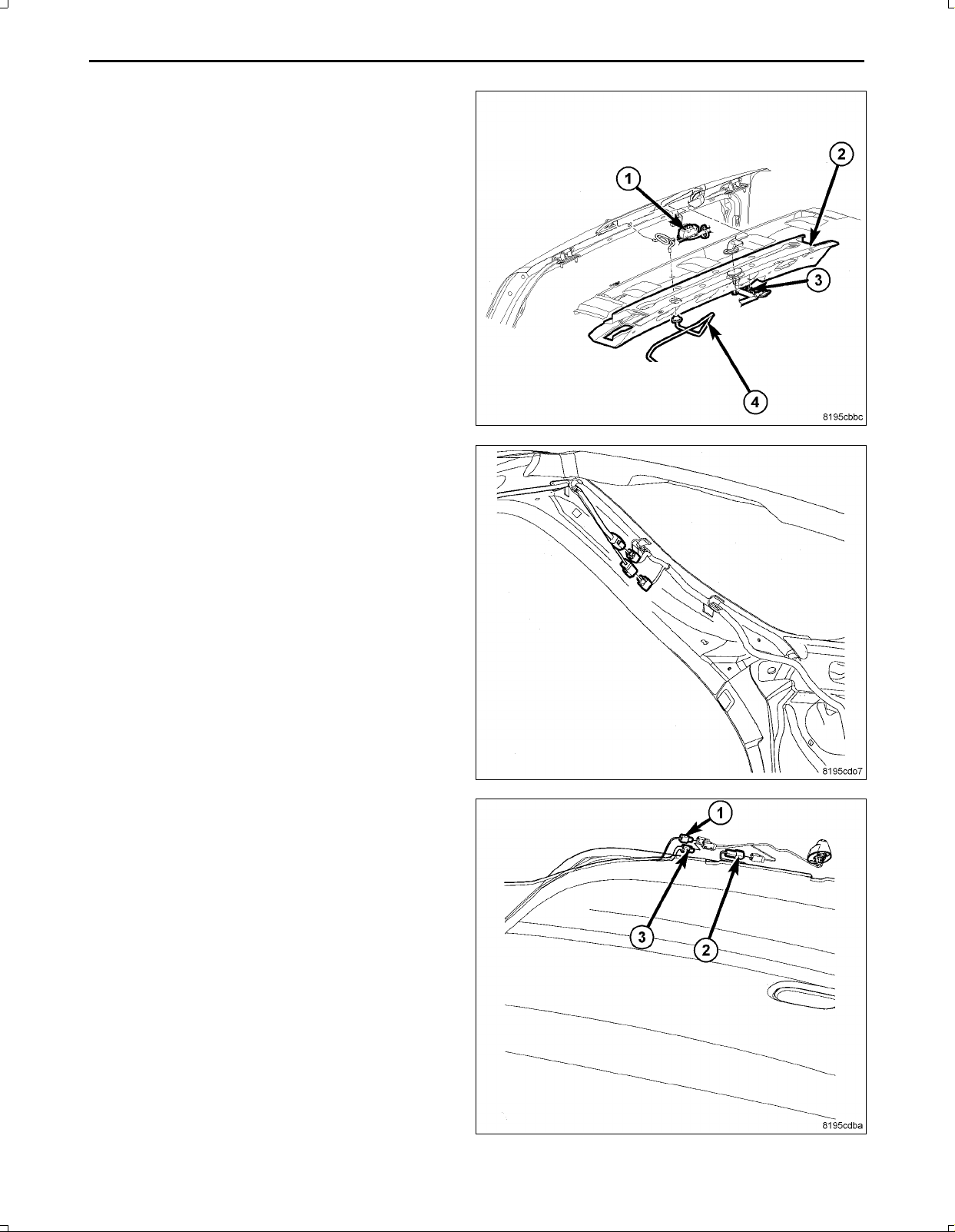

38.DisconnecttheAM/FMantenna(2)and12voltpower
(1)connectorsalongtheleftApillar.
39.RemovetheCenterHighMountStopLamp(CHMSL)
anddisconnecttheliftgatewasherhose(4).
40.Disconnecttheelectricalconnectorfortheliftgatehar
ness(1).
41.Removetheclip(3)fromtheheaderroof(2).
CAUTION:Itisnecessarytofoldthecornerandthe
sideupbetweentheCandDpillarareaofthehead
linertoremovefromthevehicle.Thecornermustbe
foldedupandnotdowntoavoiddamagingthehead
liner.
42.Foldtherearseatinthedownpositionandremovethe
headliner(2)fromtheroof(1).
43.Opentheglovebox.
44.Squeezethestoptabslocatedonthesidesofthebox
whileandswingthegloveboxdooropen.
45.Withboxinthefulldownpositionslidetheboxtothe
rightoffofthehingesandremove.
Dec31,2010K6861156Rev.1

13
46.Installthenewantennaintothevehicle.
47.Installtheantennamountingretainer(4).
Tightento6.7N∙m(57In.Lbs).
48.ConnecttheSDARS/Navigation(1),AM/FM(2)and
the5voltpower(3)wireharnessconnectors.
49.RoutenewantennacablefromtheantennaalongtheheadlinerharnesstotheApillar
50.RoutetheantennacabledowntheApillar
51.Crossthegloveboxopeningandattachwerenecessary.
52.Routeantennacableuptothegloveboxopening.
53.Attachantennaharnesstoheadlinerharnesswerenecessary.
54.Beforeproceedingwiththefollowingrepairprocedure,
reviewallwarningsandcautions..
55.Positiontheboxonandslidetheboxtothelefttoen
gagethehinges.
56.Closetheglovebox.
CAUTION:Itisnecessarytofoldthecornerandthe
sideupbetweentheCandDpillarareaofthehead
linertoremovefromthevehicle.Thecornermustbe
foldedupandnotdowntoavoiddamagingthehead
liner.
57.Installtheheadliner(2)totheroof(1).
Dec31,2010K6861156Rev.1

14
58.Connecttheliftgatewasherdrainhose(4)totheCen
terHighMountedStopLamp(CHMSL)andinstallto
theliftgate.
59.Connecttheelectricalconnectorfortheliftgatehar
ness(1).
60.Installtheclip(3)totheheaderroof(2).
61.Connecttheradioand/orsatelliteelectricalconnec
torsalongtheleftApillar.
62.Connectthesatelliteradiobodyantennaconnector
(1).
63.Connectthepowerconnector(2).
64.Connecttheradiobodyantennaconnector(3).
Dec31,2010K6861156Rev.1

15
65.Attachtheharnessclip(2)totheDpillarbody(1).

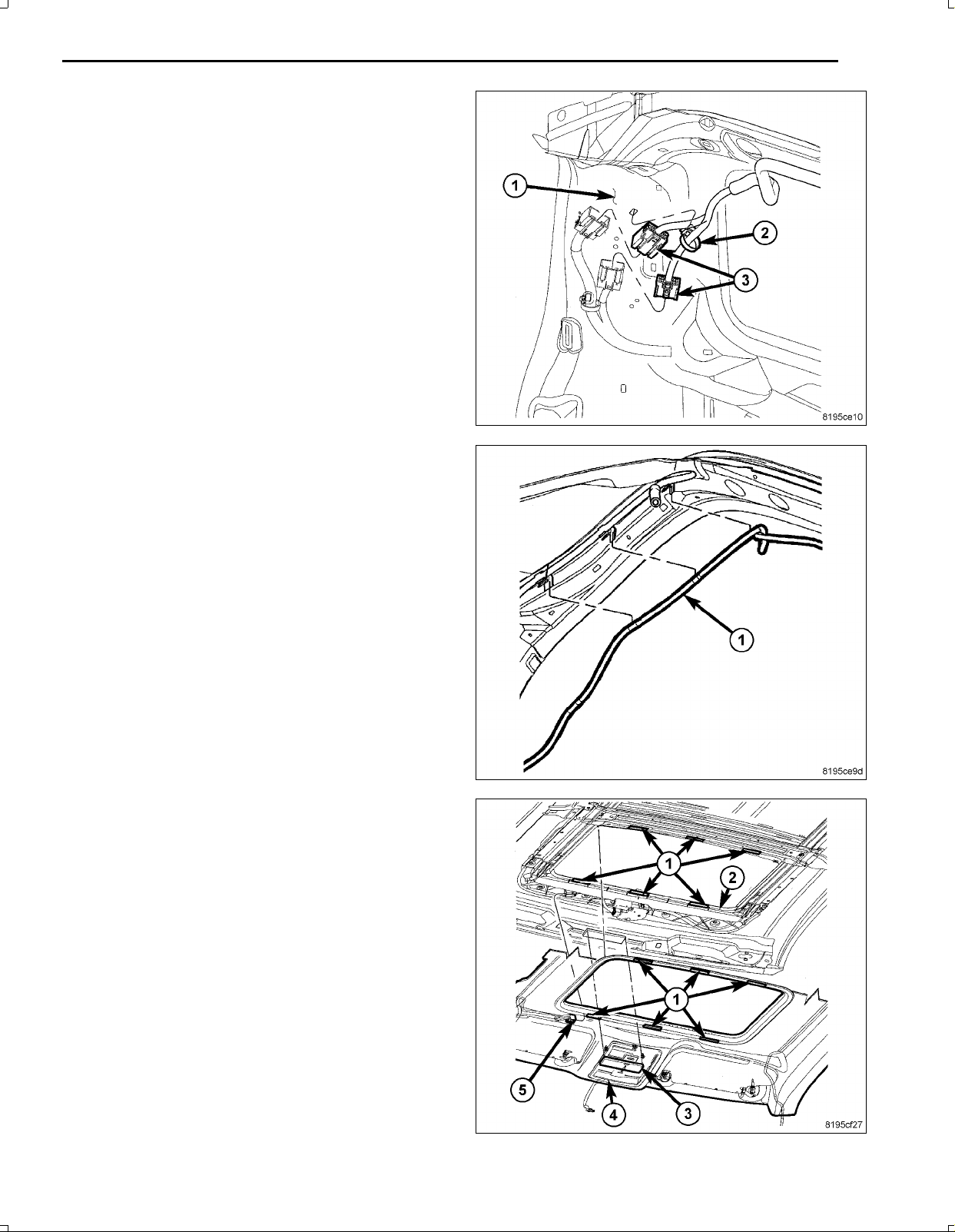

66.ConnecttheDVDelectricalconnectors(3).
NOTE:Installaunionwheretheliftgatewasherhose
wascutduringremoval.
67.Connecttheliftgatewasherhoses(1)withaunionat
theApillar.
68.Connectthesunroofmotorjumper(5).
69.Removethetapebackingfromthespacerfoam
blocker(3),usehandpressureonthefoamblocker
tosticktheheadlinerandthesunrooftogether.
70.Usehandpressureattheduallockareas(1)ofthe
headliner(4)tomakesuretheheadlinerstickstothe
sunroof(2).
Dec31,2010K6861156Rev.1

16
71.Connecttheelectricalconnector(1)forthemirror(2).
72.Positionheadlinerback.
73.FeedtheseatbeltwebbingthroughtheCpillartrim
(2).
74.Installthetrim(2)byslidingdownandintothequarter
trimmolding.
75.Alignthe4waylocatorandseattheCpillartrimtothe
body.
76.Installthescrewandscrewcover(1).
77.Installtheseatbeltbolt(3)andtightento62N∙m(46
ft.lbs.).
78.Returntherearseattotheupposition.
79.FeedtheseatbeltwebbingthroughtheBpillartrim(2).
Slidethebeltadjustertotopposition.
80.Installthetrim(2)byslidingdownandintotheBpillar
lowertrim.
81.Alignthe4waylocatorandseattheBpillartrimtothe
body.
82.Installthescrewandscrewcover(1).
83.Installtheseatbeltboltandtightento44.5N∙m(33ft.
lbs.).
Dec31,2010K6861156Rev.1

17
84.AligntheApillartrimtabonthemolding(3)tothetop
coverslotoftheinstrumentpanel(1).
85.Installthetopcliponthetrimmolding.
86.Alignthetwoclipsonthemoldingtotheslots(2)onthe
Apillar.SnaptheApillartrimmolding(3)intoplace
usinghandpressure.
87.Positiontheoverheadconsole(1)inthevehiclenear
theheadlinerassembly.
88.Ifequipped,connectthecourtesylamps,infraredtem
peraturesensorandpowersunroofswitchelectrical
connectors(2).
89.Graspthesidesoftheoverheadconsole(2)andpush
straightupevenlytoengagethethreesnapclips(1)
intothemountingbracket.
90.Connectthebatterynegativecable.
Dec31,2010K6861156Rev.1

18
91.Ifequipped,connecttheilluminatedvanitymirrorwire
harnessconnector.
92.Positionthesunvisor(2)totheheadliner/roof(1)and
installthescrews.Tightenthescrewsto2N∙m(20in.
lbs.).
93.Positionthesecondrowdomelampunit(1)tothe
mountingholeintheheadliner.
94.Reconnectthewireharnessconnectortotheconnec
toronthebackofthelamp.
95.Insertthefixedretainer(4)onthenotchedendofthe
lamphousingupintoonesideofthemountingholein
theheadliner.
96.Slidethenotchedendofthehousingintothemounting
holefarenoughtoengagethelenshinge/retainer(3)
intotheoppositesideoftheholeintheheadliner.
97.Gentlyandevenlypressthelenshinge/retainerendof
thelampintothemountingholeuntilthebezelofthe
lamphousingisflushwiththeheadliner.
98.Swingthenotchedendofthelamplens(2)intoposi
tionagainstthelamphousing,thenpressonthelens
firmlyandevenlyuntilitsnapsintothehousing.
99.Installtheheadlinermolding(3)tothebodybysliding
thetab(1)ontherightsideintothequartertrimmold
ing.
100.Pulldownatthecenteroftheheadlinermolding(3)
onlyenoughtoallowthetab(2)tobeslideintothe
othersideofthequartertrimmolding.
101.Usinghandpressuresnaptheremainingclips(4)into
place.
102.Returntostep16of"RADIOREPLACEMENT".
Dec31,2010K6861156Rev.1

19
ANTENNAREPLACEMENTONLY
NOTE:AlignsecondclipfromRight(CrossCarLoca
tor)toitsslotfirst.Thishelpslineuptherestofclips.
1.Pulldownatthecenteroftheheadlinermolding(3)
onlyenoughtoallowthetab(2)tobereleasedfrom
thequartertrimmolding.
2.Carefullypulldowntoremovetheremainingclips(4)
attachingthemoldingtothebodythenmovethemold
ingtothelefttoreleasedthetab(1)fromthequarter
trimmolding.
3.Removethetwoheadlinerpushpins.
4.Removethelowerseatbeltbolt.
5.UsingatrimstickC4755orequivalent,pryoutthe
screwcoverfromthetopofthetrimpanel(1),remove
thescrew.
6.Removethetrim(2)byslidingupandoutoftheBpil
larlowertrim.
7.Removethetrimbyfeedingtheseatbeltwebbing
throughtheupperBpillaruppertrim(2).
8.Removetheseatbeltbolt(3).
9.UsingatrimstickC4755orequivalent,pryoutthe
screwcoverfromthetopofthetrimpanel(1),remove
thescrew.
10.Removethetrim(2)byslidingupandoutofthequar
tertrimmolding.
11.Removethetrimbyfeedingtheseatbeltwebbing
throughtheupperCpillaruppertrim(2).
Dec31,2010K6861156Rev.1
