Mopec DB Series User manual

Rev 6-15-14 ©

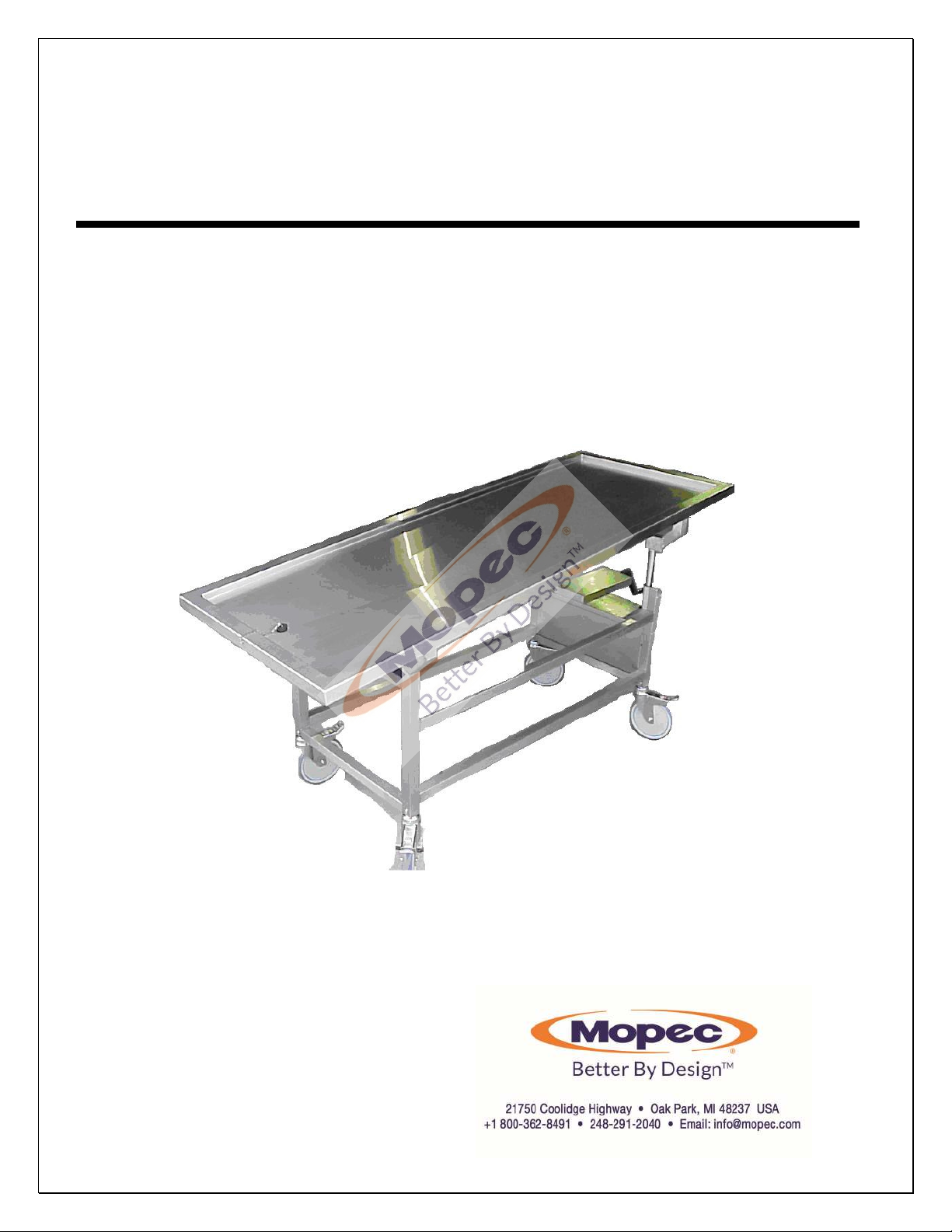

DB SERIES
AUTOPSY CARTS - ELEVATING
REFERENCE
MANUAL

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 2
IMPORTANT INFORMATION
MODEL NO.:
SERIAL NO.:
DATE OF PURCHASE:
DATE OF INSTALLATION:
INSTALLATION NOTES:
SERVICE AND SUPPORT:

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 3
TABLE OF CONTENTS
INTRODUCTION 4
CUSTOMER AND TECHNICAL SUPPORT 5
UNPACKING 6
STANDARD FEATURES 7
OPTIONAL FEATURES 8
OPERATION 9
CLEANING AND MAINTENANCE 11
WARRANTY 12

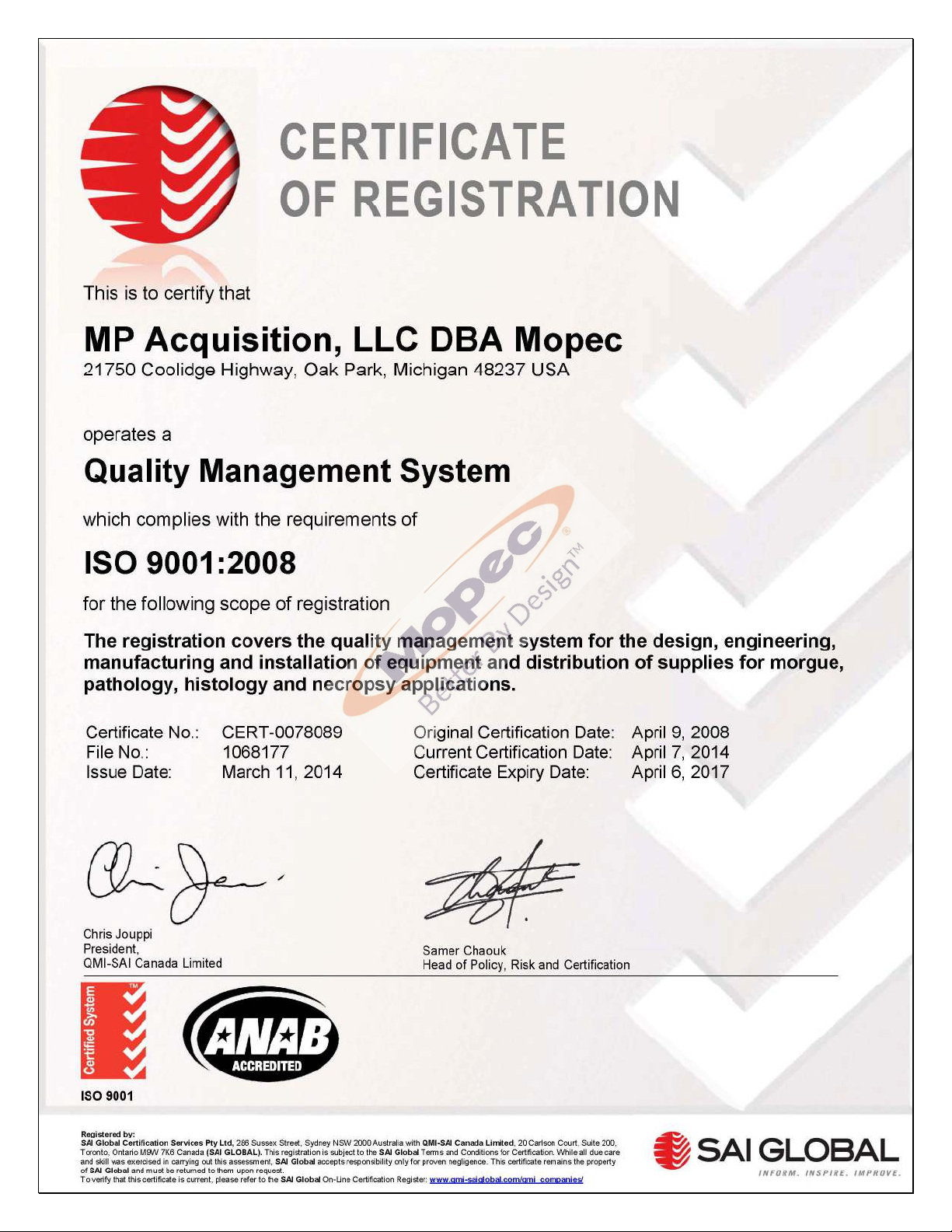

ISO CERTIFICATE 13
UNIT DRAWING 14 - 17

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 4
INTRODUCTION
The “DB” Series autopsy cart/table is used in conjuction with Mopec’s wall
mounted autopsy sink and is designed with a built in sloping top. The cart tops
are removable from the frame and easily moved with a motorized or manual fork
type lift. During an Autopsy swivel and brakes on all casters can be locked
independently. During transport, one caster swivel can be locked for ease of
mobility.
The DB000 is designed with mechanical hydraulic lifting pistons for years of
maintenance free operation. The DB000 elevating autopsy cart provides a
foldable hand crank lifting mechanism utilized to easily and safely elevate one
end of the autopsy cart for an extra sloped surface.
The DB100 includes the GA100 removable autopsy cart top and can be utilized
with most equipment for removal and/or long term storage. The DB100 elevating
autopsy cart is also used in conjunction with Mopec Wall Mounted Autopsy
Sinks.
The DB000 incorporates a mechanical hydraulic lifting mechanism lifting from a
level surface to a sloped surface of 7-3/4 inch.
Your comments and suggestions are always welcome and we invite you to call
and let us know what you think of the “New” DB Series Elevating Autopsy Cart”.

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 5
CUSTOMER AND TECHNICAL SUPPORT
All Mopec staff members are Customer Service experts. We believe in providing
nothing but the best possible service for all our customers. Our Technical
Support group includes everyone from our design engineers to members of our
production group. All are dedicated to providing comprehensive and courteous
support to all Mopec customers.
The following information is included to help our customers communicate with
Customer and Technical Support at Mopec.

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 6
UNPACKING
1.) Carefully inspect the exterior of the shipping container before
opening. If the crate is damaged and the product has sustained
damage then immediately contact Mopec and the freight carrier.
Never discard the shipping container even if it is damaged
beyond recognition.
2.) The receiver should note any suspected damage on the bill of
lading and sign it. Mopec will help assist in filing a claim for
product repair and/or replacement.
3.) Carefully open the containers and inspect the goods for concealed
damage. If concealed damage is noticed (i.e. Broken welds,
dented stainless, scratches, etc.) Follow through as noted above,
and again do not discard the shipping material, they are important
in settling claims.

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 7
STANDARD FEATURES
Removable Cart Top:
•GA100, GA200 and GA300 Fabricated of 14 gauge stainless steel with #4
satin finish. The top is recessed and dimpled toward the drain hole. A
drain plug on a chain is provided. All exposed welds are ground smooth
and grained to match a #4 satin finish
•GA800 and GA850 Mopec’s Plastic, x-ray body tray is durable and
lightweight, Photo-Blue or Beige. Both trays have rails to hold X-Ray
cassettes. Recessed channels for improved drainage of fluids. Includes a
drain stopper and safety chain.
Cart Frame: Fabricated of 1-1/2” (3.8 cm) heavy gauge stainless steel tubing.
All welding is continuous with an approximate 1/8” (.38 cm) radius bead and are
clean and free of burrs and discoloration.
Welding: All welding is TIG type welding utilizing only stainless steel as a filler
media. All weld fillets are approximately ¼” (.64 cm) diameter. All welds are
brushed clean removing any weld burns and burrs.
Wheels/Casters: Heavy-duty 8” diameter non corrosive polyamide wheels
feature the Total Lock caster system.
Elevating Mechanism: Chrome plated gear box with heavy duty 1” acme thread
and plastic hand crank 6” travel. Hydraulic Lifts.
DOWN UP
UNLOCKED
OCKED

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 8
OPTIONAL FEATURES
•GA100 Autopsy Cart Top (Stainless Steel) – Heavy- duty stainless
construction. (DB000 + GA100 = DB100)
•GA200 Autopsy Cart Top (Poly Inner Liner) – Mopec’s X-Ray autopsy cart
top is constructed with a solid structural stainless steel frame and a unique
polyethylene insert that can be x-rayed through with virtually no shadowing.
(DB000 + GA200 = DB200)
•GA300 Autopsy Cart Top (Inner Trough) – Heavy-Duty stainless steel
construction with inner drain trough.
(DB000 + GA300 = DB300)
•GA800 Autopsy Cart Top Plastic Dark Blue– Dimensions: 82.5" L x 32-
1/8"W x 5" High (Maximum point) Mopec’s Plastic, x-ray body tray is durable
and lightweight, Photo-Blue color rails to hold X-Ray cassettes. Recessed
channels for improved drainage of fluids. Includes a drain stopper and safety
chain.
(DB000 + GA800 = DB800)
•GA850 Autopsy Cart Top Plastic Beige – Dimensions: 82.5" L x 32-1/8"W x
5" High (Maximum point) Mopec’s Plastic, x-ray body tray is durable and
lightweight, Photo-Blue color rails to hold X-Ray cassettes. Recessed
channels for improved drainage of fluids. Includes a drain stopper and safety
chain.
(DB000 + GA800 = DB850)
•Head Rest

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 9
Operating
ELEVATING:
By rotating the hand crank clockwise the elevating end of the cart will raise.
If there are any questions feel free to call Mopec 800-362-8491
ELEVATING (CLOCKWISE)

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 10
LOWERING:
By rotating the hand crank counterclockwise the elevating end of the cart will
lower. If there are any questions feel free to call Mopec 800-362-8491
LOWERING (COUNTERCLOCKWISE)
Note: Minimum weight must be applied to the lift system in order to lower. In the
event the top is not on during lowering simply place your hand on the lift bar and
apply minimal pressure approximately 40 Lbs.

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 11
CLEANING AND MAINTENANCE
DISINFECTING AND MAINTAINING STAINLESS STEEL SURFACES
All stainless steel surfaces can be cleaned with soap and water, which will
remove debris.
The stainless steel surfaces can be disinfected with a non caustic disinfectant.
We suggest using BE045 PathCloud or BE047 Bench Wipe for cleaning
purposes.
We recommend you DO NOT USE a bleach solution to clean your unit, bleach
will eventually erode stainless steel if not thoroughly rinsed. The use of chlorine
bleach will VOID THE STAINLESS STEEL WARRANTY
During the cleaning we suggest wiping the surface in the same direction as the
satin finish which will help elevate dirt from the grain finish.
Scratches can be removed simply by utilizing a "non-metallic" abrasive pad and
rubbing in the same direction as the satin finish.
Since most abrasive pads vary from one supply to another, we suggest rubbing
the entire surface to blend the scratch and blend the balance of the surface.

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 12
WARRANTY
MOPEC DB SERIES AUTOPSY CART
LIMITED WARRANTY
Products manufactured by Mopec will be free from defects in material and workmanship and
conform to Mopec's description or specifications. If a warranty claim is made within one (1)
year from the earlier if the date of acceptance/first beneficial use, the defective or
nonconforming Product or Part thereof will be repaired or (at Mopec's option) replaced free
of charge, FCA Mopec's dock. All warranty claims must be in writing and received by
Mopec within the warranty period. The warranty is not transferable (other than to customers
of Mopec’s authorized Distributors), and will not apply unless the Equipment has been
properly installed, maintained and operated in accordance with all instructions; and does not
apply to defects, nonconformities or other failure due to Equipment misuse, abuse,
modifications, or other causes outside Mopec‘s control. If a warranty claim is made in
writing within the warranty period, the defective or nonconforming Equipment (or Part
thereof) will be repaired or (at Mopec‘s option) replaced free of charge, FCA Mopec‘s dock.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE HEREOF. THE
WARRANTY AS SET FORTH HEREIN IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
To the extent that Mopec is acting as a supplier of Products manufactured by a third party,
the Products will be warranted only to the extent that they are warranted by their
manufacturers and Buyer (or its customer) agrees to look solely to the Product manufacturer
for all warranty claims.
21750 COOLIDGE HWY. OAK PARK , MICHIGAN 48237

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 13

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 14

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 15

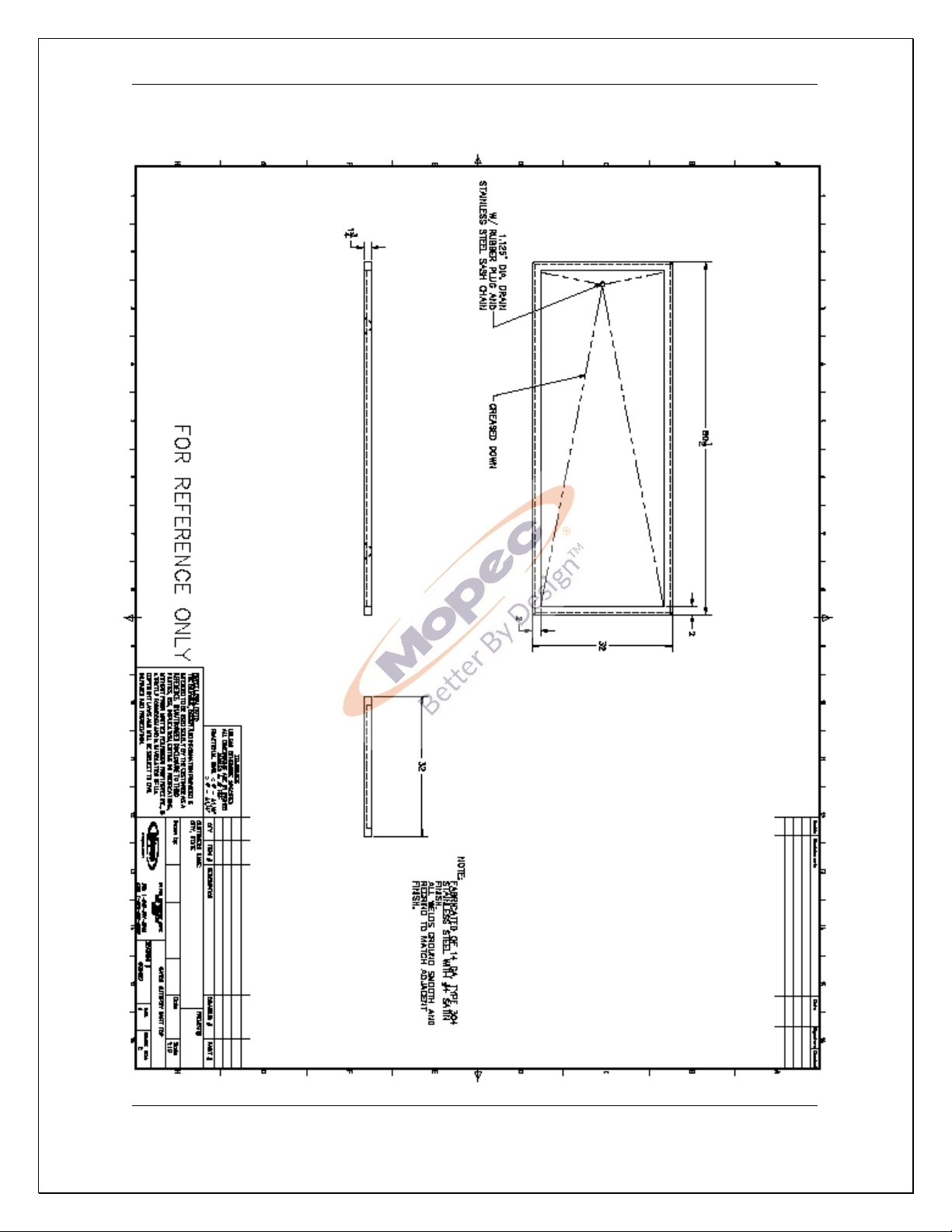

GA100 TOP

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 16
GA300 Top

MOPEC DB SERIES AUTOPSY CARTS
MOPEC DB SERIES AUTOPSY CARTS PAGE 17
GA800/GA850 Top
