Morgan MVC-CHS180DB User manual

SER MAN AL
Cordless 3 in 1
Sti k/Handheld
Va uum Cleaner
MVC-CHS180DB
E-mail: [e-mail]
www.morgan.my
Market Expansion
Services by
www.dksh.com.my
facebook.com/morganappliances

3
IMPORTANT SAFEGUARDS
Please read this instruction manual carefully and keep it in a safe place for future reference.
l Remove all packing materials from this product before use.
l Ensure the voltage indicated on the adapter corresponds to the local power supply voltage before
operating the appliance.
l Always inspect the appliance before operating for the first time.
l Do not operate the appliance or the adapter if it has been damaged in any manner.
l Do not vacuum the following to avoid damaging the appliance or prevent a fire hazard.
– Burning or smoking substances such as hot charcoal, burning cigarette and more.
– Flammable and explosive products such as gasoline and alcohol.
– Sharp fragments such as glass, construction materials, nails and so forth.
– Water, chemicals and corrosive liquids.
l Disconnect the power cord from the power supply when cleaning, repairing or when appliance is not
in use. Remember do not immerse the main vacuum cleaner in water, avoid approaching to heating
equipment or exposure to the sun to avoid fire.
l This appliance may be used by children aged 8 years and above and persons whose physical,
perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the
appliance as long as they are supervised or informed and made aware of the safe use of the
appliance and the encountered dangers.
l Children should not be allowed to play with the appliance.
l Cleaning and user maintenance should not be performed by children unless they are supervised by
an adult.
l Do not operate the appliance if it has malfunctioned or is damaged in any manner. Contact an
authorized service for inspection and repairs.
l Avoid operating the appliance continuously as this may cause the suction inlet to be obstructed. This
will generate excessive heat which can damage the motor.
l If the power adapter malfunctions or is damaged, use only original parts or parts recommended by
the manufacturer.
l It is recommended to charge the appliance once every three (3) months if it is not used frequently.
Ensure battery is removed from the appliance body before discarding for further recycling.
WARNING:
l Use only a dedicated adapter for charging. Ensure proper ventilation for optimal heat dissipation.
l Do not operate or store in a high temperature environment above 50ºC.
l Battery pack is detachable
Thank you for purchasing a quality MORGAN appliance. We trust that you will have a pleasant
experience with your new product. To guarantee safety and best efficiency, please read this
manual carefully and keep a copy for future reference.
2
C O N T E N T S
3
4
4
5
7
7
Important Safeguards
arts Identification
Specifications
Operating Instructions
Troubleshooting
Care & Cleaning

54

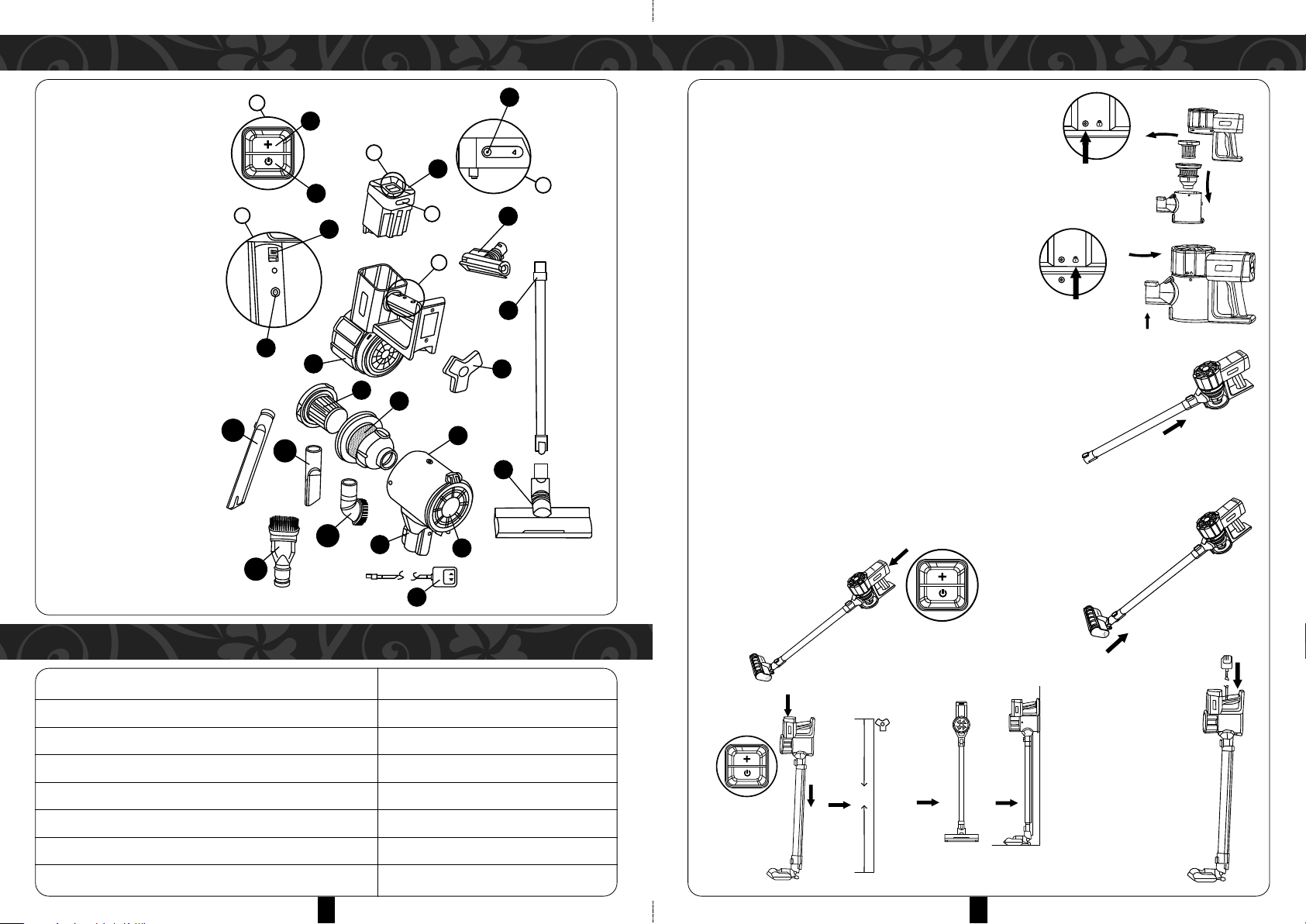

PARTS IDENTIFICATION OPERATING INSTRUCTIONS
C
1
3
9
8
5
7
6
10
11
12
17
13
14
15
16
4
2
CB
A
B
A
19
20
18
21
AS AN UPRIGHT VACUUM CLEANER
1. Before operating (see Figure 1), rotate the dust cup to the
position to correspond to the mark “O”, ensuring that the dust
cup is equipped with a Cyclone S.S mesh filter and HE A
filter.
2. Rotate the dust cup (see Figure 2) back to the marked
position and “lock” until a “click” sound is heard.
3. Install the tube (the side without button) into the dust cup
and secure it (Figure 3).
4. Install the LED Multi-tasker power brush into the tube
(the side with button) and secure it (Figure 4).
5. ress the ON/OFF button (Figure 5) to begin operation.
ress the + button to alternate between high and
standard speeds. ress the ON/OFF button again to stop
operation.
6. Install the wall hanger firmly into a wall of about 1 meter from
the ground and near to a power supply. lace and store the
appliance on the wall hanger. (Figure 6)
7. Ensure the appliance is OFF in the upright standing position.
Connect the power adapter to the power supply. Ensure the
power supplier is OFF.
8. Insert the power adapter into the charging port on the
appliance and turn on the power supply. The appliance is
charging when the blue light begins flashing. (Figure 7)
1. Speed Switch Button
2. On/Off Button
3. Battery ack
4. Charging ort 1
5. Motorized Dust Mite Brush
6. Tube
7. Main Body
8. Wall Hanger
9. Dust Cup
10. LED Multi-tasker
ower Brush
11. Dust Cup Cover
12. Connector
13. Adapter
14. Cyclone Stainless Steel
Mesh Filter
15. Hepa Filter
16. Charging ort 2
17. Battery Lock Catch
18. Ellipse Brush
19. Crevice Tool
20. Long Nozzle
21. 2 in 1 Dusting brush
(figure 1)
(figure 2)
(figure 3)
(figure 4)
(figure 5)
(figure 7)
1 Meter
Wall
Floor
(figure 6)
SPECIFICATIONS
MODEL MVC-CHS180DB
ADAPTER INP T VOLTAGE 100-240V~
INP T FREQ ENCY 50/60Hz
ADAPTER O TP T VOLTAGE 27V
O TP T C RRENT 500-750mA
MACHINE OPERATING POWER 180W
MAX. S CTION ≥12000PA
D ST BOX CAPACITY 0.8L

7
TROUBLESHOOTING
CARE & CLEANING
PROBLEM POSSIBLE CA SES SOL TIONS
Low suction power or abnormal • Motor is overheating • Stop operation
noise
Brush or filter block • Check if air inlet is obstructed b dust. • Empt the dust box.
• Check if dust box is full. • Clean the filter.
• Check if the filter is blocked.
Appliance not working • Ensure batter still has power • Charge the batter
• Clean the filter & restart the machine
Please perform these troubleshooting before sending the appliance to the service center.
SERVICING OF DOUBLE-INSULATEDAPPLIANCES
A double-insulated appliance is marked with one or more of the following: The words “DOUBLE
INSULATION” or “DOUBLE INSULATED” or the double insulation symbol.
In a double-insulated appliance, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated appliance, nor should
a means for grounding be added to the appliance. Servicing a double-insulated
appliance required extreme care and knowledge of the system, and should be done only
by qualified service personnel. Replacement parts for a double-insulated appliance must
be identical to the parts they replace.
POLARIZATION INSTRUCTIONS
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the
order). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not
modify the power plug in any way.
l Open the dust cup, detach the filter and wash it with water.
l Allow it to dry naturally.
PRECAUTIONS
l Filter and dust cup should be cleaned at least 1-3 times a month if the
machine is used every day.
l Empty and clean the dust cup if the sound of the appliance is louder
than usual.
l The appliance should be operated with the filter installed.
l Before operating, inspect if the filter is installed or damaged.
6
OPERATING INSTRUCTIONS
AS A COMPACT VACUUM CLEANER
1. Detach the tube from the suction inlet of the dust cup.
(Figure 1)
2. Insert the Motorized Dust Mite Brush into the suction inlet of
the dust cup. (Figure 2)
3. ress the ON/OFF button (Figure 3) to operate. ress the +
button to alternate between high speed and standard speeds.
4. ress the ON/OFF button again to stop. (Figure 4)
5. Rotate the dust cup to the “O” position to detach the dust
cup. (Figure 5)
6. Remove the filter from dust cup for cleaning and discard
contents. (Figure 6)
INDICATOR LIGHT NOTIFICATIONS
1. Normal operation: The blue indicator light stays on.
2. Turn off the power: the blue light is off.
3. Low battery: the blue indicator light flashes.
4. Fully charged: The blue indicator light stays on.
5. When charging continuously: the blue indicator light flashes.
(figure 1)
(figure 2)
(figure 3)
(figure 4)
(figure 6)
(figure 5)
