Morgana ElectroCreaser 36 User manual
ISSUE 2FEBRUARY2005
47-262
MorganaSystemsLimited UnitedKingdom
Telephone: (01908)608888 Facsimile:(01908)692399
ElectroCreaser36
Website:WWW.Morgana.co.uk
Page2 PAPER
LABELEDDRAWINGPage3
OPERATINGINSTRUCTIONSPage4
ILLUSTRATEDPARTSLISTPages5to9
WIRINGDIAGRAMPage10
ROUTINEMAINTENANCEPage11
RECOMMENDEDSPARESLISTPage12
Specification
OverallDimensions:-Length700mm
Width480mm
Height218mm
Weight25Kgs
MaximumCrease:-Length435mm
(ToBackstop)Width365mm
MinimumCrease:-Length35mm
(ToBackstop)
PowerRequirement:-1phase200/253v50/60Hz
1phase100/125v60Hz
INDEX
Page3
CREASER
ElectroCreaser36
LABELEDDRAWING
Page4 PAPER
REFERTOLABELEDDRAWINGONPAGE3.
1.Checkthatthevoltageselectorswitch(4)issettotherequiredinput
voltage,120Vor240V.
For120Voperationthefuseinthemainsswitch(5)mustbea4Aanti-
surgefuse,for240Voperationthefusemustbea2Aanti-surgefuse.
2.Switchonthepower,mainsswitch(5).
3.Setthecreaselengthasfollows:-
(i)LinethefaceoftheSpeedStop(2)upwiththescaleonthecopytable
(6)asshownbelow.(i.e.foracreaselengthof100mm,linethefaceof
theSpeedStopupwiththe100mmmarkonthecopytable).
IMPORTANT.
OPERATINGINSTRUCTIONS
4.Slidethesheetunderthespeedstopsandagainstthesidelaysinthe
directionofthecreasinghead.Astheendspeedstopdropsdownbehind
thesheetedge,slidethesheetbacktocontactthestop.Pressthefoot
switchtocreasethesheet.Repeatthisoperationforasmanystopsthat
areinuse.Slidethesheetoutofthemachine.
5.Themachineissetonthenarrowcreaseatthefactory.Tochangetothe
widercreaseproceedasfollows:-
(i)Undotheinneradjustmentknob(7).
(ii)Turntheouteradjustmentknob(7)untilthespringloadedball
locatesthewidercreaseposition.
(iii)Lightlytightentheinneradjustmentknob,placeasheetunderthe
headandoperatethemachine.Thiswillcentrethetools.
(iv)Tightentheinneradjustmentknobsecurely.
LinethisfaceoftheSpeedStop
upwiththescale
Page5
CREASER
ElectroCreaser36
ILLUSTRATEDPARTSLIST
ITEMNO. PARTNo. QTY. Description
147-300-01 1CREASERMECHANISM-Electrocreaser36.
247-301-01 2SpeedStopAssy.
347-069-04 1LAYSTRIP-Short-ElectroCreaser.
447-069-05 1LAYSTRIP-Long-ElectroCreaser.
51
61
71
81
91
10 1
11
47-219-01
1
ENDCOVERPLATE.
12
47-220-01
1
FOLDEDCOVERPLATE.
13
47-221-01
1
SIDECOVER-Plastic.
14
47-222-01 MOTORCAM-ElectroCreaser
15
47-224-01 ControlBoardAssy.
16
47-237-01 Label-CreaseWidth
17
47-266-01
1
ToroidalTransformerAssembly
18
47-267-01
1
JackSocketLeadAssembly
19 1
20 1
21
47-255-01 4LEG-ElectroCreaser.
22
47-257-01 1Base-ElectrocreaserMK2
23
47-258-01 1FuseRatingLabel
24
601-109 4FOOT-M4-Black
25
601-150 3NYLONPILLAR-M4Male/Male
26
27
606-040 1KNURLEDKNOB-Female.
28
606-041 1KNURLEDKNOB-Male.
29
610-029 1Doga-Motor&Gearbox
30
652-034 1Microswitch
31
652-035 1FootSwitch
32
651-094 1FUSEDPOWERINLET.
33
652-036 1Switch-VoltageSelector-120/240V
34
656-003 4PCBMountingPillar
35
660-001 1WarningLabel-Isolate
37
672-009 1BridgeRectifier
38
681-013 1Fuse-2A-20x5mm-Anti-surge
39
681-015 1Fuse-4A-20x5mm-Anti-surge
41
401-02-025-012 2Screw-PanPoziTaptite-M2.5x12Lg.
42
401-02-040-006 8Screw-PanPoziTaptite-M4x6Lg.
43
401-02-040-008 4Screw-PanPoziTaptite-M4x8Lg.
44
45
403-01-040-008 5Screw-SocketCapHead-M4x8Lg.
46
47
48
49
409-01-060-030 3Screw-SocketSet-FlatPoint-M6x30Lg.
50
415-01-060-012 4Screw-HexagonHead-M6x12Lg.
51
52
461-01-025 1Nut-Full-M2.5
53
461-01-040 3Nut-Full-M4
54
461-01-060 6Nut-Full-M6
55
463-01-040 10 DomedNut-M4
56
481-040 16 Washer-Plain-M4
57
481-060 3Washer-Plain-M6
58
604-080 2CompressionSpring
47-238-01 Label-SingleSheetOperation
47-253-01 BaseCover-Electrocreaser36
47-254-01 Base-Hinged
47-265-03 CrankBlock-Motor
47-265-04 CrankBlock-Cam-Ø10l
604-085 1GasStrut
403-01-040-006 1Screw-SocketCapHead-M4x6Lg.
403-01-040-010 1Screw-SocketCapHead-M4x10Lg.
403-01-040-016 1Screw-SocketCapHead-M4x16Lg.
481-025 1Washer-Plain-M2.5
Page6 PAPER

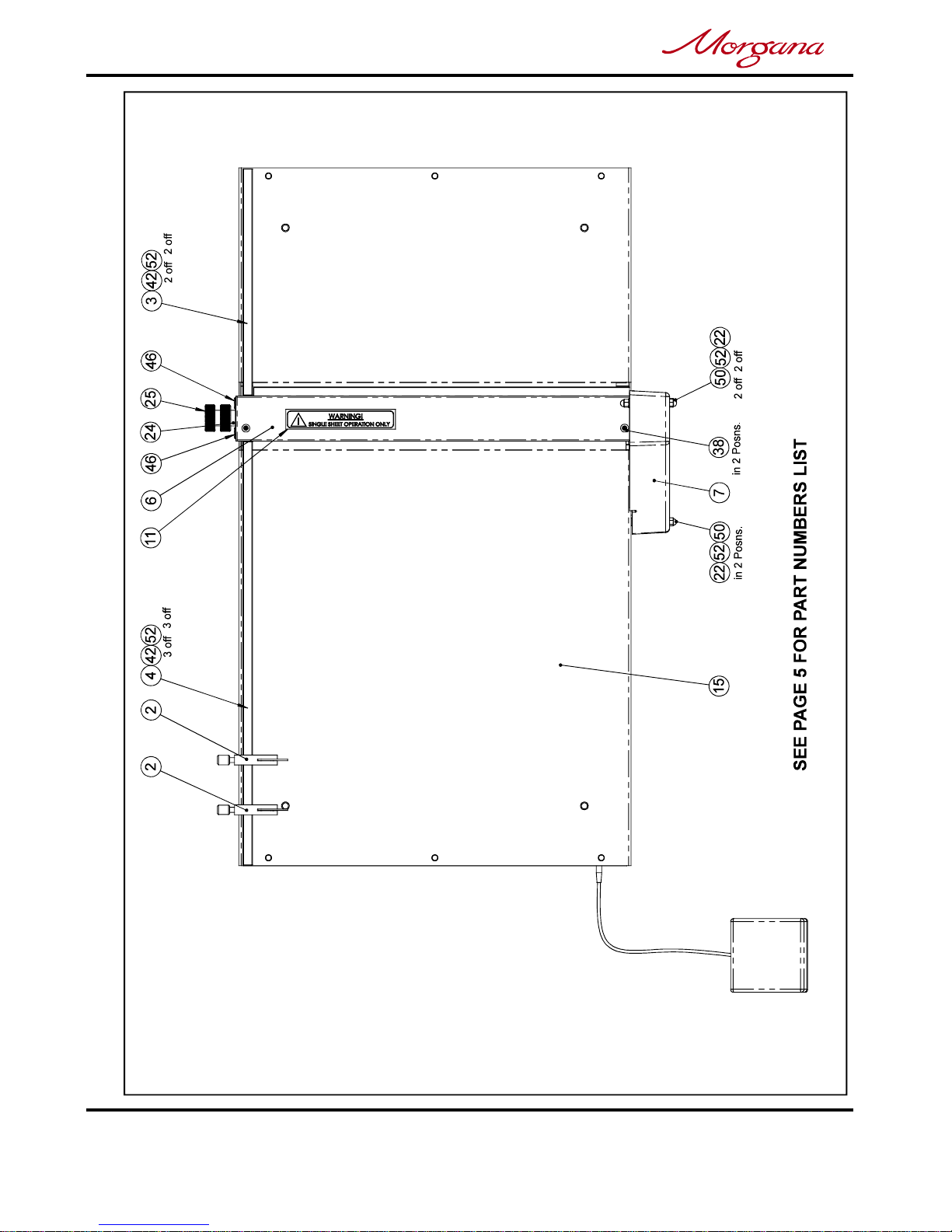

ILLUSTRATEDPARTSLIST
Page7
CREASER
ElectroCreaser36
ILLUSTRATEDPARTSLIST
ILLUSTRATEDPARTSLIST
Page8 PAPER
Page9
CREASER
ElectroCreaser36

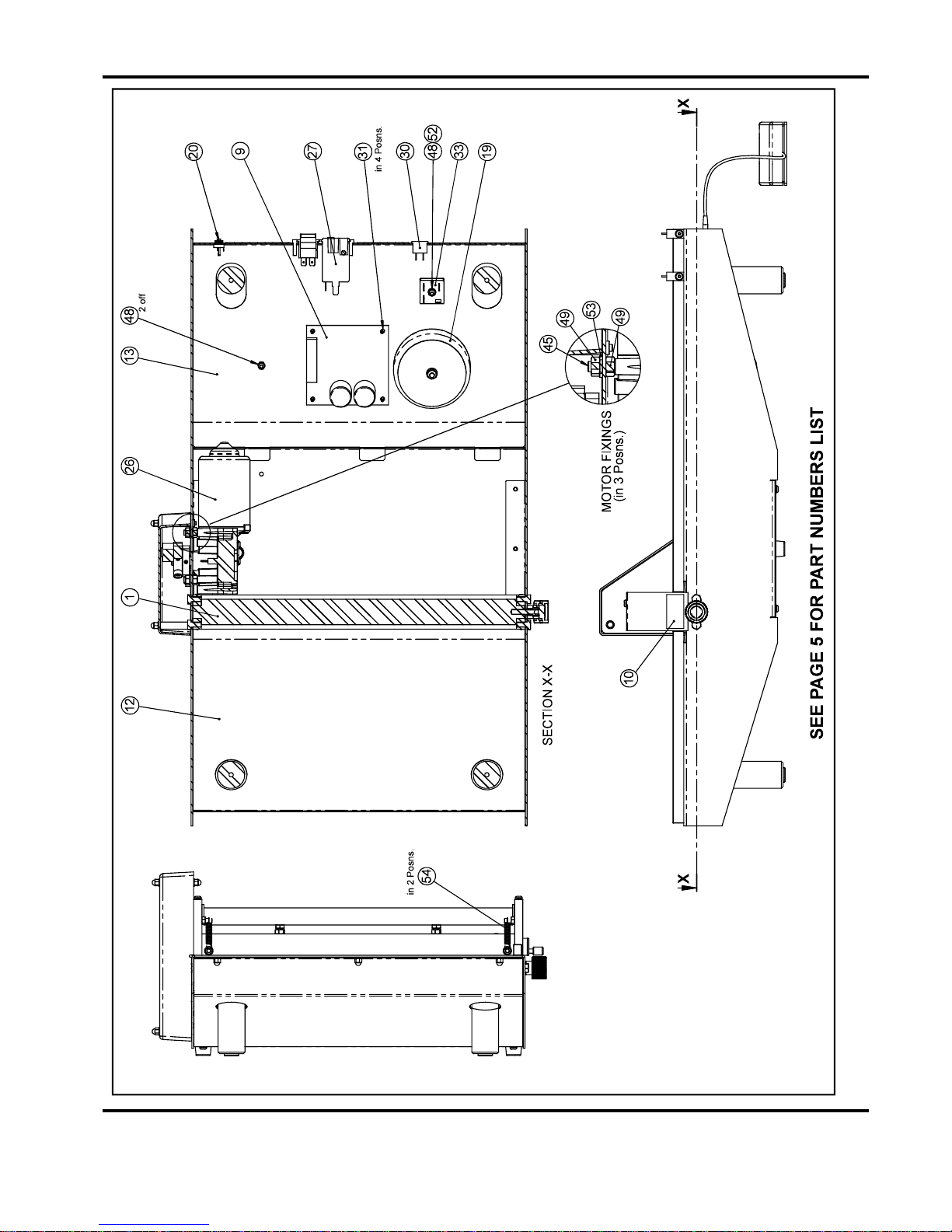

ILLUSTRATEDPARTSLIST

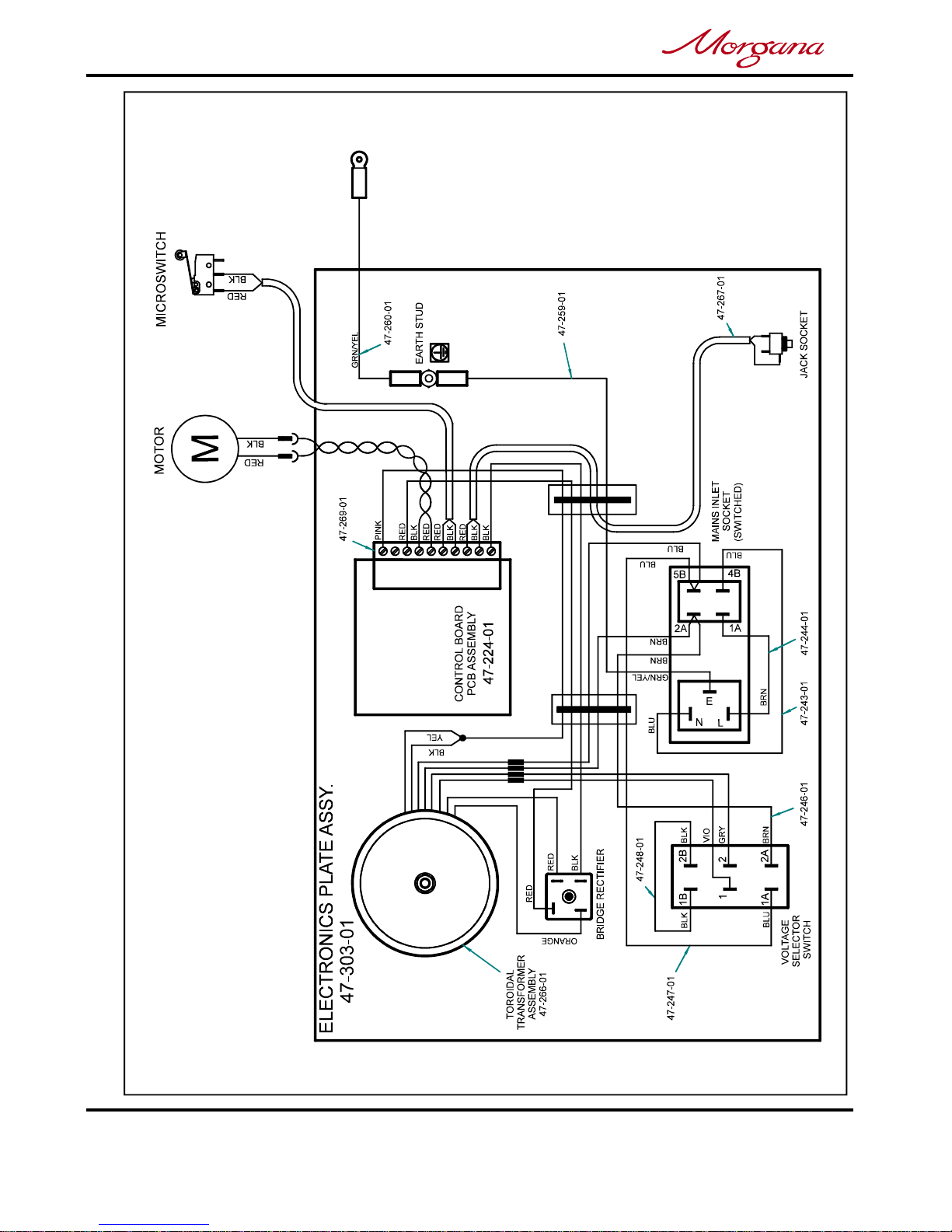

WIRINGDIAGRAM
Page10 PAPER
+AC
ROUTINEMAINTENANCE
Itisrecommendedthatthefollowinglubricationiscarriedoutat
monthlyintervals
1.Removethecreasingheadtopcover.
2.Trickleoilintotheslots,atbothendsoftheshaft,asshowninFIG.1&
FIG.2.
3.Liberallycoatthetopofthenutsandtheareasoftheshaftthatcontact
theheadofthenutswithPTFEgrease,asshowninFIG.3.
Oil Oil
FIG.1 FIG.2
FIG.3
PTFEGrease
Page11
CREASER
ElectroCreaser36
RECOMMENDEDSPARESLIST
NOTE....
Theitemslistedaboverepresentspartswhicharesubjecttowear,loss,or
accidentaldamage,andisincludedforyourguidanceonly.
Itemnumbersrefertotheillustrationsandtablesinthismanual.
Replacementofpartsfittedtoyourmachinerequirespecialistknowledgeand
shouldthereforebeentrustedtoyourdealer.
Page12 PAPER
ITEMNO. PARTNo. QTY. Description
147-300-01 1CREASERMECHANISM-Electrocreaser36.
247-301-01 2SpeedStopAssy.
28 652-034 1Microswitch
19 47-266-01 1ToroidalTransformerAssembly
21 601-109 4FOOT-M4-Black
24 606-040 1KNURLEDKNOB-Female.
25 606-041 1KNURLEDKNOB-Male.
26 610-029 1DogaMotor&Gearbox
27 651-094 1FUSEDPOWERINLET.
20 47-267-01 1JackSocketLeadAssembly
29 652-035 1FootSwitch
33 672-009 1BridgeRectifier
681-013 1Fuse-2A-20x5mm-Anti-surgeCeramic(For240VOperation)
947-224-01 1ControlBoardPCBAssembly
681-015 1Fuse-4A-20x5mm-Anti-surgeCeramic(For110VOperation)
34
35 604-080 2CompressionSpring
54
23 604-085 1GASSTRUT
