Safety Instructions
For your safety,the information in this manual must be followed to
minimize the risk of fire or explosion, electric shock, or to prevent
property damage, personal injury or loss of life. Explanation of the
symbols:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•
The electric shock!
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
slight or minor injuries.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Warning!
！

3
•The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
•Before any maintenance the device, unplug the appliance
from the mains.
•Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals. The
min. inlet water pressure, in pascals.
•To ensure your safety, power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
•Make sure that the water and electrical devices will be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Risk to children!
EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•
•Children of less than 3years should be supervised to ensure
that they do not play with appliance.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Kids should be supervised that they do not play with the
appliance.
SAFETY INSTRUCTIONS

4
•Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
•Glass door may be very hot during operation. Keep kids and
pets far away from the machine during the operation and do
not use the machine in very wet rooms as well as in rooms
with explosive or caustic gas.
•Plug must be accessible after installation.
•
•
Risk of explosion!
Do not wash or dry articles that have been cleaned in,
washed in, soaked in, or dabbed with combustible
or explosive substances (such as wax, oil, paint,
gasoline, degreasers, dry-cleaning solvents, kerosene,
etc.) This may cause fire or explosion.
The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
The exhaust air must not be discharged into a flue which is
for exhausting fumes from appliances burning gas or other
fuels.
Before hand thoroughly rinse items of washing by hand.
•This washing machine is for indoor use only.
•It isn't intended to be built-in using.
•The openings must not be obstructed by carpets.
•Washing machine shall not be installed in bath room or very
wet rooms as well as in the rooms with explosive or caustic
gases.
•The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water
and cold water supply.
•Plug must be accessible after installation.
Installing the product!
SAFETY INSTRUCTIONS
Caution!
•
•

5
•The appliance must not be installed behind a lockable door,
a sliding door or a door with a hinge on the opposite side to
that of the washer dryer.
The appliance shall not be installed at a humid place.
Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
•Your product is only for home use and is only designed for the
textiles suitable for machine washing.
•Do not climb up and sit on top cover of the machine.
•Do not lean against machine door.
•Cautions during handling / carrying the machine:
1.Transport bolts shall be re-installed to the machine by a
specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machine carefully. Never hold each protruded part
on the machine while lifting. Machine door can not be used as
the handle during the conveyance.
4.This appliance is heavy. Transport / carry it with care.
•Please do not close the door with excessive forces. If it is
found difficult to close the door, please check if the clothes are
put in or distributed well.
•It is forbidden to wash carpets.
Operating the appliance!
•Before washing the clothes at first time, the product shall be
operated in one round of the whole procedures without any
clothes inside.
•Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
SAFETY INSTRUCTIONS
•
•
5. Hands shall not be inserted into running water extracting tub.
Before using the washing machine should be calibrated.
•

6
•Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
•Please check whether the water inside the drum has been
drained before opening its door.Please do not open the door
if there is any water visible.
•Be careful of burning when the product drains hot washing
water.
•Never refill the water by hand during washing.
•
SAFETY INSTRUCTIONS
This appliance is intended to be used in househould and
applications such as
•Staff kitchen areas in shops, offices and other working
environments;
•Farm housed;
•By clients in hotels, motels and other residential type
environments;
•Bed and breakfast type environments;
•Areas for communal use in blocks of flats or in
launderettes;
Warning!
！
After the program is completed, please wait for two minutes to
open the door.
If it is unavoidable that fabrics that contain
vegetable or cooking oil or have been contaminated by hair
care products, to be placed in a tumble dryer they should
first be washed in hot water with extra detergent. This will
reduce, but not eliminate, the hazard. Adequate ventilation
has to be provided to avoid the back flow of gases into the
room from appliances burning
other fuels, including open fires.
Do not dry unwashed clothes / fabrics in the appliance.
Clothes / fabrics that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot with an extra amount of detergent before
being dried in the appliance.

Items such as foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows
fitted with foam rubber pads should not be dried in the
machine.
Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
The machine whose lid can be opended during water
extraction,that it takes 15s or more for complete stop of water
extracting chamber tub.
The final part of a washer dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be
damaged.
Remove all objects from pockets such as lighters and
matches before use the appliance.
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging / Old appliance
WARNING: Never stop a washer dryer before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
SAFETY INSTRUCTIONS
7

8
Accessories

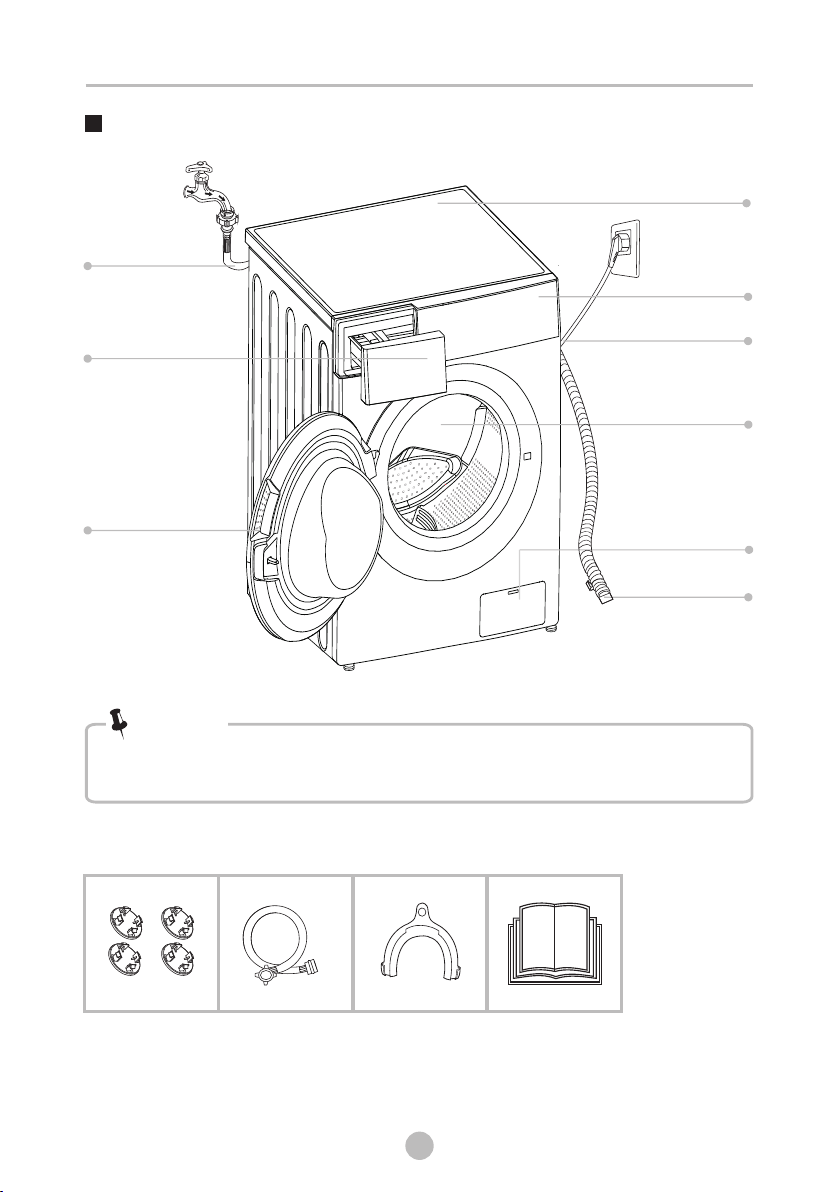

Product Description
Transport
plughole
Supply hose
cold water
Drain hose
(optional
support
)
•The product line chart is for reference only, please refer to real
product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION

9
INSTALLATION
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1.
Remove the cardboard box and styrofoam packing.
2.
Lift the washing machine and remove the base packing.
3.
Remove the tape securing the power supply cord and drain hose.
4.
Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.

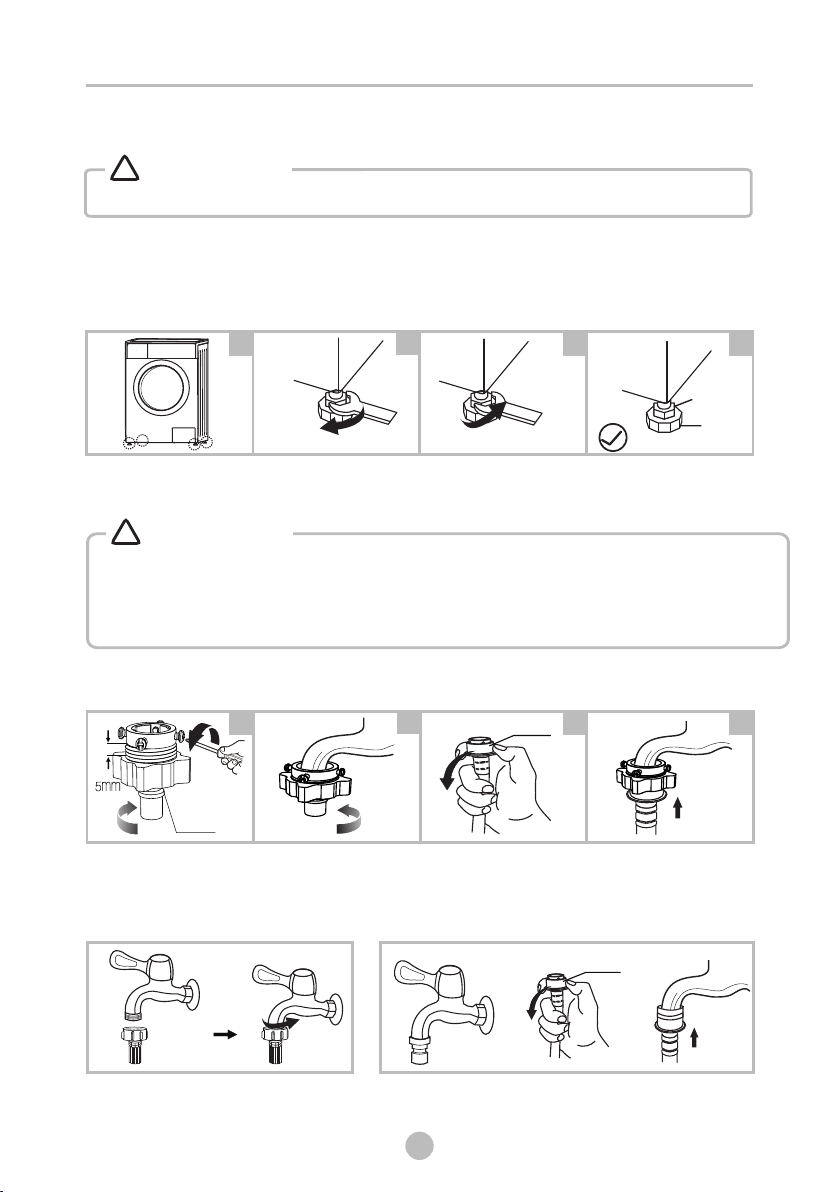

Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
•
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area

10
INSTALLATION
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
•
The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
hose. Energy consumption will decrease automatically for some program.
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
•To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
•water inlet hose
•For the model equips hot valve,connect it to hot water tap with hot water supply
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
clamp nut
Loosen clamp nut and
four bolts
Τιghten clamp nut Press slide bushing ,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
Tap with threads and inlet hose Special tap for washer dryer
2.Connection between screw tap and inlet hose.
slide bushing

11
INSTALLATION
Warning!
！
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
•
If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min.60cm
100cm
Max.
Trough
Hos e Retai ner
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
• If the machine has drain hose support, please install it like the following .
Warning!
！Warning! ！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
•Detergent need to be added in "case I “after selecting pre-washing for machines
with this function.
1 2 3 4 5
2. Washing
Note!
Caution!
OPERATIONS
Main
Wash
Pre Wash
Softener
Power On
Select Programme Select function or
default
Start up
1 2 3 4
Buzzer beep or End on display.
3. After Washing
1.If default is selected, step 3 can be skipped.
2.The function button line chart is for reference only, please refer to real
product as standard.
Note!
Calibration
It is recommend to calibrate the washing machine before first use
1- Empty the wash machine;
2- Plug in;
3- Power on the wash machine and press Speed and Delay at the same
time within 10 seconds then display "t19"
4- Press to start the wash machine and wait till display ****
12

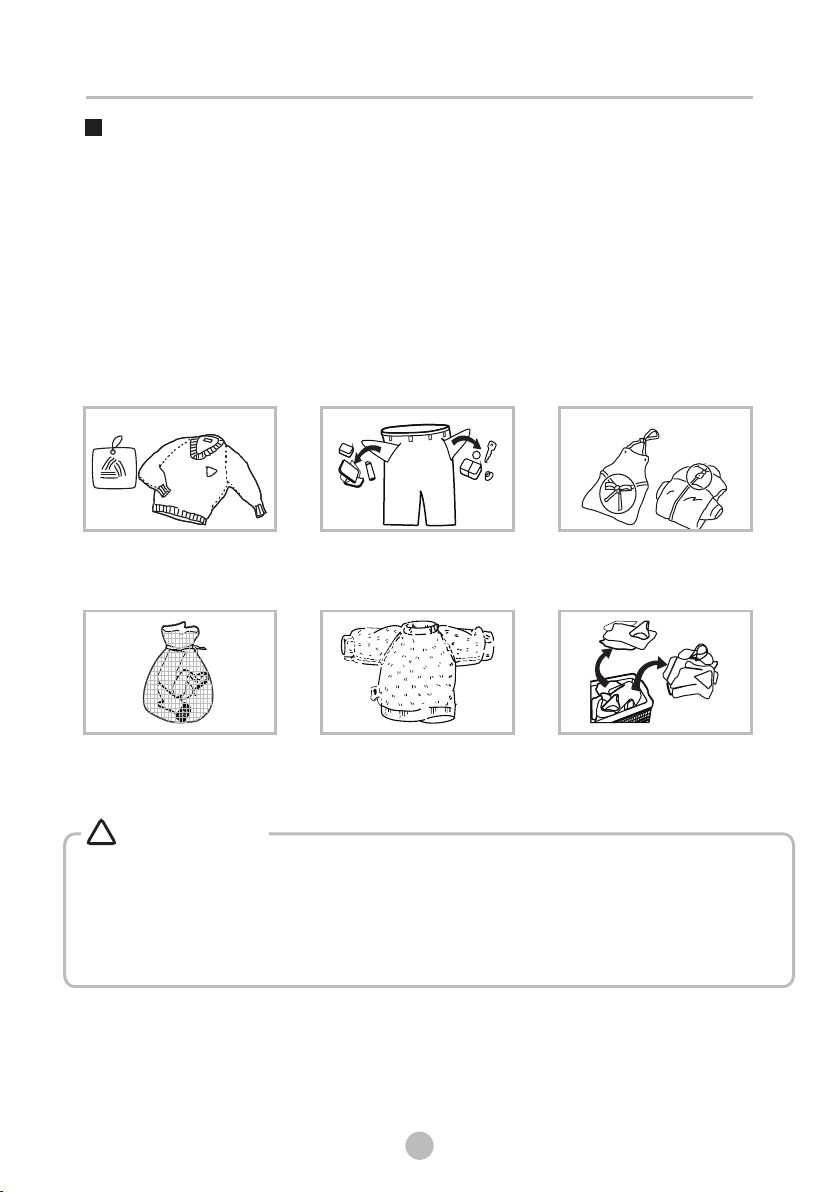

Knot the long strips,zip or
buttons
• When washing a single clothe, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t wash any cloth touched by kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0℃or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out of the pockets
the items
Put small clothes into the
pillow slip
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS
13

• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
OPERATIONS

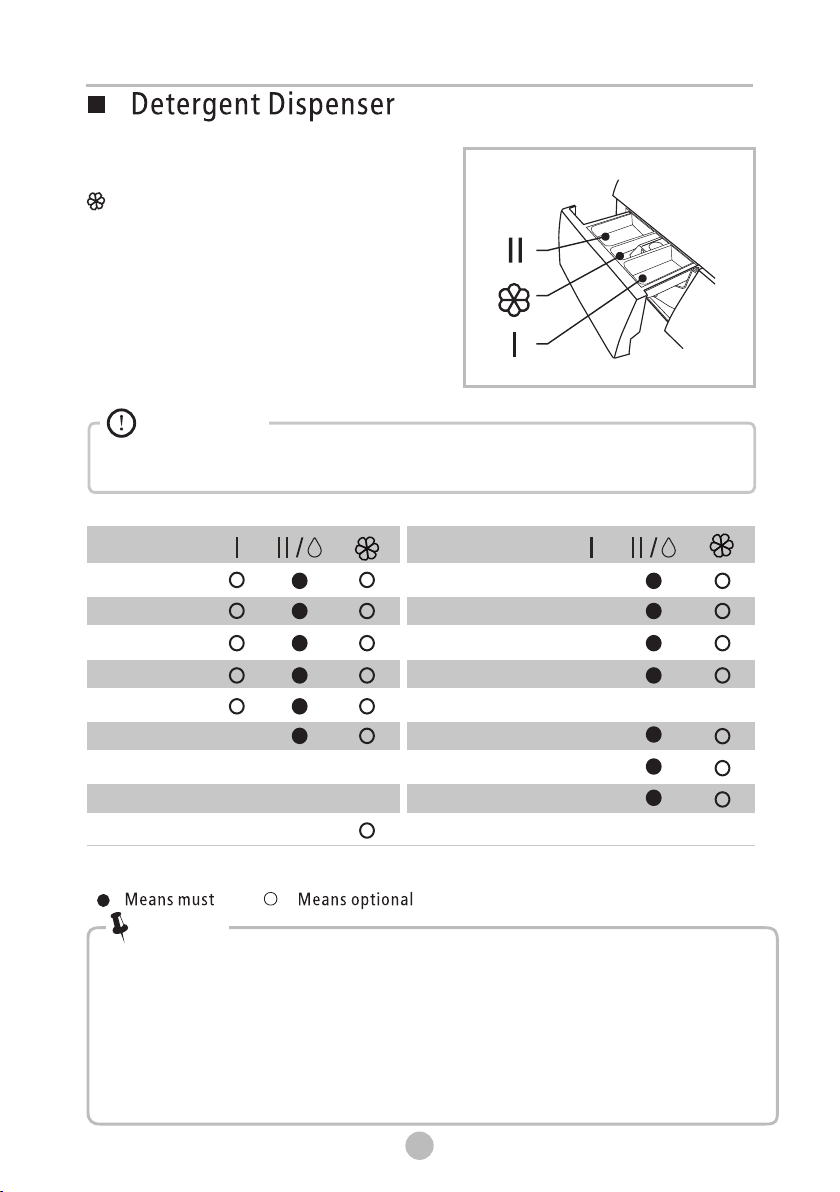

Pull out the dispenser
Caution!
 Detergent only need to be added in "case I after selecting pre-washing
for machines with this function.

I


I


Pre wash detergent
Main wash detergent
Softener

I
Programme
Cotton
Synthetic
Mix
Bed Linen
Baby Care
20℃
Drum Clean
Spin Only
Rinse & Spin
Programme
Wool
ECO 40-60
Dry Only
1h W/D
Wash and Dry
Quick 15
Intensive
14

OPERATIONS
Control Panel
15

Delay
Set the Delay function:
1.
Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Option
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
OPERATIONS
Soil
The washing time will increase or decrease after you select it.
Soil Level
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Pre Wash
Extra Rinse
Speed
Wash
Speed Wash
The function can decrease the washing time.
My Cycle
To memory the frequently used programme.
After choosing the programme and setting the options, press [Temp.] 3 sec. before start
to wash. The default setting course is Cotton.
16
Note: Operations are for reference only. Please refer to the actual product

OPERATIONS
• Don't use the Reload function when the water level over the edge of the
inner tub or the temperature is higher.
Reload
This operation can be executed during the washing progress. When the drum is
still rolling and there is large amount of water with high temperature in the
drum. The state is unsafe and the door cannot be opened forcefully. To press
[Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway
function. Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
P 3sress[Start/Pause]ec.
Clothes
Reload the clothes
Caution!
17
SpaCare function can be selected by choose “Cotton”, ”Bed Linen” and “Baby Care”.
The customers can see the steam in the drum when operate SpaCare function. The
SpaCare cannot be used simultaneously With Pre Wash and Speed Wash.
SpaCare SpaCare
Note: Operations are for reference only. Please refer to the actual product

Speed
Press the button to change the speed.
1500: 0-400-600-800-1000-1200-1400-1500
Temp.
℃,Press the button to regulate the temperature(Cold,20 30℃, 40℃,60℃,90℃)
Other Functions
OPERATIONS
18
Cotton
Mix
Wash and Dry
Dry Only
20℃
Baby Care
Drum Clean
Programme Default Speed(rpm) Programme Default Speed(rpm)
Spin Only
Rinse &Spin
Wool
ECO 40-60
Intensive
Quick 15/1h WD
1000
800
800

1500
1500
1500
1500
800
1500
1000
600
800
1000
1500

Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
until the next reset. will be kept
•After Muting the buzzer function, the sounds will not be activated any more.
Caution!
OPERATIONS
Press the [Speed]button for 3sec.,
the buzzer is mute.
Speed
Choose the Programme
The "Child Lock" will lock all buttons except Power button and Child Lock
button
Caution!
When child lock is activated and program starts, child lock indicator will switch on,
and the CL and remaining time on the display are alternately displayed in 0.5s.
Press the other buttons will make child lock indicator flash for 3s. when program
finish,CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s
• Only press and hold the two button can release child lock, even power off,
switch off and program end
•
• Please release child lock before selecting program and staring washing
Child Lock
To avoid mis operation by children.
Press [ ] and [ ]
3 sec. till buzzer beep.
Delay SpaCare
Delay SpaCare
Dry
Press the Dry button continuously to choose the dry level: Extra Dry/Normal
Dry (Normal)/ Gentle Dry(Soft).
Extra Dry:Need to wear clothes immediately ,we can choose this function;
Normal Dry(Normal) The normal dry procedure;
Gentle Dry(Soft):Only to dry slightly and then is just ok;
Timed Dry:We can choose this function to dry clothes for a specific time.
:
Caution!
19
