Mosaic Kohler Cimarron User manual

Quick SHIP Toilets
CST244EF(R)
Entrada™Close Coupled Toilet, 1.28GPF
FEATURES
• E-Max®flushing system, high efficiency
(1.28GPF/4.8LPF)
• Elongated bowl
• Universal Height
• ADA compliant
• Close coupled, elongated front bowl and tank set,
seat sold separately
• Chrome trip lever
• 12" Rough-in
MODELS
• CST244EF
• CST244EFR - Right-hand trip lever
PRODUCT SPECIFICATION
The two-piece, universal height, high efficiency E-Max
flushing system toilet shall be 1.28GPF. Toilet shall
have high-profile tank, elongated bowl and chrome
trip lever. Toilet shall be ADA compliant and universal
height. Toilet shall be TOTO Model CST244EF___.
COLORS/FINISHES
• Standard
#01 Cotton
COMPONENTS
• C244EF - Elongated Front Bowl
• ST243E - Tank and cover only - Left hand trip lever
(shown in photo)
• ST243ER - Tank and cover only - Right hand trip
lever
• SS114 SoftClose®seat (sold separately)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC)
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
E-Max
v.4-21
For your convenience, these products are stocked in our
Central Service Center.
(Orders placed before 12pm are available within 1 business day for MD,
VA, and Raleigh NC locations. Greensboro NC ships within 48 hours.)

See back of brochure for Installation instructions
- 1.28 GPF Tank
- 2-1/8” Trapway
- Rough in 12”
- AquaPiston flushing system
- Meets and exceeds ASME A112.19.2/CSA B45.1
- 1 Year Limited Warranty
- Soft Close Seat
- Elongated Bowl
- 17” Height, ADA Compliant
- Overall Dimensions:
15-7/16” W x 28-11/16” D x 30-5/8” H
Bowl, 17” Height, ADA TSK-31588-0 $217.71
Tank TSK-31615-0 $132.00
Soft Close Seat TS011505 $57.13
Brushed Nickel Handle TS024445 $61.80
Starting at
$406.84 Total
Kohler Cimarron White Vitreous Toilet
Innovation & Technology Highlights
AquaPiston
Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to
create a strong siphon during flushing. The AquaPiston canister allows water to flow into the bowl
from all sides (360 degrees), increasing the power and effectiveness of the flush. The flush valve’s
3:2 ratio harnesses the natural force of gravity and optimizes flush performance. The durable canister
design has 90% less exposed seal material than a 3-inch flapper for leak-free performance, and the
light-touch canister flush requires a lower actuation force than a flapper.
DryLock™Fast Install System
The DryLock System saves installation time and helps prevent water leakage. A metal bracket placed
at the bottom of the tank means no bolt holes are drilled into the tank – virtually eliminating leaks.
ADA Compliant
Toilets displaying the ADA logo will comply with the Americans with Disabilities Act when
installed per the requirements of the Accessibility Guidelines, Section 604 Water Closets.
Wax Toilet Bowl Ring
024869 $6.40
- Anti-leak, no seep gasket
- Plastic flange and 3-1/2” x 1/4” bolts included

See back of brochure for Installation instructions See back of brochure for Installation instructions
- 1.28 / 0.8 GPF Tank
- 2-1/2” Trap diameter with clear glaze coating
- 12” Rough-in
- DynaMax™ Tornado Flush®ultra high efficiency flushing system
- Meets and exceeds ASME A112.19.2/ CSA B45.1 and ASME
A112.19.14
- IAPMO(cUPC)®and EPA WaterSense Certified
- 1 Year Limited Warranty
- Close Coupled Toilet
- Chrome push-button
- Skirted Design
- Elongated Bowl; Universal Height
- Overall Dimensions:
15-9/16” W x 27-3/8” D x 29-5/16” H
- Color: Cotton White
Bowl VACT446CUG-01 $281.65
Tank VAST446EM-01 $141.18
Soft Close Seat VASS124-01 $53.33
$476.16 Total
Toto Aquia IV White Vitreous Toilet
Innovation & Technology Highlights
DynaMax™ Tornado Flush
The Tornado Flush features two powerful nozzles that create a centrifugal, cyclonic rinsing action
which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this
high-efficiency system is more effective in one flush than most toilets are with multiple flushes.
Skirted Design
The modern and elegant skirted design conceals the trapway and features smooth lines that are
easy to clean and maintain.
Universal Height
Universal Height offers sinks and toilets at a more manageable height, making the bathroom
more accessible and enjoyable for everyone. This simple design principle allows all people, from
the beginning of their days through the rest of their lives, to completely enjoy their bathroom
experience, regardless of age or ability.
WaterSense
A partnership program of the U.S. Environmental Protection Agency (EPA) makes it easier
to save water and protect the environment by promoting water efficiency and enhancing the
market for water-efficient products.
TOTO has always been an industry leader in green technology. TOTO currently has a number of
products that meet the new California Green Buildings Standards Code (known as CalGreen).
Toto Drake White Vitreous Toilet
- 1.6 / 0.8 GPF Tank
- 2-1/8” Trap diameter
- 12” Rough-in
- DynaMax™ Tornado Flush®ultra high efficiency flushing system
- Meets and exceeds ASME A112.19.2/ CSA B45.1
- IAPMO(cUPC)®and EPA WaterSense Certified
- 1 Year Limited Warranty
- T40 Washlet+ and auto flush upgrade compatibility
- Elongated Bowl
- Universal Height is ADA Compliant
- Universal Height Overall Dimensions:
17-5/16” W x 27-3/8” D x 30-1/16” H
- Standard Height Overall Dimensions:
17-5/16” W x 27-3/8” D x 28-7/8” H
- Color: Cotton White
Standard Height
Bowl VACT746CUG-01 $142.52
Tank VAST746SMA-01 $111.51
Soft Close Seat VASS114-01 $49.20
Universal Height, ADA
Bowl, ADA VACT746CUFG-01 $175.75
Tank VAST746SMA-01 $111.51
Soft Close Seat VASS114-01 $49.20
$336.46 Total $303.23 Total
Innovation & Technology Highlights
DynaMax™ Tornado Flush
The Tornado Flush features two powerful nozzles that create a centrifugal, cyclonic rinsing action
which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this
high-efficiency system is more effective in one flush than most toilets are with multiple flushes.
Universal Height Option
Universal Height offers sinks and toilets at a more manageable height, making the bathroom
more accessible and enjoyable for everyone. This simple design principle allows all people, from
the beginning of their days through the rest of their lives, to completely enjoy their bathroom
experience, regardless of age or ability.
ADA Compliant
A core principle behind TOTO Total Design, ADA standards consider the needs of everyone,
no matter their needs, without additional adaptation or specialization, optimizing the
bathroom experience for all generations in the family home.
WaterSense
A partnership program of the U.S. Environmental Protection Agency (EPA) makes it easier
to save water and protect the environment by promoting water efficiency and enhancing the
market for water-efficient products.
TOTO has always been an industry leader in green technology. TOTO currently has a number of
products that meet the new California Green Buildings Standards Code (known as CalGreen).

See back of brochure for Installation instructions See back of brochure for Installation instructions
CST244EF(R)
Entrada™Close Coupled Toilet, 1.28GPF
FEATURES
• E-Max®flushing system, high efficiency
(1.28GPF/4.8LPF)
• Elongated bowl
• Universal Height
• ADA compliant
• Close coupled, elongated front bowl and tank set,
seat sold separately
• Chrome trip lever
• 12" Rough-in
MODELS
• CST244EF
• CST244EFR - Right-hand trip lever
PRODUCT SPECIFICATION
The two-piece, universal height, high efficiency E-Max
flushing system toilet shall be 1.28GPF. Toilet shall
have high-profile tank, elongated bowl and chrome
trip lever. Toilet shall be ADA compliant and universal
height. Toilet shall be TOTO Model CST244EF___.
COLORS/FINISHES
• Standard
#01 Cotton
COMPONENTS
• C244EF - Elongated Front Bowl
• ST243E - Tank and cover only - Left hand trip lever
(shown in photo)
• ST243ER - Tank and cover only - Right hand trip
lever
• SS114 SoftClose®seat (sold separately)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC)
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
E-Max
- 1.28 GPF Tank
- 2-1/8” Trapway
- Rough in 12”
- E-Max high efficiency flushing system
- Meets and exceeds ASME A112.19.2/CSA B45.1
- 1 Year Limited Warranty
- Close Coupled Toilet
- Soft Close Seat
- Elongated Bowl
- 17” Height, ADA Compliant
- Overall Dimensions:
14-3/8” W x 28-5/8” D x 30” H
Bowl, 17” Height, ADA VAC244EF-01 $88.56
Tank VAST243-01 $92.26
Soft Close Seat VASS114-01 $49.20
$230.02 Total
Innovation & Technology Highlights
E-Max
The E-Max flushing system provides a consistent and powerful flush
using a combination of a wide 3” valve and an extra-large siphon jet.
The innovative system is quiet and simple and uses only 1.28 gallons
per flush. This amounts to a considerable water savings every day.
Universal Height
Universal Height offers sinks and toilets at a more manageable height,
making the bathroom more accessible and enjoyable for everyone. This simple design principle
allows all people, from the beginning of their days through the rest of their lives, to completely enjoy
their bathroom experience, regardless of age or ability.
ADA Compliant
A core principle behind TOTO Total Design, ADA standards consider the needs of everyone,
no matter their needs, without additional adaptation or specialization, optimizing the
bathroom experience for all generations in the family home.
WaterSense
A partnership program of the U.S. Environmental Protection Agency (EPA) makes it easier
to save water and protect the environment by promoting water efficiency and enhancing the
market for water-efficient products.
TOTO has always been an industry leader in green technology. TOTO currently has a number of
products that meet the new California Green Buildings Standards Code (known as CalGreen).
Toto Entrada White Vitreous Toilet Toto Promenade II White Vitreous Toilet
- 1.28 GPF Tank
- 2-1/8” Trap diameter with clear glaze coating
- 12” Rough-in
- DynaMax™ Tornado Flush®ultra high efficiency flushing system
- Meets and exceeds ASME A112.19.2/ CSA B45.1
- IAPMO(cUPC)®and EPA WaterSense Certified
- 1 Year Limited Warranty
- Close Coupled Toilet
- Elongated Bowl
- Universal Height, ADA Compliant
- Overall Dimensions:
16-3/4” W x 28-1/2” D x 31-1/4” H
- Color: Cotton White
Bowl VAC404CUFG-01 $281.65
Tank VAST403E-01 $141.18
Soft Close Seat VASS114-01 $49.20
$472.03 Total
Innovation & Technology Highlights
DynaMax™ Tornado Flush
The Tornado Flush features two powerful nozzles that create a centrifugal, cyclonic rinsing action
which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this
high-efficiency system is more effective in one flush than most toilets are with multiple flushes.
Universal Height
Universal Height offers sinks and toilets at a more manageable height, making the bathroom
more accessible and enjoyable for everyone. This simple design principle allows all people, from
the beginning of their days through the rest of their lives, to completely enjoy their bathroom
experience, regardless of age or ability.
ADA Compliant
A core principle behind TOTO Total Design, ADA standards consider the needs of everyone,
no matter their needs, without additional adaptation or specialization, optimizing the
bathroom experience for all generations in the family home.
WaterSense
A partnership program of the U.S. Environmental Protection Agency (EPA) makes it easier
to save water and protect the environment by promoting water efficiency and enhancing the
market for water-efficient products.
TOTO has always been an industry leader in green technology. TOTO currently has a number of
products that meet the new California Green Buildings Standards Code (known as CalGreen).

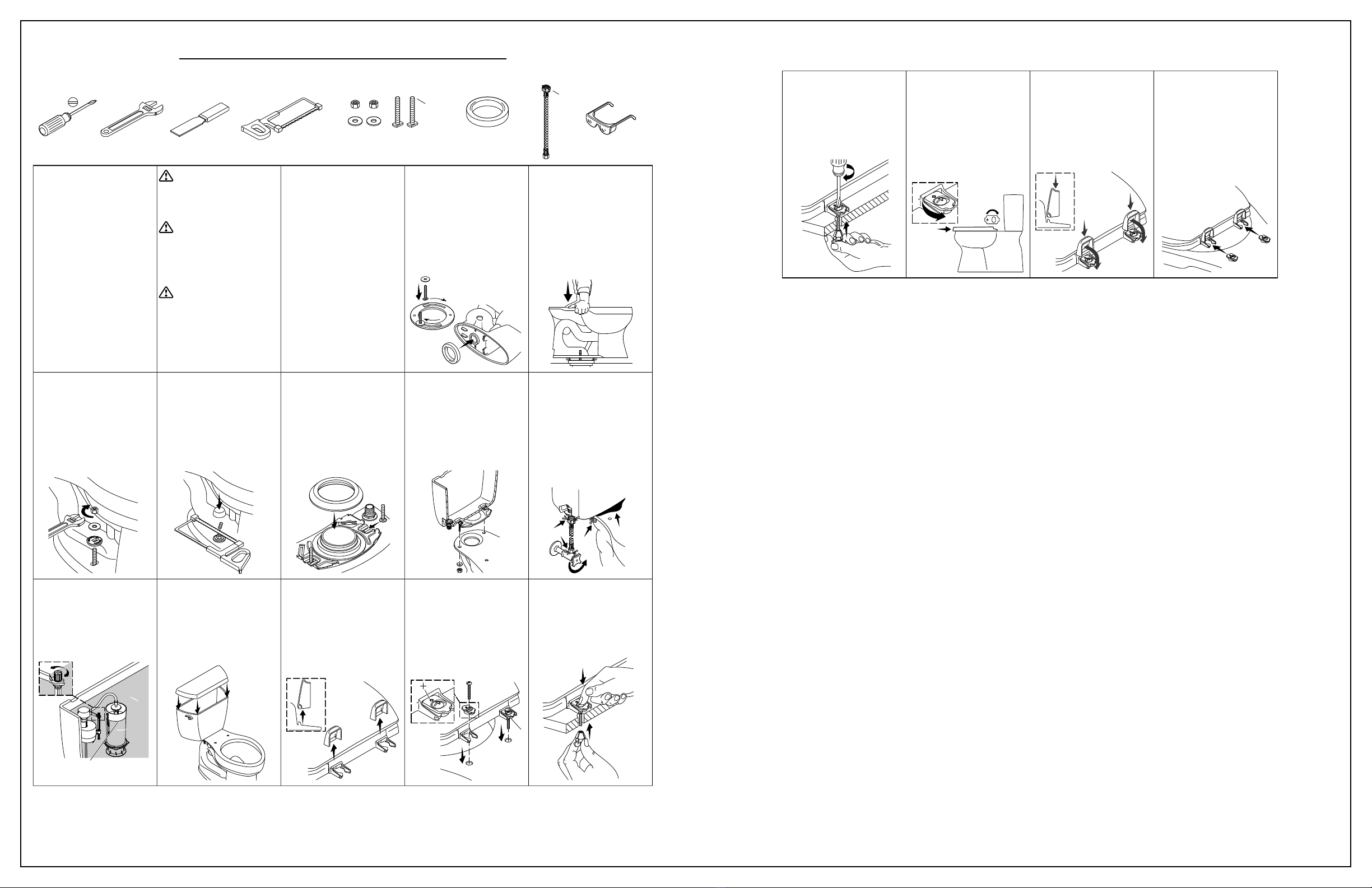

Kohler Cimarron Installation Guide
Installation Guide
Guide d’installation
Guía de instalación
7/8"
T-Bolts
Boulons en T
Pernos en T
Wax Seal
Joint de cire
Sello de cera
5/16"
2Apply weight evenly. Do not
move after placement!
Watertight seal may be broken!
Appliquer du poids de manière
égale. Ne pas bouger après la
mise en place! Le joint
d'étanchéité pourrait se
casser!
Aplique peso de manera
uniforme. ¡No mueva después
de colocar! ¡Se podría romper
el sello hermético!
1Install T-bolts and a new wax ring.
Remove the rag if the waste flange
was plugged.
Installer les boulons en T et un
anneau de cire neuf. Retirer le
chiffon si la bride d'évacuation
était bouchée.
Instale los pernos en T y un anillo
de cera nuevo. Retire el trapo si
se cubrió la brida de drenaje.
Important Information
Remove the old toilet, T-bolts, and
wax ring. Inspect and repair the
water supply. If the toilet will not be
installed right away, temporarily plug
the waste flange with a rag.
Informations importantes
Retirer l'ancienne toilette, les boulons
en T, et l'anneau de cire. Inspecter
et réparer l'arrivée d'eau. Si la toilette
n'est pas installée immédiatement,
boucher temporairement la bride
d'évacuation avec un chiffon.
Información importante
Retire el inodoro anterior, los pernos
en T y el anillo de cera. Revise y
repare el suministro de agua. Si el
inodoro no va a ser instalado de
inmediato, tape temporalmente la
brida de drenaje con un trapo.
WARNING: Risk of property or product
damage.
Do not use in-tank cleaners in your toilet.
Products containing chlorine (calcium
hypochlorite) can seriously damage fittings in
the tank. This damage can cause leakage and
property damage.
ADVERTISSEMENT: Risque de
dommages matériel ou
d'endommagement du produit.
Ne pas utiliser de détergents faits pour le
réservoir dans la toilette. Les produits contenant
du chlore (hypochlorite de calcium) peuvent
sérieusement endommager les raccords du
réservoir. Ceci peut créer des fuites et des
dommages matériels.
ADVERTENCIA: Riesgo de daños al
producto o a la propiedad.
No utilice productos para limpiar el
inodoro que se colocan dentro del tanque. Los
productos que contienen cloro (hipoclorito de
calcio) pueden dañar las piezas del tanque.
Esto puede causar fugas y daños a la
propiedad.
Observe all local plumbing and
building codes.
Record your model number below
for future reference:
Respecter tous les codes de
plomberie et de bâtiment locaux.
Consigner le numéro de modèle
ci-dessous pour toute référence
ultérieure:
Cumpla todos los códigos locales de
plomería y construcción.
Anote abajo el número de su
modelo como referencia futura:
7Connect and turn on the water
supply. Do not overtighten!
Check for leaks.
Connecter et ouvrir l'arrivée d'eau.
Ne pas trop serrer! Rechercher
des fuites.
Conecte y abra el suministro de
agua. ¡No apriete demasiado!
Verifique que no haya fugas.
6Tighten the bolts evenly. Do not
overtighten!
Serrer les boulons de manière
égale. Ne pas trop serrer!
Apriete al parejo los pernos. ¡No
apriete demasiado!
5Install the gasket and the bolts
onto the bracket.
Installer le joint d'étanchéité et
les boulons sur le support.
Instale el empaque y los pernos
en el soporte.
4If needed, cut the T-bolts before
installing the caps.
Si nécessaire, couper les boulons
en T avant d'installer les
capuchons.
Si es necesario corte los pernos
en T antes de instalar los
tapapernos.
3Install the washers and nuts as
shown. Do not overtighten!
Installer les rondelles et les
écrous comme sur l'illustration.
Ne pas trop serrer!
Instale las arandelas y las
tuercas como se ilustra. ¡No
apriete demasiado!
12Push the nuts up onto the bolts.
Enfoncer les écrous vers le haut
sur les boulons.
Introduzca las tuercas en los
pernos.
11Position the “+” toward the seat.
Positionner le “+” tourné vers le
siège.
Coloque el símbolo “+” hacia el
asiento.
10Open and lift the covers to
remove.
Ouvrir et lever les couvercles
pour les retirer.
Abra y levante las cubiertas para
retirarlas.
9Install the tank lid.
Installer le couvercle du réservoir.
Instale la tapa del tanque.
Waterline
Ligne d'eau
Línea de agua
8Adjust the water level to the
waterline.
Régler le niveau d'eau du réservoir
au niveau de la ligne d'eau.
Ajuste el nivel de agua a la línea
de agua.
16 Quick-Release for Cleaning:
Open the covers. Pull the seat
straight back to remove.
Ouverture rapide pour le
nettoyage: Ouvrir les
couvercles. Tirer le siège
entièrement vers l'arrière pour le
retirer.
Desenganche rápido para
limpieza: Abra las cubiertas.
Jale el asiento directamente
hacia atrás para sacarlo.
15Vertically position the covers,
snap onto the hinges, and close.
Positionner les couvercles
verticalement, enclencher sur les
charnières et fermer.
Coloque las cubiertas en posición
vertical, métalas a presión en las
bisagras, y ciérrelas.
14 Adjust (Optional): rotate the “+”
toward the tank to reposition the
seat.
Ajuster (optionnel): tourner le
“+” vers le réservoir pour
repositionner le siège.
Ajuste (opcional): Gire el
símbolo “+” hacia el tanque para
cambiar la posición del asiento.
13Hold the nuts while tightening the
bolts to secure.
Tenir les écrous tout en serrant
les boulons pour les fixer en
place.
Sostenga las tuercas y apriete
los pernos hasta que queden
fijos.
1145217-2-C
Installation Guide
Guide d’installation
Guía de instalación
7/8"
T-Bolts
Boulons en T
Pernos en T
Wax Seal
Joint de cire
Sello de cera
5/16"
2Apply weight evenly. Do not
move after placement!
Watertight seal may be broken!
Appliquer du poids de manière
égale. Ne pas bouger après la
mise en place! Le joint
d'étanchéité pourrait se
casser!
Aplique peso de manera
uniforme. ¡No mueva después
de colocar! ¡Se podría romper
el sello hermético!
1Install T-bolts and a new wax ring.
Remove the rag if the waste flange
was plugged.
Installer les boulons en T et un
anneau de cire neuf. Retirer le
chiffon si la bride d'évacuation
était bouchée.
Instale los pernos en T y un anillo
de cera nuevo. Retire el trapo si
se cubrió la brida de drenaje.
Important Information
Remove the old toilet, T-bolts, and
wax ring. Inspect and repair the
water supply. If the toilet will not be
installed right away, temporarily plug
the waste flange with a rag.
Informations importantes
Retirer l'ancienne toilette, les boulons
en T, et l'anneau de cire. Inspecter
et réparer l'arrivée d'eau. Si la toilette
n'est pas installée immédiatement,
boucher temporairement la bride
d'évacuation avec un chiffon.
Información importante
Retire el inodoro anterior, los pernos
en T y el anillo de cera. Revise y
repare el suministro de agua. Si el
inodoro no va a ser instalado de
inmediato, tape temporalmente la
brida de drenaje con un trapo.
WARNING: Risk of property or product
damage.
Do not use in-tank cleaners in your toilet.
Products containing chlorine (calcium
hypochlorite) can seriously damage fittings in
the tank. This damage can cause leakage and
property damage.
ADVERTISSEMENT: Risque de
dommages matériel ou
d'endommagement du produit.
Ne pas utiliser de détergents faits pour le
réservoir dans la toilette. Les produits contenant
du chlore (hypochlorite de calcium) peuvent
sérieusement endommager les raccords du
réservoir. Ceci peut créer des fuites et des
dommages matériels.
ADVERTENCIA: Riesgo de daños al
producto o a la propiedad.
No utilice productos para limpiar el
inodoro que se colocan dentro del tanque. Los
productos que contienen cloro (hipoclorito de
calcio) pueden dañar las piezas del tanque.
Esto puede causar fugas y daños a la
propiedad.
Observe all local plumbing and
building codes.
Record your model number below
for future reference:
Respecter tous les codes de
plomberie et de bâtiment locaux.
Consigner le numéro de modèle
ci-dessous pour toute référence
ultérieure:
Cumpla todos los códigos locales de
plomería y construcción.
Anote abajo el número de su
modelo como referencia futura:
7Connect and turn on the water
supply. Do not overtighten!
Check for leaks.
Connecter et ouvrir l'arrivée d'eau.
Ne pas trop serrer! Rechercher
des fuites.
Conecte y abra el suministro de
agua. ¡No apriete demasiado!
Verifique que no haya fugas.
6Tighten the bolts evenly. Do not
overtighten!
Serrer les boulons de manière
égale. Ne pas trop serrer!
Apriete al parejo los pernos. ¡No
apriete demasiado!
5Install the gasket and the bolts
onto the bracket.
Installer le joint d'étanchéité et
les boulons sur le support.
Instale el empaque y los pernos
en el soporte.
4If needed, cut the T-bolts before
installing the caps.
Si nécessaire, couper les boulons
en T avant d'installer les
capuchons.
Si es necesario corte los pernos
en T antes de instalar los
tapapernos.
3Install the washers and nuts as
shown. Do not overtighten!
Installer les rondelles et les
écrous comme sur l'illustration.
Ne pas trop serrer!
Instale las arandelas y las
tuercas como se ilustra. ¡No
apriete demasiado!
12Push the nuts up onto the bolts.
Enfoncer les écrous vers le haut
sur les boulons.
Introduzca las tuercas en los
pernos.
11Position the “+” toward the seat.
Positionner le “+” tourné vers le
siège.
Coloque el símbolo “+” hacia el
asiento.
10Open and lift the covers to
remove.
Ouvrir et lever les couvercles
pour les retirer.
Abra y levante las cubiertas para
retirarlas.
9Install the tank lid.
Installer le couvercle du réservoir.
Instale la tapa del tanque.
Waterline
Ligne d'eau
Línea de agua
8Adjust the water level to the
waterline.
Régler le niveau d'eau du réservoir
au niveau de la ligne d'eau.
Ajuste el nivel de agua a la línea
de agua.
16 Quick-Release for Cleaning:
Open the covers. Pull the seat
straight back to remove.
Ouverture rapide pour le
nettoyage: Ouvrir les
couvercles. Tirer le siège
entièrement vers l'arrière pour le
retirer.
Desenganche rápido para
limpieza: Abra las cubiertas.
Jale el asiento directamente
hacia atrás para sacarlo.
15Vertically position the covers,
snap onto the hinges, and close.
Positionner les couvercles
verticalement, enclencher sur les
charnières et fermer.
Coloque las cubiertas en posición
vertical, métalas a presión en las
bisagras, y ciérrelas.
14 Adjust (Optional): rotate the “+”
toward the tank to reposition the
seat.
Ajuster (optionnel): tourner le
“+” vers le réservoir pour
repositionner le siège.
Ajuste (opcional): Gire el
símbolo “+” hacia el tanque para
cambiar la posición del asiento.
13Hold the nuts while tightening the
bolts to secure.
Tenir les écrous tout en serrant
les boulons pour les fixer en
place.
Sostenga las tuercas y apriete
los pernos hasta que queden
fijos.
1145217-2-C

Toto Aquia IV Installation Guide
4
ENGLISH
Screw
Washer
Nut
Wax seal
INSTALLATION PROCEDURE
1. Open the Unifit Rough-In packaging.
Follow the Unifit Rough-In
Installation instruction to complete
the rough-in installation (ill. 1).
2. Place the template into position and
follow its instructions to prepare for
installing the toilet bowl.
Do not move the Unifit Rough-
In on the Floor Flange after
wax seal is set. If this notice is
disregarded, discard the wax ring
and replace with new wax ring.
3. Place the toilet bowl over the Unifit
Rough-In and the two mounting blocks,
by aligning the bowl outlet with the
Unifit Rough-In opening (ill. 2).
4. Align the toilet perpendicular to the
back wall and parallel to side walls; it
should not sit crooked or diagonal (ill. 3).
Mounting block
Insert the toilet all the way
into position. If this notice is
disregarded, leakage may result.
NOTICE
NOTICE
ill.1
ill.2
ill. 3
5
ENGLISH
6.
Install the tank-to-bowl mounting
hardware to the tank (ill. 5).
Do NOT overtighten
hardware, as it may break
the china and cause
personal injury or property
damage.
7.
Place the tank upside down onto
some padding. Inspect the smaller
fill valve nut and larger flush valve nut
for a secure connection (ill. 6). Try to
tighten the nuts with your hands. If
loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller
fill valve nut and an additional 1/2
turn for the larger flush tower nut.
Make sure that the fill
valve does not turn
and hit the tank while
tightening.
8.
Connect the water supply hose (not
provided) to the fill valve (ill. 5).
The water supply hose
must be connected to
the fill valve BEFORE the
tank-to-bowl installation.
TOTO recommends
using a longer flexible
supply hose.
9. Place the tank-to-bowl gasket onto
the flush tower nut (ill. 7). While
pressing down, spread the gasket
over the nut until the gasket touches
the bottom of the tank. A slight gap
between the tank bottom and the
gasket is allowable.
INSTALLATION PROCEDURE
⚠CAUTION
Nut
Metal washer
Rubber washer
Bolt
Cap Side-screw
Cap
Side-screw
ill. 4
5. Install the side screws to the
mounting blocks. Cover the
screw head with the provided
screw caps (ill. 4).
Flush valve nut
Fill valve nut
ill. 6
ill. 5
NOTICE
NOTICE
4
ENGLISH
Screw
Washer
Nut
Wax seal
INSTALLATION PROCEDURE
1. Open the Unifit Rough-In packaging.
Follow the Unifit Rough-In
Installation instruction to complete
the rough-in installation (ill. 1).
2. Place the template into position and
follow its instructions to prepare for
installing the toilet bowl.
Do not move the Unifit Rough-
In on the Floor Flange after
wax seal is set. If this notice is
disregarded, discard the wax ring
and replace with new wax ring.
3. Place the toilet bowl over the Unifit
Rough-In and the two mounting blocks,
by aligning the bowl outlet with the
Unifit Rough-In opening (ill. 2).
4. Align the toilet perpendicular to the
back wall and parallel to side walls; it
should not sit crooked or diagonal (ill. 3).
Mounting block
Insert the toilet all the way
into position. If this notice is
disregarded, leakage may result.
NOTICE
NOTICE
ill.1
ill.2
ill. 3
2
ENGLISH
COMMON TOOLS NEEDED
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and
function as a guiding principle. Congratulations on your choice.
INCLUDED PARTS
Thanks for Choosing TOTO! ..............................................................................2
Included Parts ......................................................................................................2
Common Tools Needed......................................................................................2
Before Installation................................................................................................3
Installation Procedure..........................................................................................4
Care and Cleaning...............................................................................................7
Replacing the Fill Valve .......................................................................................8
Adjusting the Water Level...................................................................................8
Servicing Fill Valve ...............................................................................................9
Servicing Flush Valve .........................................................................................10
Warranty..............................................................................................................11
Toilet
Tank to Bowl Mounting Hardware
Rough-in
Bowl Mounting hardware
Template
Manual
Unifit Rough-in Instruction
Rough-in Mounting Hardware
10” adjustable wrench
Carpenters’ level
Hacksaw
Tape measure
Hand pliers
Flat head screwdriver
Phillips screwdriver
Pencil
Putty knife
Drill
Drill bits (mounting block)
For wood floor installation:
- ” drill bit
For concrete/tile installation:
- ” drill bit
Check to make sure you have the following parts included in your package*:
* Actual parts may appear different from drawing according to the model.
Flexible supply hose
Angle stop valve
Wax ring
M
ATERIALS REQUIRED:
(Not Included)
6
ENGLISH
10. Pick up the tank and carefully guide
the water supply hose over the
bowl’s fill valve hole, align the tank-
to-bowl gasket over the inlet of the
bowl, and align the tank bolts over
the bolt holes of the bowl.
11. Using provided tank-tight nuts,
hand tighten the nuts evenly until
tank sets snugly on each of the 3
contact points on the bowl (ill. 8).
Do not overtighten
the mounting bolts.
Overtightening may
break the china and cause
personal injury and/or
property damage.
12. Install the flexible water supply
hose to the angle stop (ill. 9). Make
sure that the hose is free of kinks.
⚠CAUTION
INSTALLATION PROCEDURE
Tank-tight nut
50 mm radius minimum Make sure there are no kinks
ill. 9
Tank to Bowl
Gasket
Fill valve nut
Flush valve nut
ill. 7
1
3
2
Points of Contac t
ill. 8
7
ENGLISH
INSTALLATION PROCEDURE
Push buttons
Tank lid
Left Right
Full
Flush
Partial
Flush
Clip
Locknut
Clockwise/
counter-clockwise
Push button assembly
Lid
Flush valve
13. Carefully place the lid on top of the
tank, making sure that the full flush push
button is on the left side (ill. 10).
14.
If necessary, adjust the length of the push
button rods. They are factory set to the
correct length, so only follow these steps
if applicable to your situation.
If the push button rods are too short,
the push buttons will not sit properly. If
the push button rods are too long, the
push button may continuously activate
the flush valve. Correct with the following
steps (see ill. 11):
1. Loosen the lock nuts counte
r-
clockwise.
2.
Turn the rods clockwise to shorten,
counter-clockwise to lengthen (each
full turn is 1mm).
3. Place the lid on the tank to check the
adjustment.
4. When the adjustment is completed,
tighten the lock nut to secure.
15.
Turn on the water supply at the angle
stop. Check ALL connections for leaks.
Fix as needed.
16.
The toilet seat is installed with the seat
top mounting hardware. Refer to the seat
installation instruction.
ill. 10
ill. 11
Flush valve
Left
Right
CARE AND CLEANING
Use a detergent or non-abrasive toilet cleaner and a soft bristled
plastic brush to clean your toilet. To remove hard water stains, use
vinegar or lime dissolving cleaner and a non-scratch scour pad
made for porcelain. Allow a little contact time to allow the cleaner
to dissolve the buildup.
Do not spray cleaner directly onto the button on the top of the tank, instead wipe it
using a dampened soft cloth with diluted dishwashing detergent and dry it with
another soft cloth. Do not use bleach or products that include acid or alkaline
detergents in their ingredients. Do not use metal scrub brushes or steel wool.
6
ENGLISH
10. Pick up the tank and carefully guide
the water supply hose over the
bowl’s fill valve hole, align the tank-
to-bowl gasket over the inlet of the
bowl, and align the tank bolts over
the bolt holes of the bowl.
11. Using provided tank-tight nuts,
hand tighten the nuts evenly until
tank sets snugly on each of the 3
contact points on the bowl (ill. 8).
Do not overtighten
the mounting bolts.
Overtightening may
break the china and cause
personal injury and/or
property damage.
12. Install the flexible water supply
hose to the angle stop (ill. 9). Make
sure that the hose is free of kinks.
⚠CAUTION
INSTALLATION PROCEDURE
Tank-tight nut
50 mm radius minimum Make sure there are no kinks
ill. 9
Tank to Bowl
Gasket
Fill valve nut
Flush valve nut
ill. 7
1
3
2
Points of Contac t
ill. 8
5
ENGLISH
6. Install the tank-to-bowl mounting
hardware to the tank (ill. 5).
Do NOT overtighten
hardware, as it may break
the china and cause
personal injury or property
damage.
7. Place the tank upside down onto
some padding. Inspect the smaller
fill valve nut and larger flush valve nut
for a secure connection (ill. 6). Try to
tighten the nuts with your hands. If
loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller
fill valve nut and an additional 1/2
turn for the larger flush tower nut.
Make sure that the fill
valve does not turn
and hit the tank while
tightening.
8. Connect the water supply hose (not
provided) to the fill valve (ill. 5).
The water supply hose
must be connected to
the fill valve BEFORE the
tank-to-bowl installation.
TOTO recommends
using a longer flexible
supply hose.
9. Place the tank-to-bowl gasket onto
the flush tower nut (ill. 7). While
pressing down, spread the gasket
over the nut until the gasket touches
the bottom of the tank. A slight gap
between the tank bottom and the
gasket is allowable.
INSTALLATION PROCEDURE
⚠CAUTION
Nut
Metal washer
Rubber washer
Bolt
Cap Side-screw
Cap
Side-screw
ill. 4
5. Install the side screws to the
mounting blocks. Cover the
screw head with the provided
screw caps (ill. 4).
Flush valve nut
Fill valve nut
ill. 6
ill. 5
NOTICE
NOTICE
6
ENGLISH
10. Pick up the tank and carefully guide
the water supply hose over the
bowl’s fill valve hole, align the tank-
to-bowl gasket over the inlet of the
bowl, and align the tank bolts over
the bolt holes of the bowl.
11. Using provided tank-tight nuts,
hand tighten the nuts evenly until
tank sets snugly on each of the 3
contact points on the bowl (ill. 8).
Do not overtighten
the mounting bolts.
Overtightening may
break the china and cause
personal injury and/or
property damage.
12. Install the flexible water supply
hose to the angle stop (ill. 9). Make
sure that the hose is free of kinks.
⚠CAUTION
INSTALLATION PROCEDURE
Tank-tight nut
50 mm radius minimum Make sure there are no kinks
ill. 9
Tank to Bowl
Gasket
Fill valve nut
Flush valve nut
ill. 7
1
3
2
Points of Contac t
ill. 8
WARNING! Do not use
in-tank bowl cleaners.
The use of high
concentration of chlorine
or chlorine-related
products can seriously
damage fittings in the
tank. This damage can
cause leakage and
property damage. TOTO
shall not be responsible
or liable for any tank
fitting failure or damage
caused by the use of in-
tank bowl cleaners.

Toto Drake Installation Guide
3
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and function
as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO®!...........................................................................................3
Before Installation...............................................................................................................3
Common Tools Needed ....................................................................................................3
Included Parts .....................................................................................................................3
Before Installation...............................................................................................................4
Installation Procedure ........................................................................................................4
Maintenance Instructions...................................................................................................7
Care and Cleaning..............................................................................................................9
Warranty ............................................................................................................................ 10
Rough-In Dimensions ......................................................................................................28
Replacement Parts............................................................................................................29
Check to make sure you have all these parts from the package:
COMMON TOOLS NEEDED
China Bowl with Lid Tank
a b cd
Tank Lid Tank to Bowl Gasket
a. Bolts (metal) - 2
b. Washers (rubber) -2
c. Washers (metal) - 4
d. Nuts (metal) -4
• 10” adjustable wrench
• Carpenter’s Level
• Hacksaw
• Tape Measure
• Hand Pliers
• Flat Screwdriver
• Putty Knife
ADDITIONAL ITEMS (NOT SUPPLIED BY TOTO):
• Bowl Wax Ring
• Closet Flange Mounting Bolts
(usually 2 T-bolts, 2 metal washers and 2 nuts)
• Water Supply Line
(typically 1/2” compression to 7/8” ballcock)
• Toilet Seat (TOTO SoftClose recommended)
e f
a. Caps (plastic) - 2 b. Base (plastic) - 2
INCLUDED PARTS
Tools Needed:
3
ENGLISH
BEFORE INSTALLATION
Read these instructions thoroughly before beginning work.
Please leave instructions for customers. These instruction contain maintenance
and warranty information.
If necessary, remove the existing toilet.
For your new TOTO toilet to fit correctly, the rough-in, the distance between the
finished wall to the center of the
closet flange, must be at least
12 inches for most models.
NOTE: Models with 10”
rough-in have model numbers
ending with “.10”, for example
CT746CUFG.10.
Recommended water supply valve location:
5-7/8” (from oor) x 4-3/8” (from center).
Water
Supply
Valve
Finished Wall
"RI"
C/L
Closet
Flange
INSTALLATION PROCEDURE
Ill. 1
Bolt Cap
Nut *
Washer *
Base Cap
Bowl Base
Three Points of Contact
* Not Supplied
Ill. 2C
Ill. 2B
1) Clean any debris out of the closet flange
and then install new mounting bolts
(not supplied) into the slots of the closet
flange (see Illustration 1). The head of the
bolt should be inserted into the slot with
its threads facing upward.
2) Carefully turn the toilet upside down
onto some padding. Firmly press a new
bowl wax ring (not supplied) onto the
circular recess around the toilet bowl’s
horn (see Ill. 2A). Turn the toilet upright
and gently lower into position over
the closet flange. With toilet properly
aligned, press rmly on both sides
of toilet rim to set the bowl wax ring.
(see Illustration 2B)
CAUTION: Do not move the bowl after
the bowl wax ring is set. Thread the base
caps, washers and nuts and tighten evenly
until bowl is snug to closet flange. Install
the bolt caps (see Illustration 2C).
CAUTION: Do not over-tighten the nuts
as damage to the china bowl may result.
Ill. 2A
Points of Contact
(3)
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are fr
ont
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
5
ENGLISH
INSTALLATION PROCEDURE
7/8” Ballcock Thread
HAND TIGHTEN ONLY
Ill. 6
Ill. 9
Seat
Hinge
6) Flush the water supply line for a few seconds
to remove any debris that may enter the
new fill valve. (For new home constructions
and/or additions, flush the water supply line
for more than a minute to help remove any
residual PVC adhesives, solder flux, and/ or
pipe sealants that were used for the new
plumbing.) Connect the water supply line to
the fill valve threads as seen at the bottom
of toilet tank (see Illustration 6). Tighten this
connection finger tight.
CAUTION: Avoid using a wrench to tighten
the connection as you may damage the
plastic threads and/or cause the fill valve to
rotate inside the tank.
NOTE: The water supply pressure should be
20 to 80 psi static.
7) Flush toilet a few times to check for issues
and leaks. Make sure NO WATER LEAK on
bowl and tank.
8) Install the toilet tank lid onto the toilet tank
top.
9) Install the toilet seat onto the toilet bowl
using the mounting hardware in the toilet
seat box. Place seat onto bowl and rotate
the hinge down. Position seat stoppers
under the seat hinge. Insert bolt into seat
hinge and through the toilet bowl. Install
plastic nut onto bolt from underneath.
Tighten the bolt securely. Install the seat
bolt caps.
NOTE: Tighten the seat bolt until the hinge is
secure. The seat and lid will have slight side
to side movement, which is normal. This
freedom of movement allows the seat to
SoftClose® without binding.
Cap
Plastic
Bolt
Seat
Stopper
Bowl
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
can be seen on the bowl at the tank
4
ENGLISH
INSTALLATION PROCEDURE
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 3).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
See illustration 3.
4) Lay the tank down on its back. Place a
rubber washer onto a bolt (see
Illustration 4). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
5) Pick up the tank and carefully guide
the bolts to align the tank with
the bowl. Attach hand tight nut to
each bolt (see illustration 5A). Tighten
until tank makes THREE POINTS OF
CONTACT with the bowl (see illustration
5B).
NO
YES
Ill. 5B
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
NO
Ill. 4
Ill. 5A
Metal Washer
Hand
Tight
Nut
Rubber Washer
Bolt
Cut Away View
Ill. 3
Tank to Bowl
Gasket
Fill Valve Nut Flush Valve Nut
Use of tools prohibited
Hand Tight Nut
E-5
Must use provided
Hand Tight Nuts
WARNING! Do not use
in-tank bowl cleaners.
The use of high
concentration of chlorine
or chlorine-related
products can seriously
damage fittings in the
tank. This damage can
cause leakage and
property damage. TOTO
shall not be responsible
or liable for any tank
fitting failure or damage
caused by the use of in-
tank bowl cleaners.

Toto Entrada and Promenade II Installation Guide
4
ENGLISH
BEFORE INSTALLATION
Read these instructions thoroughly before beginning work.
Please leave instructions for customers. These instruction contain maintenance
and warranty information.
If necessary, remove the existing toilet.
For your new TOTO toilet to fit correctly, the rough-in, the distance between the
finished wall to the center of the
closet flange, must be at least
12 inches for most models.
NOTE: Models with 10”
rough-in have model numbers
ending with “.10”, for example
C744EF.10.
Supply
Valve
Finished Wall
"RI"
C/L
Closet
Flange
IMPORTANT!
Due to the powerful performance of our Cyclone, G-Max, E-Max and Power Gravity
ushing systems, they are not specified for back-to-back installations. The only
means of installing these toilets in a back-to-back situation is when the toilet drain
connections incorporate a WYE fitting. Please contact your builder or contractor prior
to this installation.
Double Combination WYE / 1/8 Bend
YES
Double Sanitary Tee / Sanitary Cross
NO
INSTALLATION PROCEDURE
Ill. 1
Ill. 2
Wax Ring
Horn
Bolt Cap
Nut *
Washer *
Base Cap
Bowl Base
Three Points of Contact
* Not Supplied
Ill. 3
1) Clean any debris out of the closet flange
and then install new mounting bolts
(not supplied) into the slots of the closet
flange (see Illustration 1). The head of the
bolt should be inserted into the slot with
its threads facing upward.
2) Carefully turn the toilet upside down
onto some padding. Firmly press a new
bowl wax ring (not supplied) onto the
circular recess around the toilet bowl’s
horn (see Illustration 2). Turn the toilet
upright and gently lower into position
over the closet flange. With toilet
properly aligned, press firmly on both
sides of toilet rim to set the bowl wax
ring (see Illustration 3).
CAUTION: Do not move the bowl after
the bowl wax ring is set. Thread the nuts
and tighten evenly until bowl is snug to
closet flange. Install the bolt caps (see
Illustration 3).
CAUTION: Do not over-tighten the nuts
as damage to the china bowl may result.
3
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and function
as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO®!...........................................................................................3
Before Installation...............................................................................................................3
Common Tools Needed ....................................................................................................3
Included Parts .....................................................................................................................3
Before Installation...............................................................................................................4
Installation Procedure ........................................................................................................4
Maintenance Instructions...................................................................................................7
Care and Cleaning..............................................................................................................9
Warranty ............................................................................................................................ 10
Rough-In Dimensions ......................................................................................................28
Replacement Parts............................................................................................................29
Check to make sure you have all these parts from the package:
COMMON TOOLS NEEDED
China Bowl with Lid Tank
a b cd
Tank Lid Tank to Bowl Gasket
a. Bolts (metal) - 2
b. Washers (rubber) -2
c. Washers (metal) - 4
d. Nuts (metal) -4
• 10” adjustable wrench
• Carpenter’s Level
• Hacksaw
• Tape Measure
• Hand Pliers
• Flat Screwdriver
• Putty Knife
ADDITIONAL ITEMS (NOT SUPPLIED BY TOTO):
• Bowl Wax Ring
• Closet Flange Mounting Bolts
(usually 2 T-bolts, 2 metal washers and 2 nuts)
• Water Supply Line
(typically 1/2” compression to 7/8” ballcock)
• Toilet Seat (TOTO SoftClose recommended)
e f
a. Caps (plastic) - 2 b. Base (plastic) - 2
INCLUDED PARTS
5
ENGLISH
INSTALLATION PROCEDURE
NO
NO
YES
Ill. 6
Ill. 4
Ill. 5
Tank to Bowl
Gasket
1
3
2
Fill Valve Nut Flush Valve Nut
Metal Washer
Nut
Rubber Washer
Bolt
Cut Away View
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
Points of Contact
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 4).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
4) Lay the tank down on its back. Place a
rubber washer onto a brass bolt (see
Illustration 5). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
Pick up the tank and carefully guide
the brass bolts to align the tank with
the bowl. Attach a metal washer and
nut to each bolt. Tighten the nuts finger
tight and inspect that the tank is level
(see Illustration 6). Once level, tighten
the bolts equally until the tank makes
THREE POINTS OF CONTACT with the
bowl.
Tools Needed:
6
ENGLISH
INSTALLATION PROCEDURE
4
5
6
2 3
1
7/8” Ballcock Thread
HAND TIGHTEN ONLY
Ill. 7
Ill. 8
Seat
Hinge Cap
Plastic
Bolt
Seat
Stopper
Bowl
Plastic Nut
1 - Cap
2 - Plastic Bolt
3 - Seat Hinge
4 - Seat Stopper
5 - Toilet Bowl
6 - Plastic Nut
MOUNTING HARDWARE
5) Flush the water supply line for a few seconds
to remove any debris that may enter the
new fill valve. (For new home constructions
and/or additions, flush the water supply line
for more than a minute to help remove any
residual PVC adhesives, solder ux, and/ or
pipe sealants that were used for the new
plumbing.) Connect the water supply line to
the fill valve threads as seen at the bottom
of toilet tank (see Illustration 7). Tighten this
connection finger tight.
CAUTION: Avoid using a wrench to tighten
the connection as you may damage the
plastic threads and/or cause the fill valve to
rotate inside the tank.
NOTE: The water supply pressure should be
20 to 80 psi static.
6) No ballcock / fill valve adjustments are
needed. The water will automatically stop at
proper level. Flush the toilet several times.
Check flapper valve for proper operation.
Make sure that chain is not tangled and that
the flapper arm is in its proper position.
7) Install the toilet tank lid onto the toilet tank
top.
8) Install the toilet seat onto the toilet bowl
using the mounting hardware in the toilet
seat box. Place seat onto bowl and rotate
the hinge down. Position seat stoppers
under the seat hinge. Insert bolt into seat
hinge and through the toilet bowl. Install
plastic nut onto bolt from underneath.
Tighten the bolt securely. Install the seat
bolt caps.
NOTE: Tighten the seat bolt until the hinge is
secure. The seat and lid will have slight side
to side movement, which is normal. This
freedom of movement allows the seat to
SoftClose® without binding.
5
ENGLISH
INSTALLATION PROCEDURE
NO
NO
YES
Ill. 6
Ill. 4
Ill. 5
Tank to Bowl
Gasket
1
3
2
Fill Valve Nut Flush Valve Nut
Metal Washer
Nut
Rubber Washer
Bolt
Cut Away View
31 & 2
3 Gap 1 & 2
3
1 & 2
Gap
Points of Contact
NOTE: Three Points of Contact:
The toilet bowl has three points o
contact, which will actually contact the
bottom of the toilet tank when properly
installed. The location of these points
can be seen on the bowl at the tank
receiving area. The three points are front
left (1), front right (2), and back center
(3). Recall these three points during the
Toilet Tank installation.
3) Place the tank upside down onto some
padding. Inspect the smaller fill valve
nut and larger flush valve nut for a
secure connection (see Illustration 4).
Try to tighten the nuts with your hands.
If loose, tighten the nut hand tight and
an additional 1/4 turn for the smaller fill
valve nut and an additional 1/2 turn for
the larger flush valve nut.
Place the tank-to-bowl gasket onto the
flush valve nut. While pressing down,
spread the gasket over the nut until the
gasket touches the bottom of the tank.
A slight gap between the tank bottom
and the gasket is allowable.
4) Lay the tank down on its back. Place a
rubber washer onto a brass bolt (see
Illustration 5). Reach inside the tank
and position the bolt through one of
the holes in the bottom of the tank.
On the outside of the tank, place a
metal washer and nut onto the bolt.
Hold the bolt centered in the hole and
tighten the nut finger tight. Turn the nut
an additional 1/2 turn with a wrench.
Repeat this process for the remaining
hole in the tank.
Pick up the tank and carefully guide
the brass bolts to align the tank with
the bowl. Attach a metal washer and
nut to each bolt. Tighten the nuts finger
tight and inspect that the tank is level
(see Illustration 6). Once level, tighten
the bolts equally until the tank makes
THREE POINTS OF CONTACT with the
bowl.
WARNING! Do not use
in-tank bowl cleaners.
The use of high
concentration of chlorine
or chlorine-related
products can seriously
damage fittings in the
tank. This damage can
cause leakage and
property damage. TOTO
shall not be responsible
or liable for any tank
fitting failure or damage
caused by the use of in-
tank bowl cleaners.

Alexandria, VA
I
Chantilly, VA
I
Fairfax, VA
I
Richmond, VA
I
Virginia Beach, VA
North Bethesda, MD*
I
Owings Mills, MD*
I
Greensboro, NC
I
Raleigh, NC
www.mosaictileco.com
Locally
Owned &
Operated
