Motion 4 Doors EvoDrive+ User manual

EvoDrive+
USER MANUAL
Part 3 of the Installation, User and Maintenance Manual
This section must be given to the User of the automatic door
EN
v3.0.0

USER MANUAL 2
INDEX
PART 3 USER MANUAL
1. PRODUCT DESCRIPTION ..................................................................................................................4
2. INSTRUCTIONS OF USE....................................................................................................................4
2.1. OPERATING MODES...............................................................................................................................................................4
2.2. OPERATION DURING POWER FAILURE..............................................................................................................................4
2.3. DOOR CLEANING....................................................................................................................................................................5
2.4. RESTRICTIONS OF USE.........................................................................................................................................................5
3. RISK ASSESSMENT..........................................................................................................................6
3.1. IDENTIFICATION OF DANGEROUS AREAS........................................................................................................................6
3.2. RESIDUAL RISKS.....................................................................................................................................................................8
4. TROUBLESHOOTING ........................................................................................................................8
5. TECHNICAL SPECIFICATIONS ..........................................................................................................9
6. AUTOMATIC DOOR OPERATOR CE DECLARATION FORM ...............................................................10
EvoDrive+ AUTOMATIC DOOR OPERATOR
FOR INTERIOR SLIDING DOOR

PART 3
User manual
This part of the manual explains the operating and safety considerations,
to be taken into account by the end user.
It is very important to read this manual in full,
and to observe and follow all instructions as described herein.

USER MANUAL 4
1. PRODUCT DESCRIPTION
This door is equipped with the EvoDrive+ automatic sliding door operator, specically designed for interior
doors. Equipped with the latest technology in automatic doors, the leaves are moved by a linear motor that
slides with the door leaf by attraction and repulsion of the permanent magnets incorporated along the header
frame, making the operator a very compact unit, with a superb, smooth and silent movement. Please, read
these instructions in full before using the door for rst time.
2. INSTRUCTIONS OF USE
2.1. OPERATING MODES
The EvoDrive+ is delivered with a wireless remote control with 4 buttons to let you set the operating mode to
any of the following:
2.2. OPERATION DURING POWER FAILURE
Thanks to the particular technology of the EvoDrive+ automatic door operator and the absence of mechanical
elements such as gears or belts, in the event of power failure the manual and smooth movement of the door is
guaranteed by simply pushing or pulling the door leaf or handle with a minimum effort.
If the operator is equipped with an automatic lock, this will be released in the event of power failure, and the
motors will be disconnected to allow a manual movement of the door, performing just like any other manual
sliding door.
CLOSED mode
The door will close and remain in that
position. If the door is equipped with an
automatic lock (optional), the door will
be blocked in the closed position.
OPEN mode
The door will open and remain free. It
will work as a manual sliding door.
AUTOMATIC mode
Every time an activation device (push
button, touchless switch, radar or
sensor) is triggered and when the door
is pushed manually 5 cm, the door will
open during an adjustable hold-open
time and close again.
EXIT only / ACCESS control mode
The activation devices on the interior
side of the door will remain active, while
the devices on the exterior side will
remain disabled. For a full functionality,
we recommend to equip the door with
an automatic lock.

USER MANUAL 5
2.3. DOOR CLEANING

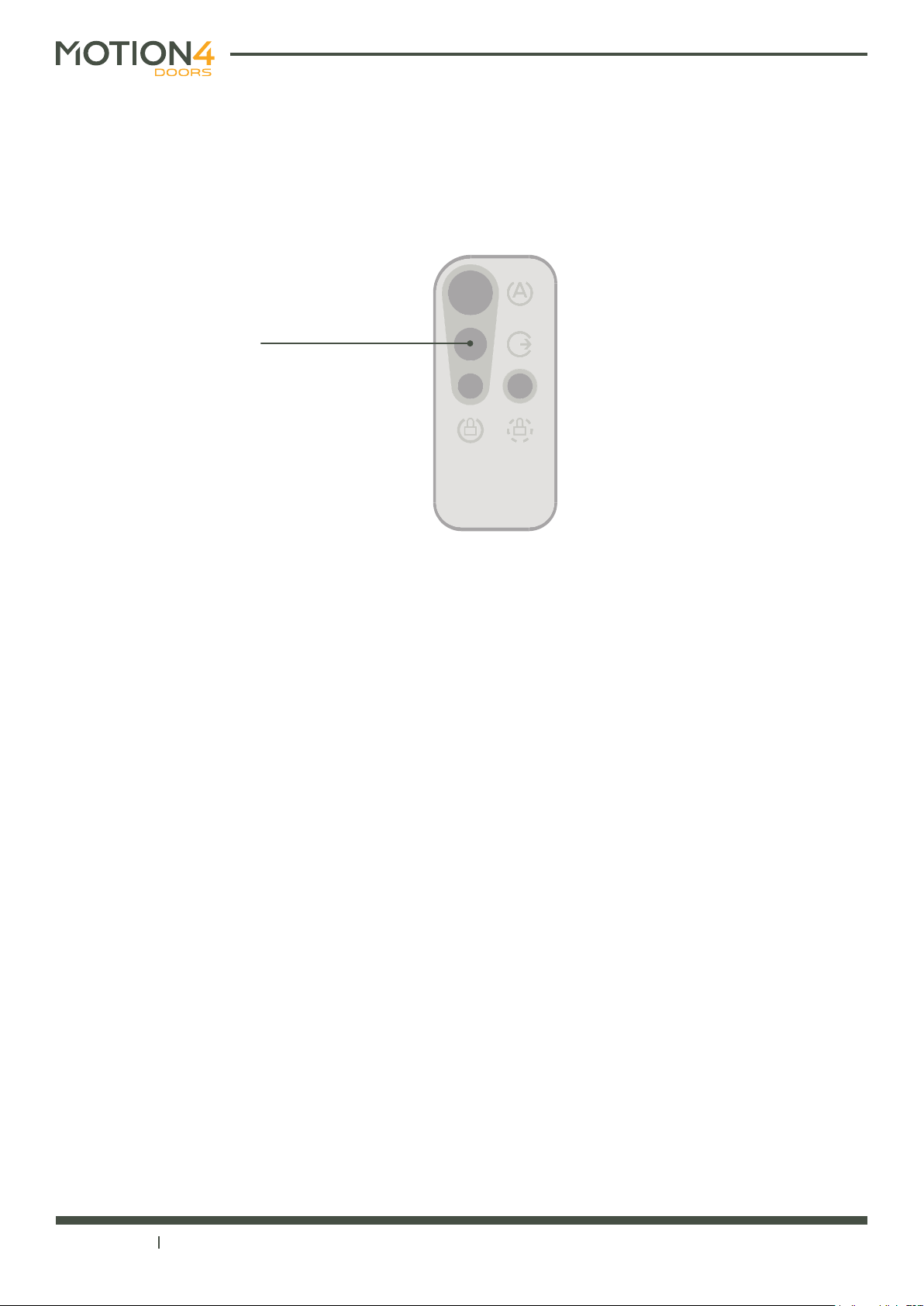

To clean the door, press button “Open” on the remote control to set the door to “Open” mode, then slide the door
leaf manually to any position. In this mode, the activation devices will remain disabled, and the door is safe for
cleaning.
When cleaning is nished, please remember to set the door to the next desired operating mode.
2.4. RESTRICTIONS OF USE
In order to reduce unnecessary risks to people, all automatic doors equipped with an EvoDrive+ automatic
door operator installed in an area where it is expected to be used by children, elderly, frail and disabled users, a
risk assessment must be conducted, taking into consideration the necessities of these groups of risk. Should
this be the case, it is required to provide the necessary indications, help and advice on the correct use of these
doors to those groups of risk.
Don’t allow children play within the clear opening and the travelling area of the door leaves, and always keep the
remote controls out of their reach.
Linear Motor Applications, S.L. declines all responsibility for any eventual damages to persons, animals or
objects as a result of not observing the indications described in this installation, maintenance and user manual.
The manufacturer of the automatic door operator declines all responsibility (civil or criminal) for any
non-authorized manipulation of the product, or the replacement of parts or components of the automatic door
operator using non-original or non-authorized accessories and spare parts, which may result on an increase of
risk and danger to people.
It is strictly forbidden to remove or alter the stickers or signs supplied by the manufacturer in the automatic
door operator and its operator and accessories.
It is strictly forbidden to stand within the moving area of the door, and to operate near the mechanical parts in
motion.
OPEN mode

USER MANUAL 6
Only authorized technicians are allowed to open the cover of the door operator and manipulate the internal
parts, for installation and maintenance purposes. The power switch must be turned off before doing any
intervention on the door operator.
End users and non-qualied technicians are strictly not allowed to open the cover and/or manipulate the
internal parts of the door operator.
3. RISK ASSESSMENT
3.1. IDENTIFICATION OF DANGEROUS AREAS
The image below shows the zones of risk of the sliding door.
As indicated in the “Directive on Machinery”, it is understood by:
Danger zone: Any area inside and/or near a machine where, the presence or exposure of a person,
constitutes a risk for the safety and health of that person.
Exposed person: Any person standing or moving completely or partially, within a danger zone.
In relation with the usage of this automatic door operator, the diagrams below show the typical residual risks
in relation with the zones of risk indicated above.

USER MANUAL 7
IMPACT
CRUSH
SHEARING ENTRAPMENT
HOOKINGCUT

USER MANUAL 8
3.2. RESIDUAL RISKS
Although the EvoDrive+ automatic door operator has been designed and manufactured to ensure a safe
operation, some residual risks may still persist even after adopting complementary measures of protection.
Automatic sliding doors may have some risks of crush, impact, entrapments and other potential hazzards.
Depending on the structural conditions on site, the door version and the safety equipment, these risks may not
disappear completely.
In accordance with the European norm EN16361, the travelling area where the leaf of an automatic door is
sliding should have some type or protection, to reduce the risk of impact to persons as much as possible. To
limit these risks of the EvoDrive+ door operator, the following safety measures should be considered and
implemented:
The possibility of using safety sensors to detect the movement and presence of people and/or objects
within the travelling area.
“Low energy” mode: subject to the width and mass of the door leaf, its speed is reduced and adjusted
to a predened value during the closing cycle, to ensure that the kinetic energy of the door leaf and the
impact force do not exceed those admitted in the said norm.
To ensure a high level of safety, mainly in those installation sites where the presence of groups of
risks recommends the adoption of additional safety measures, the EvoDrive+ automatic door
operator allows the simultaneous implementation of the two above mentioned safety measures.
A qualied technician should verify the correct installation, commissioning, adjustment and operation of the
safety sensors and/or the “low energy” mode, always in accordance, but not limited to the above mentioned
norm.
4. TROUBLESHOOTING
If you think or observe that the door is malfunctioning, check the following recommendations before calling the
after sales service:
The power must be connected: check if the ON/OFF switch is ON.
The operating mode in the remote control is in the correct position. Check if the door moves in
Automatic mode.
The door is not blocked by any object or dirt under the door leaf or within the doorway. In case there is
an obstruction within the door travelling area, remove that obstruction and change the operating mode
to Open and Automatic to resume normal operation.
If these points are in order and the door is still not moving when activated, being the door in Automatic mode,
please contact a service technician.

USER MANUAL 9
5. TECHNICAL SPECIFICATIONS
MECHANICAL FEATURES
ELECTRICAL FEATURES
MAIN FEATURES
Clear opening width, single leaf (mm): 750 - 1400
Clear opening width double leaf (mm): 1500 - 2800
Operator length, single leaf (mm): 1650 - 2850
Operator length double leaf (mm): 3100 - 5700
Opening speed: adjustable between 200 and 600 mm/s
Closing speed: 200 mm/s EN16005 “Low Energy”
Weight of the operator: 8-10 kg
OPERATOR DIMENSIONS (h x w) 60 x 70 mm
LEAF WEIGHT Min. 5 kg - Max. 80 kg
OTHER DATA
Operating noise: < 50 dB
Use - continuous
Number of cycles: > 1.000.000
ADJUSTABLE PARAMETERS
Opening direction: right or left
Bistable Mode
“Low energy” or Normal mode
Opening speed
Hold open time
POWER SUPPLY
80-264 VAC/390 VDC & 47-63 Hz (Universal)
Maximum Power in Operation: 180 W
Fuse Protection: 2 A
Cable section: 3x1,5 mm2. Length 2 m
POWER CONSUMPTION
In motion: 80 W
Peaks (0,5 sec): 180 W
In stand-by < 4 W
MOTOR
Type: Linear LSMPM (Linear Synchronous Motor with
Permanent Magnets)
No. of poles: 4 Pitch pole: 50 mm No. of phases: 3
Voltage: 24 V DC
Permanent neodymium magnets
Force: < 100 N
CONTROL
Motion control by means of a driver with eld oriented
control (FOC)
Self-adjustment of clear opening
ACCESSORIES Voltage: 24 V CC
Current: 1 A
OPERATING TEMPERATURE Min: 5 ºC - Max: 40 ºC

USER MANUAL 10
6. AUTOMATIC DOOR OPERATOR CE DECLARATION FORM
DECLARATION OF CONFORMITY
Directive 2006/42/CE -Directive on Machinery-
We hereby declare, under our sole responsibility, that the product and model described here in is conform to
the essential health and safety requirements as described in the following directives issued by the European
Council for the harmonisation of the legal norms in all countries members of the European Union:
Product: Automatic door operator for sliding doors
Model: EvoDrive+
Serial number: All starting with 610
Manufacturer: Linear Motor Applications, S.L.
Pol. Ind. Santiga
Pasaje Arrahona nº4, Nave 1
08210 Barberà del Vallés, Barcelona
Spain
Directives and
standards:
Directive 2006/42/EC: “Machinery Directive”
Directive 2014/30/EU: “Electromagnetic Compatibility (EMC)”
Directive 2014/35/EU: “Low Voltage Directive (LVD)”
EN 16005:2013/AC:2015: “Power operated pedestrian doorsets”
The CE mark is attached to each product, indicating its compliance with the above mentioned directives and
norms. This declaration of conformity applies only when the installation and commissioning of the machine
described herein has been made according to the manufacturer’s installation, user and maintenance manual.
Barberà del Vallès, Barcelona, on the 3rd of January of 2022.
Mr. Oriol Guilera
General Manager - LMA
Linear Motor Applications, S.L.
Pasaje Arrahona n° 4, Nave 1 (Pol. Ind. Santiga)
08210 Barberà del Vallés, Barcelona
Spain
