MOTION4 EvoDrive+ User manual

EvoDrive+
EN
INSTALLATION MANUAL
Parts 1 & 2 of the Installation, User, and Maintenance Manual
This section must be given to the installation technician
v3.0.2

INSTALLATION MANUAL 1
INDEX
PART 1 PROLOGUE
1. INTRODUCTION.............................................................................................................................. 5
2. GENERAL NORMS .......................................................................................................................... 5
2.1. WARNINGS...............................................................................................................................................................................5
2.2. GENERAL NORMS ..................................................................................................................................................................6
2.3. RECOMMENDATIONS............................................................................................................................................................7
2.4. INSTALLATION REQUIREMENTS.........................................................................................................................................7
2.5. LIST OF TOOLS REQUIRED FOR INSTALLATION..............................................................................................................8
2.6. WARRANTY..............................................................................................................................................................................8
2.7. DISPOSAL AND RECYCLING.................................................................................................................................................8
PART 2 INSTALLATION MANUAL
1. EVODRIVE+ COMPONENT OVERVIEW.............................................................................................11
2. VERIFY THE OPENING DIRECTION AND THE OPERATOR LENGTH ..................................................13
3. MOUNT THE OPERATOR.................................................................................................................14
3.1. SINGLE LEAF DOOR: MEASURE THE OPENING WIDTH AND HEIGHT..................................................................... 14
3.2. DOUBLE LEAF DOOR: MEASURE THE OPENING WIDTH AND HEIGHT ................................................................... 15
3.3. PREPARATIONS BEFORE MOUNTING............................................................................................................................. 16
3.4. TYPES OF LEAF ADAPTERS .............................................................................................................................................. 17
3.5. LOCATION OF THE ACTIVATORS AND CONNECTION TO MAINS ............................................................................. 18
4. PUT UP THE DOOR LEAVES ............................................................................................................19
4.1. TIMBER LEAF ADAPTER: MOUNT THE ALUMINIUM PROFILE ONTO THE WOOD PANEL.................................. 19
4.2. SLIDE THE LEAF CONNECTOR RODS INTO THE ADAPTER ....................................................................................... 19
4.3. ATTACH THE LEAF CONNECTOR RODS TO THE TROLLEYS ..................................................................................... 20
4.4. ADJUST THE DOOR LEAF .................................................................................................................................................. 21
4.5. FINAL ADJUSTMENT.......................................................................................................................................................... 21
5. CONNECT THE ACCESSORIES........................................................................................................22
5.1. HOW TO INSTALL AND CONNECT THE AUTOMATIC LOCK (OPTIONAL) ............................................................... 22
INSTALLATION MANUAL 1

INSTALLATION MANUAL 2
EvoDrive+ AUTOMATIC DOOR OPERATOR
FOR INTERIOR SLIDING DOOR
6. WIRING AND COMMISSIONING ......................................................................................................23
6.1. CONNECT THE POWER CABLE......................................................................................................................................... 23
6.2. CONNECT THE ACCESSORIES TO THE I/O MODULE ................................................................................................. 23
6.3. PUSH BUTTON (WIRED VERSION)................................................................................................................................... 24
6.4. TOUCH-LESS SENSOR........................................................................................................................................................ 24
6.5. ACTIVATION AND SAFETY SENSOR................................................................................................................................ 25
6.6. PUBLIC BATHROOM MODE ............................................................................................................................................... 27
6.7. REMOTE CONTROL (OPERATING MODE SELECTOR) ................................................................................................. 28
6.8. WIRELESS PUSH BUTTON................................................................................................................................................. 29
7. SELF-ADJUSTMENT AFTER INSTALLATION...................................................................................30
8. CONFIGURATION OF THE BASIC PARAMETERS .............................................................................31
9. DESCRIPTION OF THE LED INDICATORS ON THE I/O MODULE (MASTER) ......................................35
10. MALFUNCTION CODES.................................................................................................................36
11. EVODRIVE+ INSTALLATION CHECKLIST.......................................................................................38
12. CE DECLARATION OF CONFORMITY OF THE INSTALLATION........................................................39

PART 1
Prologue
The rst part of the manual explains the considerations that must be taken
into account before installing and commissioning the EvoDrive+ automatic door operator.
It is very important to read this manual in full, and to
observe and follow all instructions as described herein.

INSTALLATION MANUAL 5
1. INTRODUCTION
Dear client,
We thank you for your condence in Linear Motor Applications SL and for acquiring this innovative
EvoDrive+ automatic operator for interior sliding doors.
At Linear Motor Applications SL we offer products designed and developed following high
demanding production standards, to ensure we deliver a product with the best quality, as well as a
superb user-friendly experience and easy installation.
This manual includes important and necessary information for the correct and safe installation, use,
and maintenance of this automatic door operator. Please, read these instructions in full before
starting the installation and commissioning.
Yours sincerely,
Mr. Oriol Guilera
CEO
2. GENERAL NORMS
This manual is applicable to the Installation, User and Maintenance of the EvoDrive+ automatic
operator for sliding doors, which is designed for being used indoors. It can not be installed on
evacuation routes, exteriors of buildings, or as emergency exit doors.
The section in this manual related to installation and commissioning is limited only and exclusively for
use by qualied skilled technicians.
2.1. WARNINGS
Before installing, using, or performing any maintenance task on the EvoDrive+ operator, it is
compulsory to read and understand the content of this manual in full.
This manual is an integral part of the automatic door operator and will have to be kept by the client or
user, for future reference or consultation by the installation or after-sales service technician.
The EvoDrive+ automatic door operator is designed only and exclusively for professionals. It is
prohibited the installation and commissioning of this operator by DIY individuals.
In order to prevent damage to people, animals, or other objects, the transportation, manipulation,
assembly, commissioning and maintenance must be carried out only and exclusively by qualied
technicians, who must wear the appropriate individual protection equipment (IPE) and use the suita-
ble tools for each one of the described functions.
Once nished the installation of the EvoDrive+ operator with its sliding leaf and related accessories,
the complete assembly will form a unique piece of machinery, as described in the Directive 2006/42/
EC on Machinery.

INSTALLATION MANUAL 6
The complete risk assessment to determine the health and safety requirements, shall only be
considered valid if:
• The procedures described in the installation manual have been followed and respected in full.
• The type of installation corresponds to that described in the manual.
• Any procedure of installation or measure adopted during the handling, installation, operation,
maintenance, and disposal of this machine, not described or provided in this manual, will be
considered as not included in the mentioned risk assessment, and therefore Linear Motor
Applications S.L. declines all responsibility, being the installation or maintenance technician
the full and unique responsible and liable for the compliance of the essential requirements of
safety and health protection.
Due to our policy of continuous development and improvement of the products, Linear Motor
Applications SL reserves the right to modify or develop the product described herein, without previous
advice. Therefore, the drawings, descriptions, and data contained in this manual must not be
considered as a contractual obligation, but only indicative.
All data contained in this document has been prepared and controlled rigorously, however, Linear
Motor Applications SL declines all responsibility for any eventual impreciseness that may have been
caused by errors or omissions during the transcription of the same.
2.2. GENERAL NORMS
The automatic EvoDrive+ operator has been designed and developed:
• Only and exclusively for the automation of interior sliding doors, and therefore it cannot be
used for purposes other than those described in this manual, in order to ensure the safety and
performance of the product, under all circumstances.
• Following all points described in Directive EN16005 “Power operated pedestrian doorsets
- Safety in use - Requirements and test methods” and Directive EN16361 “Power-operated
pedestrian doors –Product standard, performance characteristics”, paying special attention
to the articles referred to automatic sliding doors for internal use.
• For a correct performance, the maximum weight per leaf is limited to 80 Kg.
Linear Motor Applications SL declines all civil or criminal liabilities for injuries caused to persons,
animals, and/or objects as a result of:
• Not proceeding following the indications contained in the installation, user, and maintenance
manuals.
• A non-authorized manipulation of the product.
• The replacement of parts and/or pieces of the operator, as well as the use of accessories that
are not original, or which have not been homologated by the manufacturer.
• Removing, deleting, or altering the stickers, labels, and/or other indications placed in origin,
on the automatic door operator or its accessories.
• Standing within the course of the door leaf of the automatic door, or performing tasks near
possible parts in motion.

90º
Vista lateral pared Vista superior pared Puerta nivelada
INSTALLATION MANUAL 7
2.3. RECOMMENDATIONS
All EvoDrive+ automatic operators are delivered with a serial number displayed on an identication
sticker. For a proper identication of the product in case of claims or inquiries, the data displayed on
the sticker must be communicated to the concerned person.
Before the installation starts, please check that the product described on the sticker attached to the
packaging corresponds to the material ordered, and with that described in the delivery note. Verify
that the product has not suffered any damage during transport. In case of damage or discrepancy,
please immediately inform the manufacturer.
To prevent possible water condensation inside the packaging during the storage period, we
recommend to keep the product inside its original packaging, to not expose it outdoors, to keep it
away of sunlight, and to always store it in a dry environment.
2.4. INSTALLATION REQUIREMENTS
• The power cable that connects with the cable supplied must have a minimum section of 1,5
mm².
• For a good performance, the operator must be levelled in all 3 axis, and must be rmly xed
to a solid vertical surface.

INSTALLATION MANUAL 8
2.5. LIST OF TOOLS REQUIRED FOR INSTALLATION
2.6. WARRANTY
The manufacturer’s warranty for the EvoDrive+ automatic operator will be VOID if:
• The installation, use and/or maintenance of the product was not carried out following the
norms, instructions and indications described in this manual.
• Using non-original components, accessories, parts, pieces, or electronics systems, being
these new or for replacement purpose, when these parts haven’t been supplied or
homologated by the supplier.
2.7. DISPOSAL AND RECYCLING
When disposing the packaging materials, it is recommended to check the specic norms and
regulations in force at the installation site, before proceeding to dispose them.
Packaging materials are similar to other urban solid waste materials, and therefore they can be easily
disposed after doing a selective classication and recycling.
When the product needs to be disposed, as this is composed of different materials, we recommend:
• Materials such as aluminium, plastic, steel, electrical cables, etc… are solid waste materials,
which need to be carefully classied for a proper recycling in authorized recycling centres.
• Other components such as the plates of electronic circuits, capacitors, batteries, magnets,
etc… may contain contaminating materials, and as such, they must be carefully removed and
delivered to companies specialized in their evacuation, classication and disposal.
Level Wrench (nº10 and 13)
Hex (Allen) Key (nº4) Cross-head screwdriver Flat-head screwdriver
Electric Drill/Screwdriver
Do not throw away the packaging or product materials anywhere.
Recycle!

PART 2
Installation
manual
The second part of the manual explains the steps you must
follow to install and commission the EvoDrive+ automatic door operator
Is very important to read it carefully!

1
234
INSTALLATION MANUAL 11

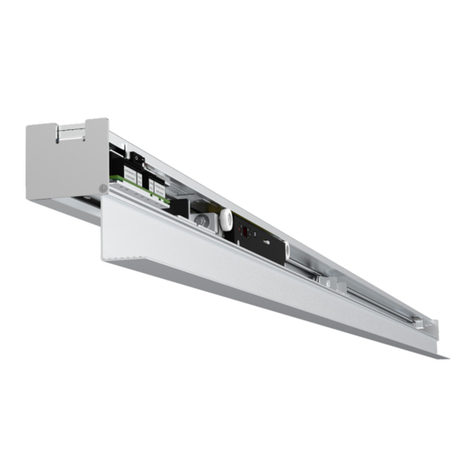

1. EVODRIVE+ COMPONENT OVERVIEW
01. Side Covers
02. Power Supply Circuit
03. I/O Module - Master
04. Aluminium Cover Prole
05. Linear Motor Type LSMPM
06. Motor Driver
07. Leaf Trolleys
08. Permanent Neodymium Magnets
09. Aluminium Main Prole
10. End Stops

56
78
910
INSTALLATION MANUAL 12

INSTALLATION MANUAL 13
2. VERIFY THE OPENING DIRECTION AND THE OPERATOR
LENGTH
RIGHT SIDE OPENING
(From the operator side)
LEFT SIDE OPENING
(From the operator side)

D1
A1 A2
OH
SW
OW
SW
D2
DL
D3CW
TD
INSTALLATION MANUAL 14
3. MOUNT THE OPERATOR TO THE WALL
3.1. SINGLE LEAF DOOR: MEASURE THE OPENING WIDTH AND HEIGHT
LEGEND
DL = Drive Length
OH = Opening Height
OW = Opening Width
COW = Clear Opening Width
SW = Width of Sliding Leaf
TD = Travelling Distance
D1/D2 = Overlap
D3 = Door Handle Distance
A1/A2 = Header Extension
*DL= TD + SW+ (A1 + A2)

OH
A1 A2
DL
SWLS WR
D1
D1 OW
TDL TDR
COW D2
D2
INSTALLATION MANUAL 15
3.2. DOUBLE LEAF DOOR: MEASURE THE OPENING WIDTH AND HEIGHT
LEGEND
DL = Drive Length
OH = Opening Height
OW = Opening Width
COW = Clear Opening Width
SWL / SWR = Width of Left Sliding Leaf / Right Sliding Leaf
TDL / TDR = Travelling Distance Left Sliding Leaf / Right Sliding Leaf
D1 = Overlap
D2 = Door Handle Distance
A1 = Header Extension
DL= 2x(SWL + TD) + (A1+A2)

125 d
60
INSTALLATION MANUAL 16
3.3. PREPARATIONS BEFORE MOUNTING
dd d d125 d d d d d d d
WALL MOUNT MOUNT TO IRON BEAM
8
DIN 7972 G25
(Recommended)
DIN 6923 M6
(Recommended)
DIN 7982 4/5x25
(Recommended)
d = 200 mm
D1= Leaf Overlap
A1= Header Extension
DL
WALL MOUNT
IRON BEAM MOUNT
D1+A1
4
==
==
60
*50
(Recommended)
40
2,5

4040
7070
6060
1010
1010
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
4444
7070
60601010
1010
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
8-128-12
7070
60601010
3030
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
8-108-10
7070
6060
1010
3030
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
50*
8-128-12
7070
6060
1010
1010
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
8-108-10
7070
6060
1010
3030
4040
====
SH = SLIDING DOOR HEIGHTSH = SLIDING DOOR HEIGHT
50* 50*
50* 50* 30*
INSTALLATION MANUAL 17
3.4. TYPES OF LEAF ADAPTERS
*Recommended height
WOODEN LEAF (40 mm)
TOP RAIL (8-10 mm)
FULL GLASS (8-12 mm)
TWINS (8-12 mm) SV-EASY (8-10 mm)
ALUMINIUM LEAF (44 mm)

20
30
A
INSTALLATION MANUAL 18
3.5. LOCATION OF THE ACTIVATORS AND CONNECTION TO MAINS
ACTIVATORS
CONNECTION TO MAINS
≥ 20 mm
DETAIL A
> 20 mm

SW
LPH= SW - 10
50 100 100
=
=
=50
5 mm 5 mm
50 100 100 100
55
100 50
SW
225
=
LPH = SW - 10
225
22
5
22
5
INSTALLATION MANUAL 19
4. PUT UP THE DOOR LEAVES
4.1. TIMBER LEAF ADAPTER: MOUNT THE ALUMINIUM PROFILE ONTO THE WOOD PANEL
4.2. SLIDE THE LEAF CONNECTOR RODS INTO THE ADAPTER
1.
2. 3.
1.
2.
3.
LPH = Adapter Length
SW = Sliding Leaf Width
SW
