Motorline professional MPX-WIFI Use and care manual
V1.0
REV. 02/2022
MPX-WIFIMPX-WIFI
EN
USER AND INSTALLER MANUAL
A B
1B
4A
4A
4B
4A
8
5B
6A
7A
7B
ENEN
00. CONTENT
INDEX
PRODUCT DESCRIPTION
TECHNICAL CHARACTERISTICS
DIMENSIONS
APPLICATION MODES
. SAFETY INSTRUCTIONS
. THE PRODUCT
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.
ATTENTION:
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
CONNECT THE DEVICE
CONFIGURE THE APPLICATION
LED SIGNALING
RESET
. TROUBLESHOOTING
. CONFIGURATION
A EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning
the installation/usage procedures and keep this manual in a safe
place that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual.
Any other enforcement or operation that is not mentioned is
expressly prohibited, as it may damage the product and put
people at risk causing serious injuries.
•This manual is intended firstly for specialized technicians, and
does not invalidate the user’s responsibility to read the “User
Norms” section in order to ensure the correct functioning of the
product.
•The installation and repair of this product may be done by
qualified and specialized technicians, to assure every procedure
are carried out in accordance with applicable rules and norms.
Nonprofessional and inexperienced users are expressly prohibited
of taking any action, unless explicitly requested by specialized
technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of
parts, the product must be disconnected from power supply. Also
including any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons
whose physical, sensorial or mental capacities are lower, or by
persons without any knowledge of the product, provided that
these are supervision and instructions given by persons with
experienced in terms of usage of the product in a safe manner
and who understands the risks and dangers involved.
•Children shouldn’t play with the product or opening devices to
avoidthemotorizeddoororgatefrombeingtriggeredinvoluntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you
have all the devices and materials necessary to complete the
installation of the product.
•You should note your Protection Index (IP) and operating
temperature to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know
how to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door,
a door locking mechanism must be installed while the gate is in
motion.
•Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
• Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting,
transport and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify
if the necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain,
moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially
on the power supply cable. Please note that all the cables must
enter the central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m
A EN
01. SAFETY INSTRUCTIONS
from the ground or other level of access, the minimum safety and
health requirements for the use of work equipment workers at the
work of Directive 2009/104/CE of European Parliament and of the
Council of 16 September 2009.
•Attach the permanent label for the manual release as close as
possible to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the
electrical panel, must be provided on the product’s fixed power
supply leads in accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac
or 110Vac, ensure that connection is to an electrical panel with
ground connection.
•The product is only powered by low voltage satefy with central
(only at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever
necessary.
•If the product has contact with fluids without being prepared,
it must immediately disconnect from the power supply to avoid
short circuits, and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
conditions have been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate
in in motion, and do not create strength to the gate movement.
Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
• Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
• Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
• In these cases, the warranty is voided.
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information
A B
90mm
45mm15mm
ENEN
. THE PRODUCT . THE PRODUCT

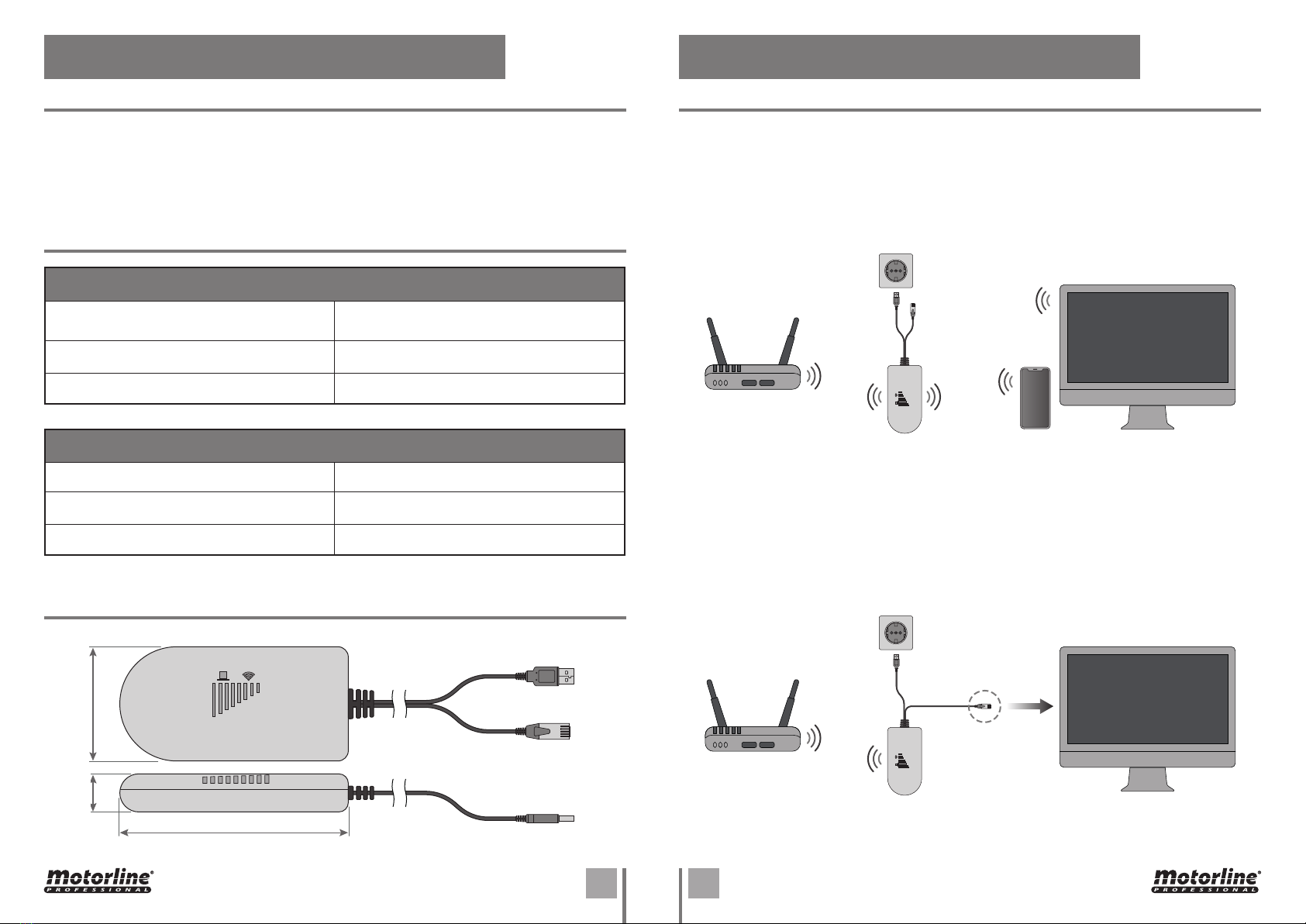

Transmission Distance
• Point-to-point transmission distance (in open
field) 250 to 300 m
• Transmission speed 300 Mbps
• Frequency 2,4 Ghz
Power supply
• Power Supply 5V 1A
• Voltage 5 to 15 Vdc
• Input power ≥ 5W
TECHNICAL CHARACTERISTICS
PRODUCT DESCRIPTION
MPX-WIFI devices are used to extend the wireless signal coverage of the existing Access Point or Router.
The computer can connect to the device without using the network cable (via WiFi).
If you connect MPX-WIFI to an Access Point, the DHCP server is automatically disabled.
MPX-WIFI devices are used to extend the wireless signal coverage of the existing Access Point or Router.
The computer can connect to the device via the network cable.
If you connect MPX-WIFI to an Access Point, the DHCP server is automatically disabled.
APPLICATION MODES
DIMENSIONS
MPX-WIFI is intended to facilitate the installation of any access control or product that requires a
network cable.
It transforms all equipment that needs a network cable (RJ-45) into WiFi, being able to connect the
equipment to an existing network.
• WIFI REPEATER
• WIFI BRIDGE
A B
ENEN
. THE PRODUCT . CONFIGURATION
APPLICATION MODES CONNECT THE DEVICE

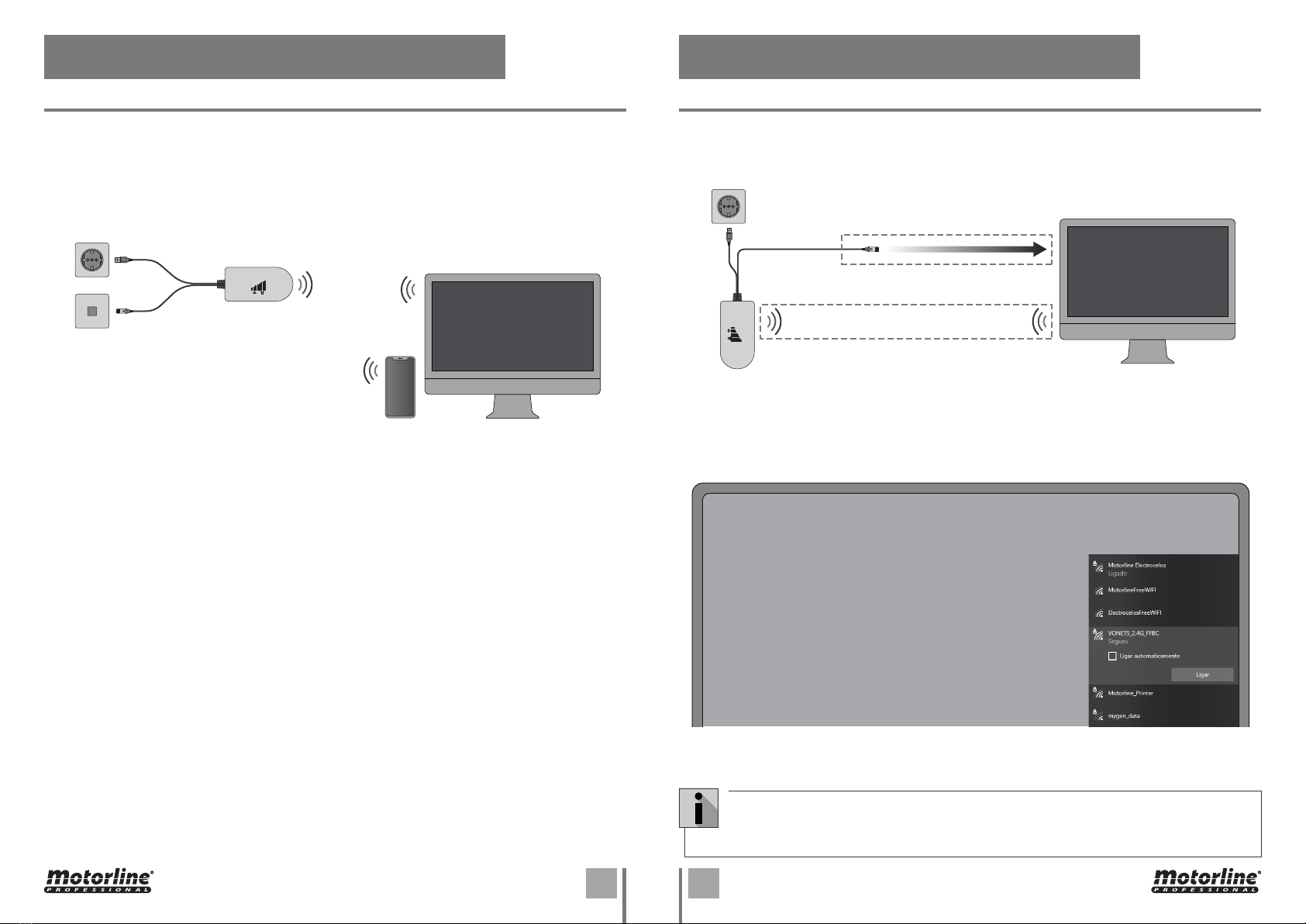

• WIFI ACCESS POINT
The MPX-WIFI device allows to distribute wireless signal from a LAN point to network cables.
The computer can connect to the device without using the network cable (via WiFi).
If you connect MPX-WIFI to the LAN point, the DHCP server is automatically disabled.
01
• Connect the device to power (5V/2A) and then connect it to the computer.
There are two ways to connect MPX-WIFI with computer:
• CONNECTION THROUGH CABLE
The MPX-WIFI device is connected via cable with
the LAN input of the computer.
• CONNECTION THROUGH CABLE
• WIFI CONNECTION
• WIFI CONNECTION
The connection between the MPX-WIFI device and
the computer is via WiFi signal.
02
• For WIFI CONNECTION, open the computer's network list and connect to the device by entering the
access parameters.
The access parameters for WIFI CONNECTION are:
• SSDI WiFi: VONETS_****** (corresponds to the MAC address of the MPX-WIFI device)
• Password:
A B
admin ****
************
ENEN
. CONFIGURATION

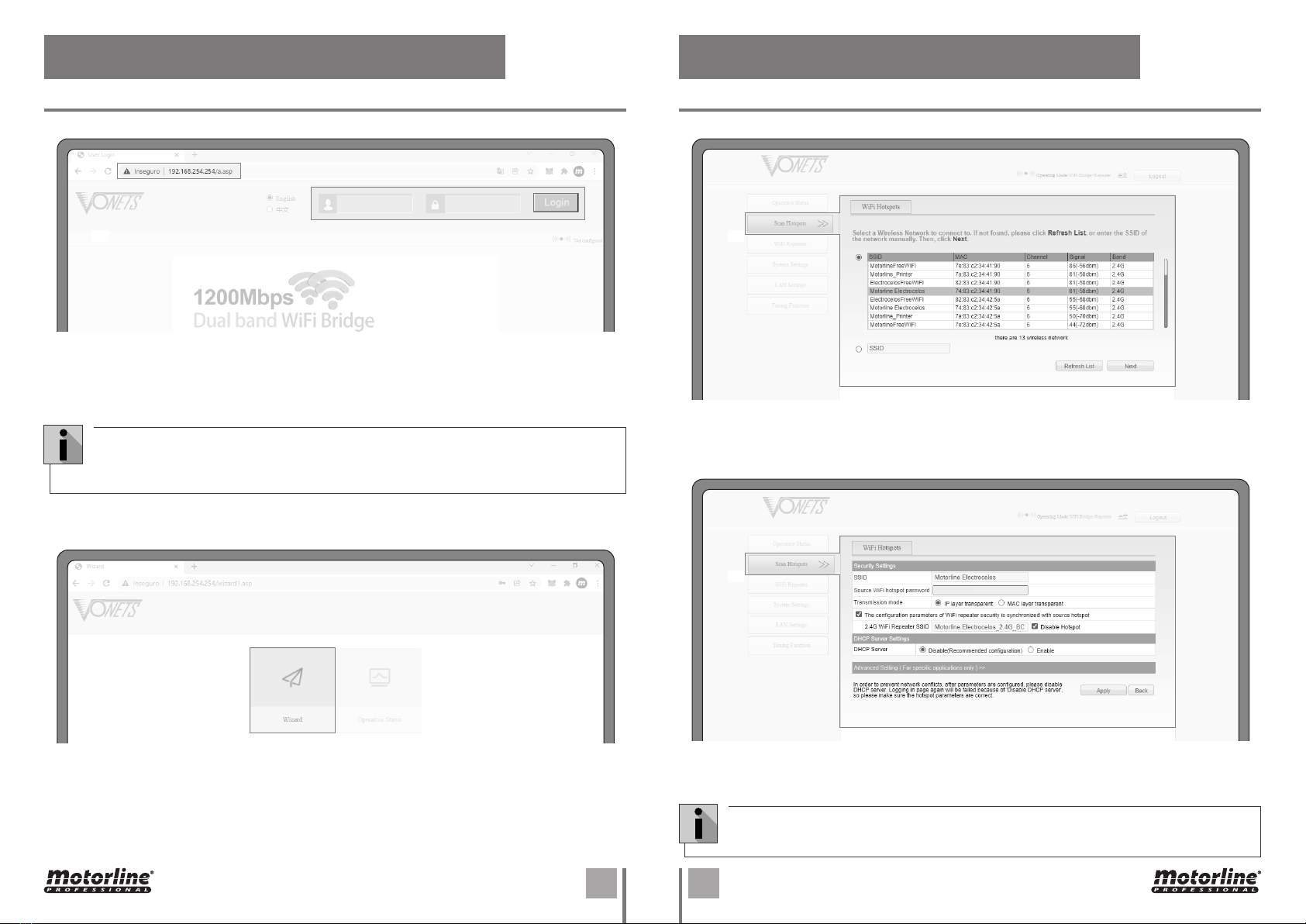

CONFIGURE THE APPLICATIONCONFIGURE THE APPLICATION
. CONFIGURATION
03
• Click [Wizard] option to proceed to configuration.
The access parameters are:
• Username: admin
• Password: admin
If you want to use MPX-WIFI as a repeater, keep the (Disable Hotspot) field off.
01
• Open the browser and enter the access IP to open the configuration page.
• Access IP: 192.168.254.254
02
• Log in to the page by typing the username and password.
04
• Open the Scan Hotspots tab, and in the WiFi Hotspots tab, select the Hotspot corresponding to your
network and click [Next].
05
• In the network configuration window, activate the field (Disable Hotspot) and click [Apply] to confirm
the changes.
A B
************
ENEN
. CONFIGURATION . CONFIGURATION
CONFIGURE THE APPLICATION
LED SIGNALING
RESET
06
• Then click [Reboot] for the MPX-WIFI to restart and connect directly to the configured WiFi Access
Point.
The WiFi LED will flash quickly confirming successful connection.
The following table indicates the device status depending on the displayed colours.
LED Signaling
WiFi
(Blue Light) Internet Cable
(Green Light)
• No connection to an Access Point Flahes slowly -
• Successfully connecting to an Access Point Flashes quickly Flashes quickly
• Connection to a Access Point with failures Flahes slowly Flahes slowly
01 • Turn on the device and wait 60 seconds.
02 • Then press the Reset button for 5 seconds.
The green light will flash for a few seconds and the device will automatically reset to factory settings
(this process takes approximately 60 seconds).
During factory reset, the product cannot be turned off, otherwise it may cause damage to the
product.
EN
Anomaly Causes Procedure
• The device's WiFi access point is discoverable but it is
impossible to connect the computer or smartphone.
The device has taken an unexpected action or been turned
off, causing the programmed data to be lost. Reset the device to factory settings.
The device does not work on the strongest channel or
performs poorly. Try changing the source WiFi access point and device channel to improve performance.
Incorrect login data was entered on the smartphone or
computer. Re-enter the device login data on your computer or smartphone.
• The device has been configured with the parameters of the
source WiFi access point, the smartphone or computer has
been connected to the device WiFi hotspot, but there is no
Internet.
Check the LED signaling table (page 7A) to see what the current
status of the device is, before proceeding to possible causes.
The distance between the device and the source WiFi access
point is too long, causing degradation on the communication
performance and affecting the user's access to the Internet. Reduces the distance between the source WiFi access point and the device.
The device has taken an unexpected action or been turned
off, causing the programmed data to be lost. Reset the device to factory settings.
The device does not work on the strongest channel or
performs poorly. Try changing the source WiFi access point to be the same as the channel set on the device.
There are multiple WiFi access points close to the
device causing WiFi channel interference and worsening
performance. Try changing the source WiFi access point and device channel to improve performance.
Source WiFi access pint parameters are not correct. Enter the correct parameters and restart the device.
• The smartphone or computer has been connected to the
device by WiFi or Ethernet cable, but the user cannot log in
to the device's web page, or after logging in to the web, there
is an error.
User is not using a browser recommended for MPX-WIFI (IE,
Google Chrome, Safari, smartphone browser). Use a browser compatible with the device.
The smartphone or computer has activated the firewall,
raising the level of security. Shut down the firewall.
The browser's security level is high. Lower your browser's security level and sign in again.
The device's input IP address is wrong. For a new factory device, the user just needs to enter the correct IP address as shown in the instruction manual.
. TROUBLESHOOTING
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
