Motorline BRAVO500 User manual

AUTOMATION SYSTEMS FOR SLIDING GATES
Operating and installation instructions
English
v1.0
Rev 08/2012
BRAVO500

INDEX
1) General Safety Regulations
2) Description
3) Technical Specifications
4) System Description
5) Accessories
6) Installation Tools
7) Installation
8) Maintenance
9) Repairs
............................................................................... pág. 01
......................................................................................................... pág. 02
.................................................................................... pág. 03
........................................................................................... pág. 03
....................................................................................................... pág. 04
................................................................................................ pág. 04
.......................................................................................................... pág. 05
...................................................................................................... pág. 10
.............................................................................................................. pág. 10

1) ATTENTION! To ensure the safety of people, it is important that you read all the following
instructions.
Incorrect installation or incorrect use of the product could cause serious harm to people.
2) Carefully read the instructions before beginning to install the product.
3) Do not leave packing materials (plastic, polystyrene, etc.) within reach of children as such
materials
are potential sources of danger.
4) Store these instructions for future reference.
5) This product was designed and built strictly for the use indicated in this documentation. Any
other
use, not expressly indicated here, could compromise the good condition/operation of the
product
and/or be a source of danger.
6) Manufacturer / distributor decline all liability caused by improper use or use other than that for
which
the automated system was intended.
7) Do not install the equipment in an explosive atmosphere: the presence of inflammable gas or
fumes
is a serious danger to safety.
8) The mechanical parts must conform to the provisions of Standards EN 12604 and EN12605.
For
non-EU countries, to obtain an adequate level of safety, the Standards mentioned above must be
observed, in addition to national legal regulations.
9) We are not responsible for failure to observe Good Technique in the construction of the closing
elements to be motorised, or for any deformation that may occur during use.
10) The installation must conform to Standards EN 12453 and EN 12445.
11) Before attempting any job on the system, cut electrical power.
12) Make sure that the earthing system is perfectly constructed, and connect metal parts of the
means
of the closure to it.
13) The automated system force control. Nevertheless, its tripping threshold must be checked as
specified in the Standards indicated at point 10.
14) The safety devices (EN 12978 standard) protect any danger areas against mechanical
movement
risks, such as crushing, dragging, and shearing.
15) Use of at least one indicator-light is recommended for every system, as well as a warning sign
adequately secured to the frame structure.
16) Manufacturer / distributor decline all liability as concerns safety and efficient operation of the
automated system, if system components not produced by them.
17) For maintenance, strictly use original parts by us.
18) Do not in any way modify the components of the automated system.
19) The installer shall supply all information concerning manual operation of the system in case
1) GENERAL SAFETY REGULATIONS
Pág. 01

Automated system for residential sliding gates with leaves up to 7m long and 500 kg in weight.
It consists of a reversing electro-mechanical gearmotor, powered by a 24V control unit.
The automated system houses a programmable electronic control board that enables setting of
function logics, work time and pause time, anti-crushing sensitivity as well as partial-opening
width.
The reversing system guarantees the gate will automatically lock when the motor is not
operating.
A release system enables the gate to be moved by hand in case of malfunction or emergency.
The automated system was designed and built for controlling sliding gates. Do not use for any
other purpose.

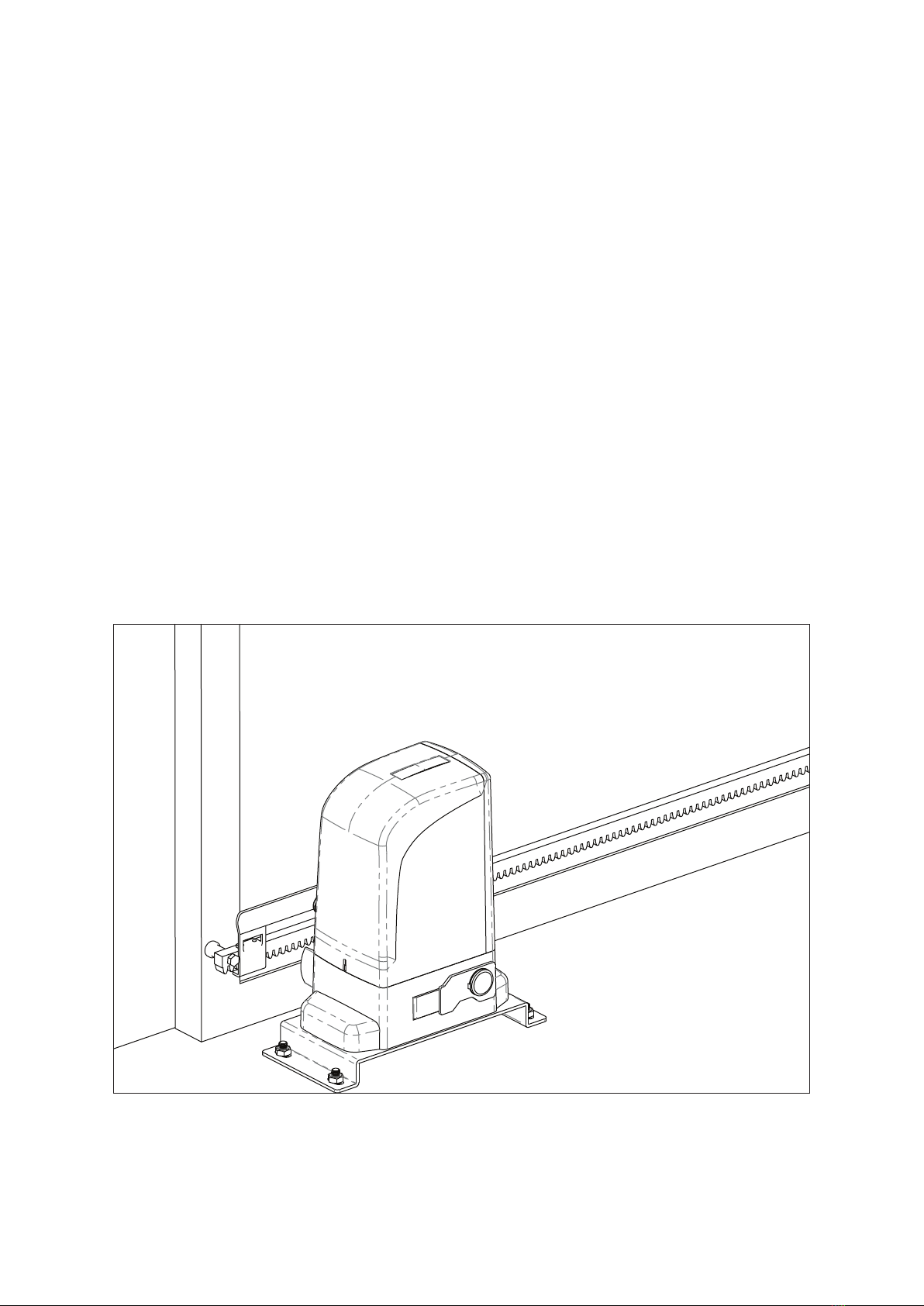

1. Gate
2. Rack spacer
3. Protective cover
4. Foundation plate
5. Fixation screw
Fig. 01
Fig. 02
Fig. 03
6. Control box
7. Motor
8. Cover
9. Rack
10. Housing
11. Lock
12. Manual release
13. Capacitor
14. Screw
15. Limit switch plate
2) DESCRIPTION
2.1. Description of the structure
2.2. Dimensions (mm)
Pág. 02
329
271
145
36
319,5
255
186,4
183
144
6
15
7 8
9
14
11
12
5
4
3
2
1
10
13

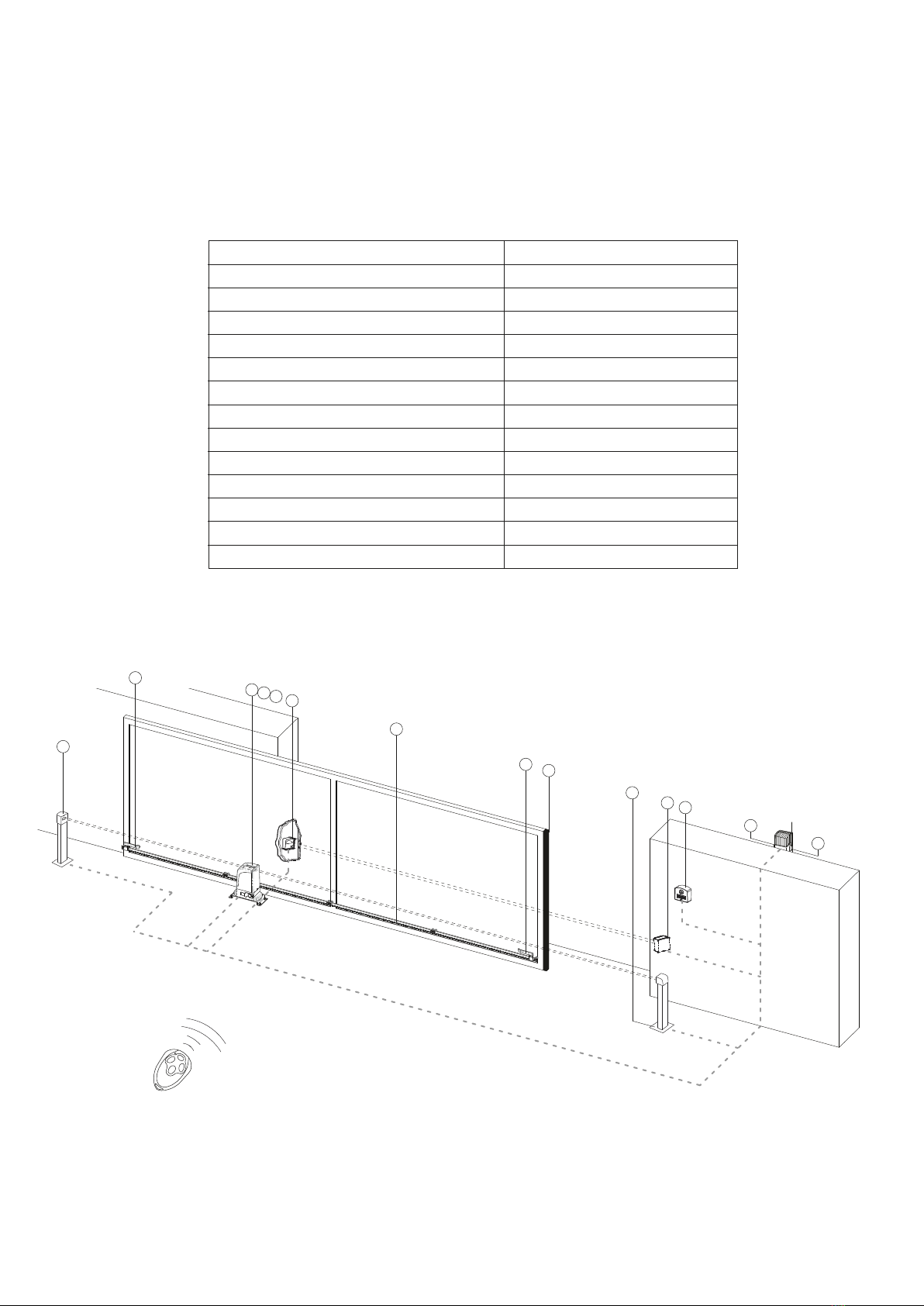

Fig. 04
1. Motor
2. Control board
3. Receiver
4. Left limit switch plate
5. Right limit switch plate
6. Rack
7. Key selector
8. Photocell column
9. Safety photocells
10. Antenna
11. Warning light
12. Safety edge
Technical specifications of the automated operator:
Power supply (V)
Rated absorbed power (W)
Max speed (m/sec)
Force
Working time
Noise
Thermal reset
Operating temperature (ºC)
Protection class
Thermal protection (ºC)
Leaf max weight (Kg)
Leaf max length (m)
Working frequency
Capacitor
230V , 50Hz
280W
0.16m/s
1200N
15min
≤ 56dB
2min per complete cycle
> -45ºC to < 65ºC
IP44
120ºC
500Kg
7 m
25%
8uF
3) TECHNICAL SPECIFICATIONS
4) DESCRIPTION OF THE SYSTEM
Pág. 03
8
4
1
6
5
897
11
12
9
23
10
