1
English
Foreword
RF Energy Exposure and Product
Safety Guide for Portable Two-Way
Radios
ATTENTION!
The IMPRES Temple Transducer
Headset, when attached to the radio, is
restricted to occupational use only to
satisfy FCC RF energy exposure
requirements. Before using this product,
read the RF Energy Exposure and
Product Safety Guide that ships with the
radio which contains instructions for safe
usage and RF energy awareness and
control for compliance with applicable
standards and regulation.
68012009080_a.book Page 1 Thursday, August 19, 2021 1:04 PM

2
English
DESCRIPTION
The PMLN6624 IMPRES Temple
Transducer Headset features high
performance bone vibration speakers for
clear audio reception in noisy
environments. It uses a discrete,
lightweight and streamlined “ear loop”
that provides users with bone conduction
technology. Unlike conventional
headsets, the Temple Transducer allows
the user’s ears to be uncovered and
completely free to hear surrounding
environmental sounds, while still using
the two-way portable radio. An in-line
push-to-talk (PTT) button and
microphone frees the user from holding
the radio while communicating.
OPERATION
1. Wear the Temple Transducer Headset as
shown in Figure A.
68012009080_a.book Page 2 Thursday, August 19, 2021 1:04 PM

3
English
2. Be sure to position the bone vibration
speakers on your temples.

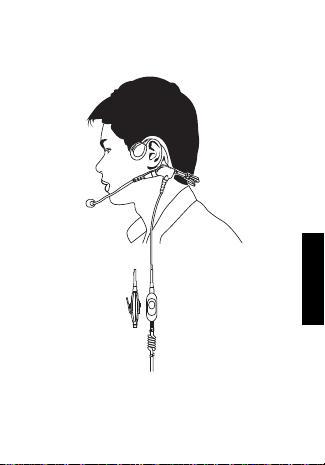

Figure A. Wearing your Accessory
fig. A
Plug Cable
with
In-Line PTT
68012009080_a.book Page 3 Thursday, August 19, 2021 1:04 PM

4
English
3. Clip the in-line PTT switch in a
convenient operating location.
4. Turn the radio off.
5. Connect the accessory side connector
to the radio.
6. Turn the radio on, adjusting the audio
volume to an appropriate level.
7. Press and hold down the in-line PTT
button and begin speaking in order to
transmit.
8. Your radio will return to receiving
mode when you release the in-line
PTT button after you finish speaking.
NOTE:
You may actually feel the Temple
Transducer speakers shake or vibrate
when the receive volume is too high. For
more comfortable use, set the receive
volume to an appropriate level.
68012009080_a.book Page 4 Thursday, August 19, 2021 1:04 PM

5
English
ACOUSTIC SAFETY
Exposure to loud noises from any source
for extended periods of time may
temporarily or permanently affect your
hearing. The louder the radio volume, the
less time is required before your hearing
can be affected. Hearing damage from
loud noises is sometimes undetectable at
first and can have a cumulative effect.
To protect your hearing:
• Use the lowest volume neccessary
to do your job.
• Increase the volume only if you are
in noisy surroundings.
• Reduce the volume before
connecting headset.
• Limit the amount of time you use
headsets at high volume.
• When using the radio without a
68012009080_a.book Page 5 Thursday, August 19, 2021 1:04 PM

6
English
headset, do not place the radio’s
speaker directly against your ear.
• If you experience hearing
discomfort, ringing in your ears, or
speeches that are muffled, you
should stop listening to your radio
through your headset, and have
your hearing checked by your
doctor.
68012009080_a.book Page 6 Thursday, August 19, 2021 1:04 PM

7
English
SERVICE
The PMLN6624 IMPRES Temple
Transducer Headset is not repairable. It
is covered under the Motorola Solutions
one year limited warranty. Order a
replacement headset as necessary.
68012009080_a.book Page 7 Thursday, August 19, 2021 1:04 PM

8
