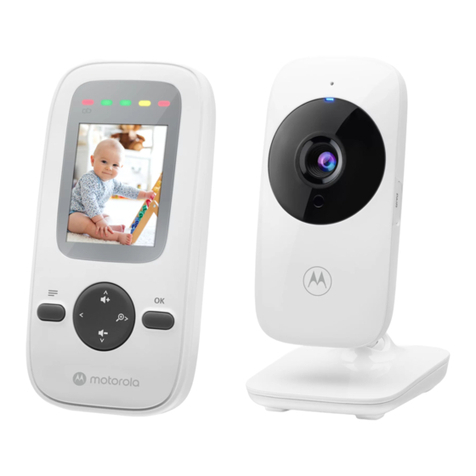

Motorola MBP18 User manual

MBP18, MBP18/2, MBP18/3, MBP18/4- Quick Start Guide
For a full explanation of all features and instructions, please refer to the User's Guide.
1 Setting up your digital baby monitor
Connecting power supply for the Baby unit
A
• Connect the small plug
of the power adapter to
the baby unit and the
other end to the
electrical outlet.
• Only use the enclosed
adapter (6V DC /
500mA).
Installing the battery pack for the Parent unit
B
Black
Red
• Insert the wire tab of
the rechargeable
battery pack into the
contact slot as shown
above and fit the
battery pack into the
compartment.
Connecting power supply for the Parent unit
D
• Connect the small plug
of the power adapter to
the parent unit and the
other end to the
electrical outlet.
• Only use the enclosed
adapter (6V DC /
500mA).
Fastening the cover for the Parent unit
C
Small cross head or Flat
end screw driver.

2 Basic operation of the keys
3 General Information
If your product is not working properly...
1. Read this Quick Start Guide or the User’s Guide.
Parent unit
PPress and hold to turn the unit ON/OFF.
UP/VOL+ buttons Press to increase sound volume. Press to
DOWN/VOL- buttons Press to decrease sound volume. Press to move downmenu options/settings. Press to move down in 2X zoom
MENU/OK button Press to open menu options.
Press to confirm a selection.
Press to pan right in 2x zoom mode.
Return/Switch Camera
button
Press to return to previous menu level.
Press to switch camera units. (If paired with more than one camera)
Press to pan left in 2x zoom mode.
V
Press to turn the LCD display ON/OFF.
ZZOOM button Press to enter / exit to 2x zoom mode.
Baby unit
ON/OFF switch Slide the power switch down to switch on the unit. Slide the power switch up to switch off the unit.
8.
Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for
this product. MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the
property of their respective owners.
© 2013 Motorola Mobility LLC. All rights reserved.
Printed in China
Version 2.0
52,
2. Contact Customer Service:
3RZHUON/OFF button
9LGHRON/OFF button
moveup menu options/settings. Press to move up in 2X zoom .
mode.
mode
Press again to return to normal view (1x).
