Motorola MBP33S User manual

Models: MBP33S, MBP33S-2, MBP33S-3, MBP33S-4
User’s Guide
Digital Video Baby Monitor
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Video Baby Monitor!
Thank you for purchasing the Motorola Video Baby Monitor. Now you can
see and hear your baby sleeping in another room or you can monitor your
older children in their playroom.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to provide a
copy of your dated sales receipt to confirm warranty status. Registration is
not required for warranty coverage.
For product related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you can use the baby monitor, we recommend you insert and fully
charge the battery in the parent unit, so that it continues to work if you
disconnect it from the power supply to carry it to another location. Please
read the Safety Instructions on page 6 before you install the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit (Camera)
• 1 x Rechargeable Ni-MH battery pack
• 1 x Power adapter for the Parent unit
• 1 x Power adapter(s) for the Baby unit
In multi-camera packs, you will find one or more additional camera units
with power adapter units and battery packs.
US and Canada 1-888-331-3383
Email: [e-mail]

Overview of the Parent Unit
1. Display (LCD screen)
2. Vol + Key
Normal Mode: Vol Up
Menu Mode: Up
3. Vol - Key
Normal Mode: Vol Down
Menu Mode: Down
4. Brightness + Key
Normal Mode: Brightness up
Menu Mode: Right
5. Brightness - Key
Normal Mode: Brightness down
Menu Mode: Left
6. Menu Key M
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key V
Press to turn OFF the LCD display
Press again to turn ON the LCD
display
9. Talk Key T
Press and hold to speak to your
baby
10. Power Adapter / Battery LED
BLUE when the adapter is
powered on.
RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key P
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. USB power adapter socket
20. AV out / Audio out
* AV Cable/Audio Cable
(Optional accessory, to be
purchased separately)
POWER
18
15
11
14
13
16
17
19
20
6
7
8
9
2
3
4
5
10 12 1
Parent unit menu icons
Signal Level (4 Levels)
Night Vision Mode (Screen changes to Black/White)
Talk M ode
Battery Level Control (4 Levels)
Volume Level Control (8 Levels)
Zoom Level Control (1X, 2X)

Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Units together, you must be able to establish a
radio link between them, and the range will be affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or
reinforced concrete between the Baby and Parent Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by radio
or electrical equipment, such as TVs, computers, cordless or mobile phones,
fluorescent lights or dimmer switches.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi®routers), Bluetooth®
systems, or microwave ovens, may cause interference with this product, so keep the
baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if
they appear to be causing interference.
• If the signal is weak, try lifting up the Parent Unit Antenna, moving the Parent and/or the
Baby Unit to different positions in the rooms.
1. Photo Sensor
(Night Vision Mode)
6. Speaker
7. ON/OFF Switch
2. Camera Lens 8. Power Adapter Socket
3. Infrared LEDs 9. Antenna
4. Power LED 10. Temperature Sensor
5. Microphone 11. Pair Key
Parent unit menu icons (cont’d)
Overview of Your Baby Unit
Brightness Level Control (8 Levels)
Lullaby Control (5 Song Selections)
Alarm Setting (6h, 4h, 2h, Off )
Temperature Reading (HH ºC / ºF or LL ºC / ºF)
Icon & readings turn RED >29ºC / 84ºF, and reading display
HH ºC / ºF >36ºC / 97 ºF)
Icon & readings turn RED <14ºC / 57ºF, and reading display
LL ºC / ºF <1ºC / 34 ºF)
Cam Control (scan, view, add, delete)
Screen viewing mode control (Single Screen, 4-split Screen)
Set Video On Timer (5 min, 30 min, 60 min)
V
1
9
11
10
8
2
3
6
5
4
7
PAIR

Table of contents 5
ENGLISH
Table of contents
1. Safety Instructions..................................................................................... 6
2. Getting Started.......................................................................................... 9
2.1 Baby Unit Power Supply..............................................................................9
2.2 Parent Unit Battery Installation ....................................................................9
2.3 Parent Unit Power Supply .........................................................................10
2.4 Registration (Pairing).................................................................................11
2.5 View Video Through TV............................................................................11
3. Using the Baby Monitor...........................................................................12
3.1 Setting up................................................................................................... 12
3.2 Night Vision Mode.....................................................................................12
3.3 Talk Mode ..................................................................................................12
3.4 Video ON/OFF..........................................................................................12
3.5 Temperature Display (HH °C / °F or LL °C / °F) ......................................12
4. Parent Unit Menu Options....................................................................... 13
4.1 Volume.......................................................................................................13
4.2 Brightness ..................................................................................................13
4.3 Lullaby........................................................................................................13
4.4 Zoom..........................................................................................................13
4.5 Alarm..........................................................................................................13
4.6 Camera Control ........................................................................................14
4.6.1 Add (pair) a camera ..................................................................14
4.6.2 View a camera ...........................................................................14
4.6.3 View multi-cameras on screen ..................................................14
4.6.4 Delete a camera ........................................................................15
4.6.5 Scan camera ..............................................................................15
4.7 Temperature.............................................................................................. 15
4.8 Power Saving mode ..................................................................................15
5. Disposal of The Device (environment) ...................................................16
6. Cleaning .................................................................................................. 17
7. Help.......................................................................................................... 18
8. General Information ................................................................................ 20

6Safety Instructions
1. Safety Instructions
WARNING:
Strangulation Hazard: Children have
STRANGULED in cords. Keep this cord
out of the reach of children (more than
3ft (1m) away). Never use extension
cords with AC Adapters. Only use the AC
Adapters provided.

Safety Instructions 7
ENGLISH
WARNING
This digital video baby monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cords in the crib or within reach of the baby
(the unit and cords should be more than 3 feet away)
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
CAMERA SET UP & USE:
●Determine a location for the Baby Unit that will provide the best view
of your baby in his/her crib.
●Place the BABY UNIT on a flat surface, such as a dresser, bureau, or
shelf or mount the Unit to a wall securely using the keyhole slots under
the stand.
●NEVER place the Baby Unit or cords within the crib.
●Do not place the Baby Unit or cords in the crib or within reach of the
baby (the unit and cords should be more than 3 feet away).

8Safety Instructions
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions.

Getting Started 9
ENGLISH
2. Getting Started
2.1 Baby Unit Power Supply

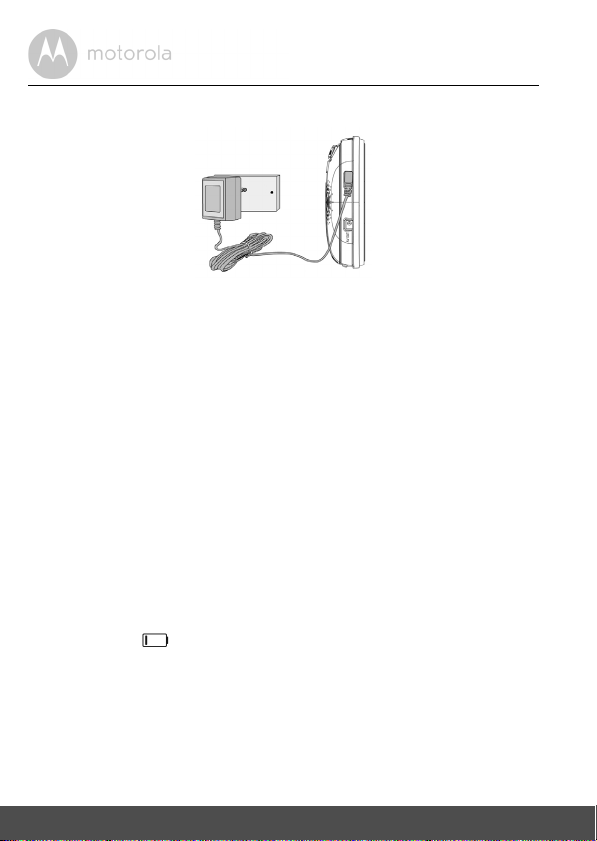

1. Connect the small plug of the power adapter to the baby unit (camera) and
the other end to the electrical outlet.
NOTE
Only use the enclosed power adapter (5V DC / 1000mA).
2. Slide the ON/OFF switch to the ON position. The power LED will light up
in green.
3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.
2.2 Parent Unit Battery Installation
1. Insert the wire tab of the rechargeable battery pack into the contact slot as
shown above and fit the battery pack into the compartment.
2. Replace the battery cover over the compartment and gently tighten the
screw in a clockwise direction using a Small cross head or Flat end screw
drivers.
Black
Red
Small cross head or
Flat end screw driver

10 Getting Started
2.3 Parent Unit Power Supply
IMPORTANT
Installing the rechargeable battery pack and charging it fully before use is
recommended. This will allow the unit to operate on battery in the event of a
power failure.
1. Connect the small plug of the power adapter to the parent unit and the
other end to the electrical outlet. Only use the enclosed power adapter (5V
DC / 600mA) with the slightly smaller DC plug.
2. Press and hold the PPOWER ON/OFF button for 1 second to turn ON
the parent unit.
3. Once the baby and parent units are switched on, the display on the parent
unit will show the video captured by the baby unit.
4. If there is no connection or you are out of range, the video display will go
off and the unit will beep every 5 seconds. Move the parent unit closer to
the baby unit until the link is re-established.
5. Press and hold the PPOWER ON/OFF button, until the progress bar
finishes scrolling, to turn OFF the parent unit.
NOTE
The battery icon turns RED to indicate that the battery is low, and it gives
a beep every 16 seconds. The battery needs to be recharged. The battery pack
takes about 12 hours to charge fully.
When charging
1. During power OFF, when adapter is plugged in, a adapter logo will display
on screen and then a flashing battery logo will display for 45 sec. The Blue
LED at top left corner light up indicates adapter is plugged in.

Getting Started 11
ENGLISH
2. During power ON, when adapter is plugged in, the battery icon on screen's
top right corner will show that the battery is charging. The Blue LED at the
top left corner light up indicates adapter is plugged in.
2.4 Registration (Pairing)
The Baby monitor is pre-registered to your Parent Unit. You do not need to
register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the procedure
below:
1. Press the M button of the parent unit and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
add , and press the OK
button to confirm.
4.
cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the +UP button or -DOWN
button to select the desired Camera and press the OK button to start
searching for a camera unit. The green audio level LED will flash rapidly
while searching.
5. Press the OK button to confirm.
6. Press and hold the PAIR button underneath the baby unit until the parent
unit finds the camera, beeps and the video from the camera appears.
NOTE
If a particular Baby Unit was registered previously, registering this current
Baby Unit again will overwrite the old registration.
2.5 View Video Through TV
Connect a suitable AV cable into the AV OUT socket on the side of the Parent
Unit and into the AV input of the TV. Scroll to select on the Parent unit. Scroll
through the AV inputs on the TV menu until the Baby monitor picture is visible.
AV cable is an optional accessory, which is to be purchased separately.
NOTE
The Monitor's power button must be turned ON and Camera pre-selected
before connecting the AV cable. Once the AV cable is connected, the Monitor's
controls cannot be activated.
You can hear also your baby in mono mode by connecting the 3.5mm plug
wired headset to the AV OUT socket.

12 Using the Baby Monitor
3. Using the Baby Monitor
3.1 Setting up
• Place the baby unit in a convenient location (e.g. on a table) and point the
camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle by rotating the camera up, down, left and
right until you are satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within the baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and ensure they
are not close to other electrical equipment.
3.2 Night Vision Mode
The baby unit has 8 high-intensity infrared LEDs for picking up clear images in
the dark. When the built-in photo sensor on the top of the unit detects a low level
of ambient light, the LEDs will automatically activate and the screen on the
parent unit will display in black and white. The icon will be displayed at the
top of the screen.
3.3 Talk Mode
Press and hold the T TALK button on the parent unit to talk to your baby through
the baby unit’s loudspeaker. The T icon will be displayed at the top of the LCD
screen.
3.4 Video ON/OFF
Press VVIDEO ON/OFF key to turn the LCD display on or off, but still leave the
audio monitor on.
3.5 Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby
Unit will be displayed at the top of the LCD screen. The readings will turn RED if
the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will
change to HH °C / °F if the temperature goes above 36°C / 97°F. The reading
will change to LL °C / °F if the temperature goes below 1°C / 34°F.

Parent Unit Menu Options 13
ENGLISH
4. Parent Unit Menu Options
4.1 Volume
1. Press the VOL UP button or VOL DOWN button to select the
desired volume level from level 1~8. (The default volume level setting is
level 4.)
4.2 Brightness
1. Press the BRIGHTNESS UP button or BRIGHTNESS DOWN button
to select the desired brightness level from level 1 ~ 8. (The default brightness
level setting is level 5.)
4.3 Lullaby
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the desired song from
the 5 lullabies available, or the cycle option to play all 5 songs in turn. If an
individual song is selected it will only play once. (The default setting is
lullaby OFF)
4. Press OK on the selected lullabies to select the desired song sound level.
4.4 Zoom
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the
1X or 2X Zoom.
(The default setting is 1X.)
4.5 Alarm
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or - DOWN button to select the alarm time (
6h , 4h ,
2h ). (The default setting is Alarm OFF.)
4. If an alarm time is selected, the parent unit will beep for about 45 seconds
after every 6, 4 or 2 hour period.

14 Parent Unit Menu Options
4.6 Camera Control
4.6.1 Add (pair) a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
add , and press the OK
button to confirm.
4.
cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the +UP button or -DOWN
button to select the desired Camera, and press the OK button to start
searching for a camera unit. The green audio level LED will flash rapidly
while searching.
5. Press and hold the PAIR button underneath the baby unit until the parent
unit finds the camera, beeps and the picture from the camera appears.
NOTE
A camera can only be registered to one parent unit at any one time.
4.6.2 View a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted and
the
del/add/view/scan menu pops up.
3. Press the +UP button or -DOWN button to select
view , and press the OK
button to confirm.
4.
cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the +UP button or -DOWN
button to select desired CAM, and press the OK button to view the picture
from that camera.
TIP
Quick Method to View Cameras instead of entering into the menu bar.
Directly press OK repeatedly to select
cam 1 , cam 2 , cam 3 , cam 4 , scan .
4.6.3 View multi-cameras on screen
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until icon is highlighted.
3. Press the +UP button or -DOWN button to select 4-split screen On/Off.

Parent Unit Menu Options 15
ENGLISH
4.6.4 Delete a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
del , and press the OK
button to confirm.
4.
cam 1 / cam 2 / cam 3 / cam 4 will pop up, press the +UP button or -DOWN
button to select the desired Camera, and press the OK button to delete
that registration.
Note:
You are not allowed to delete the camera if there is only one registered camera
in the system.
4.6.5 Scan camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
scan , and press the OK
button to confirm.
4. The screen will then display images from different registered cameras in a
loop of
cam 1 / cam 2 / cam 3 / cam 4 , changing about every 12 seconds.
TIP
Quick Method to View Cameras instead of entering into the menu bar.
Directly press OK repeatedly to select
cam 1 , cam 2 , cam 3 , cam 4 , scan .
4.7 Temperature
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or -DOWN button to select °C or °F.
4.8 Power Saving mode
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until Vis highlighted.
3. Press the +UP button or -DOWN button to select auto video off after
5, 30 or 60 mins if not in charging.

16 Disposal of The Device (environment)
5. Disposal of The Device (environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be reused if you take them to
a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

Cleaning 17
ENGLISH
6. Cleaning
Clean the Baby Monitor with a slightly damp cloth or with an anti-static cloth.
Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the product with thinners or other solvents and
chemicals –- this may cause permanent damage to the product which is not
covered by the warranty.
• Keep your Baby Monitor away from hot, humid areas or strong sunlight, and
don't let it get wet.
• Every effort has been made to ensure high standards of reliability for your
Baby Monitor. However, if something does go wrong, please do not try to
repair it yourself –- contact Customer Service for assistance.

18 Help
7. Help
Display
No display
• Try recharging or replacing the battery pack.
• Reset the units. Disconnect the battery pack of the parent unit and unplug
both the units' electrical power, then plug them back in.
• Is the unit turned on?
Press and hold the POWER ON/OFF button Pon the parent unit to turn it
ON.
• Is the correct camera selected?
Change the camera number, if necessary.
• Is the video display turned on?
Press the VIDEO ON/OFF button Vto turn it on.
• When operating using batteries only, the Display will go blank after
5, 30 or 60 minutes to save power (depending on video on setting). The unit
is still active and will give you audio alerts. You can reactivate the screen by
pressing any button.
Registration
If the Baby Unit has lost its link with the Parent Unit
• Try recharging or replacing the battery pack.
• If the Baby Unit is too far away it may be going out of range, so move the
Baby Unit closer to the Parent Unit.
• Reset the units by disconnecting them from the battery and electrical power.
Wait about 15 seconds before reconnecting. Allow up to one minute for the
Baby Unit and the Parent Unit to synchronise.
• See 2.4 Registration (Pairing), if there is a need to re-register the units.

Help 19
ENGLISH
Interference
Noise interference on your parent unit
• Your baby and parent units may be too close. Move them farther apart.
• Make sure there is at least 3 to 6 feet between the
2 units to avoid audio feedback.
• lf the baby unit is too far away it may be out of range, so move the baby unit
closer to the parent unit.
• Make sure the baby and parent units are not near other electrical equipment,
such as a television, computer or cordless/mobile telephone.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi®routers),
Bluetooth®systems, or microwave ovens, may cause interference with this
product, so keep the baby monitor away at least 5ft (1.5m) from these types
of products, or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to different
positions in the rooms.

20 General Information
8. General Information
lf your product is not working properly....
1. Read this User's Guide or the Quick Start Guide.
2. Contact Customer Service:
To order a replacement battery pack, contact customer service.
Consumer Products and Accessories Limited Warranty
("Warranty")
Thank you for purchasing this Motorola branded product manufactured under
license by Binatone Electronics International LTD ("BINATONE").
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory ("Accessory") sold
for use with this product that it manufactured to be free from defects in materials
and workmanship under normal consumer usage for the period outlined below.
This Warranty is your exclusive warranty and is not transferable.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not
transferable.
What will BINATONE do?
BINATONE or its authorized distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or Accessories
that does not conform to this Warranty. We may use functionally equivalent
reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
US and Canada 1-888-331-3383
Email: [email protected]
