Motorola GTF374 User manual

Accessories
3x4.75
GTF374
Programming Cable
19B07_Cover Page 1 Friday, July 2, 1999 2:33 PM

1
GENERAL

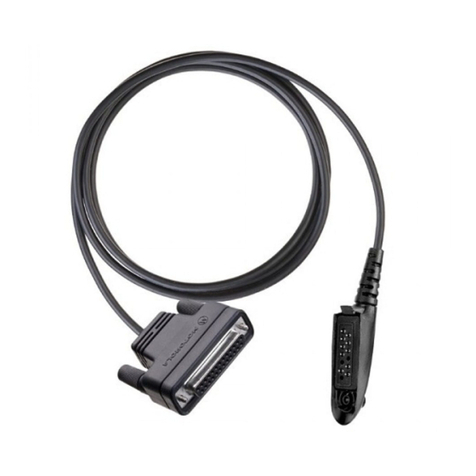

The GTF374 Programming Cable is a passive
cable used to connect the mobile Professional
Radio to the RLN4008 Radio Interface Box (RIB)
when the radio is to be tuned or programmed.
The Programming Cable has a 10-pin male Telco
connector at one end, which connects to the radio
microphone connector, and a 25-way female ‘D’
type connector at the other end for connection to
the RIB.
OPERATION
Refer to the relevant test/ programming
procedures for the radio on test and connect the
radio to the RIB as directed.
Do not disconnect the cable in the
middle of a procedure.This may
leave theradioincorrectlyconfigured
and degrade the radio performance
SERVICE
The Programming Cable is not repairable. Order a
replacement cable as necessary.
!
C a u t i o n
19B07_EN Page 1 Friday, July 2, 1999 2:41 PM

2
SCHEMATIC DIAGRAM
CONNECTOR DETAIL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Bus +
Boot Control
1
2
3
4
5
6
7
8
P1 P2
25-way ‘D’Type
Switched Battery voltage +
Ground
FLT A +
Ground
PTT
Bus +
21
22
23
24
25
9
10-way Telco
Hook
10
Not Connected
1k Ohm resistor
mounted inside the
DB25 body
linked to pin 4
linked to pin 13
Pin 1
Pin 13Pin 25
Pin 14
25-Position
DB25
Female
Connector
Pin 8
Pin 9
Pin 1
Pin 10
1,500±50mm
Cable
19B07_EN Page 2 Friday, July 2, 1999 2:41 PM

6864119B07
