Motorola MD7151 User manual

E51 Series
Digital Cordless Phone
5.8 GHz Expandable
Model Family: MD7151
Users Guide

For a copy of a large-print version of this guide, or for product-
related questions, please visit us online:
www.motorola.com/cordless
Or contact us at:
1-800-353-2729 U.S.A.
1-800-461-4575 Canada
1-888-390-6456 TTY (Text Telephone)
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation
on the part of Motorola to provide notification of such revision or change. MOTOROLA PROVIDES THIS GUIDE WITHOUT
WARRANTY OF ANY KIND, EITHER IMPLIED OR EXPRESS, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Motorola may make improvements
or changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M logo are registered in the U.S. Patent and Trademark Office. All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006

MD7151 User Guide
i
Table of Contents
FCC Information .....................................................................................vi
FCC Compliance Class B Digital Device................................................................ vi
FCC Declaration of Conformity............................................................................. vii
Canadian Compliance............................................................................................ vii
Federal Communications Commission (FCC) Part 68 Statement...................... vii
Industry Canada CS-03 Declaration of Conformity.............................................. ix
Important Safety Instructions ...............................................................x
Welcome ..................................................................................................1
Handset Overview....................................................................................................2
Base Unit Overview .................................................................................................3

MD7151 User Guide
ii
Getting Started .......................................................................................4
Battery Safety Instructions..................................................................................... 4

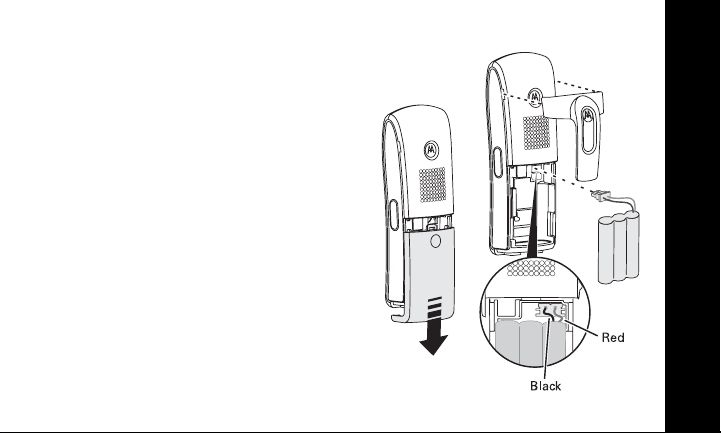

Installing the Battery............................................................................................... 5
Charging the Handset Battery ............................................................................... 6
Installing the Base Unit ..........................................................................7
Wall Mounting ........................................................................................................ 9
Basic Operations ...................................................................................11
Handset Indicators ................................................................................................ 11
Base Unit LEDs .................................................................................................... 11
Making a Call......................................................................................................... 12
Answering Calls .................................................................................................... 13
Ending a Call ......................................................................................................... 13
Speakerphone Operation ..................................................................................... 13

MD7151 User Guide
iii
Adjust Handset Volume ........................................................................................14
Temporary Ringer Adjustments...........................................................................15
Redial Function ......................................................................................................15
Deleting a Redial Listing .......................................................................................16
Mute Function ........................................................................................................16
Locate a Misplaced Handset.................................................................................17
Phonebook Operations.........................................................................18
Storing a New Entry ..............................................................................................19
Reviewing/Dialing from the Phonebook..............................................................22
Editing a Phonebook Entry ...................................................................................23
Delete a Single Phonebook Entry.........................................................................23
Caller ID/Call Waiting ID ........................................................................................24
Reviewing Caller ID Records.................................................................................25

MD7151 User Guide
iv
Storing a Caller ID Entry in the Phonebook........................................................ 26
Dialing from the Caller ID Log ............................................................................. 27
Deleting a Caller ID Record .................................................................................. 27
Deleting All Caller ID Records.............................................................................. 27
Ringer Volume ...................................................................................................... 28
Ringer Tone ........................................................................................................... 28
Key Tone ................................................................................................................ 29
Display Language ................................................................................................. 30
Dialing Method...................................................................................................... 31
Message Waiting Indicator .................................................................................. 31

MD7151 User Guide
v
Special Features ....................................................................................32
Intercom Calls ........................................................................................................32
Call Transfer ...........................................................................................................33
Conference Call......................................................................................................34
In Case of Difficulty ...............................................................................35
Warranty ................................................................................................38
Technical Specifications .......................................................................42

MD7151 User Guide
vi
FCC Information
FCC Compliance Class B Digital Device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Motorola for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

MD7151 User Guide
vii
FCC Declaration of Conformity
Motorola, Inc., Connected Home Solutions, 101 Tournament Drive, Horsham, PA 19044,
1-215-323-1000, declares that this cordless phone complies with 47 CFR Parts 2 and 15 of the FCC Rules as
Class B digital devices.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est
conforme á la norme NMB-003 du Canada.
Federal Communications Commission (FCC) Part 68 Statement
This Motorola cordless phone complies with Part 68 of the FCC rules and the requirements adopted by the
Administrative Council for Terminal Attachments (ACTA). On the bottom of this equipment is a label that
contains, among other information, a product identifier in format US: AAAEQ##TXXXX. If requested, this
information must be provided to the telephone company.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected
to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in
response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to the line, as determined by the total RENs,
contact the telephone company.

MD7151 User Guide
viii
For products approved after July 23, 2001, the REN for this product is part of the product identifier that has
the format US: AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03
is a REN of 0.3). For earlier products, the REN is separately shown on the label.
This equipment uses the following USOC jack: RJ11C. A plug and jack used to connect this equipment to
the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also compliant. See installation
instructions for details.
Connection to Party Line Service is subject to state tariffs. Contact the state public utility commission, public
service commission, or corporation commission for information. If this equipment causes harm to the
telephone network, the telephone company will notify you in advance that the temporary discontinuance of
services may be required. If advance notice is not practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the operation of the equipment. If this happens, the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact Motorola,
Inc. at 1-877-466-8646. If the equipment is causing harm to the telephone network, the telephone company
may request that you disconnect the equipment from the network until the problem is solved.
This equipment is hearing aid compatible.

MD7151 User Guide
ix
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of
the cordless phone does not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
CAUTION: To maintain compliance with the FCC's RF exposure guidelines place the base unit at least 20
cm from nearby persons.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when
used with the belt clip supplied or designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
Industry Canada CS-03 Declaration of Conformity
This product meets the applicable Industry Canada technical specifications. The Ringer Equivalence Number
(REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of devices subject only to the requirement
that the sum of the RENs of all the devices does not exceed five.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment on and off, the user is encouraged to try to correct the interference with one or
more of the following measures: Reorient or relocate the receiving antenna (that is, the antenna for the radio
or television that is "receiving" the interference).Reorient or relocate and increase the separation.

MD7151 User Guide
x
Important Safety Instructions
When using your telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and injury, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bathtub, kitchen sink, or
swimming pool).
5. Do not place this product on an unstable surface, such as a table, shelf or stand.
The product may fall, causing serious damage.
6. Slots and openings in the back or bottom of the base unit and handset are
provided for ventilation. To protect them from overheating, these openings must
not be blocked by placing the product on a soft surface such as a bed, sofa, or rug.
This product should never be placed near or over a radiator or heat register. This
product should not be placed in any area where proper ventilation is not provided.

MD7151 User Guide
xi
7. This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply in your home,
consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not install this product where
the cord may have anyone walking on it.
9. Never push objects of any kind into this product through slots in the base or
handset as they may touch dangerous voltage points or short out parts that could
result in a risk of fire or electric shock.
10. Never spill liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to
an authorized service facility. Opening or removing parts of the base or handset
other than specified access doors may expose you to dangerous voltages or other
risks. Incorrect reassembling can cause electric shock when the product is
subsequently used.
12. Do not overload wall outlets and extension cords as this can result in the risk of
fire or electric shock.
13. Unplug this product from the wall outlet and refer servicing to an authorized
service facility under the following conditions:
•When the power supply cord or plug is damaged or frayed.

MD7151 User Guide
xii
•If liquid has been spilled onto the product.
•If the product has been exposed to rain or water.
•If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as improper adjustment of other controls may result in damage
and often requires extensive work by an authorized technician to restore the
product to normal operation.
•If the product has been dropped and the base and/or handset has been
damaged.
•If the product exhibits a distinct change in performance.
14. Avoid using a telephone (other than cordless) during an electrical storm. There is a
remote risk of electric shock from lightning.
15. Do not use the telephone to report a gas leak in the vicinity of the leak.
16. Only put the handset of your telephone next to your ear when it is in normal talk
mode.

MD7151 User Guide
1
Welcome
Congratulations on your purchase of a Motorola MD7151 series telephone. Check the
contents listing on the product packaging to ensure that your purchase includes each
of the items listed.
Product registration is an important step toward enjoying your new Motorola product.
Registering helps us facilitate warranty service, and permits us to contact you should
your Motorola product require an update or other service. Registration is not required
for warranty coverage.
To register your product online, visit:
http://broadbandregistration.motorola.com
Product registration is not available in Canada.
Please retain your original dated sales receipt for your records. For warranty service of
your Motorola product, you will need to provide a copy of your dated sales receipt to
confirm warranty status.

MD7151 User Guide
2
Handset Overview
1. Earpiece
2. LCD display
3. Select/Menu
4. Caller ID/Scroll down
5. Headset jack (2.5 mm)
6. Phone On/Flash
7. Speakerphone
8. Temporary tone dialing key
9. Redial/Pause
10. Mute/Delete
11. Microphone
12. Intercom
13. Change number format
14. Phone Off/Cancel
15. Volume control
16. Phonebook/Scroll up
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

MD7151 User Guide
3
Base Unit Overview
1. Page key
2. Charging cradle
3. Charging LED
4. In Use LED
5. Phone company voicemail
indicator
Bottom View
Telephone jack
Power jack
1
2
3
4
5

MD7151 User Guide
4
Getting Started
Battery Safety Instructions
•Do not burn, disassemble, mutilate, or puncture the battery. The battery contains
toxic materials that could be released, resulting in injury and/or explosion.
•CAUTION: There is a risk of explosion if you replace the battery with an incorrect
battery type. Use only the battery that came with your phone or an authorized
replacement recommended by the manufacturer.
•Keep batteries out of the reach of children.
•Remove batteries if storing over 30 days.
•The rechargeable batteries that power this product must be disposed of properly
and may need to be recycled. Refer to your battery’s label for battery type. Contact
your local recycling center for proper disposal methods.

MD7151 User Guide
5
Installing the Battery
1. Remove any stickers or inserts, if present.
2. Remove the battery door by pressing down
on the indentation and sliding downward.
3. Plug the battery connector into the
receptacle. (Make sure the black wire is on
the left.)
4. Insert the battery into the battery
compartment.
5. Replace the battery door.
6. Attach the belt clip (optional).

MD7151 User Guide
6
Charging the Handset Battery
The handset of your cordless telephone is powered by a rechargeable battery pack. It
charges automatically whenever the handset is in the base unit or charger.
The initial battery charge time is 10–12 hours. After the initial charge, a maintenance
charge of eight hours should be sufficient. Be sure to place the handset in its base
when not in use to insure maximum daily performance.
If your handset displays a PLACE IN CHARGER message, or the handset seems
completely dead (the LCD is blank and does not activate when you press the keys),
charge the handset.
NOTE: When in LOW BATTERY mode, the keypad sounds, backlighting, and
speakerphone features will not work. The features are fully functional after you
recharge the battery.
