MTP6550 QUICK START GUIDE
More Information on the Radio
Motorola Online
@68015000672@
68015000672-A
This document is copyright protected. Duplications for the purpose of the use of Motorola products are
permitted to an appropriate extent. Duplications for other purposes, changes, additions or other processing of
this document are not permitted. Only this electronically-saved document is considered to be the original.
Duplications are considered merely copies. Motorola Solutions, Inc., and its subsidiaries and affiliates do not
vouch for the correctness of such kinds of copies.
MOTOROLA,MOTO,MOTOROLASOLUTIONSand the stylizedM Logo areregistered in theU.S. Patent and
TrademarkOffice.All other product or service names are the property of their respective owners.
© 2013 Motorola Solutions, Inc.All rights reserved.
Feature User Guide and related documentation available at:
https://emeaonline.motorolasolutions.com/
Open Source Software Legal Notices
Available at: https://emeaonline.motorolasolutions.com/
and on Customer Programming Software Plus (CPS Plus) DVD
Visit the Motorola Solutions Web site at:
http://www.motorolasolutions.com/tetraterminals
MTP6550
QUICK START GUIDE
68015000630_QuickStartGuide_MTP6550_18x13_lscp.ai 1 10/16/2013 5:22:59 PM68015000630_QuickStartGuide_MTP6550_18x13_lscp.ai 1 10/16/2013 5:22:59 PM

Your Radio
1
2
3
4
5
5
17
7 7
8
9
6
16
13
15
10
11
12
15
14
18
19
20
21
QuickStartGuide6550.pdf 1 10/16/2013 4:25:32 PM

Number Description
1Emergency button
When the radio is on, press and hold to start emergency
operations. When the radio is off, press and hold to power
on in the Emergency Mode.
2Rotary Knob
• Press and hold to lock/unlock it.
• Rotate to set the volume.
• Press and rotate to select a different talkgroup.
3LED Status Indicator
4Earpiece
5 Programmable Side buttons
The upper button activates Flip Display and the lower
activates High/Low audio One-Touch Button. Your service
provider may change the programmed functions of these
buttons.
6PTT (Push-To-Talk)
Press and hold to talk in simplex calls or initiate group calls.
Release it to listen.
7Soft keys
Press the left/right Soft key to select the option displayed
above it.
8CALL key
• Press to initiate or answer duplex calls.
• Press to send messages.
• Press in the home screen to enter the Recent Callsmenu
item.
9Slimport Speaker
10 Keypad
Press to enter alphanumeric characters, or press and hold
to activate One-Touch Button features.
11 Bottom Microphone
Activated during duplex low audio calls such as private
calls.
12 Bottom Connector
Used for charging and programming the radio, and
connecting data transfer cables.
13 Antenna
QuickStartGuide6550.pdf 2 10/16/2013 4:25:32 PM

Number Description
14 External Antenna Connector
Used with the digital car kit to connect the RF signal to the
external antenna.
15 Top Microphone
Activated during simplex high audio calls such as group
calls.
16 Side Connector
Provides connection for accessories.
17 Display
Provides alphanumeric text and images within 65,536
colors and 240 x 320 pixels with scalable fonts and
contrast.
18 Menu key
Press to enter the main menu (from the home screen) or
the context-sensitive menu.
19 EXIT key
• Press and hold to turn on/off the radio.
• Press to end calls.
• Press to return to the home screen.
20 Navigation key
Press the Navigation key to scroll the list while moving
around the menu, or to navigate the text.
From the home screen, press:
• Down Navigation key – to enter the Recent Calls menu item.
• Up Navigation key – to change the My Groups talkgroup
folder.
• Left and right Navigation key – to browse through the
talkgroups.
22 Backlight Sensor
By measuring the ambient light intensity, the keypad
backlight sensor determines if there is a need to light up the
keypad backlight.

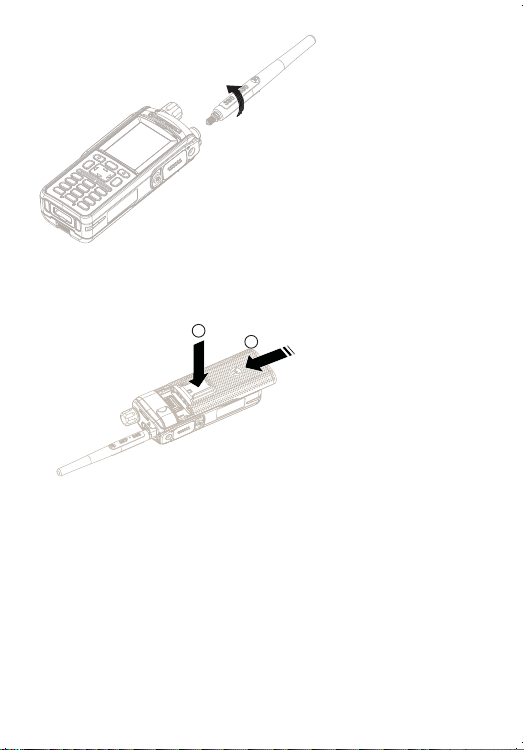

Attaching the Antenna
1Align the bottom of the antenna and the screw-in base on the top of the radio.
2Turn clockwise until snug. Do not force.
QuickStartGuide6550.pdf 3 10/16/2013 4:25:32 PM

Installing the Battery
1Insert the battery into the compartment.
2Slide the battery towards the top of the radio until it clicks.
1
2

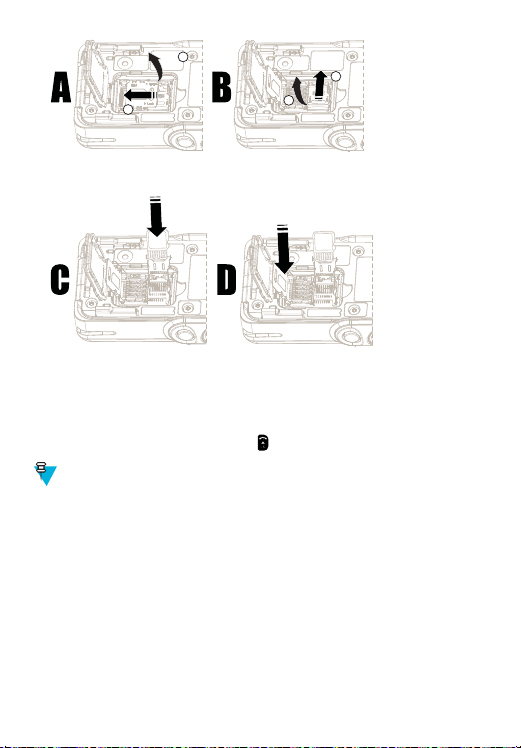

Installing the MicroSD and SIM Cards
1Remove the battery.
2Open the plastic compartment cover.
3Slide the SIM card holder and lift it up (A).
4Slide the microSD card holder and lift it up (B).
QuickStartGuide6550.pdf 4 10/16/2013 4:25:32 PM

1
2
1
2
5Insert the microSD card (C) and close the microSD card holder.
6Insert the SIM card (D) and close the SIM card holder.
7Close the compartment cover.
8Replace the battery.
Turning the Radio On/Off
To power the radio on/off, press and hold .
If the Covert Mode is activated, the radio powers on without visible and
audible notifications.
Holding Your Radio
The radio has two microphones:
•A top microphone for simplex group, dispatcher, or private calls
• A bottom microphone for duplex, telephone-like calls
Simplex Calls
When making simplex calls (high audio), hold the radio in a vertical position with the
top microphone 5 to 10 centimeters away from your mouth. Speak into the top
microphone. Listen via the radio internal speaker. Keep the antenna at least 2.5
centimeters from your head and body.
QuickStartGuide6550.pdf 5 10/16/2013 4:25:32 PM

Duplex Calls
When making duplex calls (low audio), hold your radio as you would a telephone.
Speak into the bottom microphone. Listen via the earpiece. Keep the antenna at
least 2.5 centimeters from your head and body.
Lapel/Shoulder Use
For group and private calls turn your head towards your shoulder/lapel, and speak
directly into the top microphone. Listen through the internal speaker.
Speakerphone Use
Place your radio 30–60 centimeters away from you. In a noisy environment, move
the radio closer for better transmission.
Battery Capacity Information
Icon Description
80%–100% capacity
60%–80% capacity
40%–60% capacity
25%–40% capacity
15%–25% capacity
QuickStartGuide6550.pdf 6 10/16/2013 4:25:33 PM

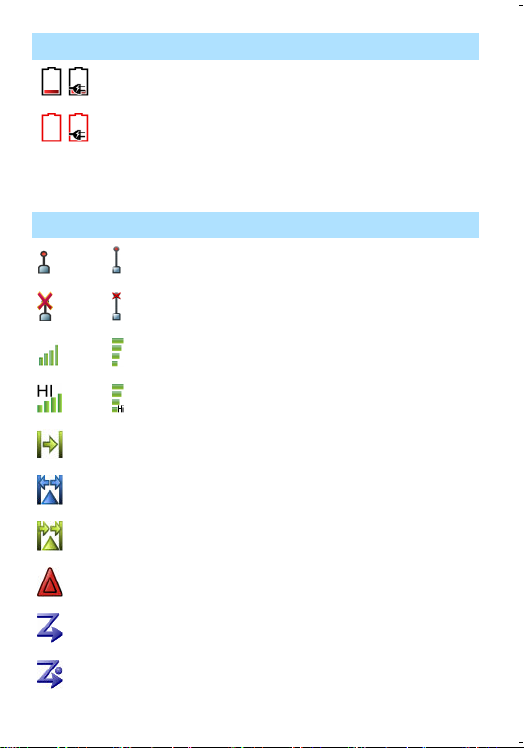

Icon Description
5%–15% capacity
0%–5% capacity
Status Icons
Icon Description
In Service (TMO) – standard/extended icon
No Service (TMO) – standard/extended icon
Signal Strength – standard/extended icon
High RF Power – standard/extended icon
Direct Mode
Using Gateway
Repeater Mode
Emergency
Scan
Priority Scan
QuickStartGuide6550.pdf 7 10/16/2013 4:25:33 PM

Icon Description
Battery Level
Battery Charging
All Rings Muted
Simplex Ring Muted
Duplex Ring Muted
Migration
Low Audio
High Audio
Earpiece Connected
New Message Has Arrived
New Message(s)
Packet Data
Radio Keys Locked
QuickStartGuide6550.pdf 8 10/16/2013 4:25:33 PM

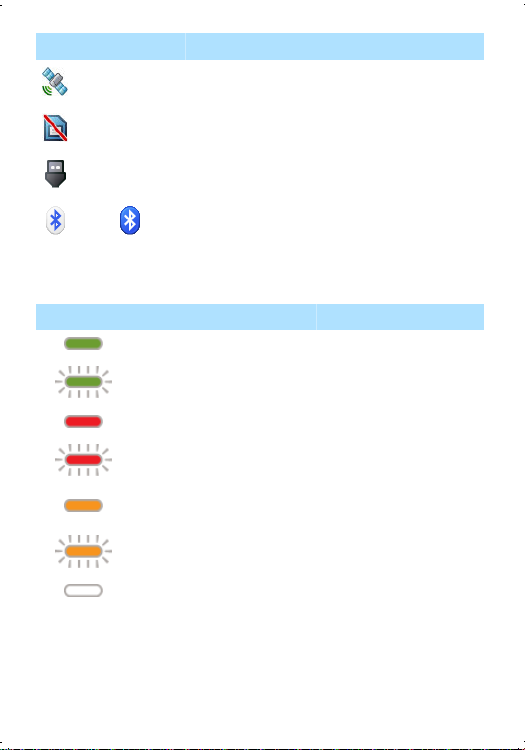

Icon Description
GPS
Invalid MicroSD Card
USB Connected
No Active Bluetooth Connection/Bluetooth Active
LED Status Indicator
Indication Status Charging Status
In use Battery fully charged
In service Battery charged at 90%
Out of service Rapid charge
Connecting to a network
Entering DMO Faulty or invalid battery
Transmit inhibit in service
Channel busy in DMO
Incoming private or phone call Battery waiting to charge
Switched off
Unlocking Your Radio
Your radio may be locked at power on. To unlock it, enter the PIN code at the
prompt. By default the code is set to 0000. Your service provider may change this
number before you receive your radio.
QuickStartGuide6550.pdf 9 10/16/2013 4:25:33 PM

Locking/Unlocking the Keypad
To unlock/lock the keypad, press and then .

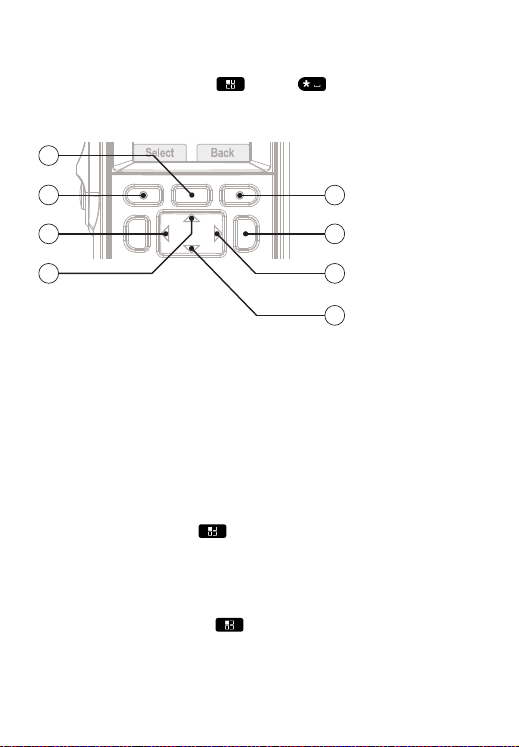

Using the Radio Menu
1
23
45
76
8
Press:
1 – to enter the menu.
2 – to select a menu item.
3 – to return to the previous level.
4 – to return to the previous level.
5 – to exit the menu.
6 – to scroll up.
7 – to select a menu item.
8 – to scroll down.
Personalizing Your Radio
From the home screen, press . Go to More . . . → Setup. Go to a menu item
you would like to modify (for example, Vibrate, Tones, or Display) and select the
preferred settings.
Activating Covert Mode
1From the home screen, press .
2Select Security → Covert Mode.
3Select On to enable or Off to disable the Covert Mode.
QuickStartGuide6550.pdf 10 10/16/2013 4:25:33 PM

Selecting TMO/DMO
1From the home screen, select Optns.
2Select the required mode.
Making TMO/DMO Group Calls
1Enter TMO or DMO.
2From the home screen, use or the rotary knob to highlight
the target talkgroup.
3Select Select (if configured).
4Press and hold PTT.
5Wait for the talk permit tone (if configured) and talk.
6Release PTT to listen.
Making TMO/DMO Emergency Calls
1Enter TMO or DMO.
2Press and hold the Emergency button. The emergency alarm is sent
automatically (if configured).
3Press and hold PTT.
4Wait for the talk permit tone (if configured) and talk.
5Release PTT to listen. If using the Hot Mic feature, wait for the Emergency Mic
On message to appear on the display, then talk without pressing PTT.
6To exit the Emergency Mode, press and hold the Exit soft key.
Making Simplex Private Calls
In DMO
1From the home screen, dial a number.
2To make the call and talk, press and hold PTT to talk (wait for the talk permit
tone if configured).
3Release PTT to listen.
4Press to terminate the call.
In TMO
1From the home screen, dial a number.
2Press and release PTT to make the call.
3Wait for the called party to pick up.
QuickStartGuide6550.pdf 11 10/16/2013 4:25:33 PM

4Once the call is connected, press and hold PTT to talk (wait for the talk permit
tone if configured).
5Release PTT to listen.
6Press to terminate the call.
Making Duplex Private Calls/Phone/PABX Calls
1From the home screen, dial a number.
2Press and release . The ringing sounds. The called party answers.
3Press to terminate the call.
To answer an incoming call, press .
Activating Transmit Inhibit Mode
In the Transmit Inhibit Mode (TXI) the radio sends no radio transmissions and only
emergency calls are allowed.
1From the home screen, press .
2Select Networks → TXI Mode → Activate.
Sending Text Messages
1From the home screen, press .
2Select Messages → New Message.
3Enter your message and select Send.
If you want to change the default text input, for example, use symbols or
numbers, press and select Entry Mode. The available options are:
•Primary – basic alphanumeric characters
•Numeric – numbers only
•Symbol – symbols only
•Secondary – alphanumeric characters including diacritics
If you want to change the input method, press and select Entry
Setup. The two available methods are:
•TAP – enter letters, numbers, and symbols by pressing an
alphanumeric key one or more times
•iTAP – let the radio predict each word as you press an alphanumeric
key
4Select Private or Group.
QuickStartGuide6550.pdf 12 10/16/2013 4:25:33 PM

Sending Status Messages
1From the home screen, press .
2Select Messages → Send Status.
3Perform one of the following actions:
•Highlight the required status message and select Select, or press or the
PTT button.
•If the status list is empty, enter a 5-digit status message number and select
Send.
Pairing Your Radio with Bluetooth Devices
Pairing is a process that creates a link between two Bluetooth-enabled devices.
Once paired, devices remember each other and every subsequent connection
between them is authenticated automatically.
1From the home screen, press .
2Select Bluetooth → Scan for Accessories.
3Highlight the required device and select Pair.
4If needed, enter a PIN code or a passkey.
Sending Files by Using Bluetooth
1From the home screen, press
2Perform one of the following actions:
•To send any file you received, select Bluetooth → My Received Files.
• To send an image you captured, select Pictures → View.
3Highlight the required file and press .
4Select Forward (received files) or Send (captured images).
5Perform one of the following actions:
If... Then...
If the paired devices list is empty, wait until the radio displays the list.
Highlight the device and select Select.
If the required recipient device is
present on the paired devices list,
highlight the device and select Select.
If the required recipient device is not
present on the paired devices list,
refresh the list by selecting Search.
Highlight the device and select Select.
QuickStartGuide6550.pdf 13 10/16/2013 4:25:33 PM

Looking after Your Radio
•Never leave your radio or battery in extreme temperatures (over +85 °C), for
example, behind a windscreen in direct sunlight.
• The radio is submersible (compliant with the IP67 standard) – but only with the
battery and the antenna attached.
• To clean your radio, use a moistened or antistatic cloth.
QuickStartGuide6550.pdf 14 10/16/2013 4:25:33 PM
