SERVICE MANUAL
FM STEREO/AM PLL SYNTHESIZED RADIO
US Model
AEP Model
E Model
Australian Model
Chinese Model
Tourist Model
SPECIFICATIONS
SRF-M97
Ver. 1.1 2004.12
9-879-289-02
2004L05-1
© 2004.12
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
Tourist model
Band Frequency range Channel step
FM 76 - 108 MHz 0.05 MHz
AM 531 - 1 710 kHz 9 kHz
530 - 1 710 kHz 10 kHz
Sony
* The supplied battery is for trial. We recommend you to
purchase a Sony alkaline LR03 (sizeAAA) battery.
R03 (size AAA) battery (1) (for trial*) (Tourist model)
Time display:
North and South American 12-hour system
countries/regions
Other countries/regions 24-hour system
Frequency range:
Model for North and South America
countries/regions
Band Frequency range Channel step
FM 87.5 - 108 MHz 0.1 MHz
AM 530 - 1 710 kHz 10 kHz
531 - 1 710 kHz 9 kHz
Model for Other countries/regions
Band Frequency range Channel step
FM 87.5 - 108 MHz 0.05 MHz
AM 531 - 1 602 kHz 9 kHz
530 - 1 610 kHz 10 kHz
Output:
i(headphones) jack
(ø3.5 mm, stereo minijack)
Power output:
2 mW + 2 mW (at 10 % harmonic distortion)
Power requirements:
1.5 V DC, one R03 (size AAA) battery
Auto Power off function:
Approx. 30 minutes, 60 minutes, 90minutes, 120
minutes, and off
Dimensions:
Approx. 37.4 ×84.6 ×21.6 mm (w/h/d)
(Approx. 1
1
/
2
×3
3
/
8
×
7
/
8
inches)
incl. projecting parts and controls
Mass:
Approx. 58.5 g (2.06 oz.)
incl. battery and the headphones
Accessories supplied
Stereo headphones (1)
Design and specifications are subject to change
without notice.
Battery Life (Approx. hours) (JEITA*)
When using FM AM
Sony alkaline LR03 40 65
(size AAA)
Sony R03 16 30
(size AAA)
* Measured by JEITA (Japan Electronics and
Information Technology Industries Association)
standards. The actual battery life may vary
depending on the circumstance of the unit.

2
SRF-M97
TABLE OF CONTENTS
1. GENERAL ................................................................... 3
2. DISASSEMBLY
2-1. Disassembly Flow ........................................................... 4
2-2. MAIN Board, Cabinet (Front) Assy ................................ 4
2-3. Side Panel Section, Cabinet (Rear)Assy......................... 5
2-4. AMP Board...................................................................... 5
3. ELECTRICAL ADJUSTMENTS ......................... 6
4. DIAGRAMS ................................................................. 8
4-1. Schematic Diagram ......................................................... 9
4-2. Printed Wiring Board – MAIN Board – .......................... 10
4-3. Printed Wiring Board –AMP Board – ............................ 11
5. EXPLODED VIEWS
5-1. Cabinet (Front) Section ................................................... 14
5-2. Cabinet (Rear) Section .................................................... 15
6. ELECTRICAL PARTS LIST................................ 16
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 ˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

3
SRF-M97
SECTION 1
GENERAL This section is extracted from
instruction manual.
Front
Parte frontal
FM SENS
DX/LOCAL
(Except Tourist model)
STEREO/MONO
(Tourist model)
FM
POWER
Jog Lever
(ENT/BAND)
Sintonizador
(ENT/BAND)
MODE
HOLD
Display Window
Ventana del visualizador
VOL*
MEGABASS
i
*There is a tactile dot beside VOL to show
the direction to turn up the volume.
*Al lado de la tecla VOL hay un punto táctil
que muestra el sentido para subir el
volumen.
Setting the Clock
The clock system varies depending on the model you
own.
12-hour system: “AM 12:00” = midnight
24-hour system: “0:00” = midnight
The time display of this clock is a 24-hour system.
1Press POWER to turn off the power.
2Press and hold down the jog lever for more
than 2 seconds until “the hour” starts
flashing.
3Slide or keep sliding the jog lever up or
down to adjust the hour and press the jog
lever.
If you keep sliding the jog lever up or down, the
number changes rapidly.
4Slide the jog lever up or down to adjust the
minutes and press the jog lever.
“:” starts flashing and the clock starts
operating.
To set the current time exactly to the second,
adjust the minute and then press the jog lever in
time with a time signal (such as a radio station).
To cancel the setting, press MODE.
Note
Once you start setting the clock, you must perform
each step within about 65 seconds, or the clock setting
mode will be cancelled.

SRF-M97
4
Note: Follow the disassembly procedure in the numerical order given.

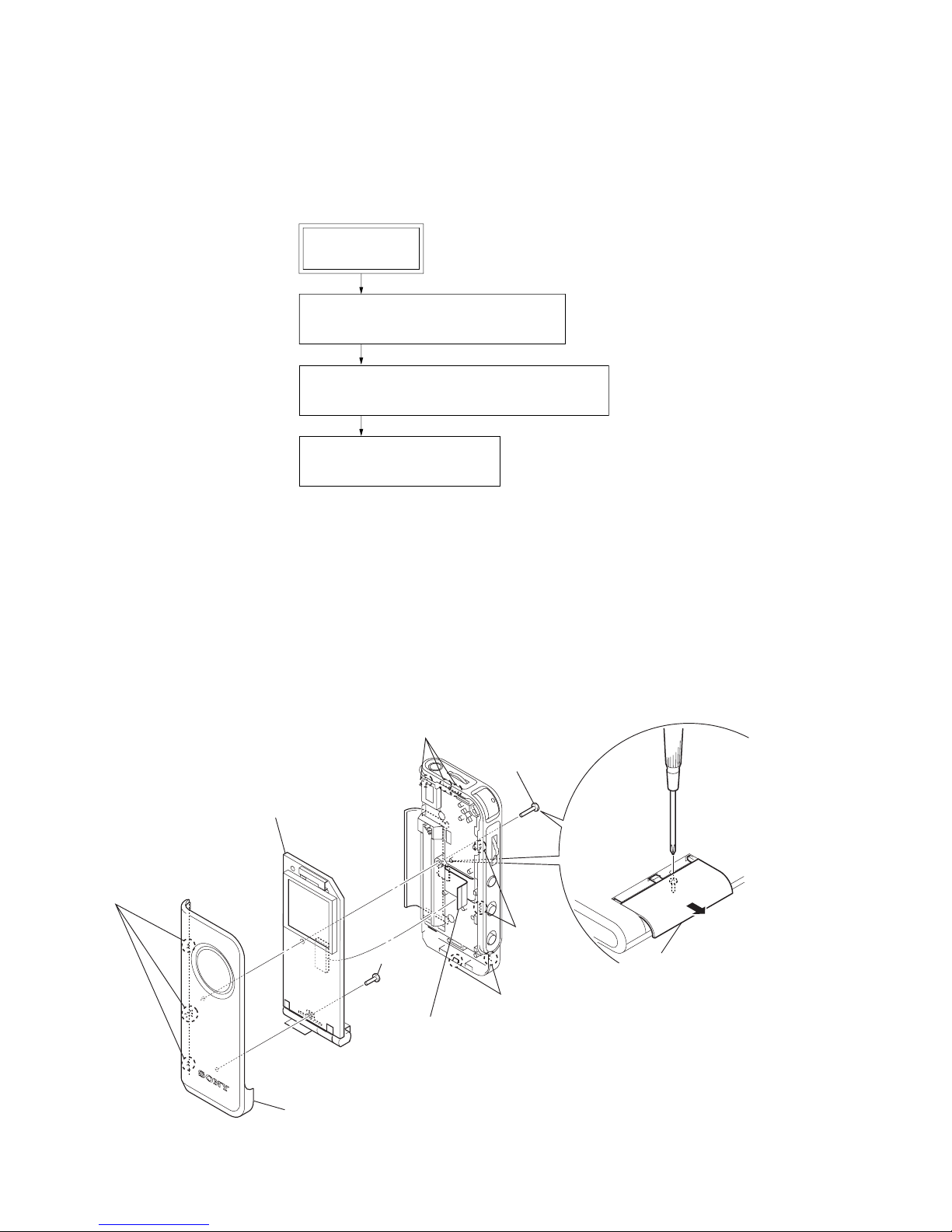

2-2. MAIN BOARD, CABINET (FRONT) ASSY
•This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SECTION 2
DISASSEMBLY
SET
2-2. MAIN BOARD, CABINET (FRONT) ASSY
(Page 4)
2-4. AMP BOARD
(Page 5)
2-3. SIDE PANEL SECTION, CABINET (REAR) ASSY
(Page 5)
2 screw (1.4)
5 screw
(B1.4)
6 MAIN board
4 connection flexible borad
(CN1)
3 three claws
3 three claws
7 cabinet (front) assy
3 two claws
3 two claws
1 Open the battery lid.

SRF-M97
5

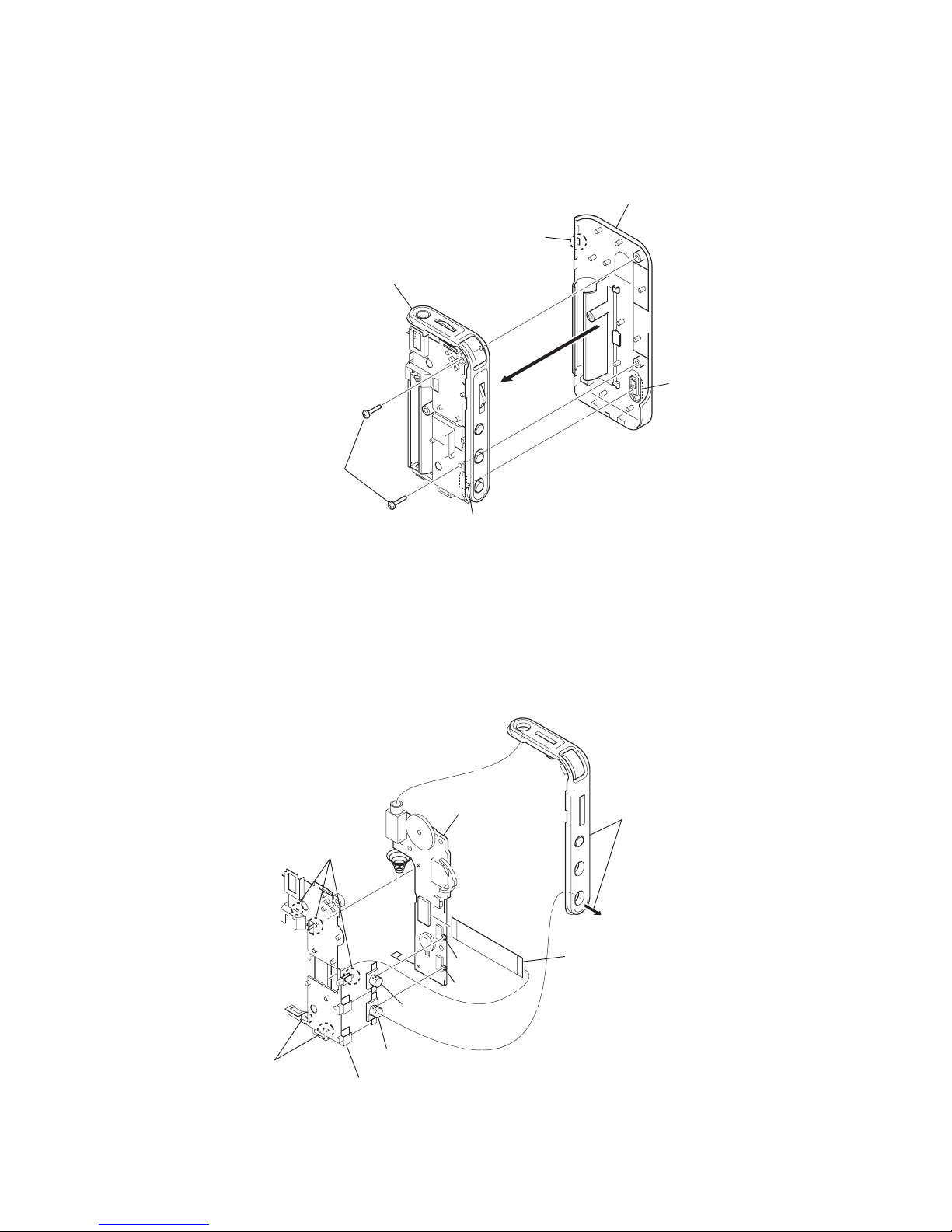

2-3. SIDE PANEL SECTION, CABINET (REAR) ASSY
2-4. AMP BOARD
S205
S204
Note : On installation of AMP board,
adjust the position of switch
(S204, S205) and knob (hold, mega bass).
4 connection flexible board
(CN201)
5 knob (mega bass)
6 knob (hold)
7 holder (jack)
1 Please open a side panel
forcibly and do not remove it.
2 two claws
2 three claws
3 AMP board
S203
1 two screws (1.4)
2 claw
4 cabinet (rear) ass
y
3 side panel section
Note : On installation of side panel section
and cabinet (rear) assy,
adjust the position of switch
(S203) and knob (rear).
knob (rear)

6
SRF-M97 SECTION 3
ELECTRICAL ADJUSTMENTS
(): US model
[]: Tourist model
AM VT VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on
Digital Voltmeter
L6 531 (530) [531] kHz 1.2 ±0.05 V
Confirmation 1,602 (1,710) [1,710] kHz 7.5 (7.9) [7.9] ±0.5 V
(): US model
AM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L4 585 kHz (590 kHz)
CT3 1,485 kHz (1,490 kHz)
(): US model
[]: Tourist model
FM VT VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on
Digital Voltmeter
Confirmation 87.5 (87.5) [76.0] MHz 2.8 (2.6) [1.0] ±0.2 V
Confirmation 108.0 MHz 10.4 (9.5) [8.2] ±1.0 V
[]: Tourist model
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L1 87.5 [76.0] MHz
CT1 108.0 MHz
Adjustment Location: MAIN board (See page 7)
0 dB=1 µV
[AM]
Setting:
Band: AM
[FM]
Setting:
Band: FM
•Repeat the procedures in each adjustment several times, and
the trackingadjustments should befinallydone by thetrimmer
capacitors.

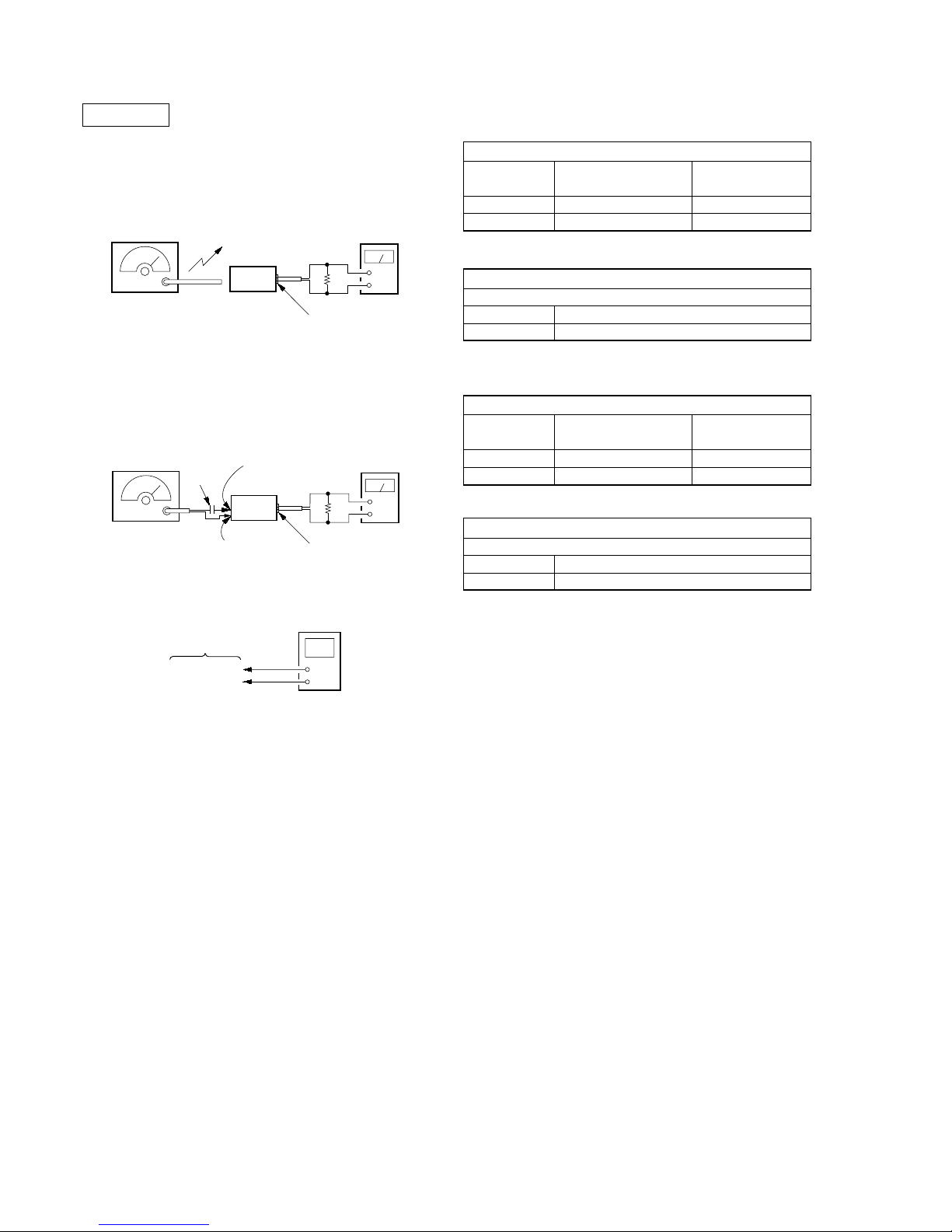

AM RF signal
generator
30% amplitude
modulation by
400 Hz signal
Output level:
as low as possible
Put the lead-wire
antenna close to
the set.
+
–
level meter
set
16 Ω
i jack (J201)
FM RF signal
generator
22.5 kHz frequency
deviation and 30%
amplitude modulation
by 400 Hz signal
Output level:
as low as possible
+
–
level meter
i jack (J201)
set
16 Ω
0.01 µ F
MAIN board
TP (RF GND)
MAIN board
TP (ANT)
digital voltmeter
TP (VT)
TP (RF GND)
MAIN board
Ver. 1.1

7
SRF-M97

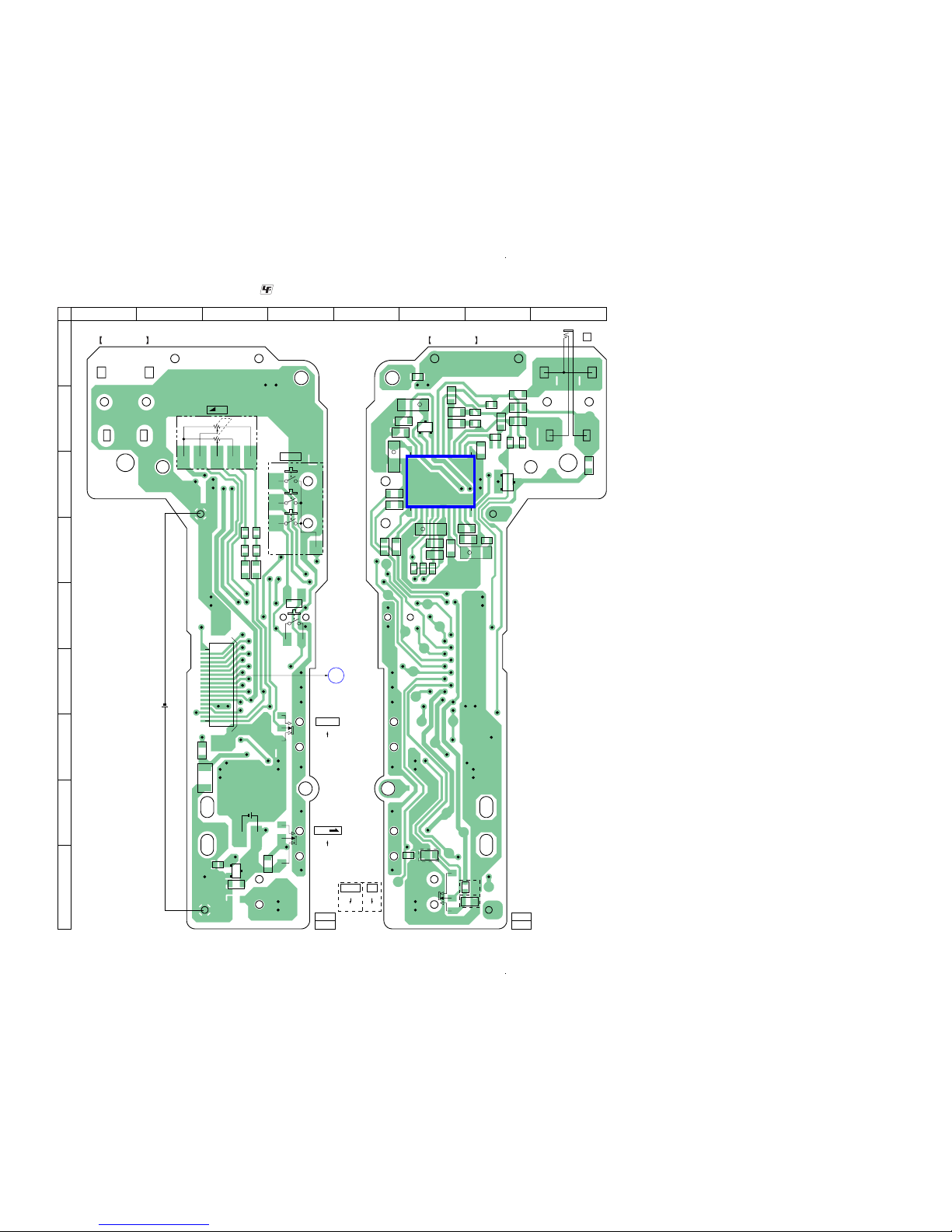

Adjustment Location:
CT3
L4
CT1
L1
– MAIN BOARD (Component Side) –
L6
AM VT Voltage Adjustment
FM Tracking
Adjustment
AM Tracking
Adjustment
TP
(VT) TP
(ANT)
TP
(RF GND)
– MAIN BOARD (Conductor Side) –

8
SRF-M97
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•C: panel designation.
•A: B+ Line.
•H: adjustment for repair.
•Powervoltageis dc 1.5Vand fedwith regulated dcpower
supply from battery teminal.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
():AM
•Voltages are takenwithaVOM(Input impedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: FM
f: AM
•Abbreviation
JE :Tourist model
Note on PrintedWiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•z: Through hole.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Partsonthe patternfaceside seenfrom
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
SECTION 4
DIAGRAMS
•Note for PrintedWiring Boards and Schematic Diagrams

SRF-M97
99
SRF-M97
4-1. SCHEMATIC DIAGRAM •See page 12 for Waveforms. •See page 12 for IC Block Diagrams. •See page 13 for IC Pin Function Description.
LCD1
R109
R110
R111
R112
R113
R118
R114
R115
R116
R117
C108
CN1
L102
22µH
C111
C109
C110
R129 C122
C132
R135
R136
C121
Q101
Q102
C128
D102 R134
C126
C127
Q103
Q104
R133
C106
Q6
Q5
C28
R123
R124
R125
R126
C112
C113
R127
X101
C116
C117
C118
C119
C120
C104
R107
C103
R103
C101
R101R102
R104 C102
C105
C52
IC102
C45
C43
L101
R19
C40 C41
C42
C38
C36
CF1
CF2
CF3
C34
C32 C31 C33
L9
0.1µH
C5
C1
L10
22µH
R1 R2
IC1
R8
C14
C13
R15R16
R14
L5
100µH
0.47µH
C23
C47
CT3 C17
C16
R10
C18
C20
C24
R7
C25
C27 C30
C48
C49
L11
CT1
C7
R3
C8R4
C53
R105
C107
C218
C219
C217
C211
R206
C212
C213
R210R209 R211
C222 C215
C214
D301
R128
C123
C124
R131
R132
C125
R213
R212
C220
C221
C207
L201
2.2µH
2.2µH
2.2µH
L202
L203
C216
C129 C130
C2
S101
L1
R12
R13
Q3
L4
D5
TP
R11
L6
C35
Q8Q7
R22
Q2
JC2
TP
R106
IC103
C115
IC101
Q105
R130
T101
D101
J201
Q201
JC201
S203
S205
S204
S201
R215
BAT302
C302
C3
R20
C223
TP
R108
R205
R302C209
C208
C210
R203
R301
R214
JC202
R204
S202
Q301
JC1
C55C22C51
L3
C12
C15
D4
C9
D1D2
C48
C26
Q1
Q9
R21
R120
R121
R122
C201 R201
C202 R202
C6
C39
L301
0.47µH
R207
C204
C203
IC201
D201
C56
JC3
C50
R119
R216
R217
C224
CN201
C205
C206
RV201
1k
1k
1k
1k
1k
4.7k
4.7k
4.7k
4.7k
4.7k
0.1
18P
1000p
1
1000p
10k 0.22
0.22
100k
10k
1000p
2SD2216
2SD2216
0.22
1SS355 1k
5p
10p
2SD2216
2SD2216
47k
1
DTC144TUA
DTA114YUA
0.01
1k
1k
1k
1k
47p
10p
100k
75KHz
0.1
0.1
0.1
0.1
0.1
0.01
1k
1
470k
1
10k1M
100k 0.01
0.47
0.1
XC61CN1002NR
4700p
4700p
1k
0.47 0.047
0.022
1
220p
1
470
2.5V
4.7
4V
220
4V
5p
1000p
22k 220
TA2154AFN
100k
100p
1000p
1k2.2k
100
10p
8p
3p
0.01
10k
470p
22p
47p
220k
1
0.01 0.01
22p
8p
1000p
100k
1000p100k
1000p
10k
0.01
2.2
4.7
4V
10
4V
4.7
4V
4.7k
0.47
0.22
4.74.7 4.7
0.47 0.1
1
RB521S
4.7k
10 4V
1
100k
47k
0.1
10k
10k
0.047
0.047
22 4V
1
0.01 2200p
1000p
22
100
2SK209Y
SVC347S
(VT)
1M
0.01
DTC144TUADTC144TUA
0
DTA114TUA
0
(ANT)
1M
XC61CN0802NR
10 4V
TC9329AFAG-609
(S.D)
2SB1689
10
UDZSTE-
1713B
2SB1689
0
470k 1
1000p
0
0.01
(RF GND)
1k 100k
01
2.2
0.47
100k
470k
1k
0
100k
2SB1689
0
0.01220p1000p
0
HVC202B
0
0.01
2SC3931
DTC144TUA
100
100k
100k
100k
0.1
TA2179FNG
1PS226
0.01
0
100p
100k
1000p
18P
20k/20k
BASS
BA2
BA2
BASS
BA1
BA1
PWRON
AMPON
MUTE
BEEP
HOLD
KR2
KR1
KS1
KS2
KR3
PWRON
HOLD
KS1
KS2
KR3
KR2
KR1
AMPON
MUTE
BEEP
KS1
KS2
KS1
KS2
KR1
KR2
KR3
KR1
KR2
KR3
∗
∗
∗
*
*
∗∗
∗∗
∗
*
∗
∗
∗
∗
∗
∗
COM1
COM2
COM3
COM4
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
P5-2
P5-1
P3-3
P3-2
D0
VDD
GND
INT1
TEST
OSCIN
IF IN2
VDD
P9-1
P9-0
P5-3
XOUT
XIN
GND
VDB
C1
C2
VEE
C3
C4
COM1
COM2
COM3
COM4
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
GND GND
OUT
IN
IN
OUT
GND
GND
IN
TV RF
FM RF
IN
RF
GND
FM
MIX
AM
MIX
AGC
VCC
FM IF
IN
GND
AMIF
IN
QUAD
DET
OUT
MPX
IN
LPF1
LPB2B
IF
COUNT
IF
REQ
MODE1
MODE2
OUT
OSC
TV/FM
OSC
AM
OSC
RF
VCC
AM RF
IN
AM
BYPASS
FM RF
OUT
TV RF
OUT
RF IN
VREF IN
RF OUT
BASE
VCC
OUTA
OUTC
PWGND
OUTB
AGC IN
AGC DET
SW
OUTPUT
VREF
PWSW
PWMUTE
BST SW
GND
LPF
BST NF
BST OUT
MONO
/ST SW
PW
-1
-2
LIQUID CRYSTAL DISPLAY
KR3
KR2
KR1
KS2
KS1
BEEP
BAND1
SYSTEM CONTROLLER
S11
S12
S12
SIMUKE1
SIMUKE2
MONO/ST
DDCON
BAND2
INT2
VREG
P3-0
P3-1
P5-0
MUTE
VLCD
GND
MONO/ST
ANT
R OUT
L OUT
VCC
+B
VDD
POWER ON
HOLD
KS1
KS2
KR2
KR1
AMP ON
MUTE
BEEP
KR3
LPF1A
RF
FM
S
AM RF
AMP
AM
FERRITE-ROD
ANTENNA
AM
OSC
Q5,6
AM BAND
SWITCHING
ROUTLOUT
FM/AM DET,FM MPX
FM/AM IF AMP,
MONO/STEREO
SWITCHINGSWITCHING
AM BAND
AM BAND
SWITCHING
RF AMP
DETECT
VOLTAGE
RESET SIGNAL
GENERATOR
RESET
AMP ON
POWER ON AM BAND
HOLD SW
POWER
DC/DC CONVERTER
ON/OFF SWITCH
DC/DC
CONVERTER
DC/DC
CONVERTER
Q103,104
Q101,102
LOW-PASS
FILTER
RIPPLE
FILTER
HEADPHONE
POWER AMP
IN A
IN B
IN C
DRY BATTERY
1PC. 1.5V
SIZE"AAA"
(IEC DESIGNATION R03)
POWER ON/OFF
SWITCH
PAS SECONDARY
BATTERY
MODE
-3-1 -2
ENT/BAND
VOL
FM
STEREO
MONO
HOLD
(BACK-UP)
MEGABASS
ON
OFF
OFF
HOLD
(EXCEPT JE)
(JE)
(EXCEPT JE)
FM SENS
DX
LOCAL
(EXCEPT JE)(JE)
S203
(JE)
FM RF AMP,
FM/AM MIX AMP,
FM/AM OSC,
∗
C12
3p
5p
(JE)
(EXCEPT JE)
∗
(JE)
(EXCEPT JE)
L3
33nH
27nH
∗
(JE)
(EXCEPT JE)
D4
HVC363B
HVC202B
∗
(JE)
(EXCEPT JE)
C15
100p(JE)
(EXCEPT JE)
∗
(JE)
(EXCEPT JE)
HVC363B
HVC202B
D1
(JE)
(EXCEPT JE)
1p
3p
(EXCEPT JE)
(JE)
FM
LOCAL/DX
SWITCHING
(EXCEPT JE)
∗
22k
10k
R201,202
∗
(EXCEPT AEP, JE)
C201,202
1
0.1
C6
∗
220p
∗R207
220K(EXCEPT AEP)
47K(AEP)
(AEP,JE)
(JE)
100k
(AEP)
∗R216,217
0(EXCEPT AEP)
22K(AEP)
∗C203,204
0.1(AEP)
∗C205,206
2200P(EXCEPT AEP)
220P(AEP)
(US)
(US)
(US)
(US,JE)
(EXCEPT US)
(EXCEPT US,JE)
(US,JE)
(US)
0.22
EXCEPT
AEP,JE
EXCEPT
AEP
Ver. 1.1

SRF-M97
1010
SRF-M97
4-2. PRINTED WIRING BOARD – MAIN Board – :Uses unleaded solder.
C111
C128
C127
C125
C124
R134
R131
R135
R132
R133
D102
D101
KA
AK
Q103
BCE
C130
C102
C101
IC102
C107
C18 C19
C36
C35
C40
C41
C42
C34
CF2
C3
C2
C1 C24
C22
C17 C9
C23
C47
C27
C55
C39C30
C53
C25
C38
C28
R104
R123 R125 R130
R126 R124
JC1
R16
R12
R2
R21
JC2
R1
R13
R15
R103
R102
R101
R20
Q7
Q8
L6
L3
L1
R19
E
C
B
Q1
E
C
B
Q2
Q6
E
C
B
E
C
B
E
C
B
Q5
E
C
B
E
C
B
Q105
E
C
B
L5
CT1
CT3
C33
C32
C123
C31
MAIN BOARD (COMPONENT SIDE)
1-864-529- (12), (13)
12, 13
L4
AM
FERRITE-ROD
ANTENNA
(12), (13)
12, 13
C118
C116
C119
T101
DC/DC
CONVERTER
S101
C120
C126
C110
C117
C104
C103
C112L101
X101
C106
C105
C121
C129
C122
C109
C52
L10
C15
C8
C16
C26
C7
C14 C13
C45
CN1
CF3
CF1
C43
C51
C56
C108
C12
C20
L102
C132
C113
Q104
BCE
R106 R105
R107
R127
R129
R136
R122 R121
R120 R119
R128
R118
R116
R114
R112
R110
R117
R115
R113
R111
R109
R108
+C115
IC103
IC101
BCE
BCE
Q101
Q102
R8
R11
R14
R7
D1
D4
D2
IC1
C5
L9
L11
C6
C48
C49
R22
R10
Q3
D5
R4
R3
KA
KA
KA
D
G
S
A
K
A
MAIN BOARD (CONDUCTOR SIDE)
1-864-529-
+
+
+
+
1
16
LCD1
LIQIOD
CRYSTAL
DISPLAY
1
2
4
3
POWER
17
32
64
49
16 1
33 48
12
43
1
18
AMP BOARD
CN201
A
TP
(VT)
TP
(ANT)
TP
(RF GND)
1
15
30
16
A
B
C
D
E
F
G
H
I
J
1 2 3 4 5 6 7 8 9
Q9
(EXCEPT JE)
(EXCEPT JE)
(JE)
(US,JE)
(EXCEPT JE)
(JE)
(JE)
(US)
(JE)
(EXCEPT US,JE)
(US,JE)
C50
(US)
JC3
(US)
(EXCEPT US)
(US)
(Page 11)
D1 I-6
D2 I-6
D4 G-6
D5 I-7
D101 A-3
D102 A-4
IC1 H-7
IC101 C-7
IC102 E-3
IC103 C-9
Q1 I-2
Q2 H-1
Q3 I-7
Q5 I-2
Q6 I-1
Q7 G-3
Q8 F-2
Q9 H-1
Q101 D-6
Q102 D-6
Q103 A-3
Q104 A-8
Q105 F-2
•Semiconductor
Location
Ref. No. Location
Ver. 1.1

SRF-M97
1111
SRF-M97
4-3. PRINTED WIRING BOARD – AMP Board – :Uses unleaded solder.
S201
RV201
-1
-2
-1
-3
-2
C201 C202
R216R201
C223
C302
R301
R217R202
S202
S205
S205
CN201
S204
L301
Q301
E
C
B
D301
KA
AMP BOARD (COMPONENT SIDE)
1-864-530- 1-864-530- (12), (13)
12, 13
(12), (13)
12, 13
S203
JC201
R215
C213
C205
C216
C222
C221
L201
C218
C206
C212
C208
C209
C210
C204
C220
C215
C224
C214
C203
R206
R302
R211
R210
R209
R207
R205
R212 R213
R204 R203
D201
Q201
K
K/A
A
IC201
C
EB
24 13
112
L203
L202
AMP BOARD (CONDUCTOR SIDE)
C217
C219
C207
C211
VOL
ENT/BAND
MODE
18
1
MAIN BOARD
CN1
A
MEGABASS
ON
OFF
S203
FM
STEREO
MONO
FM SENS
DX
LOCAL
S204
HOLD
HOLD
OFF
BAT302
PAS SECONDARY
BATTERY
(BACK-UP)
DRY BATTERY
SIZE "AAA"
(IEC DESIGNATION R03)
1PC. 1.5V
J201
i
+
+
+
+
A
B
C
D
E
F
G
H
I
1 2 3 4 5 6 7 8
R214
JC202
(JE)
(EXCEPT JE)
(EXCEPT JE)
(JE)
(EXCEPT JE)
(Page 10)
Ver. 1.1

SRF-M97
1212
SRF-M97
•IC Block Diagrams
– MAIN Board –
IC1 TA2154AFN-EL
– AMP Board –
IC201 TA2179FNG (EL)
•Waveforms
– MAIN Board –
3
Q104 (Collector)
500 mV/DIV, 100 ns/DIV
266 ns 1.4 Vp-p
2
Q103 (Collector),
Q104 (Base)
200 mV/DIV, 100 ns/DIV
268 ns 0.4 Vp-p
1
IC101 tg (XOUT)
200 mV/DIV, 5 µ s/DIV
13.3 µ s0.4 Vp-p
1 2 3 4
27 26 25
5
FM/TV
MIX
30 29 28
AM
MIX
24
AM
OSC 1/2
FM
OSC
TV
OSC
6 7 8 9 10
AGC
23 22 21 20
1/8 OR
1/16
FM/AM/TV
PW SW
11 12
FM
DET
LEVEL
DET
AM
DET
19
SW
13 14 15
FM MPX
18 17 16
TV
RF
FM
RF
BUFFER
BUFFER
BUFFER
IF
BUFFER
FM
IF
AM
IF
AF
TV RF IN
FM RF IN
RF GND
FM MIX
AM MIX
AGC
VCC
FM IF IN
GND
AM IF IN
QUAD
DET OUT
MPX IN
LPF1
R OUT
AM RF IN RFVCC AM OSC TV RF OUT FM RF OUT AM BYPASS TV FM OSC OSC OUT MODE2 MODE1 IF REQ IF COUNT LPF2B LPF2A L OUT
1
INA
2
INB
3
VREF
4
PW SW
8
LPF
7
GND
12
MONO/ST SW
11
PW INC
10
BST OUT
9
BST NF
24
RF IN
23
VREF IN
RF & REF
22
RF OUT
13
OUTPUT SW
21
BASE
20
VCC
19
OUTA
14
AGC DET
+ –
PWA
16
OUTB
15
AGC IN
+ –
PWB
18
OUTC
17
PW GND
PWC
AGC DET MODE SW
+
–
BST
5
PW MUTE
6
BST SW
PW SW, PW MUTE, BST SW

13
SRF-M97
•IC Pin Function Description
MAIN BOARD IC101 TC9329AFAG-609 (S.D) (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Description
1 to 4 COM1 to COM4 O Common drive signal output to the liquid crystal display
5 to 16 S1 to S12 O Segment drive signal output to the liquid crystal display
17 SIMUKE1 I Setting terminal for the destination
"L": Except US and tourist model, "H": US and tourist model
18 SIMUKE2 I Setting terminal for the destination "L": Except US model, "H": US model
19, 20 P9-0, P9-1 I Not used
21, 22 KS1, KS2 O Key source signal output to the key matrix
23 to 25 KR1 to KR3 I Key return signal input from the key matrix
26 HOLD SW I HOLD switch input terminal "L": hold on
27 VDD - Power supply terminal (+1.5V)
28 BEEP O Beep signal output terminal
29 MONO/ST O Mono/stereo selection signal output terminal "L": stereo, "H": mono
30 AM BAND O AM band selection signal output terminal "H": AM
31 DDCON O DC/DC converter on/off control signal output terminal "L": DC/DC converter on
32 BAND2 O Band selection signal output terminal "L": FM, "H": AM
33 TEST I Test mode control signal input terminal Not used
34 INT2 I Battery detection signal input terminal
"L": battery mark residual quantity less display lights up
35 INT1 I 1.0V voltage detection signal input terminal
"L": battery mark residual quantity less display lights up
36 IF IN2 I IF pulse signal input terminal Not used
37 GND - Ground terminal
38 OSC IN I VCO input from the FM/AM front-end
39 VDD - Power supply terminal (+1.5V)
40 D0 O Phase comparator output terminal
41 VREG - Constant voltage power supply output terminal for the phase comparator (+1.5V)
42 to 45 P3-0 to P3-3 I Not used
46 to 49 P5-0 to P5-3 I Not used
50 MUTE O Muting on/off control signal output to the headphone power amplifier "L": muting on
51 POWER ON O Power supply on/off control signal output terminal "L": power on
52 BAND1 O Band selection signal output terminal "L": AM, "H": FM
53 AMP ON O Audio amplifier on/off control signal output to the headphone power amplifier
"H": Audio amplifier on
54 RESET I System reset signal input from the reset signal generator "L": reset For several
hundreds msec. after the power supply rises, "L" is input, then it changes to "H"
55 XOUT O System clock output terminal (75 kHz)
56 XIN I System clock input terminal (75 kHz)
57 GND - Ground terminal
58 VDB - Terminal for power supply voltage pressure up
59, 60 C1, C2 - Connection terminal of the capacitor for power supply voltage pressure up
61 VEE - Constant voltage power supply output terminal for the liquid crystal display drive (+1.5V)
62, 63 C3, C4 - Connection terminal of the capacitor for liquid crystal display drive voltage pressure up
64 VCLD - Liquid crystal display drive voltage power supply output terminal
Ver. 1.1

14
SRF-M97 SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1X-2024-706-2 CABINET (FRONT) ASSY
22-189-433-01 SHEET, INSULATING
3A-1085-523-A MAIN BOARD, COMPLETE (JE)
3A-1085-531-A MAIN BOARD, COMPLETE (EXCEPT US, JE)
3A-1096-774-A MAIN BOARD, COMPLETE (US)
42-189-430-01 CASE (LCD)
51-694-757-11 CONDUCTIVE BOARD, CONNECTION
62-189-432-01 LEAF (LCD), COPPER
72-189-420-01 HOLDER (LCD)
82-348-455-01 LEAF (MC), COPPER
92-190-137-01 SHEET (BATT)
10 3-252-824-01 SCREW (1.4)
11 3-254-136-01 SCREW (B1.4)
12 2-189-419-01 HOLDER (ANT)
L4 1-419-843-21 COIL, FERRITE-ROD ANTENNA (MW)
LCD1 1-805-704-11 DISPLAY PANEL, LIQUID CRYSTAL
5-1. CABINET (FRONT) SECTION
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•The mechanical parts with no reference
numberinthe explodedviews are not supplied.
•Accessories are given in the last of the
electrical parts list.
NOTE:
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
AUS:Australian model
CH : Chinese model
JE : Tourist model
2
4
3
12
5
7
89
10
11
6
1
not supplied
MAIN board
cabinet rear assy
LCD1
L4
Ver. 1.1

15
SRF-M97
5-2. CABINET (REAR) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-252-824-01 SCREW (1.4)
52 2-189-418-01 HOLDER (JACK)
53 2-189-428-01 TERMINAL (–), BATTERY
54 A-1079-165-A AMP BOARD, COMPLETE (JE)
54 A-1085-528-A AMP BOARD, COMPLETE (EXCEPT AEP, JE)
54 A-1090-510-A AMP BOARD, COMPLETE (AEP)
55 2-189-425-01 CAP (POWER)
56 2-189-421-01 BUTTON (POWER)
58 X-2024-707-1 CABINET (REAR) ASSY (AEP)
58 X-2024-708-1 CABINET (REAR) ASSY (E)
58 X-2024-709-1 CABINET (REAR) ASSY (US, AUS, CH)
58 X-2024-771-1 CABINET (REAR) ASSY (JE)
59 3-244-861-01 SPRING (CLIP)
60 3-244-857-01 CLIP
61 7-626-305-31 SPRING-PIN 1X8
62 2-189-427-01 KNOB (REAR)
63 2-189-416-01 PANEL, SIDE
64 2-189-426-01 CAP (MODE)
65 2-189-422-01 BUTTON (MODE)
66 1-679-616-11 CONNECTION FLEXIBLE BOARD
67 2-189-429-01 TERMINAL (+), BATTERY
68 2-189-423-01 KNOB (MEGA BASS)
69 2-189-424-01 KNOB (HOLD)
70 2-189-434-01 SHEET (HOLD)
71 2-348-456-01 CUSHION (LID)
51
52
51
70
69
68
67
64
63
62
61
60
59
58
65
66
53 54
56
55
71
Ver. 1.1

16
SRF-M97 SECTION 6
ELECTRICAL PARTS LIST
AMP
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1079-165-A AMP BOARD, COMPLETE (JE)
A-1085-528-A AMP BOARD, COMPLETE (EXCEPT AEP, JE)
A-1090-510-A AMP BOARD, COMPLETE (AEP)
*********************
< BATTERY >
BAT302 1-756-305-11 BATTERY, PAS SECONDARY
< CAPACITOR >
C201 1-115-156-11 CERAMIC CHIP 1uF 10V
(AEP, JE)
C201 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(EXCEPT AEP, JE)
C202 1-115-156-11 CERAMIC CHIP 1uF 10V
(AEP, JE)
C202 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(EXCEPT AEP, JE)
C203 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(AEP)
C203 1-165-128-11 CERAMIC CHIP 0.22uF 16V
(EXCEPT AEP, JE)
C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V
(AEP)
C204 1-165-128-11 CERAMIC CHIP 0.22uF 16V
(EXCEPT AEP, JE)
C205 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
(EXCEPT AEP, JE)
C205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(AEP)
C206 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
(EXCEPT AEP, JE)
C206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(AEP)
C207 1-104-847-11 TANTALUM CHIP 22uF 20% 4V
C208 1-135-834-11 CERAMIC CHIP 2.2uF 6.3V
C209 1-115-156-11 CERAMIC CHIP 1uF 10V
C210 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C211 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V
C212 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C213 1-165-128-11 CERAMIC CHIP 0.22uF 16V
C214 1-115-156-11 CERAMIC CHIP 1uF 10V
C215 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C216 1-115-156-11 CERAMIC CHIP 1uF 10V
C217 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C218 1-135-834-11 CERAMIC CHIP 2.2uF 6.3V
C219 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V
C220 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C221 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C222 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C224 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C302 1-115-156-11 CERAMIC CHIP 1uF 10V
< CONNECTOR >
CN201 1-573-927-11 CONNECTOR, FFC/FPC (ZIF) 18P
< DIODE >
D201 8-719-062-51 DIODE 1PS226-115
D301 8-719-071-34 DIODE RB521S-30-TE61
< IC >
IC201 6-705-694-01 IC TA2179FNG (EL)
< JACK >
J201 1-563-857-31 JACK, HEADPHONE (i)
< SHORT >
JC201 1-216-864-11 SHORT CHIP 0 (JE)
JC202 1-216-864-11 SHORT CHIP 0 (EXCEPT JE)
< COIL >
L201 1-412-983-11 INDUCTOR 2.2uH
L202 1-412-983-11 INDUCTOR 2.2uH
L203 1-412-983-11 INDUCTOR 2.2uH
L301 1-412-935-11 INDUCTOR 0.47uH
< TRANSISTOR >
Q201 6-550-044-01 TRANSISTOR 2SB1689-T106
Q301 6-550-044-01 TRANSISTOR 2SB1689-T106
< RESISTOR >
R201 1-218-965-11 RES-CHIP 10K 5% 1/16W
(JE)
R201 1-218-969-11 RES-CHIP 22K 5% 1/16W
(EXCEPT AEP, JE)
R201 1-218-977-11 RES-CHIP 100K 5% 1/16W
(AEP)
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•SEMICONDUCTORS
In each case, u: µ, for example:
uA... : µA... uPA... : µPA...
uPB... : µPB... uPC... : µPC...
uPD... : µPD...
•CAPACITORS
uF: µF
•COILS
uH: µH
When indicating parts by reference
number, please include the board.
•Abbreviation
AUS : Australian model
CH : Chinese model
JE : Tourist model
Ver. 1.1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
17
SRF-M97
AMP
R202 1-218-965-11 RES-CHIP 10K 5% 1/16W
(JE)
R202 1-218-969-11 RES-CHIP 22K 5% 1/16W
(EXCEPT AEP, JE)
R202 1-218-977-11 RES-CHIP 100K 5% 1/16W
(AEP)
R203 1-218-977-11 RES-CHIP 100K 5% 1/16W
R204 1-218-977-11 RES-CHIP 100K 5% 1/16W
R205 1-218-977-11 RES-CHIP 100K 5% 1/16W
R206 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R207 1-218-973-11 RES-CHIP 47K 5% 1/16W
(AEP)
R207 1-218-981-11 RES-CHIP 220K 5% 1/16W
(EXCEPT AEP)
R209 1-220-803-81 RES-CHIP 4.7 5% 1/16W
R210 1-220-803-81 RES-CHIP 4.7 5% 1/16W
R211 1-220-803-81 RES-CHIP 4.7 5% 1/16W
R212 1-218-965-11 RES-CHIP 10K 5% 1/16W
R213 1-218-965-11 RES-CHIP 10K 5% 1/16W
R214 1-218-953-11 RES-CHIP 1K 5% 1/16W
(EXCEPT JE)
R215 1-218-985-11 RES-CHIP 470K 5% 1/16W
R216 1-218-969-11 RES-CHIP 22K 5% 1/16W
(AEP)
R216 1-218-990-11 SHORT CHIP 0 (EXCEPT AEP)
R217 1-218-969-11 RES-CHIP 22K 5% 1/16W
(AEP)
R217 1-218-990-11 SHORT CHIP 0 (EXCEPT AEP)
R301 1-218-985-11 RES-CHIP 470K 5% 1/16W
R302 1-218-990-11 SHORT CHIP 0
< VARIABLE RESISTOR >
RV201 1-227-245-11 RES, VAR CARBON 20K/20K (wVOL)
< SWITCH >
S201 1-786-034-21 SWITCH, LEVER (SLIDE) (ENT/BAND)
S202 1-771-627-21 SWITCH, TACTILE (MODE)
S203 1-572-922-11 SWITCH, SLIDE
(FM (JE), FM SENS (EXCEPT JE))
S204 1-572-922-11 SWITCH, SLIDE (HOLD .)
S205 1-572-922-11 SWITCH, SLIDE (MEGABASS)
************************************************************
A-1085-523-A MAIN BOARD, COMPLETE (JE)
A-1085-531-A MAIN BOARD, COMPLETE (EXCEPT US, JE)
A-1096-774-A MAIN BOARD, COMPLETE (US)
*********************
1-694-757-11 CONDUCTIVE BOARD, CONNECTION
2-189-419-01 HOLDER (ANT)
2-189-420-01 HOLDER (LCD)
2-189-430-01 CASE (LCD)
2-189-432-01 LEAF (LCD), COPPER
2-348-455-01 LEAF (MC), COPPER
< CAPACITOR/SHORT >
C1 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C2 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C5 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C6 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V (JE)
C6 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
(EXCEPT JE)
C7 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C8 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C9 1-216-864-11 SHORT CHIP 0
C12 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V (JE)
C12 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
(EXCEPT JE)
C13 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C14 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (JE)
C15 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (JE)
C15 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(EXCEPT JE)
C16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C17 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C18 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C20 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C22 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C23 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C24 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C25 1-115-156-11 CERAMIC CHIP 1uF 10V
C26 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C27 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C28 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C30 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C31 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V
C32 1-131-727-11 TANTALUM CHIP 470uF 20% 2.5V
C33 1-137-859-11 TANTALUM CHIP 220uF 20% 4V
C34 1-115-156-11 CERAMIC CHIP 1uF 10V
C35 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C36 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C38 1-115-156-11 CERAMIC CHIP 1uF 10V
C39 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C40 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C41 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C42 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C43 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C45 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C47 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V
C48 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (JE)
C48 1-216-864-11 SHORT CHIP 0 (EXCEPT JE)
C49 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V (JE)
C50 1-162-927-11 CERAMIC CHIP 100PF 5% 50V(US)
C51 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C52 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C53 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C55 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C56 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V(US)
C101 1-115-156-11 CERAMIC CHIP 1uF 10V
C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C103 1-115-156-11 CERAMIC CHIP 1uF 10V
C104 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C105 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C106 1-115-156-11 CERAMIC CHIP 1uF 10V
C107 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C108 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C109 1-115-156-11 CERAMIC CHIP 1uF 10V
C110 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
MAIN
Ver. 1.1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
18
SRF-M97
C111 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C112 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C113 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C115 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C116 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C117 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C118 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C119 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C120 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C121 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C122 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C123 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C124 1-115-156-11 CERAMIC CHIP 1uF 10V
C125 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C126 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C127 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C128 1-165-128-11 CERAMIC CHIP 0.22uF 16V
C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C130 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
(US, JE)
C132 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
< FILTER >
CF1 1-813-214-21 FILTER, CERAMIC
CF2 1-767-480-11 FILTER, CERAMIC (AM)
CF3 1-795-410-21 FILTER, CERAMIC
< CONNECTOR >
CN1 1-573-927-11 CONNECTOR, FFC/FPC (ZIF) 18P
< TRIMMER >
CT1 1-141-615-21 CAP, ADJ
CT3 1-141-615-21 CAP, ADJ
< DIODE >
D1 8-719-075-24 DIODE HVC363BTRU (JE)
D1 8-719-076-23 DIODE HVC202B TRU (EXCEPT JE)
D2 8-719-076-23 DIODE HVC202B TRU (EXCEPT JE)
D4 8-719-075-24 DIODE HVC363BTRU (JE)
D4 8-719-076-23 DIODE HVC202B TRU (EXCEPT JE)
D5 8-719-072-59 DIODE SVC347S-TL-E
D101 8-719-083-63 DIODE UDZSTE-1713B
D102 8-719-988-61 DIODE 1SS355TE-17
< IC >
IC1 6-703-664-01 IC TA2154AFN-EL
IC101 6-804-954-01 IC TC9329AFAG-609 (S.D)
IC102 8-759-690-96 IC XC61CN1002NR
IC103 6-701-978-01 IC XC61CN0802NR
< SHORT >
JC1 1-218-990-11 SHORT CHIP 0
JC2 1-218-990-11 SHORT CHIP 0
JC3 1-216-864-11 SHORT CHIP 0 (US)
< COIL >
L1 1-456-743-21 COIL, RF (FM)
L3 1-414-684-11 INDUCTOR 27nH (EXCEPT JE)
L3 1-414-685-11 INDUCTOR 33nH (JE)
L4 1-419-843-21 COIL, FERRITE-ROD ANTENNA (MW)
L5 1-412-963-11 INDUCTOR 100uH
L6 1-419-972-21 COIL (AM OSC)
L9 1-412-967-31 INDUCTOR 0.1uH
L10 1-412-995-21 INDUCTOR 22uH
L11 1-412-975-31 INDUCTOR 0.47uH (JE)
L101 1-412-995-21 INDUCTOR 22uH
L102 1-412-995-21 INDUCTOR 22uH
< LIQUID CRYSTAL DISPLAY >
LCD1 1-805-704-11 DISPLAY PANEL, LIQUID CRYSTAL
< TRANSISTOR >
Q1 8-729-423-52 TRANSISTOR 2SC3931-C
Q2 8-729-028-74 TRANSISTOR DTA114TUA-T106
Q3 8-729-109-44 FET 2SK94-X4
Q5 8-729-028-76 TRANSISTOR DTA114YUA-T106
Q6 8-729-029-15 TRANSISTOR DTC144TUA-T106
Q7 8-729-029-15 TRANSISTOR DTC144TUA-T106
Q8 8-729-029-15 TRANSISTOR DTC144TUA-T106
Q9 8-729-029-15 TRANSISTOR DTC144TUA-T106
(EXCEPT JE)
Q101 8-729-037-92 TRANSISTOR 2SD2216J-R (TX).SO
Q102 8-729-037-92 TRANSISTOR 2SD2216J-R (TX).SO
Q103 8-729-037-92 TRANSISTOR 2SD2216J-R (TX).SO
Q104 8-729-037-92 TRANSISTOR 2SD2216J-R (TX).SO
Q105 6-550-044-01 TRANSISTOR 2SB1689-T106
< RESISTOR >
R1 1-218-969-11 RES-CHIP 22K 5% 1/16W
R2 1-218-945-11 RES-CHIP 220 5% 1/16W
R3 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4 1-218-977-11 RES-CHIP 100K 5% 1/16W
R7 1-218-981-11 RES-CHIP 220K 5% 1/16W
R8 1-218-977-11 RES-CHIP 100K 5% 1/16W
R10 1-218-965-11 RES-CHIP 10K 5% 1/16W
R11 1-218-989-11 RES-CHIP 1M 5% 1/16W
R12 1-218-933-11 RES-CHIP 22 5% 1/16W
R13 1-218-941-11 RES-CHIP 100 5% 1/16W
R14 1-218-941-11 RES-CHIP 100 5% 1/16W
R15 1-218-953-11 RES-CHIP 1K 5% 1/16W
R16 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R19 1-218-953-11 RES-CHIP 1K 5% 1/16W
R20 1-218-990-11 SHORT CHIP 0 (JE)
R21 1-218-941-11 RES-CHIP 100 5% 1/16W
(EXCEPT JE)
R22 1-218-990-11 SHORT CHIP 0
R101 1-218-965-11 RES-CHIP 10K 5% 1/16W
R102 1-218-989-11 RES-CHIP 1M 5% 1/16W
R103 1-218-985-11 RES-CHIP 470K 5% 1/16W
R104 1-218-977-11 RES-CHIP 100K 5% 1/16W
R105 1-218-965-11 RES-CHIP 10K 5% 1/16W
R106 1-218-989-11 RES-CHIP 1M 5% 1/16W
R107 1-218-953-11 RES-CHIP 1K 5% 1/16W
R108 1-218-953-11 RES-CHIP 1K 5% 1/16W
MAIN
Ver. 1.1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
19
SRF-M97
R109 1-218-953-11 RES-CHIP 1K 5% 1/16W
R110 1-218-953-11 RES-CHIP 1K 5% 1/16W
R111 1-218-953-11 RES-CHIP 1K 5% 1/16W
R112 1-218-953-11 RES-CHIP 1K 5% 1/16W
R113 1-218-953-11 RES-CHIP 1K 5% 1/16W
R114 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R115 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R116 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R117 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R118 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R119 1-218-977-11 RES-CHIP 100K 5% 1/16W
(US)
R120 1-218-977-11 RES-CHIP 100K 5% 1/16W
(EXCEPT US)
R121 1-218-977-11 RES-CHIP 100K 5% 1/16W
(US, JE)
R122 1-218-977-11 RES-CHIP 100K 5% 1/16W
(EXCEPT US, JE)
R123 1-218-953-11 RES-CHIP 1K 5% 1/16W
R124 1-218-953-11 RES-CHIP 1K 5% 1/16W
R125 1-218-953-11 RES-CHIP 1K 5% 1/16W
R126 1-218-953-11 RES-CHIP 1K 5% 1/16W
R127 1-218-977-11 RES-CHIP 100K 5% 1/16W
R128 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R129 1-218-965-11 RES-CHIP 10K 5% 1/16W
R130 1-218-929-11 RES-CHIP 10 5% 1/16W
R131 1-218-977-11 RES-CHIP 100K 5% 1/16W
R132 1-218-973-11 RES-CHIP 47K 5% 1/16W
R133 1-218-973-11 RES-CHIP 47K 5% 1/16W
R134 1-218-953-11 RES-CHIP 1K 5% 1/16W
R135 1-218-977-11 RES-CHIP 100K 5% 1/16W
R136 1-218-965-11 RES-CHIP 10K 5% 1/16W
< SWITCH >
S101 1-771-627-21 SWITCH, TACTILE (POWER)
< TRANSFORMER >
T101 1-437-650-21 TRANSFORMER, DC/DC CONVERTER
< VIBRATOR >
X101 1-767-388-11 VIBRATOR, CRYSTAL (75kHz)
************************************************************
MISCELLANEOUS
**************
66 1-679-616-11 CONNECTION FLEXIBLE BOARD
************************************************************
ACCESSORIES
************
2-190-358-11 MANUAL, INSTRUCTION (ENGLISH, JAPANESE,
KOREAN, SIMPLIFIED CHINESE) (JE)
2-190-358-21 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
TRADITIONAL CHINESE) (E)
2-190-358-31 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
FRENCH, GERMAN, SIMPLIFIED CHINESE)
(US, AEP, AUS, CH)
2-190-358-41 MANUAL, INSTRUCTION (DUTCH, SWEDISH,
ITALIAN, PORTUGUESE, FINNISH) (AEP)
8-954-008-80 RECEIVER MDR-E808LP/SC SET
MAIN
Ver. 1.1

2
SRF-M97
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2004.11 New
1.1 2004.12 Addition of US, AEP and Australian model
