System Requirements
Following are the minimum system requirements for support of the USBw 200-series USB
WiMAX Adaptor
Windows XP Windows Vista Windows 7
OS Level SP2 (SP3 recommended) All All
Processor Speed 500 MHz 1.0 GHz 1.0 GHz
Disk Space 40 MB 40 MB 40 MB
RAM requirement 512 MB 1.0 GB 1.0 GB
Products Covered by this Guide
USBw25200 - 2500-2700 MHz band
USBw35200 - 3400-3600 MHz band
Installation
The USBw 200 is a fully Plug & Play USB device, with all operating software pre-loaded on the
USB device itself; no CD-ROM is required. When first plugged in, it installs all the necessary
software on your computer to provide high-speed Internet service using the latest WiMAX
technology. You may install the software on more than one computer, activating the WiMAX
service on the computer of your choice by plugging in the USBw 200.
Insert the USBw 200 into your laptop computer’s USB port.
Windows XP: If setup does not automatically
start: click “Start” and choose “Run”. Type
“X:\InstVerif.exe” (where X is the USB drive
designation) and click “OK”.
Windows Vista and 7: If setup does not
automatically start: click “Start” and choose
“Computer”, right click on “USB drive” or “CD
drive” and choose “Open Auto Play”. Select
“InstVerif.exe”
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-3 -

Follow the Software installation steps on your screen
The USBw 200 will automatically turn on and search for WiMAX connections. If WiMAX service is
available, it will automatically connect your computer to the Internet through a WiMAX link.
Depending on the configuration offered by your Internet Service Provider, the USBw 200 may
also manage the Ethernet and WiFi connections to your computer.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-4 -

Setting Up WiFi Connections
Note: If the configuration offered by your Internet Service Provider does not include
coverage of WiFi connections, this section can be skipped.
For correct operation of the Motorola Connection Manager with your WiFi connections, please
disable any other WiFi connection managers on your computer.
If the Connection Manager is not already running, please open it by clicking
the desktop or Systray icon
Click the arrow at the left of the All Connections button to
display available Ethernet, WiMAX and WiFi Connections.
Click the + sign on the WiFi bar that appears on the left
screen extension to display all available WiFi services.
Select the desired WiFi service. If this service has
previously been configured in your computer, the
necessary settings will automatically be imported into the
Connection Manager.
If the selected service requires security information, an
input screen will appear.
If needed, advanced security settings can be accessed by
right-clicking on the name of the selected WiFi Service,
and selecting Settings.
The selected WiFi connection will be enabled.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-5 -

Setting Up Ethernet Connections
Note: If the configuration offered by your Internet Service Provider does not include
coverage of Ethernet connections, this section may be skipped
If the Connection Manager is not already running, please open it by
clicking the desktop or Systray icon
Click the arrow at the left of the All Connections button to
display available Ethernet, WiMAX and WiFi Connections.
Click the + sign on the Ethernet bar that appears on the
left screen extension to display all available Ethernet
services. Select the desired Ethernet service.
If configuring a new Ethernet connection, right-click on the
name of the Ethernet service, and select Settings. Enter
the necessary information and click OK.
Connecting to WiMAX for the first time
WiMAX technology provides a number of effective
protections against unauthorized use of the service.
Depending on the particular options your Service Provider
has chosen, you may encounter a signup screen that asks
for a Username and Password. If required, this
information will have been provided to you when you
purchased the USBw 200.
Enter the Username and Password in the spaces shown. Checking the
“Store Credentials”box will save your User name and password;
otherwise you will be prompted for this information every time you log in.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-6 -

Connecting to the WiMAX Network
All the necessary settings to connect to your Internet Service provider’s WiMAX network have
been pre-programmed into the USBw 200 and cannot be modified by the user.
With the Connection Manager operating, plug in the
USBw 200. The Connection manager will scan for
available WiMAX channels. When a suitable channel
is found, the Connection Manager will detect it, and
add it to the available connections list automatically. In
this example, the Connection Manager has been using
a WiFi service named M-Wireless, and has detected
the WiMAX service MOT Burnsville
To select the WiMAX connection, click on the Connect
button. The Connection Manager will go through a
secure authentication process, and connect to the
WiMAX service.
Here both the WiFi and WiMAX connections are
available to the user. It is possible to switch between
these two services by clicking the arrow on the Active
Connections bar.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-7 -

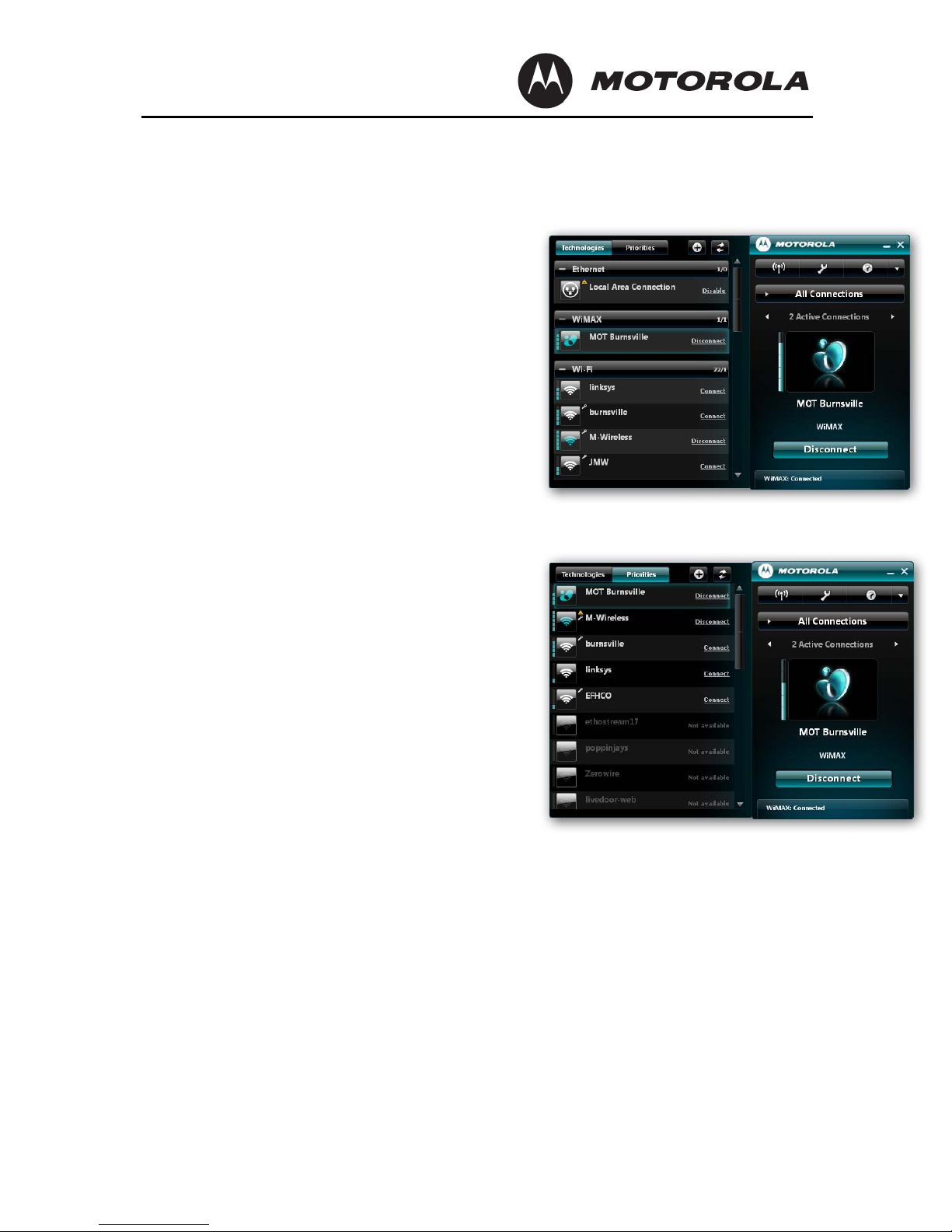

The Main Screen
When the Connection Manager is started, it presents the
main screen, which provides an overview of all data
connections being managed by the Connection
Manager. The extension on the left can be minimized or
restored by clicking the triangle on the All Connections
bar.
The left extension screen provides two tabs. The
Technologies tab shows all available connections for
WiMAX, WiFi (if supported in your version of the
Connection Manager) and Ethernet (if supported in your
version of the Connection Manager). Individual
connections lists can be minimized by clicking the “-“
sign on the connection title bars.
The Priorities tab allows the user to select the order in
which the Connection manager will connect to available
services.
Note: The Ethernet connection (If supported in your
version of the Connection Manager) is not listed in the
Priorities list. The wired Ethernet connection is assumed
to always be the highest priority.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-8 -

Controls and Settings
Radio Control
This button toggles the radio that works with the service currently selected on and off.
Options
This button opens up the Options screen. This
enables the user to choose the language used in the
Connection Manager and select alternate skins for
the Graphical User Interface. It also allows selection
of the connection settings of the Connection Manager
program when starting up the computer.
This screen is also accessible by right-clicking the
Systray icon.
HELP Screens
This button opens up an online HELP utility, providing additional information about navigating
through the Connection Manager screens.
WiMAX information
Right-clicking the WiMAX service in the main screen
extension allows viewing of WiMAX system
information.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-9 -

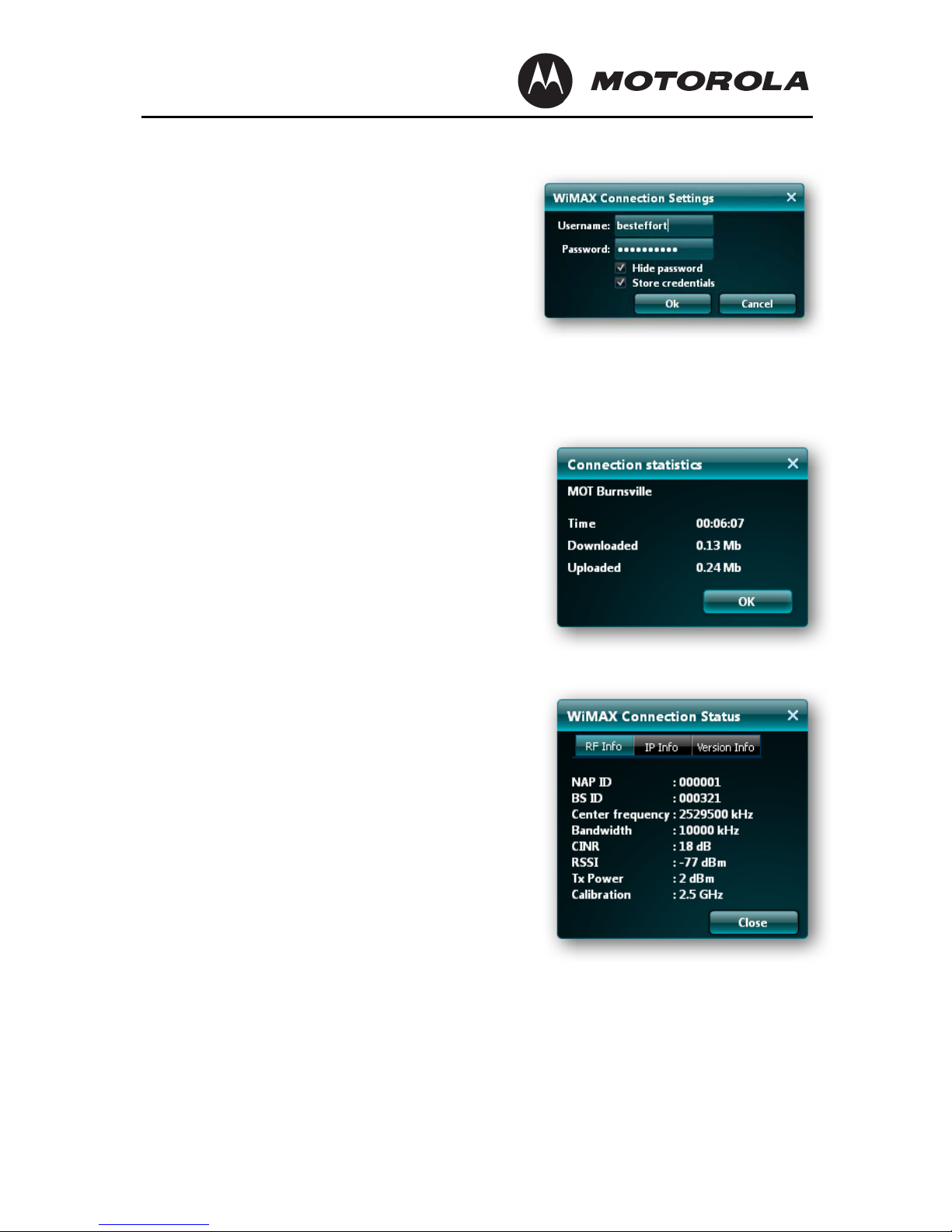

WiMAX Connection Settings
This duplicates the original signup page, allowing the
user to make any needed changes in Username and
Password settings.
WiMAX Connection Statistics
This screen provides information on the current
WiMAX connection session.
WiMAX Connection Status
This screen provides information on the WiMAX
network connection radio performance, the Internet
protocol settings in effect and version information for
the USBw 200 hardware and software.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-10 -

More information
Clicking the indicated triangle gives access to
additional screens of information about the
Connection Manager.
History
This screen shows a log of connection and
disconnection events since the Connection Manager
program was last started.
About Connection Manager
This screen provides release information for the
Connection Manager software.
The link shown as “Visit our site” in this illustration is
used to connect to your Internet Service Provider’s
website to download updated versions of the
Connection Manager SW as they become available.
This screen is also available by right-clicking the
Systray icon.
USBw 200 User Guide 6814927F14
Issue 1.0 Revision Date: 7/28/2010
-11 -
