MOTOROLA XOOM™

YOUR TABLET 1
Your tablet
MOTOROLA XOOM™ leads a revolution in mobile computing. MOTOROLA XOOM features the
latest tablet-optimized Google™ mobile innovations, including Google Maps™ with 3D
interaction, access to over three million Google eBooks™, and Google Talk™ with video and
voice chat. Combine these with a stunning HD touchscreen and super fast connectivity, and you
get the tablet for the next generation—and the one after that.
Note: A future software upgrade will enable the microSD card slot. Wi-Fi tablets do not have a
SIM card,and do not have some of the features described in this guide. Some services might not
be available in all countries.
Google Calendar
Reminder: Executive Review Call @ Feb 28
3:00pm-4:00pm (David’s Calendar@motoro
Justin Younger
Budget Updates -- Hi Everyone, I’ve updated
all of the budget information for today’s call
Me, Paul, Kim 3
content updates for marketing materials---
Sounds like a plan. Let’s move forward for now
2:55pm
2:52pm
2:50pm
Gmail Browser Talk Maps Gallery YouTube Books Camera
Motorola Google
Film Fans Andriod
Inbox
[email protected] 5Front
CameraLens
WebCam Indicator
Lights when theWebCam
is active.
Headphone
Jack
Volume Keys
10.1-in. HDWidescreen
Display
Micro USB Charger
HDMI
microSD & SIM
Battery Charging
Indicator
Power/Lock Key
Press to lock, hold for
power.
Back CameraLens
CameraFlash
Speakers

CONTENTS2
Contents
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Charge
Set up
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basics
Home screen tips
Settings & Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Settings
Connections
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Browse
Downloads
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Photos & videos
Music
Friends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contacts
Messages & more
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maps
Navigation
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Feature apps
Get more
Want More?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
More information
Accessories
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Force a reboot
Reset your tablet

START 3
Start
Charge
Insert the charger into the charger port on
the bottom of the tablet.
Set up
1Press and hold Power/Lock on the back
of your tablet to turn it on.
Tip: In the unlikely event that your tablet
becomes unresponsive, try a forced
reboot—press and hold both
Power/Lock and the up volume key for
three seconds.
2To change the language, touch .
3Touch
Start .
Note: If your tablet has mobile network service, it should activate now. If activation is
successful, touch
Next . If activation is cancelled or fails, touch Back to go back, touch Activate
to try again, or touch
Skip to skip activation and go on to Wi-Fi setup.
4In the
WiFi setup screen, you can connect to an existing network, add a new network, or skip
Wi-Fi setup for now and set up later (see “Settings & Connections” on page 7).
Caution: Before assembling, charging or using your product for the first time, please read
the important Safety, Regulatory & Legal information provided with your product.
Caution: Only use the charger that came with your tablet. Do NOT attempt to connect a
charger to the Micro USB connector—this is for data transfer only.
Note: The battery should only be replaced by a Motorola-approved service facility. Any
attempt to remove or replace your battery may damage the product.
Battery ChargingIndicator

START4
5Touch Next (you can turn off Google™ location services, but this is not recommended).
6Follow the setup wizard to set your time zone, and confirm the time and date.
Note: Wi-Fi tablets do not update the time zone automatically. To set your time zone, touch
Apps > Settings > Date & Time > Select time zone .
7Follow the setup wizard to create or log in to your Google
Account and go to the home screen. Record your Google
Account information for future reference.
Note: If you have an existing Google Account, your contacts
sync to your tablet.
My GoogleAccount Login
User ID (my valid email address)
Password Hint

HOME SCREEN 5
Home Screen
Basics
Use the home screen to see what’s most important to you—you’ll see it when you turn on your
tablet or touch Home from another screen.
To open your app menu, touch
Apps in the upper right corner.
To see your notifications and tablet status, check the icons in the bottom right corner. Touch one
of the icons to see its details, or touch the clock to see details for all of your notifications.
Tip: Make it your home. To add widgets, shortcuts, wallpaper, and more, touch in the upper
right corner. Your home screen has five panels—flick left or right to open and customize each
one.
Note: Your home screen might look different.
Google Calendar
Reminder: Executive Review Call @ Feb 28
3:00pm-4:00pm (David’s Calendar@motoro
Justin Younger
Budget Updates -- Hi Everyone, I’ve updated
all of the budget information for today’s call
Me, Paul, Kim 3
content updates for marketing materials---
Sounds like a plan. Let’s move forward for now
2:55pm
2:52pm
2:50pm
Gmail Browser Talk Maps Gallery YouTube Books Camera
Motorola Google
Film Fans Andriod
Inbox
[email protected] 5
Text Search
Voice Search
RecentApps
Home
Back
Customize your home
screen with widgets,
shortcuts,
& more.
Notifications & Quick
Settings
Flick left/right or touch the
screen edges to see more.
Apps Menu

HOME SCREEN6
Home screen tips
•Touch: To choose an icon or option, touch
it.
•Touch and hold: To open a special item
or option, touch and hold it.
•Drag: To scroll or move slowly, drag up
and down or across the touchscreen.
•Flick: To scroll or move quickly, flick up
and down or across the touchscreen.
•Zoom: To zoom in and out on web pages,
double-tap the screen. Or, touch the
screen with two fingers and move them
apart or pinch them together.
•Home: Touch Home to return to the
home screen.
•Back: Touch Back to return to the
previous screen.
•Recent apps: Touch to see recent
apps. Touch a displayed app to open it.
•Search: Touch for a text search.
Touch for a voice search.
•Menu: Touch Menu to see options for
the current screen.
Browser Calculator Calendar
Email Messages
Downloads
Web Images Local News more
Google
Wireless & Networks
Sound
Display
Location & security
Applications
Touch
Touch & Hold
Drag or Flick

SETTINGS & CONNECTIONS 7
Settings & Connections
Settings
Open the quick settings menu to change
your settings or turn on Wi-Fi.
1Touch the clock in the bottom right
corner of the home screen.
2Touch .
3Change a quick setting, or touch to
see all tablet settings.
Connections
•Wi-Fi Networks: You can use nearby
Wi-Fi networks for fast access to the
Internet. To turn on WiFi, touch it in
the quick settings menu. For full
Wi-Fi
settings
, touch Settings
>
Wireless & networks . There, you
can also make your tablet a hotspot
(not available on MOTOROLA XOOM
with Wi-Fi).
You can use your Google account to back up your bookmarks, user dictionary, Wi-Fi
passwords, some app information, and other settings, in case you lose your tablet or reinstall
an app: Touch
Apps > Settings > Accounts & sync .
•Bluetooth® Wireless: You can enjoy music on a Bluetooth headset, or connect a Bluetooth
keypad for easy text entry: Touch
Apps > Settings > Bluetooth or Bluetooth settings .
•HDMI® Cable: Your tablet’s HDMI port lets you connect it to other HDMI devices. You can
snap photos and capture videos, then sit back and enjoy them on your HDTV at home.
OFF
ON
Wi-Fi
Airplane mode
Lock screen orientation
Notifications
Settings
AUTO
OFF
Friday
Dec 10. 2011
100%Wi-Fi
ConnectWi-Fi.
Change quick settings.
Change any settings.

SETTINGS & CONNECTIONS8
•USB Cable: You can transfer HD video, music, pictures, and other media between your tablet
and a computer. Use the USB cable that came with your tablet to make the connection, then:
For Microsoft™ Windows™ XP, Windows Vista, and Windows 7: On your computer, choose
Start, then select Windows Explorer from your list of programs. In Windows Explorer, your
tablet should appear as a connected drive where you can drag and drop files.
For Apple™ Macintosh™: Use Android File Transfer, available at
www.android.com/filetransfer.

WEB 9
Web
Browse
You’re surfing on the big screen. Connect over 3G or Wi-Fi for fast access to all your favorite
sites, and with video support, you won’t need your PC. Touch
Apps > Browser .
•Tabs: You have desktop-like tabbed browsing. Open multiple tabs in a single browser window,
and switch between them with a simple touch.
•Bookmarks: If you love that web site, bookmark it. And with bookmark thumbnail views in the
browser and home screen widget, it’s even easier to find what you want.
Tip: If you really love the site, you can share it too, just touch Menu >
Share .
•Touch: Touch a link or text field to open it, touch and hold for options. If you need the page
bigger or smaller, you can double touch, or pinch to zoom.
Note: If your tablet has mobile network service, it uses that network to automatically connect to
the web. Your service provider may charge you to surf the web or download data. To use a
wireless network, see “Settings & Connections” on page 7.
Downloads
To see all of your downloads, touch Menu in the browser’s upper right corner and choose
Downloads . Or, just choose Apps > Downloads from the home screen.
Movie Tickets & Thea...
Motorola phones and acc... Google
http://www.filmfans.com/
Movie List
Search
Movie + Actor
Search Movie + Time
Enter ZIP or City, State
Search Movies
Home Showtimes Browse Movies DVDs Trailers Movie Guides Movie Buzz Gifts + Promos Mobile
BLACK HOLE
COMING THIS SUMMER
Younger Than Ever Exclusive Clip
With no way out, Bailey is forced to leave the city she loves and
find the reason for her parents untimely demise.
TabsAdd as Bookmark
Menu
Add aTab
Open Bookmarks
Search
Back, Forward, Refresh
Touch to enter a URL.

MEDIA10
Media
Photos & videos
See it, capture it, share it!
•Photos: Snap killer photos with the 5MP camera. Touch
Apps > Camera .
•Videos: Capture videos like never before—in amazing 720p HD. Touch
Apps >
Camera , then touch to change to video mode.
•Gallery: View, edit, and share your photos and videos. Touch
Apps > Gallery .

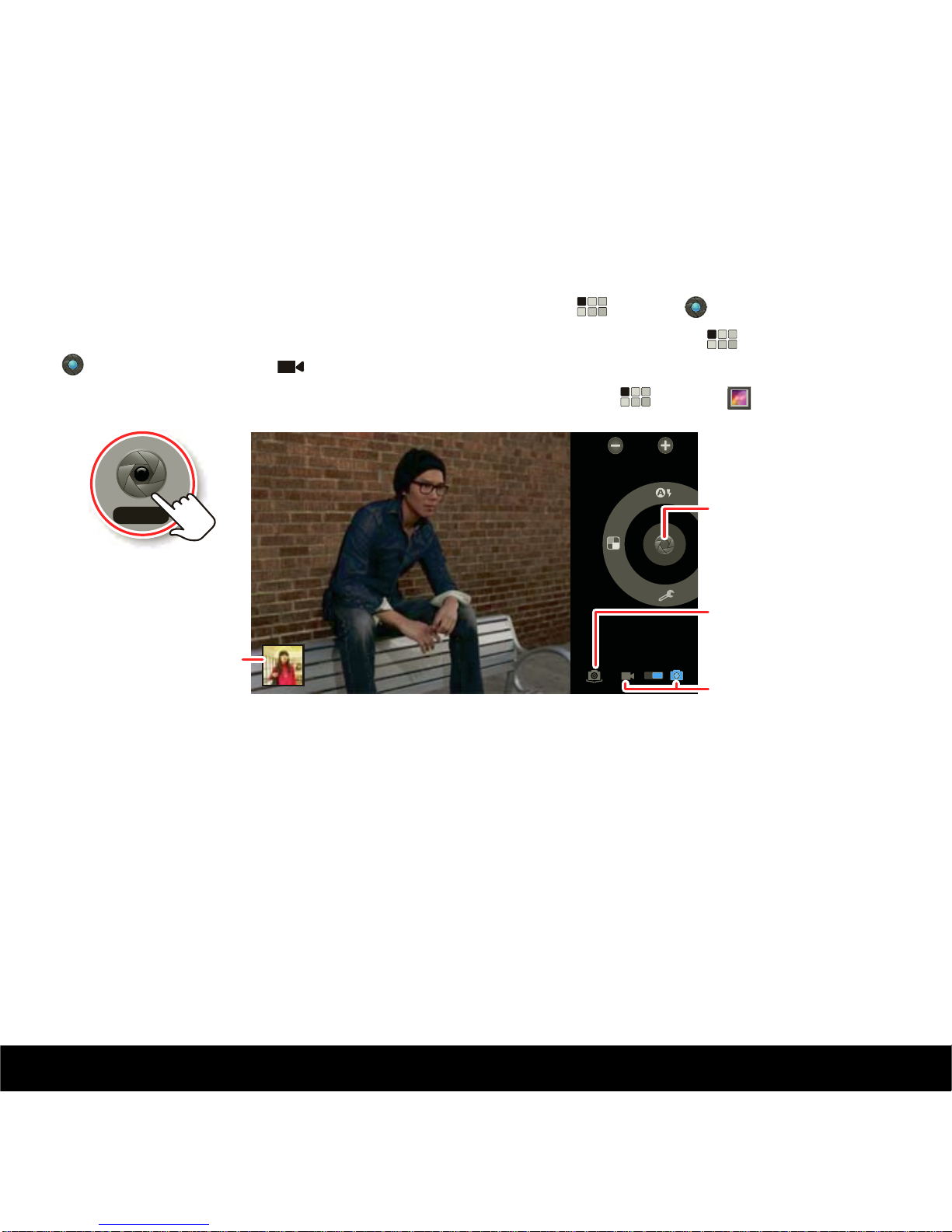

Camera
Change camera (front or
back).
Choose photo or video
mode.
Touch the thumbnail to
open the Gallery.
Take a photo, or start/stop
recording.

MEDIA 11
Music
Touch and play—instant music—online or offline. Touch Apps > Music then select what
you want to play.
0:05 4:26
SongsSongs Now playingNow playing
Eclectic BirdEclectic Bird
StapoStapo
Days without ProblemsDays without Problems
Music
Shuffle Repeat
Skip (hold for Search),
Play, and Pause
Add to playlist.
Show songs by artist.
Show songs on album.

FRIENDS12
Friends
Contacts
To see your important names, numbers and addresses—synced and backed up with your Google
account—touch
Apps > Contacts.
Messages & more
Keep in touch with friends and colleagues the way you want.
•Email: Check your home and work email accounts—touch
Apps > Email or Gmail .
To add accounts, touch
Apps > Settings > Accounts & sync , then touch Add account in
the upper right corner. Choose
Corporate for Microsoft® Exchange accounts (for details, ask
your business IT department). Choose
Email for most personal and other accounts (for
account details, ask the account provider).
•Social networking: Get Facebook™, Twitter, MySpace and lots more. Visit Android Market™
to grab the latest official apps and widgets, and see what everyone is up to. Touch
Apps >
Market .
•Google Talk™: Talk face-to-face with video calls, or use a quick IM or voice chat—all over 3G
or Wi-Fi. Touch
Apps > Talk .
[email protected]
Inbox
Priority Inbox
Starred
Important
Chats
Sent
Outbox
Drafts
All Mail
Spam
Trash
Personal
Google Calendar Reminder: Dinner with Eric @ Thu Dec 23
8pm - [email protected] - more details -
2011 Training Plan -- Forwarded message --
From: Larry Page <[email protected]>
While your are in Las Vegas -- Try the all
you can eat buffet at Token’s. You always wa...
Blueberry Muffins -- They’re yummy. Just
thought you should know. Cheers, -dan
Sparky and Brea’s travel itinerary --
Patisserie -- I’’ buy. I remembered that you
treated us the last place we dined. Do you ...
Which CES party are you going to after your
drawing? -- Please don’t wait for me becau ...
CONFIDENTIAL: Death ray hardware ver.
2.0 - Don’t share. This is highly confidential ...
Browser bookmark widget -- Hi Mike. Check
out the browser bookmark widget on a hol ...
Important announcement at RGH -- Please
plan to attend a teleconference on Monday @
Larry Page 2
Tom Sullivan
Dan Burleson
Peisun Wu
Romain Guy
Wei Haurg
Alan Boots
Bart Sears
Sergey Brin
Sun 28
Sun 28
Sun 28
Sat 27
Sat 27
Sat 27
Sat 27
Fri 26
Sun 28
Fri 26
Fri 26
Gmail
Folders
Open settings.
Touch an email to open it.
Create an email.
Search your email.

LOCATION 13
Location
Maps
Touch Apps > Maps to use the Google Maps™ you know and love. You can also use
multi-touch to zoom (slide two fingers apart/together), rotate (turn them) and tilt (pull them
up/down).
Navigation
No matter where you are or where you’re going, we have it covered with built-in GPS. It’s not just
A-to-B—you can see it from the sky, see it in 3D, see it from the street, and search for the place
you need. Of course, the MOTOROLA XOOM will navigate for you too, quietly, or with voice
commands.
•Google Navigation™: Get pinpoint navigation all the way. Touch
Apps > Navigation .
Tip: Touch >
Exit Navigation to exit the current journey.
•Places: Whether you need a restaurant, hotel, ATM, or your own place, find them, read
reviews, and get details. Touch
Apps > Places .
Note: Some services might not be available in all countries.
Maps
County Rd 1400 NCounty Rd 1400 N County Rd 1400 NCounty Rd 1400 N
County Rd 600 ECounty Rd 600 E County Rd 500 ECounty Rd 500 E
Pen and Mouse Rd.Pen and Mouse Rd.
Crescent St.CrescentSt.
Klier St.Klier St.
Cline Ave.Cline Ave.
Whitman Dr.Whitman Dr.
Harr St.Harr St.
County Rd 1400 N County Rd 1400 N
County Rd 600 E County Rd 500 E
Pen and Mouse Rd.
Crescent St.
Klier St.
Cline Ave.
Whitman Dr.
Harr St.
WhisperingWay
Starred Places
Clear Map
Labs
Switch Account
Cache Settings
Help
Terms, Privacy & Notices
About
Search Maps
Text Search
Voice Search
Open options.
Open My Location, Places,
Directions, Layers, or
Latitude.

APPS14
Apps
Feature apps
Surf, watch, play—enjoy an out of this world experience with these features, and more:
•
Books —Download books, magazines, and newspapers, and read them on the eReader.
•
Talk —Google Talk™ now has voice and video capabilities, allowing you to chat “face-to-face”
with any Google Talk enabled device over Wi-Fi or 3G.
•
Maps —Of course you can still find local businesses, view maps, and get driving directions.
Some new additions make Google Maps™ really stands out from the rest. Street View zooms
you all the way in—you're virtually standing on the street.
Note: Some services might not be availablein all countries. For more information on your tablet’s
apps and features, see the online user guide.
Get more
You can download more apps through Android Market™.
Touch
Apps , then touch Market in the upper right corner.
•To find an app, touch the search icon at the top.
•To reinstall or uninstall your downloaded apps, touch
My apps .
•To get help and more, touch Menu in the upper right corner.
Tip: You can find and manage apps from any computer. Just go to market.android.com and log in
with the email and password for your Google account.
Andriod Apps Books My appsSearch Market
Top Free Andriod Apps >Top Free Andriod Apps > CATEGORIES
GAMES
APPLICATIONS
Oxford
American
Dictionary &
esaurus
springpad
Thesmartnote app
Gmail
Google Inc.
Angry Birds
Rovio Mobile Ltd. Facebook for Andriod
Facebook
Google Maps
Google Inc.
Pandora Radio
Pandora
Free
Flash Player 10.1
Adobe Systems Free
Player
Systems Free
Free
Free
Free
Free
Show Apps.
Show books.
Open options.
Open the list of apps you
downloaded.
Search for an app.

WANT MORE? 15
Want More?
More information
You can get more information, more help, more free stuff. We’re here to help.
•Answers: Check out the help center on your tablet—touch
Apps > Help Center . If your
device does not have
Help Center , you can download it from www.motorola.com/xoomhelp.
•Support: Tablet software updates, PC software, user guides, online help, and more at
www.motorola.com/myxoom or www.motorola.com/myxoomwifi. You can call us with
warranty and support questions at 1-800-734-5870 (United States), 1-888-390-6456 (TTY/TDD
United States for hearing impaired), or 1-800-461-4575 (Canada).
•Join us: Get the latest news, apps, tips & tricks, videos and so much more—join us on:
YouTube ™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile
Accessories
You can find accessories for your phone at www.motorola.com/products.

TROUBLESHOOTING16
Troubleshooting
Force a reboot
In the unlikely event that your tablet becomes unresponsive, try a forced reboot: Press and hold
both Power/Lock and the volume up key for three seconds.
Reset your tablet
If you forget your unlock pattern or password, your tablet should prompt you to reset it after five
tries. If it doesn't, you can do a factory data reset to restore your tablet to its factory settings:
Warning: This deletes all of your data on the tablet. This includes pictures, videos, documents,
and other files that you have not backed up online or on a PC.
1Turn on your tablet and, when the Motorola logo appears, press and hold the volume down
key. Keep holding the volume down key until Android recovery text appears in top left corner.
2Press the volume up key to put device in Android recovery mode.
3When the Android recovery screen appears, press and hold Power/Lock . While holding
Power/Lock , press and release the volume up key.
4Your tablet should show a wipe data/factory reset option. Press Power/Lock to select the
reset option.
5Use the volume keys to select
Yes , then press Power/Lock to confirm the reset.
6After your tablet resets, press Power/Lock to select
reboot system now .

17
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 NUSHwy 45
Libertyville, IL 60048
www.motorola.com
Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the
Motorola Customer Support Center at:
1-800-734-5870(UnitedStates)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575(Canada)
Certainfeatures,servicesandapplicationsarenetworkdependent andmaynotbeavailableinallareas;additionalterms,conditionsand/orcharges mayapply.
Contact yourserviceprovider for details.
All features, functionality, andother product specifications,as well asthe informationcontained inthis guide, are based upon thelatestavailable information
andbelieved to be accurate at the time of printing. Motorola reserves the right to change ormodify any information or specifications withoutnoticeor
obligation.
Note: The images in this guideare examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps,
Google Talk, Google Latitude, Gmail, YouTube, Picasa, Android and Android Market aretrademarks ofGoogle,Inc. All otherproduct or service names are the
property of their respective owners.
©2011 Motorola Mobility, Inc. All rightsreserved.
Caution: Motorola does not take responsibility for changes/modification to the transceiver.
Product ID: MOTOROLA XOOM™ (MZ601, MZ604)
ManualNumber: 68016036001-A

18
