Motorola StarTAC User manual

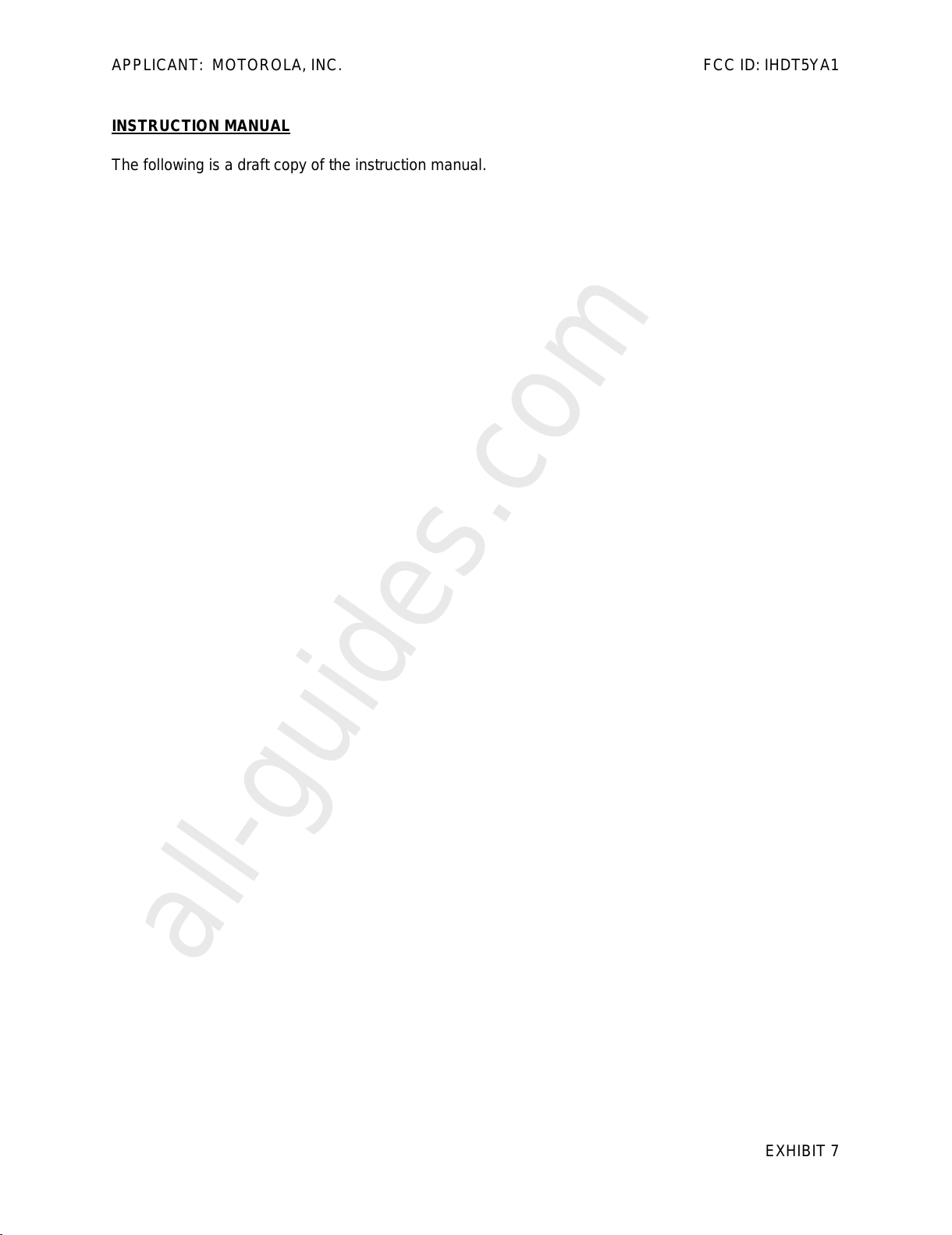

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5YA1
INSTRUCTION MANUAL
EXHIBIT 7
The following is a draft copy of the instruction manual.
All manuals and user guides at all-guides.com
all-guides.com

Welcome
Congratulations! As the proud owner of a state-of-the-art
Motorola cellular phone, product superiority is yours.
All Motorola cellular phones are designed and
manufactured to meet Motorola’s rigorous specifications
andworld-classqualitystandards.Duringdevelopment,our
laboratory testing team took the TDMA StarTac cellular
phone through its paces. They cooked it, steamed it, shook
it,shockedit,dustedit,anddroppedit—andthephonestill
worked! We are confident that the one you purchased will
meet your own exacting standards.
Thank you for choosing Motorola and, by all means, enjoy
your TDMA StarTac phone!
All manuals and user guides at all-guides.com

ii Welcome

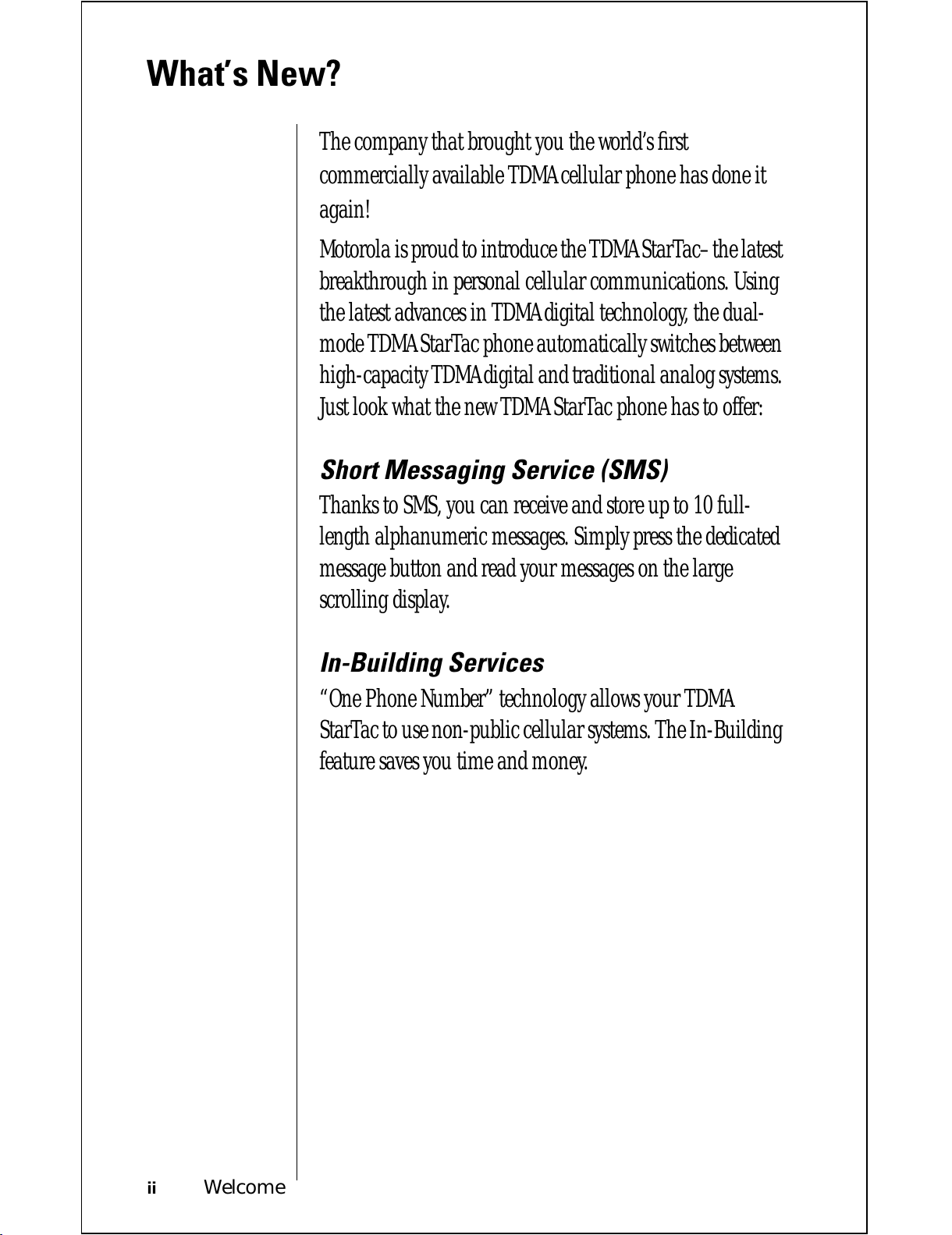

What’s New?
The company that brought you the world’s first
commercially available TDMA cellular phone has done it
again!
MotorolaisproudtointroducetheTDMAStarTac–thelatest
breakthrough in personal cellular communications. Using
the latest advances in TDMA digital technology, the dual-
modeTDMAStarTacphoneautomaticallyswitchesbetween
high-capacityTDMAdigitalandtraditionalanalogsystems.
Just look what the new TDMA StarTac phone has to offer:
Short Messaging Service (SMS)
Thanks to SMS, you can receive and store up to 10 full-
length alphanumeric messages. Simply press the dedicated
message button and read your messages on the large
scrolling display.
In-Building Services
“One Phone Number” technology allows your TDMA
StarTactousenon-publiccellularsystems.TheIn-Building
feature saves you time and money.
All manuals and user guides at all-guides.com

Welcome iii
Highlights
As one of the most sophisticated cellular phones around,
your TDMA StarTac phone offers exceptional features that
make life easier, more organized, and more fun! This
miracle of modern technology can help you…
• conserve battery power when the phone is waiting
for a call while in Sleep Mode
• receive and store pager-like alpha numeric mes-
sages on the cellular phone using the short messag-
ing service
• receive calls discreetly with the VibraCall™ func-
tion
• know when to charge with the Dedicated Battery
Level Indicator
• readmoreinformationonthescrollingtwolinedis-
play
• make calls in a flash with the Turbo Dial™ func-
tion
• charge on the go with the Internal Rapid Charger
and an AC Adapter or Cigarette Lighter Adapter
• navigate phone features with a user-friendly, icon-
driven menu interface
• remember phone numbers with the internal Phone
Book.
• monitor your calls with Displayed and Audible Call
Timers
• reduce roaming with two-system registration
All manuals and user guides at all-guides.com

iv Welcome
Safety Information
Important: Read this information before using your
wireless handheld phone.
Exposure to Radio Frequency Signals
Your wireless handheld portable telephone is a low power
radio transmitter and receiver. When it is on, it receives and
also sends out radio frequency (RF) signals.
In August 1996, The Federal Communications
Commissions (FCC) adopted RF exposure guidelines with
safetylevels for handheld wireless phones. Those guidelines
are consistent with safety standards previously set by both
U.S. and international standards bodies:
• American National Standards Institute (ANSI)
C95.1 1992
• NationalCouncil on Radiation Protectionand Mea-
surement (NCRP) Report 86 1986
• International Commission on Non-Ionizing Radia-
tion Protection (ICNIRP) 1996
Thosestandardswerebasedoncomprehensiveandperiodic
evaluations of the relevant scientific literature. For
example, over 120 scientists, engineers, and physicians
from universities, government health agencies, and
industry reviewed the available body of research to develop
the ANSI Standard(C95.1).
The design of your phone complies with the FCC guidelines
(and those standards).
All manuals and user guides at all-guides.com

Welcome v
Safety Information (Continued)
Antenna Care
Useonlythesuppliedor an approved replacement antenna.
Unauthorized antennas, modifications, or attachments
could damage the phone and may violate FCC regulations.
Phone Operation
Normal Operation
Hold the phone as you would any other telephone with the
antenna pointed up and over your shoulder.
Tips on Efficient Operation
For your phone to operate most efficiently:
• Extend your antenna fully.
• Do not touch the antenna unnecessarily when the
phone is in use. Contact with the antenna affects
callqualityandmaycausethephonetooperateata
higher power level than otherwise needed.
Batteries
Caution: Allbatteriescancausepropertydamage,injury,or
burns if a conductive material, such as jewelry, keys, or
beaded chains, touches exposed terminals.The material
may complete an electrical circuit and become quite hot.
To protect against such unwanted current drain, exercise
care in handling any charged battery, particularly when it
is inside your pocket, purse, or other container with metal
objects.When the battery is detached from the phone, your
batteries are packed with a protective battery cover; please
use this cover for storing your batteries when not in use.
All manuals and user guides at all-guides.com
all-guides.com

vi Welcome

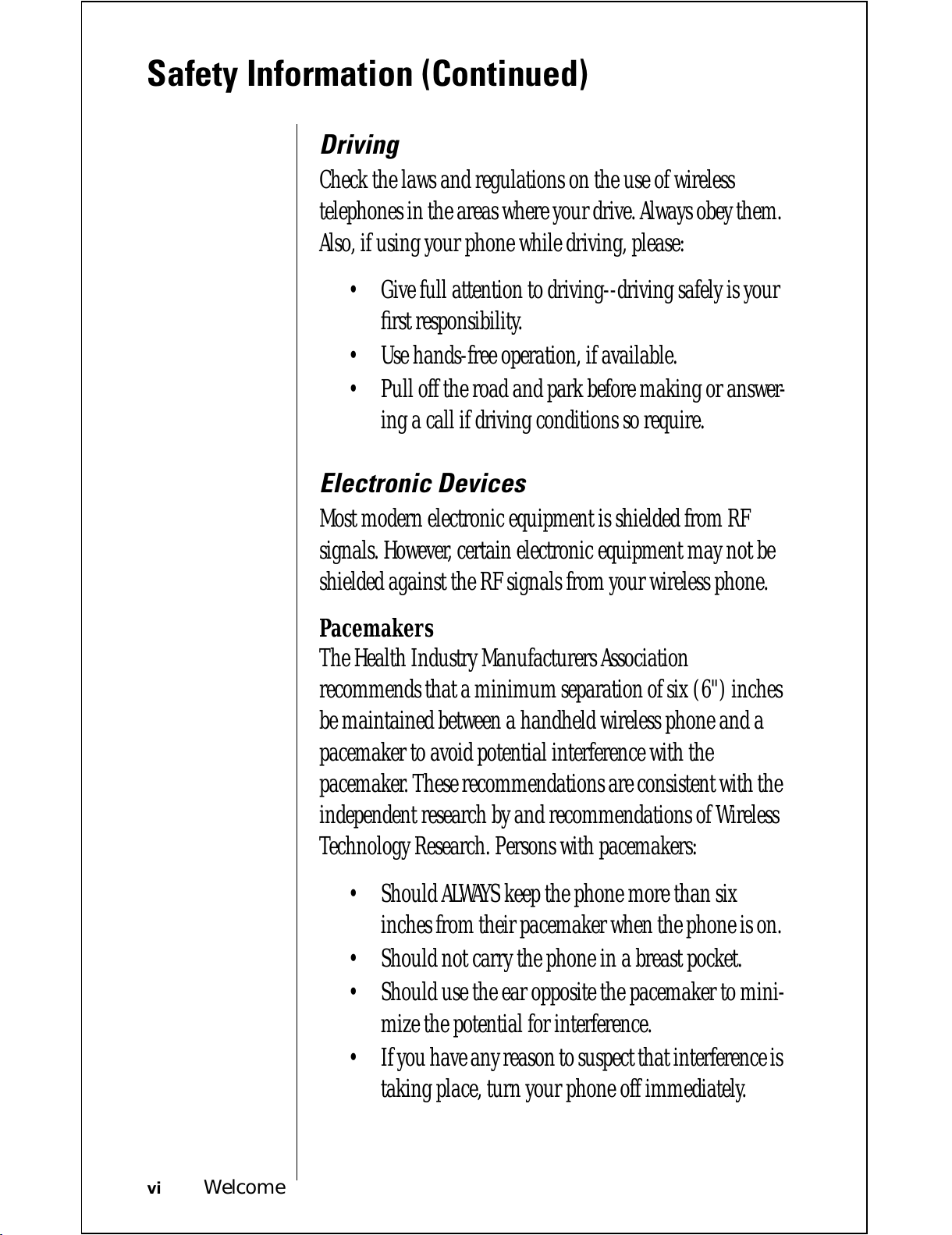

Safety Information (Continued)
Driving
Check the laws and regulations on the use of wireless
telephonesintheareas where your drive.Alwaysobeythem.
Also, if using your phone while driving, please:
• Give full attention to driving--driving safely is your
first responsibility.
• Use hands-free operation, if available.
• Pull off the road and park before making or answer-
ing a call if driving conditions so require.
Electronic Devices
Most modern electronic equipment is shielded from RF
signals. However, certain electronic equipment may not be
shielded against the RF signals from your wireless phone.
Pacemakers
The Health Industry Manufacturers Association
recommendsthataminimumseparationof six (6") inches
be maintained between a handheld wireless phone and a
pacemaker to avoid potential interference with the
pacemaker.These recommendationsareconsistentwiththe
independent research by and recommendations of Wireless
Technology Research. Persons with pacemakers:
• Should ALWAYS keep the phone more than six
inchesfromtheir pacemaker when the phone is on.
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to mini-
mize the potential for interference.
• Ifyouhaveanyreasontosuspectthatinterferenceis
taking place, turn your phone off immediately.
All manuals and user guides at all-guides.com

Welcome vii

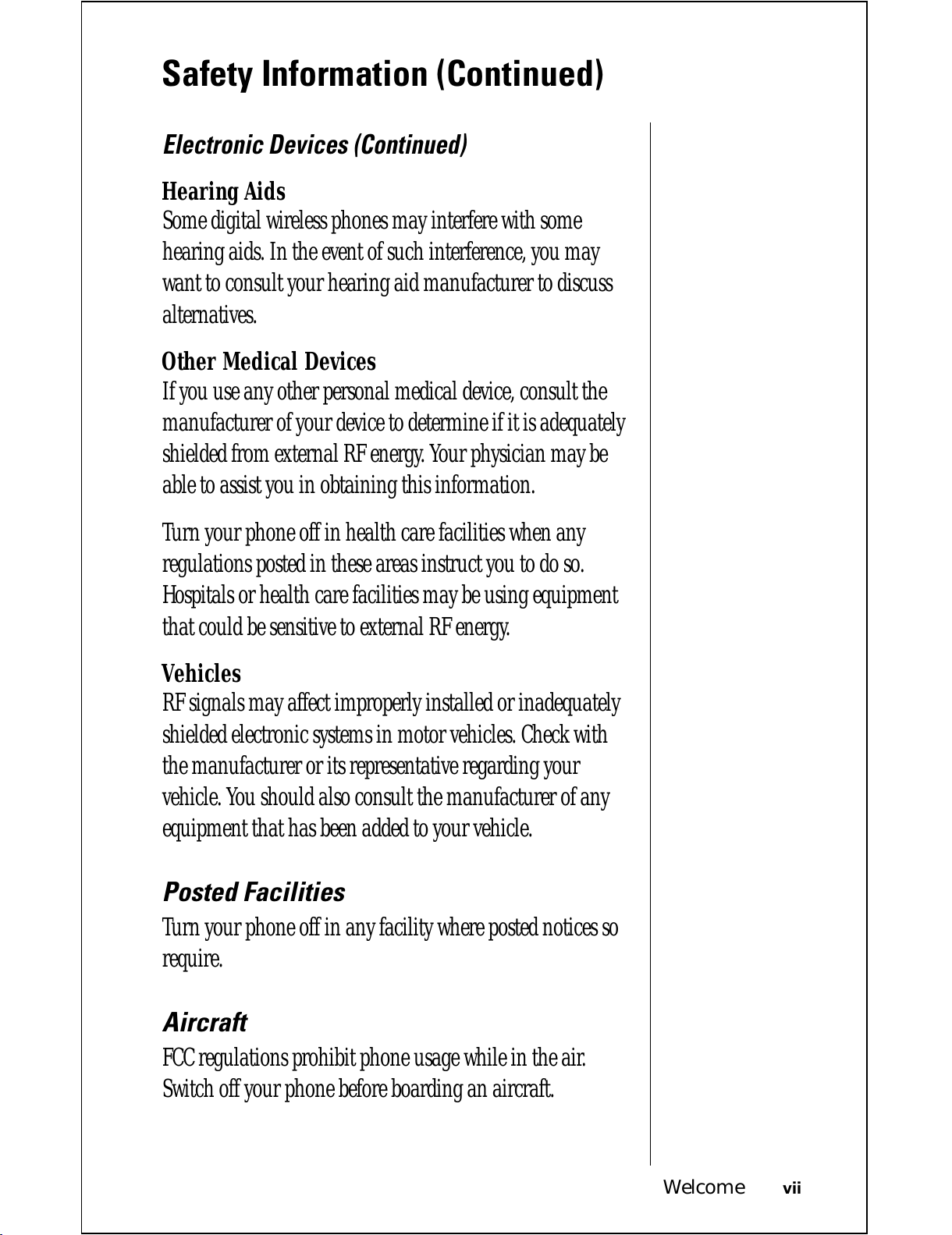

Safety Information (Continued)
Electronic Devices (Continued)
Hearing Aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you may
want to consult your hearing aid manufacturer to discuss
alternatives.
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be
able to assist you in obtaining this information.
Turn your phone off in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your
vehicle. You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted Facilities
Turn your phone off in any facility where posted notices so
require.
Aircraft
FCC regulations prohibit phone usage while in the air.
Switch off your phone before boarding an aircraft.
All manuals and user guides at all-guides.com

viii Welcome
Safety Information (Continued)
Blasting Areas
To avoid interfering with blasting operations, turn your
phone off when in a “blasting area” or in areas posted:
“Turn off two-way radio.” Obey all signs and instructions.
Potentially Explosive Atmospheres
Turnyourphoneoffinany areawithapotentiallyexplosive
atmosphere and obey all signs and instructions. Sparks in
such areas could cause an explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but
notalways,clearlymarked.Theyincludefuelingareassuch
as gasoline stations, below deck on boats, fuel or chemical
transfer or storage facilities, vehicles using liquefied
petroleum gas (such as propane or butane), areas where
the air contains chemicals or particles (such as grain, dust,
or metal powders), and any other area where you would
normally be advised to turn off your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place objects,
including both installed or portable wireless equipment, in
the area over the air bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
All manuals and user guides at all-guides.com

Welcome ix
All manuals and user guides at all-guides.com

x

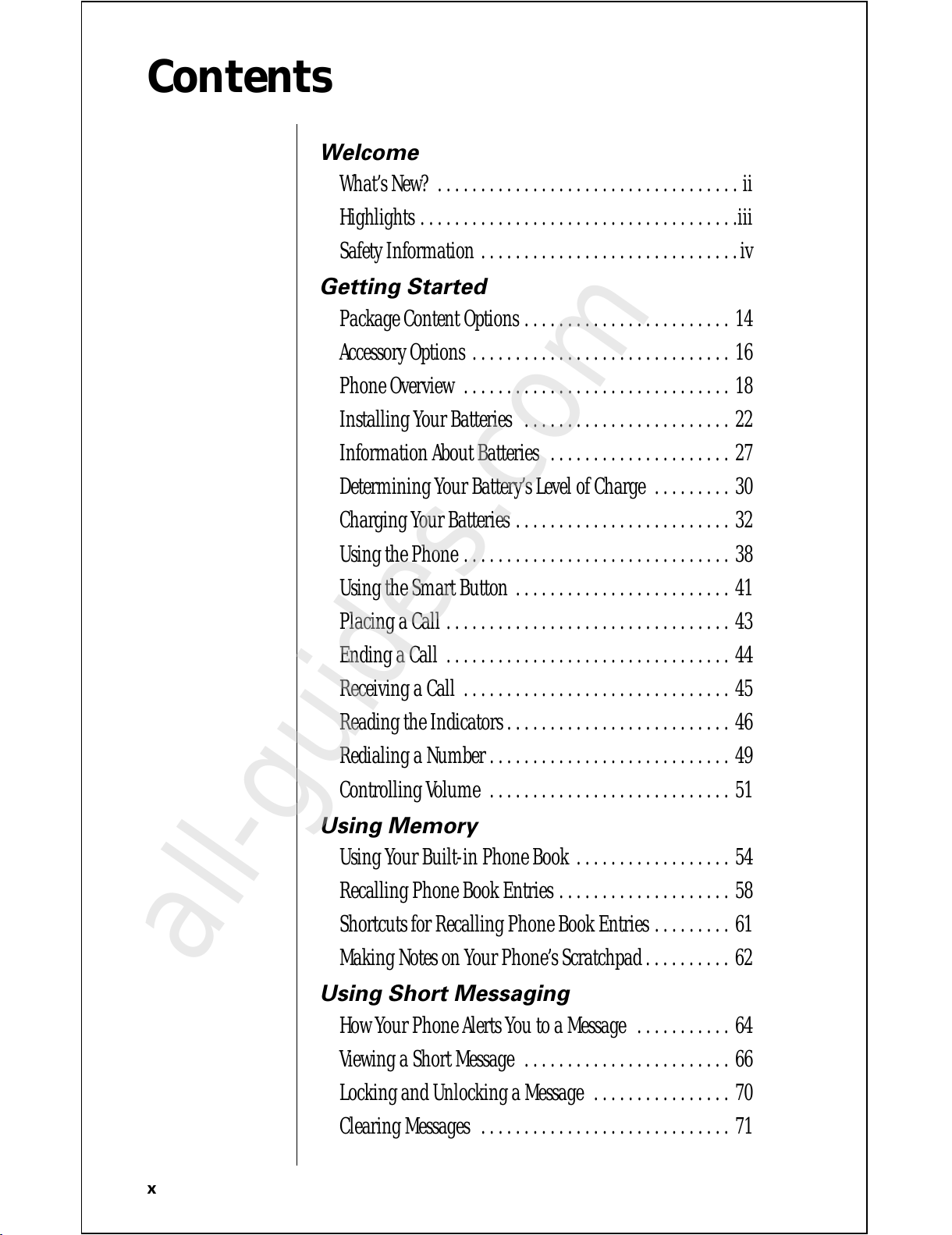

Contents
Welcome
What’s New? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Getting Started
Package Content Options . . . . . . . . . . . . . . . . . . . . . . . . 14
Accessory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . 22
Information About Batteries . . . . . . . . . . . . . . . . . . . . . 27
Determining Your Battery’s Level of Charge . . . . . . . . . 30
Charging Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . . . 41
Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Controlling Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using Memory
Using Your Built-in Phone Book . . . . . . . . . . . . . . . . . . 54
Recalling Phone Book Entries . . . . . . . . . . . . . . . . . . . . 58
Shortcuts for Recalling Phone Book Entries . . . . . . . . . 61
Making Notes on Your Phone’s Scratchpad . . . . . . . . . . 62
Using Short Messaging
How Your Phone Alerts You to a Message . . . . . . . . . . . 64
Viewing a Short Message . . . . . . . . . . . . . . . . . . . . . . . . 66
Locking and Unlocking a Message . . . . . . . . . . . . . . . . 70
Clearing Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
All manuals and user guides at all-guides.com
all-guides.com

xi
The Menu System
Navigating the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Phone Book
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Recalling Phone Book Entries with the Menu . . . . . . . 79
Storing with the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Advanced Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Editing a Memory Location . . . . . . . . . . . . . . . . . . . . . . 88
Viewing Your Own Number . . . . . . . . . . . . . . . . . . . . . . 90
Phone Book Display Preferences . . . . . . . . . . . . . . . . . . 91
Call Timers
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
View Individual Call Timer . . . . . . . . . . . . . . . . . . . . . . 94
View Resettable Call Timer . . . . . . . . . . . . . . . . . . . . . . . 95
View Cumulative Timer . . . . . . . . . . . . . . . . . . . . . . . . . 96
Reset Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Display Individual Timer Automatically . . . . . . . . . . . . 98
One Minute Audible Timer . . . . . . . . . . . . . . . . . . . . . . . 99
Repeating Audible Timer . . . . . . . . . . . . . . . . . . . . . . . 100
Single Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Tone Controls
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
VibraCall Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Select Ringer Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Keypad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Scratchpad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Lock/Security
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Voice Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Locking/Unlocking Your Phone . . . . . . . . . . . . . . . . . 111
Activating Emergency Dialing . . . . . . . . . . . . . . . . . . . 113
Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
All manuals and user guides at all-guides.com

xii
Phone Options
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Call Mode Preference . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Switching Between Phone Numbers . . . . . . . . . . . . . . 133
Selecting a Cellular System . . . . . . . . . . . . . . . . . . . . . 135
Feature Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Call Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Display System Identification . . . . . . . . . . . . . . . . . . . 143
Message Menu
Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Set Scrolling Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Message Key Options . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Reference Information
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Glossary (Continued) . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Patent Information (Continued) . . . . . . . . . . . . . . . . . 159
All manuals and user guides at all-guides.com

GettingStarted
This chapter tells you how to set up your TDMA StarTac
cellular telephone and perform basic phone functions.
In this chapter you will learn how to:
• install and charge your phone's batteries
• place and receive calls
• read your phone’s status indicators
• redial numbers
• adjust your phone's ringer and earpiece volumes
• setyourphonetovibratesilently whenyoureceivea
call
All manuals and user guides at all-guides.com

14 GettingStarted
Package Content Options
Typically,yourTDMAStarTaccellularphonemaybepacked
with a charger, transformer and at least one battery. Listed
on the following pages, you’ll find a sampling of the
different batteries, battery chargers, and transformers.
TDMA StarTac
Cellular Telephone
Slim Main Battery
with Battery Cover
Standard Main Battery
with Battery Cover
Standard Auxiliary Battery
with Battery Cover
Slim Auxiliary Battery
with Battery Cover
All manuals and user guides at all-guides.com

GettingStarted 15
Note: You phone and accessories may not look exactly as
pictured above.
AC Adapter Cigarette Lighter Adapter
Holster
Desktop Charger
(AC Adapter required
Headset
All manuals and user guides at all-guides.com
all-guides.com

16 GettingStarted
Accessory Options
THE Portable Cellular Connection™
Interface Analog Mode Only
YourTDMAStarTaccellularphoneisdatacompatibleinthe
Analog Mode, so you can send and receive faxes, e-mail,
and data with Motorola data accessories. THE Portable
Cellular Connection Interface connects your phone to a
computer or fax machine for unparalleled convenience.
THE Portable Cellular Connection Kit includes the Portable
Cellular Connection Interface box with rechargeable
battery, and a cable that plugs into the accessory connector
on the bottom of your phone.
Wall Transformer
or Car Adapter
Telephone Cord
8-Pin Modular Connector
Modem or
Fax Machine
Cellular
Connection
All manuals and user guides at all-guides.com

GettingStarted 17
Hands-Free Vehicle Kit
The optional Hands-Free Kits give you the convenience of
hands-free, speaker phone operation while in your car. Full
duplexoperationletsyousimultaneously talk and listen, so
bothpartiescaninterrupteachotherforanormalsounding
conversation.
The Hands-Free Kit powers the phone and charges its
battery whenever your car’s engine is running. An optional
external antenna can improve your signal reception and
boost performance.
Cigarette Lighter Adapter
The cigarette lighter adapter powers the phone and charges
the battery whenever your car’s engine is running.
All manuals and user guides at all-guides.com

18 GettingStarted
Phone Overview
See inside front cover for a diagram
Retractable Antenna Extend for best performance.
Earpiece Ultra Compact phone speaker.
Status Indicators
In Use— Flashes when a call is in
progress.
No Service—Tells you the phone is
beyond the range of a cellular service
area. When this indicator is lit, calls
cannot be placed or received.
Roam—Lets you know when your
phone is accessing cellular service
outside your home system.
In-Building Cellular System—Flashes
when phone accesses an In-Building
Cellular System.
Digital—Flashes when on digital
channel.
All manuals and user guides at all-guides.com

GettingStarted 19
Signal Strength
Indicator
Indicates the strength of the signal
your phone is receiving. The stronger
the signal, the better your chances of
placing and receiving calls success-
fully.
Battery Level
Indicator
Tells you the amount of charge left in
your battery.
Two-line
Alphanumeric
Display
Displays your input from the keypad,
information recalled from memory,
help, and other messages.
Menu Icons As you move through the menu, the
icons flash to indicate the selected
feature:
Phone Book lets you store and
retrieve numbers.
Call Timers can monitor the length of
your calls.
Tone Controls adjust your phone’s
tones.
Lock/Security features prevent unau-
thorized access.
Phone Options/Voice Mail can be set
to your specifications.
Digital message provides access to
digital messaging options.
All manuals and user guides at all-guides.com
