® MOTOROLA INC.
,.5TU 111/SECTEL™
Secure Voice & Data Telephone
...
C'\
u
•
•
USER'S GUIDE
c::::JCJCICICICJCI
c c c c:u::::i c Cl
--------
--------
.•• CJ
• ••
•••
••• ·=
CONSULT WITH LOCAL SECURITY AUTHORITY FOR
SECURITY PROCEDURES
APPLICABLE TO THE
CONTROL AND USE OF THE STU 1/1/SECTEL 1000.
SECTEL 1000 (Type I) and
SECTEL 2000 (Type II)
68·P25439JOO 1 SEPTEMBER
1987

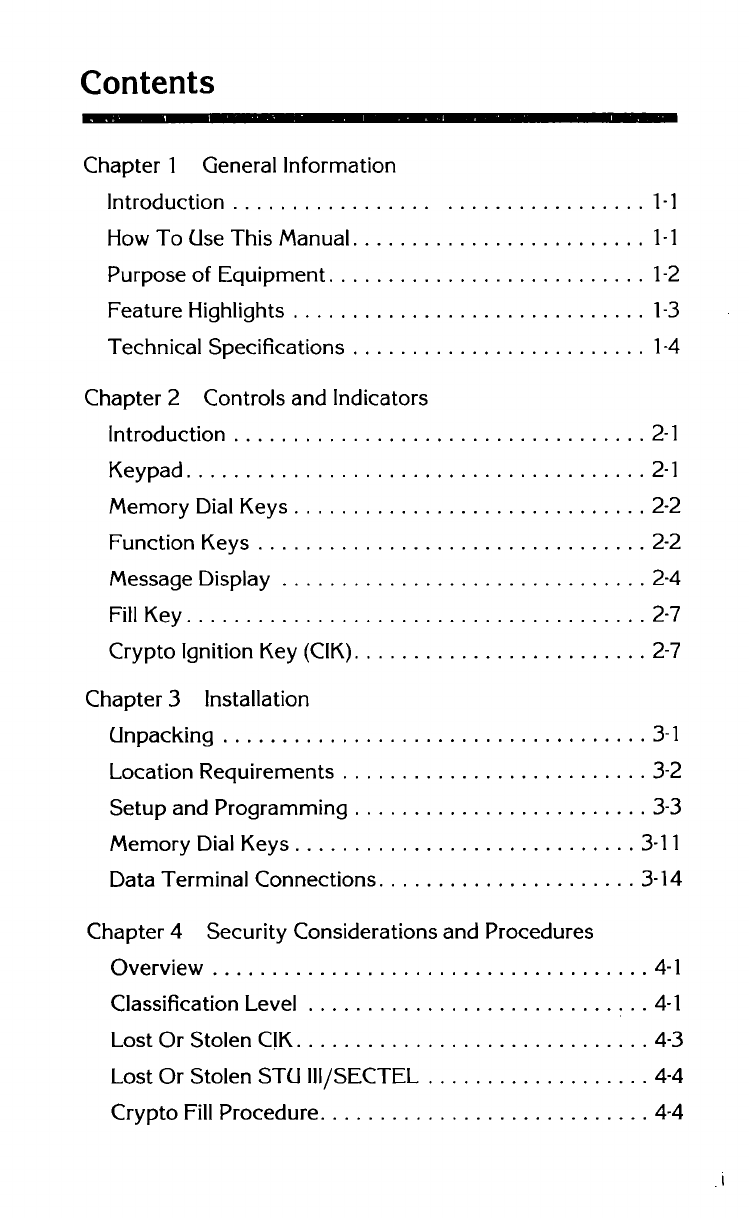

Contents
Chapter 1 General Information
Introduction . . . . . . . . . . . . . . . . . .
................ 1-1
How To Use This Manual. ........................ 1-1
Purpose of Equipment ........................... 1-2
Feature Highlights .............................. 1-3
Technical Specifications ......................... 1-4
Chapter 2 Controls and Indicators
Introduction
................................... 2-1
Keypad ....................................... 2-1
Memory Dial Keys .............................. 2-2
Function Keys
................................. 2-2
Message Display ............................... 2-4
Fill Key ....................................... 2-7
Crypto Ignition Key (CIK) ......................... 2-7
Chapter 3 Installation
Unpacking .................................... 3- 1
Location Requirements
.......................... 3-2
Setup and Programming ......................... 3-3
Memory Dial Keys ............................. 3-11
Data Terminal Connections ...................... 3-14
Chapter 4 Security Considerations and Procedures
Overview ..................................... 4- 1
Classification Level
............................. 4-1
Lost Or Stolen CIK .............................. 4-3
Lost Or Stolen STU lll/SECTEL ................... 4-4
Crypto Fill Procedure ............................ 4-4
i

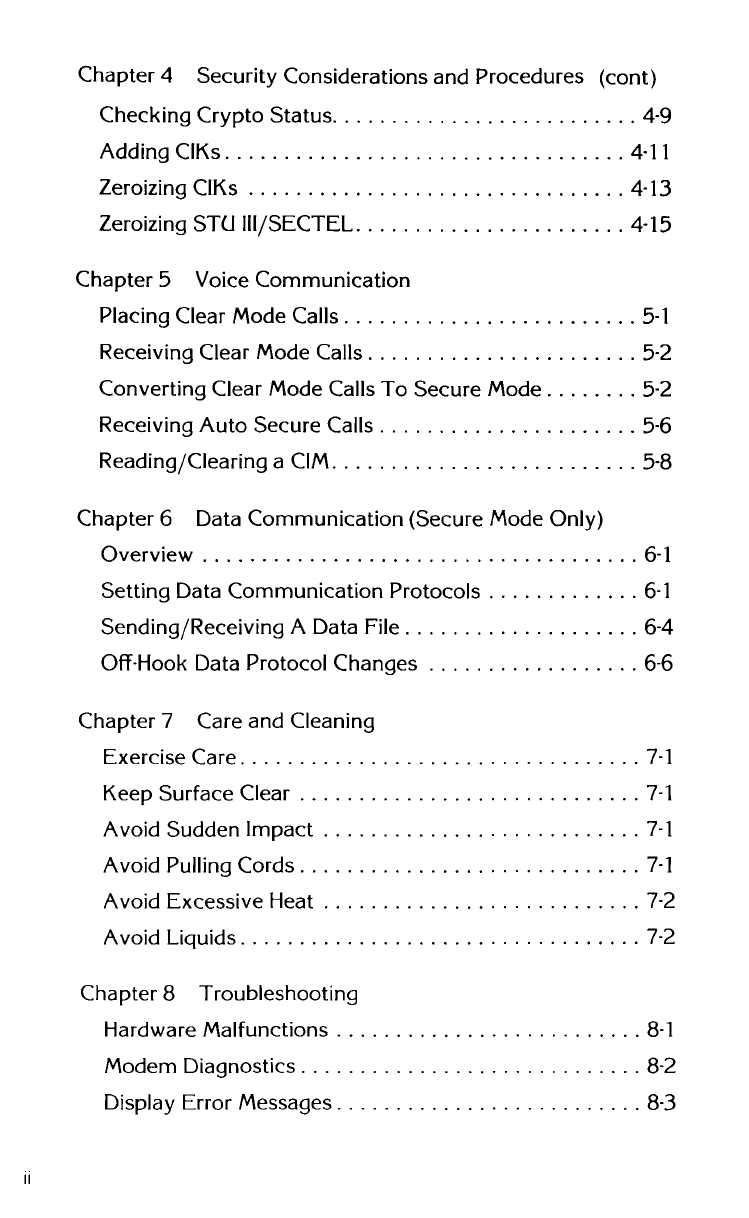

Chapter 4 Security Considerations and Procedures (cont)
Checking Crypto Status .......................... 4-9
Adding CIKs .................................. 4· 11
Zeroizing CIKs ................................ 4-13
Zeroizing STU 111/SECTEL. ...................... 4-15
Chapter 5 Voice
Communication
Placing Clear Mode Calls ......................... 5-1
Receiving Clear Mode Calls ....................... 5·2
Converting Clear Mode Calls To Secure Mode ........ 5-2
Receiving
Auto Secure Calls ...................... 5-6
Reading/Clearing a CIM
.......................... 5-8
Chapter 6 Data
Communication (Secure Mode Only)
Overview ..................................... 6-1
Setting Data Communication Protocols ............. 6-1
Sending/Receiving A Data File .................... 6-4
Off-Hook Data Protocol Changes .................. 6-6
Chapter 7 Care and Cleaning
Exercise Care .................................. 7· 1
Keep Surface Clear
............................. 7-1
Avoid Sudden Impact ........................... 7-1
Avoid Pulling Cords ............................. 7-1
Avoid Excessive Heat ........................... 7-2
Avoid Liquids .................................. 7-2
Chapter 8 Troubleshooting
Hardware
Malfunctions .......................... 8·1
Modem Diagnostics ............................. 8-2
Display Error Messages .......................... 8·3

Chapter 9 Models and Accessories
Introduction
................................... 9-1
Types of Terminals ............................. 9-1
Type I Models .................................. 9-1
Type II Models ........ _ ........................ 9-1
Single Line Two-Wire Model ...................... 9-2
Multiline Model. ................................ 9-3
Foreign Four-Wire AUTO VON Model w /HEMP ....... 9-4
Four-Wire AUTO VON Model w /HEMP .............. 9-5
Foreign Two-Wire Model ......................... 9-6
Wall Mounting Bracket Assembly .................. 9-6
Descriptions of Models and Accessories ............. 9-9
Ordering Information ........................... 9-11
Appendices
Appendix A Display Messages
Status Messages ............................. A-1
Prompt Messages ............................. A-4
Combined Status-Prompt Messages
.............. A-7
Appendix B FCC Registration and Compliance ...... B-1
Appendix C
Direct Sale Contract Warranty Agreement ......... C· 1
Government Contract Warranty Agreement
....... C-2
Additional Government Contract Warranty
Information
................................ C-3
Service Assistance ............................ C-4
Appendix D Index ............................. D-1

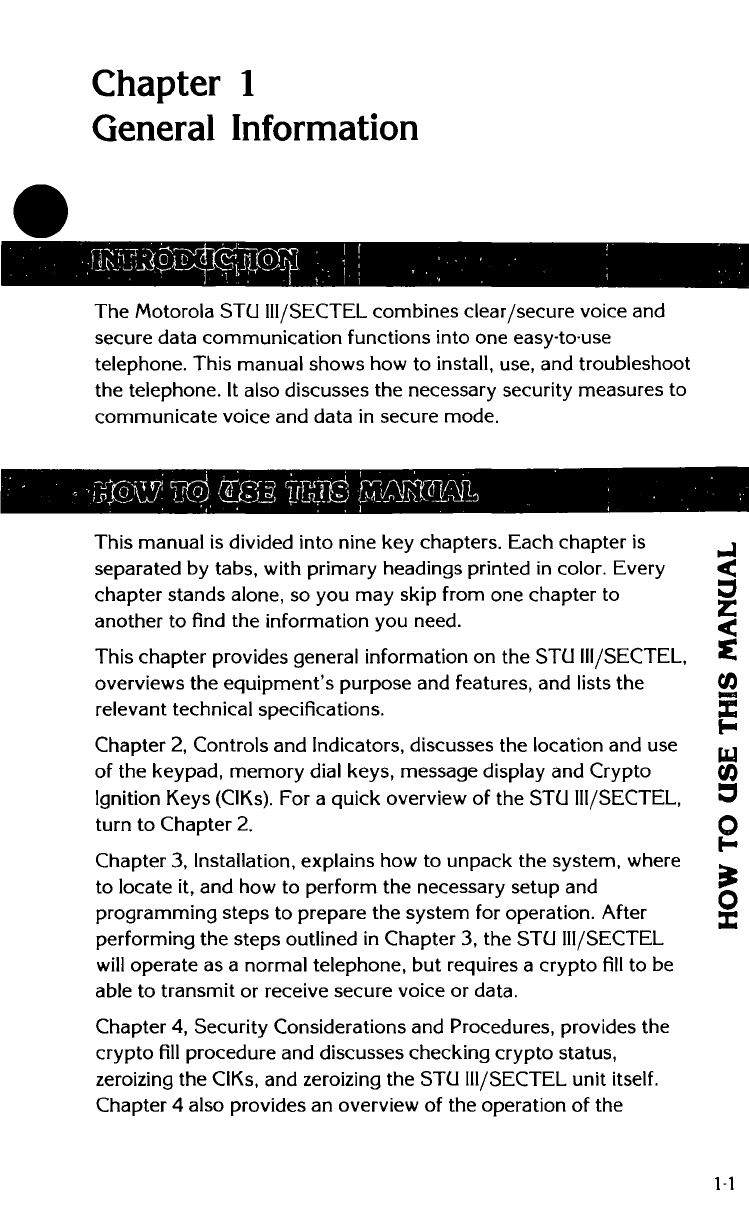

•Chapter 1
General Information
The Motorola STU 111/SECTEL combines clear/secure voice and
secure data
communication functions into one easy-to-use
telephone. This manual shows
how to install, use, and troubleshoot
the telephone. It also discusses the necessary security measures
to
communicate voice and data in secure mode.
This manual is divided into nine key chapters. Each chapter is
separated by tabs, with primary headings printed in color. Every
chapter stands alone, so you may skip from one chapter to
another to find the information you need.
This chapter provides general
information on the STU 111/SECTEL,
overviews the equipment's purpose and features, and lists the
relevant technical specifications.
Chapter 2, Controls and Indicators, discusses the location and use
of the keypad, memory dial keys, message display and Crypto
Ignition Keys (CIKs). For a quick overview of the STU 111/SECTEL,
turn to Chapter 2.
Chapter 3, Installation, explains
how to unpack the system, where
to locate it, and how to perform the necessary setup and
programming steps to prepare the system for operation. After
performing the steps outlined in Chapter 3, the STU 111/SECTEL
will operate as a normal telephone, but requires a crypto fill to be
able
to transmit or receive secure voice or data.
Chapter 4, Security Considerations and Procedures, provides the
crypto fill procedure and discusses checking crypto status,
zeroizing the CIKs, and zeroizing the STU
111/SECTEL unit itself.
Chapter 4 also provides an overview
of the operation of the
...J
<
0
z:
<
:E
(/J
-
:c
t--
Ll.1
(/J
0
0
to-
~
0
::c
1·1

"'O
c
"'
"
0
UJ
rn
0
"'11
l'TI
0
c
-
"'O
3
rn
:z
~
1·2

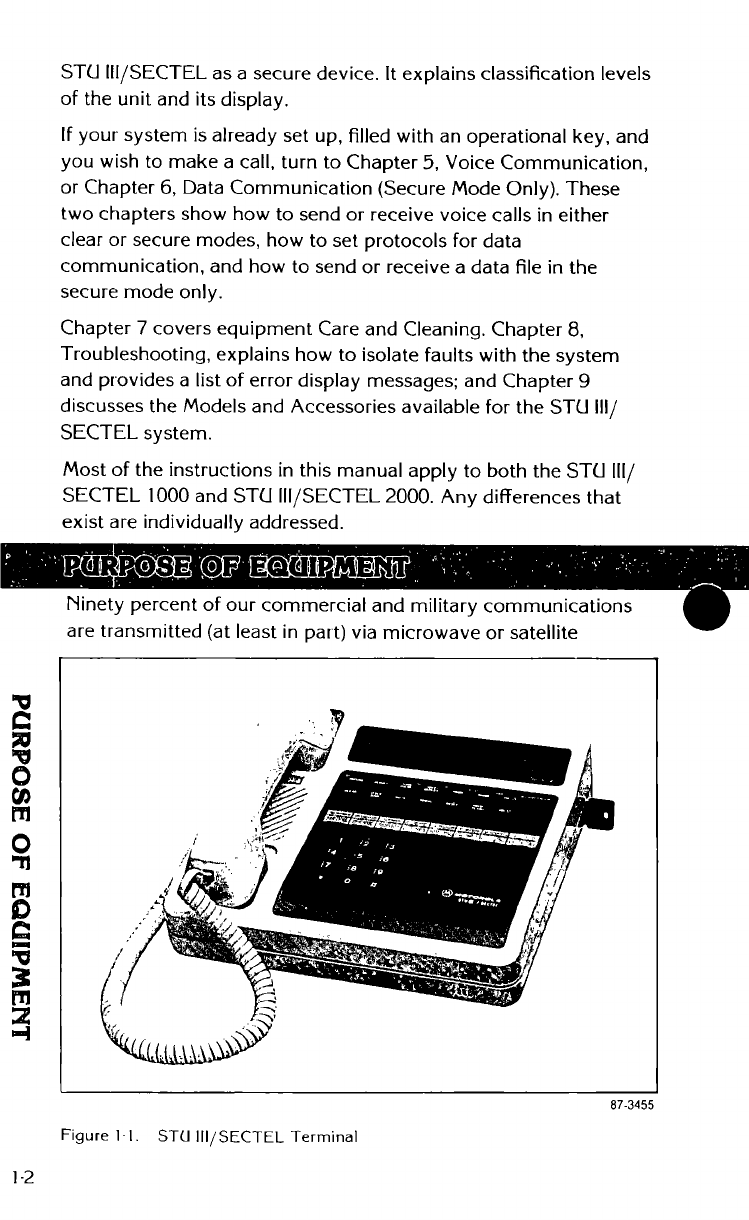

STU 111/SECTEL as a secure device. It explains classification levels
of the unit and its display.
If your system is already set up, filled with an operational key, and
you wish to make a call, turn to Chapter 5, Voice Communication,
or Chapter 6, Data Communication (Secure Mode Only). These
two chapters show how to send or receive voice calls in either
clear or secure modes, how to set protocols for data
communication, and how to send or receive a data file in the
secure mode only.
Chapter 7 covers equipment Care and Cleaning. Chapter 8,
Troubleshooting, explains how to isolate faults with the system
and provides a list of error display messages; and Chapter 9
discusses the
Models and Accessories available for the STU Ill/
SECTEL system.
Most of the instructions in this manual apply to both the STU Ill/
SECTEL 1000 and STU 111/SECTEL 2000. Any differences that
exist are individually addressed.
Ninety percent of our commercial and military communications
are transmitted (at least in part) via microwave or satellite
87-3455
Figure l ·I. STU 111/SECTEL Terminal

repeaters. Both of these methods are susceptible to interception
by rival businesses or governments. The STU 111/SECTEL
(Figure 1-1) provides the high level encryption necessary to protect
our nation's military and industrial secrets.
• Small Size. No larger than a standard office telephone, the STU
111/SECTEL fits easily on any desk.
• No noisy blowers or fans. An efficient external power converter
assures
that the STU 111/SECTEL will be a welcome addition to
any office environment.
• Retention of emergency communications. If power is
interrupted for any reason, the STU 111/SECTEL will function as
a plain old telephone (POT) to provide reliable communications
in an emergency situation.
• Field upgradeability. Motorola is continually developing
enhancements to ensure that the STU 111/SECTEL maintains its
state-of-the-art position among secure communications systems.
• Ease of programming. With many user-definable parameters,
the STU
111/SECTEL can be tailored to your individual
requirements.
• Ease of use. The adjustable message display shows the status of
all STU 111/SECTEL modes and functions.
• Dialing flexibility. The STU 111/SECTEL is compatible with both
tone and pulse dialing systems.
• Adjustable handset speaker and ringer. The handset speaker
and ringer volume can be set
to meet your individual needs.
• Standard telephone with speed-dialing capability.
• No batteries to replace.
In addition to the features listed above, the STU 111/SECTEL (Bell
1A2) Model offers multiline operation, an intercom function, a
HOLD feature, and LED indicators for these additional functions.
Motorola also offers a STU 111/SECTEL which is directly
compatible with the
AUTOVON telephone network.
1-3

-t
"'
n
:z:
:z
-
n
>
r-
"'
.,,
"'
n
-
:!l
n
>
-t
-
0
:z
"'
1-4
Multiline
(Bell IA2)
Figure l ·2. The STU 111/SECTEL Family
AUTO VON
87-3457

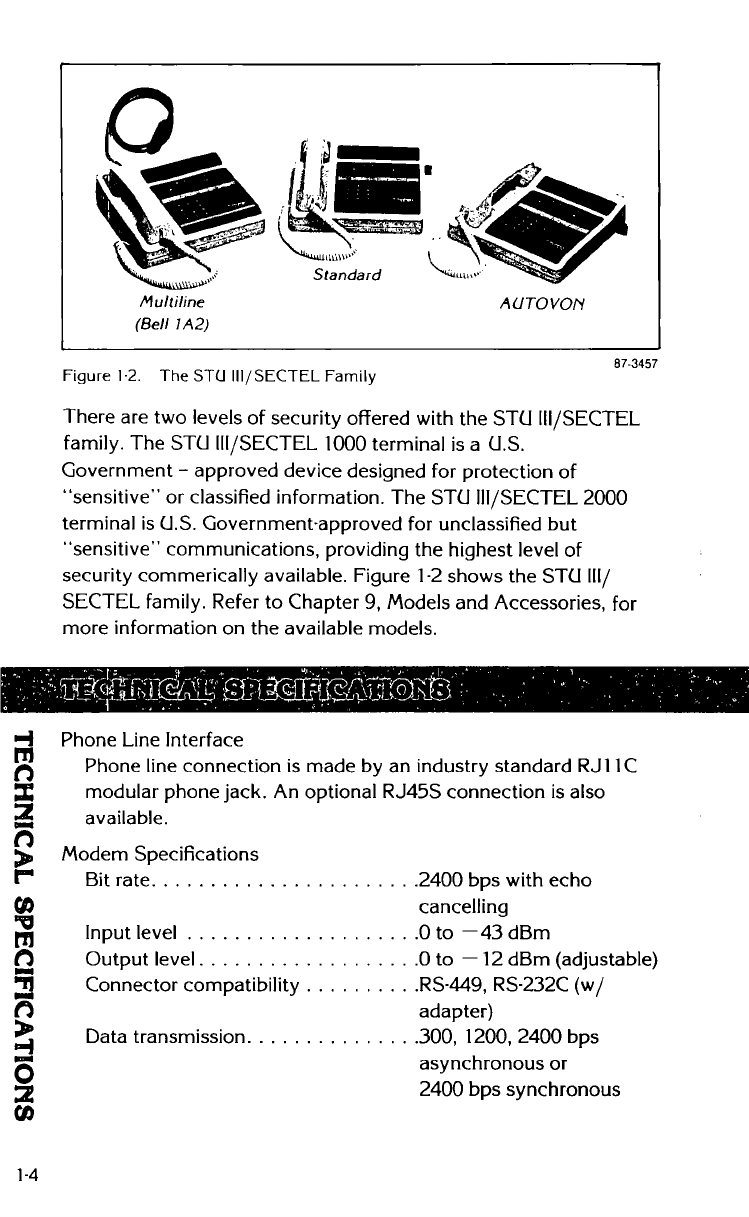

There are two levels of security offered with the STU 111/SECTEL
family. The STU 111/SECTEL 1000 terminal is a U.S.
Government -approved device designed for protection of
"sensitive" or classified information. The STU 111/SECTEL 2000
terminal is U.S. Government·approved for unclassified but
"sensitive" communications, providing the highest level of
security commerically available. Figure l ·2 shows the STU Ill/
SECTEL family. Refer to Chapter 9, Models and Accessories, for
more information on the available models.
Phone Line Interface
Phone line connection is made by an industry standard RJ
11 C
modular phone jack. An optional RJ45S connection is also
available.
Modem Specifications
Bit rate
....................... 2400 bps with echo
cancelling
Input level .................... 0 to -43 dBm
Output level ................... 0 to -12 dBm (adjustable)
Connector
compatibility .......... RS·449, RS-232C (wj
adapter)
Data transmission
.............. .300, 1200, 2400 bps
asynchronous
or
2400 bps synchronous

Speech processor
Processor type ................. LPC10 enhanced,
interoperable with FED-
STD-10
Output level ................... Adjustable from + 12 dB
to -6 dB in 4 steps
Mute
........................ Operable in clear or
secure mode
Hum
........................ Better than 60 dB down
Noise level
.................... Less than MIL·STD·1472
curve NC-35
Physical Characteristics
Height
....................... 2.5 inches
Width
........................ 9 inches
Depth . . . . . . . . . . . . . . . . . . . .
... 10 inches
Weight.
...................... 7.5 pounds
Operating temperature
........... 0°C to + 50°C
Storage temperature
............. -40°C to +70°C
Humidity ..................... 90% (noncondensing)
Mounting
..................... Desk top -standard
Wall -optional
Colors
....................... Shadow white, burgundy
or brown
Power Requirements
Primary input .................. 115 Vac/50-60 Hz or 230
Vac/50-60
Hz
Operating range ................ 91 to 252 Vac, 47 to 63
Hz, single·phase, non·
polarity sensitive
Power Consumption ............. 20 W (nominal)
FCC Approval
FCC Part 68, Subpart D
FCC Part 15, Subpart J, Class B
UL Listed
General
Meets TEMPEST requirements
..... NACSIM 5100A
Radiated Susceptibility Compliance
MIL-STD-461B (RS03)
NOTE
Specifications are subject to change without notice. 1·5

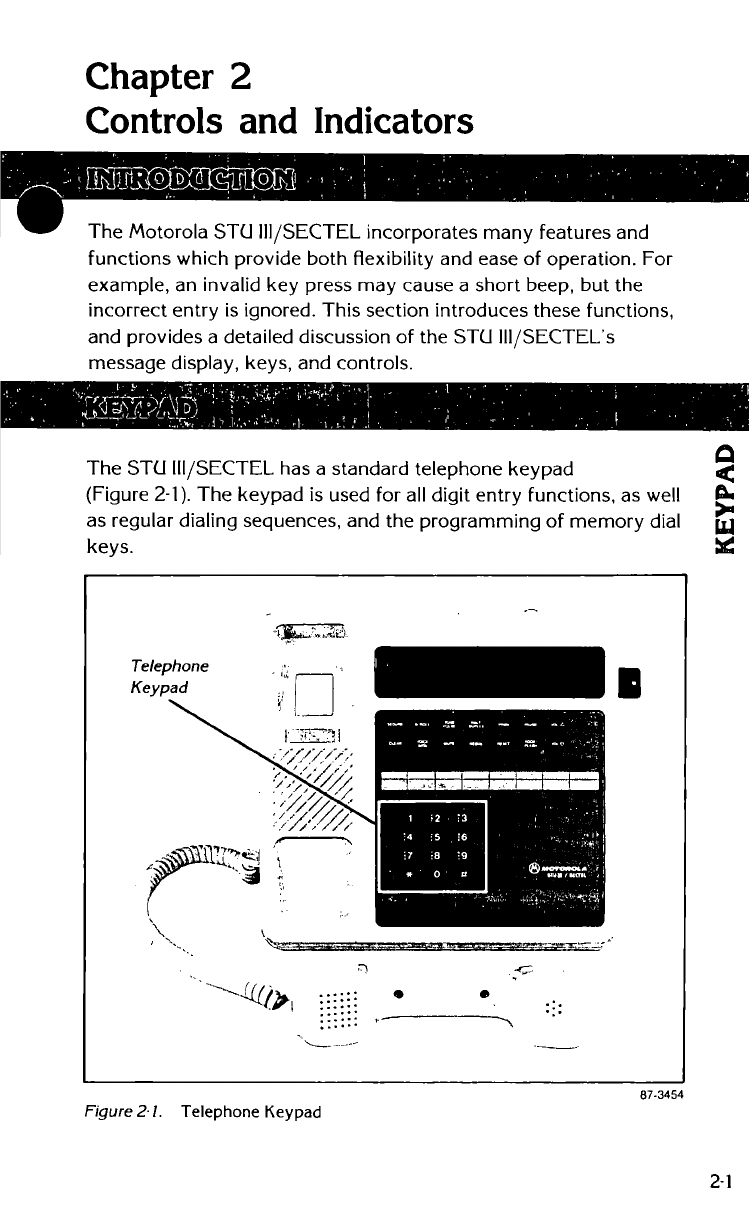

Chapter 2
Controls and Indicators
The Motorola STU 111/SECTEL incorporates many features and
functions which provide both flexibility and ease of operation. For
example, an invalid key press may cause a short beep, but the
incorrect entry is ignored. This section introduces these functions,
and provides a detailed discussion
of the STU 111/SECTEL's
message display, keys, and controls.
The STU 111/SECTEL has a standard telephone keypad
(Figure 2-1 ). The keypad is used for all digit entry functions, as well
as regular dialing sequences, and the programming of memory dial
keys.
······
······
······
······
o••••" I•
······
Figure 2· I. Telephone Keypad
• •
I
:;;::·
·:·
·.·
87-3454
2-1

2-2

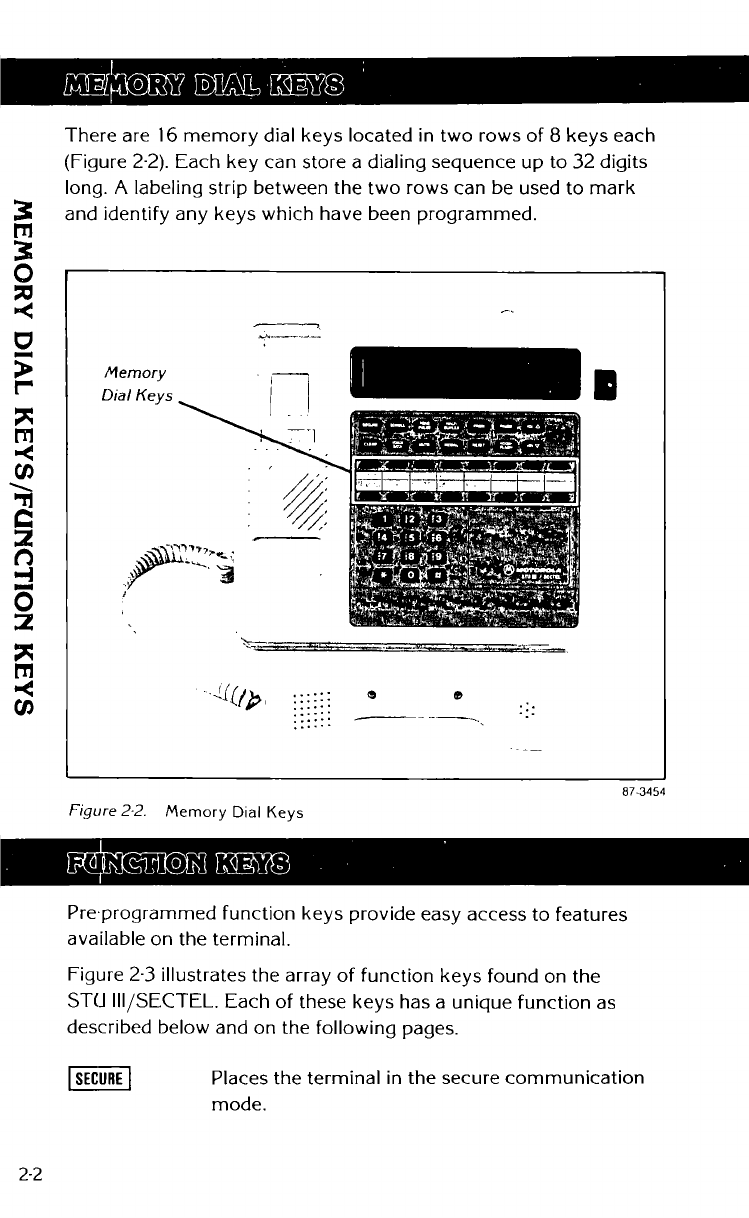

There are 16 memory dial keys located in two rows of 8 keys each
(Figure 2-2).
Each key can store a dialing sequence up to 32 digits
long. A labeling strip between the two rows can be used to mark
and identify any keys which have been programmed.
Memory
Dial Keys
Figure 2-2. Memory Dial Keys
·.·
I
87-3454
Pre·programmed function keys provide easy access to features
available
on the terminal.
Figure 2-3 illustrates the array of function keys found on the
STU 111/SECTEL. Each of these keys has a unique function as
described below and
on the following pages.
I SECURE I Places
the terminal in the secure communication
mode.

• e
·.·
·.·
I
87-3454
Figure 2-3. Function Keys
I CLEAR I Places the terminal in the clear communication
mode, and enables user to place clear calls during
a loss of power (see Chapter 8, Troubleshooting).
I SCROLL I Advances the display so that more information
may be presented.
I VOICE/DATA I
I TONE/PULSE I
I MUTE I
I HALF DUPLEX I
NOTE
If the ST(} IYSECTf L remains idle for an extended period
of time. the SCROLL key may be pressed to receive more
information from the message display.
Alternates the voice mode for verbal
communication, or the data mode for data
communication.
Alternates the tone or pulse dialing options.
Disables the handset microphone, preventing the
other party from overhearing the conversation.
Alternates the full duplex/half duplex secure voice
and data transmission mode. See Chapter 5, Voice
Communication.
2-3

I HOOK FLASH I
Automatically repeats the last dialing sequence
entered.
Enters and exits program mode allowing access to
such features as memory dial keys, software
parameters, data mode configuration, security
setup parameters, and other user-definable
features.
Cancels any current procedure while the handset
is
off-hook, and any active programming while the
handset is on-hook.
Enters a user defined time delay (1 to 9 seconds),
into any dialing sequence.
Sends a
precisely timed flash signal to access
special telephone (PBX) functins.
Increases the volume of the ringer when the
handset is on·hook, or increases the volume of the
handset earpiece when the handset is off-hook.
Decreases the volume of the ringer when the
handset is on-hook.or decreases the volume of the
handset earpiece when the handset is off-hook.
I ' , ,
" .. L4I~.~V.· . - . . .- .
. I . . . .
2-4

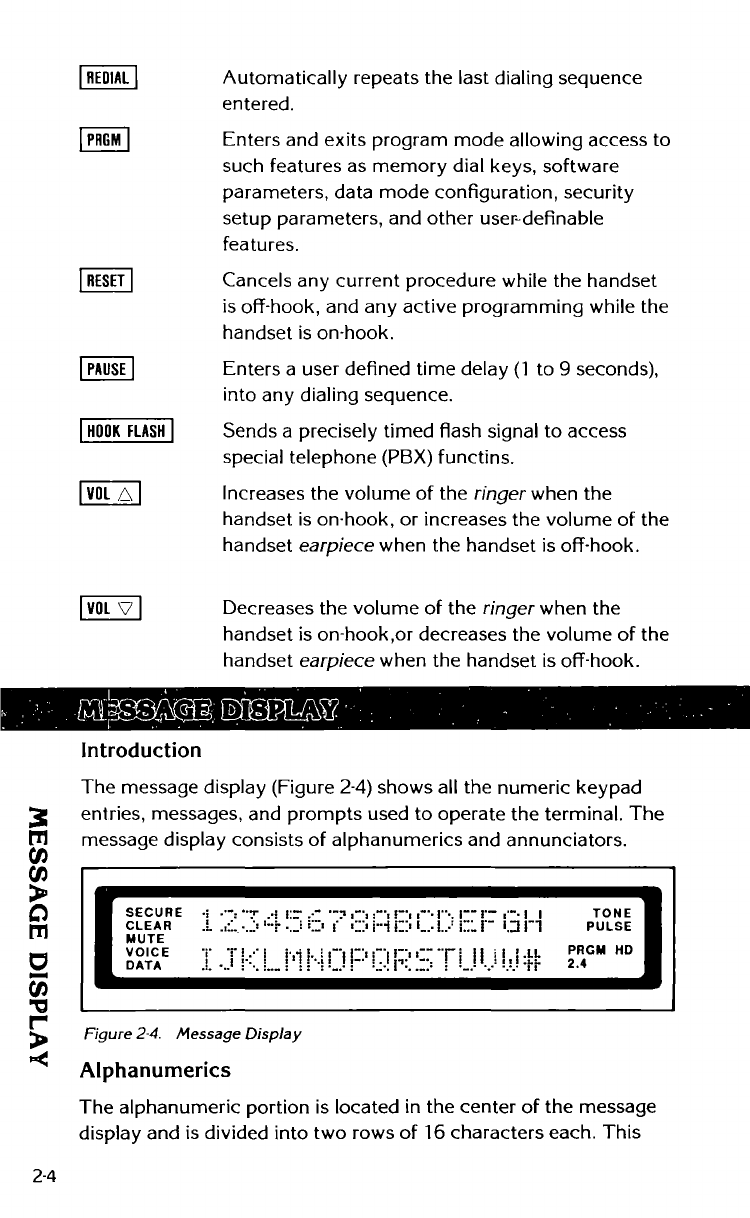

Introduction
The message display (Figure 2-4) shows all the numeric keypad
entries, messages, and prompts used to operate the terminal. The
message display consists of alphanumerics and annunciators.
Figure 2·4. Message Display
Alphanumerics
TONE
PULSE
PRGM HD
2.4
The alphanumeric portion is located in the center of the message
display and is divided into two rows of 16 characters each. This

portion of the message display shows all letters, numbers, and
symbols necessary
for effective user interaction.

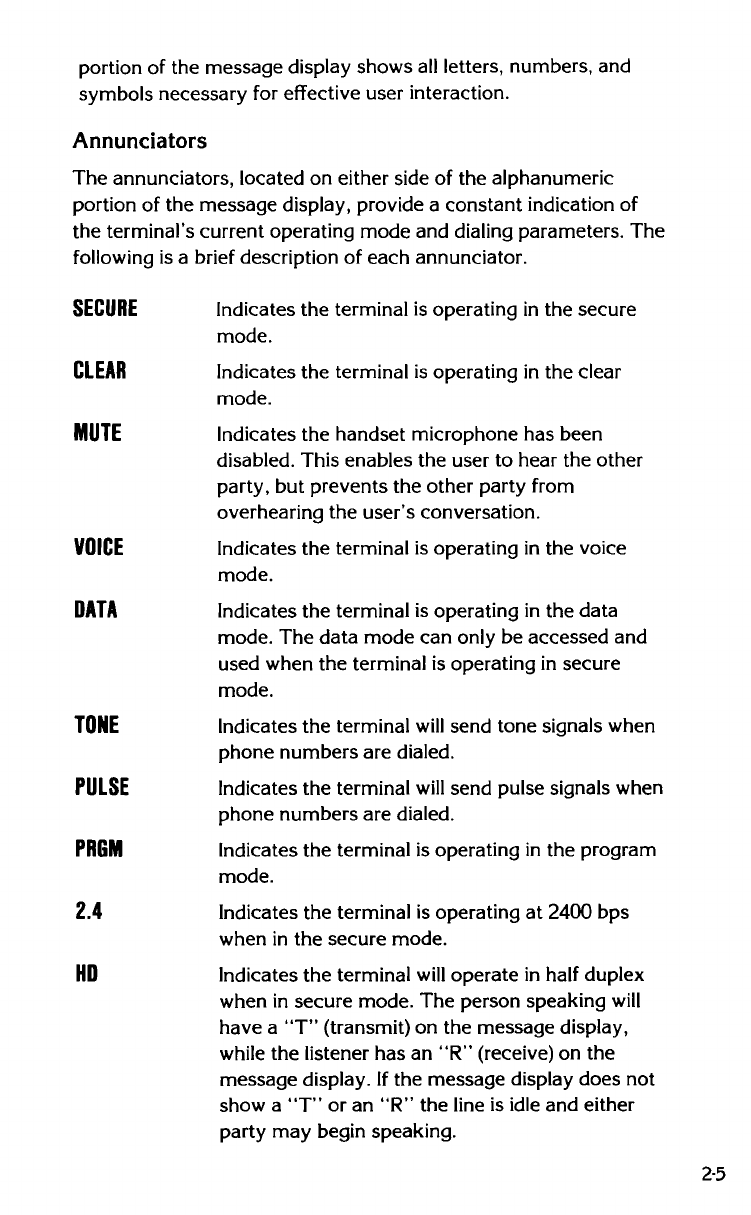

Annunciators
The annunciators, located on either side of the alphanumeric
portion
of the message display, provide a constant indication of
the terminal's current operating mode and dialing parameters. The
following
is a brief description of each annunciator.
SECURE
CLEAR
MUTE
VOICE
DATA
TONE
PULSE
PRGM
2.4
HD
Indicates the terminal is operating in the secure
mode.
Indicates the terminal
is operating in the clear
mode.
Indicates the handset microphone has been
disabled. This enables the user
to hear the other
party, but prevents the other party from
overhearing the user's conversation.
Indicates the terminal is operating in the voice
mode.
Indicates the terminal is operating in the data
mode.
The data mode can only be accessed and
used when the terminal is operating in secure
mode.
Indicates the terminal will send tone signals when
phone numbers are dialed.
Indicates the terminal will send pulse signals when
phone numbers are dialed.
Indicates the terminal is operating in the program
mode.
Indicates the terminal is operating
at 2400 bps
when in the secure mode.
Indicates the terminal will operate in
half duplex
when in secure mode.
The person speaking will
have a
"T" (transmit) on the message display,
while the listener has an
"R" (receive) on the
message display. If the message display does
not
show a "T" or an "R" the line is idle and either
party may begin speaking.
2-5

2-6

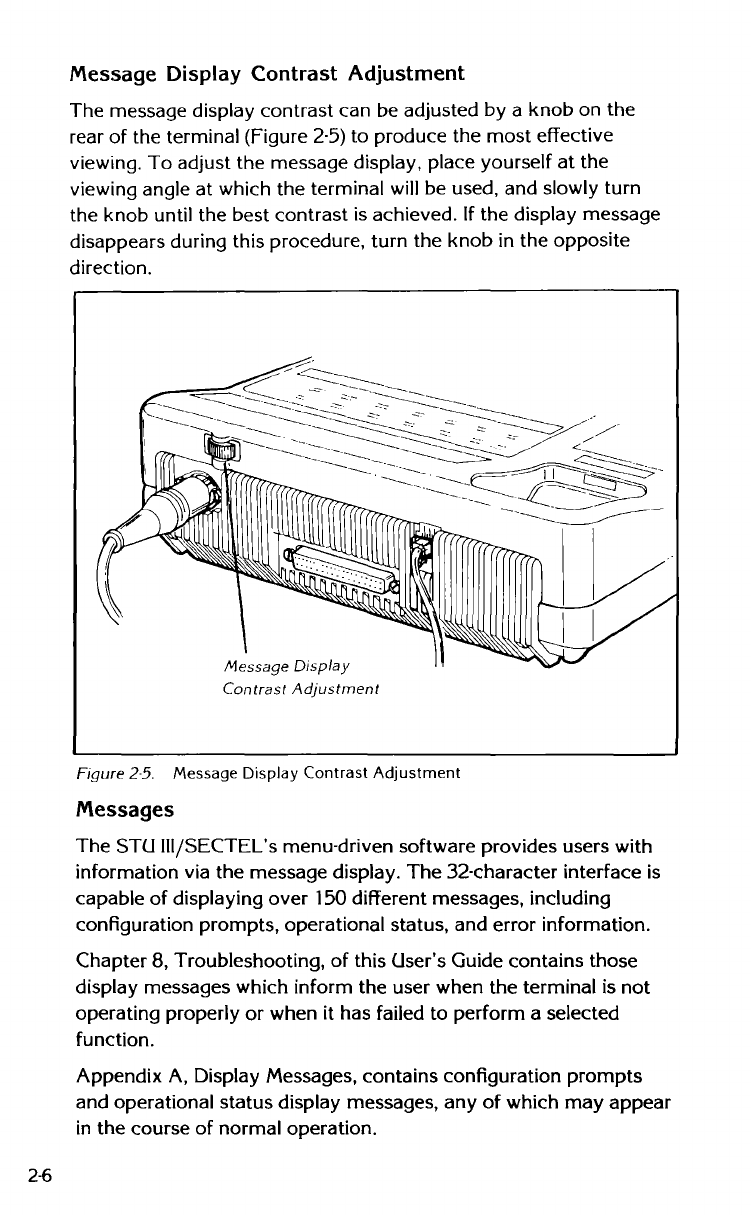

Message Display Contrast Adjustment
The message display contrast can be adjusted by a knob on the
rear
of the terminal (Figure 2-5) to produce the most effective
viewing.
To adjust the message display, place yourself at the
viewing angle
at which the terminal will be used, and slowly turn
the knob until the best contrast is achieved. If the display message
disappears
during this procedure, turn the knob in the opposite
direction.
Message Display
Contrast Adjustment
Figure 2-5_ Message Display Contrast Adjustment
Messages
The STU 111/SECTEL's menu-driven software provides users with
information via the message display. The 32-character interface is
capable of displaying over 150 different messages, including
configuration prompts, operational status, and error information.
Chapter 8, Troubleshooting, of this User's Guide contains those
display messages which inform the user when the terminal is not
operating properly or when it has failed to perform a selected
function.
Appendix A, Display Messages, contains configuration prompts
and operational status display messages, any of which may appear
in
the course of normal operation.

' . .
001I1'Gm '
To establish a secure link, the STU 111/SECTEL must be Ailed with
cryptographic data. This can be accomplished in
two ways, by an
operational All or a seed All. An operational All, performed by your
security representative, will give the terminal all required data. A
seed All must be converted to an operational All by calling a Key
Management Center (KMC) to obtain the necessary
crypto data.
87-3456
Figure 2·6. Crypto Ignition Key (CIK) KSD·64A
i I r;;::iT'? ' . I ' : • •
. ·. 1..S'.i l'•' . . '
'. - ,...) : . ' . . ! ' ' . :
The Crypto Ignition Key (CIK) (Figure 2-6) is a primary feature of
the STU 111/SECTEL. It unlocks the terminal, allowing a secure
communications link to be established. Once the CIK is inserted
into the STU
111/SECTEL 1000, the system becomes classified (see
Chapter 4, Security Considerations).
The CIK can only be inserted
one way, and should be turned one-quarter turn clockwise to
operate.
~
-
tJ
2-7

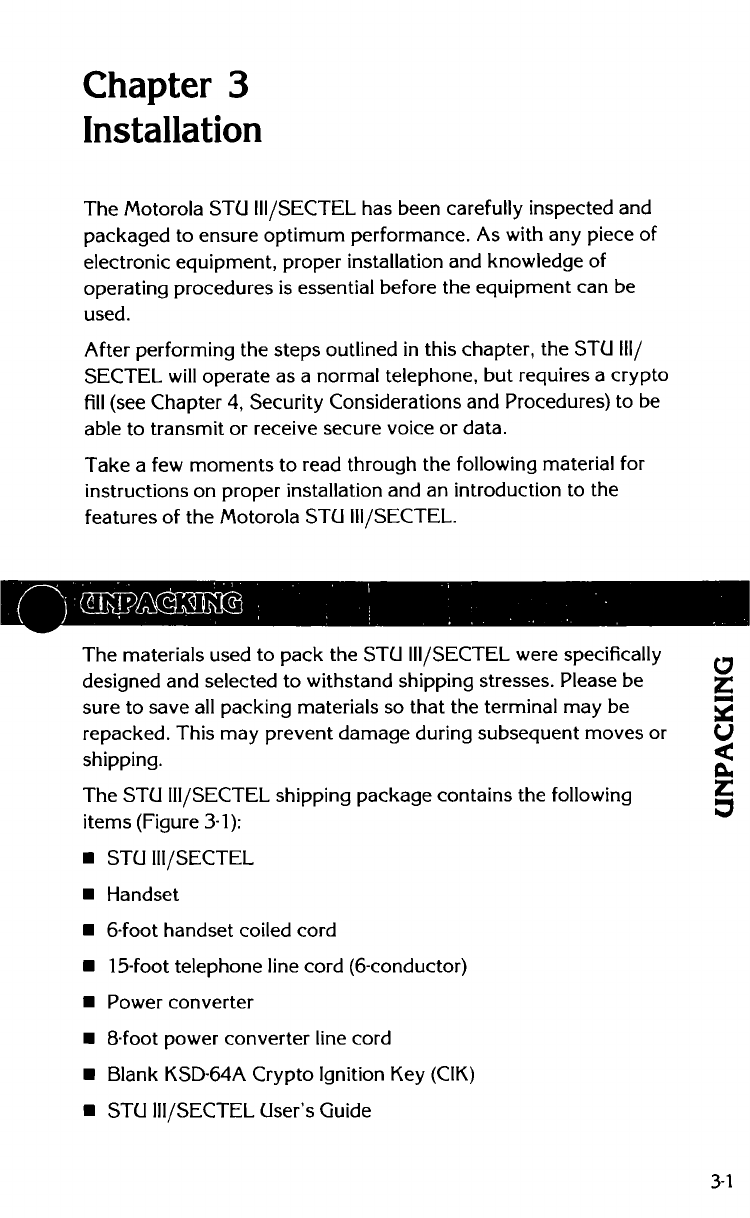

Chapter 3
Installation
The Motorola STU 111/SECTEL has been carefully inspected and
packaged to ensure
optimum performance. As with any piece of
electronic equipment, proper installation and knowledge of
operating procedures is essential before the equipment can be
used.
After performing the steps outlined in this chapter, the STU Ill/
SECTEL will operate as a normal telephone, but requires a crypto
fill (see Chapter 4, Security Considerations and Procedures) to be
able to transmit or receive secure voice or data.
Take a few
moments to read through the following material for
instructions on proper installation and an introduction to the
features
of the Motorola STU 111/SECTEL.
(;@RV~ .. :~ ... · .
The materials used to pack the STU 111/SECTEL were specifically
designed and selected to withstand shipping stresses. Please be
sure
to save all packing materials so that the terminal may be
repacked. This
may prevent damage during subsequent moves or
shipping.

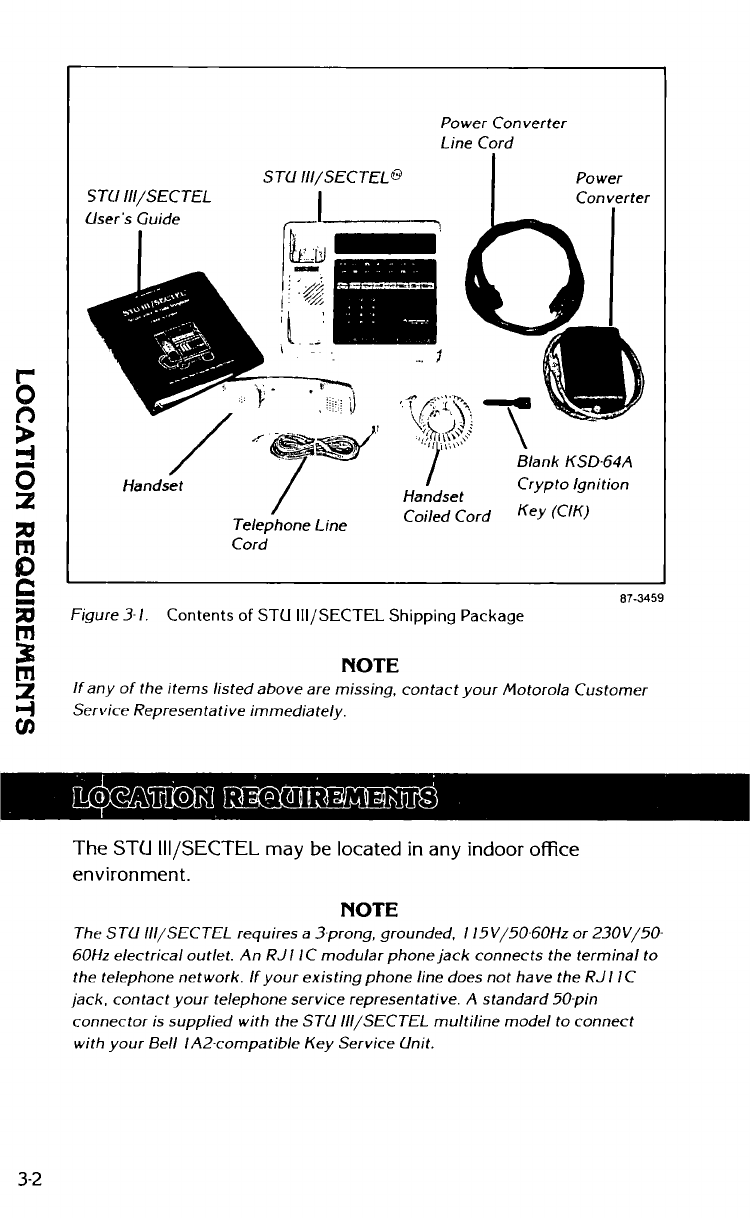

The STU 111/SECTEL shipping package contains the following
items (Figure 3- 1 ):
• STU 111/SECTEL
• Handset
• 6-foot handset coiled cord
• 15-foot telephone line cord (6-conductor)
• Power converter
• 8-foot power converter line cord
• Blank KSD-64A Crypto Ignition Key (CIK)
• STU 111/SECTEL User's Guide
0
z
-
::ir:::
(,)
<
c..
z
0
3-1

r-
0
(")
>
-I
-
0
:z
XS
ITJ
0
c
-
XS
ITJ
3
ITJ
:z
-I
(/J
3-2
Power Converter
Line Cord
STU 111/SECTEL
User's Guide
STll 111/SECTELB
'-~
~[;) .
/:~·;·--· -
I ,,.~
t __ :
I
... 1
. ): - '"" \)
/-~~,
Handset ~
Telephone Line
Cord
Power
Converter
Blank KSD·64A
Crypto Ignition
Key (CIK)
87-3459
Figure 3-1. Contents of STU 111/SECTEL Shipping Package
NOTE
If any of the items listed above are missing, contact your Motorola Customer
Service Representative immediately.
The STU 111/SECTEL may be located in any indoor office
environment.
NOTE
The STl/ 111/SECTEL requires a 3-prong, grounded, l 15V/50-60Hz or 230V/50-
60Hz electrical outlet. An RJ 11 C modular phone jack connects the terminal to
the telephone network. If your existing phone line does not have the RJ I IC
jack. contact your telephone service representative. A standard 50-pin
connector is supplied with the STll 111/SECTEL multiline model to connect
with your Bell IA2-compatible Key Service Unit.
