Motorola Talkabout T7100 User manual

010730-O
Models T7100 and T7200
@6864110R94@
6864110R94-O
A
6864110R94.book Page 0 Friday, February 8, 2002 2:34 PM

6864110R94.book Page 1 Friday, February 8, 2002 2:34 PM

Introduction
Congratulations on your purchase of a Motorola Product!
Product registration is an important step toward enjoying your new Motorola Product.
Registering helps us facilitate warranty service, and permits us to contact you should
your Motorola Product require an update or other service. Registration is not required
for warranty coverage. To register your product on-line, visit www.motorola.com/
warranty/radios.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Product Specifications
Frequency UHF 462.550-467.7250 MHz
Channels 22
30
T7100
T7200
Codes 38 CTCSS
Channel Spacing 12.5/25kHz Consumer selectable when FCC permits
Power Source 1 NiMH Battery pack or 4 AA Alkaline
6864110R94.book Page 2 Friday, February 8, 2002 2:34 PM

Motorola, the Stylized M Logo, and all other trademarks indicated as such herein are
trademarks of Motorola, Inc.
âReg. U.S. Pat. & Tm. Off.
© 2002 Motorola, Inc. All rights reserved. Printed in the U.S.A.
Motorola
Consumer Products Division
1705 Belle Meade Court
Lawrenceville, GA 30043
For a copy of a large-print version of this guide, or for product-related
questions, please call the following numbers:
1-800-353-2729 (U.S.A.)
1-800-461-4575 (Canada)
1-888-390-6456 TTY (Text Telephone)
On the web, please refer to the following url:
www.motorola.com/talkabout
6864110R94.book Page 3 Friday, February 8, 2002 2:34 PM

ContentsContents
4
Contents
Safety and General Information . . . . 1
FCC Licensing Information . . . . . . . 9
Getting Started . . . . . . . . . . . . . . . . 11
Turning On/Off Your Radio . . . . . . . 11
Diagram of Your Radio’s Display . . 12
Installing Batteries . . . . . . . . . . . . . 13
Charging . . . . . . . . . . . . . . . . . . . . . 15
Diagram of Your New Talkabout . . 18
Operating Your T7000-Series Radio 19
Talking Range . . . . . . . . . . . . . . . . 19
Changing Your Radio’s Settings . . . 20
Accessing the Backlight . . . . . . . . . 21
Lock . . . . . . . . . . . . . . . . . . . . . . . . 21
Checking Monitor/
Signal Strength Indicator . . . . . . . 21
“Roger” Beeps/
Talk Confirmation Tone . . . . . . . . 22
Button Beeps . . . . . . . . . . . . . . . . . 22
Changing Settings . . . . . . . . . . . . . . 23
Setting the
Channel . . . . . . . . . . . . . . . . . . . . 23
Interference Eliminator Code . . . . 23
Eavesdrop Reducer (T7200 Only) 24
Call Tone . . . . . . . . . . . . . . . . . . . 24
Microphone Gain . . . . . . . . . . . . . . 25
Hands-Free Use/VOX . . . . . . . . . . . 25
Scanning . . . . . . . . . . . . . . . . . . . . . 27
Setting the Battery Type . . . . . . . . . 28
Battery Life . . . . . . . . . . . . . . . . . . . 29
Menu Functions . . . . . . . . . . . . . . . 30
Advanced Features . . . . . . . . . . . . . 33
Selecting Bandwidth . . . . . . . . . . . . 33
Advanced Features (T7200) . . . . . . 34
Understanding Repeater Channels 34
Setting Repeater
Channels . . . . . . . . . . . . . . . . . . . 35
Interference Eliminator Codes . . . 35
Scanning Repeater Channels . . . . . 36
Weather (T7200) . . . . . . . . . . . . . . . 37
Turning On Weather
Channel Reception . . . . . . . . . . . 37
Setting the Weather Channel . . . . . 38
Using Accessories . . . . . . . . . . . . . . 39
Use and Care . . . . . . . . . . . . . . . . . . 41
Frequency and Code Charts . . . . . . 42
Troubleshooting . . . . . . . . . . . . . . . 45
Motorola Limited Warranty . . . . . . . 48
6864110R94.book Page 4 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
1
SAFETY AND GENERAL INFORMATION
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
READ THIS INFORMATION BEFORE USING YOUR RADIO
The information provided in this document supersedes the general
safety information contained in user guides published prior to July
2000. For information regarding radio use in a hazardous atmosphere
please refer to the Factory Mutual (FM) Approval Manual Supplement
or Instruction Card, which is included with radio models that offer this
capability.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To transmit
(talk), you must push the Push-to-Talk button; to receive (listen),
release the Push-to-Talk button.
Exposure To Radio Frequency Energy
Your Motorola radio is designed to comply with the following national
and international standards and guidelines regarding exposure of
human beings to radio frequency electromagnetic energy:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
6864110R94.book Page 1 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
2
• American National Standards Institute (ANSI) / Institute of Electrical and
Electronic Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
• National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998
• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to
Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz
to 300 GHz, 1999
• Australian Communications Authority Radiocommunications
(Electromagnetic Radiation - Human Exposure) Standard 1999 (applicable
to wireless phones only)
To assure optimal radio performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the
above standards, always adhere to the following procedures:
PORTABLE RADIO OPERATION AND EME EXPOSURE
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and
may violate FCC regulations.
DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna
affects call quality and may cause the radio to operate at a higher power level
than needed.
6864110R94.book Page 2 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
3
Two-way Radio Operation
When using your radio as a traditional two-way radio, hold the radio in a vertical
position with the microphone one to two inches (2.5 to 5 cm) away from the
lips.
Body-worn Operation
To maintain compliance with FCC/Health Canada RF exposure guidelines, if you
wear a radio on your body when transmitting, always place the radio in a Motorola
supplied or approved clip, holder, holster, case, or body harness for this product.
Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF
exposure guidelines. If you do not use one of the Motorola-supplied or approved
body-worn accessories, and are not using the radio held in the normal use position,
ensure the radio and its antenna are at least one inch (2.5 cm) from your body
when transmitting.
Data operation
When using any data feature of the radio, with or without an accessory cable,
position the radio and its antenna at least one inch (2.5 cm) from the body.
Approved Accessories
For a list of approved Motorola accessories visit our website at www.mot.com.
ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY
Note: Nearly every electronic device is susceptible to electromagnetic interference
(EMI) if inadequately shielded, designed or otherwise configured for
electromagnetic compatibility.
6864110R94.book Page 3 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
4
• FACILITIES
To avoid electromagnetic interference and/or compatibility conflicts, turn off your
radio in any facility where posted notices instruct you to do so. Hospitals or health
care facilities may be using equipment that is sensitive to external RF energy.
• AIRCRAFT
When instructed to do so, turn off your radio when on board an aircraft. Any use
of a radio must be in accordance with applicable regulations per airline crew
instructions.
• MEDICAL DEVICES
Pacemakers
The Advanced Medical Technology Association recommends that a minimum
separation of 6 inches (15 centimeters) be maintained between a handheld
wireless radio and a pacemaker. These recommendations are consistent with
the independent research by, and recommendations of, the United States Food
and Drug Administration.
Persons with pacemakers should:
• ALWAYS keep the radio more than six inches (15 centimeters) from their
pacemaker when the radio is turned ON.
• not carry the radio in the breast pocket.
• use the ear opposite the pacemaker to minimize the potential for
interference.
• turn the radio OFF immediately if you have any reason to suspect that
interference is taking place.
6864110R94.book Page 4 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
5
Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event
of such interference, you may want to consult your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from RF energy. Your physician
may be able to assist you in obtaining this information.
Safety and General Use While Driving
Check the laws and regulations on the use of radios in the area where you drive.
Always obey them.
When using your radio while driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
OPERATIONAL WARNINGS
• FOR VEHICLES WITH AN AIR BAG
Do not place a portable radio in the area over an air bag or in the air bag
deployment area. Air bags inflate with great force. If a portable radio is placed in
the air bag deployment area and the air bag inflates, the radio may be propelled
with great force and cause serious injury to occupants of the vehicle.
6864110R94.book Page 5 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
6
• POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn off your radio prior to entering any area with a potentially explosive
atmosphere, unless it is a radio type especially qualified for use in such areas as
“Intrinsically Safe.” Do not remove, install, or charge batteries in such areas.
Sparks in a potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above include
fueling areas such as below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or particles, such
as grain, dust or metal powders, and any other area where you would
normally be advised to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always posted.
• BLASTING CAPS AND AREAS
To avoid possible interference with blasting operations, turn off your radio when
you are near electrical blasting caps, in a blasting area, or in areas posted: “Turn
off two-way radio.” Obey all signs and instructions.
OPERATIONAL CAUTIONS
• ANTENNAS
Do not use any portable radio that has a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor burn can result.
6864110R94.book Page 6 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
7
•BATTERIES
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed
terminals. The conductive material may complete an electrical circuit (short
circuit) and become quite hot. Exercise care in handling any charged
battery, particularly when placing it inside a pocket, purse, or other container
with metal objects.
BATTERY CHARGER SAFETY INSTRUCTIONS
Save these Charger Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate the charger if it has received a sharp blow, or has been dropped
or damaged in any way.
3. Do not disassemble the charger if it has received a sharp blow, or has been
dropped or damaged in any way.
4. Never alter the AC cord or plug provided with the unit. If plug will not fit the
outlet, have proper outlet installed by a qualified electrician. An improper
condition can result in a risk of electric shock.
5. To reduce risk of damage to cord or plug, pull the plug rather than the cord when
disconnecting charger from AC receptacle.
6. To reduce the risk of electric shock, unplug the charger from the outlet before
attempting any maintenance or cleaning.
7. Use of an attachment not recommended or sold by Motorola may result in a risk
of fire, electric shock, or personal injury.
6864110R94.book Page 7 Friday, February 8, 2002 2:34 PM

SAFETY AND GENERAL INFORMATION
8
8. Make sure that the cord is located so that it will not be stepped on, tripped over,
or subjected to damage or stress.
9. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in a risk of fire and/or electric shock. If an
extension cord must be used, make sure:
• That the pins on the plug of the extension cord are the same number, size
and shape as those on the plug of the charger.
• That the extension cord is properly wired and in good electrical condition,
and
• That the cord size is18 AWG for lengths up to 100 feet, and 16 AWG for
lengths up to 150 feet.
10. The supply cord of this charger cannot be replaced. If the cord is damaged,
callMotorola Product Services at:
1-800-353-2729 (U. S. A.)
1-800-461-4575 (Canada)
1-888-390-6456 TTY (Text Telephone)
6864110R94.book Page 8 Friday, February 8, 2002 2:34 PM

9
FCC Licensing Information
FCC
FCC Licensing Information
Your Motorola radio operates on General Mobile Radio Service (GMRS) frequencies
and is subject to the Rules and Regulations of the Federal Communications
Commission (FCC). The FCC requires that all operators using General Mobile Radio
Service (GMRS) frequencies obtain a radio license before operating their equipment.
To obtain the FCC forms please request Form 605 which includes all forms and
instructions. If you wish to have the document faxed, mailed or have questions,
please use the following contact information.
See the Frequency and Code Charts on page 42. For questions on determining your
radio frequency, please call Motorola Product Services at:
1-800-353-2729
Faxed
Contact the Fax-On-
Demand system at:
Mailed
Call the FCC forms
hotline at:
Questions
regarding FCC license
Contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
6864110R94.book Page 9 Friday, February 8, 2002 2:34 PM

FCC Licensing Information
10
FCC
Changes or modifications not expressly approved by Motorola may void the user’s
authority granted by the FCC to operate this radio and should not be made. To
comply with FCC requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to perform
transmitter maintenance and repairs in the private land mobile and fixed services as
certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.
6864110R94.book Page 10 Friday, February 8, 2002 2:34 PM

11
Getting Started
Getting Started
Turning On/Off Your Radio
A Diagram of your New T7000-Series Radio and its Functions is on
page 18.
Note: The red indicator light under the antenna flashes every three seconds, unless
it has been disabled as described on page 20.
Turn
Knob Display Normal Menu Mode
P
Turn Knob on the top of the radio clockwise to use. Turn
the Knob counterclockwise to turn the radio Off.
The radio chirps and displays all feature icons that your
radio has available for approximately one second.
Depending upon your radio model; T7100 will have
the Channel 1-22 and the Interference Eliminator Code
(0-38) left on display. Previous usage dictates
Interference Eliminator Code.
For T7200 the Channel 1-22 and/or Repeater Channel
15 x- 22 xwill be left on display.
x
6864110R94.book Page 11 Friday, February 8, 2002 2:34 PM

Getting Started
12
Diagram of Your Radio’s Display
Scan Keypad Lock
Eavesdrop Reducer/Scramble (T7200 only)
Signal Strength
Interference Eliminator Code
Weather (T7200 only)
VOX/Hands-free use with
or without accessories
Battery Meter
Channel Indicator
1/2 Watt/Low Power
Channels 8-14 Only
NORMAL USE FOR ALL MODELS
Scan Keypad Lock
Eavesdrop Reducer/Scramble (T7200 only)
Signal Strength
(Frequency) Indicators
Weather (T7200 only)
VOX/Hands-free use with
or without accessories
Battery Meter
Channel Indicator
1/2 Watt/Low Power
xRepeater Channel
5
Channels 8-14 only
T7200 ONLY WITH REPEATER ENABLED
6864110R94.book Page 12 Friday, February 8, 2002 2:34 PM

13
Getting Started
Installing Batteries
Some radio packages include a rechargeable Nickel-Metal Hydride (NiMH) battery
(NTN8971 or NNTN4190), or you may use 4 AA Alkaline batteries. If you would like
to obtain the battery, the charger or the Rechargeable Upgrade Kit (Accessory
53897), please call the following numbers to locate the dealer nearest you:
(U.S.A.) 1-800-353-2729
(Canada) 1-800-461-4575
You may also obtain accessory items via Motorola’s Talkabout website:
www.motorola.com/talkabout
NiMH Battery Installation
Your radio uses one rechargeable Nickel-Metal Hydride Battery pack (Motorola part
numbers NTN8971 or NNTN4190). These cells provide 13 hours of radio use; Based
upon 5/5/90 duty cycle (5% Transmit, 5% Receive, 90% Standby).

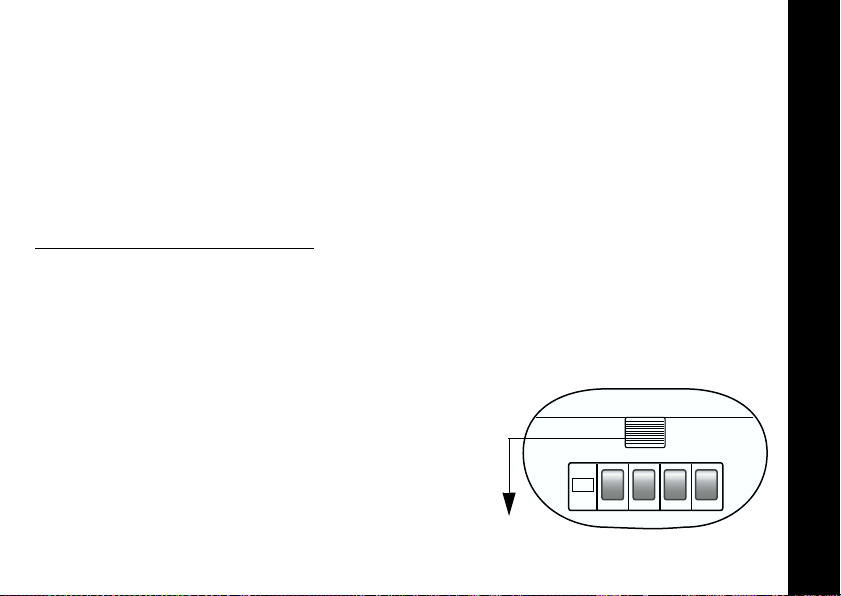

• To begin, slide the Ribbed Latch on the
bottom of the radio away from the back cover,
or toward the contacts.
Ribbed
Latch
6864110R94.book Page 13 Friday, February 8, 2002 2:34 PM

Getting Started
14
AA Alkaline Batteries Installation
Your radio also uses 4 AA alkaline batteries.
These cells provide 22 hours of radio use;
Based upon 5/5/90 duty cycle.
•Push the Ribbed Latch on the bottom of the
radio away from the battery door.
•Slide and lift the battery door off.
•Place AA batteries so that the + markings
match the markings in the compartment.
•Slide and snap the battery cover into place.
•Slide and lift the back cover off.
•Position the battery with the Motorola Logo
side up, and the charge contacts are facing
the bottom of the radio. Insert the top of the
battery into the radio and push the battery up
and into the battery compartment to fit tightly
into place.
•Slide and snap the cover back into place
6864110R94.book Page 14 Friday, February 8, 2002 2:34 PM

15
Getting Started
Charging
The NiMH Battery with Plug-in Charger Part No. NNTN4078
•Make sure NiMH battery (Motorola part
numbers NNTN8971 or NNTN4190) is left
inside the radio.
•Make sure the radio is Off.
•Plug the charger into an electric outlet.
•Lift Accessory cover and plug the Charger
firmly into the jack socket. Please see figure.
Note: The light on the charger will glow red
continuously while charging.
Charge the battery overnight (16 hours)
before using it for the first time. It will need
up to ten (10) hours of charging thereafter.
For optimum battery life, the battery must
not be left charging for prolonged periods after reaching full charge.
If radio is On while charging, additional time is required to charge the battery.
The approved NiMH Battery-pack (NNTN8971 or NNTN4190) and Plug-in
Charger (NNTN4078) are included in the T7000 Series Rechargeable
Upgrade Kit (53897).
The approved NiMH Battery-pack is included in the NiMH Rechargeable
Battery Accessory Package (53871).
Light
6864110R94.book Page 15 Friday, February 8, 2002 2:34 PM
