MouKey MwmU-5 User manual

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equi-pment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for helpThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.!AllRightReservedWireless microphoneWireless microphoneMODEL: MwmU-5Operating ManualPlease read this manual carefully before use.Content List1、Receiver2、Handheld Mic3、Power Adapter4、Audio Cable5、Manual
A1
A1A2
A2

CONTENTSContentsMain FeaturesBrief IntroductionParts(Receiver)Receiver DisplayReceiver OperationHandheld Microphone OperationBody-pack transmitter(optional)HANDHELD MICROPHONE AND BODY-PACK MICROPHONECarrier Frequency: 902-926MHzPower Output: 10-30mWHarmonic Radiation:﹤-50dBcBattery: 2x1.5VAAbatteryBatterylife:﹥5hTransmission Delay:﹤3msPowerSupply: DC12V500mAAudioOutput: 1x6.3mm, 2xXLRbalanceoutputMANUALMANUAL87、TECHNIQUE SPECIFICATIONCarrier Frequency: 902-926MHzDynamic Range: 96dBDistortion:﹤0.3%FrequencyResponse: 30-20KHz/+-2dBSignal / noise Ration: 96dBReceiving Sensitivity: -95dBmRECEIVERPerformance index8

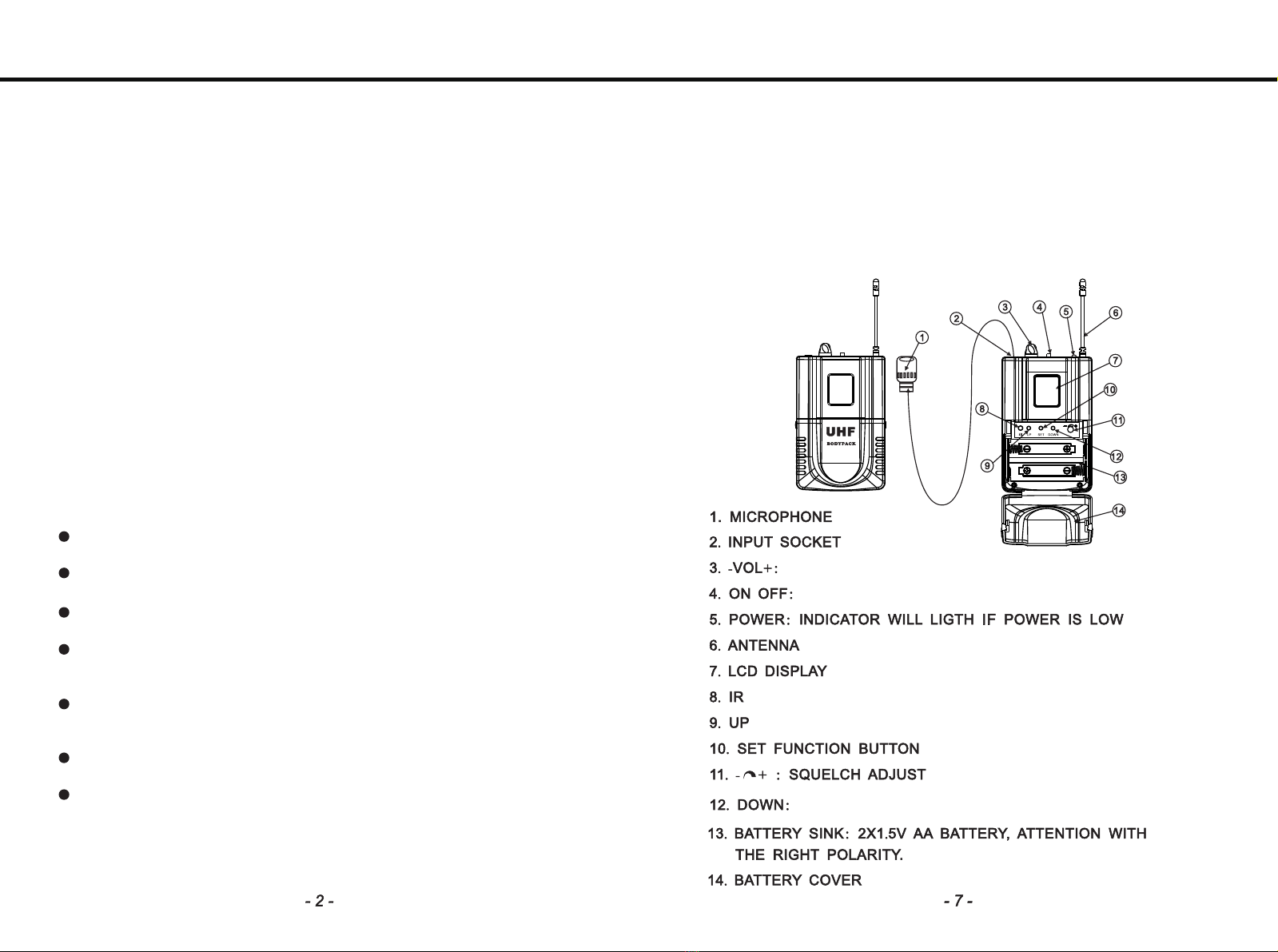

(4) Attention the using distance between the microphone Grille and mouth is less than 15 cm.(5) Avoid pointing the Grille against the Horn.1、BRIEF INTRODUCTION2、MAIN FEATURESOptional UHF band(902-926MHz)All adopt the SMT process, circuit board design is compact.Multiple noise control circuit, refused to external disturbance and open the machine noise system.The receiver and transmitter use LED screen to show the frequency.Dedicated to large and small stages, dance halls, conference rooms, speeches family entertainment and so on. Excellent dynamic heart shaped cartridge for better clear sound.Effective open use distance of 70-90 meters.6、BODY-PACK TRANSMITTER (OPTIONAL)MANUALMANUALOur company has designed and developed this excellent wireless microphone system, using a fully integrated solution, single-chip integrated microphone amplier, DSP-based audio processor, phase-locked loop frequency synthesizer and so on. Compared with the traditional discrete device system, the stability and reliability of all the circuit modules are further improved. Our microphone uses the traditional FM modulation technology, has the superior RF performance and the audio performance, provides the professional grade sound quality experience for the user.

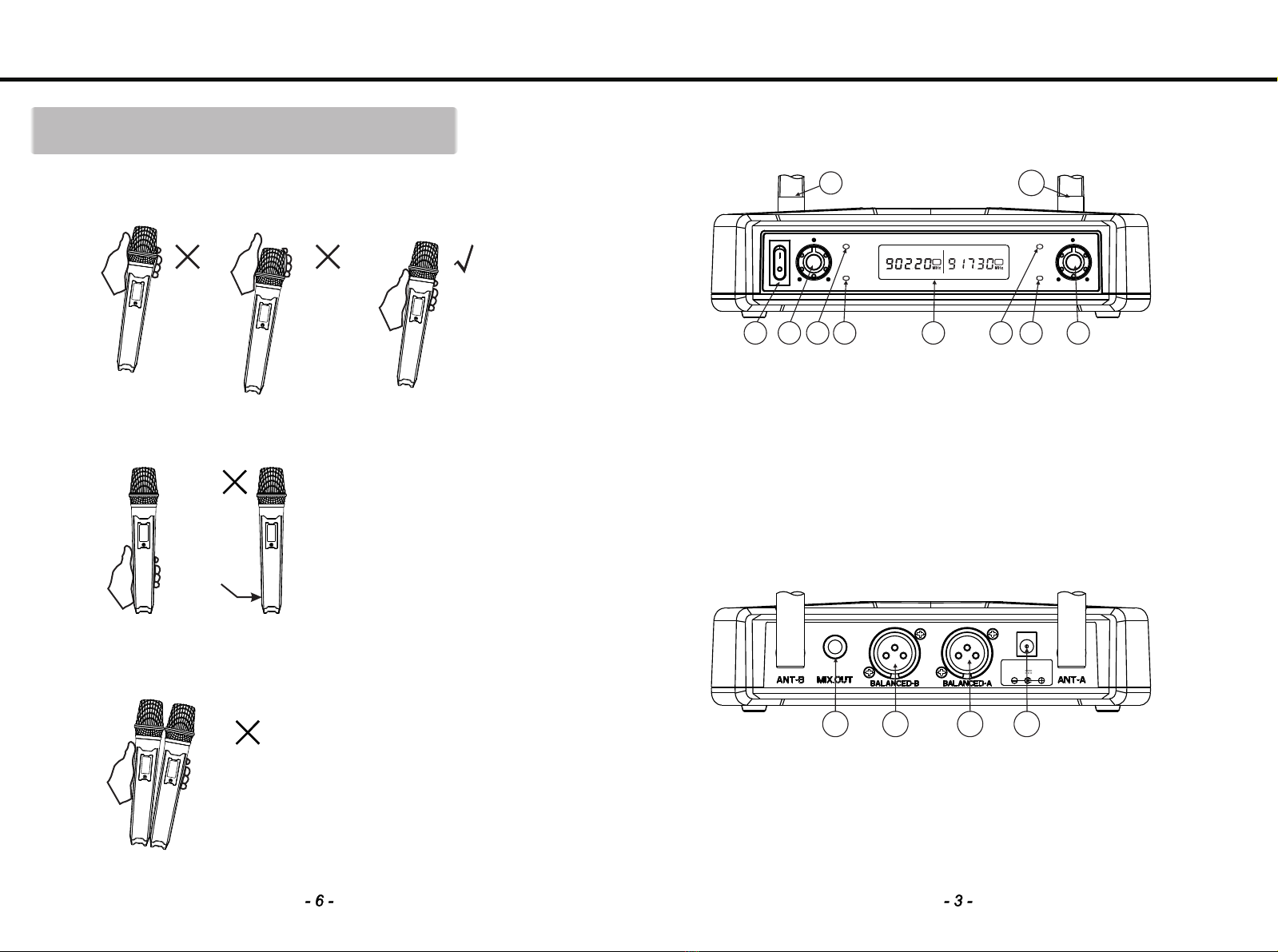

3、PARTS(RECEIVER)HANDHELD MICROPHONE USING TECHNIQUE(1) Don't hold the microphone Grille:(2) Avoid holding the microphone on antenna position:antennapositionMANUALMANUAL12341095678VOLUME-AVOLUME-BAFRFAFRFWIRELESS MICROPHONE RECEIVER 1、POWER2、VOL.A3、Channel A-AF indicator4、Channel A-RF indicator5、DISPLAY WINDOW6、Channel B-AF indicator7、Channel B-RF indicator8、VOL.B9、ANT-A10、ANT-BDCINPUT
12V-18V 500mA
1412131111、MIX.OUT12、BALANCE B13、BALANCE A14、DC INPUT(3) Don't put the two microphone to use together:A1A2

A1

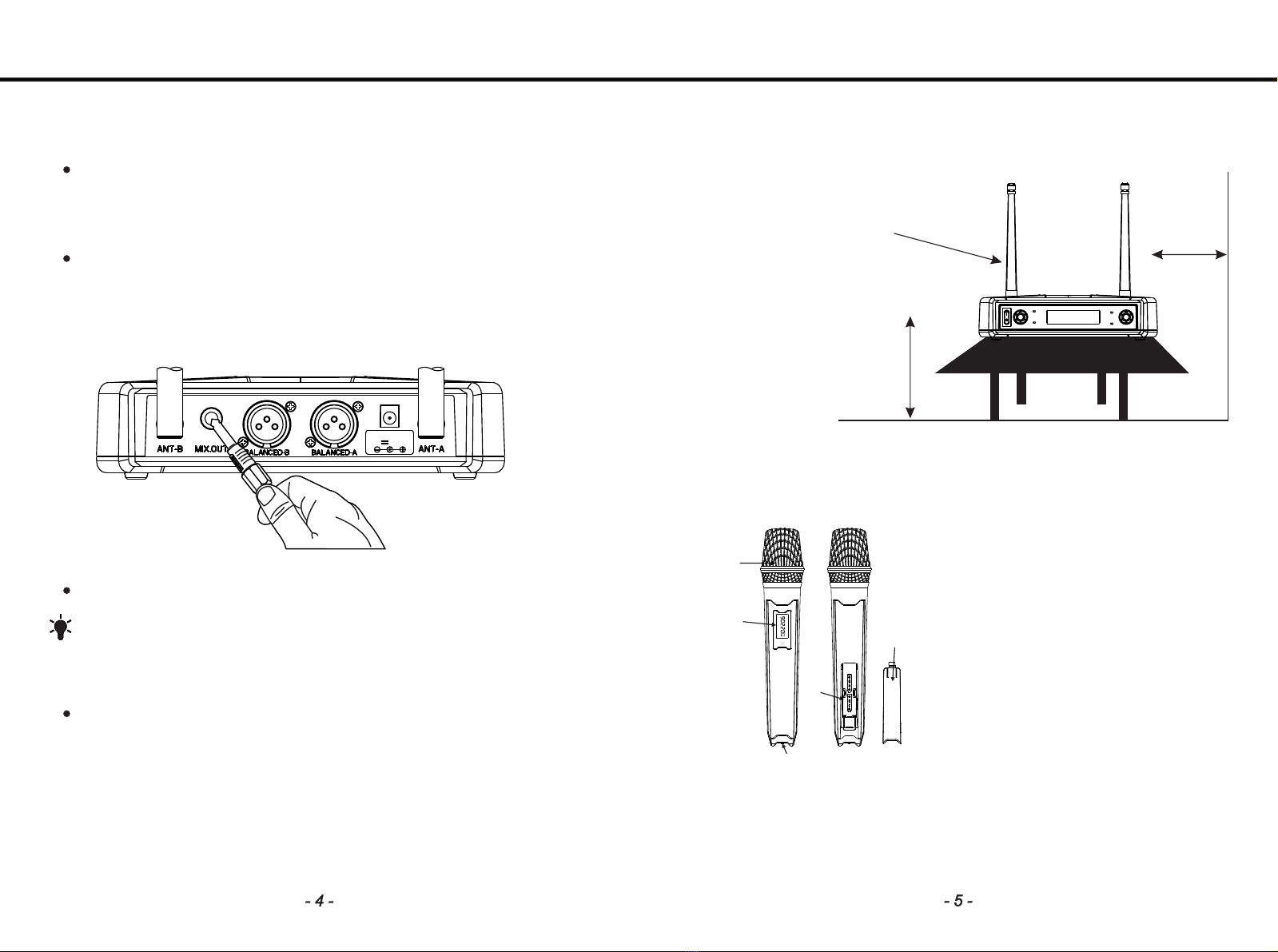

MANUALMANUALConnect the power:Connect the power cable to the DC socket (10) or (1 4) of the Receiver, make sure the adaptor is suitable before using the Receiver.Connect the audio cable:Mix output: connect the audio cable (attached) to the MIX.OUTsocket (8) (11) while the other side connect to MIX. IN or AUX IN.4、RECEIVER OPERATIONDCINPUT12V 500mATurn on the power button (1),Receiver is in working status.Note: Before turn on the Receiver, turn the volume control knob (2.8) to the minimum volume, adjust the volume as needed when the Receiver is working.Warnings of Receiver installationBeyond 1 meter more away from the wallBeyond 1 meter more away from the floorAntenna fully pull out,or will effect receiving signalBeyond 1 meter more
Antenna fully pull out
Beyond 1 meter more124531. Microphone capsule: use to pick up sound.2. LCD display: indicates the microphone working status.3. ON/OFF switch: control the handheld microphone of power on and off.4. Battery Sink: insert 2x1.5VAA battery, note to insert in correct polarity.5.Battery cover: battery for fixed the microphone.5、HANDHELD MICROPHONE OPERATION
