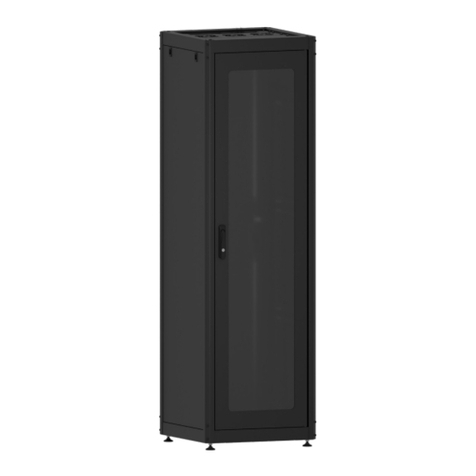

Assembly Guide for Sound Rack
SRD-800/42U
SRD-800/36U
SRD-800/24U
Models:
Assembly
components: SRD-800/24U SRD-800/36U SRD-800/42U
Frame top SRD-800 1 pcs 1 pcs 1 pcs
Frame bottom SRD-800 1 pcs 1 pcs 1 pcs
Rack Pillar SRD-800 U24 - 4 pcs U36 - 4 pcs U42 - 4 pcs
Side panel U24 - 2 pcs U36 - 2 pcs U42 - 2 pcs
Glass door U24 - 1 pcs U36 - 1 pcs U42 - 1 pcs
Blind door U24 - 1 pcs U36 - 1 pcs U42 - 1 pcs
Jamper SRD-800 2 pcs 4 pcs 6 pcs
Vertical prole U12 8 pcs 12 pcs 12 pcs
Vertical prole U6 - - 4 pcs
Cable channel U12 4 pcs 6 pcs 6 pcs
Screw M6x16 DIN 912 16 pcs 16 pcs 16 pcs
Leg M10x30 4 pcs 4 pcs 4 pcs

Assembly Guide
SRD-800 series
www.mnmounting.com
[email protected]om
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
SRD-800/24U
SRD-800/36U
SRD-800/42U
RC-2U
Rack Cover, 2U height
(1 pcs included)
RCV-2U
Rack perforated Cover,
2U height (1 pcs included)
RC-6U
Rack Cover, 6U height
(1 pcs included)
RC-4U
Rack Cover, 4U height
(1 pcs included)
RCF-4U
Rack Cover for 3 fans, 4U
height (1 pcs included)
RPB-2U
Rack Panel with cable access
slot and brushes , 2U height
(1 pcs included)
Jumper SRD-800
Cable channel 12U
Vertical prole 12U/6U
RC-5U
Rack Cover, 5U height
(2 pcs included)

Assembly Guide
SRD-800 series
www.mnmounting.com
[email protected]om
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Assembly components:
1
Frame top SRD-800
2
3
5
4
Rack Pillar SRD-800
Side panel
Frame bottom SRD-800
6
Cable channel U12
Vertical prole U12
7
8
9
10
Glass door
Blind door
Leg M10x30
Screw M6x16 DIN 912
1
2
3
4
5
6
7
8
9
10
11
Jamper SRD-800
11
1
2
Hex key 5 mm - 1 pcs

Assembly Guide
SRD-800 series
www.mnmounting.com
[email protected]om
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
1. Start the assembly by installing
legs (
11
) into bottom frame (
2
).
2. Install pillars (
3
) in the frame (
2
),
without xing them with screws.
Assembly Instructions:
1
2
3
1.1. Optional!!! Install a Wheels Set 50
instead of legs.
1.1
3. Install the top frame (
1
) onto
pillars (
3
), without xing them with
screws.

Assembly Guide
SRD-800 series
www.mnmounting.com
[email protected]om
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
5. Install Jampers (
7
) from the
inside frames.
5
4
4. Tighten the screws (
10
) of all
pillars (
3
).
67
6. Install Vertical proles (
8
) from
the inside frames.
7. Install Cable channels (
9
) from
the inside frames.

Assembly Guide
SRD-800 series
www.mnmounting.com
[email protected]om
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
8. Install the doors (
5
and
6
). 9. Install the side panels (
4
).
89
SAFETY INSTRUCTIONS
1. Entrust mounting equipment only to experienced professionals and strictly follow the
providedv safety instructions. Improperly installed equipment may result in property damage,
personal injury and/or liability for the installing contractor.
2. Only use appropriate fastening hardware.
3. Always make sure to securely use and lock all mounting bolts. Loose bolts may become
unscrewed over time due to vibration which will then create a safety hazard.
