Move Force+ 600N Mounting instructions

1000N Speed
INSTALLATION INSTRUCTIONS AND USER GUIDE
SECTIONAL AND TILTING DOOR OPENER
600N
1000N
1200N S/N
WARNING
Please read the manual carefully before installation and use.
The installation of your new door opener must be carried out by a technically qualied or licensed person.
Attempting to install or repair the door opener without suitable technical qualication may result in severe
personal injury, death and / or property damage.
EN

CONTENTS
Important Safety Recommendations
Product Description & Features
Pre-Installation Recommendations
Installation Instructions
Installation (Wall Bracket & Door Bracket)
Installation (Steel Track)
Installation (Sectional Steel Track Assembly)
Battery Backup Assembly (optional)
Display Menu Instructions (Plus II)
Display Menu Instructions
Terminal Introduction and Application
Manual Disengagement
Maintenance
Technical Specications
Parts Listing
Common Fault & Solutions
Warranty Certicate
1D
2-3D
4D
4D
5D
6D
7D
8D
9-19D
21-22D
23D
23D
24D
25D
26-27D
28D

IMPORTANT SAFETY RECOMMENDATIONS
FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL
INJURY, DEATH AND / OR PROPERTY DAMAGE.
1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION RECOMMENDATIONS.
2. The opener is designed and manufactured to meet local regulations. The installer must be familiar with local
regulations required in respect of the installation of the opener.
3. Unqualied personnel or those persons who do not know the occupational health and safety standards being
applicable to automatic gates and other doors, must in no circumstances carry out installations or implement systems.
4. Persons who install or service the equipment without observing all the applicable safety standards will be responsible
for any damage, injury, cost, expense or claim whatsoever any person suered as a result of failure to install the system
correctly and in accordance with the relevant safety standards and installation manual whether directly or indirectly.
5. For additional safety we strongly recommend the inclusion of Photo Beam. Although the opener incorporates a
pressure sensitive Safety Obstruction Force system the addition of Photo Beam will greatly enhance the operating safety
of an automatic garage door and provide additional peace of mind.
6. Make sure that the garage door is fully open & stationary before driving in or out of the garage.
7. Make sure the garage door is fully closed & stationary before leaving.
8. Keep hands and loose clothing o the opener and garage door all the time.
9. The Safety Obstruction System is designed to work on STATIONARY objects only. Serious personal injury, death and /
or property damage may occur if the garage door comes into contact with a moving object
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance.
11. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
-WARNING: Important safety instructions. It is important for the safety of persons to follow all instructions. Save these
instructions.
-Do not allow children to play with door controls. Keep remote controls away from children.
-Watch the moving door and keep people away until the door is completely opened or closed.
-Take care when operating the manual release since an open door may fall rapidly due to weak or broken springs, or
being out of balance.
-Frequently examine the installation, in particular check cables, springs and mountings for signs of wear, damage or
imbalance. Do not use if repair or adjustment is needed since a fault in the installation or an incorrectly balanced door
may cause injury.
-Each month check that the drive reverses when the door contacts a 50 mm high object placed on the oor. Adjust if
necessary and recheck since an incorrect adjustment may present a hazard, for drives incorporating an entrapment
protection system depending on contact with the bottom edge of the door.
-Details on how to use the manual release.
-Information concerning the adjustment of the door and drive.
-Disconnect the supply when cleaning or carrying out other maintenance.
-The installation instructions shall include details for the installation of the drive and its associated components.
-1D-

PRODUCT DESCRIPTION & FEATURES
1. Obstruction force adjustment
The minimum force display “1” and it can be adjusted upward. Display “5” means the maximum
force.
2. Travel speed adjustment
“8” appears on the display means the 80% of the travel speed. Display “A” means the full speed
160mm/s or 200mm/s.
3. Reversal height adjustment
“0” appears on the display means the door will rebound to the top. Display “1~9” means the door
will rebound to the position of the whole travel. One tenth to Nine tenth of the whole travel etc.
4. Partial open/height
“0” appears on the display means close the partial open function. Display“1~9” means to set the
dierent partial open position of the whole travel.
5.Transmitter button recognition function
“0”appears on the display means the buttons recognition function is closed. Display“1”means the
buttons recognition function is open.
6. Codes memory quantity
“A” appears on the display means the maximal code memory quantity is 50pcs. Press UP/DOWN
button once, to increase or decrease quantity. The code memory quantity is set on 5pcs*N, N=1~9.
(The quantity is the multiple of 5).
7.Maintenance alarm
“b”appears on the display and led light ashes 10 times quickly means the garage door and motor
need total maintenance.
8. Automatic safety reverse
Automatic stop / automatic reverse are controlled by our software of circuit boards. We are
circumspect to protect your children, pet or other goods.
9. Soft start / Soft stop
Ramping speed up and down at the start and end of each cycle reduces stress on the door and
opener for longer life, and makes for quieter operations.
10. Auto-Close
Auto- Close ensures peace of mind and keeps your house secure by automatically closing the door
upon entering or exiting the garage.
11. Self learning open and close obstruction force
The amount of opener power for dierent stages of the door’s travel is learnt during setup and is
constantly re-proled. Opener force measurement automatically adjustment in a suitable range.
12. Electronic limit, simple adjustment.
You only need control the limit setup from control panels to adjust it exactly, the simple and quick
process for any peoples.
-2D-

Moving Up
Moving Down
-3D-
13. Available terminal for Photo beams & Extra receivers & Wire or wireless wall switch &
Caution light & Pass door protection device.
14. Energy saving - L.E.D courtesy light
3 minutes L.E.D light delay, switching on with each cycle to illuminate your darkened garage.
15. Battery backup available
Openers could be supplied power with our battery backup once the power failure at your home.
16. Self-Lock in gear motors
Gear motor will self-lock with its disengagement systems.
17. Manual release
Don't worry about the power failure, the manual release system is a solution for operation the
door at any time.
18. Transmitter technology
Rolling Code technology (7.38 x 1019 Combinations), 433.92 MHz frequency, 4 channels design to
ensure you can control 4 dierent doors with one transmitter.
19. Applications
With as little as 30mm required between the ceiling and the highest point of the door travel, the
opener can be ush mounted for low headroom applications.
20. Metal bottom plate, stronger and security.
21. Up / Down moving operation buttons (UP / DOWN)

30mm Minimum
Clearence
PRE-INSTALLATION RECOMMENDATIONS
INSTALLATION INSTRUCTIONS
1. Garage door must be able to be lifted and closed easily by hand and without much eort. A well
balanced & sprung door is critical for proper installation.
2. The garage door opener can’t compensate for a badly installed garage door and should not be
used as a solution for a“hard to open” door.
3. If the unit is being installed on an existing door, make sure any existing locking devices are
removed or warranty will be void.
4. An approved outlet must be installed near where the opener is begin installed.
5. There should be a minimum gap of 30mm between the bottom of the chain drive rail and the top
of the garage door at its closest point. (refer to Fig 1.)
Important note: As for additional safety rules, we strongly recommends the tting of Photo Electric
safety beams on all installations.
Wall Bracket - Close the garage door and measure
the garage door width at the top and mark the
centre. Locate and mount the wall bracket
2cm-15cm above the door on the inside wall.
(Depend on the actual installation space).
Door Bracket – Fix the door bracket to a structural
part of the door as close to the top edge as possible
Figure 1
Mount Wall Bracket and Door Bracket (Fig2)
Figure 2
-4D-

Figure 3
Installation (Steel Track)
-5D-
Figure 4
Figure 5
STEP 1 (Fig.3)
Attach the opener head to the steel track. Assembly the 2 “U” Hanging brackets with 6mm nuts
supplied.
STEP 2 (Fig.3)
Place the steel track and opener head assembly centrally on the garage oor, with the open head
furthest away from the door. Lift the front of the track up to the wall bracket. Insert the pivot pin
and secure it with the split pin supplied.
STEP 3 (Fig.3, Fig.4)
Lift and support the opener head (with a ladder) so it is positioned centrally and level. Fix the
opener and track on ceiling by Iron bracket A & B.
WARNING: Do not allow children around the door, opener or supporting ladder serious injury
and/or damage may result from failure to follow this warning.
STEP 4 (Fig.3, Fig.5)
Connect the straight arm to the bent arm with the
bolt.
Position and bolt the arms to the top edge of the
door using
the bolt supplied.
STEP 5
Lift the garage door until the shuttle locks into the
drive chain/belt.
Now, ready to program the openers

1. 2-Parts Track:
As Fig.6, slide the A rail into the sleeve, slide the B rail into the sleeve.
3-Parts Track:
As Fig.7, slide the C rail into the sleeve, slide the D rail into the sleeve; slide the E rail into the sleeve.
2. Cut the plastic thread; pull the screw rod along with inner chain to the end rail position (Fig.8)
3. As Fig.9, release the nut & spring.
4. Tight the nut to the right position as
shown in Fig.10, cut the plastic tape, cut
the plastic thread on sprocket, then whole
rail assembled nished.
Sectional Steel Track Assembly
2 Parts Steel Track
-6D-
Figure 9
Figure 10
A:1500 mm
Sleeve
B:1500 mm
C:1000 mm
D:1000 mm
E:1000 mm
Sleeve
Sleeve
Figure 6
Figure 7
Figure 8

Option 1 - Top Fixed
STEP 1 (Fig.11)
Assemble the battery & battery bracket like the photo, x by screws supplied.
STEP 2 (Fig.12)
Join the battery to opener, nd the Fig.12.
Option 2 - Side Fixed
STEP 1 (Fig.13)
Assemble the battery & battery bracket like the photo, x by screws supplied.
STEP 2 (Fig.14)
Join the battery to opener, nd the Fig.14.
Battery backup Assembly (optional)
-7D-
Figure 11 Figure 12
Figure 13 Figure 14

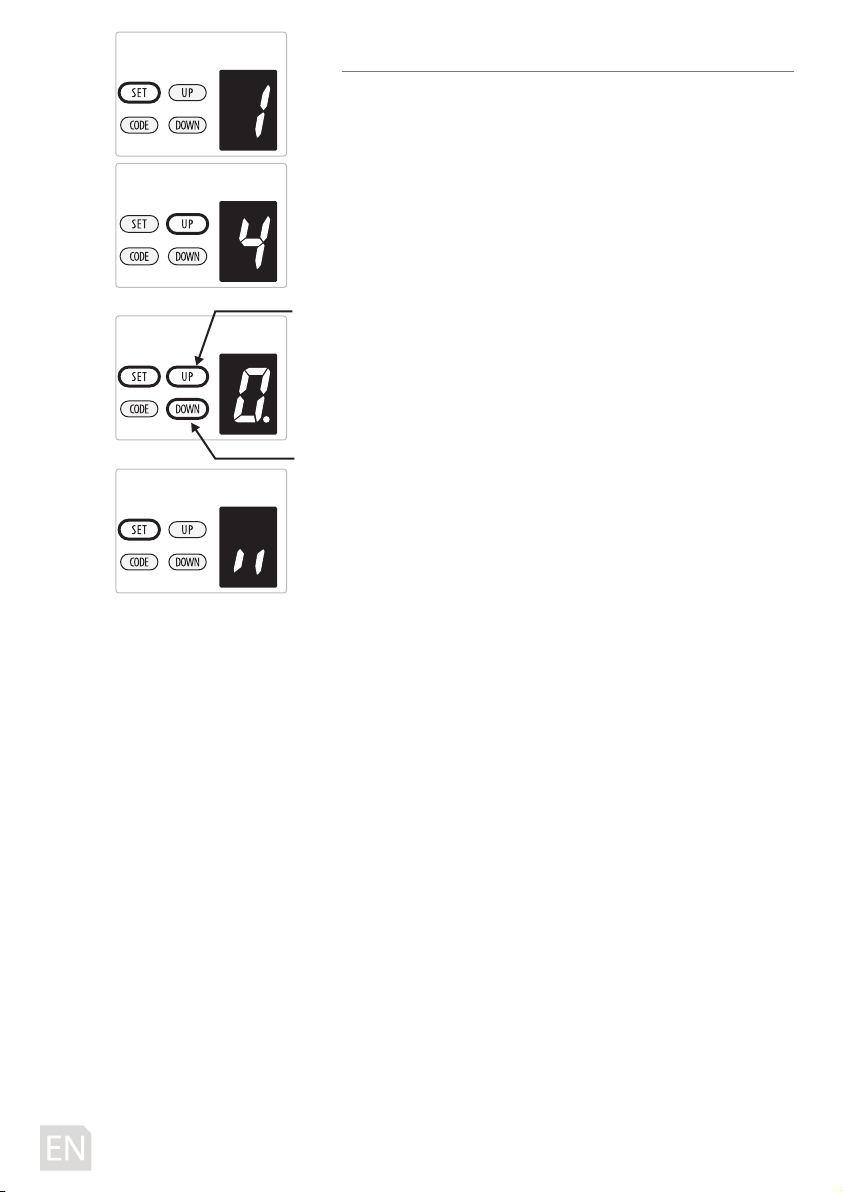

DISPLAY MENU INSTRUCTIONS
FEATURES SETTINGS:
a) Press and hold SET button until “1” appears on the display
then release the button.
b) Press UP / DOWN button, then it displays the number“1-E”.
c) Press SET button to conrm the feature you need to set,
then it enters to the interface for detail setting of the
appointed feature.
d) In the detail setting interface display“0-A” with ash dot.
e) Press UP / DOWN button to choose the feature you need to
set.
f ) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
-8D-

1.Short click SET button : When it standby, it will clear the error, alarm display, and return to normal
display.
2.Short click CODE button :
. ( In the Setting Status) Exit the current operation and return to the standby interface.
. When it standby, press the code, A dot will be indicated in the corner, now entering the code
leaning mode.
Now rst click the button on the hand transmitter you want to use, the dot may disappear ,then
press again the same button on the hand transmitter, the dot will ash, here, the code learning is
nished.
3. Short press UP button : The door will open.
4. Short press DOWN button : The door will close.
(When the door is opening or closing, it will stop if you press any key.)
5. Long press SET button : Enter function setting interface.
6. Long press CODE button : Press and hold CODE button until a Cis indicated on the display. All stored
remotes will be deleted.
7. Long press UP button : Increase the resilience. (Keep press DOWN button, after 4 seconds, it will
scroll to display 0-1-2, choose the number you want. 1=increase 25% 2=increase 50%)
8. Long press DOWN button : Restore Factory Settings
Keep press DOWN button, after 4 seconds, it will scroll to display , then the garage
door opener will restart.
Restart means all settings are back to factory settings, all learning things need to be done again
except the transmitter code learning.
PROGRAMMING INSTRUCTIONS
-9D-
Pre- Instruction for programme buttons

PROGRAMMING INSTRUCTIONS
1. PROGRAMMING OPEN & CLOSE LIMITS
a) Press and hold SET button to enter this function setting
until “1” appears on the display then release the button.
b) Press the SET button again. The door opener is now in
Programming Mode. And then you will see “n” with dot
appears on the display.
c) Press and hold the UP button until the door reaches the
desired open position, you will see “n” without dot on the
display.
d) Press SET button to conrm the open position, then you
will see “u” with dot on the display.
e) Next press and hold the DOWN button until the door
reaches the desired close position, you will see “u” without
dot on the display.
NOTE: For ne adjustments toggle UP & DOWN buttons.
f) Now press the SET button to conrm the close position,
then you will see “II” on the display.
After conrm the close position, the door will now cycle
open and close to set the travel limits and force sensitivity
adjustments. The door is now set for normal operation.
CAUTION: After the cycle open and close, there will be
gures shown on the display (0~9), “0” means the doors is
balanced, the smaller gure means the better door balance,
strongly recommend that the gure need to be smaller than
the power force.
-10D-

2. OBSTRUCTION FORCE ADJUSTMENT
CAUTION: The obstruction force adjustment is set
automatically during programming. Normally no
adjustment is necessary.
a) Press and hold SET Button until “1”appears on the display,
next press the UP Button until “2” appears on the display to
enter this function setting then release the button.
b) Press the SET button again, The unit is now in force
adjustment mode. And then you will see a gure “3” with
ash dot appears on the display.
c) Press the UP button to increase the force setting or the
DOWN button to decrease the force setting.
The minimum force is“1”and it can be adjusted upward. The
maximum force is “5”.
d) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The force is set on“3”as standard in factory.
3. TRAVEL SPEED SETTING
CAUTION: If you changed the speed again, it will cancel
the previous travel limit. The speed adjustment function
will be available only after you reset the travel limit.
a) Press and hold SET Button until “1”appears on the display,
next press the UP button until “3” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in speed
adjustment mode. And then you will see a letter “A” with
ash dot appears on the display.
c) Press the UP & DOWN button to choose the speed. Figure“8”
means the 80% of the travel speed. Figure “A” means the full
speed.
d) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The travel speed is set on full speed“A”as standard in
factory.
-11D-
increase force
decrease force
increase speed
decrease speed

4. AUTOMATIC CLOSING & TIME SETTING
NOTE: We recommend that Safety Photo Beams be used in
any installation where the Auto Close function is enabled.
a) Press and hold SET Button until“1”appears on the display,
next press the UP button until “4” appears on the display to
enter this function setting then release the button.
b) Press the SET button again, the unit is now in automatic
close adjustment mode. And then you will see a gure “0”
with ash dot appears on the display.
c) Press UP / DOWN button once to set the auto close time
(0~9).
d) Press UP button to increase the time, or DOWN button to
decrease the time.
The close time is 15second*N, N=0~9. The maximum time is
135s. To disable Auto Close Function, set time to zero (0).
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE:
1.The closing time is set on “0” as standard in factory.
2. If the Photo Cell Function is on, and it’s broke by the
obstruction, the auto close time will stop for a while, and
then continue the automatic close time again.
-12D-
increase time
decrease time

5. 5. AUTOMATIC CLOSING CONDITION SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “5” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in automatic
close condition adjustment mode. And then you will see a
gure “1”with ash dot appears on the display.
c) Press UP / DOWN button once to set the auto close
condition. You can choose “1” or “2” set.
Figure “1” means, the door only can auto close while in the
open limit position.
Figure“2”means, the door can auto close while the door is in
any position.
d) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE:
1. The closing condition is set on “1” as standard in factory.
2. The door will only automatic close while in its opening
process, but can’t automatic close after it is stopped while in
its closing process.
-13D-
6. LED OFF DELAY TIME SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “6” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in LED o delay
time adjustment mode. And then you will see a
gure“3”with ash dot appears on the display.
c) Press UP / DOWN button once to set the LED o delay time
(1~9).
d) Press UP button to increase the time, or DOWN button to
decrease the time.
The delay time is 1 minute*N, N=1~9. The maximum delay
time is 9 minutes.
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The LED o delay time is set on “3” as standard in
factory.
increase
decrease
increase time
decrease time

7. REVERSAL HEIGHT SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “
l
” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in reversal
height adjustment mode. And then you will see a gure “0”
with ash dot appears on the display.
c) Press UP / DOWN button once to set the reversal height
while closing (0~9).
d) Press UP button to increase , or DOWN button to decrease.
Figure “0” means the door will rebound to the open limit
position. Figure “1~9” means the door will rebound to the
position of the whole travel. One tenth to Nine tenth of the
whole travel etc...
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The reversal height is set on“0”as standard in factory.
-14D-
increase height
decrease height

8. PARTIAL OPEN/HEIGHT SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “8” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in
partial-open/height adjustment mode. And then you will
see a gure “0” with ash dot appears on the display.
c) Press UP / DOWN button once to select if you want to open
the partial open function or set the partial open height.
(0~9). Press UP button to increase , or DOWN button to
decrease.
Figure “0” means close the partial open function.
Figure“1~9”means set the partial open position of the whole
travel. One tenth to Nine tenth of the whole travel etc...
d) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE:
1. The partial open/height is set on “0”as standard in factory.
2. If you open the partial open/height function, the buttons’
recognition function will be disabled.
3. Other details please refer to the Instruction manual of the
remote carefully.
4. If you enabled the partial open function then disabled this
function later, please notice that only the coded button you
leaned in the beginning can control the opener now.
-15D-
increase
decrease

9.TRANSMITTER BUTTONS RECOGNITION FUNCTION SETTING
a) Press and hold SET button to enter this function setting
until “9” appears on the display then release the button.
b) Press the SET button again. The unit is now in buttons
recognition function adjustment mode. And then you will
see a gure “1” with ash dot appears on the display.
c) Press UP / DOWN button once to select if you want all the 4
buttons can control the only one opener, or only the
separate coded button can control the opener.
Figure “0” means the buttons recognition function is closed.
It means if you coded 1 button with 1 opener, then all the 4
buttons on the remote can control the opener. It’s suit for the
users who only have 1 automation door at home.
Figure “1”means the buttons recognition function is open. If
you coded rst button with rst opener, then the rst button
will be the only button on the remote can control the
opener. It’s suit for the users who have more than 1 automa-
tion doors/gates at home.
d) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE:
1. The buttons recognition is set on“1”as standard in factory.
2. After you changed the buttons un-recognition into recog-
nition, please notice that only the coded button can control
the opener.
A. CODES MEMORY QUANTITY SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “A” appears on the display to
enter this function setting then release the button.
b) Press the SET button again, the unit is now in remote
quantity adjustment mode. And then you will see a gure“A”
again, but with ash dot appears on the display.
c) Press UP / DOWN button once to set the remote quantity. (A
or 1~9).
d) Figure “A”means the maximal quantity 50pcs. Press
UP/DOWN button once to increase or decrease quantity.
The remote quantity is set on 5pcs*N, N=1~9. (The quantity
is the multiple of 5)
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The remote quantity is set on “A” as standard in
factory.
-16D-
Button recognition funcion is closed
Button recognition funcion is open
increase quantity
decrease quantity

B.REVERSAL HEIGHT IGNORANCE SETTING
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “b” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in reversal
height ignorance adjustment mode. And then you will see a
gure “1”with ash dot appears on the display.
c) Press UP / DOWN button once to set the reversal height
ignorance while closing (0~9).
d) Press UP button to increase , or DOWN button to decrease.
Figure “1~9” means the door will still not rebound even
though there’s obstacles in its closing path within 1cm~9cm
away from the close position. This function is most suitable
for the Northern Europe where will always snow on the
ground.
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The reversal height is set on“1”as standard in factory.
C. PASS DOOR SWITCH TYPE SETTING
a) Press and hold SET Button until “ 1 ” appears on the display,
next press the UP button until “C” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in the pass door
switch type adjustment mode. And then you will see a gure
“0” with ash dot appears on the display.
c) Press UP / DOWN button once to set the pass door switch
type. You can choose “0” or “1” set.
Figure “0” means, the pass door function is normally open.
Figure “1” means, the pass door function is normally close.
e) Press SET button to conrm the set and it will back to
standby status automatically and display “ll”.
NOTE: The pass door switch is set on “0” as standard in
factory.
-17D-
increase height
decrease height

D. PHOTO CELL ON/OFF SETTING
NOTE: Make sure the photo cell has been correctly installed
and used Normally Closed contacts to the accessory
terminals of the opener.
Also note that the photo beam function must be disabled
if NO photo beams are tted, otherwise the door cannot
be closed, and the LED display will show the letter“ r ”as an
indication.
a) Press and hold SET Button until “1” appears on the display,
next press the UP button until “d” appears on the display to
enter this function setting then release the button.
b) Press the SET button again. The unit is now in the photo
cell ON/OFF adjustment mode. And then you will see a
gure “0”with ash dot appears on the display.
c) Press UP / DOWN button once to set the photo cell ON/OFF
switch. You can choose “0” or “1”set.
Figure “0” means, the photo cell function is closed.
Figure “1” means, the photo cell function is open.
d) Press SET button to conrm the set and it will be back to
standby status automatically and display “ll”.
NOTE: The photo cell is set on“0” as standard in factory.
-18D-
