Movincool Climate Pro K36 User manual

CLIMATE PRO K36
SERVICE
MANUAL
R
R

2
© 2020 DENSO PRODUCTS AND SERVICES AMERICAS, INC. All rights reserved.
MovinCool® and Climate Pro® are registered trademarks of DENSO Corporation.
SERIAL NUMBER LOCATION
00
Month Year Sequential Model
number name
00 0000 000

3
TABLE OF CONTENTS
SERIAL NUMBER LOCATION ································································2
SAFETY PRECAUTIONS········································································5
CONSTRUCTION···················································································7
Dimensions ········································································································· 7
Names of Parts ·································································································· 8
Internal Structure ······························································································ 9
SPECIFICATIONS················································································· 10
Technical Specifications ···················································································10
Characteristics at 208V ···················································································12
Characteristics at 230V ···················································································13
SERVICE INFORMATION ····································································· 14
Machine Status ·································································································14
Machine Records ······························································································15
TROUBLESHOOTING ·········································································· 16
Initial Inspection ·······························································································16
Self-Diagnostic Codes ······················································································ 17
Troubleshooting Chart ·····················································································19
Inspection Before Disassembly ······································································ 22
DISASSEMBLY ····················································································23
Structure Parts ································································································ 24
Removal of Panels ··························································································· 25
Removal of Louver ··························································································· 32
Removal of Handles ························································································· 35
Removal of Side Panels ···················································································38
Removal of Bumpers ·······················································································40
Removal of Electrical Parts ············································································50
Removal of Antenna ························································································ 53
Removal of Communication Module ····························································· 55
Removal of Blower Assembly ········································································· 62

4
TABLE OF CONTENTS
INSPECTION OF PARTS·······································································67
Capacitor ·········································································································· 67
Drain Switch ····································································································· 67
Fan Motor (Evaporator) ···················································································68
Fan Motor (Condenser) ···················································································69
Compressor ······································································································70
Thermistor ········································································································· 71
High Pressure Switch ······················································································· 71
REFRIGERATION SYSTEM REPAIR······················································72
Brazing ·············································································································· 72
Replacement of Refrigeration Cycle Parts ··················································· 74
Charging the System with R-410A Refrigerant ············································ 76
REASSEMBLY ···················································································· 80
Wiring Diagram ································································································80
Compressor Mounting ·····················································································81
Caster Maintenance ·························································································81
Bumpers ···········································································································82
DATA PRIVACY DISCLOSURE····························································· 86

5
To reduce the risk of injury or malfunction, read “Safety Precautions” carefully before
servicing the unit.
The seriousness is classified by the following indicators.
WARNING Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury, damage to the unit or its
components and/or property.
• Serious injuries include loss of vision, bodily injuries, burns, electric shock, fractures or poisoning, which
require prolonged medical treatment and will leave aer-eects.
• Minor or moderate injuries include bodily injuries, burns or electric shock, which do not require prolonged
medical treatment.
• Property includes housing, household goods, livestock or pets.
Safety symbols and meanings
This must be done. This must not be done.
WARNING
Disconnect power supply from the unit before performing any service. Beware that
some residual voltage may remain in the unit immediately after the power is
disconnected.
There is a risk of electric shock.
Use the power supply dedicated single outlet circuit with a UL recognized short-
circuit and ground-fault protective breaker.
Failure to use correct power supply may cause fire or electric shock.
Electrical work must be performed by qualified electrical personnel.
Failure to use qualified electrical personnel for electrical work may cause fire, electric
shock, injury, malfunction or water leaks.
Refrigerant services must be performed by a licensed professional only.
Failure to use licensed professionals for refrigerant services may cause fire, burns, injury
or malfunction.
Always wear proper eye protection and gloves while handling refrigerant. Be careful
not to allow refrigerant come into contact with eye or skin.
Failure to do so may lead to loss of vision or burns.
Avoid refrigerant work near flammable materials. Work in a well-ventilated area
only.
Failure to do so may lead to explosion, fire or lack of oxygen.
SAFETY PRECAUTIONS

6
Maintain the temperature of the refrigerant container below 104 °F (40 °C).
Failure to do so may lead to explosion or fire.
Brazing must be performed by a qualified technician only.
Failure to do so may lead to fire, burns, injury or malfunction.
When brazing, always wear eye protection and gloves.
Failure to do so may lead to loss of vision or burns.
Work in a well-ventilated area while brazing.
Failure to do so may lead to explosion, fire or lack of oxygen.
Use official MovinCool parts for servicing.
Non-genuine accessories or incomplete installation may cause fire, electric shock or
water leaks.
CAUTION
Be aware of any sharp edges when working on unit.
There is a risk of injury.
Do not use sharp object to press the reset button when resetting communication
module.
This may damage the control panel.
Do not use cleaners that contain chlorine when cleaning pipes of refrigerant system.
Chlorine cleaners may damage pipes.
WARNING

7

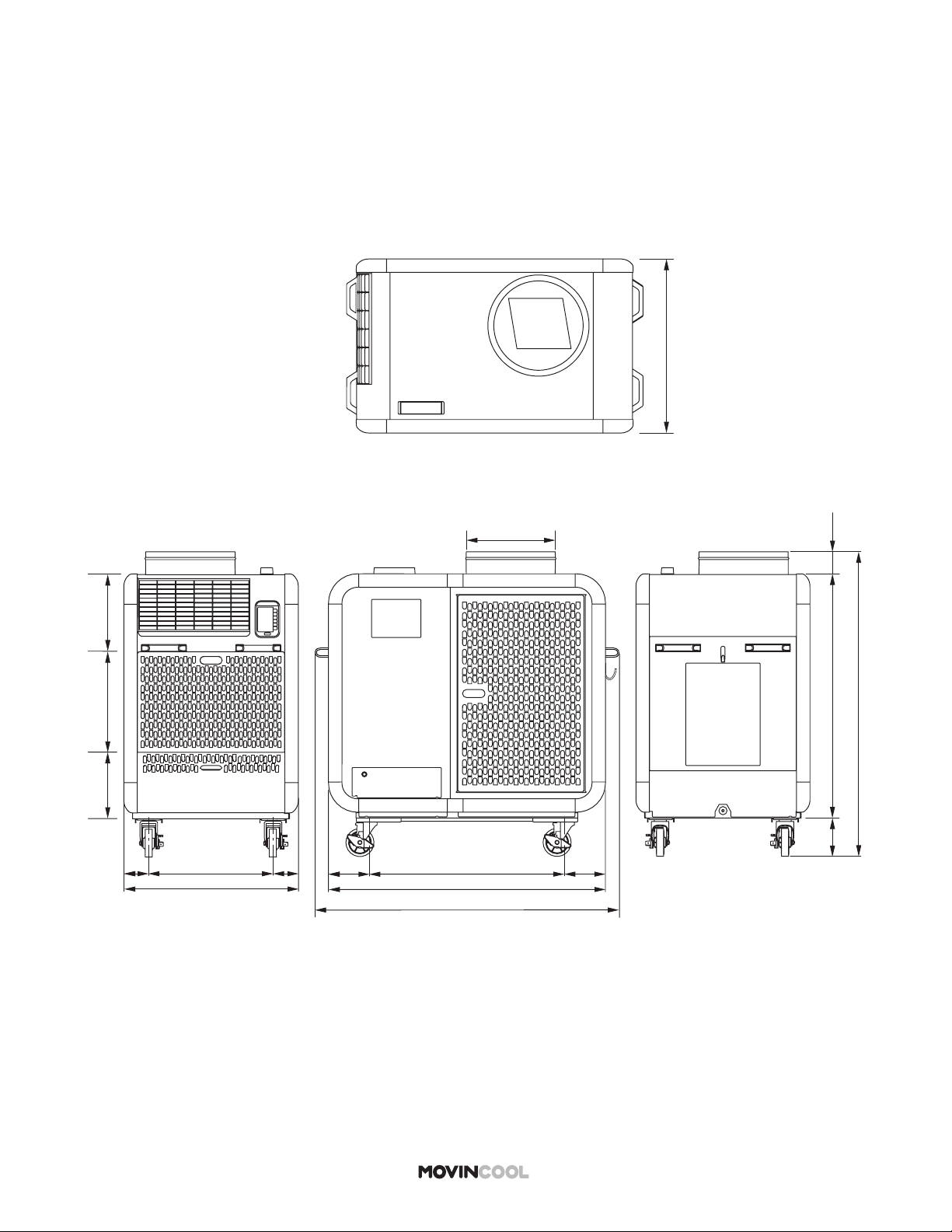

CONSTRUCTION
Dimensions
Unit: inch
4.4 4.4
21.8
30.6
7.0 34.7
48.7
7.0
6.7 42.9
53.5
3.9
DIA. 15.7
30.6
13.617.611.7
55

8
Names of Parts
Condenser Air Outlet Flange
Antenna
Condenser Air Inlet Panel
Cold Air
Outlet Grill
Evaporator
Air Inlet Panel
Drain Tank Cover
Caster
Service Panel
Logo Side Panel
Upper Rear Panel
Top Panel
Lower Rear Panel
Power Cord
Control Panel
Service Panel for
Communication Module
Service Panel for Pump
Front Handle
Power Cord Holder
Rear Handle
Main Rear Panel

9
Internal Structure
Condenser Fan
Drain Tank
Compressor
Control Box
Condenser
Fan Motor
(Condenser)
Evaporator
Capillary Tube
Evaporator Fan
Communication Module
Drain Switch
Fan Motor
(Evaporator)
Drain Pan

10
ITEM SPECIFICATIONS
Electronic Features Control Programmable
Cooling Capacity *1Total Capacity 36,000 Btu/h
Electrical Characteristics
Power Requirement 208/230V, 1Phase, 60Hz
Total Power Consumption *14.3/4.3 kW
Current Consumption *121.6/19.9 amps
Starting Current 105 amps
Recommended Fuse Size 30 amps
Min. - Max. Voltage 198 -253
Energy Eciency Ratio (EER) 8.4
Fans: Motor Rated Output
at 230V
Evaporator 0.23 kW
Condenser 0.37 kW
Evaporator
Fan Type Centrifugal
Max. Air Flow - high/mid/low 920/880/840 CFM
Max. External Static Pressure 0.6 IWG
Condenser
Fan Type Centrifugal
Max. Air Flow - high/low 1390/990 CFM
Max. External Static Pressure 0.5 IWG
Refrigerant Circuit
Compressor Type Hermetic Scroll
Compressor Motor Rated Output
at 230V 2.3 kW
Evaporator Plate Fin
Condenser Plate Fin
Refrigerant Control Capillary Tube
Max. Allowable Pressure
- high/low 820/290 PSIG
Refrigerant Type R-410A
Amount 2.78 lb (1.26 kg)
Power Cord
NEMA Plug Configuration 6-30
Gauge 12 AWG (3-core)
Length 6 
Condensate Tank Capacity 2@ 5 ± 0.5 gal
SPECIFICATIONS
Technical Specifications

11
ITEM SPECIFICATIONS
Safety Device
Internal Overload Relay for
Compressor
257°F ± 9°F (125°C ± 5°C)
91 amps
Anti-Freezing Thermostat for
Evaporator
On: 60°F ± 1.8°F (16°C ± 1°C)
O: 27°F ± 1.8°F (-3°C ± 1°C)
Signal Connection
Fire Alarm lnput
No voltage contact input
Contact resistance:
less than 100 ohm
Warning Signal Output 2 amps at 30V (DC/AC)
max. with resistive load
Appearance Paint color Black
Dimensions - W x D x H 31 x 55 x 53 in
Net Weight 454 lb
Packaging Dimensions - W x D x H 34 x 59 x 58 in
Weight 535 lb
Operating Conditions Min. 65°F (18°C), @ 50% RH
Max. 95°F (35°C), @ 60% RH
Max. Sound Level *2
With Condenser Duct
high/mid/low 68/67/66 dB(A)
Without Condenser Duct
high/mid/low 70/69/68 dB(A)
Max. Duct Equivalent
Length
Per Cold Duct Hose 40 
Hot Duct Hose 60 
Operating Environment Indoor
IP Number IPX1
Design Lifetime of Product *37 years or 17,500 hours,
whichever is shorter
Specifications are subject to change without notice.
*1: Rating condition: 95°F (35°C) at 60% RH
*2: Measured at 3  (1.0m) from surface of the unit
*3: 17,500 hours: (10 hours/day x 250 days) x 7 years
Technical Specifications

12

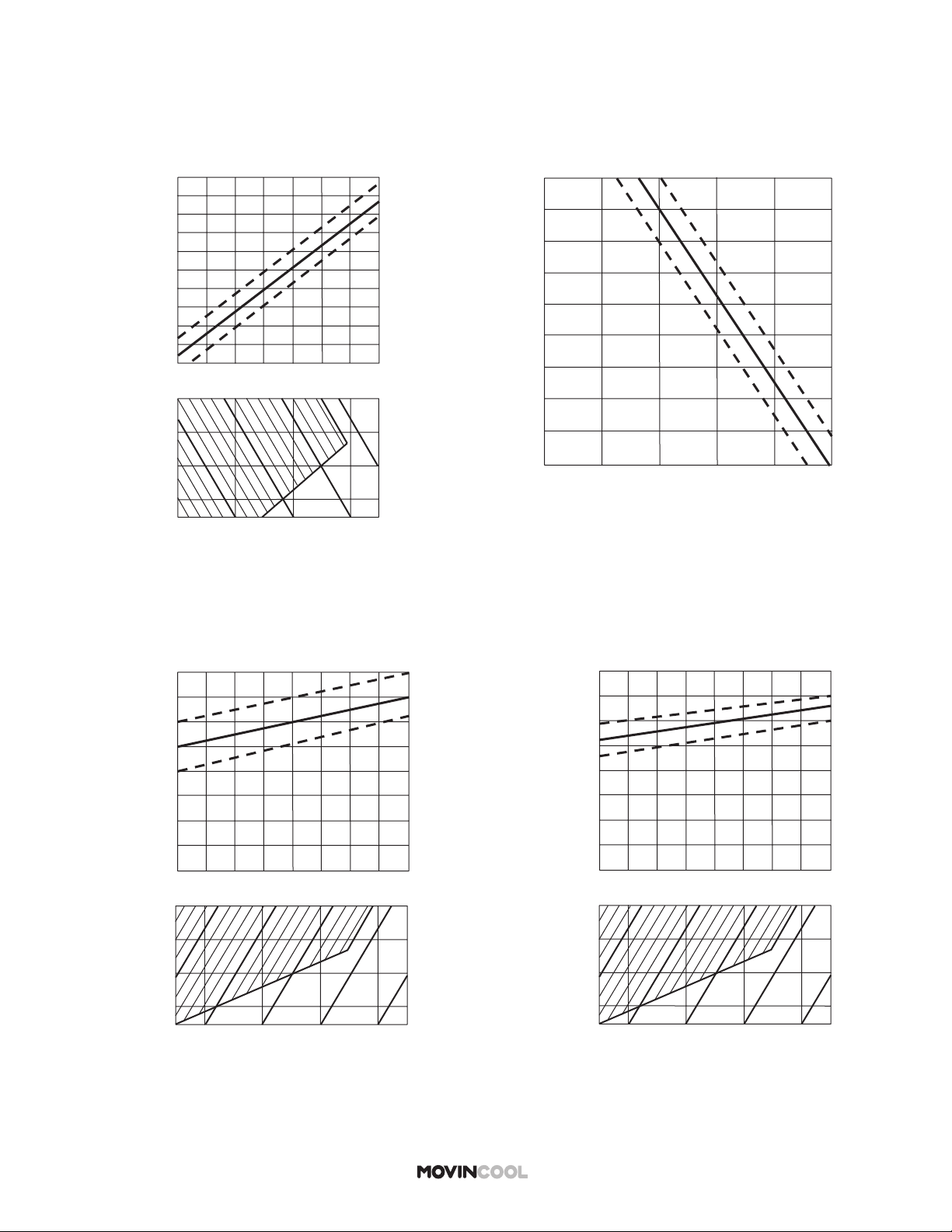

Characteristics at 208V
45
40
30
35
25
20
10
20
25
15
5
<Cooling Capacity Curve> <Cool Air Temperature Dierence Curve>
23.4(13)
21.6(12)
19.8(11)
18.0(10)
16.2(9)
14.4(8)
12.6(7)
10.8(6)
9.0(5)
68(20)
77(25)
86(30)
95(35)
7.2(4)
Delta-T °F (°C)
Dry Bulb Temp. °F (°C)
Dry Bulb Temp. °F (°C)
Dry Bulb Temp. °F (°C)
Wet Bulb Temp. °F (°C)
Wet Bulb Temp. °F (°C)
(25)
77
(20)
68
(35)
95
(30)
86
(15)
59
(10)
50
Cooling Capacity (x103Btu/h)
Relative Humidity (%)
30 40 50 60 70 80
Current Consumption (A)
Power Consumption (kW)
<Power Consumption Curve> <Current Consumption Curve>
5.0
4.0
3.0
2.0
1.0
68(20)
77(25)
86(30)
95(35)
68(20)
77(25)
86(30)
95(35)
(25)
77
(20)
68
Wet Bulb Temp. °F (°C)
(35)
95
(30)
86
(25)
77
(20)
68

13
Characteristics at 230V
45
40
30
35
25
20
10
20
25
15
5
<Cooling Capacity Curve> <Cool Air Temperature Dierence Curve>
23.4(13)
21.6(12)
19.8(11)
18.0(10)
16.2(9)
14.4(8)
12.6(7)
10.8(6)
9.0(5)
68(20)
77(25)
86(30)
95(35)
7.2(4)
Delta-T °F (°C)
Dry Bulb Temp. °F (°C)
Dry Bulb Temp. °F (°C)
Dry Bulb Temp. °F (°C)
Wet Bulb Temp. °F (°C)
Wet Bulb Temp. °F (°C)
(25)
77
(20)
68
(35)
95
(30)
86
(15)
59
(10)
50
Cooling Capacity (x103Btu/h)
Relative Humidity (%)
30 40 50 60 70 80
Current Consumption (A)
Power Consumption (kW)
<Power Consumption Curve> <Current Consumption Curve>
5.0
4.0
3.0
2.0
1.0
68(20)
77(25)
86(30)
95(35)
68(20)
77(25)
86(30)
95(35)
(25)
77
(20)
68
Wet Bulb Temp. °F (°C)
(35)
95
(30)
86
(25)
77
(20)
68

14
SERVICE INFORMATION

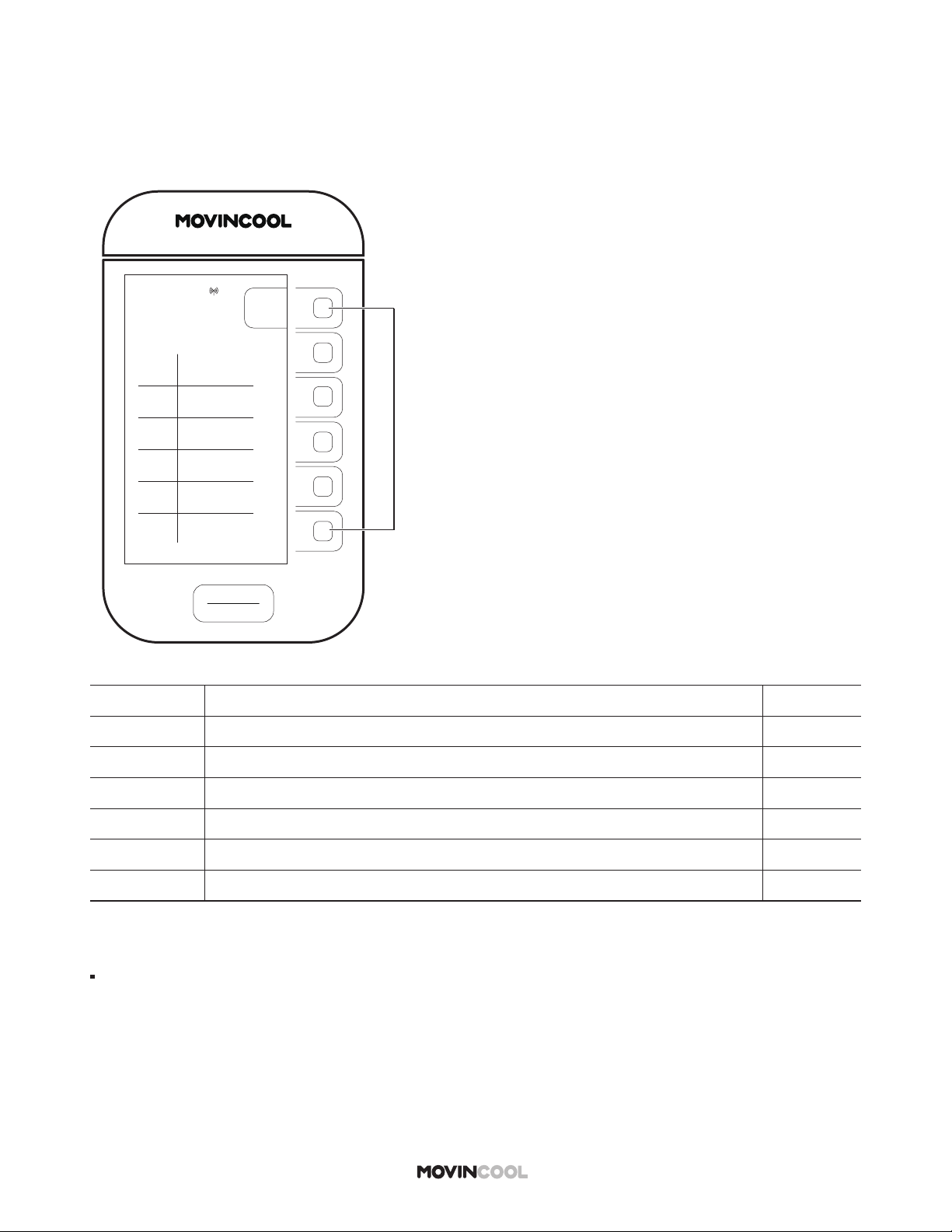

Machine Status
The status of functional parts can be displayed while the unit is running.
HOME > MENU > SERVICES > MACHINE INFORMATION > MACHINE STATUS
Note:
If you need to change temperature scale, go to HOME > MENU > SETTING > TEMP SCALE.
CODE ITEM UNIT
RTS Evaporator air inlet thermistor temperature °F/°C
ODS Condenser air inlet thermistor temperature °F/°C
CTS1 Evaporator pipe thermistor temperature °F/°C
CTS2 Compressor pipe thermistor temperature °F/°C
CTS3 Condenser pipe thermistor temperature °F/°C
EXV Electronic expansion valve opening -
MACHINE
STATUS
BACK
ODS
RTS 75 F
EXV
CTS1 54 F
CTS2
CTS3
---
START
STOP
CLIMATE PRO
---
---
---
Multi-function buons
MON 12:00 PM

15
Machine Records
The history of connection time, compressor operating time, defrosting time, fan operating time, and
self-diagnostic codes are displayed while the unit is running.
HOME > MENU > SERVICES > MACHINE INFORMATION > MACHINE RECORDS
- Up to 65,500 hours can be stored before being cleared and reset to zero.
- Up to 3 dierent recorded self-diagnostic codes are displayed.
Note:
If the item is not applicable for the unit, “ --- ” is displayed.
DISPLAY ITEM DESCRIPTION UNIT
TOTAL TIME Total connection time hour
COOL TIME Total compressor operating time during cool mode hour
HEAT TIME Total compressor operating time during heat mode hour
DEF TIME Total defrosting time during heat mode hour
ID FAN TIME Total evaporator fan operating time hour
OD FAN TIME Total condenser fan operating time hour
DIAG CODE 1 Self-diagnostic code 1: Latest code AL1 (example)
DIAG CODE 2 Self-diagnostic code 2:
Previous code before the DIAGNOSTIC CODE 1 AS (example)
DIAG CODE 2 Self-diagnostic code 3:
Previous code before the DIAGNOSTIC CODE 1 and 2 HP (example)
MACHINE
RECORDS
BACK
HEAT TIME
COOL TIME 200 HR
TOTAL TIME 5000 HR
DEF TIME
DIAG CODE 1 AL1
DIAG CODE 2
DIAG CODE 3
START
STOP
ID FAN TIME
OD FAN TIME
1000 HR
---
---
---
---
CLIMATE PRO
1000 HR
MON 12:00 PM
Multi-function buons

16
TROUBLESHOOTING
Initial Inspection
Before troubleshooting, the following inspection should be performed.
1. Check the voltage of the power source.
208/230 V, 1 Phase, 60 Hz
2. Check the operation and condition of the fuse or circuit breaker in the power source.
3. Check the power cord. If dirty, wipe with a clean dry cloth. If damage or excess play is found,
replace the cord.
4. Check the air filters. If dirty, clean the air filters as described in the operation manual. If damage
is found, replace the filters.
5. Check the drain tank and empty the water. If damage is found, replace the tank.
WARNING
• Disconnect power supply from the unit before performing any service. Beware that some
residual voltage may remain in the unit immediately after the power is disconnected.
There is a risk of electric shock.

17
Self-Diagnostic Codes
When a self-diagnostic code is displayed on the LCD, the unit stops operation, relay contact RL07
for terminal OS-1 and OS2 is closed.
CODE CONDITION POSSIBLE CAUSE SOLUTION
AL1 Alarm device 1 is
activated
Alarm device connected to
FA-1 and FA-2 of terminal
block 1 is activated
1. Check FA-1, FA-2 connection
2. Identify and correct condition causing
alarm
3. Press CLEAR buon to reset
AL2 Alarm device 2 is
activated
Alarm device connected to
AL-1 and AL-2 of terminal
block 1 is activated
1. Check AL-1, AL-2 connection
2. Identify and correct condition causing
alarm
3. Press CLEAR buon to reset
FL Drain tank is full
Drain tank is full of water
1. Empty tank
2. Place tank back in unit
3. Press CLEAR buon to reset
Loose drain switch connection 1. Reconnect switch
2. Press CLEAR buon to reset
Defective drain switch 1. Replace switch
2. Press CLEAR buon to reset
PU Condensate pump safety
switch is activated
Condensate pump stops due
to kinks and/or blockage or
improper routing of drain line
1. Remove blockage or kinks from drain
line, or re-route drain line
2. Press CLEAR buon to reset
Missing or loose jumper
connector
1. If the jumper connector is missing,
insert one
If connector is loose, reconnect it
2. Press CLEAR buon to reset
Defective condensate pump 1. Replace pump
2. Press CLEAR buon to reset
HP
High pressure protection
is activated 8 times in 24
hours
Operating outside of
temperature range
1. Check operating temperature and
humidity condition. The unit does not
operate outside the condition range
(See page 11)
2. Press CLEAR buon to reset
Air flow is blocked or
restricted
1. Clean air filters
2. Ensure 24 inch (610 mm) clearance
in front of air inlets, and air flow is not
blocked or restricted
3. Press CLEAR buon to reset
Loose high pressure switch
connection
1. Reconnect switch
2. Press CLEAR buon to reset
Defective high pressure switch
(short or open circuit)
1. Replace switch
2. Press CLEAR buon to reset
Refrigerant is over charged
1. Charge correct amount of refrigerant
based on specifications or nameplate
2. Press CLEAR buon to reset

18
Self-Diagnostic Codes
When a self-diagnostic code is displayed on the LCD, the unit stops operation, relay contact RL07
for terminal OS-1 and OS2 is closed.
CODE CONDITION POSSIBLE CAUSE SOLUTION
PU Condensate pump safety
switch is activated
Condensate pump stops due
to kinks and/or blockage or
improper routing of drain line
1. Remove blockage or kinks from drain
line, or re-route drain line
2. Press CLEAR buon to reset
Missing or loose jumper
connector
1. If the jumper connector is missing,
insert one
If connector is loose, reconnect it
2. Press CLEAR buon to reset
Defective condensate pump 1. Replace pump
2. Press CLEAR buon to reset
CF
Cooling function failure
occurs 3 times and
following condition
continues for 15 minutes
RTS - CTS1 < 9 °F (5 °C)
Insucient refrigerant or
refrigerant leak
Repair leak and add refrigerant based
on the weight listed on specifications or
nameplate
Defective compressor 1. Replace compressor
2. Press CLEAR buon to reset
E1 RTS thermistor failure
Loose RTS thermistor
connection Reconnect thermistor
Defective RTS thermistor
(short or open circuit) Replace thermistor
E3 CTS1 thermistor failure
Loose CTS1 thermistor
connection Reconnect thermistor
Defective CTS1 thermistor
(short or open circuit) Replace thermistor

19
Troubleshooting Chart
PROBLEM POSSIBLE CAUSE SOLUTION
Unit does not
operate
No display on LCD screen
Power failure Check and fix power
supply and connection
Ground fault protective breaker is tripped Reset breaker
Defective ground fault protective breaker Repair or replace breaker
LCDI Power cord is tripped Reset power cord
LCDI Power cord is damaged Replace power cord
LCD display is normal, but
unit does not start
Ambient temperature has reached set
temperature and unit has stopped Adjust set temperature
Unit stops
immediately
aer starting
LCD display is normal
Fan motor malfunction
See "Inspection of Parts" on page 68 Replace fan motor
Compressor malfunction
See "Inspection of Parts" on page 70 Replace compressor
If fan motor and compressor are normal,
there is a problem with relay board Replace relay board
Unit stops
aer running
for a while
LCD display is normal
Operating near minimum or maximum of
operating temperature range Review room environment
Dirt in indoor or outdoor heat exchanger Clean heat exchanger
Insucient refrigerant or refrigerant leak
Repair leak and add
refrigerant based
on the weight listed
on specifications or
nameplate

20
PROBLEM POSSIBLE CAUSE SOLUTION
Poor cooling
performance Air volume
normal
Compressor
operates
Operating near minimum or maximum of
operating temperature range Review room environment
Dirt in indoor or outdoor heat exchanger Clean heat exchanger
Frosting on the refrigerant line caused due
to blockage
Service refrigeration
system
Insucient refrigerant
Check for leaks, repair,
and add refrigerant
based on the weight
listed on specifications or
nameplate
Poor cooling
performance
Air volume
normal
Compressor
does not
operate
Low voltage Repair power supply
Capacitor malfunction
See “Inspection of Parts” on page 67 Replace capacitor
Resistance of compressor coil is zero or
infinity due to a short or open circuit Replace compressor
If power supply, capacitor and compressor
are normal, there is a problem with relay
board
Replace relay board
Air volume
abnormal
No air
Fan motor malfunction
See “Inspection of Parts” on page 68 Replace fan motor
If fan motor is normal, there is a problem
with relay board Replace relay board
Air volume
insucient
Clogged air filter Clean air filter
Clogged indoor or outdoor heat exchanger Clean heat exchanger
Crushed fins Repair or replace heat
exchanger
Improper duct connection
(Optional accessories) Adjust duct connection
Abnormal rotation of indoor or outdoor fan
motor Replace fan motor
Troubleshooting Chart
