Movitec Sl-250 User manual

USER MANUAL

MOVITEC

SL-250

2

3

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234

12345678901234567890123456789012123456789012345678901

Movitec SL-250

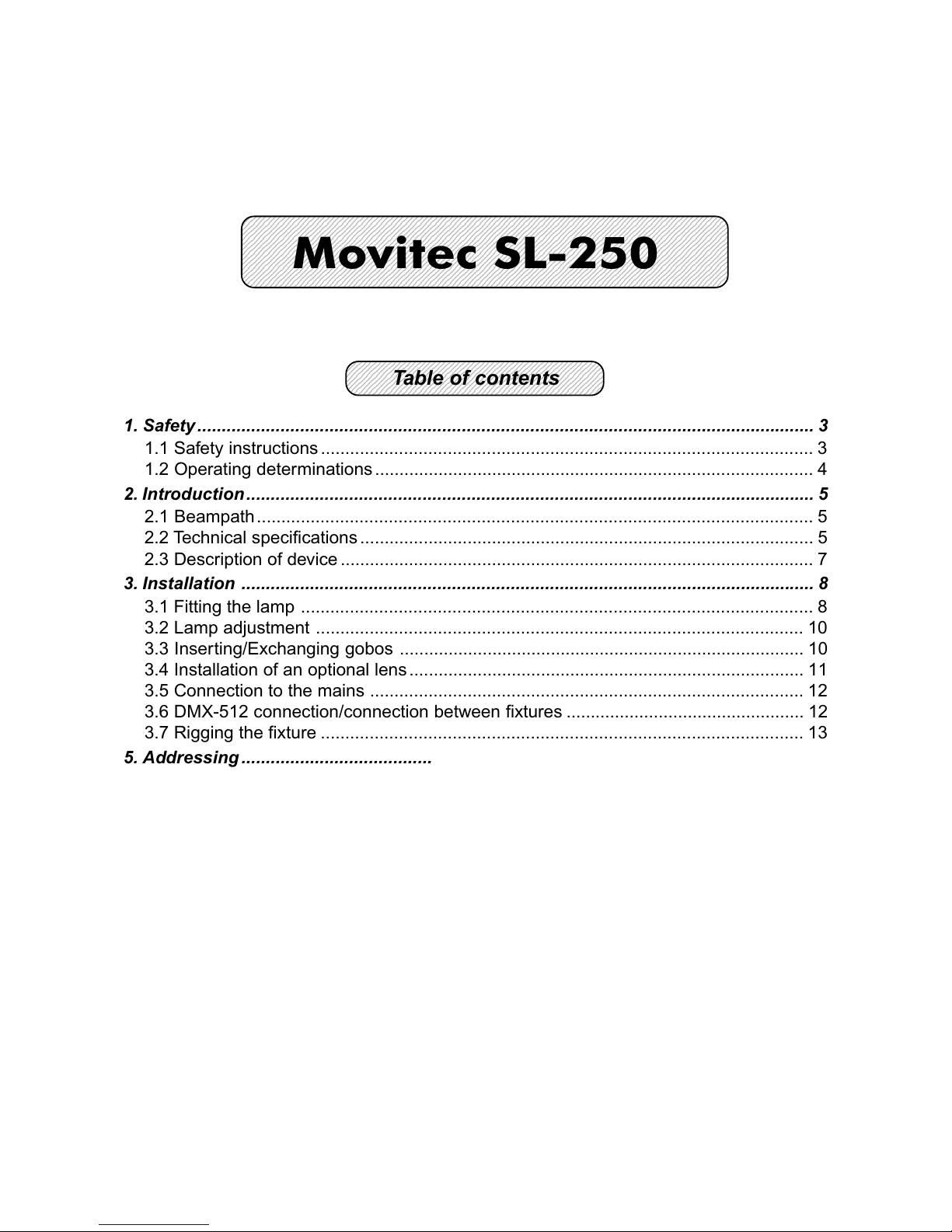

Table of contents

1. Safety.............................................................................................................................. 3

1.1 Safety instructions..................................................................................................... 3

1.2 Operating determinations.......................................................................................... 4

2. Introduction.................................................................................................................... 5

2.1 Beampath.................................................................................................................. 5

2.2 Technical specifications............................................................................................. 5

2.3 Description of device................................................................................................. 7

3. Installation ..................................................................................................................... 8

3.1 Fitting the lamp ......................................................................................................... 8

3.2 Lamp adjustment .................................................................................................... 10

3.3 Inserting/Exchanging gobos ................................................................................... 10

3.4 Installation of an optional lens................................................................................. 11

3.5 Connection to the mains ......................................................................................... 12

3.6 DMX-512 connection/connection between fixtures ................................................. 12

3.7 Rigging the fixture ................................................................................................... 13

5. Addressing...................................................................................................................14

6. Remotely controllable functions ................................................................................ 15

6.1 Lamp ....................................................................................................................... 15

6.2 Switching On and Off the lamp by Control Board ................................................... 15

6.3 Colour wheel ........................................................................................................... 15

6.4 Rotating gobo wheel ............................................................................................... 15

6.5 3-facet rotating prism .............................................................................................. 16

6.6 Focus ...................................................................................................................... 16

6.7 Dimmer/Shutter/Strobe ........................................................................................... 16

6.8 Fan .......................................................................................................................... 16

7. Control Board .............................................................................................................. 16

7.1 Main functions ......................................................................................................... 16

7.2 SPEC -Special functions ......................................................................................... 17

8. Error and information messages ............................................................................... 20

9. DMX-Protocol ............................................................................................................... 22

9.1 Function of the control channels - 16 bit protocol ................................................... 22

9.2 Function of the control channels - 8 bit protocol ..................................................... 24

10. Maintenance and cleaning ........................................................................................ 25

4

12345678901234567890123456789012123456789012345678901234567890

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567

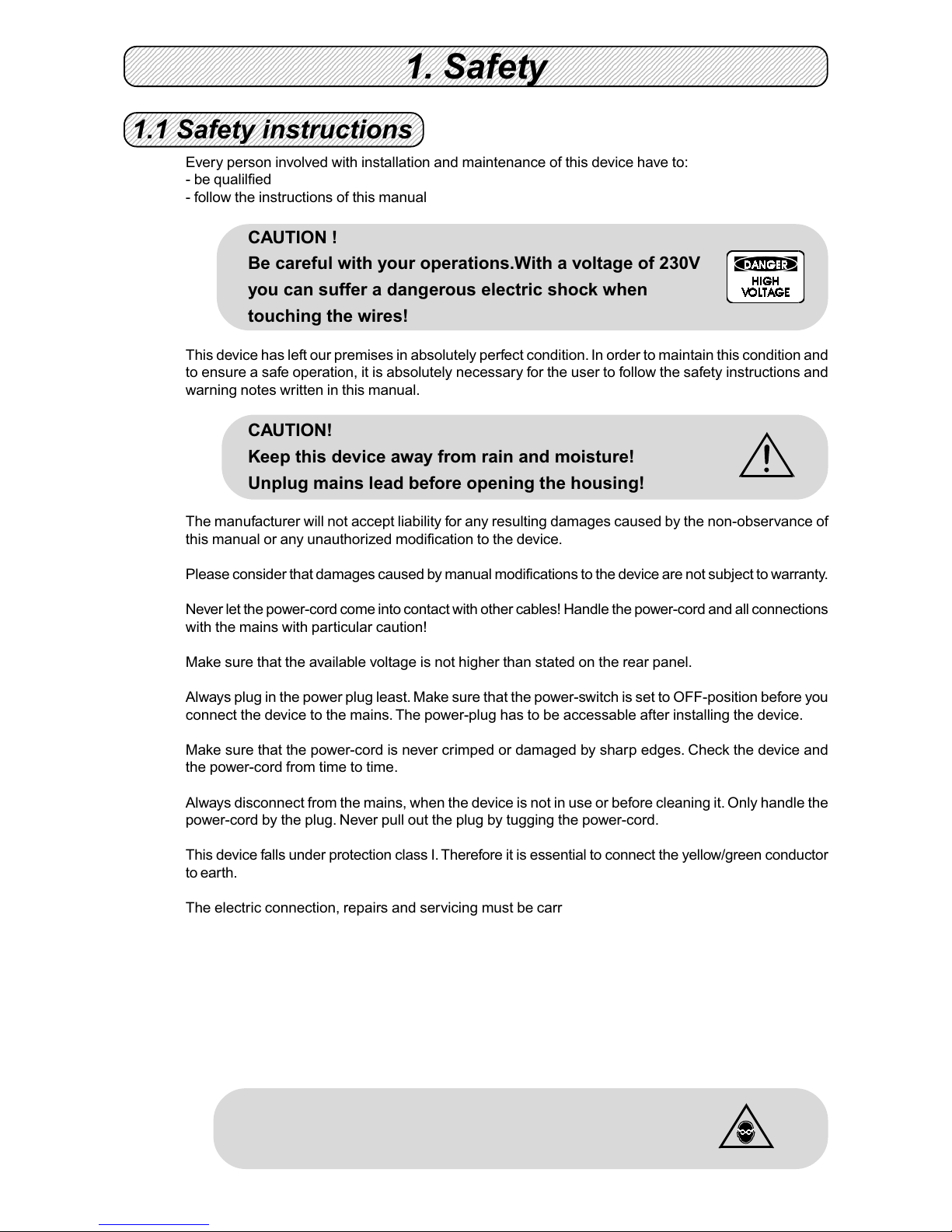

1. Safety

1.1 Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualilfied

- follow the instructions of this manual

CAUTION !

Be careful with your operations.With a voltage of 230V

you can suffer a dangerous electric shock when

touching the wires!

This device has left our premises in absolutely perfect condition.In order to maintain this condition and

to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and

warning notes written in this manual.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections

with the mains with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

Always plug in the power plug least.Make sure that the power-switch is set to OFF-position before you

connect the device to the mains. The power-plug has to be accessable after installing the device.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and

the power-cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the

power-cord by the plug. Never pull out the plug by tugging the power-cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor

to earth.

The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

Do not switch the fixture on and off in short intervals as this would reduce the lamps life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Do not touch the devices housing bare-handed during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION ! EYEDAMAGES !

Avoid looking directly into the light source

(meant especially for epileptics) !

5

123456789012345678901234567890121234567890123456789012345678901212345678901234

1.2 Operating determinations

This device is a moving-head spot for creating decorative effects. This product is only allowed to be

operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately.The arising condensation water might damage your device.Leave the device

switched off until it has reached room temperature.

Never run the device without lamp!

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,

moisture or dust.There should not be any cables lying around.You endanger your own and the safety

of others!

The minimum distance between light-output and the illuminated surface must be more than 1 meter.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the

fixture.

Always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct holes only.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly

fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps

may explose and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature ta= 45° C must never be exceeded. Otherwise, the lamp is switched

off and the fixture is out of operation for 5 minutes.

CAUTION!

The lens has to be replaced when it is obviously

damaged,so that its function is impaired, e. g. due to

cracks or deep scratches!

Operate the device only after having familiarized with its functions.Do not permit operation by persons

not qualified for operating the device. Most damages are the result of unprofessional operation!

CAUTION!

The lamp has to be replaced when it is damaged

or deformed due to the heat!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may

suffer damages and the guarantee becomes void.Furthermore, any other operation may lead to dangers

like short-circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

6

12345678901234567890123456789012123456789012345678901234567890121234567890123

1234567890123456789012345678901212345678

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567

2. Introduction

Unpack your MOVITEC SL-250 and make sure that there are no damages caused by transportation.

Should there be any, please consult your local dealer and do not take the device into operation.

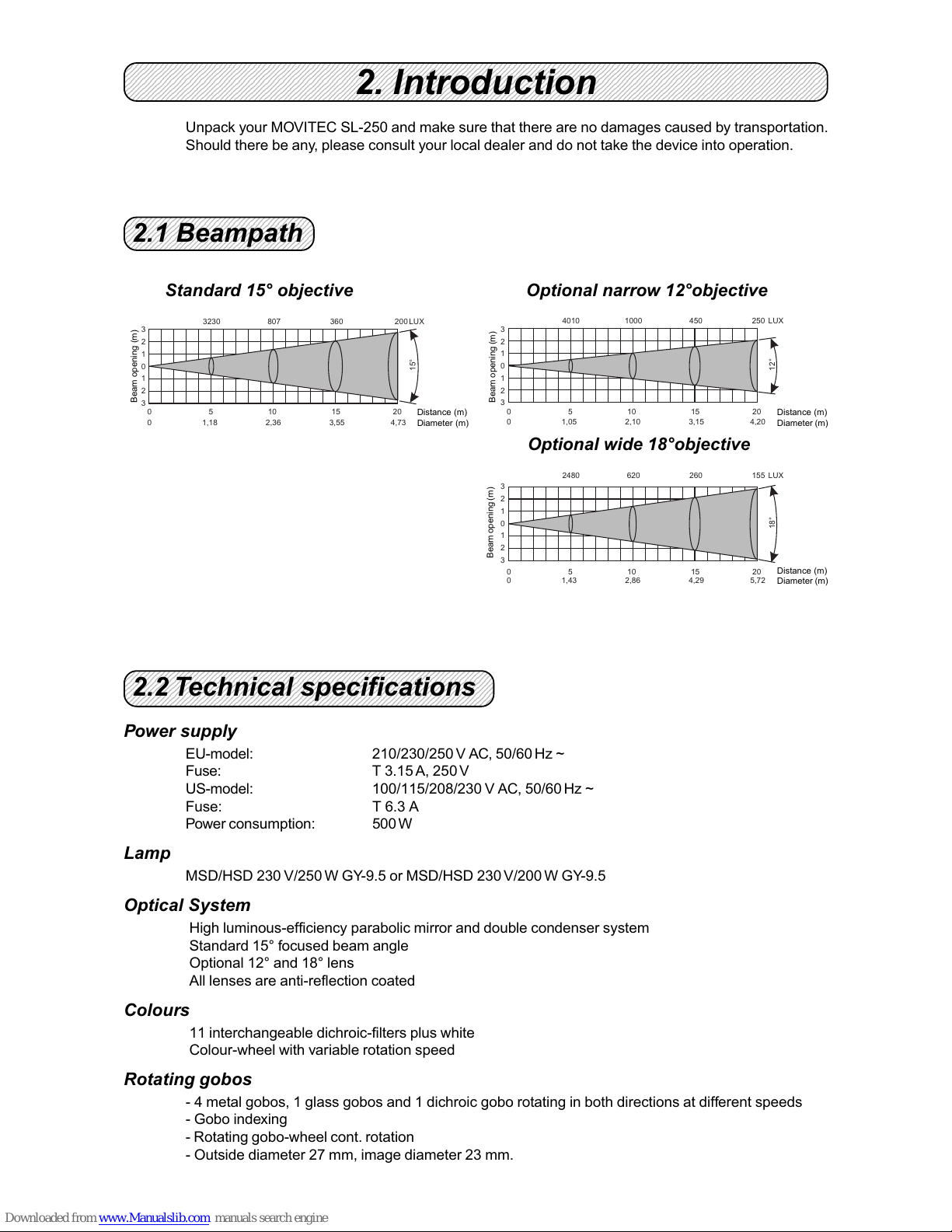

2.1 Beampath

2.2 Technical specifications

Power supply

EU-model: 210/230/250 V AC, 50/60 Hz ~

Fuse: T 3.15 A, 250 V

US-model: 100/115/208/230 V AC, 50/60Hz ~

Fuse: T 6.3 A

Power consumption: 500W

Lamp

MSD/HSD 230 V/250 W GY-9.5 or MSD/HSD 230 V/200 W GY-9.5

Optical System

High luminous-efficiency parabolic mirror and double condenser system

Standard 15° focused beam angle

Optional 12° and 18° lens

All lenses are anti-reflection coated

Colours

11 interchangeable dichroic-filters plus white

Colour-wheel with variable rotation speed

Rotating gobos

- 4 metal gobos, 1 glass gobos and 1 dichroic gobo rotating in both directions at different speeds

- Gobo indexing

- Rotating gobo-wheel cont. rotation

- Outside diameter 27 mm, image diameter 23 mm.

Optional wide 18°objective

Beam opening (m)

Standard 15° objective Optional narrow 12°objective

0 5 10 15 20

0 1,18 2,36 3,55 4,73

3

2

1

0

1

2

3

3230 807 360 200

15°

LUX

0 5 10 15 20

0 1,05 2,10 3,15 4,20

3

2

1

0

1

2

3

4010 1000 450 250

12°

LUX

0 5 10 15 20

0 1,43 2,86 4,29 5,72

3

2

1

0

1

2

3

2480 620 260 155

18°

LUX

Distance (m)

Diameter (m)

Distance (m)

Diameter (m)

Beam opening (m)

Distance (m)

Diameter (m)

7

Strobe

- Strobe effect with variable speed (1 - 10 flashes per second)

Dimmer

- Smooth dimmer from 0 - 100 %

Prism

- 3-facet-prism rotating in both directions at different speeds

Focus

- Motorized focus from near to far

Motor

- 10 high quality stepping-motors controlled by microprocessors

Electronics

- Digital serial input DMX-512

- 16 control-channels (full 16 bit protocol):

Channel 1: Horizontal mirror-movement 8 bit

Channel 2: Fine Horizontal mirror-movement 16 bit

Channel 3:Vertical mirror-movement 8 bit

Channel 4: Fine Vertical mirror-movement 16 bit

Channel 5: Pan/Tilt speed

Channel 6: Fan speed, On/Off lamp, reset

Channel 7: Colours

Channel 8: No function

Channel 9: Prism-wheel

Channel 10: Prism-rotation

Channel 11: Rotating gobos

Channel 12: Gobo rotation, gobo indexing

Channel 13: No function

Channel 14: Focus

Channel 15: Shutter, strobe

Channel 16: Dimmer

Pan/Tilt

Pan movement range 530°

Tilt movement range 280°

8/16 bit movement resolution

Automatic Pan / Tilt position correction

Maximum PAN-movement 530° in 2.65 s

Maximum TILT-movement 280° in 1.68 s

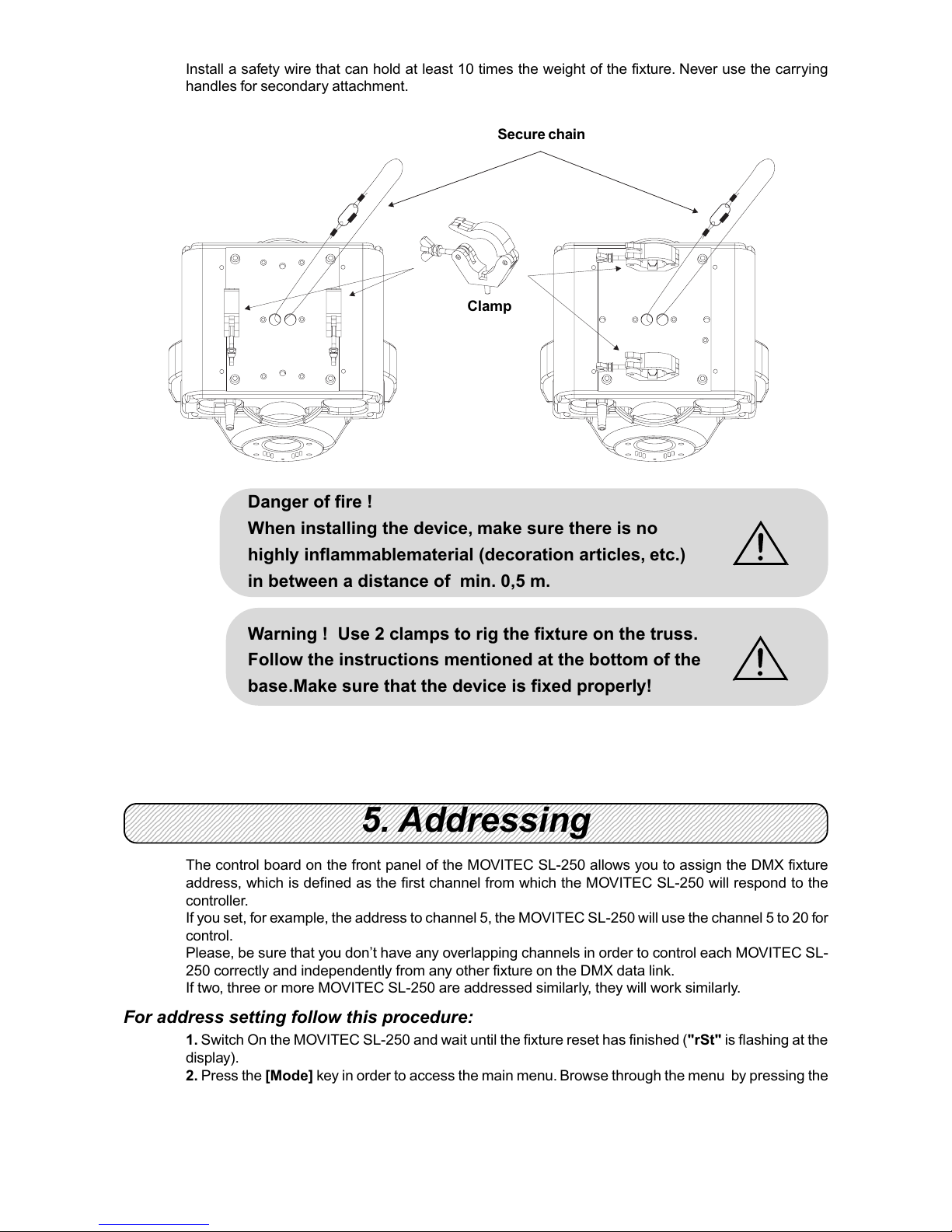

Rigging

Stands directly on the floor

Mounts horizontally or vertically with 2 clamps

2 truss orientation

Safety chain/cord attachment point

Temperatures

Maximum ambient temperature ta: 45° C

Maximum housing temperature tB(steady state): 80° C

Dimensions and weight

Length of base (including handles): 379 mm

Width of yoke: 426 mm

Height (head horizontal): 476 mm

Weight (net): 16 kg

Shipping weight: 25 kg

8

1234567890123456789012345678901212345678901234567890123456789012123456789012

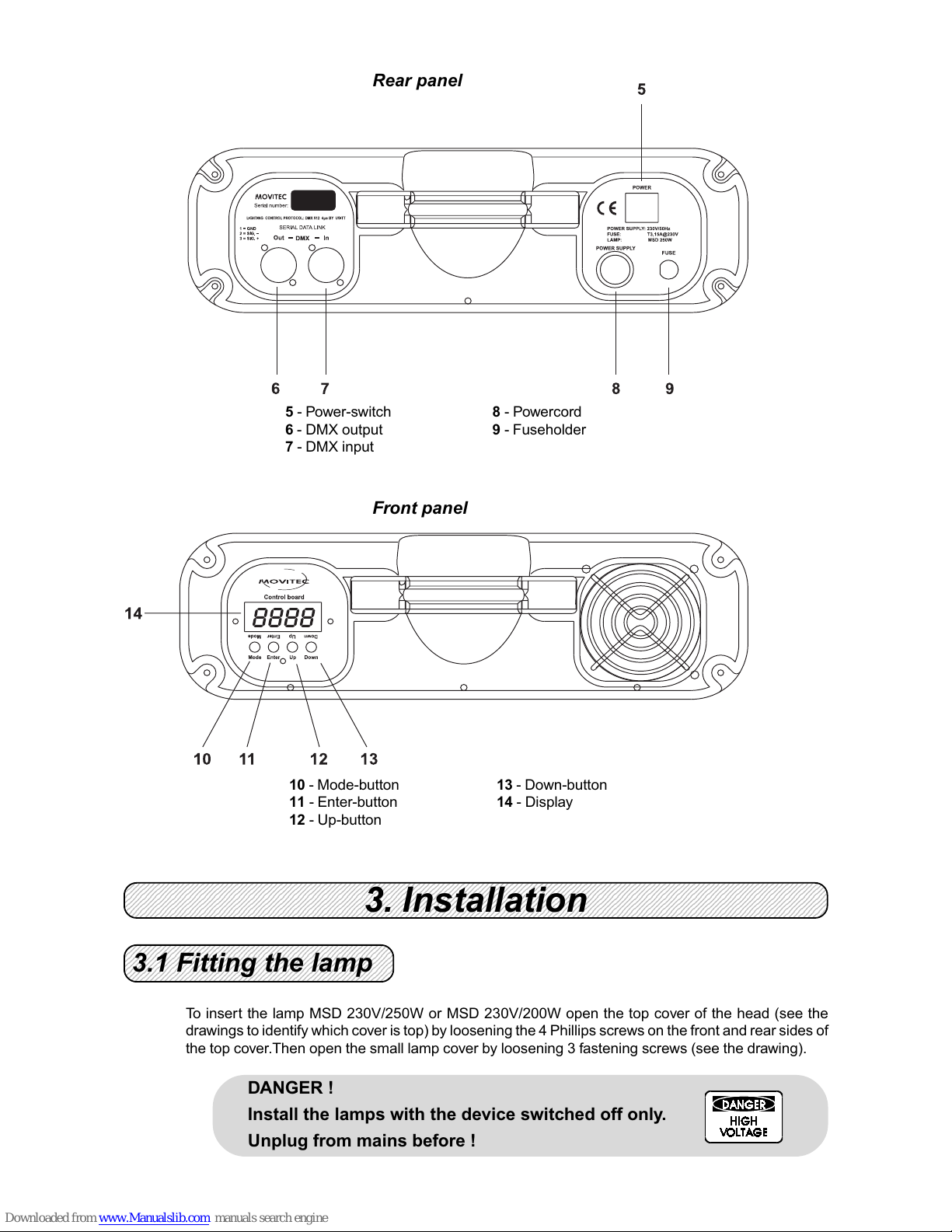

2.3 Description of the device

1- Moving Head 3 - Base

2 - Yoke 4- Carring handles

9

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567

12345678901234567890123456789012123456789012345678901234

5- Power-switch 8- Powercord

6- DMX output 9- Fuseholder

7- DMX input

10 - Mode-button 13 - Down-button

11 - Enter-button 14 - Display

12 - Up-button

Rear panel

Front panel

3. Installation

3.1 Fitting the lamp

To insert the lamp MSD 230V/250W or MSD 230V/200W open the top cover of the head (see the

drawings to identify which cover is top) by loosening the 4 Phillips screws on the front and rear sides of

the top cover.Then open the small lamp cover by loosening 3 fastening screws (see the drawing).

DANGER !

Install the lamps with the device switched off only.

Unplug from mains before !

10

If changing the lamp, remove the old lamp from the socket. Insert the lamp to the socket.

Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not

designed for.

Damages caused by non-observance are not subject to warranty.Please follow the lamp manufacturers

notes!

Do not touch the glass-bulb bare-handed during the installation! Make sure that the lamp is installed

tightly into the lampholder system.

Adjust the optimal distance 1-1.5 mm from the lens by turning the screw "A" (see the drawings "Lamp

adjustment" below).

Then close the small lamp cover by tighten 3 fastening screws again.

Reclose the top cover of the head and tighten the 4 Phillips screws.

Before striking the lamp, reset the "LAti" counter in the main menu of the Control Board, by pressing

the "Up" and "Down" buttons in one time and then confirming with the Enter-button

2 Phillips

screws 2 Phillips

screws

Top cover

Bottom

cover

Bottom

cover

Lamp

cover

3 fastening

screws

Do not operate this fixture with opened housing-

cover!

11

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012

12345678901234567890123456789012123456789012345678901234567

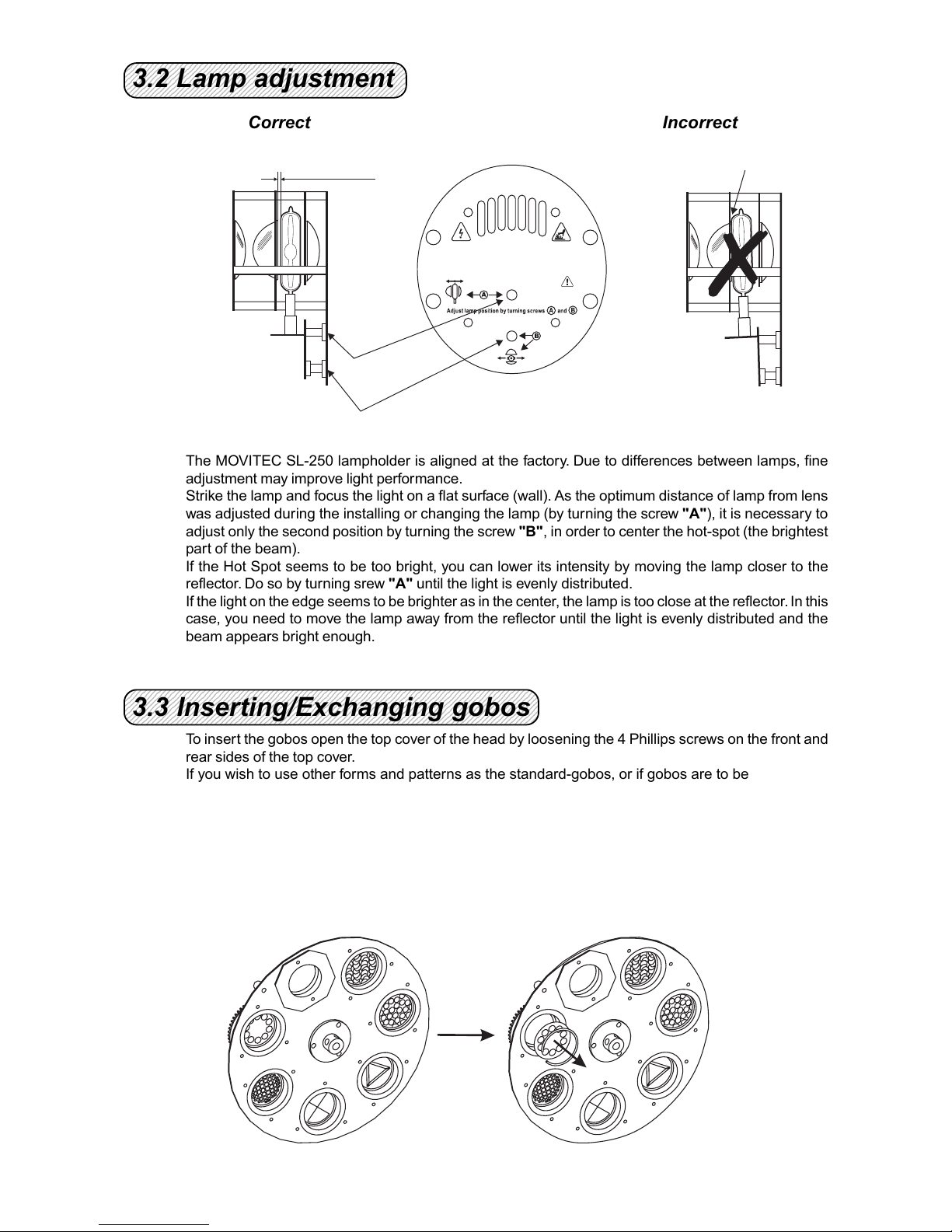

3.2 Lamp adjustment

Correct Incorrect

The MOVITEC SL-250 lampholder is aligned at the factory. Due to differences between lamps, fine

adjustment may improve light performance.

Strike the lamp and focus the light on a flat surface (wall). As the optimum distance of lamp from lens

was adjusted during the installing or changing the lamp (by turning the screw "A"), it is necessary to

adjust only the second position by turning the screw "B", in order to center the hot-spot (the brightest

part of the beam).

If the Hot Spot seems to be too bright, you can lower its intensity by moving the lamp closer to the

reflector. Do so by turning srew "A" until the light is evenly distributed.

If the light on the edge seems to be brighter as in the center, the lamp is too close at the reflector.In this

case, you need to move the lamp away from the reflector until the light is evenly distributed and the

beam appears bright enough.

3.3 Inserting/Exchanging gobos

To insert the gobos open the top cover of the head by loosening the 4 Phillips screws on the front and

rear sides of the top cover.

If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged,

please follow the instructions below:

Rotating gobo-wheel:

Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press

the fixation-ring together and insert it in front of the gobo.

Keep optimum distance to lens

Optimum distance 1 - 1,5mm

Screw "A"

Screw "B"

12

123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before!

CAUTION!

Never unscrew the screws of the rotating gobo

as the ball bearing will otherwise be opened!

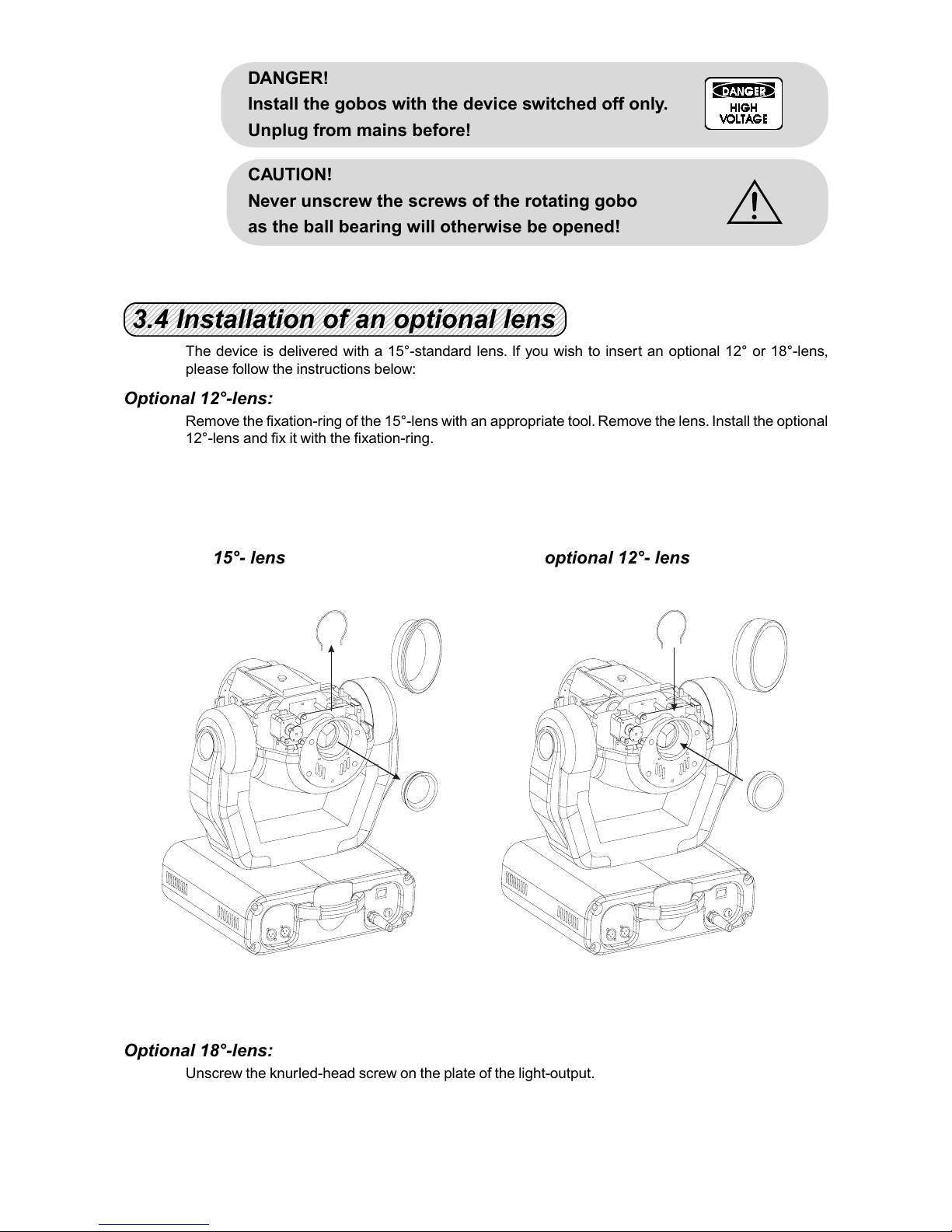

3.4 Installation of an optional lens

The device is delivered with a 15°-standard lens. If you wish to insert an optional 12° or 18°-lens,

please follow the instructions below:

Optional 12°-lens:

Remove the fixation-ring of the 15°-lens with an appropriate tool. Remove the lens.Install the optional

12°-lens and fix it with the fixation-ring.

15°- lens optional 12°- lens

Optional 18°-lens:

Unscrew the knurled-head screw on the plate of the light-output. Install the optional 18°-lens and fix it

with the knurled-head screw.ollow the instructions mentioned at the bottom of the base.

13

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012

12345678901234567890123456789012123456789012345678901234567890121234567890123456

3.5 Connection to the mains

Connect the fixture to the mains with the enclosed power-plug.

The earth has to be connected!

The occupation of the connection-cables is as follows:

Cable Pin International

Brown Live L

Blue Neutral N

Yellow/Green Earth

3.6 DMX-512 connection/connection between fixtures

T

Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller

with the fixture or one fixture with another.

14

12345678901234567890123456789012123456789012345678901234567

The wires must not come into contact with each other,

otherwisethe fixtures will not work at all, or will not

work properly.

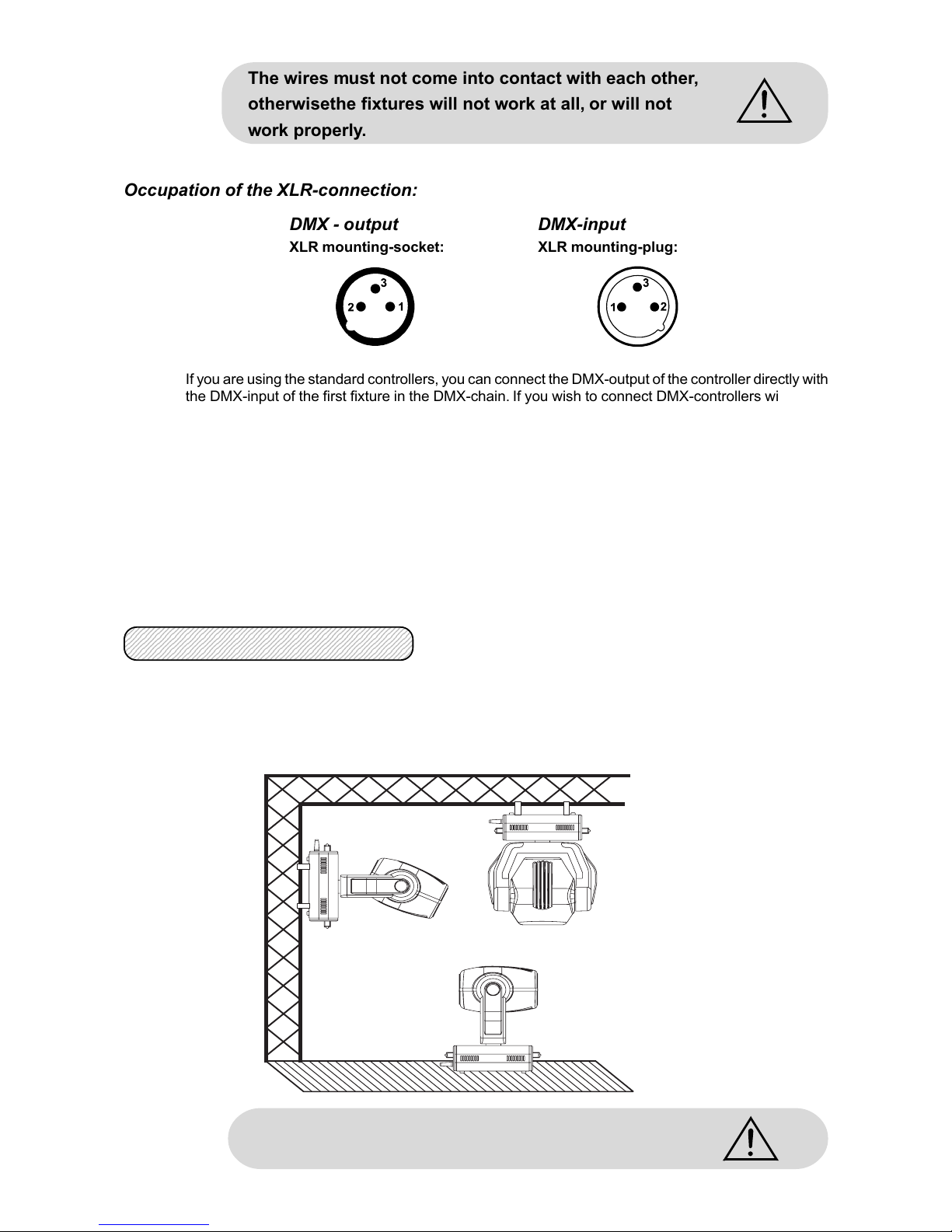

Occupation of the XLR-connection:

DMX - output DMX-input

XLR mounting-socket: XLR mounting-plug:

If you are using the standard controllers, you can connect the DMX-output of the controller directly with

the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other

XLR-outputs, you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture.

Always connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ohm

resistor between Signal () and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the

last fixture.

3.7 Rigging the fixture

The MOVITEC SL-250 can be placed directly on the stage floor or rigged in any orientation on a truss

without altering its operation characteristics (see the drawing).

The fixtures base enables to be mounted in two ways. Use the clamps with screws M10 or M8 - check

the base bottom.

1- Ground

2 - Signal (-)

3 - Signal (+)

1- Ground

2 - Signal (-)

3 - Signal (+)

Ensure thatthe structure (truss) to which you are

attaching the fixtures is secure.

15

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567

Install a safety wire that can hold at least 10 times the weight of the fixture. Never use the carrying

handles for secondary attachment.

Clamp

Secure chain

Danger of fire !

When installing the device, make sure there is no

highly inflammablematerial (decoration articles, etc.)

in between a distance of min. 0,5 m.

Warning ! Use 2 clamps to rig the fixture on the truss.

Follow the instructions mentioned at the bottom of the

base.Make sure that the device is fixed properly!

5. Addressing

The control board on the front panel of the MOVITEC SL-250 allows you to assign the DMX fixture

address, which is defined as the first channel from which the MOVITEC SL-250 will respond to the

controller.

If you set, for example, the address to channel 5, the MOVITEC SL-250 will use the channel 5 to 20 for

control.

Please, be sure that you dont have any overlapping channels in order to control each MOVITEC SL-

250 correctly and independently from any other fixture on the DMX data link.

If two, three or more MOVITEC SL-250 are addressed similarly, they will work similarly.

For address setting follow this procedure:

1. Switch On the MOVITEC SL-250 and wait until the fixture reset has finished ("rSt" is flashing at the

display).

2. Press the [Mode] key in order to access the main menu. Browse through the menu by pressing the

[Up] and [Down] keys until the display shows "A001". Confirm by pressing [Enter] key and the letter

"A" will flash.

3. Use the [Up] and [Down] keys to select the desired address.

4. Confirm by pressing [Enter] or [Mode] to cancel.

16

123456789012345678901234567890121234567890123456789012345678901212

1234567890123456789012345678901212345678901234

123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567

12345678901234567890123456

123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456

Controlling:

After having addressed all MOVITEC SL-250 , you may now start operating these via your lighting

controller.

Note:

After switching on, the SL-250 will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX-input, the display will start to flash "A001" with actually set

address.

This situation can occurr if:

- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the SL-

250

- the controller is switched off or defective, if the cable or connector is defective or the signal wires are

swap in the input connector.

Note:

Its necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order

to ensure proper transmission on the DMX data link.

6. Remotely controllable functions

6.1 Lamp

The MOVITEC SL-250 is run with a MSD 250W/200W lamp.

A relay inside of the MOVITEC SL-250 allows you to switch On and Off the lamp via itself control board

on the front panel or via your controller without affecting the rest of the lighting.

6.2 Switching On and Off the lamp by Control Board

1. Switch On the MOVITEC SL-250 and wait until the fixture reset has finished.

2. Press the [Mode] key in order to access the main menu. Browse through the menu by pressing the

[Up] and[Down] keys until the display shows "LAMP". Confirm by pressing [Enter] key.

3. Use the [Up] and [Down] keys to select "On" for switch On the lamp and "Off" for switch Off the

lamp andpress [Enter] to confirm or [Mode] to cancel.

Note:

It is also important to note, that the discharge lamp is cold restrike types, that means, that they have to

be cold before re-striking. For this reason, you have to wait 5 minutes (max. speed of fan must be

adjusted) after having switched Off the lamp before you can switch it back On again.If you try to switch

On the lamp within 5 minutes after having switched it Off, the MOVITEC SL-250 will store this information

and automatically ignite the lamp when the 5 minutes period has expired. The message "HEAt" will

appear on the control board display at the back side of the SL-250. If the ignition of the lamp is seven

times unsuccessful, on the display will appear "LA.Er", meaning that the lamp could be damaged or even

missed, or there could be a failure on the ignitor or ballast.

6.3 Colour wheel

The MOVITEC SL-250 features a colour-wheel with 12 color positions - 11 of these with dichroic colors

and the last one open.The wheel can be positioned between two adjacent colors in any position. It is

also possible to rotate the color-wheel continuously at different speeds - the so-called "Rainbow effect

is created.

6.4 Rotating gobo wheel

The rotating gobo-wheel includes 4 metal gobos, 1 glass gobo and 1 multicolor dichroic gobo rotating

in both directions, indexable, rotating gobo wheel cont. rotation slow to fast. The multicolor dichroic

gobo (containing C,M,Y colors) can be combined with the color-wheel especially with cyan, magenta

and yellow colours in order to obtain several different multicolor beams. The gobos have an outside

diameter of 27 mm and an image diameter of 23 mm.

3-facet prism rotating in both directions at different speeds.

17

123456789012345678901234567890121234567890123456789

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567

123456789012345678901234

123456789012345678901234567890121234567890123456789012345678901212345678

12345678901234567890123456789

123456789012345678901234567890121234567890123456789012345678901212345

6.5 3-facet rotating prism

3-facet prism rotating in both directions at different speeds

6.6 Focus

Motorized focus enables the beam to be focused anywhere on stage.

6.7 Dimmer/Shutter/Strobe

Smooth 0 - 100 % dimming is provided by the combined mechanical dimmer/shutter unit.This unit may

also be used for strobe effect (1 - 10 flashes per second)

6.8 Fan

The MOVITEC SL-250 is cooled by two axial fans - one each in the projector head and one in the base.

The speed of the fan (and of course the noise) can be continuously reduced if very quiet performance

is required.

By the Control Board using the "FAnS" function you can choose 4 types of low fan speed operating:

1. "HIGH - high (max.) speed of fans

The cooling fans work on max. speed (max. cooling)

2. "rEG - continuous controlling of the fan speed

the fan automatically raises its speed in order to control inside temperature of the lighting, if the

temperature inside increases about certain level (the low fan speed reduces the cooling of the lighting).

This cycle can repeat several times until the temperature inside is on suitable level.

3. "LoOF - low speed/Switch Off the lamp operating

the fan keeps the adjusted low speed until the temperature exceeds max. inside temp. then the MOVITEC

SL-250 automatically switch Off the lamp.

4. "LoHI - low/high speed of the fan operating

the fan keeps the adjusted low speed until the temperature exceeds max. inside temp. of the fixture,

then the MOVITEC SL-250 automatically switch from low to high the fan speed.

7. Control Board

The control board situated on the front panel of the MOVITEC SL-250 offers several features.You can

simply set the lighting address, read the number of lamp or unit hours, switch On and Off the lamp, run

test show, make a reset and also use special functions for manual, demo and service purposes.

The main menu is accessed by pressing the [Mode] key - press this one so many times until the

display shows message "A001" (with actually stored address).Browse through the menu by the pressing

[Up] and [Down] keys - the display shows step by step these messages:A001, rPAn, rTilt, 16br, Lati,

Poti, LAMP, dEMo, rESE, SPEC. Press [Enter] if you wish to select one of them.The functions provided

are described in the following sections and the function hierarchy is shown below.

7.1 Main functions

- DMX 512 Address settings

The letter "A" flashes.Use the [Up] and [down] keys to select required address (001 - 497) and press

[Enter] to confirm or [Mode] to cancel and return to the main menu.

- Pan reverse

This function allows you to invert the pan movement. Use the [Up] and [Down] keys to select "On" if

you wish this feature or "Off" if you dont wish this feature and press [Enter] to confirm or [Mode] to

cancel and return to the main menu.

18

12345678901234567890123456789012123456789012345678901234567890121234567890

- Tilt reverse

This function allows you to invert the tilt movement. Use the [Up] and [Down] keys to select "On" if

you wish this feature or "Off" if you dont wish this feature and press [Enter] to confirm or [Mode] to

cancel and return to the main menu.

- Movement resolution

By this function you can adjust the desired movement resolution 8 or 16 bit. Use the [Up] and [Down]

keys to select On if you wish the 16bit high resolution or "Off" if you wish only 8 bit resolution and

press [Enter] to confirm or [Mode] to cancel and return to the main menu.

Note: If you adjust the 16 bit resolution the fixture will occupy 16 DMX channels, if you adjust the 8

bit resolution,

the fixture will be operated by only 14 DMX channels. Please, check the DMX protocol.

- Lamp On time

This option enables you to read the total number of hours that the lamp has been powered On. Press

[Enter] or [Mode] to return to the main menu. In order to reset the counter to 0, you have to hold the

[Up] and [Down]-button and press the [Enter]-button.

- Power On time

By this option you can read the total number of hours that the MOVITEC SL-250 has been powered

On. Press [Enter] or [Mode] to return to the main menu.

- Switch On/Off the lamp

Use the [Up] and [Down] keys to select "On" if you wish the switch On the lamp or "Off" if you wish

switch Off the lamp and press [Enter] to confirm or [Mode] to cancel and return to the main menu.

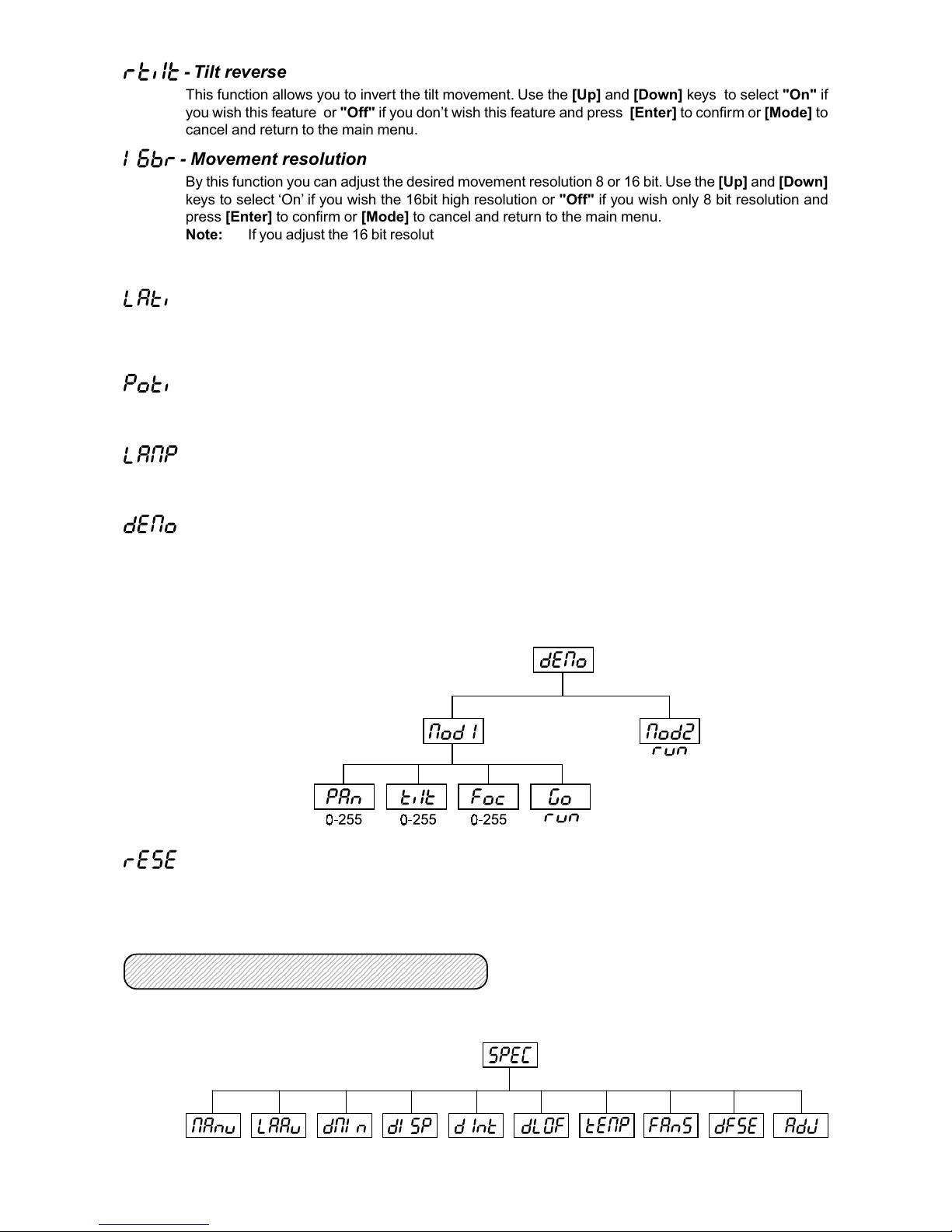

- Demo sequences

This function allows you to run a special demo-test sequences without an external controller, which will

show you some possibilities of using MOVITEC SL-250. Press [Up] and [Down] keys to select the

"Mod1" or "Mod2" sequences. The "Mod1" is suitable for projections on the wall, ceilling or ground

without any head-movement, the "Mod2" uses all MOVITEC SL-250 functions and therefore is good

for a complete introduction of the fixture.

- Reset Function

Press [Enter] key to run reset.This option enables the MOVITEC SL-250 to index all effects (functions)

and return to their standard positions.

7.2 SPEC -Special functions

Use the [Up] and [Down] keys to browse through the special functions and select the one by pressing

[Enter].

19

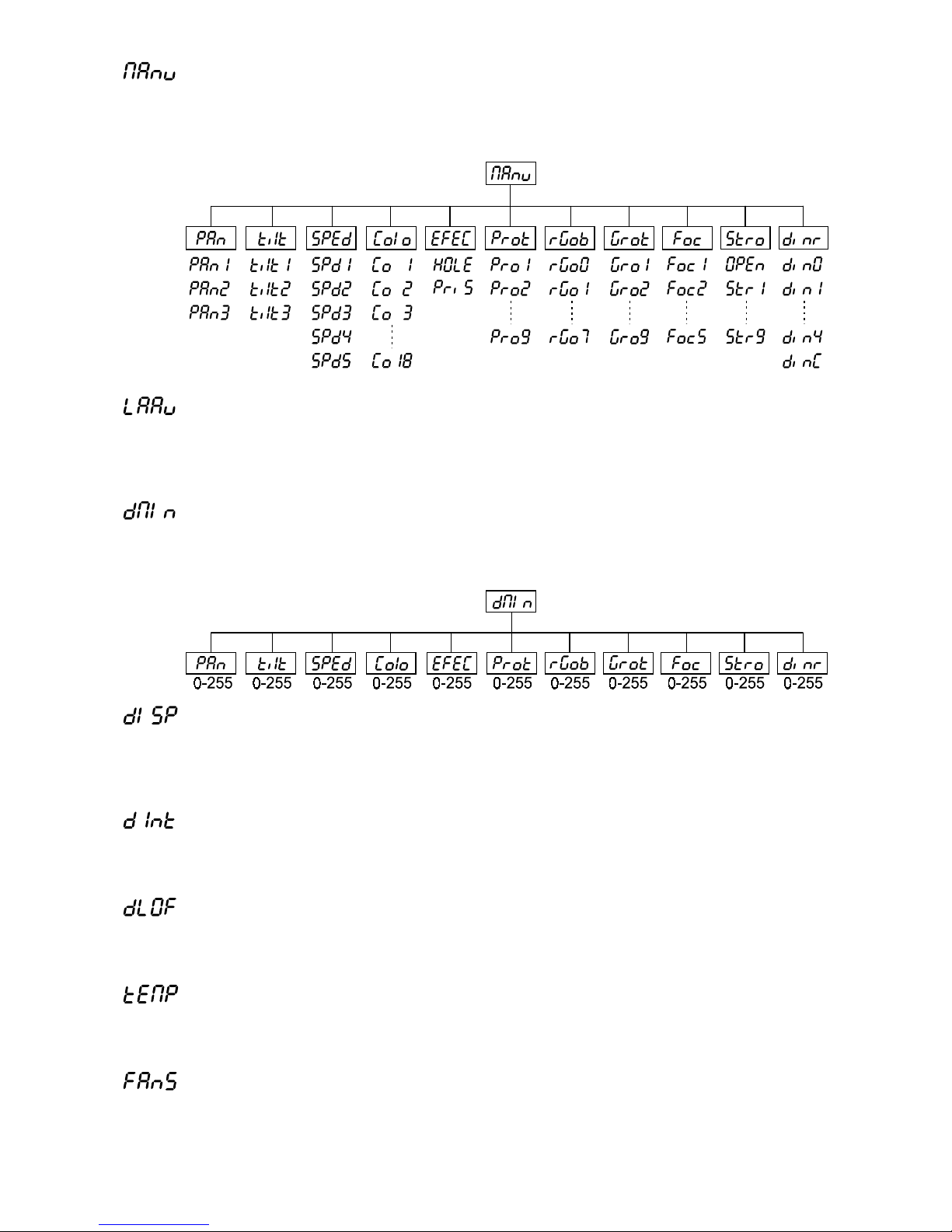

- Manual control of effects

This function allows you to control manually the channel functions of the fixture. Use the [Up] and

[Down] keys to select desired function and press [Enter] to adjust the effect or [Mode] to cancel and

return to the menu.

- Lamp On automatically

This function enables to switch On the lamp automatically after switching On the fixture. Use the [Up]

and [Down] keys to select On if you wish to switch On the lamp automatically after switching On the

fixture or Off if you wish the lamp off after switching On the fixture and press [Enter] to confirm or

[Mode] to cancel and return to the menu.

- DMX values

Readout DMX values of each channel received by the fixture.Use the [Up] and [Down] keys to select

desired channel and press [Enter] to read its value coming to the fixture or [Mode] to cancel and

return to the menu.

- Automatic blackout of Display

This function allows you to keep the display On or to turn Off automatically 2 minutes after last pressing

any key on the control board. Use the [Up] and [Down] keys to select "On" if you wish to keep the

display On or "Off" if you wish to turn Off automatically 2 minutes after last pressing any key on the

control board and press [Enter] to confirm or [Mode] to cancel and return to the menu.

- Display intensity

By this function you can adjust from 20 to 100 the intensity of the display. Use the [Up] and [Down]

keys to select the level of the display intensity and press [Enter] to confirm or [Mode] to cancel and

return to the menu.

- Lamp Off via DMX

This function allows you to switch Off the lamp by DMX.Use the [Up] and [Down] keys to select "On"

if you want to switch Off the lamp by DMX or "Off" if you dont want to switch Off the lamp by DMX and

press [Enter] to confirm or [Mode] to cancel and return to the menu.

- Temperature

Temperature readouts of fixture inside in Celsius. Inside temperatures below 70° C are not critical. 70°

C and more lead to the lamp being switched off. Please note that the outside temperature should not

exceed 45° C.

-Low fan speed operating

By using this function you can choose 4 types of low fan speed operating. Browse through this menu

by the pressing [Up] and [Down] keys - the display shows step by step these messages:"HIGH, reG,

LoOF, LoHI". Press [Enter] if you wish to select one of them or [Mode] to cancel and return to the

menu.

20

""  high (max.) speed of fans

The cooling fans work on max. speed (max. cooling)

"" - continuous controlling of the fan speed

The fan automatically raises its speed in order to control inside temperature of the lighting, if the

temperature inside increases about certain level (the low fan speed reduces the cooling of the

lighting).This cycle can repeat several times until the temperature inside is on suitable level.

"" - low speed/Switch Off the lamp operating

The fan keeps the adjusted low speed until the temperature exceeds max. inside temp., then the

MOVITEC SL-250 automatically switch Off the lamp.

"" - low/high speed of the fan operating

the fan keeps the adjusted low speed until the temperature exceeds max.inside temp..of the fixture,

then the MOVITEC SL-250 automatically switch from low to high the fan speed.

- Default settings

Press [Enter] to reset all fixture personalities (not the adjusting functions) to the default values.On the

display will appear rSt meaning that the fixture makes the reset. See the table of personality setting

Personality Display

Pan reverse

Tilt reverse

Lamp on

automatically

Display intensity

Lamp Off via DMX

Low fan speed

Default values

(SHADED)

Movement

resolution

Automatic blackout

of display

and their default positions.

- Adjusting the default positions of colour, gobo and effect wheels

By this function you can calibrate and adjust the colour, gobo and effect wheels to their standard/right

positions. Use the [Up] and [Down] keys to browse through the adjusting menu - the display shows

step by step these messages: "PAn, Tilt, SPEd, Colo, EFEC, Prot, rGOB, Grot, Foc, Stro, dimr,

FCAL" by which you can adjust the fixture to the required/desired position (0-255) before the function

calibration.Then when the positioning is finished use the last "FCAL" function (Fixture calibration).

MOVITEC SL-250 User manual

Popular Lighting Equipment manuals by other brands
