Movo SUTTON User manual

BROME
User Guide
1
MD

BROME
User Guide
TABLE OF CONTENTS
1. INTRODUCTION ……………………………………….…..………………………3
2. IMPORTANT PRECAUTIONS ……………………………………………………4
-BEFORE DRIVING THE SCOOTER - pg. 4
-CAUTIONS WHEN DRIVING - pg. 5
-GENERAL SAFETY INFORMATION - pg. 6
-CAUTION WHEN DRIVING ON INCLINES- pg. 6
-CAUTION WHEN CLIMBING- pg. 7
-ELECTROMAGNETIC INTERFERENCE AND WARNINGS - pg. 7
3. PRODUCT OVERVIEW ……………………………………………………….…9
-THE SCOOTER - pg. 9
-CONTROL PANEL - pg. 10
-OPERATION AND SET-UP - pg.11
4. OPERATING YOUR SCOOTER ……………………………….…………….…12
-FREE-WHEELING (N-D LEVER) - pg.14
-FIXED HOOKS - pg. 14
-DISASSEMBLING YOUR SCOOTER - pg. 14
-DISASSEMBLING BATTERIES - pg. 15
5. IMPORTANT PRECAUTIONS ………………….…………………………….…16
-BATTERY GAUGE - pg.16
-OPERATING THE CHARGER - pg. 16
-INFORMATION FOR BATTERY & CHARGER - pg. 17
6. CARE AND MAINTENANCE…………………………….………………………18
-DAILY CHECK - pg. 18
-WEEKLY CHECK - pg. 18
-MONTHLY CHECK - pg. 19
-CLEANING YOUR SCOOTER - pg. 19
-MAINTENANCE - pg. 20
7. OTHER INFORMATION ………………………………….………………………21
-RECYCLING & DISPOSAL - pg. 21
-SERVICE LIFE - pg. 21
8. TROUBLE SHOOTING ………………………….………………………………21
-SCOOTER WON’T MOVE WHEN KEY IN TURNED ON - pg. 21
-ERROR CODE - pg. 22
-OTHER PROBLEMS - pg. 22
9. TECHNICAL SPECIFICATIONS ………………..………………………………23
10. WARRANTY ………………….……………………………………………………24
2

BROME
User Guide
INTRODUCTION
Thank you and congratulations on purchasing your new Movo Mobility
Scooter. It is designed to provide you with transportation ability indoors and
outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure
your complete satisfaction with our product.
Please read and observe all warning and instruction provided in the owner's manual
beforeoperating this scooter. Also, retain this booklet for future reference.
In case of a serious incident with the product, you should inform the manufacturer
and the competent authority in your country.
If you have any questions, you can contact:
[email protected]
Tél.: [phone]-MOVO (6686)
Granby, Québec
Canada
3

BROME
User Guide
IMPORTANT PRECAUTIONS
1. BEFORE DRIVING THE SCOOTER
•Before taking the first trip with mobility scooter, you should familiarize yourself well
the operation of mobility scooter and with the operation elements. Please take
your timeto read this introduction booklet.
•Before driving, please evaluate the personal condition, and fully understand the
operationof mobility scooter.
•You should not assemble, maintain, and operate the mobility scooter before you
read this instruction booklet.
•Observe and obey all pedestrian rules and regulations in which you are riding.
•Mobility device may only be used on the traffic routes for which it is approved in
accordancewith the relevant national legislation.
• Always be aware of pedestrians and situations which might require extra care when
using your scooter on public walk ways and footpaths.
•Do not drive your scooter if you are under the influence of alcohol or medication
that may affect your ability.
•Try not to drive scooter at night.
•Turn the key off before getting on or off. (see section 4-1 General Operation)
Practical Tips :
•If you are new to drive a scooter, it is a good idea to practice in a clear, safe
space ona sound level surface. (I.e. Park, Playground).
•Basic functions to practice：Wig wag accelerate /Wig wag release /Stop /Reverse /Turn
/Ramp proceeding.
•Set the speed control to its lowest speed, slightly increase the speed when you are
getting familiar with the scooter. (see section 4-1 for speed Dial Knob)
4
Please observe all relevant rules and regulations pertaining to pedestrians and road users,
at all times when you are driving the scooter.
•Do not turn the power on before you get in and sit securely on the seat.
•Be certain that the power is turned off when get in, get out. This will eliminatethe
possibility of accidentally activating the wigwag controls and causing injury.
•Keep your weight toward the middle of the deck. Putting most or all of yourweight on
the edge of the deck may cause an unstable condition.
•Only one person at a time could ride a Movo Mobility Scooter. Do not carrypassengers
under any circumstances.

BROME
User Guide
2. CAUTIONS WHEN DRIVING
•Please do the daily check before your journey always. (Refer to 6-1 Daily check.)
•Do not extend your body over the mobility scooter.
•Please make sure your safety when crossing the level crossing.
•When crossing the level crossing, please be aware of the wheel and rail are
perpendicular.
•Do not use the mobile phone and wireless mobile devices.
•Do not use the batteries of mobility scooter to charge any other electric devices,
except the accessories from original manufacturer.
•Do not drive on a slope which is over the limit. (Refer to 2-4 Caution When Driving)
•Reduce speed when descending to prevent any danger. Increase speed when ascending
•Do not drive to across the obstacle over the limit (Refer to 2-5 Caution When Climbing)
• Do not attempt to drive the scooter in rain, wet grass, or any other potentially
hazardouscondition.
•Ensure that the lights of scooter are turned on while driving at night or in poor visibility.
•Please stop operating the scooter if the batteries have drained, continuous operation
maydamage the scooter.
•Do not turn off the power while driving.
•Do not stretch your body out on the scooter. For maximum stability,
lean forward in your body while proceeding up ramps, inclines,
curbs, or any low rise.
•Do not attempt to have your scooter climb or descend an obstacle
that is inordinately high. This may cause the scooter to tip.
•Do not attempt to use your scooter on an escalator.
•Do not make sharp turns while driving. This may cause the scooter to tip.
•Never place the scooter in freewheel mode when on any sort of an
inclineor decline. When the scooter is parked, the lever for engaging and
disengagingthe motors must be locked firmly into the “DRIVE” position.
•Cross the railroad crossing, make sure the wheels pass the rail at
90degree angles,avoid scooter stuck on railroad.
•When descending an incline, use the slowest speed possible. If the
descent is faster that you desire, release the throttle lever to stop the
scooter. Then press the throttle lever slightly to control the speed.
5
•Always follow the local pedestrian traffic rules when riding outside.
•When turning, reduce your speed and maintain a stable center of gravity.This
greatly reduces the possibility of a tip or fall.

BROME
User Guide
3. GENERAL SAFETY INFORMATION FOR SCOOTER
•Batteries should be fully charged before using for maximum performance and
longevity. (see section 5-2)
•The maximum load of the scooter is 350 lbs (160 Kg) . Do not exceed the maximum
permissible load. Exceeding the max.weight rating may result in injury to yourself.
•The maximum load of the front basket is 7 lbs (3 Kg), exceeding the max. weight
may result damage to basket.
•The mobility device is only designed for use by a single occupant whose maximum
weight does not exceed the maximum permissible load of the device. Never use the
mobility device to transport more than one person (including children).
•Do not attempt to carry out maintenance work that is not described in this user manual.
•Do not change, modify, remove any parts from products especially safety protected
parts such as anti-tips.
• Completely deflate the tires (air tires) before dismantling the rim or attempting
4. CAUTIONS WHEN DRIVING ON INCLINES
•The scooter has been rated to a maximum climbable height, obstacle height, and gap.(page
23)
•Never drive on a slope that exceeds the rated slope.

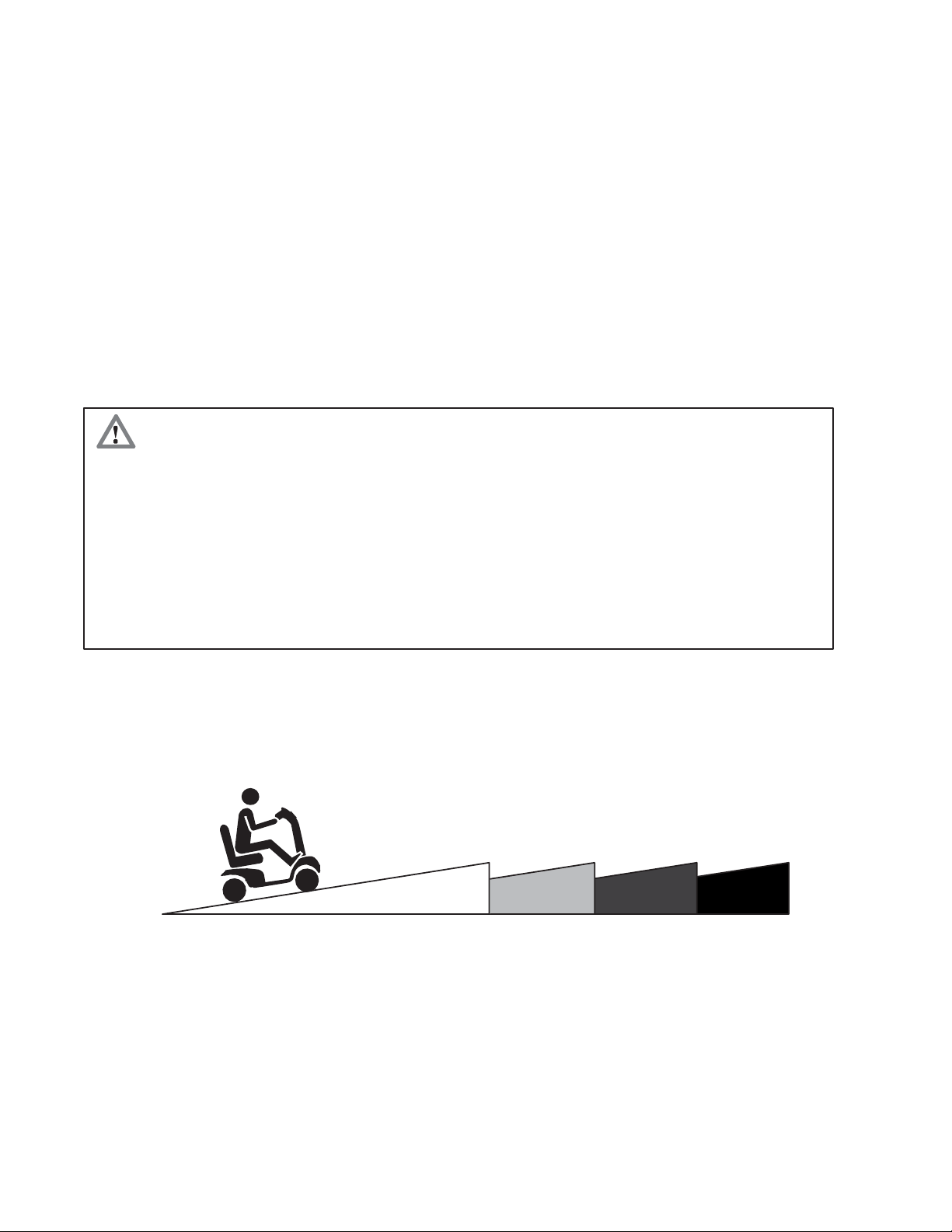

•The weight capacity limit at different ramp degree (please refer to following picture).
•Your scooter’s ability to travel up inclines is affected by your weight, your scooter’s speed,
your angle of approach to the incline, and your scooter setup.
•Please avoid to drive on a long ramp or any uneven terrain to prevent any danger from motor
defected.
•The batteries voltage normally will go up when driving on descending road. If the batteryvoltage
becomes too high, the over-voltage protection will be activated by slowing the speed till the
scooter stops. (error code :ERR3 will be displaying). Please pull over the scooter to the safe
area, release the wigwags and restart the scooter again.
6
•Materials and assemblies of scooter is flame resistant.
•Avoid exposure the scooter to rain, snow, ice, salt, or standing water whenever possible.
Maintain and store in a clean and dry condition. Any direct contact with water can cause
damage to the scooter and electrical system.
•Do not remove the anti-tip wheels or modify your scooter in any way that is notauthorized.
•Only use the chargers, accessories, or components supplied as original equipmentwith your
scooter supplier.
•Immediately stop using the scooter if you encounter a problem with scooter. Turnoff the
power and contact dealer for further checking.
•Please pay more attention when driving the scooter, the emergency stop mayencounter.
50kg /
10 degree
91kg /
8 degree
136kg /6
degree
160kg /4
degree

BROME
User Guide
5. CAUTIONS WHEN CLIMBING
•The maximum height of obstacle and curb
that scootercan climb is up to 10 cm (A).
•The maximum gap that scooter can drive over is
15-20 cm (B).
•When driving scooter on ramp, adjust body
center ofgravity for scooter stability.
6. ELECTROMAGNETIC INTERFERENCE AND WARNINGS
Mobility scooters may be susceptible to electromagnetic interference (EMI), which is interfering
electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio
(HAM) transmitters, two-way radios, and mobile phones. The interference (from radio wave sources)
can cause the mobility scooter to release its brakes, move by itself, or move in unintended
directions. It can also permanently damage the mobility scooter control system. The intensity of the
interfering EM energy can be measured in voltsper meter (V/m). Each mobility scooter can resist EMI
up to certain intensity. This is calledits "immunity level." The higher the immunity level, the greater
the protection. At this time, current technology is capable of achieving at least a 20 V/m immunity
level, which would provide useful protection from the more common sources of radiated EMI. The
immunity level of this mobility scooter model is not known.
There are a number of sources of relatively intense electromagnetic fields in the
everyday environment. Some of these sources are obvious and easy to avoid. Others
are not apparent and exposure is unavoidable. However, we believe that by following
the warnings listed below, your risk to EMI will be minimized.
The sources of radiated EMI can be broadly classified into three types :
1. Hand-held portable transceivers (transmitters-receivers) with the antenna
mounted directly on the transmitting unit. Examples include: citizens band (CB)
radios, "walkie talkie," security, fire, and police transceivers, mobile phones, and
other personal communication devices.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the
outside of the vehicle; and
3. Long-range transmitters and transceivers such as commercial broadcast
transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.
diffusion commerciale (pylônes d'antenne de diffusion radio et TV) et les radios
amateurs.
7
It is very important that you read this information regarding the possible effects of
Electromagnetic Interference on your mobility scooter.
Some mobile phones and similar devices transmit signals while they are ON,even when
not being used
Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM
radios, TV sets, CD players, and cassette players, and small appliances, such as electric
shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your
mobility scooter.
(A)
Figure 1
(B)

BROME
User Guide
Mobility Scooter Electromagnetic Interference：
Because EM energy rapidly becomes more intense as one move closer to the
transmitting antenna (source), the EM fields from hand-held radio wave sources
(transceivers) are of special concern. It is possible to unintentionally bring high levels
of EM energy very close to the motorized scooter control system while using these
devices. This can affect mobility scooter movement and braking. Therefore, the
warnings listed below are recommended to prevent possible interference with the
control system of the mobility scooter.
Warnings：
Electromagnetic interference (EMI) from sources such as radio and TV stations,
amateur radio (HAM) transmitters, two-way radios, and mobile phones can affect
mobility scooters. Following the warnings listed below should reduce the chance of
unintended brake releaseor mobility scooter movement which could result in serious
injury.
1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens
band (CB) radios, or turn ON personal communication devices, such as mobile
phones, while the mobility scooter is turned ON;
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
coming close to them;
3. If unintended movement or brake release occurs, turn the mobility scooter OFF as
soon as it is safe;
4. Be aware that adding accessories or components, or modifying the mobility scooter,
maymake it more susceptible to EMI; and
5. Report all incidents of unintended movement or brake release to the distributor
listedon the inside front cover of this manual. Note whether there is a source of EMI
nearby.
Important Information：
1.20 volts per meter (V/m) is a generally achievable and useful immunity level
against EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is at least 20/Vm.
8

BROME
User Guide
PRODUCT OVERVIEW
1. THE SCOOTER
NO
.
ITEM
NO
.
ITEM
01
Rear Mirror
14
Control Panel
02
Emergency Hand Brake
15
Front Turn Signal
03
Tiller Angle Adjustment Lever
16
Charging Port
04
Front Basket
17
Key Switch
05
Headlight
18
Tie-down Hooks
06
Decorative Light
19
Anti-Tipper
07
Side Reflector
20
Rear Reflector
08
Seat fore-aft Adjustment Lever
21
N-D Lever
09
Seat Swivel Lever
22
Brake Light
10
Width adjustable armrests
23
Tail Light / Rear Turn Signal
11
Seat Back Angle Adjustment Lever
24
Armrest Width Adjustment
Thumbscrews
12
Luxury Seat
13
Throttle Level
25
Rear Pocket
9

BROME
User Guide
2. IDENTIFICATION OF CONTROL PANEL
Hazard Light
Press the Hazard lights button once to switch on, press again to
switch off
Hi/Lo Switch
High / Low mode, see section 4-2
Left Turn
Signal
Press the turn signal button once to switch on, press again to switch
off(switches itself off automatically after 30 seconds)
Right Turn
Signal
Press the turn signal button once to switch on, press again to switch
off(switches itself off automatically after 30 seconds)
Deceleration
Press low speed button once to decrease speed, the minimum
speedis 1
Acceleration
Press acceleration button once to increase speed, the maximum
speedis 8
Hor
n
Press horn button once to sound warning tone when necessary.
Headlight
Switch
Press headlight switch to turn on headlight and taillight.
Mode Setting
Press mode setting button to set different mode.
10
Left Turn Indicator H/L Speed Indicator
Headlight Indicator Right Turn Indicator
Hazard
Light
Mode
Hi/Lo
Switch
Headlight
Left Turn
Signal
Right Turn
Signal
Acceleration
Horn
Deceleration
Figure 5 - Sutton Control

BROME
User Guide
3. OPERATION AND SET-UP

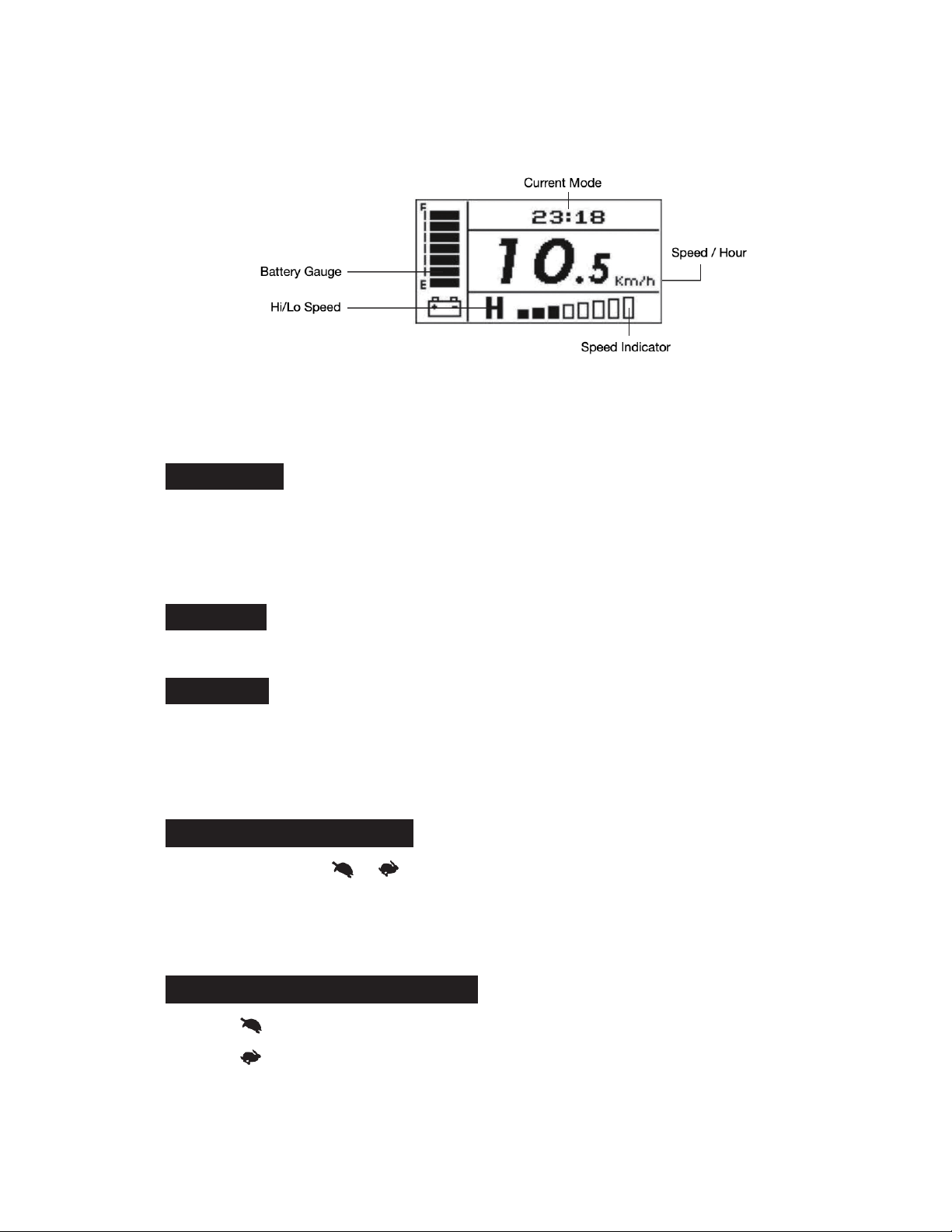

•[H/L] Switch: Press H/L Speed button once, the High/Low Speed Indicator will light
on, means driving in high speed mode; Press again, the indicator will extinguish,
means driving in low speed mode. (Hi/Lo speed will vary which depends on your
current speed settings)
H / L switch:
•Maximum speed can be 100% (Max) if [H/L] is set to "H"
•The low speed LED indicator lights up if [H/L] is set to "L", the maximum speed in low
speed mode can reach 60% of the scooter's maximum speed.
•Press [H] / [L] to decrease/increase the maximum speed.
Configuration:
•Press [MODE] to change display mode: TIME, TEMP, ODO, and TRIP.
Exit / Save :
•Setup mode will automatically quit after 15secs without pressing [left turn] and [right
turn],and scooter will save the setting and return to operation mode.
•User can also press any buttons, except [left turn] [right turn] to save thesetting
automatically and return to operation mode.
[TIME] Time mode (Figure 11) :
•Hold both buttons [ ] [ ] together for 2 secs to set up the time.
•Press [left turn] to increase digits/ Press [right turn] to decrease digits.
•12hr-mode : 12:00AM~11:59PM / 24hr-mode : 00:00~23:59. Tolerance : +/- 2 seconds/
day.
[TEMP] Temperature mode (Figure 12) :
•Press [ ] : Centigrade. Range -20°C~50°C.
•Press [ ] : Fahrenheit. Range -4°F~122°F.
11

BROME
User Guide
[ODO] Odometer mode (Figure 13) :
•Range : 0~99999.
•The odometer will be reset automatically to zero after the total distance
reaching99999km (62149 mile).
•The odometer (hrs) will stop counting after reaching 99999hrs.
[TRIP] Trip mode (Figure 14) :
•Hold [ ] [ ] together for 2 secs to reset TRIP meter.
•Range : 0.0~999.9hrs. The trip meter will stop counting when reaching 999.9hrs.
OPERATING YOUR SCOOTER
Main Key Switch / Headlight :
•Turn the key to the right - Turn scooter on. (Figure 6)
•Turn the key to the left - Turn scooter off
•By turning the key to [ ] to turn on the head light.
Sleep Mode :
•Scooter will go into Sleep Mode with one long beep warning sound if no throttle
activity isdetected for programmable time period. (Default programmable time is
30 mins.)
•When scooter is in Sleep Mode, the Power/Self-Diagnostic warning light on the
controlpanel will be off, and the scooter will not respond to commands.
•To wake up the scooter, turn the power (key) off and then on again.
Turning Signal:
Press the left side to turn on the left turn signal. Press the right side to
turn on the right turn signal. (Figure 8)
Head light / Tail light/ Decorative light :
•There are 4 modes for lights: On (Default) / Off / Head Light / 3-
Stage.
•Please refer to section 4-4 for light modes setting.
•For any head light or tail light faults, the panel indicator will flash
and stop in 5 secondswhen pressing headlight switch. Please
contact your authorized dealer for assistance.
12
•Always ensure that the scooter is switched off before
getting on or off the scooter and before removing any
items of the scooter
•Turning the scooter OFF whilst driving will bring the
scooter to an abrupt stop and danger.
(C)
Figure
Figure 8
Figure 10

BROME
User Guide
Horn :
Press down the button to sound buzzer.
Throttle :
•Pull the right throttle to move scooter forward. /Pull the left throttle to move
scooterbackward. This can be reversed if required by local dealer. (Figure 10)
• These are also your accelerator. The further you depress them, the faster
you go.(Subject to the position of speed control)
• Releasing both left /right throttles automatically operates the brakesto slow
down and stop. Brake light will be activated and have steady red light on for 5
seconds. (Figure 10)
Tiller angle adjustment :
• Pull the tiller adjustment downwards to adjust tiller’s angle and release to lock at a
desired comfortable position. (Figure 12)
Seat Swivel Adjustment :
•Pull the swivel
lever upwardsto
rotate seat left
and right.
(Figure 13)
Seat fore-aft Adjustment :
•Set at a comfortable position by
lifting leverforward to adjust the
seat. (Figure 14)
Armrest angle, height, and width adjustment :
•Angle : rotate the screw as picture to adjust the most comfortable armrest angle. (Figure
15)
•Width : Loosen the thumbscrews as picture to adjust the width, tighten again to
lock at a desired position. (Figure 16)
•Pull the armrest up when getting on or off the scooter.
13
Do not pull both right and left throttle at the same time, you might not able to control the
scooter. Always ensure the
Figure 14
When driving the scooter, place the seat in the most forward position to prevent it from tipping
over. Do not hang heavy objects from the armrests.

BROME
User Guide
1. FREE-WHEELING (N-D LEVER)
•When lever is in Neutral (N) position, scooter can be moved manually without power. (Figure
17-2)
•When lever is in Drive (D) position, scooter can be driven. Normal position is D. (Figure
17-1)
2. TIE-DOWN HOOKS
•To ensure safety during the transportation.
There arefour fixed hooks for fixing scooter
on other vehicles.
•Make sure the scooter’s N-D lever is in D
position whentransporting.
•Do not sit on the scooter during transportation.
3. DISASSEMBLING YOUR SCOOTER
•Remove the seat by lifting the lever to remove the seat upwards. (Figure 19)
•For the rear compartment cover, Open the compartment cover upwards (Figure 20)
•Lift the front basket upward. (Figure 21)
14
Figure 15
Figure 16
Freewheel operation is only recommended on flat
surfaces. Never leave your scooter on gradient with its
motors disengaged.
When adjusting N-D lever, do not sit on the scooter. It’s
not able to drive the scooter when the lever is in Neutral.
You must turn off the scooter first and switch to D lever,
then turn on and drive scooter.
Figure 17
Do not turn on the scooter when disassemble/assemble the scooter, and make sure the scooter
is in D position. Do not modify or change the scooter with non-authorized parts or
accessories.

BROME
User Guide
4. DISASSEMBLING BATTERIES
Release the battery velcro straps and disconnect the battery connectors to remove the
batteries.
15
Figure 19
Figure 20
Figure 21
Batteries are heavy, be careful when removing the batteries.
Do not connect battery terminal [+] [-] with any metals to avoid danger.Connect the red
terminal to red, blue terminal to blue.
When replacing the batteries remove the screws and connectors in sequence and tighteneach
component back.
Maintenance & repair must only be carried out by a competent engineer or authorized dealer.
Figure 26
Figure 27
Figure 33
Figure 34
Figure 35
Figure 36

BROME
User Guide
IMPORTANT PRECAUTIONS
1. BATTERY GAUGE
2. OPERATING THE CHARGER
Batteries must be charged before using the scooter for the first time and should be
recharged after each day use. You will need the scooter and the battery charger.
1. Open the charging socket cover (A) and insert the output connector (C) of the
charger (D)into the socket (B), then plug the AC end of the cable into a 100-240V
electrical outlet.
2. Please check if the Power Light (E) turns Yellow along with the status of the Indicator
(F).3.Charger Indicator status (F)
Rapidly Blinks Red = Error
Flashes Red =
Standby Steady
Red = Charging
Steady Green =
Fully Charged
4. Please follow the instructions closely for your
own safety. When fully charged, please unplug
the charger in reverse order of Step 1.
5. Troubleshooting the charger:
‧If the Power Light (E) is off, please check if the connection is secure.
Status
Display
Capacity (%)
>80
<8
0
<65
<50
<35
<25
<20
F
E
F
E
F
E
F
E
F
E
F
E
F
E
16
Check battery capacity before driving. Recharge the battery immediately when the red lightis
flashing as the remaining power can only keep scooter going for buffering 3km or less
Each country has their own AC power cord.The charging procedure may be different from below. If
you require more details, please contact your authorized dealer. Make sure power switch is in
OFF position and free-wheeling lever is in "D" position. Do not use extension cord to connect
the charger. Do not use other brand charger to charge the scooter.
(A)
Figure 39
(B)
(F)
(E)
(D) (C)

BROME
User Guide
‧If the Indicator (F) is off, check if the connection is secure, otherwise the battery may
be defective.
‧If the Steady Red light doesn't turn Green, please remove the defective battery
as it can't be charged.
‧If the Steady Red light turns Green immediately, the battery may be fully charged,
otherwise please remove defective battery.
1. INFORMATION FOR BATTERY & CHARGER
Battery :
‧Only be used for 12V lead-acid battery, not used for other type of battery or other voltage.
‧Do not turn the key on while scooter is in charging.
‧Charge the batteries after each trip. Only use the battery charger (under 5Amps) supplied with
your scooter.
‧If the scooter is not used for some time batteries must be recharged once every three months at
least. Make sure that batteries are fully charged, and on returning, charge them again before using
scooter.
‧Batteries will only give maximum performance after scooter has been used. And batteries have
been recharged up to 10 times.
‧Do not switch off, unplug or interrupt the recharge cycle until the charging cycle has completed. (charger
indicator turns green)
‧The minimum time needed to recharge will vary up to 15hrs which depends on the depletion of the
batteries. Excessive or short period charging will be detrimental to battery life.
‧Please charge the scooter in 0°c ~ 40°c, out of this range might affect the performance of the charger and
battery.
‧For longest life, your batteries should be recharged regularly. Please recharge the batteries before
they run down to 20%.
Charger :
‧Do not leave charger plugged into your scooter with charger switched off as this may discharge your
batteries.
‧Inspect the battery charger before each use, make sure connectors are dry and clean. Do not attempt to
use an extension cord to plug in your battery charger.
‧Be aware that the battery charger case may become hot during charging. Please avoid skin contact.
※The battery charger is equipped with cooling fan. If the fan does not appear to be working correctly, pleaseturn off the charger
immediately as it may be overheated. Please contact your authorized scooter dealer.
※Use the battery charger in a well-ventilated area. Do not smoke as explosive gases may be generated while charging the batteries.
※Any battery faults due to unauthorized maintenance, dismantle, misuse or accidental damage is not coveredby the manufacturer’s
warranty.
17
Please note that the range of your mobility scooter depends on the rate at which the batteries
discharge. This will depend on many circumstances, such as ambient temperature, road surface
condition, tire pressure, driver's weight, driving environment (inclines, etc.) and your system usage.
lighting, if applicable. We recommend testing your local route with a family member to ensure a safe
journey.
‧Please unplug the charger after the battery is fully charged to prevent slow discharge of electricity.
‧Both ends of the charger must remain clean and dry. Do not connect to extension cords.
‧Please avoid touching the charger as it heats up when charging to prevent burns.
‧Use the Indicator (F) as the main point of reference, with the Power light (E) as secondary, to
check if the battery is fully charged.
‧Please do not charge non-stop over 15 hours.

BROME
User Guide
CARE AND MAINTENANCE
1. DAILY CHECK
Please always check your scooter before you start your every journey.
2. WEEKLY CHECK
Check point
Inspection
What to do if the inspection is failed
N-D lever
Check for correct function
Contact your dealer.
Horn
Check for correct function
Contact your dealer.
Throttles
Pull the wigwag to test the
scooter movement
Contact your dealer.
Electro-
mechanica
lbrake and
Emergenc
yhand
brake
Pull the wigwag a little bit and
release it to test if brakeworks.
If your scooter comeswith
emergency handbrake, please
check it as well.
Contact your dealer.
Batter
y
Gauge
Check if the battery gauge is
displayed and whether it is at
low power.
‧Contact your dealer if battery gauge is not
working.
‧Recharge the battery immediately if low
Rear
mirror (s)
Check if the parts are clean
and firmly tighten to the
scooter and do not wobble.
‧Clean up the dirt by damp cloth.
‧Tighten the screw or clamping stem that holds
the mirror(s)
Lighting
Check if all lights, such as head
lights, rear lights, andturn signal
are functioning correctly.
Contact your dealer.
Check point
Inspection
What to do if the inspection is failed
Speed Dial
Knob
Check for correct function
Contact your dealer.
Armrests
Check if the parts are cleanand
firmly tighten to the scooter
and do not wobble.Tighten the
screw knob thatholds the
armrest.
Contact your dealer.
Wheels/Tires
Inflate the tire to the correct
pressure and check that 1.Drive
wheels rotate without
wobbling.
2. Tire tread depth is not less
than 0.5mm.
3. No foreign objects in tires.
Contact your dealer.
Motor
Check for correct function
Contact your dealer.
Battery
Charger
Check if the charger is
functioning correctly and the
batteries are charged.
Contact your dealer.
18

BROME
User Guide
3. MONTHLY CHECK
4. CLEANING YOUR SCOOTER
Do not use any abrasive or scouring liquids for cleaning. Only use a damp cloth and
gentle detergent.
Do not use hose pipe or splash water directly onto the scooter as this may cause
damageto electronics.
5. MAINTENANCE
User should inspect the scooter regularly to keep scooter in good running order.
Check if the electrical cable connectors are fully connected.
All maintenance and repair of scooter should be done by an authorized dealer.
Seat Upholstery :
Only use damp cloth and a little soap to wipe the seat. Do not use abrasive cleaners
as this will damage the seat.
Storage :
Please store the scooter in a dry location. If store the scooter in long time, please
disconnect the battery terminals.
Do not store your scooter where it will be exposed to source of direct heat, damp,
oil, acid, alkaline, or where Ozone could be possibly generated. All of the above will
minimize scooter / tire cycle and shorten its lifetime.
Tire :
User should inspect the tires frequently for damage, the presence of foreign bodies,
unusual wear and sufficient tread depth. If replacement tires are needed, please
contact the nearestdealer.
The following areas require periodic inspection :
Tire pressure between
35-40 psi Tread depth
drops below 0.5 mm
Check point
Inspection
What to do if the inspection is failed
Seat /
Upholstery
Check for movement andif
it’s worn
Contact your dealer.
Electronics
Check if all the battery cablesand
connectors are firmly tighten to
the scooter
Contact your dealer.
19

BROME
User Guide
Recommended range of storage,
Temperature : -30
o
c ~ +50
o
c, Humidity : 25% ~ 85%

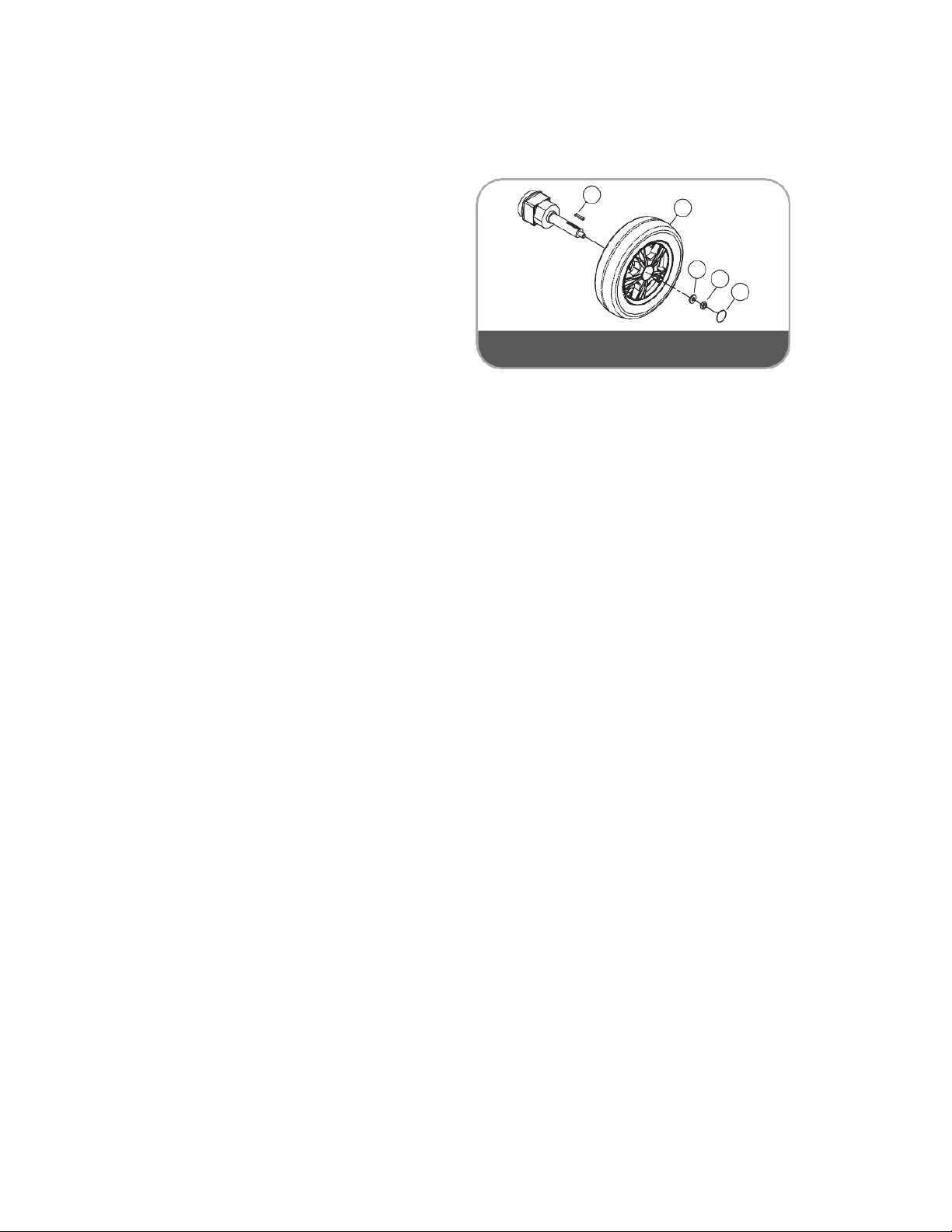

Follow these easy steps to replace the tire :
1. Turn off the scooter and remove the
key. Make surethe lever is in D
position before you lift the scooter.
2. Use an ratchet and socket to remove
the drive wheel screw from the centre
hub of thewheel. Pull the wheel off of
the axle.
3. Separate the tire from the rim.
4. Remove the old tire and replace it with
a new tire.5.Slide the wheel back onto
the shaft.
6.Install the drive wheel nut into the centre hub and verify the key is lined up with
axle and wheel,then tighten to secure it in place. (Torque 300±30kgf-cm)
All maintenance and repair of scooter should be done by an
authorized dealer.
20
5
4
3
2
1
Component 5 is for rear wheel only
