MP Solutions V3CS User manual

V3CS
Technical Specifications
Product Description
The V3CS model is an automatic motorised-lift power point with Australian power sockets, USB A, USB C
charging sockets and a wireless charging top. It is designed for the home and office. The built-in electric motor
allows the unit to raise and lower automatically by pressing the button on the lid.
How to open: press and hold the top button for 3 seconds to 'wake up' the unit. Once the top button has lit up,
press it again once to open or close the unit. The unit will automatically go to sleep after some time. This helps
to prevent accidental opening/closing when placing your mobile device on the top for charging.
Features
2x AU Power Sockets, 1x USB-A 1x USB-C (15w) Touch the top button to raise and
lower the unit
1.8m Cable with Fitted AU Plug
Plug & Play - no electrical work
required for installation
Accidental Operation Protection: The unit is fitted with an automatic delay timer to prevent accidental
activation of the motor. Press the button on the top of the unit for 2 seconds to enable the motorised
ascent/descent of the unit. This function works to protect both children and animals.
Anti-pinch function: If the unit is obstructed during its descent, the anti-pinch function will reverse the
direction of travel momentarily, and then pause all movement. The operation LED light will flash to indicate
that the anti-pinch function has been activated. When the button at the top of the unit is pressed again, the
unit will fully raise and return to normal operation.

Anti-collision function: If the unit encounters an obstruction during its expansion, the anti-collision function
will activate and the unit will pause. To indicate that the anti obstruction function has activated, the LED will
flash. Once the obstruction has been cleared, the unit can be returned to normal operation by pressing the
button on the top of the unit once again.
One-touch design: The unit has been designed with simplicity and ease of use in mind. For this reason, all
operations are controlled using a single button on the top of the unit.
Water-resistant design: IP54 In a closed state, this product is designed to prevent water ingress by
preventing spillages from entering the product body and potentially leaking into the main sockets.
USB charging: The unit is equipped with USB charging sockets. This allows portable devices to be charged
quickly and easily.
Technical Specifications Electrical
Model: V3CS Cable Length: 1.8m (Single Power)
Country: Australia Plug: AU Plug (XH022B)
Colour: Silver Top, Silver Shell, White Outlets Rated Voltage: 240v ~50Hz
Materials: PVC, ABS & Aluminium Rated Current: 10A, 2400w Total
IP Waterproof Rating: IP54 (when closed) Operating Temperature: 0 - 40 C, 32 - 104 F
Warranty: 24 months USB Charger: (internal, built in)
Input: 100-240V ~ 50/60Hz ; 0.5A
Output: USB-A: 5V2A USB-C: 5V3A
Wireless Charger: Qi 10W (Compatible with
iPhone, Samsung, Android etc..)
Installation Hole Diameter: 95mm +/ 3mm
Space Below Surface: 370mm from top
Lifting Method: Motorised Lift - Single Touch Top
Available Stock: Ingleburn, NSW, Australia
Outlets: 2x AU Power Sockets, 1x USB-A, 1x USB-C
Individual Box Dimensions: 58.5 × 17.3 × 16.8 cm
Individual Box Weight (Gross): 2kg
Other Options: Model Country Features
V3L AU Black Top, Smaller Diameter Hole (65mm)
V3C AU Black Colour
V3CW AU White Colour

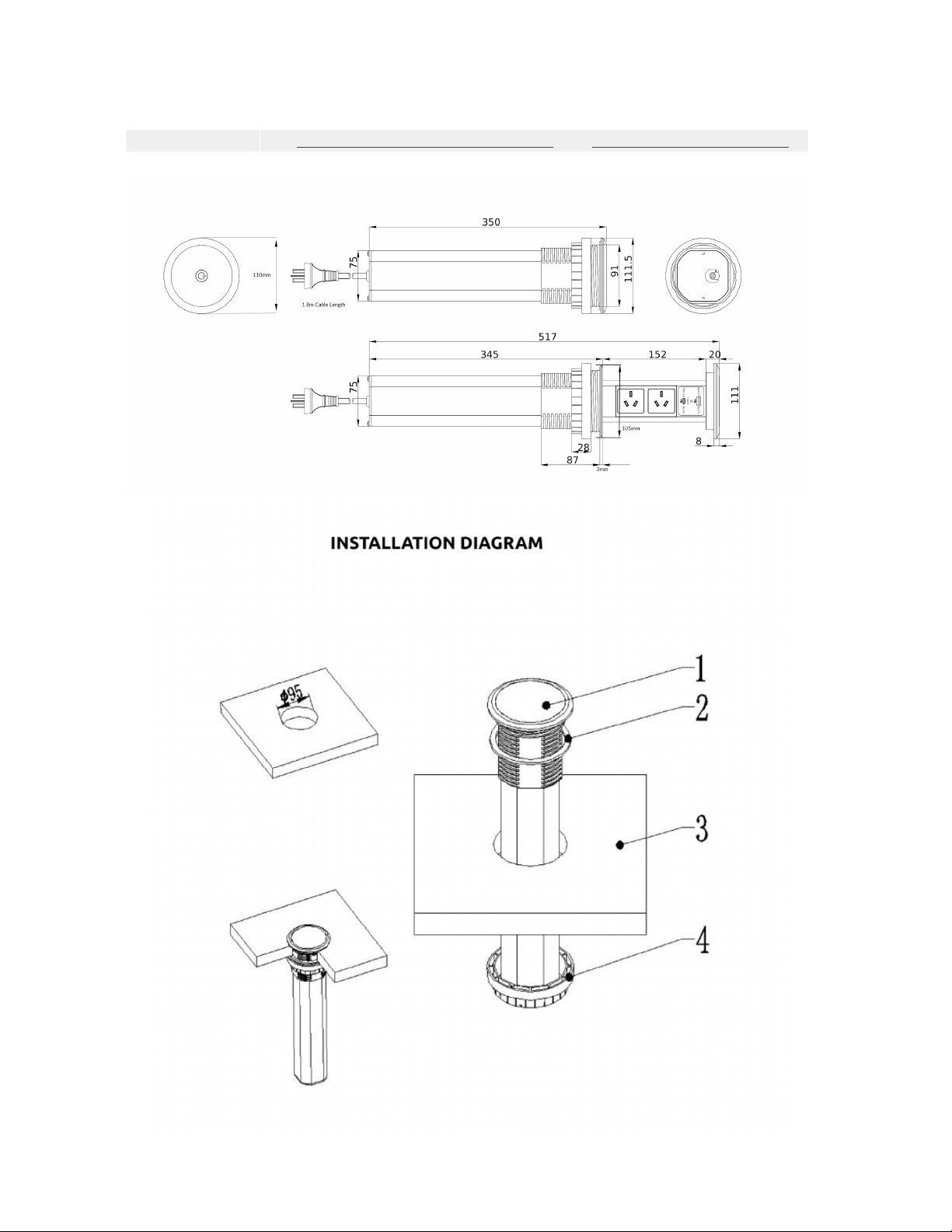

Installation
Step 1: Bench-top hole: drill a hole in your bench-top, with the diameter according to the product
specifications.
Step 2:Unscrew the locking ring around the body of the unit, and remove it altogether.
Step 3: Place the unit inside the hole in your bench-top.
Step 4: Screw back the locking ring around the body of the unit - from the underside of the bench-top, and
tighten it securely.
Step 5: Connect the unit to power by plugging it into a power outlet under the bench-top.
Safety Information
Install and use this product with care. Please read this instruction booklet thoroughly before installation and
carefully follow all instructions.
Do not use this product for any purpose or in any configuration not explicitly specified in this user manual. We
hereby disclaim any and all liability for injury or damage from incorrect assembly, mounting or usage of this
product.

Support mail: [email protected] web: modernpowersolutions.com.au

Frequently Asked Questions FAQs
Q. Is this model spring-loaded? Does it automatically come up?
A. Yes, this model is motorised. The built-in electric motor allows the unit to raise and lower automatically by
pressing the button on the lid.
Q. What happens if I have an issue with my product after the warranty period?
A. We’ve designed and tested these units for use over many years withstanding in a normal environment. If
your product does develop an issue outside of the warranty period, we do provide an affordable repair or
replacement service.
Q. Do you provide an after sales-service, and how do I contact you?
A. Yes, we provide an after-sales service. You can contact us via phone – through our ‘request a call back’
feature, where you give us your name and phone number, and we ring you back as soon as possible.
Q. Do I need a licensed electrician to install this product?
A. No, no electrical work is needed to install this product. We have designed the unit with a standard AU-fitted
plug, allowing you to plug the unit into any other power socket – below your installation surface.
Q. What is the process in making a warranty claim if I have an issue with my product?
A. If your product malfunctions within the warranty period, we will repair or replace it free of charge. We keep
digital records matched with product serial numbers for every order, so you do not need to worry about
keeping your receipt.
About Modern Power Solutions
Modern Power Solutions is the leading manufacturer for retractable, pop up power sockets designed for the
home and office. Founded in 2006, Modern Power Solutions aims to improve the convenience of power access
through product innovation, customer research and a culture of microfocus.
Disclaimer
Modern Power Solutions has made every attempt to ensure the accuracy and reliability of the information
provided in this document are correct. All information contained in this document is to be used for general
guidance only. Modern Power Solutions reserves the right to change, delete or modify the information
without notice.
© Modern Power Solutions (Last Updated 9th September 2021)
