Nortek GoControl FS20Z-1 User manual

1
FS20Z-1 DUPLEX RECEPTACLE
The GoControl™family of Z-Wave®certified wireless lighting products
(smart LED fixtures, bulbs, switches, dimmers, outlets, plug-in modules, and
thermostats) and security devices (alert sounder, motion sensor, and door/
window sensor) bring a new level of intelligent wireless capability to commercial
and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications.This product can be included
and operated in any Z-Wave network with other Z-Wave certified devices
from other manufacturers and/or other applications. All non-battery operated
nodes within the network will act as repeaters regardless of vendor to increase
reliability of the network.
GoControl Z-Wave products are easy to install, are Z-Wave certified, and allow
dealers to create an integrated wireless network with nearly limitless expansion
and interoperability with security, energy management, home entertainment,
appliances, and more.
DANGER! SHOCK HAZARD. Read and understand these
instructions before installing. This device is intended for installation in
accordance with the National Electric code and local regulations in the United
States, or the Canadian Electrical Code and local regulations in Canada. It is
recommended that a qualified electrician perform this installation. Make sure
the total load controlled does not exceed 20 amps.
For indoor use only. Retain instructions for future use.
INSTALLATION
Wire this module in series with a 20 amp (maximum) load according to one
of the diagrams above. The FS20Z-1 has an isolated relay output on the two
BLUE wires. BLACK is for the 120 VAC Line. WHITE is for the 120 VAC Neutral.
With dry contact wiring, the load is powered by a separate source. With wet
contact wiring, the load is powered from the same source as the FS20Z-1.
Fixture Mounted Configuration
Push the button on the face to configure the module to operate from the
Wireless Controller. With the Wireless Controller, the FS20Z-1 can be switched
ON and OFF remotely, and can be included in groups of lights that operate at
the same time (a group can also be a single module), and in scenes that set
a lighting mood.
Other Functions
The button on the FS20Z-1 also plays a role as a reset in addition to including
the module in groups and scenes. This is described in more detail in the
Wireless Controller instructions.
Over-current Protection
The FS20Z-1 is protected by an internal fuse. This internal fuse is factory
serviceable only. Check the home circuit breakers before concluding that the
product must be returned.
Adding to a network:
See the Wireless Controller operating instructions for details to include this
module under the command of the Wireless Controller.
1. Prepare the Controller to include a unit to the network, by adding it to a group
(method of adding a node to the network). Refer to Controller instructions.
2. The FS20Z-1 must be in its permanently installed location. Press the button
on the FS20Z-1 once.
3. You should see an indication on your Controller that the “DEVICE WAS
INCLUDED” in the network.
✓NOTE: If you have trouble adding the FS20Z-1 to a group it may be that the
Home ID and Node ID were not cleared from it after testing. You must first
“RESET UNIT” with your controller to remove it from the network. Although
adding it to a group includes it in the network, removing it from a group does
not remove it from the network. If removed from a group, it functions only
as a repeater.
Removing from a network:
The FS20Z-1 can be removed from the network by the Controller/Gateway.
Refer to the Controller operating instructions for details.
1. Set the Controller into Removal Mode and follow its instruction to delete the
FS20Z-1 from the Controller.
2. Remove the module by tapping the button three times, then press and hold.
3. You should see an indication on your Controller that the “device was
removed” from the network.
BASIC OPERATION
Button (Local Control)
For testing, the button on the FS20Z-1 allows the installer to turn the load ON
or OFF.
• Tapping button toggles the load attached ON or OFF.
• Also used to include or exclude the module from the Z-Wave system.
When a Controller prompts to “Send Node ID” or to “Press Button on Unit”,
quickly tap the button once to satisfy those instructions. (Tapping the button
also toggles the load attached ON or OFF.)
Remote Control
The FS20Z-1 will respond to BASIC, BINARY, and SCENE commands that are
part of the Z-Wave system. Refer to your Controller’s instructions as to whether
your Controller can transmit those commands.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,FS20Z-1,GO CONTROL; P/N: 10008918 X3; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; TOLERANCE ± .125”; SCALE: 1-1; PAGE 1 OF 2
FS20Z-1
Z-Wave Radio Frequency (RF) Controlled, 120 VAC
Scene Capable, Isolated Contact Fixture Module, Series 300
NOTE: This unit must be added to the Network only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes.You cannot “test bench” configure this unit, then install.
P1753
3B54M
FS20Z-1
Fixture Module Receiver
Series 300, Rel. 5.41
S/N
120 VoltsAC, 60 Hz 908.42 MHz
Isolated Output Contact Ratings (UL/CUR)
277VAC,5540W (max), 20 Amp, Resistive 120/240VAC
1/2 HP Motor, 120VAC, 960W Incandescent Load
WARNING:
Do not exceed electrical ratings.
FCC ID: QIE0791-01
Canada IC: 4436A-079101
Linear LLC, Carlsbad, CA
BLK: Line, WHITE: Neutral,
BLUE: Load, GRN: Ground
STATUS LED PUSH BUTTON TO
ADD NODE TO NETWORK
GREEN GROUND
NEUTRAL WHITE
120 VAC
FS20Z-1
LINE BLACK
BLUE
BLUE
DRY CONTACT WIRING
LOAD IS POWERED FROM
AN ISOLATED SUPPLY
LOAD
20 AMPS
MAXIMUM
LOAD POWER
SOURCE
24 TO 277 VOLTS
STATUS LED PUSH BUTTON TO
ADD NODE TO NETWORK
GREEN GROUND
NEUTRAL WHITE
WHITE
120 VAC
LINE BLACK BLUE
BLUE
WET CONTACT WIRING
LOAD IS POWERED FROM
THE SAME SUPPLY AS FS20Z-1
LOAD
20 AMPS
MAXIMUM
FS20Z-1
2
ADVANCED OPERATION
All On/All Off
The FS20Z-1 supports the ALL ON / ALL OFF commands. The module
can be set to respond to ALL ON and ALL OFF commands four different ways.
Refer to your Controller for information on how to set the module to operate
in the manner you desire. Some Controllers may be only able to set certain
settings of ALL ON / ALL OFF response.
The four different ways the dimmer can be setup are:
• Module responds to ALL ON and the ALL OFF command.
• Module responds to ALL OFF command but will not to ALL ON command.
• Module responds to ALL ON command but will not to ALL OFF command.
• Module does not respond to ALL ON or ALL OFF command.
SPECIFICATIONS
Power: 120 VAC, 60 Hz
Signal (Frequency): 908.42 MHz
Maximum Load: Isolated Contacts: 20 amps G.P. maximum,
277 VAC, 10FLA, 60LRA, 250VAC,
Motor: 1 H.P. maximum, 120/240 VAC
Incandescent: TV8 (Tungsten), 120 VAC, 960W maximum
Range: Up to 100 feet line of sight between the Controller and or
closest Z-Wave Receiver module.
Z-Wave®and Z-Wave Plus®are registered trademarks of Sigma Designs
and its subsidiaries in the United States and other countries.
REGULATORY INFORMATION
The FS20Z-1 is certified to comply with applicable FCC and IC rules and regulations governing RF and EMI emissions.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician to help.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment
IC Notice
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme
aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This device complies with the Industry Canada license exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
WARRANTY
What is Covered?
Nortek Security & Control (“NS&C”) warrants to consumers who purchase this product for personal, family or
household purposes new from NS&C directly or from an authorized NS&C dealer, that the product will be free from
defects in materials and workmanship for a period of (1) year from the date of purchase. This warranty only applies if
the product is installed at a residence in the 50 United States or District of Columbia, and only at the site of the original
installation. It is not transferable. This warranty is not extended to resellers.
If a defect exists, NS&C will have you ship the defective part or product to us and we will, at our option, either repair
or replace it.
This warranty does not cover defects or damages caused by improper handling, maintenance, storage, installation,
removal or re-installation, misuse, non-factory authorized modification or alteration, use of incompatible accessories,
electrical power problems or surges, impact by foreign objects, accident, fire, acts of God, normal wear and tear
or shipping damage other than a shipment from NS&C. Note that all NS&C products are designed to be installed,
removed and serviced by trained individuals or professionals.
Keep your original sales receipt as it will be required to obtain warranty service.
This warranty shall not be extended or restarted upon receipt of any repaired or replacement part or product under this
warranty. No person is authorized to extend or otherwise modify this warranty.
How do I Obtain Warranty Service?
To obtain warranty service, email our Returns Department at returns@nortek.com. Include your name, address,
telephone number, the model number of your product, a copy of your original sales receipt, and a description of the
problem. Unless we need to discuss the situation further with you, you will be emailed a Return Authorization Number
and shipping instructions. If we need to discuss the situation further with you, we will call or email you. NS&C may
require troubleshooting on installed product before a Return Authorization Number is issued. Anything shipped to us
without a Return Authorization Number will be automatically returned unopened. You are responsible for the charges
for shipment to us, unless you are a California resident.
Limitations
THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXCEED THE
WARRANTY PERIOD PROVIDED HEREIN.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply
to you.
NS&C SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE BREACH OF ANY WRITTEN OR IMPLIED WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply
to you.
This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State.
IMPORTANT !!!
Radio controls provide a reliable communications link and fill an important need in portable wireless signaling.
However, there are some limitations which must be observed.
• For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices.
As such, they have limited transmitter power and therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that
occur on or near their operating frequencies, regardless of code settings.
• Changes or modifications to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer,
and these facts should be communicated to the ultimate users.
Copyright © 2015 Nortek Security & Control LLC 10008918 X3
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,FS20Z-1,GO CONTROL; P/N: 10008918 X3; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; TOLERANCE ± .125”; SCALE: 1-1; PAGE 2 OF 2

Other Nortek Home Automation manuals

Nortek GoControl FS20Z-1 User manual

Nortek

Nortek GoControl FS20Z-1 User manual

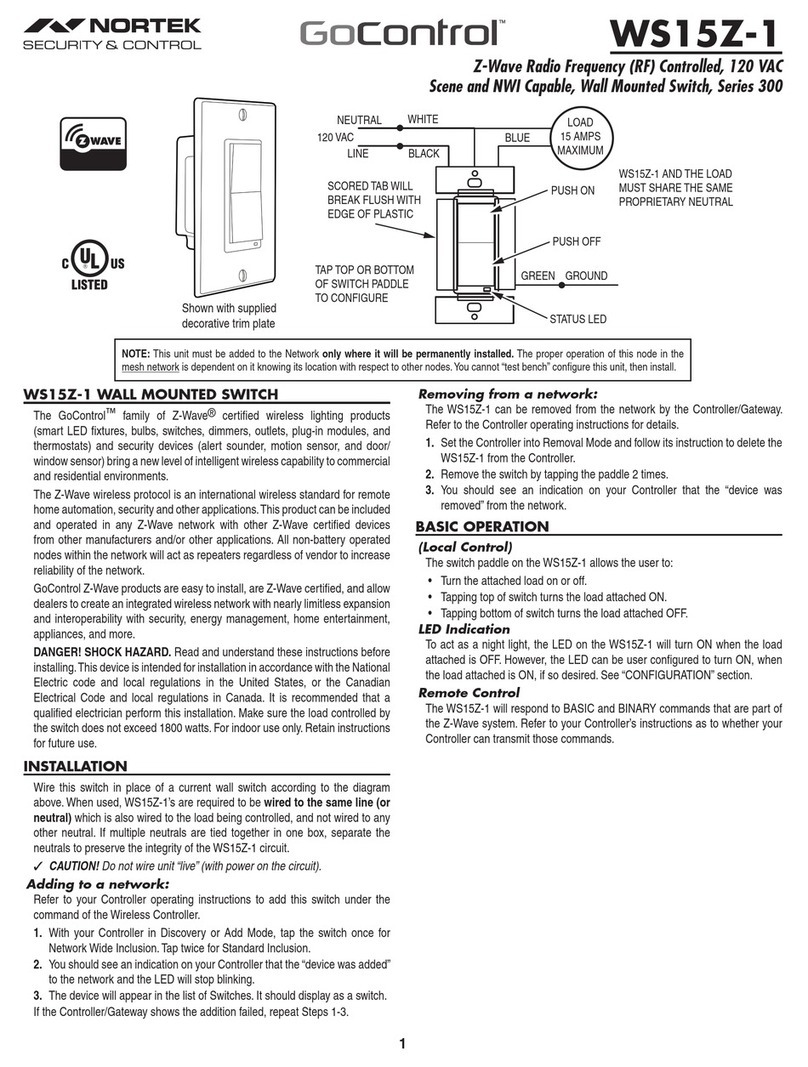

Nortek GoControl WS15Z-1 User manual

Nortek

Nortek GoControl WS15Z-1 User manual

Nortek GoControl 300 Series User manual

Nortek

Nortek GoControl 300 Series User manual

Popular Home Automation manuals by other brands

legate LGK-0010 Manual guide

legate

legate LGK-0010 Manual guide

IDS SMTCore Gateway V1 Quick installation guide

IDS

IDS SMTCore Gateway V1 Quick installation guide

Jasco ZW4005 manual

Jasco

Jasco ZW4005 manual

Salus SPE600 installation manual

Salus

Salus SPE600 installation manual

Kramer WP-20 user manual

Kramer

Kramer WP-20 user manual

SwannOne SWO-SMP1PA quick start guide

SwannOne

SwannOne SWO-SMP1PA quick start guide

Moeller Xcomfort Room-Manager CCRMA-00 Series Assembly instructions

Moeller

Moeller Xcomfort Room-Manager CCRMA-00 Series Assembly instructions

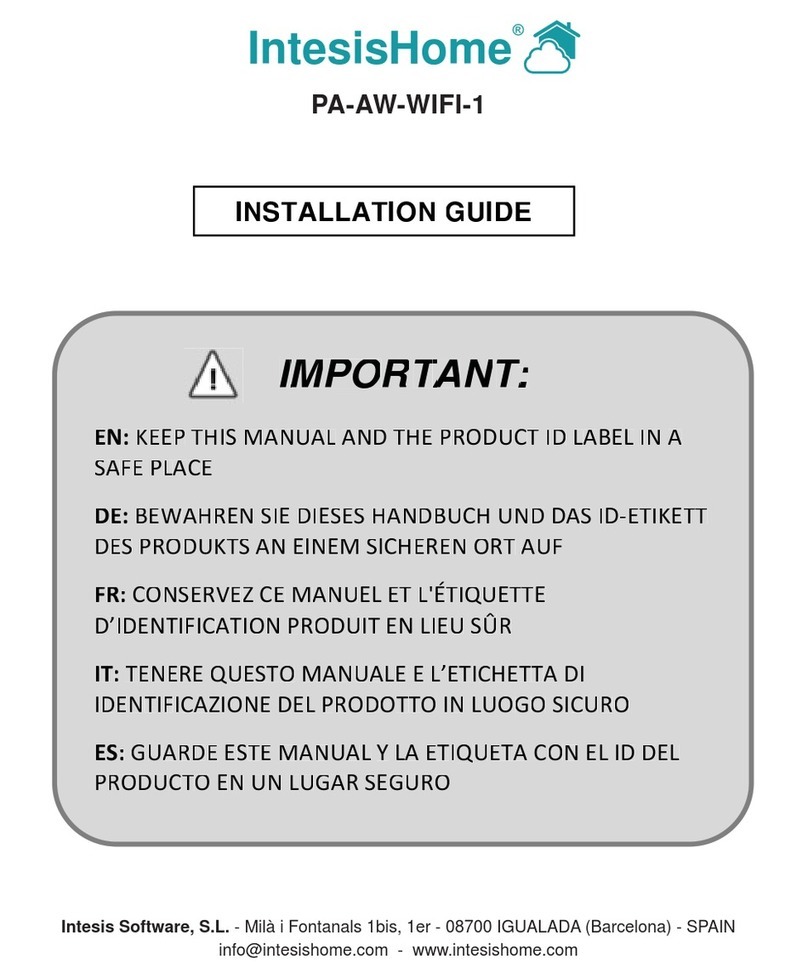

IntesisHome PA-AW-WIFI-1 installation guide

IntesisHome

IntesisHome PA-AW-WIFI-1 installation guide

Ecodhome Inline switch and power meter installation manual

Ecodhome

Ecodhome Inline switch and power meter installation manual

Bosch Home controller AA instruction manual

Bosch

Bosch Home controller AA instruction manual

Enerwave ZW15S installation instructions

Enerwave

Enerwave ZW15S installation instructions

legate SMART CONTACT Manual guide

legate

legate SMART CONTACT Manual guide

HomeMatic KeyMatic HM-Sec-Key Mounting instruction and operating manual

HomeMatic

HomeMatic KeyMatic HM-Sec-Key Mounting instruction and operating manual

LightwaveRF Megaman Connect Series instruction manual

LightwaveRF

LightwaveRF Megaman Connect Series instruction manual

HomePro ZRP230 quick start guide

HomePro

HomePro ZRP230 quick start guide

IDS DoorSense quick start guide

IDS

IDS DoorSense quick start guide

Sentera Controls MDB-M-6 Mounting and operating instructions

Sentera Controls

Sentera Controls MDB-M-6 Mounting and operating instructions

Plugwise CoolDing quick start

Plugwise

Plugwise CoolDing quick start

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
