lares 4.0 PROGRAMMING MANUAL
2
TABLE OF CONTENTS
Note: The following manual has been updated for firmware 1.11.4 and WebServer 1.8.0 versions
INTRODUCTION.............................................................................................................................................................................. 3
KEYPAD PROGRAMMING.............................................................................................................................................................. 4
PROGRAMMING IN “PEER TO PEER” MODE (PROGRAMMABLE VIA PC) ............................................................................ 5
ACCESS TO THE SECUREWEB PORTAL VIA A PC AND THE KSENIA PRO APP.................................................................... 6
ACTIVATING THE VOICE LICENCE............................................................................................................................................... 6
PROGRAMMING VIA SECUREWEB.............................................................................................................................................. 6
WEB SERVER MENU AND ICONS................................................................................................................................................. 7
CHANGING PARAMETERS............................................................................................................................................................. 7
MODIFYING OR DELETING PARAMETERS ................................................................................................................................. 9
ENABLING OR DISABLING OPTIONS ......................................................................................................................................... 9
LIST OF PROGRAMMING SECTIONS DISPLAYED ON THE WEB SERVER............................................................................ 10
HOME.............................................................................................................................................................................................. 10
DELETING TAMPER EVENTS AND RELATED MEMORIES....................................................................................................... 11
DELETING FAULT MEMORIES ..................................................................................................................................................... 12
OPTIONS......................................................................................................................................................................................... 13
GENERAL........................................................................................................................................................................................ 13
NETWORK...................................................................................................................................................................................... 15
GSM/GPRS/PSTN COMMUNICATOR ........................................................................................................................................ 18
EVENT LOG .................................................................................................................................................................................... 19
HASHTAGS..................................................................................................................................................................................... 19
PARTITIONS ................................................................................................................................................................................... 20
BUS PERIPHERALS ........................................................................................................................................................................ 20
AUTOMATIC PERIPHERAL ACQUISITION................................................................................................................................. 21
VERIFYING THE CORRECT ACQUISITION OF BUS PERIPHERALS ........................................................................................ 22
DELETING ONE OR MORE PERIPHERALS.................................................................................................................................. 22
PROGRAMMING PERIPHERAL PARAMETERS .......................................................................................................................... 23
WIRELESS DEVICES ...................................................................................................................................................................... 25
TO DELETE ONE OR MORE WIRELESS DEVICES...................................................................................................................... 28
IP CAMERAS................................................................................................................................................................................... 28
SYSTEM .......................................................................................................................................................................................... 29
ARMING MODES........................................................................................................................................................................... 29
OUTPUTS........................................................................................................................................................................................ 29
CUSTOM BALANCING ................................................................................................................................................................. 31
ZONE............................................................................................................................................................................................... 32
USERS.............................................................................................................................................................................................. 37
CONTACT ID RECEIVERS.............................................................................................................................................................. 40
SIA IP RECEIVERS.......................................................................................................................................................................... 40
SCENARIOS.................................................................................................................................................................................... 41
EVENTS.......................................................................................................................................................................................... 43
CONTACT LISTS............................................................................................................................................................................. 47
NOTIFICATIONS............................................................................................................................................................................ 47
REAL TIME ...................................................................................................................................................................................... 51
VOICE MESSAGES......................................................................................................................................................................... 56

lares 4.0 PROGRAMMING MANUAL 3
rev. 0/2018
INTRODUCTION
The central lares 4.0 has not been configured at the time of purchase.
Configuration can be set by using one of the following methods:
1. Remotely, via the portal https://www.kseniasecureweb.com/
2. Via webserver by accessing the control panel in local or in peer-to-peer mode.
3. Remotely via mobile devices by using the Ksenia PRO app.
4. Via the keypad: this mode is restricted to just a few functions.
Unlike the previous (lares) platform, this system is both programmed and managed via a standard web browser
(e.g. Chrome, Safari, Firefox, Edge etc.): we recommend that it be programmed using Google Chrome, although we
usually carry out tests with various web browsers.
Using a web browser facilitates programming and does not require large processing capacity or any software.
The “lares 4.0” app which is to be used for user management is also available free or charge via the respective app
stores.
N.B.: “System OK” will be displayed on the keypad when switched on for the first time, and the English menu will be
displayed. Access the installer menu using the keypad or via the web server to change the language.
N.B.: The Ksenia Pro app can also be used for the “lares WLS 96-IP” platform, however it cannot be used for “lares”
N.B.: The lares 4.0 app cannot be used with the “lares” and “lares WLS” control panels. Please refer to the respective
platform manuals on these subjects.
lares 4.0
lares 4.0

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
4
Below you will find the operations which can be controlled via the keypads on BUS by accessing the installer menu with
a PIN code (default: 123456).
You can navigate between the various items by pressing the keys once you have entered the installer menu:
• ENTER: to enter the sub-menu.
• ESC: to exit the sub-menu and return to the previous menu.
• DOWN ARROW (SCROLL CLOCKWISE)/UP ARROW (SCROLL ANTICLOCKWISE): to move from one item to another
within the same menu.
4.4
3
2
4
1
5
76
4.3
4.2
4.1
1Alphanumeric keypad with keys from 1 to 9, * e #
2ESC key
3ENTER key
4You can also scroll by using:
4.1 Left arrow
4.2 Down arrow
4.3 Right arrow
4.4 Up arrow
5Display
6RFID Area
7Microphone
Here is the list of installer menu configurations:
• System management: this item includes the sub-menus for managing the system;
- Alarm reset: selecting this item will stop all of the alarms, and the tamper and alarm memories will be deleted.
- Comm. Reset: selecting this item (you need to confirm it twice) will delete all of the communications which are
both active and queued (SMS, phone calls, e-mail etc.).
-System block: Press ENTER to access the three sub-menus:
1. Unblocked: routine operating mode.
2. Alarm block: block all alarm commands
3. Operation block: blocks all control panel operations.
• User management: it is possible to assign an RF-ID key to configured users from this menu.
• Event register: outlines the list of events which have taken place, along with their details.
• Fault status: outlines the list of faults in progress.
• Zone status: allows the status of the zones configured in the system to be displayed.
• Zone test: useful during system installation. This allows you to view the list of zones which have never been assigned
an alarm since the beginning of the TEST.
• Install. info: this menu includes the following sub-menus for managing data associated with the installer
- Change PIN: it is possible to change the installer PIN in this field.
- Description: changes the installer name.
- Number: changes the installer telephone number.
N.B: these last three parameters must be modified by using the keypad. Please refer to the diagram below for the list
of characters associated with the various keys.
Key 1= 1 [space]? ! , . “ ‘ &
Key 2= A B C a b c 2 $ @
Key 3= D E F d e f 3 ; <
Key 4= G H I g h i 4 = >
Key 5= J K L j k l 5 [ ]
Key 6= M N O m n o 6 { :
Key 7= P Q R S p q r s 7
Key 8= T U V t u v 8 + }
Key 9= W X Y Z w x y z 9
Key 0= 0 ( ) / % - _ # *
Key = deletes the character entered previously. The equivalent to backspace on the PC keypad.
Key #= deletes everything which has been typed.
KEYPAD PROGRAMMING

lares 4.0 PROGRAMMING MANUAL 5
rev. 0/2018
• Updated: in this field it is possible to start/run the control panel update by uploading the file found on the SD card and
which has been downloaded previously from the respective area of the www.kseniasecurity.com website
• Back-up program.:
- Create new: backs-up any programming by saving the file on an SD card.
- Restoring: Any programming data saved previously will be read from the SD card and loaded into the control panel.
• Networking: a network configuration menu which allows the network parameters to be read/modified.
- IP address: The control panel IP address
- Subnet mask: Subnet mask.
- Gateway: Gateway IP address.
- DHCP server: This menu item is activated to allow the DHCP to be re-enabled if the control panel has been set to a
fixed IP address.
• Language: you can select the keypad language via this menu.
• Vers. Control panel: this allows you to view the control panel firmware version (although not the web server)
PROGRAMMING IN “PEER TO PEER” MODE (PROGRAMMABLE VIA PC)
All configurations in general terms can be set freely using any of the methods described in (page 3) with the exception of
using the keypad and generating voice messages:
the final function can only be used with a Loquendo USB stick (the one which is used for lares/basis) or by activating a
server licence on SecureWeb.
Please refer to the relevant section for generating voice messages via a local connection and a Loquendo USB stick.
The control panel has DHCP enabled as a default, therefore, there are two possibilities for finding out the IP address:
1) via the keypad, by using the dedicated menu inside the installer menu.
2) by using the server name https://KS-BOARD-xx-yy-zz (by replacing xx-yy-zz with the last six digits of the MAC
address which is printed on the control panel label).
The default address will be 192.168.2.97 in the event that the network to which the control panel is connected does not
support the DHCP.
N.B: The control panel only communicates by default in safe mode (https) via port 443.
Please type https://192.168.2.97 to access the control panel should the DHCP not be supported.
N.B: the default code for accessing configuration settings is 123456.
N.B: it is NOT possible to set a configuration if the system has been installed, even in part or if the user has disabled
access by using the installer code.

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
6
The “lares WLS” and “lares 4.0” require an online licence, which is combined with the use of the SecureWeb
portal (please see (p. 56) →for peer-to-peer mode and the voice messaging section). This function is activated with
a scratch-card which is sold separately.
In order to activate the voice licence you must:
1) access SecureWeb
• click on licences
• register a new licence
• insert the serial number printed on the scratch card
• choose the item you require
Programming via Secureweb will be processed in the manual because it is also possible to manage voice messages when
in this mode. The same operations are also valid for the Ksenia Pro app
Select the device to be configured once you have logged onto the portal, and click on the button in the “modify configuration”
column.
The installer code will be requested at this stage (default 123456): enter this code to access the control panel web server.
Activating the voice licence
Programming via Secureweb
Access to the SecureWeb portal via a PC and the Ksenia PRO app
The credentials required to access the SecureWeb service are the same as those used to access the reserved area of the
http://www.kseniasecurity.com website.
You must register free of charge via the following link if you do not have these credentials:
http://www.kseniasecurity.com/it/registration/
Mode 1:
1. Accessing SecureWeb
2. Select the “Devices” menu.
3. Enter the S/N of the control panel inside the “serial number” box which is specified on the card label.
4. Give the control panel a name and a description.
5. Click on “register new device”
Mode 2:
1. Open the “Ksenia PRO” app and enter the credentials.
2. Click on the (+) symbol in the bottom right hand corner (Android) or in the top left hand corner (IOS).
3. Type S/N or click on the camera icon to scan the code (this is also shown on the control panel label).
Make sure you do this if the message appears asking you for access to use the camera.
4. Give the control panel a name and a description.
5. Click on “Save”
The control panel is ready to be configured at this stage by using SecureWeb and it will be present in the “devices”
list.

lares 4.0 PROGRAMMING MANUAL 7
rev. 0/2018
Web server menu and icons
We will see that the screen has been divided into two parts after having logged on: the options menu will be on the left
and the configuration window on the right.
The following icons will appear in the configuration window:
Load configuration from a previously saved file. The files have the (.bck) extension.
Save the control panel configuration as the (.bck) file.
Open the configuration session.
Return to the login page without saving any changes.
The section below describes the procedure for changing all of the “lares 4.0” parameters and is valid for all of the web
server pages.
Click on the icon to change the parameters:
The screen will be displayed in the following way:
Close the programming session linked to the page which is open. This will appear when none of the options have
been change.
Changing parameters
The status of the menu bar will change when one or more parameters have been modified:
Discard:
Any changes which have not been saved will be lost and cannot be retrieved.
Click on “Discard” to confirm this choice
Saving the session:
The changes will be saved in the control panel and two icons will be activated which allow further options
whenever you click on “Save session”:

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
8
Apply session: all changes will be applied effectively in the control panel.
Discard session: any programming will be reset to the configuration which was last applied.
Click on “Discard” to continue.
The ( ) icon will appear in some pages (e.g. “Zone”, “Outputs”, etc,) in the bottom right hand corner of the
screen, which allows you to add a new element and to configure it accordingly.
Attention: the programming feature will not be complete and cannot be saved unless all of the parameters
required have been entered:
The web server will show us which structures require checking or completing before they can be saved whenever
you click on this icon. The ( ) icon will reappear and the configuration can be saved again once any missing
changes have been made.
Click on the arrow to stay in the same section and to continue to add parameters of the same type
(e.g. to add them to other zones)

lares 4.0 PROGRAMMING MANUAL 9
rev. 0/2018
Click on the icon and on the parameter which requires changing in order to modify it.
You can then enter the new settings and save them as described above.
It is also possible to delete one or more parameters which have been configured previously:
Modifying or deleting parameters
Click on the icon to delete the parameters if the programming session is not yet open. The screen will be displayed
as follows:
Click on this icon to delete the selected item. You will be required to confirm this twice.
In some cases you may be required to choose whether to enable or disable a particular parameter.
Option enabled
Fuse fault: option enabled
Enabling or disabling options
Option disabled
Fuse fault: option disabled

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
10
A LIST OF PROGRAMMING SESSIONS DISPLAYED ON THE WEB SERVER
We will find all of the control panel information in this session (model, partition status, real time etc.) along with the
most recent ten events stored in the register.
It is also possible to view the last firmware and webserver versions and to update them if present:
Update: is signalled with the ( ) icon
Click on the icon and wait for the process to finish in order to upload any updates.
Below you will find some examples of the icons and menus which appear in the web server depending on the events in
progress:
1) The following screen will be displayed when there are
no fault statuses. In this example, the system has been
switched off.
2) This screen will appear when there are fault statuses. In
this example, the system has been switched off.
6) this screen appears when there is tampe inside the
system but the alarm condition has ceased to exist.
Clicking on the drop-down menu in the bottom right hand
corner will list the faults or system discrepancies.
7) List of system tampers.
One or more zones in the example are have a tampering
status and there is a discrepancy with the data connection.
Home
3) Alarm signal screen during zonal or partition progress
8) This screen will appear when the tamper status has
been restored (tamper memory), but the alarm remains in
progress (red bell)
4) This screen will appear when there is a system fault
and/or a tamper and the alarm status remains active
(e.g. active sirens).
Clicking on the drop-down menu in the bottom right hand
corner will list the faults or system discrepancies.
9) This screen will appear when there is a tamper memory.
Clicking on the drop-down menu in the bottom right hand
corner will list the system tamper memories.

lares 4.0 PROGRAMMING MANUAL 11
rev. 0/2018
5) List of faults or system faults.
In this case, the message relates to the tamper of one or
more zones. Multiple events can be viewed.
10) List of system tamper memories.
In this case it concerns a zonal tamper memory. Multiple
events can be viewed.
Deleting tamper events and related memories
To clear keypad tamper events blocking messages, you must:
1. Type the installer code
2. Go to “System management” and press ENTER
3. Go to “Alarm reset” and press ENTER
Repeat the steps above in order to delete any tamper memories from the web server and the keypad.
1) This screen will appear once the tamper memory has
been reset.
It does not appear on the web server or on the keypad.
3) This screen will appear when there is a system fault
(e.g. zonal masking).
Clicking on the drop-down menu in the bottom right
hand corner will list the faults or system discrepancies
4) List of faults or system discrepancies.
In this case, the message relates to the tamper of one or
more zones. Multiple events can be viewed.
5) This screen will appear when the fault has been reset:
the fault memory will then be displayed. Clicking on the
drop-down menu in the bottom right hand corner will list
the system fault memories.
6) List of system tamper memories.
This concerns a low battery memory in this case.
Multiple events can be viewed.
2) This screen will appear when the battery voltage
level drops below the threshold (<11V) or if it has been
disconnected from the control panel.

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
12
Deleting fault memories
In order to delete fault memories from the web server and the keyboard, you must:
1. Type the installer code
2. Go to “Fault status” and press ENTER
3. View the message “No faults in progress”
The fault memory has been reset by both the web server and the keypad.

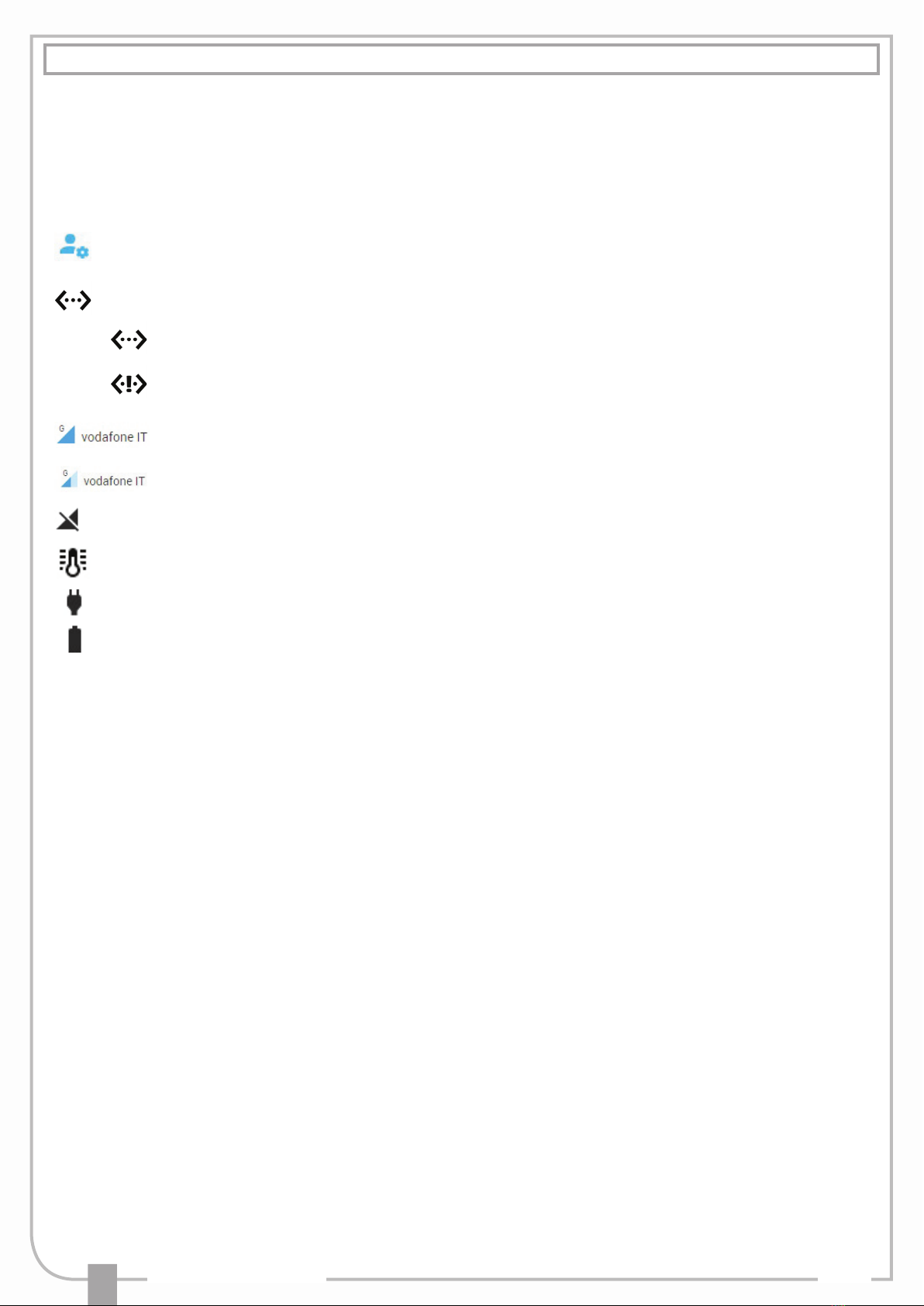

This indicates the presence of another user connected via the web server.
This indicates the status of the Ethernet connection:
This indicates the GSM/GPRS manager in use and a full signal.
This indicates the GSM/GPRS manager in use and a signal.
There is no GSM or SIM signal.
The temperatures (internal and external) shown by the Bus sirens are displayed.
14.8 Main board voltage supply.
14.3 Battery voltage.
Internet connection OK (Eth).
Connection without Internet.

lares 4.0 PROGRAMMING MANUAL 13
rev. 0/2018
Options
We find the following sub-menus in this section: General, network, GSM-PSTN communicator.
From this moment on, you will be able to modify the various lares 4.0 parameters.
System language
Select the menu language. You will able to choose the language according to your country.
Wireless
• On-board receiver: to enable or disable the on-board wireless receiver. (not available on lares 4.0 - 16 and lares 4.0 - 40
which require the DUO transceiver).
• Jamming threshold (dBm): a noise power threshold on the radio channel beyond which a tamper attempt has been
signalled.
Arming mode
In this section you will be able to select how entries are managed and potentially to prevent them in the event of a fault.
Alarm and fault signals are also managed.
• Tamper cycle time: the time (expressed in minutes) which determines the maximum duration of the tamper cycle.
• Throw alarms each zone cycle: the ‘Zone alarm’ event and any associated actions are generated (e.g. SMS, phone
calls...) whenever a zone is violated by selecting this option. The corresponding actions are only completed the first
time by selecting this option if the zone event has been repeated several times throughout the same alarm cycle.
• Bypass also zone tamper: no tampering reports will be generated when a zone has been excluded if it has been
tampered with and if this option has been enabled. Any tampering will not be recorded in the event log and it will not
be displayed on either the keypad or the web server.
• Allow system arm on fault condition: the control panel default does NOT allow any entries in the system in the event
of a fault and/or a tamper.
You will be able to enter the partitions in the presence of any faults in progress by selecting this option.
• Delete alarm memories for each entry: the alarm memories will be deleted whenever an arming is made, i.e. they will
no longer be displayed on the keypads.
• Clear Tamper memory with user code: you will be able to use the user code to delete the tamper memories displayed
on the keypad (Main menu/Alarm reset).
• Manage missing peripheral as fault: the respective fault event instead of a tamper event will be generated if a BUS or
a wireless device no longer communicates with the control panel because it is faulty or has been disconnected.
System
• Change the time: it is not possible to modify these parameters due to the current status.
• Date format: it is not possible to modify these parameters due to the current status.
• Time format: it is not possible to modify these parameters due to the current status.
General

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
14
Enabling faults
In this section you will be able to select which faults must be ignored by the control panel should there be any
permanent fault conditions which you do not wish to view (example: a missing Ethernet network). These are all enabled
in the default configuration.
• Fault memory: The control panel displays the successful restoration of a fault by quoting “Fault memory” on the
keypad whenever this option is selected. This memory will be only be deleted after a “Fault status” section check has
been carried out by an authorised user.
Voice messages
• Header: enter the system header in this field (Main Office, 15th avenue, ...).
This message will be generated by voice synthesis, it will identify the system and will be the first to be reproduced
(e.g. header/zone alarm/zone 1)
Users
• Weak PINS: Selecting this option will disable monitoring the strength of the PIN, which the control panel will process
to prevent easily identifiable PINs from being entered (for example dates of birth, etc.)
• Confirm scenario execution: when you select a scenario from the keypad by default (by entering the code, or by
holding down the key associated with the scenario if the entry function without a PIN has been enabled) the system
will process the scenario shown after three seconds if the action has not been confirmed by pressing the enter button.
Select this option if you do not wish to have an automatic extension, i.e. if you wish to confirm your choice each time.
Option enabled
Option disabled
• Mains fault: this signals a power supply failure on the control panel or on the “opis” power supply station.
• Low power supply: this signals that the power supply voltage is low (power supply)
• Battery charger: this is indicated when the power supply fails and there is no required current being supplied to the system.
• Fuse: this signals that one of the fused on the card board has has blown (i.e. a short circuit) or has blown on the “opis”
power supply stations.
• Low battery: this occurs when the (“lares”, “imago”, “radius”, “duo” e “opis”) battery power is low and the wireless
devices have fallen below the operating threshold.
• Faulty battery: this occurs when the control panel, the external/internal sirens and the “opis” power supply station ail
the dynamic battery test. This also occurs when the battery which powers the wireless devices is running low.
• Missing bus peripheral: the fault event will be generated when one or more peripherals are no longer in
communication with the BUS
• Missing wireless peripheral: the fault event will be generated when wireless devices are not communicating with the
control panel once the supervision period has been completed.
• Zone fault: when an approximately balanced detector generates the masking event. This event will also be generated
when the partition assigned to the zone has been switched off and the zone itself is never violated for any programmed
period of inactivity (expressed in minutes. See zonal session).
• No Ethernet connection: this signals that the Ethernet cable has been disconnected from the router/switch. The
connection to the “DNS” or “Cloud” server may still be active (GPRS connection).
• No Internet connection (Eth.): this signals a lack of Internet connectivity despite the Ethernet network being wired
correctly and functioning correctly.

lares 4.0 PROGRAMMING MANUAL 15
rev. 0/2018
• No PSTN network: this indicates whether the PSTN module has been installed and enabled, and that it is no longer
able to detect the telephone line.
• GSM network fault: this indicates that the SIM which has been installed is not functioning correctly (SIM has expired
and been disabled) or whenever the GSM signal is not present.
• SIM expired: this signals when the SIM has been disabled.
• Low SIM credit: the event will be generated when the SIM credit falls below the threshold set
• Communication failure: this occurs when the call has been unsuccessful.
• SIA IP supervision failure: this occurs when the control panel no longer communicates with the control panel SIA IP
server.
• System fault: this occurs when a system error forces the control panel to be reset
Power supply
• Mains fault delay (min.): this is the time (expressed in minutes) which identifies the delay for which the reports will be
sent once this event occurs “220V network is missing”.
The fault message will appear immediately if set to zero.
Network
Ethernet
• DHCP: this allows the control panel to connect to a local network and to configure the required parameters
automatically if it has been enabled.
You must enter all of the network parameters manually if it has not been enabled.
Web server
• Protocol: this enables/disables the encryption protocol (TLS) which is used to connect to the control panel via the web
server.
• Port: this sets the port via which control panel communication is sent (default 443 for an active TLS/80 for an inactive
TLS).
N.B. We would not recommend that you change these parameters unless it is absolutely necessary.
Please contact the network administrator should this be the case.

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
16
NTP
• Enabled: enable or disable the connection to the NTP server (Network Time Protocol).
Keep the system clock up to date automatically. If required, you will be able to modify the parameters by enabling this
option.
Option enabled
Option disabled
1) Server name: this is the server used by the control panel to synchronise the time.
2) Port: the port on which data relative to the NTP protocol is transmitted
3) Monitoring period: this is the period of time which elapses between one communication and another from the control
panel with the NTP server
4) Retentiv period in the event of an error: this is the lapse in time between one communications and another in the
event of an error
N.B. We would not recommend that you change these parameters unless it is absolutely necessary.
SMTP
• This enables the SMTP server to be configured which allows the control panel to send e-mails
Option enabled
Option disabled
The parameters which are required to be set for sending e-mails are listed below. (Those which appear by default are
not valid!)
The new lares 4.0 platform can also manage e-mail addresses which use SSL or TLS protocols (e.g. Gmail)
Otherwise you can create a host at www.kseniadns.com and use the same settings.
• Sender: The sender’s name must be programmed in this section (example: Central Alarm System). Some servers
however may require a valid e-mail address to be entered (e.g. for servers which do not require authentication).
For example, the sender will be as follows if you use the “Kseniadns” server settings: ([email protected])
• Protocol: a choice between SSL, TLS or none. Please refer to the parameters of the server being used. (SSL if using
kseniadns).
• Port: the security protocol communication port. Please refer to the parameters of the server being used. (465 if using
kseniadns)
• Username: the user used for the SMTP service.
The name of the user for “Kseniadns” server settings which have been created to name the system (e.g.: the username
will be mariorossi if the host name is mariorossi.kseniadns.com)
• Password: the password used for the SMTP service. The password chosen when creating the host (default 123456) for
“Kseniadns” server settings

lares 4.0 PROGRAMMING MANUAL 17
rev. 0/2018
DDNS
• Enabled: this enables or disables synchronisation with a DDNS server to resolve a dynamic public IP address.
Option enabled
Option disabled
DynDns server name and address: kseniadns.com
• DynDns port: 80
• Host name: nomeutente.kseniadns.com (example: mariorossi.kseniadns.com)
• Username: username (example: mariorossi).
• CheckIP server name and address: checkip.kseniadns.com
• checkip port: 80
You can also use a third-party DDNS server by configuring the fields listed above appropriately.
Connecting to the KseniaSecureWeb
• Enabled: this enables or disabled the connection to the SecureWeb server
Option enabled
Option disabled
N.B.: if you disable this option you will no longer be able to connect to the control panel via the APP
(SecureWeb) and via the configuration portal! The local peer to peer or remote connections will only be
possible via a public IP or DDNS address and you will need to map the ports on the router via the control
panel along with any IP cameras connected to the system.
You will only be able to use the lares 4.0 APP in a local or remote connection (via a public IP or DDNS), however, you
will not be able to receive any PUSH notifications

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
18
GSM/GPRS/PSTN communicator
General
• Number of attempts: this represents the number of attempted calls the device makes on each number which has been
configured before a failed communication event has been generated (even if the confirmation has not been received).
• Number of message repetitions: this indicates the number of voice message repetitions during the same phone call.
• Requesting confirmation: You will need to confirm receipt of this call by pressing the ( ) key on the receiving
telephone when you select this option. Otherwise, the device will consider the call to have failed and will proceed to
the following number among those which have been configured.
• Calling all numbers: Voice messages will be sent to all of the numbers which have been configured when selecting this
option.
The call sequence will only stop when all of the numbers in the list have answered the call.
The telephone queue will be halted and cancelled upon an initial confirmation from any of the users if this function has
been disabled.
N.B.: The system will consider an equally valid response from electronic devices (e.g. fax and answer phones).
• Requesting confirmation and calling all numbers: Voice messages will be sent to all of the numbers which have been
configured when combining these two options. The call sequence will only stop when all of the numbers in the list
have confirmed the outcome of the call by pressing the ( ) key
GSM
• Data traffic: this enables or disabled data traffic on GSM/GPRS.
This is used to manage the system should an ADSL/fibre line be missing.
It can also be used as an automatic backup of the landline.
Option enabled
Option disabled
• APN: (Access Point Name) is the name of the access point to which the control panel is connected via GPRS/3G/4G.
• User: enter the username required to connect to the APN if required
• Password: enter the password required to connect to the APN if required
N.B.: Contact your mobile service provider for GPRS/3G/4G parameters.
PSTN
• Disabling tone monitoring: this disables the search for telephone tones (free, busy, engaged, etc.)

lares 4.0 PROGRAMMING MANUAL 19
rev. 0/2018
Event log
In this section you can recall the control panel event log.
Search
It is only possible to separate and consequently to display a certain type of events on the page (e.g. alerts only).
Type the log entry to search so that you can filter one event from another.
Events being displayed
Enter the required quantity and
click on the ( ) button to limit the display to a certain number of events on the page
• Description: this gives a brief description of the event. It is preceded by an icon
( ) Generic event:
• User code recognised
• Installer PIN recognised
• Scenario execution
• This opens/closes the programming session
• This starts/ends the configuration
• Periodic report
• Com. code deleted (communication reset)
( ) Events for:
• Incorrect code
• Low battery/battery reset
• 220 Vac failure/reset
• Zonal masking/failure
• Fault/masking reset
• Wireless device has disappeared
( ) Events for:
• Inclusion/exclusion of zone
• Scenario execution
• Activate/deactivate partition
( ) Events for:
• Zonal reset/alert
• Partition alarm
• Partition input time
• End of partition input time
• Partition output time
• End of partition output time
( ) Events for:
• Tamper/zonal tamper reset
• Tamper/zonal partition tamper reset
• Date: this displays the date and time when the event occurred.
• Info: this shows details of the event (the user, the device which generated it, etc.).
• Image: This shows the images which have been saved against the event being described.
Clicking on the icon will show the images.
Hashtags
Hashtags are functions which can be applied to: user,output zones and user devices (keypads and proximity readers) for
example will allow you to “break down” the limit of the eight outputs which can be activated for each event.
Example: you are able to activate the two outputs (example: luce1 and luce2) individually, however, activating the
outputs with “#luci” (or another freely configurable name) in one go will light both of them if they are associated with
the “#luci” hashtag.
Click on the ( ) icon and then on the ( ) symbol in order to program the hashtags. Then add the description
(e.g. lights).
Click on ( ) to add further hashtags.

rev. 0/2018
lares 4.0 PROGRAMMING MANUAL
20
Partitions
Click on the ( ) icon and then on the ( ) symbol to program the partitions, and a new partition will then appear
where you can input the various parameters:
• Description: this is the name of the partition (e.g. external sensors, windows, volumetrics etc.).
• Output: this is the output time (expressed in seconds) during which the zones programmed with an output delay will
not generate an alarm, even if violated.
• Input: this is the time (expressed in seconds) when a delayed input zone associated with this partition has been violated
before the control panel generated an alarm.
• Cycle: the time (expressed in minutes) which determines the maximum duration of the alarm cycle. Any further partition
alarm events will not be generated by the control panel during the alarm period and only an alarm event for each zone
associated with the partition will be generated. This prevents numerous phone calls or reports from being queued.
• Warning: the time (expressed in minutes) which precedes the entry with the time programmer, during which the
imminent entry is highlighted by the keypad buzzer being activated which has been enabled for this function.
• Patrol: the time (expressed in minutes) activated when the system has been switched off with a code or a key with
patrol attributes.
The partitions will be reinserted automatically when this period elapses.
• Negligency: the time (expressed in hours) which is activated at the moment it is disconnected.
Should the partition not be reinserted once this period has elapsed, then the ‘Partition Neglicency’ event will be generated
with which certain actions can be associated (e.g. activating outputs, calls, re-arming modes), and this function could be
programmed to resolve any potential errors which you have forgot to arm and to arm automatically into the control panel.
Click on the ( ) icon to add other partitions.
BUS peripherals
Click on the ( ) icon and then on the ( ) symbol in order to program the BUS peripherals. Then select the device
you require by clicking on the ( ) symbols and then type the serial number on the peripheral label.
Click on the ( ) symbol once again to add another peripheral belonging to the same section (e.g. expansion modules,
isolators etc.).
Expansion modules
• auxi: a 5 way input/output expansion module.
• auxi 10in: a 10 way input expansion module.
• auxi relè/auxi-L: a 5 way 8A relay expansion module.
• auxi-H: a 2 way 8A relay expansion module and a 3 way input (+ 2 local inputs for managing the outputs directly.
Isolators
• divide: BUS isolator and extender module
• opis: supervised power station, BUS isolator and extender
Receivers
duo: wireless receiver
