MrCool Olympus Series User manual

The Olympus Series is NOT designed for amateur installation. Installation SHOULD be performed by an authorized technician.
Please read this manual carefully before installation and keep it for future reference.
The Olympus Series is NOT designed for amateur installation. Installation SHOULD be performed by an authorized technician.
Please read this manual carefully before installation and keep it for future reference.
Installation Manual
Olympus Series
Single (Hyper Heat & E Star) & Multi-Zone Models
Due to updates and constantly improving performance, the information and instructions
within this manual are subject to change without notice. Please visit
www.mrcool.com/documentation to ensure you have the latest version of this manual.
Version Date: 3-01-21

Contents
Outdoor Unit Installation ...... 20
1. Installation location ..............................20
2. Install drain joint .................................. 21
3. Anchor outdoor unit ........................... 22
4. Connect signal and power cables .... 24
4
Safety Precautions .................................. 3
!
1Accessories ............................................... 5
2Overview .................................................. 7
Page 1 mrcool.com
Indoor Unit Installation ...........11
3
1. Installation location.................................11
2. Attach mounting plate to wall...............12
3. Drill wall hole for connective piping.....13
4. Prepare refrigerant piping ....................14
5. Connect drain hose.................................15
6. Connect signal cable...............................16
7. Wrap piping and cables..........................18
9. Mount indoor unit...................................19

Refrigerant Piping Connection ...................... 27
A. Note on Pipe Length ............................................................. 27
B. Connection Instructions –Refrigerant Piping .................. 27
1. Cut pipe .............................................................................. 27
2. Remove burrs ................................................................... 28
3. Flare pipe ends ................................................................. 28
4. Connect pipes .................................................................... 29
Air Evacuation ................................. 31
5
6
Electrical and Gas Leak Checks ..... 33
7
Test Run ........................................... 35
8
EU Disposal Guidelines .................. 37
9
MC MC
Contents
Page 2
mrcool.com
1. Electrical Safety Checks .................................. 33
2. Gas Leak Checks .............................................. 33
3. Self Correction Function ................................. 34
1. Evacuation Instructions .................................. 31
2. Note on Adding Refrigerant........................... 32

Page 3

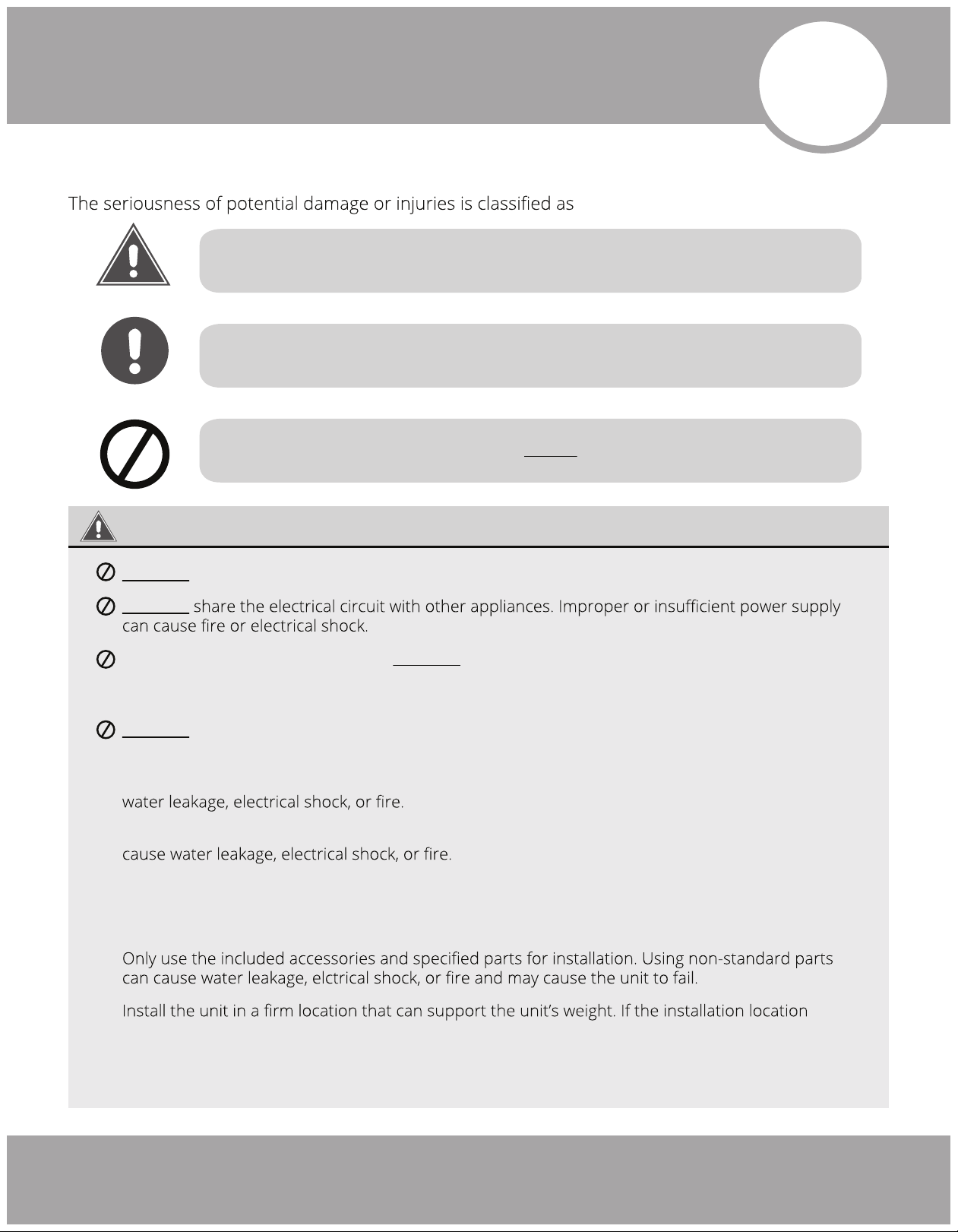

Safety Precautions
mrcool.com
WARNING
DO NOT modify the length of the power supply cord or use an extension cord to power the unit.
DO NOT
When connecting refrigerant piping, DO NOT let substances or gases other than the refrigerant
enter the unit. The presence of other gases or substances will lower the unit’s capacity, and may
cause abnormally high pressure in the operation cycle. This may cause explosion and injury.
DO NOT allow children to play with the air conditioner. Children should be supervised around the
unit at all times.
Installation must be performed by an authorized technician. Improper installation may cause
Installation must be performed according to installation instructions. Improper installation may
In North America, installation must be performed in accordance with the requirement of NEC and
CEC (by authorized personnel only.) Contact an authorized service technician for repair or mainte-
nance of the unit.
cannot support the weight, or the installation is performed improperly, the unit may fall and cause
serious injury and/or damage.
For all electrical work, follow all appropriate wiring standards, regulations, and the Installation Manual.
Read Before Installation
Incorrect installation may cause serious damage or injury.
either a WARNING or CAUTION.
WARNING
CAUTION
This symbol indicates ignoring instructions may cause death or serious injury.
This symbol indicates that ignoring instructions may cause personal injury,
damage to the unit, or property damage.
This symbol indicates that you should NEVER perform the indicated action.
1.
2.
3.
4.
5.
6.
!
Safety Precautions

Page 4
Safety Precautions
mrcool.com
Note about Flourinated Gasses:
7.
8.
9.
10.
12.
1.
2.
1.
2.
3.
4.
5.
6.
You must use an independent circuit to supply power. DO NOT connect other appliances to the same
circuit. Insufficient electrical capacity or defects in electrical work can cause electrical shock and/or fire.
prevent external forces from damaging the terminal. Improper electrical connections may overheat,
All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not closed properly, it can lead to corrosion and cause the connection points on
In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed
air-conditioning units is highly recommended.
This appliance can be used by children aged 8 years and above, and persons with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and user maintenance should not be made by
children without supervision.
For units that have an auxiliary electric heater, DO NOT install the unit within 3 feet (1 meter) of
combustible materials.
DO NOT install the unit in a location that may be exposed to combustible gases. If combustible gas
DO NOT operate your air conditioner in a wet room, such as a bathroom or laundry room. Too
much exposure to water may cause electrical components to short circuit.
The product must be properly grounded during installation, or electrical shock may occur.
Install drainage piping according to the instructions in this manual. Improper drainage may cause
water damage to your home and property.
unit itself.
If the system has a leak-detection system installed, it should be checked for leaks at least once every 12
months.
Keep a record of all leak checks for the lifetime of the unit.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly
qualified person in oreder to avoid a hazard.
11.
,

Page 5
Safety Precautions
mrcool.com
1
Accessories
1
(Sealant for Wall Sleeve)
1
1
1 (optional)
1
1
Neoprene
Clip anchor
screw ST3.9 X 25
Remote control
controller holder
Remote control holder
Dry battery AAA.LR03
Seal
Drain joint
Mounting plate
5 or 8
5 or 8
2
1
Optional
Parts

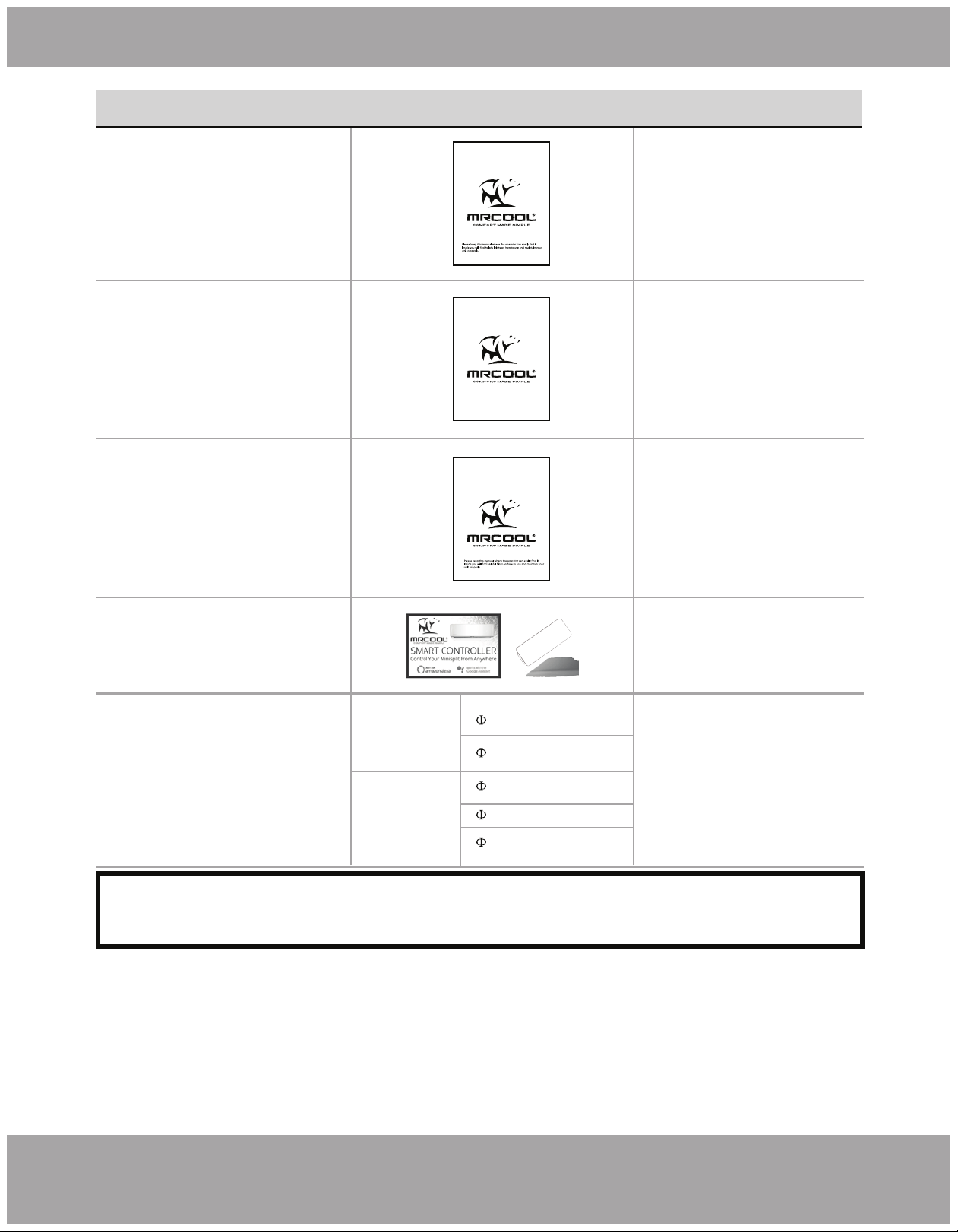

2
PART LOOKS LIKE...QUANTITY
installation parts and accessories to install the air conditioner. Improper installation may result

Page 6mrcool.com
1
1
1 (this)
Accessories
1
(w/ Manual in
Controller Box)
Owner’s Manual
Installation Manual
Remote Control
Manual
Smart Controller Kit
PART LOOKS LIKE...QUANTITY
Please read this manual carefully before installation and keep it for future reference.
Owner’s Manual
Olympus Series
For more details visit www.MrCool.com
Please read this manual carefully before installation and keep it for future reference.
Please read this manual carefully before installation and keep it for future reference.
Installation Manual
Olympus Series
For more details visit www.MrCool.com
Please read this manual carefully before installation and keep it for future reference.
Remote Control
User Manual
Parts must be purchased
separately. Consult your
dealer about the pipe size.
Liquid side
Gas side
1/4 in (6.35 mm)
3/8 in (9.52 mm)
3/8 in (9.52 mm)
1/2 in (12.7 mm)
5/8 in (16 mm)
Connecting
pipe assembly
***Disclaimer***
Google assistant will only work with the wall-mounted air handlers. It will not work
with the cassettes or ceiling recessed applications.

Page 7 mrcool.com

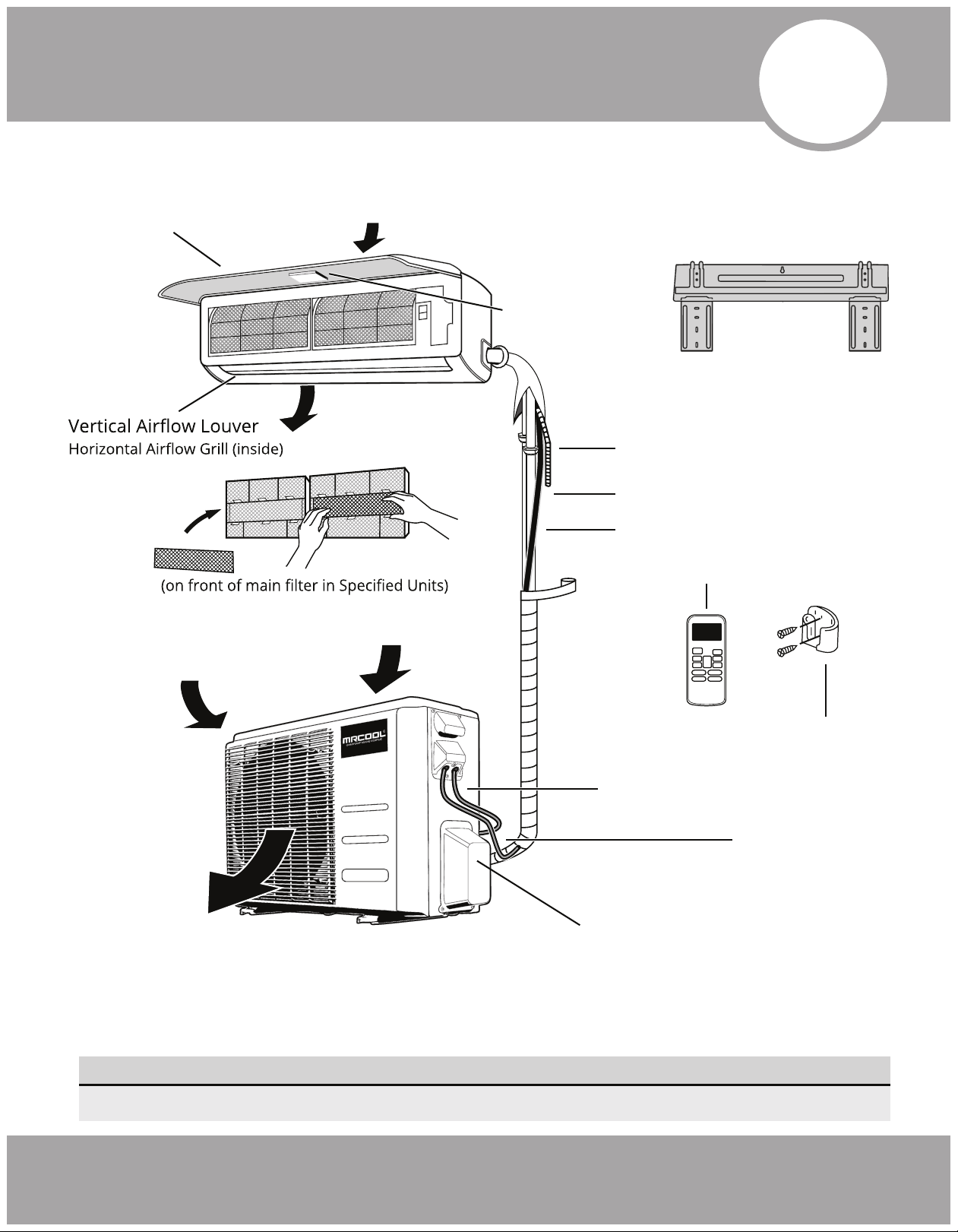

NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your unit may vary.
Remote Control
Remote Holder
Refrigerant Piping
Signal Cable
Drainage Pipe
Front Panel
(with display)
Wall Mounting Plate
Outdoor Unit
Power Cable
Fresh Air Filter
Airinlet (rear)
Airinlet (side)
Airoutlet
Airoutlet (bottom)
Indoor Unit
(Interior / Air Handler)
Outdoor Unit
(Exterior / Condenser)
Refrigerant Pipe Connection
and Stop Valve (under cover)
Signal Cable
Connection from
Indoor Unit
Airinlet (rear)
Smart Controller
Module USB Port
2
Overview
Fig. 2.1

Page 8
Overview - Multi-Zone
mrcool.com
Fig. 2.2
Fig. 2.3
5-Zone
4-Zone
3-Zone
2-Zone
5-Zone
4-Zone
3-Zone
2-Zone
Wall-Mounted Handlers Ceiling Ducted Handlers
Indoor unit
1. Panel frame
2. Rear air intake grille
3. Front panel
5. Horizontal louver
7. Vertical louver
8. Manual control button (behind)
9. Remote control holder
Outdoor unit
10. Drain hose, refrigerant pipe
11. Connective cable
12. Stop valve
13. Fan hood
Indoor unit
1. Air outlet
2. Air inlet
4. Electric control cabinet
5. Wire controller
Outdoor unit
6. Drain hose, refrigerant pipe
7. Connective cable
8. Stop valve
9. Fan hood

Page 9
Overview - Multi-Zone
mrcool.com

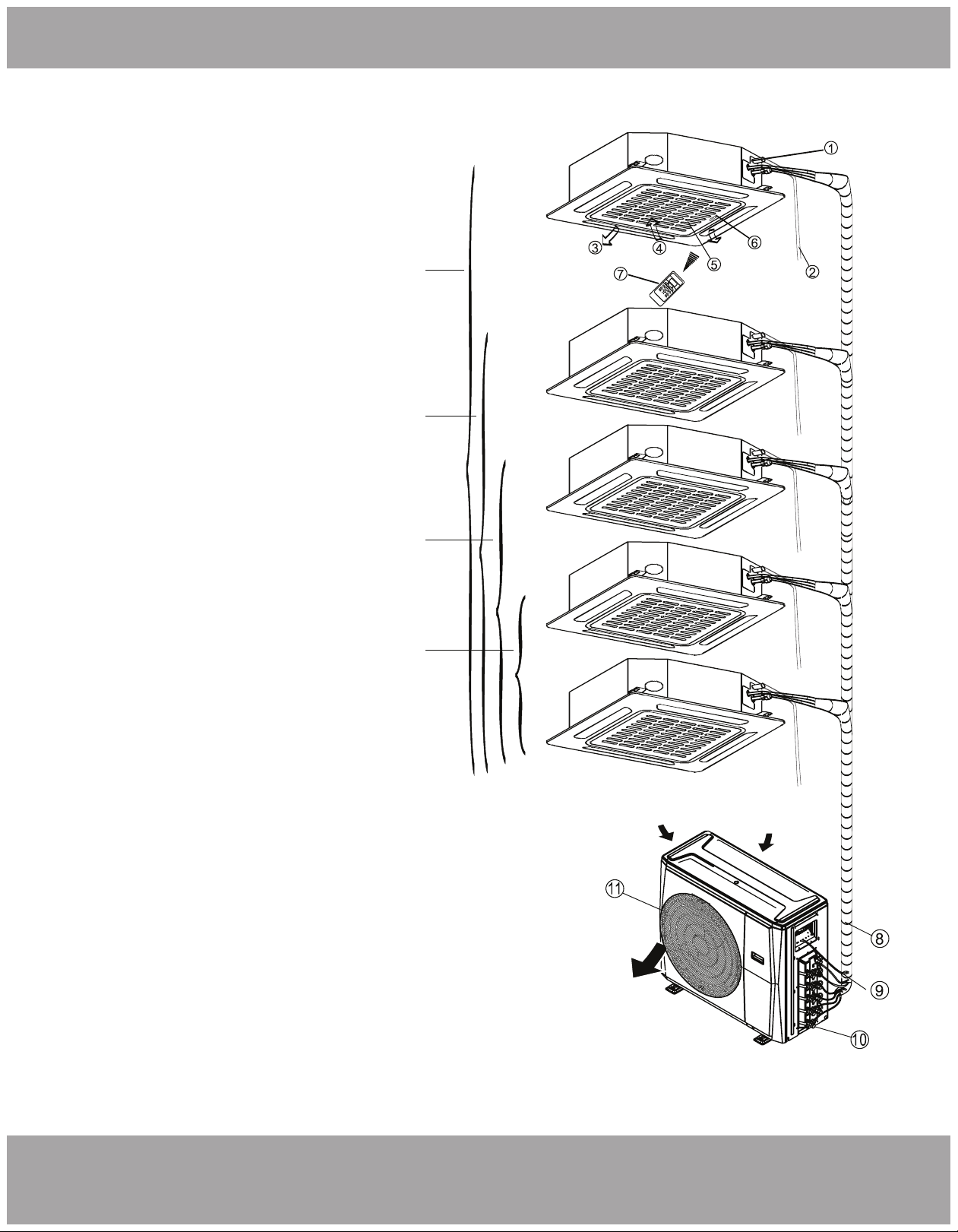

Cassette Handlers
Fig. 2.4
5-Zone
4-Zone
3-Zone
2-Zone
Indoor unit
1. Drain pump (from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote control
Outdoor unit
8. Refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood

Page 10mrcool.com
49 ft(15 m)
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
49 ft(15 m)
32.8 ft(10 m)

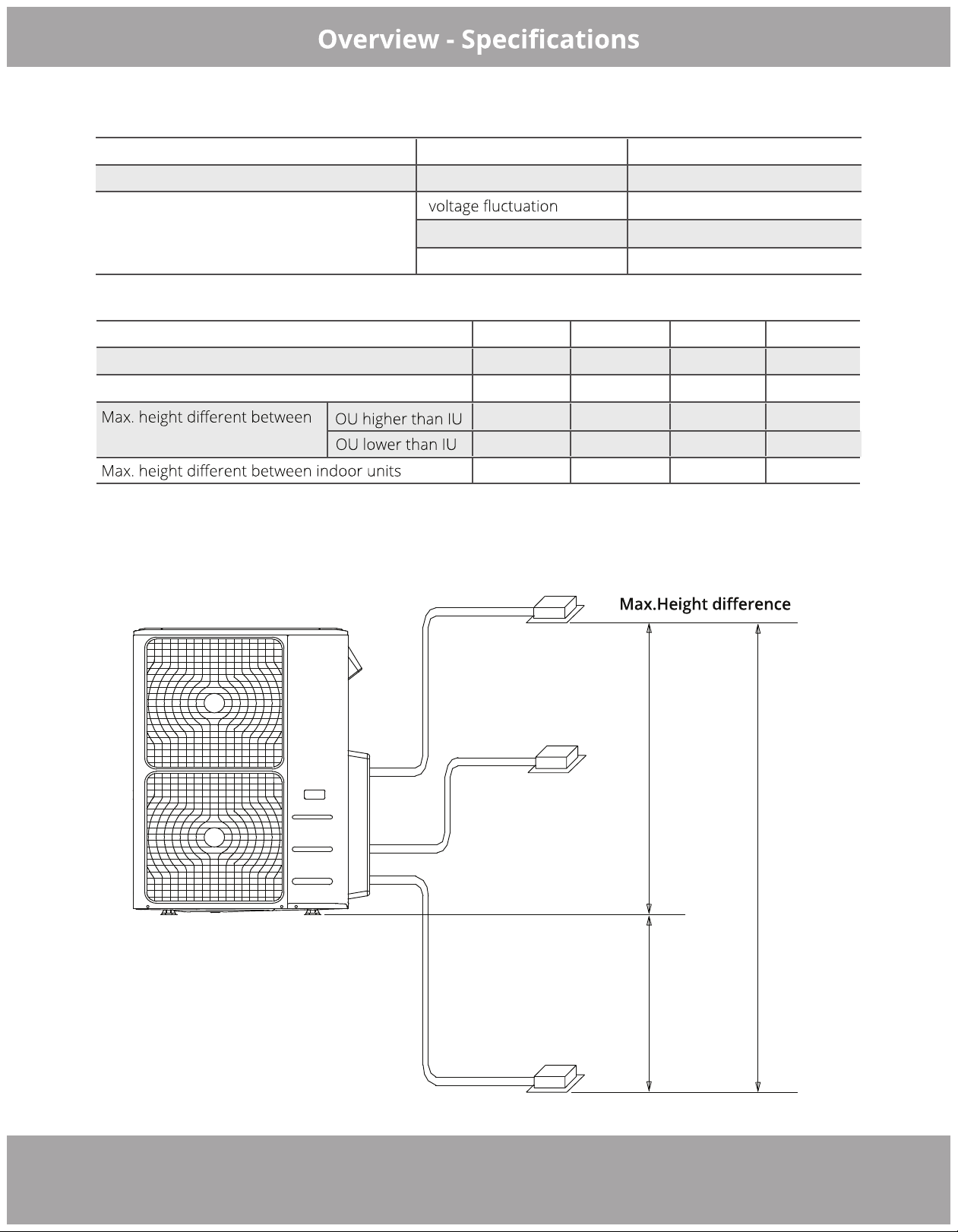

Table 2.1
Table 2.2
Indoor units that can be used in combination Number of connected units 1-5 units
Compressor stop/start frequency Stop time 3 minutes or more
within ±10% of rated voltage
Power source voltage voltage drop during start within ±15% of rated voltage
interval unbalance within ±3% of rated voltage
Max. length for all rooms
98.4 ft/30 m 147.6 ft/45 m
Max. length for one indoor unit 65.6 ft/20 m 82 ft/25 m
indoor and outdoor unit
32.8 ft/10 m 32.8 ft/10 m
49 ft/15 m 49 ft/15 m
32.8 ft/10 m 32.8 ft/10 m
196.8 ft/60 m 246 ft/75 m
98.4 ft/30 m 98.4 ft/30 m
32.8 ft/10 m 32.8 ft/10 m
49 ft/15 m 49 ft/15 m
32.8 ft/10 m 32.8 ft/10 m
Unit: ft/m
2 ZONE 3 ZONE 4 ZONE 5 ZONE
Fig. 2.5
When installing multiple indoor units to a single outdoor unit, ensure that the length of the refrigerant
pipe and the drop height between the indoor and outdoor units meets the following requirements:

Page 11 mrcool.com
Installation Summary - Indoor Unit
Installation Instructions
– Indoor Unit
PRIOR TO INSTALLATION:
Before installing the indoor unit, refer to the
label on the product box to make sure that
the model numbers of the indoor units match
the model number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must choose
an appropriate location. The following standards
will help you choose an appropriate location.
Proper installation locations meet the
following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb
other people
Firm and solid—the location will not vibrate
Strong enough to support the weight of
the unit
A location at least one meter from all other
electrical devices (e.g., TV, radio, computer)
DO NOT install unit in the following locations:
NOTE ABOUT WALL HOLE:
Near any source of heat, steam, or
combustible gas
or clothing
Near any obstacle that might block air
circulation
Near a doorway
In a location subject to direct sunlight
If the
While choosing a location, be aware that you
should leave ample room for a wall hole
(see Drill wall hole for connective piping
step) for the signal cable and refrigerant
piping that connect the indoor and outdoor
units to pass through. The default position
for all piping is the right side of the indoor
unit (while facing the unit). However, the unit
can accommodate piping to the left or right.
3
Indoor Unit Installation

Page 12mrcool.com
Indoor Unit Installation
Refer to the following diagram to ensure proper distance from walls and ceiling:
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you will
mount the indoor unit
.
1. Remove the screw that attaches the mounting
plate to the back of the indoor unit.
2. Place the mounting plate against the wall in a
location that meets the standards in the
Select Installation Location step. (See
Mounting Plate Dimensions for detailed
information on mounting plate sizes.)
3. Drill holes for mounting screws in places that:
•have studs and can support the weight of
the unit
• correspond to screw holes in the mounting
plate
4. Secure the mounting plate to the wall with the
screws provided.
5.
the wall
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or similar
material, drill 0.2 in-diameter (5 mm-diameter)
holes in the wall and insert the sleeve anchors
provided. Secure the mounting plate to the
wall by tightening the screws directly into the
clip anchors.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant piping,
the drainage pipe, and the signal cable to pass through
which will connect the indoor and outdoor units.
1. Determine the location of the wall hole based on
the position of the mounting plate. Refer to
Mounting Plate Dimensions on the next page
to help you determine the optimal position. Refer
to Fig. 3.3 wall hole diameter and install at a slight
angle to facilitate drainage.
2.
2.5 in (65 mm) for all others], drill a hole in the
wall. Make sure that the hole is drilled at a slight
downward angle, so that the outdoor end of the
hole is lower than the indoor end by about 0.2 to
0.275 in (5 mm-7 mm). This will ensure proper
water drainage. (See Fig. 3.2)
3.
protects the edges of the hole and will help seal
Fig. 3.1
CAUTION
When drilling the wall hole, be sure to avoid
wires, plumbing, and other sensitive
components.
Minimum Ceiling
Clearance is
5.9 in(15 cm)
>4.75 in
(12 cm)
>4.75 in
(12 cm)
For Ceilings
Floor Clearance is
90.55 in(230 cm)
For Ceilings
Floor Clearance is
78.55 in(200 cm)

Page 13 mrcool.com
Indoor Unit Installation
Wall
Indoor Outdoor
Fig.3.2
0.2 - 0.3 in
(5 - 7 mm)
MOUNTING PLATE DIMENSIONS
plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• Width of indoor unit relative to plate
• Height of indoor unit relative to plate
• Recommended position of wall hole (both to
the left and right of mounting plate)
• Relative distances between screw holes
Fig. 3.3
Correct orientation of Mounting Plate
46.7in/1186mm
3.5in/89mm 3.5in/89mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 24K Models
Series 18K Models
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
2.6in/65mm 2.6in/65mm
1.8in/45mm
4.3in/11mm
2.6in/65mm 2.6in/65mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 12K Models
4.3in/11mm
2.6in/65mm 2.6in/65mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 9K Models

Page 14
mrcool.com
Indoor Unit Installation
Be extremely careful not to dent or damage the piping while bending them away from the unit. Any
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating sleeve
attached to the back of the unit. You must prepare
the piping before passing it through the hole in the
wall. Refer to the Refrigerant Piping Connection
section of this manual for detailed instructions on
technique, etc.
Based on the position of the wall hole,
relative to the mounting plate, choose the
side from which the piping will exit the unit.
If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to the
side of the indoor unit, remove the plastic
knock-out panel from that side of the unit. (See
Fig. 3.4). This will create a slot through which
by hand.
insulating sleeve to reveal about 6 in (15 cm) of the
refrigerant piping. This serves two purposes:
• To facilitate the Refrigerant Piping
Connection process
• To facilitate Gas Leak Checks and enable
you to check for dents
If existing connective piping is already embedded
in the wall, proceed directly to the Connect
Drain Hose step. If there is no embedded
piping, connect the indoor unit’s refrigerant
piping to the connective piping that will join the
indoor and outdoor units. Refer to the
Refrigerant Piping Connection section of this
manual for detailed instructions.
Based on the position of the wall hole, relative to
the mounting plate, determine the necessary
angle of your piping.
Grip the refrigerant piping at the base of the
bend.
Slowly, and with even pressure, bend the piping
towards the hole.
DO NOT dent or damage the
piping during the process.

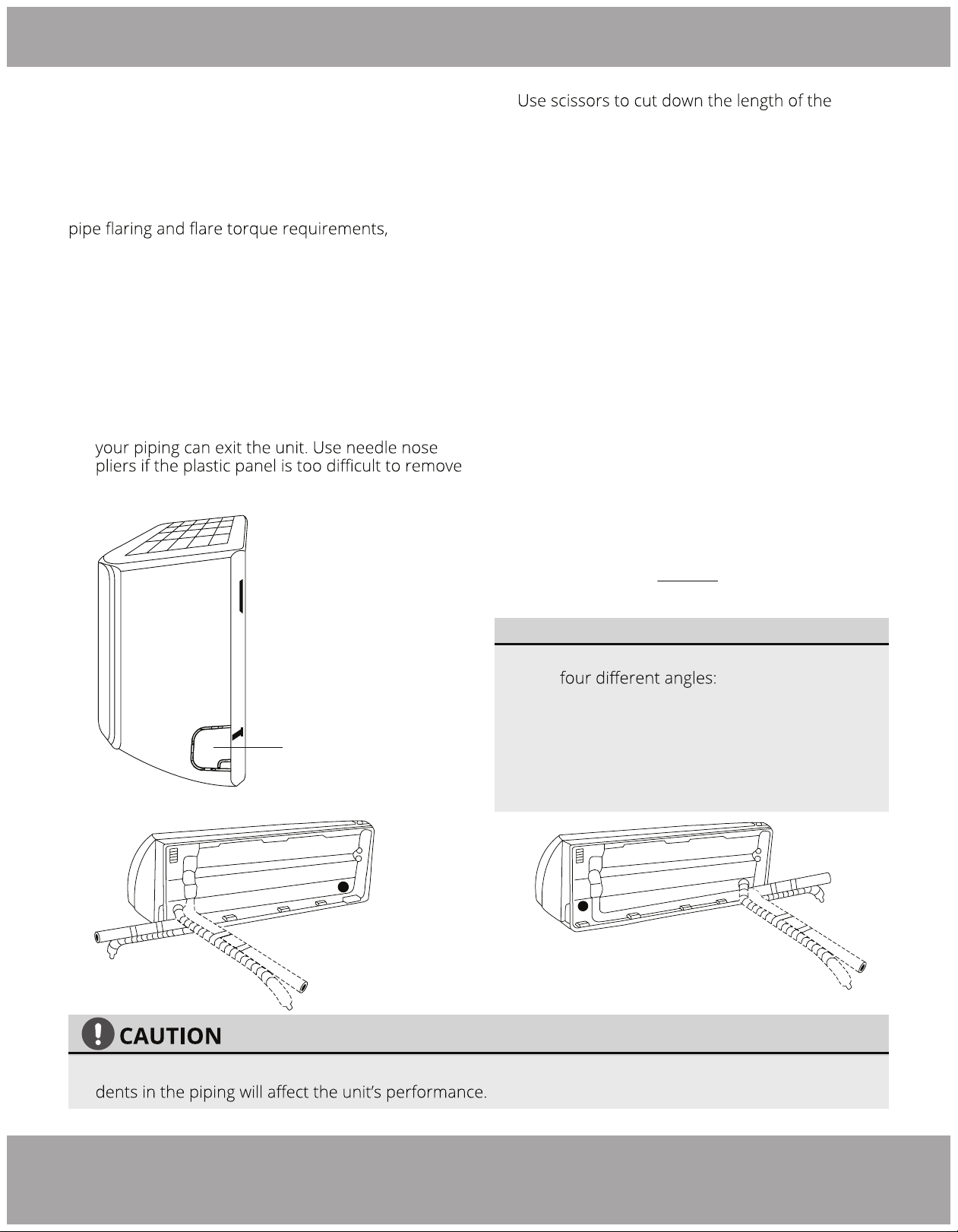

NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor unit
from
•Left-hand side
•Left rear
•Right-hand side
•Right rear
Refer to Fig. 3.5 for details.
Knock-out Panel
Fig. 3.4
Fig. 3.5
1.
2.
3.
4.
5.
6.
7.

Page 15 mrcool.com
Indoor Unit Installation
Step 5: Connect drain hose
By default, the drain hose is attached to the left-hand
side of unit (when you’re facing the back of the unit).
However, it can also be attached to the right-hand side.
NOTE ON DRAIN HOSE PLACEMENT
Make sure to arrange the drain hose according
to Fig. 3.6a.
DO NOT kink the drain hose.
DO NOT create a watertrap.
DO NOT put the end of drain hose in water
or a container that will collect water.
ENSURE UNUSED DRAIN HOLE IS PLUGGED
To ensure proper drainage, the drain hose must exit
the unit on the same side as the refrigerant piping.
1.
to ensure a good seal and to prevent leaks.
2.
For the portion of the drain hose that will remain
indoors, wrap it with foam pipe insulation to
prevent condensation.
3.
amount of
water into the drain pan to make sure that water
4.
To prevent unwanted leaks be sure that the
factory installed rubber plug is in the unused
drain hole.
Fig. 3.6a
Fig. 3.6b
Fig. 3.6c
Fig. 3.6d
Make sure there are NO
kinks or dents in the
hose to ensure proper
drainage.
NOT CORRECT
Dents in the drain hose
will create water traps.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
place the end
of the drain hose in
water or in containers
that collect water.
This will prevent
proper drainage.

Page 16mrcool.com
Indoor Unit Installation

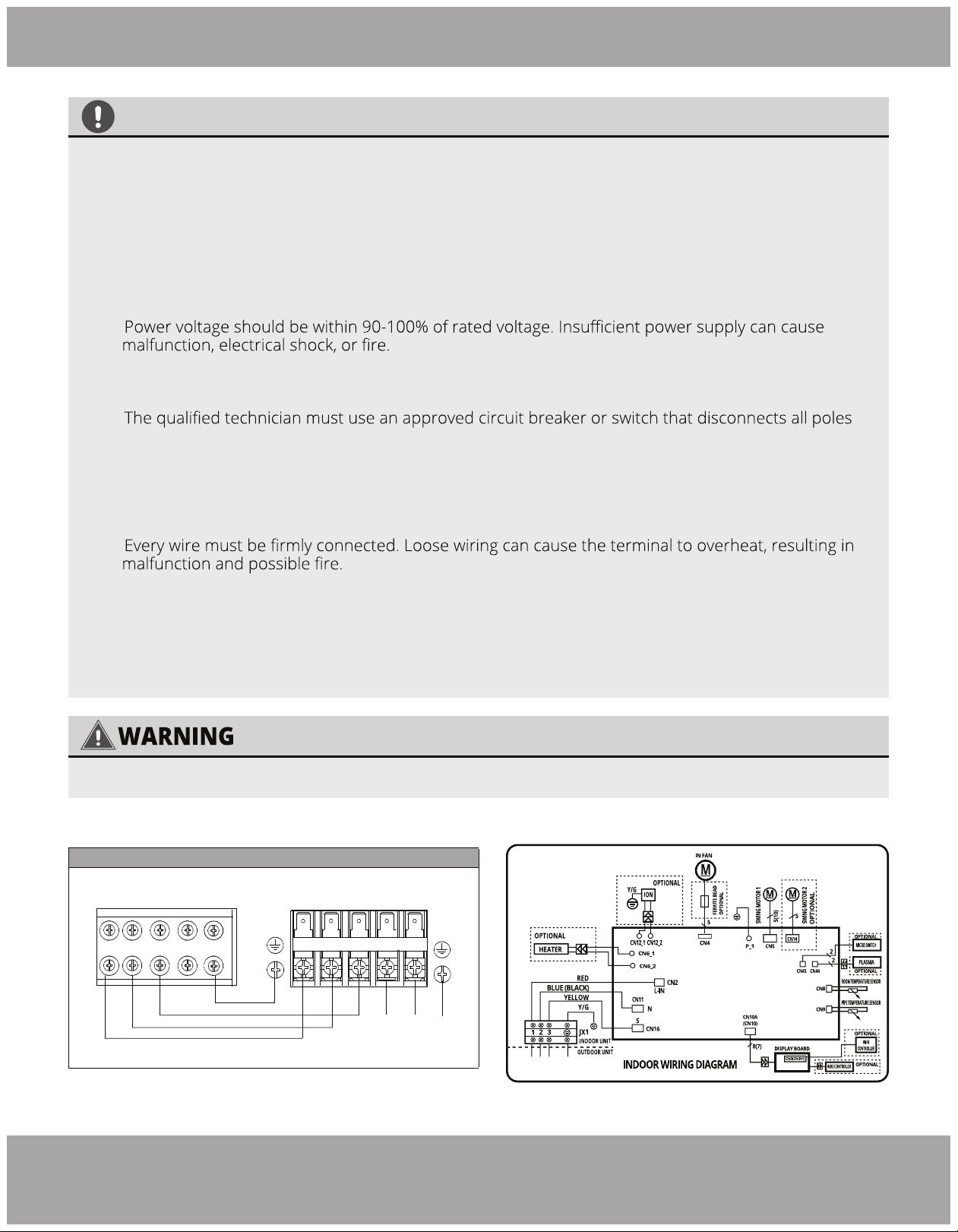

BEFORE PERFORMING ANY ELECTRICAL WORK, TURN OFF ALL POWER TO THE SYSTEM.
BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS
1. All wiring must comply with local and national electrical codes, and must be installed by a licensed
electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located
on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your
reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4.
5. Circuit, including any switches, should have a capacity 1.5 times the maximum unit current (amps).
6.
and has has a contact separation of at least 1/8 in (3 mm).
7. Do not connect another appliance to the same circuit.
8. Make sure to properly ground the air conditioner.
9.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts
within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 40 in (1 meter) away from
combustible materials.
Fig. 3.7bFig. 3.7a
208-230V~ Models
L1 L2 S L1 L2
L1 L2 S G
Indoor Unit
Single Zone Outdoor Unit
see Outdoor Unit Installation for Multi-Zone
Power Supply

Page 17 mrcool.com
Indoor Unit Installation
Step 6: Connect signal cable
The signal cable enables communication between the
indoor and outdoor units and provides power to the
indoor unit. A 16 gauge AWG signal cable (H07RN-F)
is provided for the unit. The tables below are for
reference.
NOTE: the rated amp (A) draw will be at the
condenser (outdoor unit) and a table is provided in
that section, showing the required power cable gauge
Minimum Cross-Sectional Area of
Power and Signal Cables
CHOOSE THE APPROPRIATE CABLE SIZE
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 6
> 6 and
> 16
>25
>32
>40
0.75
1
1.5
2.5
4
6
Other Regions
North America
10 18
13 16
18 14
25 12
30 10
Appliance Amps(A)AWG
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is
designed with a fuse to provide overcurrent
printed on the circuit board, such as:
T3.15A/250VAC, T5A/250VAC, etc.
1. Prepare the cable for connection:
jacket from both ends of signal cable to
reveal about 1.57 in (40 mm) of the wires
inside.
b. Strip the insulation from the ends of the wires.
ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
2. Open front panel of the indoor unit.
3.
the right side of the unit. This will reveal the terminal
block.
4. ew the cable clamp below the terminal
block and place it to the side.
5. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
All wiring must be performed in accordance
with the wiring diagrams Fig. 3.7a & Fig. 3.7b
shown on the previous page.
erminal block
Wire cover
Screw
Cable clamp
Fig. 3.7c
See Fig. 3.7A on previous page for wiring diagram.
Wiring diagram also found inside lid of interior unit
The size of the power supply cable, signal cable,
fuse, and switch needed is determined by the
maximum unit current. The maximum unit
current is indicated on the nameplate located on
the side panel of the unit. Refer to this nameplate
to choose the right cable, fuse, or switch.

Page 18mrcool.com
Indoor Unit Installation
DO NOT INTERTWINE SIGNAL CABLE WITH
OTHER WIRES
While bundling these items together, do not
intertwine or cross the signal cable with any
other wiring.
2.
Using non-adhesive vinyl tape, attach the drain
hose to the underside of the refrigerant pipes.
Adhesive tape (optional) may be used in place of
the vinyl tape.
3.
refrigerant pipes, and drain hose tightly together.
Double-check that all items are bundled in
accordance with Fig. 3.8
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends of
the piping unwrapped. You need to access them
to test for leaks at the end of the installation
process (refer to Electrical Checks and Leak
Checks section of this manual).

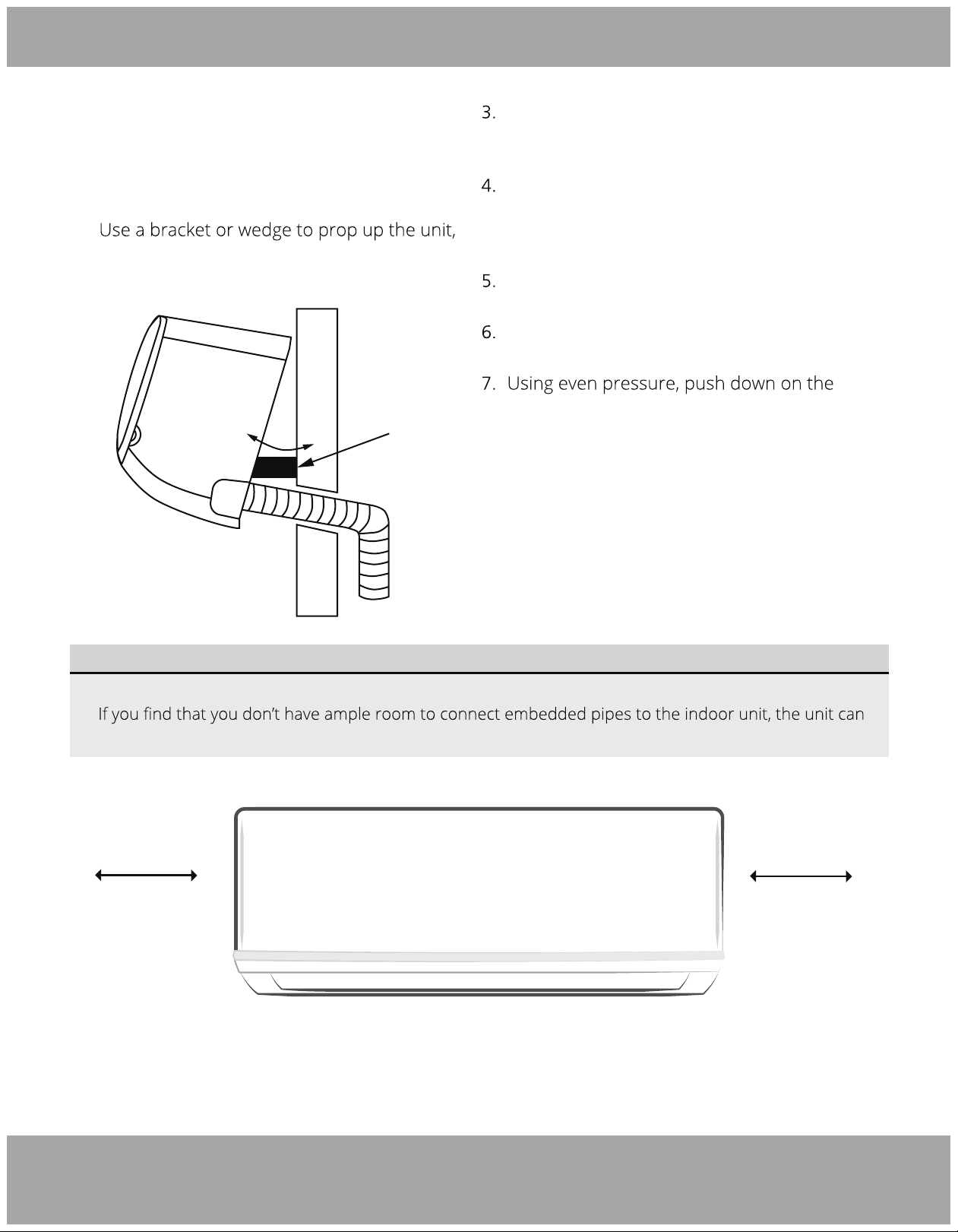

Step 8: Mount indoor unit
6. Feed the signal wire through this slot, from the
back of the unit to the front.
7. Facing the front of the unit, match the wire
colors with the labels on the terminal block,
to its corresponding terminal.
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
8. After checking to make sure every connection
is secure, use the cable clamp to fasten the signal
cable to the unit. Screw the cable clamp down
tightly.
9. Replace the wire cover on the front of the unit,
and the plastic panel on the back.
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the signal
cable through the wall hole, you must bundle them
together to protect and insulate them, as well as
save space.
1. Bundle the drain hose, refrigerant pipes, and
signal cable according to Fig. 3.8.
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the bottom
of the bundle. Putting the drain hose at the
top of the bundle can cause the drain pan to
damage.
Indoor Unit
Space behind unit
Refrigerant piping
Drain hose
Signal wire
Insulation tape
Fig. 3.8
THE WIRING CONNECTION PROCESS MAY
DIFFER SLIGHTLY BETWEEN UNITS.
If you installed new connective piping to the
outdoor unit, do the following:
If you have already passed the refrigerant piping
through the hole in the wall, proceed to Step 4.
Otherwise, double-check that the ends of the
refrigerant pipes are sealed to prevent dirt or
foreign material from entering the pipes.
Slowly pass the wrapped bundle of refrigerant
pipes, drain hose, and signal wire through the
hole in the wall.
Hook the top of the indoor unit on the upper
hook of the mounting plate.
plate by applying slight pressure to the left and
right-hand sides of the unit. The unit should not
jiggle or shift.
half of the unit. Keep pushing down until the unit
snaps onto the hooks along the bottom of the
mounting plate.
applying slight pressure to the left and the
right-hand sides of the unit.
1.
2.
3.
4.
5.
6.
7.

Page 19 mrcool.com
Indoor Unit Installation
If refrigerant piping is already embedded
in the wall, do the following:
1. Hook the top of the indoor unit on the upper
hook of the mounting plate.
2.
giving you enough room to connect the
refrigerant piping, signal cable, and drain
hose. Refer to Fig. 3.9 for an example.
Fig. 3.9
Connect drain hose and refrigerant piping
(refer toRefrigerant Piping Connection
section of this manual for instructions).
After the leak test, wrap the connection point
with insulation tape.
Remove the bracket or wedge that is propping
up the unit.
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit.
be adjusted left or right by about 1.25-1.95 in (30-50 mm), depending on the model. (See Fig. 3.10)
Fig. 3.10
Move to left or right
1.2-1.95 in
(30-50 mm)
1.2-1.95 in
(30-50 mm)
Wedge
30°
Keep pipe connection point exposed to
perform the leak test (refer to Electrical
Checks and Leak Checks section of this
manual).
