MrCool MAC13018 User manual

For 13 SEER R410A Unitary
Ducted Split AC & Heat Pump
Residential Air Conditioners & Heat Pumps
Installation Manual
Thank you for choosing Residential Air Conditioners & Heat Pumps, please read this
Installation manual carefully before operation and retain it for future reference.
MRCOOL reserves the right to interpret this manual which will be subject to any change due
to product improvement without further notice.

Contents
Safety Considerations ...................................................................................1
1. Unit Parts Arrangement .............................................................................2
2. Physical Dimension ...................................................................................3
2.1 Outdoor Unit ..........................................................................................3
2.2 Installation Clearance Data ...................................................................5
2.3 Units Installation ....................................................................................5
2.4 Installation Recommendations .............................................................6
3. Brazing Connections .................................................................................7
3.1 Preparation the Line .............................................................................7
3.2 Cap and Core Removal.........................................................................8
3.3 Attach Gauge.........................................................................................8
3.4 Braze Line Set.......................................................................................8
3.5 Preparation for Next Step......................................................................9
4. Check Piston .............................................................................................9
5. Operating Gauge Set and Service Valves ...............................................10
5.1 Torque Requirements ..........................................................................10
5.2 Using Manifold Gauge Set ..................................................................10
5.3 Operating Service Valves ...................................................................10
5.4 Operating Angle Type Service Valve ...................................................10
5.5 To Access Service Port........................................................................ 11
5.6 Reinstall Stem Cap.............................................................................. 11
For more details visit www.MrCool.com

5.7 Install Liquid Line Filter Drier Indoor ................................................... 11
6. Recovering Refrigerant from Existing System.........................................12
6.1 Disconnect Power ...............................................................................12
6.2 Connect Manifold Gauge Set ..............................................................12
6.3 Recovering Refrigerant .......................................................................12
6.4 Leak Test Line Set and Indoor Coil......................................................13
6.5 Evacuating Line Set and Indoor Coil ...................................................14
7. Electrical..................................................................................................15
7.1 Size Circuit And Install Disconnect Switch ..........................................16
7.2 Install Thermostat ................................................................................16
7.3 Unit Low Voltage Connections ............................................................16
7.4 Unit High Voltage Connections............................................................17
8. System Refrigerant..................................................................................21
8.1 Gauge Set (Cooling Only) ...................................................................21
8.2 Gauge Set (Heat Pump) .....................................................................22
8.3 Weigh In ..............................................................................................23
9. Unit Control............................................................................................27
9.1 Mainboard Description ......................................................................27
9.2 Terminal Description..........................................................................28
9.3 Control Flowchart ..............................................................................29
9.4 Error Analysis ....................................................................................30
9.5 Setting on Defrost Control PCB (for Heat Pump unit only) ...............33
9.6 Manually Defrost Cycle ....................................................................33
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
1
Safety Considerations
Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion,
fire, electrical shock, or other conditions which may cause death, personal injury, or property
damage. Instructions for installation and use of this product are provided by the manufacturer.
Installation must be performed in accordance with the requirements of NEC and CEC by qualied
installer or agency only. The qualified installer or agency must use factory--authorized kits or
accessories when modifying this product. Refer to the individual instructions packaged with the kits
or accessories when installing. Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Use quenching cloth for brazing operations. Have fire extinguisher available.
Read these instructions thoroughly and follow all warnings or cautions included in literature and
attached to the unit. Consult local building codes and National Electrical Code (NEC) for special
requirements. Recognize safety information. This is the safety--alert symbol .When you see this
symbol on the unit and in instructions or manuals, be alert to the potential for personal injury.
Understand these signal words; DANGER, WARNING, and CAUTION. These words are used with
the safety--alert symbol. DANGER identies the most serious hazards which will result in severe
personal injury or death. WARNING signifies hazards which could result in personal injury or
death. CAUTION is used to identify unsafe practices which may result in minor personal injury or
product and property damage. NOTE is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Before installing, modifying, or servicing system,main electrical disconnect switch must be in
the OFF position. There may be more than 1 disconnect switch. Lock out and tag switch with a
suitable warning label.
This product must not be disposed together with the domestic waste.
This product has to be disposed at an authorized place for recycling of
electrical and electronic appliances.
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
2
1. Unit Parts Arrangement
Cooling Only Condensing Unit
Low pressure switch
High pressure switch
Compressor harness
Compressor
Filter
Liquid line service valve
Vapor line service valve
Fig.1
Heat Pump Condensing Unit
High pressure switch
Low pressure switch
Revesing valve
Compressor harness
Compressor
Throttle
Nozzle for adding freon
Liquid line service valve
Filter
Vapor line service valve
Fig.2
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
3
2. Physical Dimension
2.1 Outdoor Unit
H
D
W
Fan motor
Axial flow fan
Compressor
Fig.3—Outdoor Unit
Table 1—Dimension of Outdoor Unit
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
4
Unit: Inch (mm)
MODEL
DIMENSION
H D W
MAC13018 24"(610) 21-1/2"(546) 21-1/2"(546)
MAC13024 24-1/2"(620) 24"(610) 24"(610)
MAC13030 29"(735) 24"(610) 24"(610)
MAC13036 29"(735) 28"(710) 28"(710)
MAC13042 29"(735) 28"(710) 28"(710)
MAC13048 29"(735) 28"(710) 28"(710)
MAC13060 33-1/2"(850) 29-1/2"(750) 29-1/2"(750)
MHP13018 24-1/2"(620) 24"(610) 24"(610)
MHP13024 24-1/2"(620) 24"(610) 24"(610)
MHP13030 29"(735) 28"(710) 28"(710)
MHP13036 29"(735) 28"(710) 28"(710)
MHP13042 29"(735) 28"(710) 28"(710)
MHP13048 33-1/2"(850) 28"(710) 28"(710)
MHP13060 33-1/2"(850) 29-1/2"(750) 29-1/2"(750)
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
5
2.2 Installation Clearance Data

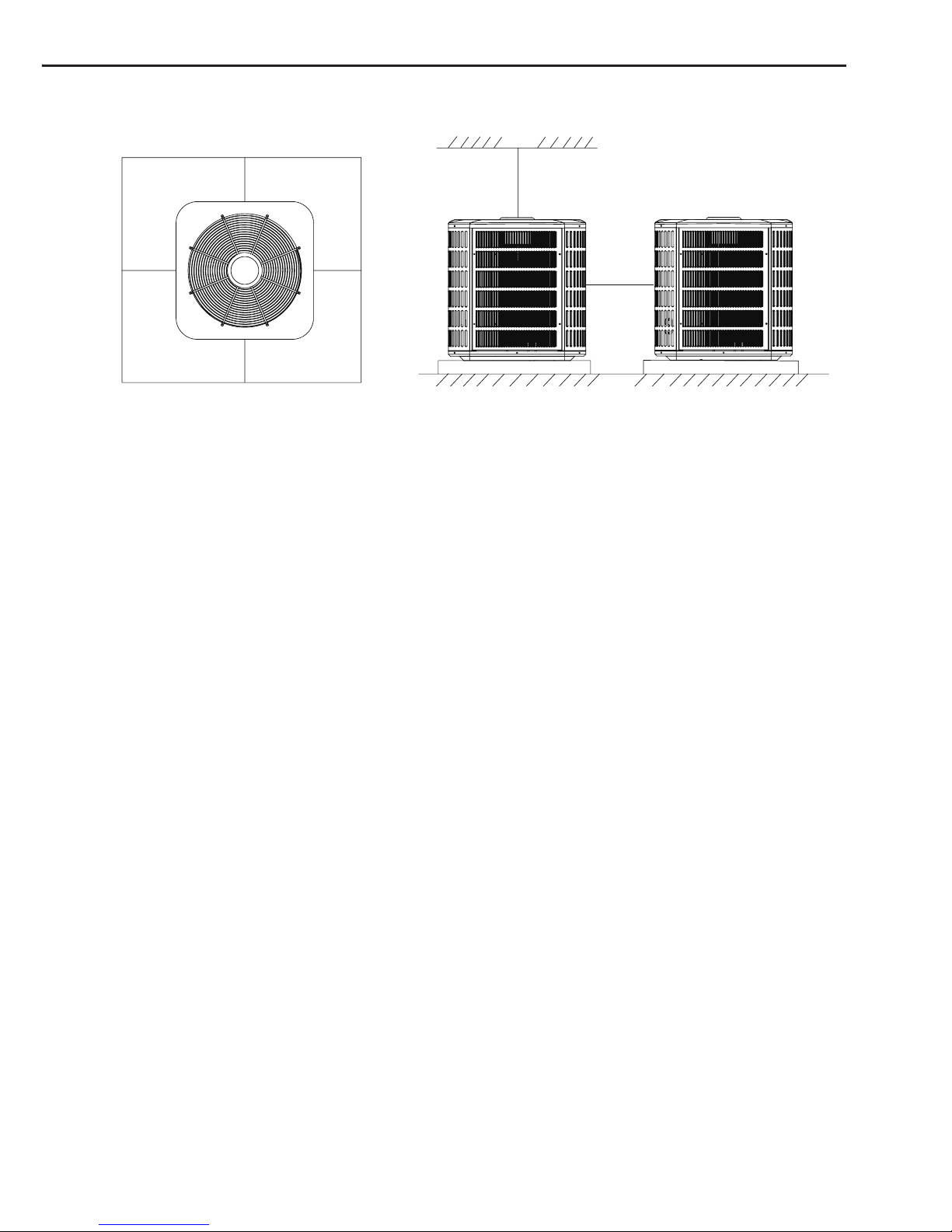

>1000mm
>1000m
（40inch）
（40inch）
（32inch）
（120inch）
（40inch）
（40inch）
m
>800mm
>3000mm
>1000mm
>1000mm
Floor
Floor
Fig.4
2.3 Units Installation
2.3.1 Installation Positions of Condensing Units
● Outdoor Unit must be xed on stable and solid surface of oor.
● Don’t install Outdoor Unit under window or between buildings, and prevent the operation
noise from room.
● There should be no obstructions at both air inlet and outlet of indoor and outdoor units for
maintaining well air ventilation.
● When installing indoor unit, make sure that the hanging parts at top are strong enough to
stand the weight of unit.
2.3.2 Matters Need Attention
● Before installation, make sure that the power supply comply with nameplate and check the
security of the power supply.
● Do not use or place combustible and explosive gas or liquid near the air conditioner.
● Do not attempt to install Air Conditioner by yourself to guarantee the air Conditioner can be
permanent use.
● In the event of malfunction(burning smell, etc.),stop operation immediately and turn off the
power switch.
● Do not insert ngers or objects into the outlet port or inlet grillers.
● Do not check or repair the air Conditioner when it is running.
● Do not sprinkle water on the air Conditioner or operate it with wet hands.
● Do not climb or place objects on the air conditioner.
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
6
2.4 Installation Recommendations
NOTE: In some cases noise in the living area has been traced to gas pulsations from improper
installation of equipment.
1). Locate unit away from windows, patios, decks, etc. where unit operation sound may disturb
customer.
2). Ensure that vapor and liquid tube diameters are appropriate for unit capacity.
3). Run refrigerant tubes as directly as possible by avoiding unnecessary turns and bends.
4). Leave some slack between structure and unit to absorb vibration.
5). When passing refrigerant tubes through the wall, seal opening with RTV or other pliable
silicon--based caulk.(See Fig. 5.)
6). Avoid direct tubing contact with water pipes, duct work, oor joists, wall studs, oors, and
walls.
7). Do not suspend refrigerant tubing from joists and studs with a rigid wire or strap which comes
in direct contact with tubing. (See Fig. 5.)
8). Ensure that tubing insulation is pliable and completely surrounds vapor tube.
9). When necessary, use hanger straps which are 1 in. wide and conform to shape of tubing
insulation. (See Fig. 5.)
10). Isolate hanger straps from insulation by using metal sleeves bent to conform to shape of
insulation.
When outdoor unit is connected to factory--approved indoor unit, outdoor unit contains system
refrigerant charge good for 25 ft.
For proper unit operation, check refrigerant charge using charging information located on
control box cover and/or in the Check Charge section of this instruction.
NOTE: Avoid contact between tubing and structure
OUTDOOR WALL
CAULK
INDOOR WALL
LIQUID TUBE
INSULATION
VAPOR TUBE
JOIST
HANGER STRAP
(AROUND VAPOR
TUBE ONLY)
THROUGH THE WALL
INSULATION
VAPOR TUBE
LIQUID TUBE
SUSPENSION
1”MIN.
Fig.5 – Connecting Tubing Installation
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
7
3. Brazing Connections
3.1 Preparation the Line
Refer to Table 2 for eld tubing diameters. The pipe must remain round. Do not crimp end of
the line.
Table 2. Refrigerant Line Set Inches (mm)
Model
Valve Field Connections
Liquid Line Vapor Line
MAC13018
3/8 in. (9.5 mm)
5/8 in. (16 mm)
MHP13018
MAC13024
MHP13024
MAC13030
3/4 in. (19 mm)
MHP13030
MAC13036
MHP13036
MAC13042
7/8 in. (22 mm)
MHP13042
MAC13048
MHP13048
MAC13060
1/2 in. (12 mm) 1-1/8 in. (28 mm)
MHP13060
Line set size matches
service valve connection Do not crimp service valve connector
whenpipe is smaller than connection
Fig.6
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
8
3.2 Cap and Core Removal
Remove service cap and core from both the vapor and liquid line service ports.
Service port core
Service port cap
Liquid line
service valve
Vapor line
service valve
Service port core
Service port cap
Fig.7
3.3 Attach Gauge
Flow regulated nitrogen (at 1 to 2 psig) through the low−side refrigeration gauge set into the
liquid line service port valve, and out of the vapor line service port valve.
Liquid line
Use regulator to flow
nitrogen at 1 to 2 psig
Liquid line service valve
Vapor line service valve
Vapor service port must be open
to allow exit point for nitrogen
Vapor line
OUTDOOR
UNIT
INDOOR
UNIT
Fig.8
3.4 Braze Line Set
To help protect service valve seals during brazing,wrap water saturated cloths around
service valve bodies and copper tube stubs. Water saturated cloths must remain water saturated
throughout the brazing and cool−down process.
Braze line to the service valve.
When brazing line set to
service valves, point flame
away from service valve.

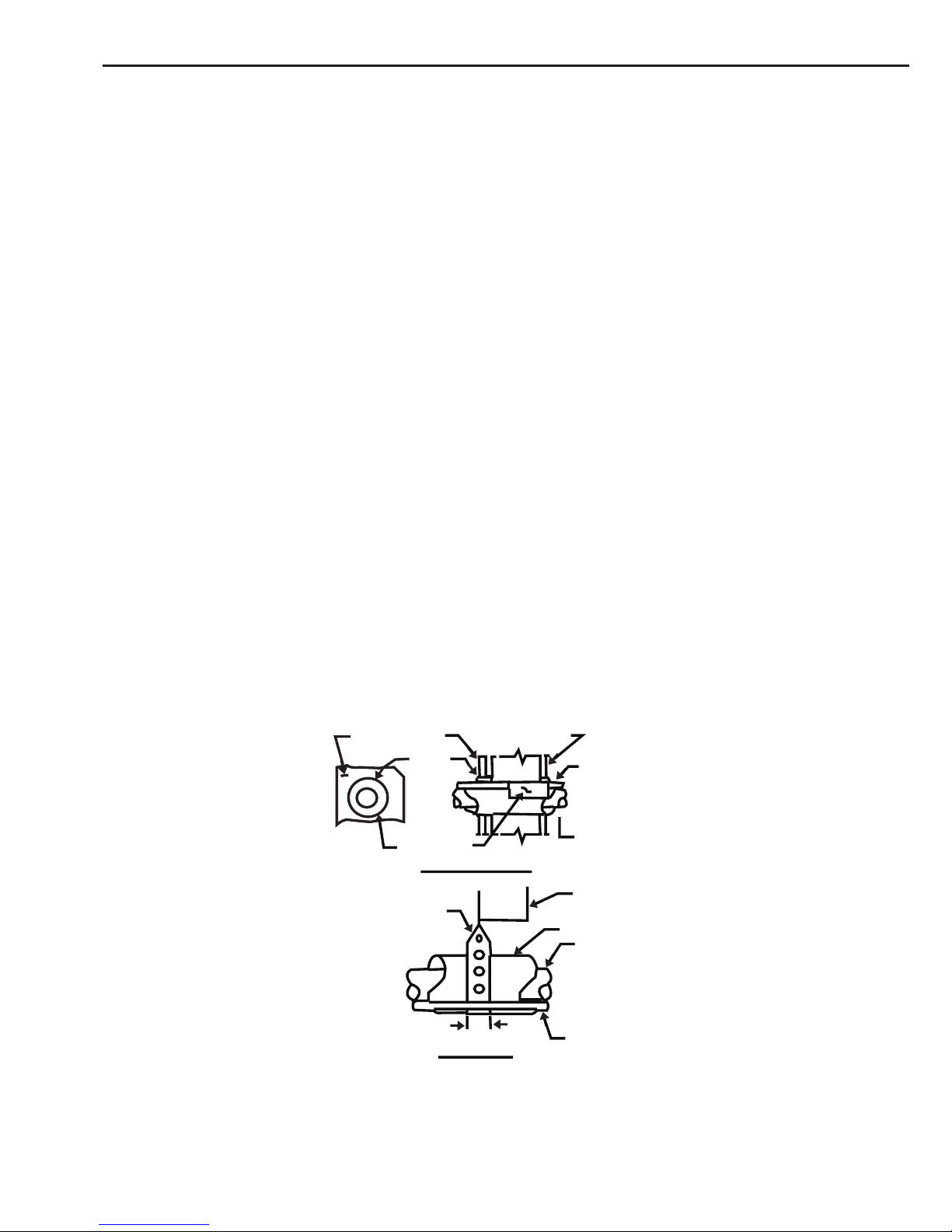

Water saturated
cloth
Fig.9
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
9
3.5 Preparation for Next Step
After all connections have been brazed, disconnect manifold gauge set from service ports.
Apply water saturated cloths to both services valves to cool piping. Once piping is cool, remove all
water saturated cloths.Reinstall service cap and core.Refer to the unit installation instructions for
the next step in preparing the unit.
4. Check Piston
There is a piston located in outdoor condensing unit, please verify the piston size based on the
below table. When matching with air handler, please make sure replace this piston in air handler.
Table 3
OUTDOOR UNIT INDOOR UNIT PISTON KIT PART NO.
MAC13018 MAH13018 053
MAC13024 MAH13024 054
MAC13030 MAH13030 064
MAC13036 MAH13036 067
MAC13042 MAH13042 071
MAC13048 MAH13048 079
MAC13060 MAH13060 084
MHP13018 MAH13018 055
MHP13024 MAH13024 057
MHP13030 MAH13030 068
MHP13036 MAH13036 067
MHP13042 MAH13042 073
MHP13048 MAH13048 082
MHP13060 MAH13060 091
Liquid line orifice housing
Distributor assembly
Fixed orifice
Teflon ring
Liquid line assembly
(includes strainer)
Liquid line
Brass nut
Vapor line
Fig.10
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
10
5. Operating Gauge Set and Service Valves
These instructions are intended as a general guide and do not supersede local codes in any
way. Consult authorities who have jurisdiction before installation.
5.1 Torque Requirements
When servicing or repairing heating, ventilating, and air conditioning components, ensure the
fasteners are appropriately tightened. Table 4 lists torque values for fasteners.
IMPORTANT
Only use Allen wrenches of sufcient hardness (50Rc −Rockwell Harness Scale minimum).
Fully insert the wrench into the valve stem recess.
Service valve stems are factory−torqued (from 9 ft−lbs for small
valves, to 25 ft−lbs for large valves) to prevent refrigerant loss during shipping and handling.
Using an Allen wrench rated at less than 50Rc risks rounding or breaking off the wrench, or
stripping the valve stem recess.
To prevent stripping of the various caps used, the appropriately sized wrench should be used
and tted snugly over the cap before tightening.
Table 4. Torque Requirements
Parts Recommended Torque
Service valve cap 8 ft.− lb. 11 NM
Sheet metal screws 16 in.− .lb 2 NM
Machine screws #10 28 in.− lb. 3 NM
Compressor bolts 90 in.− lb. 10 NM
Gauge port seal cap 8 ft.− lb. 11 NM
5.2 Using Manifold Gauge Set
When checking the system charge, only use a manifold gauge set that features low loss anti−
blow back ttings.
Manifold gauge set used with HFC−410A refrigerant systems must be capable of handling the
higher system operating pressures. The gauges should be rated for use with pressures of 0 − 800
psig on the high side and a low side of 30" vacuum to 250 psig with dampened speed to 500 psig.
Gauge hoses must be rated for use at up to 800 psig of pressure with a 4000 psig burst rating.
5.3 Operating Service Valves
The liquid and vapor line service valves are used for removing refrigerant, ushing, leak testing,
evacuating, checking charge and charging.
Each valve is equipped with a service port which has a factory−installed valve stem. Figure 11
provides information on how to access and operating both angle service valves.
5.4 Operating Angle Type Service Valve
1). Remove stem cap with an appropriately sized wrench.
2). Use a service wrench with a hex−head extension (3/16" for liquid line valve sizes and 5/16"
for vapor line valve sizes) to back the stem out counterclockwise as far as it will go.
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
11
Service port cap
To outdoor unit
To indoor unit
Service port core
(valve stem shown open)
Insert hex wrench here
Stem cap
Service valve
(Back-seated opened) Service valve
(Front-seated closed)
( Valve stem shown closed)
Insert hex wrench here
Fig.11
5.5 To Access Service Port
A service port cap protects the service port core from contamination and
serves as the primary leak seal.
1). Remove service port cap with an appropriately sized wrench.
2). Connect gauge set to service port.
3). When testing is completed, replace service port cap and tighten as follows

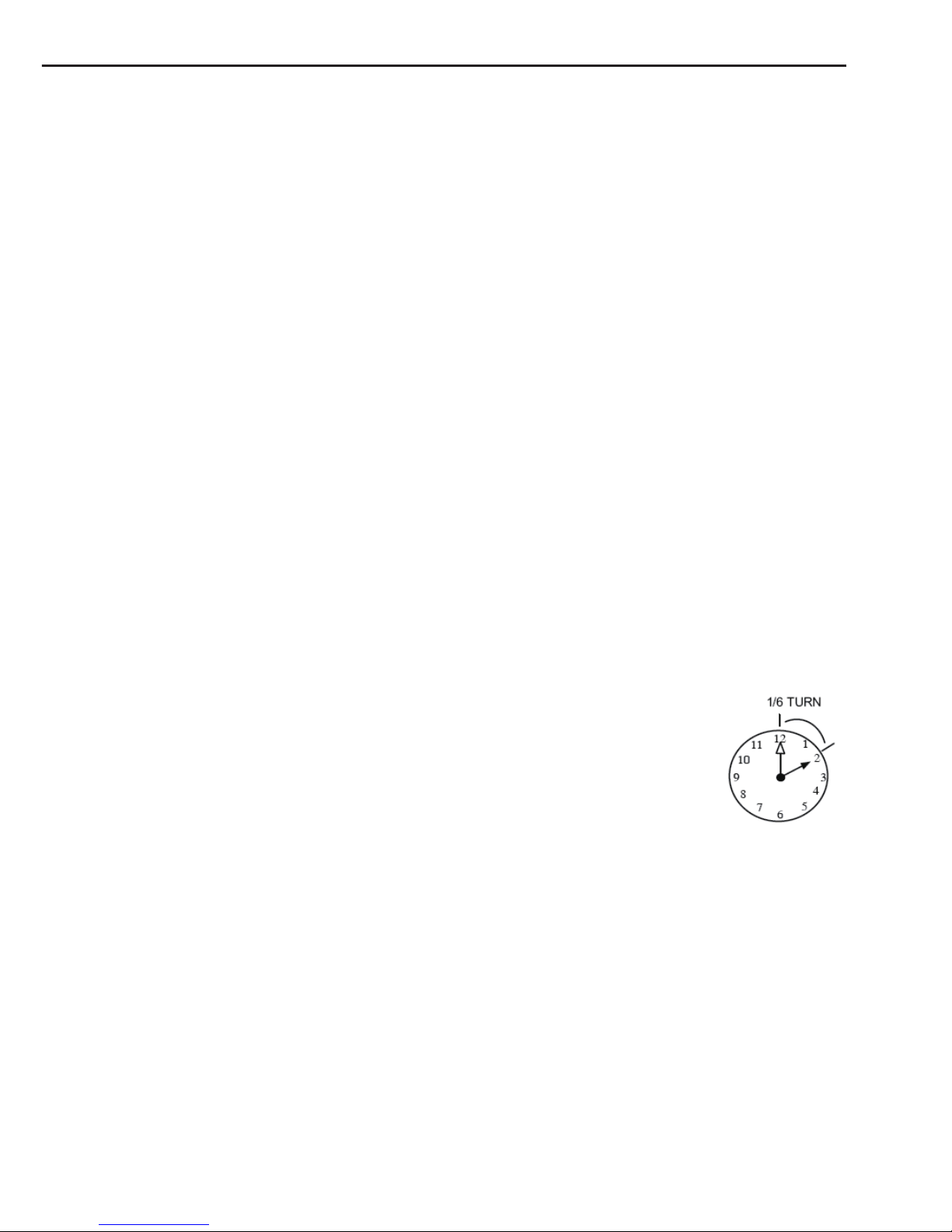

● With torque wrench: Finger tighten and torque cap per table 4.
● Without torque wrench: Finger tighten and use an appropriately sized
wrench to turn an additional 1/6 turn clockwise.
5.6 Reinstall Stem Cap
Stem cap protects the valve stem from damage and serves as the primary
seal. Replace the stem cap and tighten as follows:
● With Torque Wrench: Finger tighten and then torque cap per table 4.
● Without Torque Wrench: Finger tighten and use an appropriately sized
wrench to turn an additional 1/12 turn clockwise.
NOTE: A label with specific torque requirements may be affixed to the
stem cap. If the label is present, use the specied torque.
5.7 Install Liquid Line Filter Drier Indoor
Refer to Fig. 12 and install lter drier as follows:
1). Braze 5 in. liquid tube to the indoor coil.
2). Wrap lter drier with damp cloth.
3). Braze lter drier to 5 in. long liquid tube from step 1.
4). Connect and braze liquid refrigerant tube to the lter drier.
Fig.12—Liquid Line Filter Drier
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
12
6. Recovering Refrigerant from Existing System
6.1 Disconnect Power
Disconnect all power to the existing outdoor unit at the disconnect switch or main fuse box/
breaker panel.
6.2 Connect Manifold Gauge Set
Connect a gauge set, clean recovery cylinder and a recovery machine to the service ports of
the existing unit. Use the instructions provided with the recovery machine to make the connections.
Manifold Gauges
Recovery Machine
Clean Recovery Cylinder Outdoor Unit
High
Low
Disconnect Switch
Main Fuse Box/Breaker Panel

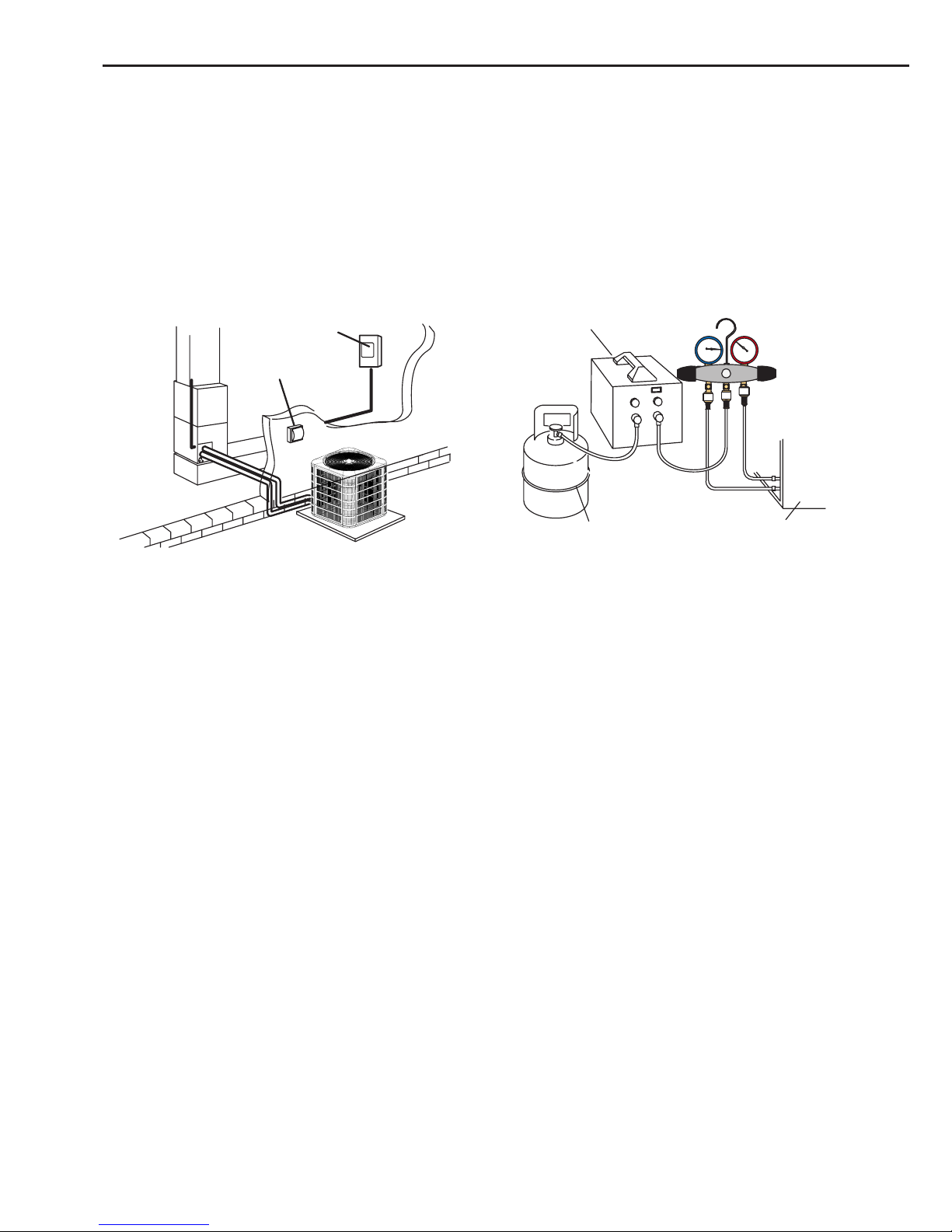

Fig.13
6.3 Recovering Refrigerant
Remove existing HCFC−410A refrigerant using one of the following procedures:
METHOD 1:
Us this method if the existing outdoor unit is not equipped with shut−off valves, or if the unit is
not operational and you plan to use the existing HCFC−410A to ush the system.
Remove all HCFC−410A refrigerant from the existing system. Check gauges after shutdown to
conrm that the entire system is completely void of refrigerant.
METHOD 2:
Use this method if the existing outdoor unit is equipped with manual shut−off valves, and you
plan to use new HCFC−410A refrigerant to ush the system.
The following devices could prevent full system charge recovery into the outdoor unit:
● Outdoor unit’s high or low−pressure switches (if applicable) when tripped can cycle the
compressor OFF.
● Compressor can stop pumping due to tripped internal pressure relief valve.
● Compressor has internal vacuum protection that is designed to unload the scrolls
(compressor stops pumping) when the pressure ratio meets a certain value or when the suction
pressure is as high as 20 psig. (Compressor suction pressures should never be allowed to go into
a vacuum. Prolonged operation at low suction pressures will result in overheating of the scrolls and
permanent damage to the scroll tips, drive bearings and internal seals.)
Once the compressor can not pump down to a lower pressure due to one of the above system
conditions, shut off the vapor valve. Turn OFF the main power to unit and use a recovery machine
to recover any refrigerant left in the indoor coil and line set.
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
13
Perform the following task:
a. Start the existing HCFC−410A system in the cooling mode and close the liquid line valve.
b. Use the compressor to pump as much of the existing HCFC−410A refrigerant into the
outdoor unit until the outdoor system is full. Turn the outdoor unit main power OFF and use
a recovery machine to remove the remaining refrigerant from the system.
NOTE: It may be necessary to bypass the low pressure switches (if equipped) to ensure
complete refrigerant evacuation.
c. When the low side system pressures reach 0 psig, close the vapor line valve.
d. Check gauges after shutdown to conrm that the valves are not allowing refrigerant to ow
back into the low side of the system.
6.4 Leak Test Line Set and Indoor Coil
Fig.14—Leak Test
6.4.1 Connect Gauge Set
1). Connect an HFC−410A manifold gauge set high pressure hose to the vapor valve service
port.
NOTE: Normally, the high pressure hose is connected to the liquid line port. However,
connecting it to the vapor port better protects the manifold gauge set from high pressure damage.
2). With both manifold valves closed, connect the cylinder of HFC−410A refrigerant to the center
port of the manifold gauge set.
NOTE: Later in the procedure, the HFC−410A container will be replaced by the nitrogen
container.
6.4.2 Test For Leaks
After the line set has been connected to the indoor and outdoor units, check the line set
connections and indoor unit for leaks. Use the following procedure to test for leaks:
1). With both manifold valves closed, connect the cylinder of HFC−410A refrigerant to the center
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
14
port of the manifold gauge set. Open the valve on the HFC−410A cylinder (vapor only).
2). Open the high pressure side of the manifold to allow HFC−410A into the line set and indoor
unit. Weigh in a trace amount of HFC−410A. [A trace amount is a maximum of two ounces
(57 g) refrigerant or three pounds (31 kPa) pressure]. Close the valve on the HFC−410A
cylinder and the valve on the high pressure side of the manifold gauge set. Disconnect the
HFC−410A cylinder.
3). Connect a cylinder of dry nitrogen with a pressure regulating valve to the center port of the
manifold gauge set.
4). Adjust dry nitrogen pressure to 150 psig (1034 kPa). Open the valve on the high side of the
manifold gauge set in order to pressurize the line set and the indoor unit.
5). After a few minutes, open one of the service valve ports and verify that the refrigerant added
to the system earlier is measurable with a leak detector.
6). After leak testing disconnect gauges from service ports.
6.5 Evacuating Line Set and Indoor Coil

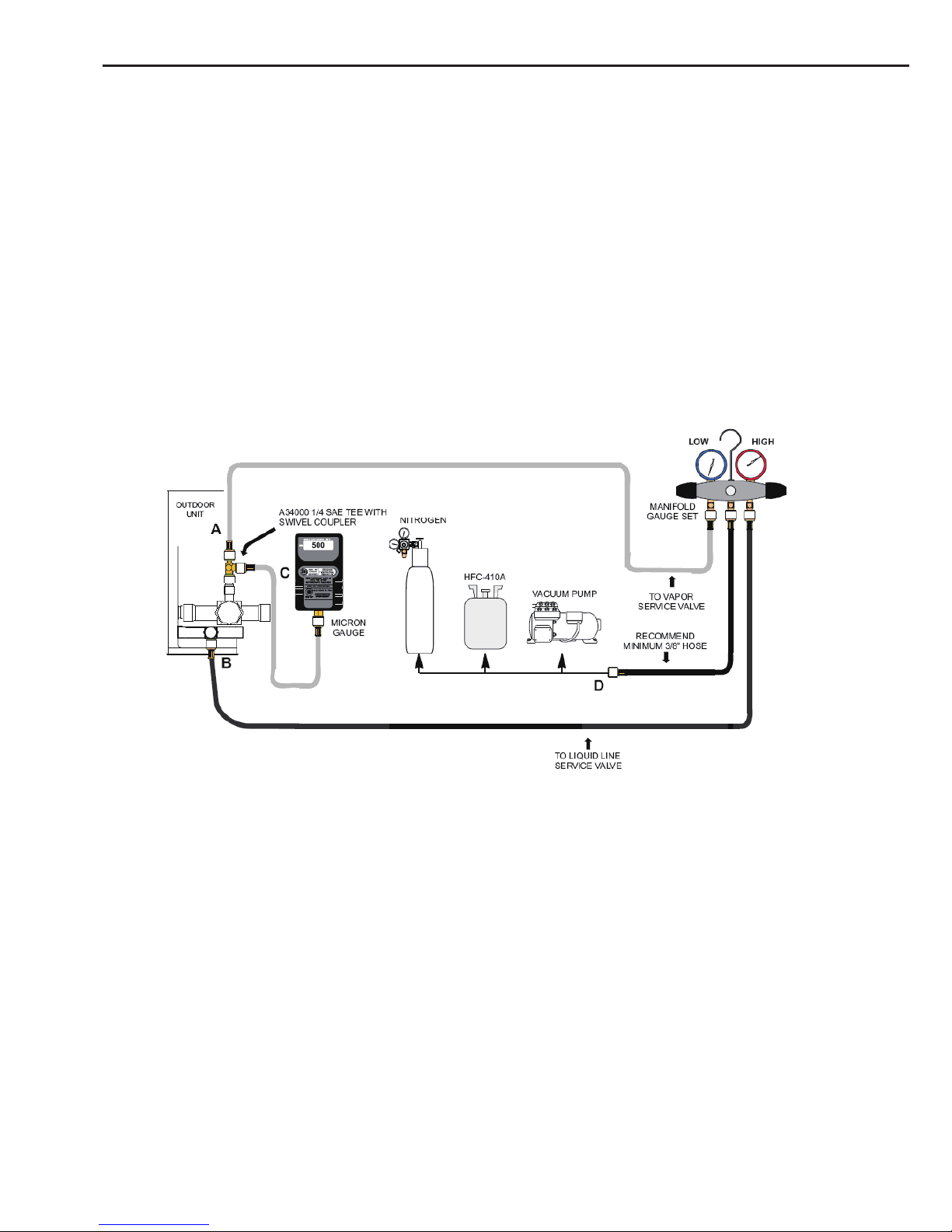

Fig.15—Evacuating System
6.5.1 Connect Gauge Set
NOTE : Remove cores from service valves (if not already done).
1). Connect low side of manifold gauge set with 1/4 SAE in−line tee to vapor line service valve
2). Connect high side of manifold gauge set to liquid line service valve
3). Connect micron gauge available connector on the 1/4 SAE in−line tee.
4). Connect the vacuum pump (with vacuum gauge) to the center port of the manifold gauge set.
The center port line will be used later for both the HFC−410A and nitrogen containers.
6.5.2 Connect Gauge Set
1). Open both manifold valves and start the vacuum pump.
2). Evacuate the line set and indoor unit to an absolute pressure of 23,000 microns (29.01
inches of mercury).
NOTE : During the early stages of evacuation, it is desirable to close the manifold gauge valve
at least once. A rapid rise in pressure indicates a relatively large leak. If this occurs, repeat the leak
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
15
testing procedure.
NOTE: The term absolute pressure means the total actual pressure within a given volume
or system, above the absolute zero of pressure. Absolute pressure in a vacuum is equal to
atmospheric pressure minus vacuum pressure.
3). When the absolute pressure reaches 23,000 microns (29.01 inches of mercury), perform the
following:
● Close manifold gauge valves
● Close valve on vacuum pump
● Turn off vacuum pump
● Disconnect manifold gauge center port hose from vacuum pump
● Attach manifold center port hose to a dry nitrogen cylinder with pressure regulator set to 150
psig (1034 kPa) and purge the hose.
● Open manifold gauge valves to break the vacuum in the line set and indoor unit.
● Close manifold gauge valves.
4). Shut off the dry nitrogen cylinder and remove the manifold gauge hose from the cylinder.
Open the manifold gauge valves to release the dry nitrogen from the line set and indoor unit.
5). Reconnect the manifold gauge to the vacuum pump, turn the pump on, and continue to
evacuate the line set and indoor unit until the absolute pressure does not rise above 500
microns (29.9 inches of mercury) within a 20−minute period after shutting off the vacuum
pump and closing the manifold gauge valves.
6). When the absolute pressure requirement above has been met, disconnect the manifold hose
from the vacuum pump and connect it to an upright cylinder of HFC−410A refrigerant. Open
the manifold gauge valve 1 to 2 psig in order to release the vacuum in the line set and indoor
unit.
7). Perform the following:
● Close manifold gauge valves.
● Shut off HFC−410A cylinder.
● Reinstall service valve cores by removing manifold hose from service valve.
Quickly install cores with core tool while maintaining a positive system pressure.
● Replace stem caps and secure nger tight, then tighten an additional one−sixth (1/6) of a turn
as illustrated.
7. Electrical
In the U.S.A., wiring must conform with current local codes and the current National Electric
Code (NEC). In Canada, wiring must conform with current local codes and the current Canadian
Electrical Code (CEC).
Refer to the furnace or air handler installation instructions for additional wiring application
diagrams and refer to unit nameplate for minimum circuit ampacity and maximum overcurrent
protection size.
24VAC TRANSFORMER
Use the transformer provided with the furnace or air handler for low-voltage control power
(24VAC − 40 VA minimum).
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
16
7.1 Size Circuit And Install Disconnect Switch
Refer to the unit nameplate for minimum circuit ampacity, and maximum fuse or circuit breaker
(HACR per NEC). Install power wiring and properly sized disconnect switch.
Disconnect Switch
Main Fuse Box/Breaker Panel
Fig.16
NOTE: Units are approved for use only with copper conductors. Ground unit at disconnect
switch or to an earth ground.
7.2 Install Thermostat
Install room thermostat (ordered separately) on an inside wall approximately in the center of
the conditioned area and 5 feet (1.5m) from the oor. It should not be installed on an outside wall or
where it can be affected by sunlight or drafts.
Fig.17
NOTE: 24VAC, Class II circuit connections are made in the control panel.
7.3 Unit Low Voltage Connections
High voltage eld wiring
Low voltage (24v) eld wiring
For more details visit www.MrCool.com

Unitary Ducted Split AC & HP
17
Table 5
WIRE RUN LENGTH AWG# INSULATION TYPE
LESS THAN 100’ (30 METERS) 18 Temperature Rating
MORE THAN 100’ (30 METERS) 16 35°C Minimum
ARun 24VAC control wires through cutout with grommet.
BRun 24VAC control wires through wire tie.
CMake 24VAC control wire connections.
NOTE: Wire tie provides low voltage wire strain relief and to maintain separation
of eld low and high voltage circuits
NOTE: For proper voltages, select thermostat wire (control wires)gauge per
table above.
NOTE: Do not bundle any excess 24VAC control wires inside control box.
7.4 Unit High Voltage Connections
ARun HIGH VOLTAGE control wires through cutout with grommet.
BMake HIGH VOLTAGE control wires connections.
CTighten wire tie to security HIGH VOLTAGE control wiring.
NOTE: Any excess high voltage eld wiring should be trimmed
and secured away from any low voltage eld wiring
NOTE: To facilitate a conduit, a cutout is located in the bottom of the control
box. Connect conduit to the control box using a proper conduit tting.
NOTE: The signal line of the wired controller must be separated from the power
line and the connecting line between the indoor unit and the outdoor unit.
Important Electric Data
Table 6
Model
Compressor Fan
Motor Fuse/Breaker
Capacity
Min. Power
Supply Cord
Power Supply Qty. RLA LRA FLA
V/Ph/Hz - A A A A AWG
MAC13018 208/230/1/60 1 7.9 38 1.2 15 AWG16
MAC13024 208/230/1/60 1 9.8 53 1.2 20 AWG14
MAC13030 208/230/1/60 1 12.6 71 1.2 25 AWG12
MAC13036 208/230/1/60 1 15.08 64 1.7 35 AWG12
MAC13042 208/230/1/60 1 21.5 105 1.7 50 AWG10
MAC13048 208/230/1/60 1 21 115 1.7 45 AWG10
MAC13060 208/230/1/60 1 25 150 2.1 50 AWG8
MHP13018 208/230/1/60 1 7.5 38 0.8 15 AWG16
MHP13024 208/230/1/60 1 9.8 53 1.2 20 AWG14
MHP13030 208/230/1/60 1 12.5 71 0.7 25 AWG12
For more details visit www.MrCool.com
