POWER SUPPLY UNIT
PS-203
Operating manual

Operating manual
v.0.3 Page 2
Table of contents
INTRODUCTION.........................................................................................................................3
1DESCRIPTION AND OPERATION OF THE PRODUCT...............................................4
1.1 Description............................................................................................................................4
1.2 Technical specifications........................................................................................................4
1.3 Structure and operation of the Product..................................................................................5
1.4 Measurement instruments, tools and appliances...................................................................6
1.5 Marking and sealing..............................................................................................................6
1.6 Packaging..............................................................................................................................7
2INTENDED USE OF THE PRODUCT................................................................................8
2.1 Operational limitations..........................................................................................................8
2.2 Usage preparations................................................................................................................8
2.3 Usage of the Product.............................................................................................................9
3TECHNICAL SERVICE OF THE PRODUCT.................................................................10
3.1 General description .............................................................................................................10
3.2 Safety features.....................................................................................................................10
3.3 Maintenance routine............................................................................................................10
3.4 Preservation.........................................................................................................................11
4CURRENT REPAIR OF THE PRODUCT........................................................................12
4.1 General description .............................................................................................................12
4.2 Safety features.....................................................................................................................12
4.3 Current repair ......................................................................................................................12
5STORAGE.............................................................................................................................13
6TRANSPORTATION...........................................................................................................14
7DISPOSAL.............................................................................................................................15
8WARRANTY.........................................................................................................................16
APPENDIX A (MANDATORY) REGULATORY DOCUMENTS ......................................17

Power supply unit
PS-203
Page 3
INTRODUCTION
This operating manual (hereinafter –OM) describes composition, structure, op-
eration and technical service of power supply units PS-203-12.5, PS-203-6.5 and
PS-203-3.3 types (hereinafter –the Product).
In addition to the instructions given in this document, the safety regulations and
rules applicable in the field shall be observed.
Only those who have read and understood this document and those who have
had special training shall be permitted to operate the Product according to the applicable
regulations.
TERMS AND ABBREVIATIONS:
OM –operating manual;
SB –storage battery;
SC –short circuit;
TS –technical service;
CL –check list;
PS-203-12.5 –power supply unit PS-203-12.5;
PS-203-6.5 –power supply unit PS-203-6.5;
PS-203-3.3 –power supply unit PS-203-3.3.

Operating manual
v.0.3 Page 4
1DESCRIPTION AND OPERATION OF THE PRODUCT
1.1 DESCRIPTION
1.1.1 The Product is designed to power different shipborne and industrial
equipment with regulated voltage 12 V, 24 V or 48 V DC (depending on the Product
type).
1.2 TECHNICAL SPECIFICATIONS
1.2.1 The Product converts alternating current with unregulated voltage into di-
rect current with regulated voltage 12 V, 24 V or 48 V (depending on the Product type).
Input circuit fuse protects the Product against SC.
1.2.2 Table 1 below describes technical specifications of the Product types.
Table 1 –Technical specifications
Parameter
Type
PS-203-12.5
PS-203-6.5
PS-203-3.3
Input supply voltage, AC, fre-
quency 50 (60) Hz, V
110 (90 to 132)*
220 (180 to 264)*
Output voltage, DC, V
12
24
48
Nominal load current, А
12.5
6.5
3.3
Power consumption, W
175
Output power, W
150
156
158.4
Efficiency, %
83
86
86
Fuse rating, А
5
8
5
Protection
Power supply galvanically isolated from power mains
Overvoltage protection
Max. weight, kg
2.2
Protection degree
IP22
Operating temperature, °С
–20 to +55
Limiting temperature, °С
–60 to +70
* Supply voltage range is given in parenthesis.

Power supply unit
PS-203
Page 5
1.3 STRUCTURE AND OPERATION OF THE PRODUCT

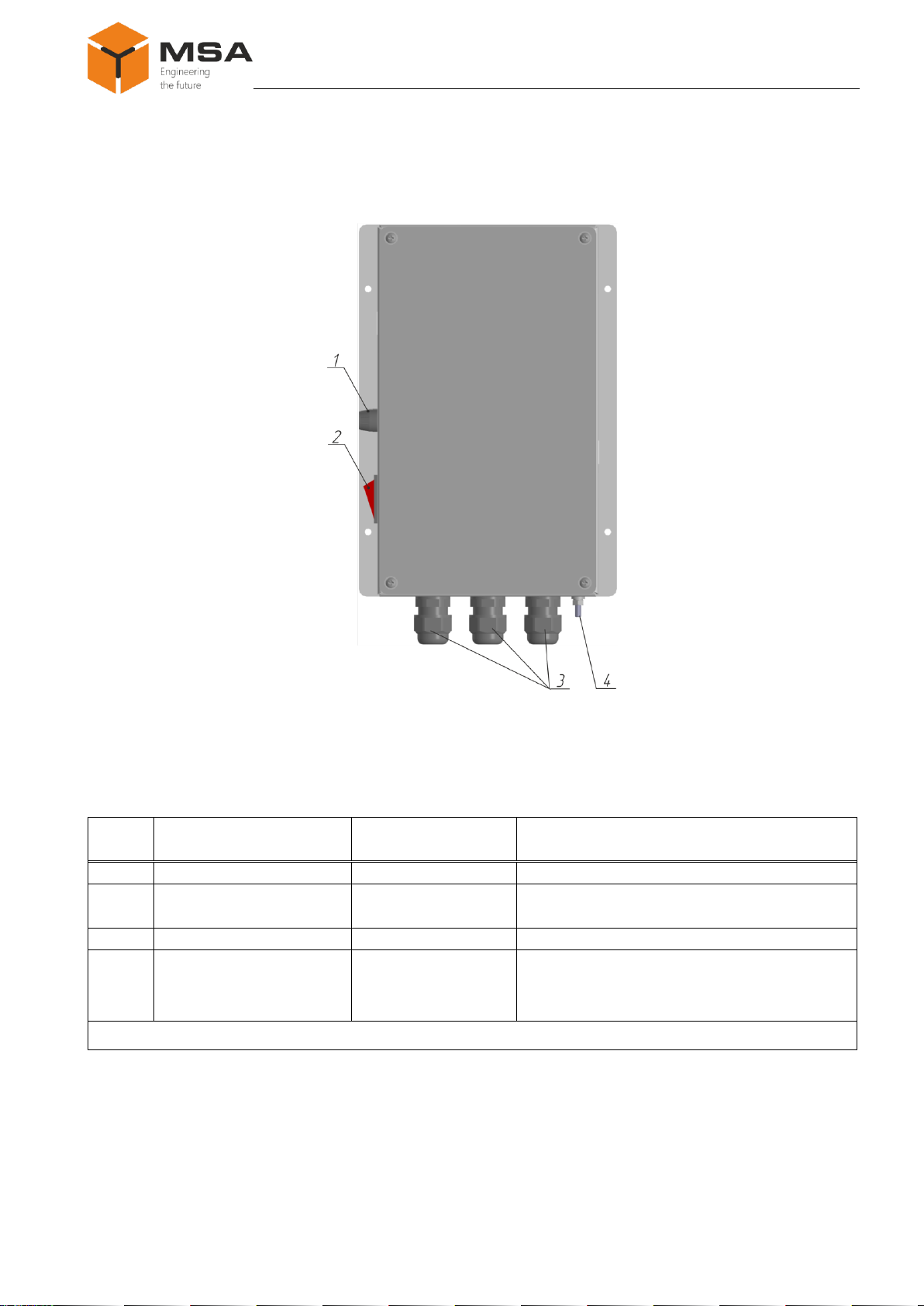

1.3.1 The Product is manufactured in metal casing, where a piano type power
switch (on/off) and fuse holder are located, see Figure 1.
Figure 1 –the Product
Table 2 below describes functional elements and controls of the Product.
Table 2 –Functional elements, controls and LED light indicators of the Product
№
Element
Type, size, identifi-
er
Description
1
Fuse holder
–
To install a fuse (against SC)
2
Piano type switch
“ON/OFF”
To switch the Product on/off
3
Cable gland
MG-16
To connect power supply and loads
4
Grounding stud
М4х16
Main grounding element
Note –See positions (№) in Figure 1.

Operating manual
v.0.3 Page 6

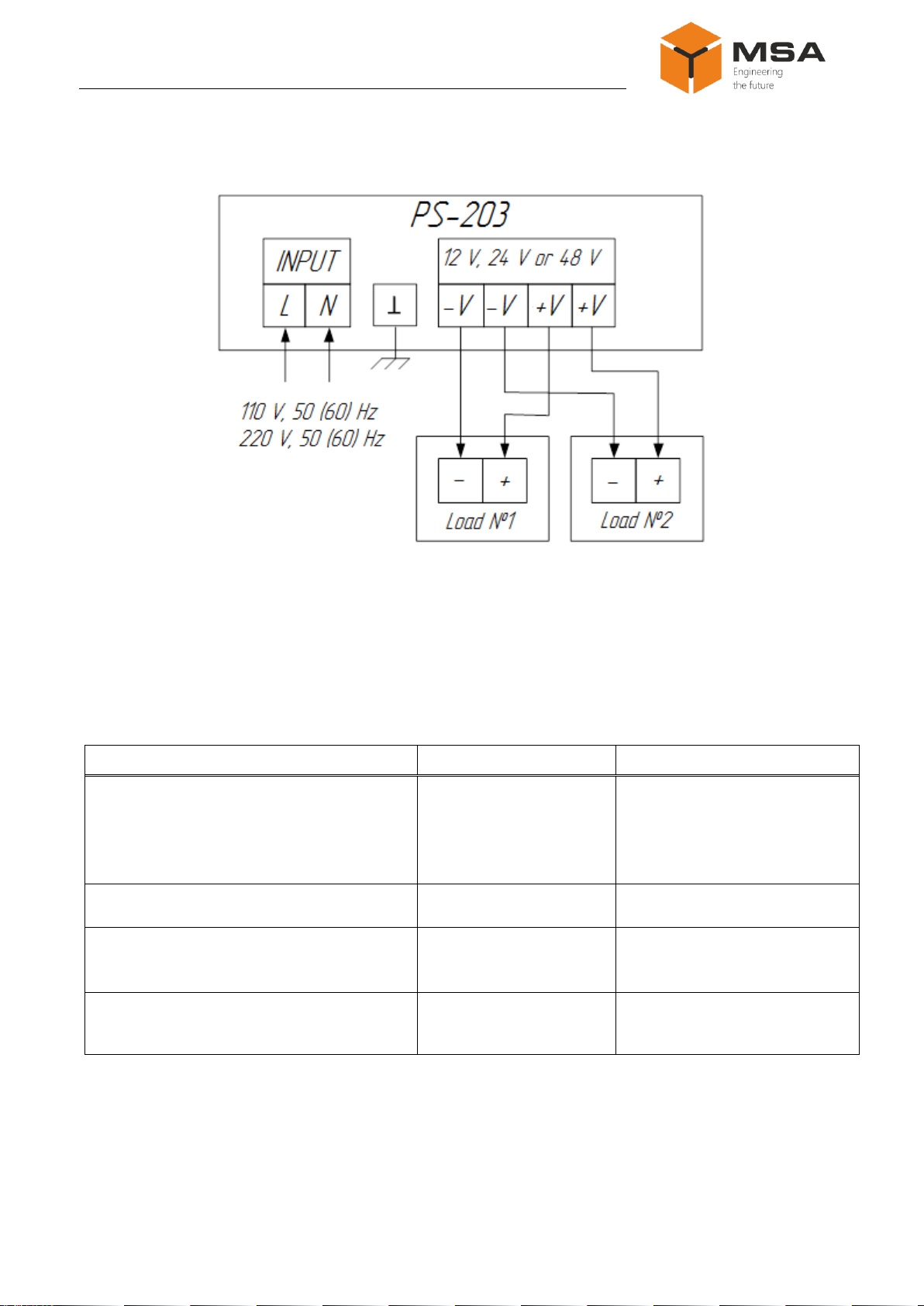

1.3.2 To connect input power supply, use terminals “L”and
“N”, loads –“–V”and “+V”, see Figure 2.
Figure 2 –Connection diagram of the Product
1.4 MEASUREMENT INSTRUMENTS,TOOLS AND APPLIANCES
Table 3 below describes consumables required for the TS.
Table 3 –Consumables required for the TS
Name and identifier of consumables
Amount of consumables
Note
Cleaning cloth
0.10 kg
1To clean the Product surfac-
es –use clean cloth
2To remove severe contami-
nation –use cloth soaked in
alcohol
Rectified hydrolytic technical ethyl alcohol
0.05 l
To soak cloth when removing
contamination from a screen
Varnish
0.05 kg
To cover surfaces of the Prod-
uct in case of paint coating
damage
Abrasive cloth
0.06 х 0.06 m
To polish surfaces of the Prod-
uct in case of paint coating
damage
1.5 MARKING AND SEALING
The Product has a nameplate indicating name, serial number, date of manufac-
turing, weight, protection degree, input and output voltage, power.
The sealing of the Product is not provided.

Power supply unit
PS-203
Page 7
1.6 PACKAGING
When delivered, the Product is packed in a corrugated board box and inner
packaging (air bubble film) ensuring its transportation and storage at the warehouse.
Transport packaging is also used as a returnable packaging for transportation of
the Product to the repair location and back.
The sealing of packaging is not provided.

Operating manual
v.0.3 Page 8
2INTENDED USE OF THE PRODUCT
2.1 OPERATIONAL LIMITATIONS
Select an installation place in compliance with operational limitations (operating
temperature and protection degree).
Caution! Distance between the installation site and magnetic compass
shall not be less than 1 m!
2.2 USAGE PREPARATIONS
2.2.1 Safety features
While preparing the Product for operation, check it visually and make sure there
is no mechanical damage.
Connect the Product to power mains only in compliance with input power re-
quirements.
Before connection the Product shall be grounded.
While using the Product the staff shall follow “The technical rules for operation
of electric installation”and “Safety rules for operation of electric installation”while
testing electrical circuits and insulation resistance.
2.2.2 Visual check procedure
Before switching the SC on, the installer shall:
a) observe visually the cable integrity and initial position of the controls;
b)clean the SC from dust and dirt by clean soft cloth, if necessary, see Table 3;
c) check fail-safe cable connections to the SC and their proper grounding.
2.2.3 Instructions on powering the Product
While connecting the Product and preparing it for operation follow the steps be-
low:
a) transfer circuit breakers of main power switchboard to “OFF”position;
b)connect de-energized power cable to input terminals;
c) transfer circuit breakers of main power switchboard to “ON” position;
d)transfer a piano type switch “ON/OFF”on the casing to “ON”position;

Power supply unit
PS-203
Page 9
2.2.4 To switch the Product off:
a) transfer the piano type switch “ON/OFF”on the casing to “OFF”position;
b)transfer circuit breakers of main power switchboard to “OFF”position;
c) disconnect de-energized power cable from the Product.
2.3 USAGE OF THE PRODUCT
To operate the Product:
a) switch on circuit breakers of main power switchboard;
b)transfer the piano type switch “ON/OFF” on the casing to “ON”position.

Operating manual
v.0.3 Page 10
3TECHNICAL SERVICE OF THEPRODUCT
3.1 GENERAL DESCRIPTION
Before performing the TS the staff shall familiarize with the Product structure
and operation features.
In order to provide safe and reliable operation for the Product, the staff shall
maintain semi-annual TS.
ТS is carried out on the equipment in operation.
3.2 SAFETY FEATURES
While providing TS the staff shall follow instructions, see 4.2.
3.3 MAINTENANCE ROUTINE
The list of works for all types of the TS is given in Table 4. Maintenance routine
procedure is described in the CL, represented in Tables 5,Table 6.
Table 3 describes consumables required for the TS.
Table 4 –TS works
CL №
Name of work
TS
1
Visual check of the Product
+
2
Test of output voltage
+
“+”–work is obligatory.
Table 5 –CL № 1. Visual check
To be done
Routine
Man-hours per 1
Product
Visually examine the
Product
1 Check completeness and appearance of the Product;
mechanical damage, paint defects must be absent; mark-
ing plates shall be present; legends shall be read easily
2 Clean up the Product surfaces with clean cloth
3 Remove severe contamination, parts of corrosion, oil
spots from the metal surfaces –using ethyl alcohol,
avoiding its penetration inside the Product; all surfaces
clean dry by clean cloth and dry up
4 If varnish paint coating is damaged, polish it with sand
paper, then clean with alcohol-soaked cloth, cover with
varnish and dry up
1 person
5 mins
Check reliability of
cable and bus con-
nection to the Prod-
uct
1 Check that connectors and attaching screws are tight-
ened; provide further tightening if necessary
2 Check the cable intactness (no mechanical damage)
within visibility
1 person
5 mins

Power supply unit
PS-203
Page 11
Table 6 –CL №2. Test of output voltage
To be done
Routine
Man-hours
per 1 Product
Test of output voltage
1 Switch on the Product power supply
2 Connect a voltmeter to output terminals of the
Product
3 Supply power to the Product
4 Measure voltage on the output terminals
1 person
15 mins
3.4 PRESERVATION
The Product and set of operational documents are stored in preserved condition
in Manufacturer’s packaging boxes.
Time of represervation –2 years since the date of packaging at the Manufactur-
er’s plant.
The preservation is done in full terms, for 2 years, applying protection and
packaging.
The represervation is done in heated rooms in the same order as the preserva-
tion.
The Product after represervation and documents are placed in packaging.

Operating manual
v.0.3 Page 12
4CURRENT REPAIR OF THE PRODUCT
4.1 GENERAL DESCRIPTION
To provide diagnostics of the problems, see Table 7.
If a problem cannot be diagnosed or trouble shooting cannot be provided, con-
tact the Manufacturer’s service center.
4.2 SAFETY FEATURES
Only qualified personnel, examined in occupational safety may perform repair
works.
The Product must be grounded before repair works. Check the grounding of the
Product.
It is PROHIBITED to put a poster “DO NOT switch on! Under Operation!”,
when power supply switch is in “OFF”position.
Replacing defected parts, cards and modules when power of device under
repair is ON is STRICTLY PROHIBITED.
Installation, commissioning and repair works are PROHIBITED in the
room, where less than 2 people present.
4.3 CURRENT REPAIR
The service personnel can provide repair works as given in Table 7.
Table 7 –Possible problems/defects and troubleshooting
Problem / defect
Possible reasons
To do
The Product does not
switch on
No power mains
Provide power network
Piano type power switch lo-
cated on the casing is in
“OFF”position
Transfer piano type switch to “ON”po-
sition
Fuse malfunction
Replace the fuse

Power supply unit
PS-203
Page 13
5STORAGE
The Product must be stored in packaging inside areas complying with the re-
quired storage conditions (+5°С to +40°С) with the concentration of dust, oil, moisture
and aggressive impurities in the air within the required limits for the working areas of
production facilities.
After storage or transportation of the Product below +10°С, it must be unpacked
only in heated premises and left in normal climate conditions for 12 hours beforehand.

Operating manual
v.0.3 Page 14
6TRANSPORTATION
The Product must be transported in the Manufacturer's transportation package in
closed means of transport.
Types of shipment:
- motor vehicle and railroad transportation in closed means of transport (covered
cars, multipurpose containers);
- air transportation (in sealed and heated compartments);
- sea transportation (in dry service spaces).
The Product must be transported in compliance with transportation rules appli-
cable for each means of transport.
During loading/unloading operations and transportation, the requirements indi-
cated on warning labels on the boxes/packaging must be observed, and no impacts are
permitted since they can affect the safety and performance of the Product.
Inside the means of transport, the packed device must be firmly se-
cured/fastened.

Power supply unit
PS-203
Page 15
7DISPOSAL
New equipment, the parts of the Product damaged during operation, and any
outage equipment must not be disposed as standard household wastes, since they con-
tain the materials suitable for re-use.
Decommissioned and non-used components of the Product must be delivered to
a special waste disposal center licensed by local authorities. You can also send an over-
age equipment/unit to the manufacturer for its further disposal.
Proper disposal of Product components allows avoiding possible negative envi-
ronmental and health impacts, and it also allows for proper restoration of components
with substantial energy and resources saving.
During operation and upon completion of its service life, the equipment is
not hazardous for health and environment
This unit must be disposed according to the rules applied to electronic de-
vices
Any products marked with a crossed trash bin must be disposed sepa-
rately from standard household wastes

Operating manual
v.0.3 Page 16
8WARRANTY
The Manufacturer is under warranty obligations in case of correct System ex-
ploitation according to the OM. The Manufacturer will not consider damage claims in
case of violation of operating conditions.
More information about warranty terms you can find on the official
site of “NPK MSA” LLC, section Support.
Address and contacts of the Manufacturer's service centre:
“NPK MSA”, LLC
26E, Kibalchicha str., 192174, St Petersburg, Russia
Tel.: + 7 (812) 602-02-64, 8-800-100-67-19
fax: +7 (812) 362-76-36
e-mail: serv[email protected]om

Power supply unit
PS-203
Page 17
APPENDIX A
(MANDATORY)
REGULATORY DOCUMENTS

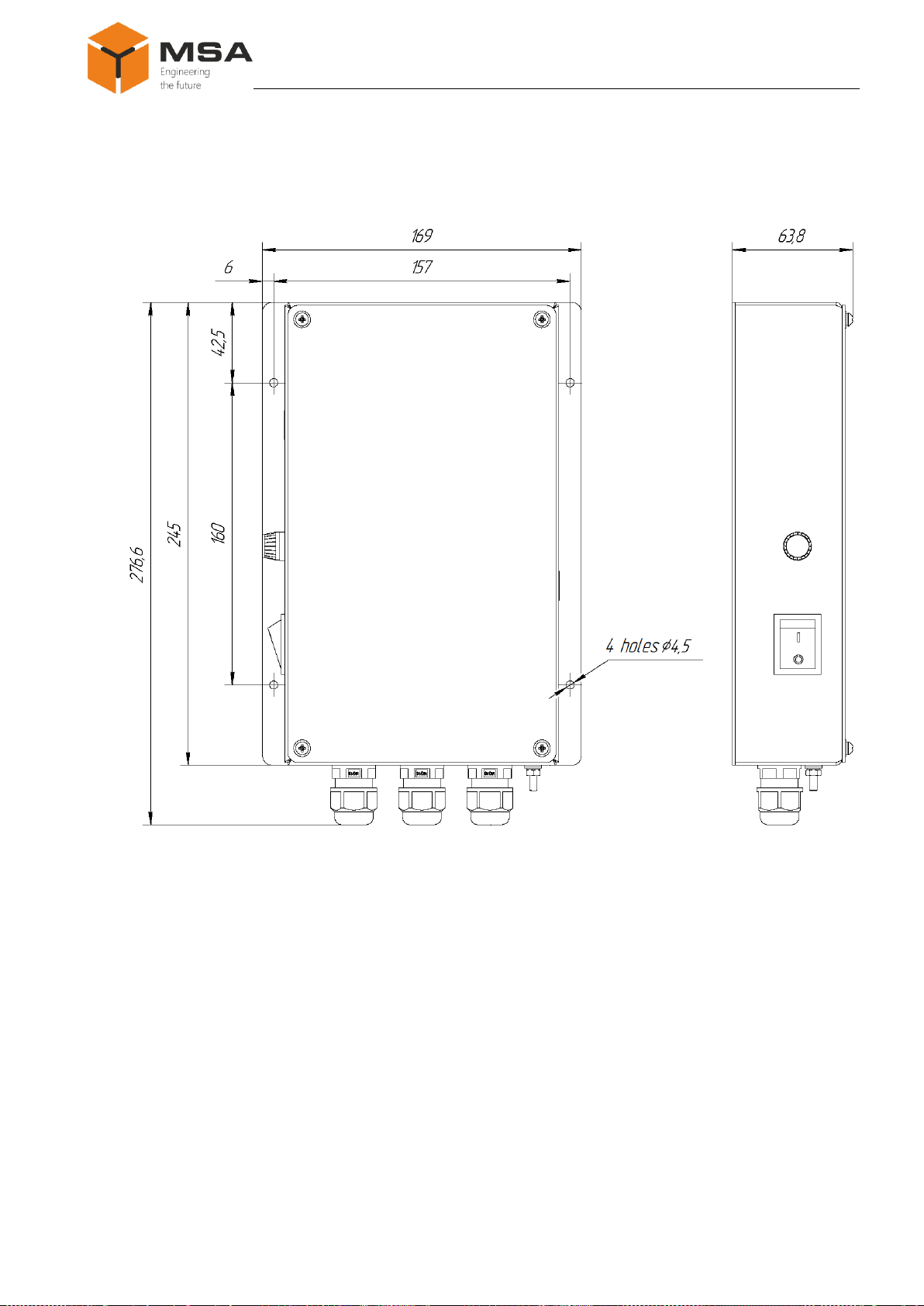

Figure A.1 –Outline and installation dimensions of the Product

Operating manual
v.0.3 Page 18
FOR NOTES

Power supply unit
PS-203
Page 19
FOR NOTES

Operating manual
v.0.3 Page 20
FOR NOTES
This manual suits for next models
2
Table of contents
Other MSA Power Supply manuals
