MSA DR-309 User manual

26E, Kibalchicha Str., St Petersburg Tel.: [phone] [email protected]
Russia, 192174 Fax: [phone] www.unicont.com
“NPK Morsvyazavtomatica”LLC
Course repeater
DR-309
Operating manual

Operating manual
Page 2
Table of contents
INTRODUCTION.........................................................................................................................3
1DESCRIPTION AND OPERATION OF THE PRODUCT...............................................4
1.1 Description............................................................................................................................4
1.2 Technical specifications........................................................................................................4
1.3 Operation of the Product.......................................................................................................4
1.4 Measurement instruments, tools and appliances...................................................................6
1.5 Marking and sealing..............................................................................................................7
1.6 Packaging..............................................................................................................................7
2USAGE OF THE PRODUCT................................................................................................8
2.1 Operational constraints..........................................................................................................8
2.2 Usage preparations of the Product ........................................................................................8
2.3 Usage of the Product.............................................................................................................8
3TECHNICAL SERVICE OF THE PRODUCT.................................................................16
3.1 General description .............................................................................................................16
3.2 Safety features.....................................................................................................................16
3.3 Maintenance routine............................................................................................................16
3.4 Preservation.........................................................................................................................18
4CURRENT REPAIR OF THE PRODUCT........................................................................19
4.1 General description .............................................................................................................19
4.2 Current repair ......................................................................................................................19
5STORAGE.............................................................................................................................20
6TRANSPORTATION...........................................................................................................21
7DISPOSAL.............................................................................................................................22
8WARRANTY.........................................................................................................................23

Course repeater
DR-309
Page 3
INTRODUCTION
This operating manual (hereinafter referred to as the OM) covers the Course re-
peater DR-309 (hereinafter referred to as the Repeater or the Product).
The OM is intended to describe operating principles, technical specifications and
rules for the safe Product operation.
Only those who have had general education in the area of electronic devices, and
those who have read and understood this document shall be permitted to operate with the
Repeater. In addition to the instructions given in this document, the safety regulations and
rules applicable in the field shall be observed.
Terms and abbreviations:
OM –Operating Manual;
TS –Technical Service;
CL –Check List.

Operating manual
Page 4
1DESCRIPTION AND OPERATION OF THE PRODUCT
1.1 DESCRIPTION
The Product displays the vessel‘s course data received in NMEA 0183 standard
sentences (hereinafter referred to as –NMEA) from various digital sources using a card
and LED indicator. The Product rebroadcasts input NMEA data through an RS-422 in-
terface.
The Product is designed for sea- and river-going vessels, and industrial applica-
tion.
The Product’s detailed specifications, environment conditions, overall and instal-
lation dimensions are represented in Technical description of the Product.
1.2 TECHNICAL SPECIFICATIONS
The Product ensures:
display of three NMEA data types: “HDT”, “HDG”, “HDM”;
display of ship’s course data;
equipment interfacing via two asynchronous serial galvanically isolated ports,
RS-422 and RS-232 (with NMEA standard support);
input data retransmission to external ship systems from the selected ports;
the Repeater is controlled using the relevant buttons on the front panel (menu
access / exit, screen backlight brightness adjustment, switching of data sources);
manual adjustment (using control buttons on the front panel) of backlight bright-
ness level (14 levels totally).
1.3 OPERATION OF THE PRODUCT
The Product’s operation (processing of input ship’s course data) is ensured by the
controller. The receiver transmitters of interfaces RS-422/232 ensure the data reception.
The card display provides a user-friendly data presentation and consists of a card,
stepper motor, encoder and character display for digital data. The card has a built-in LED
display (Gyro, Magnetic, THD), which shows the selected source of course data. Use
three buttons “F”, “▼” and “▲” to control the Product. The functional diagram is repre-
sented in Figure 1.

Course repeater
DR-309
Page 5
Figure 1 –Functional diagram of the Product
The Product has two input channels. Each channel can have an individual config-
uration which is carried out using the configuration menu. The main sources of the course
data are gyro compass, magnetic compass and satellite compass.
The Product’s operation can be configured for a certain data source. The settings
in this case include the following:
defining a number of the input channel;
setting NMEA sentence type “HDG”, “HDM”, “HDT”;
switching on (off) a checksum test mode.
The Product receives and processes the input course data according to the selected
settings, represents the data on the character display, which is located in the lower left
corner and then - on the card.
The Product may be used as a repeater (to retransmit data).
The input data are retransmitted via the output channel RS-422.

Operating manual
Page 6

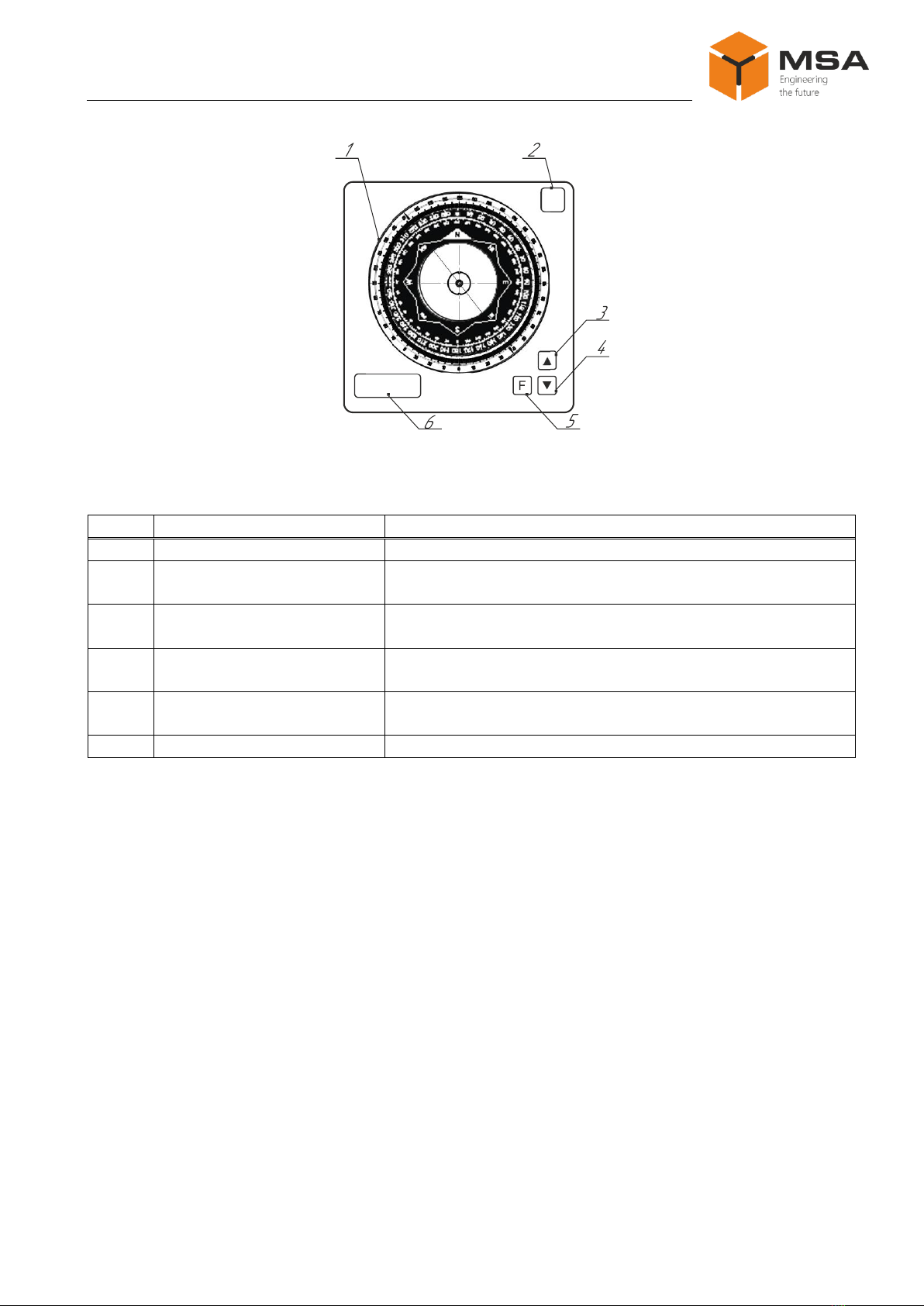

Figure 2 –Controls and LEDs of the Product
Table 1 –Controls and LEDs of the Product*
№
Name
Description
1
Dual scale card
Displays NMEA parameters
2
GYRO; Magnetic; THD
LED display –represents the current source of the course
data
3
“▲”
Increases backlight brightness; scrolls the menu items
and parameter settings
4
“▼”
Decreases backlight brightness; scrolls the menu items
and parameter settings
5
“F”
Switches the course data sources
Long button push ensures access to the main menu mode
6
Character display
To work with menu and display the input values
*The functions are described in the display mode.
1.4 MEASUREMENT INSTRUMENTS,TOOLS AND APPLIANCES
Operability control of the Product is carried out using integrated controls and
LEDs.
The TS of the Product is carried out using consumables listed in Table Table 2.

Course repeater
DR-309
Page 7
Table 2 –Amount of consumables required for the TS
Name and identifier of consumables
Amount of consumables
Note
Cleaning cloth
0.10 kg
To clean contamination from
the surfaces
Rectified hydrolytic technical ethyl alco-
hol
0.01 l
1 To clean severe contamina-
tion from the surfaces
2 To clean surfaces of the Prod-
uct in case of paint coating
damage
Varnish
0.05 kg
To cover surfaces of the Prod-
uct in case of paint coating
damage
Abrasive cloth
0.06х0.06 m
To polish surfaces of the Prod-
uct in case of paint coating
damage
1.5 MARKING AND SEALING
The nameplates, where the user can find a serial number, date of manufacturing,
weight, protection degree, input voltage and power consumption are located on the Prod-
uct’s casing.
The sealing of the Product and package is not provided.
1.6 PACKAGING
The Product is packed in a corrugated board box and inner packaging ensuring its
transportation and storage at the warehouse.
Transport packaging is also used as a returnable packaging for transportation of
the Product to the repair location and back.

Operating manual
Page 8
2USAGE OF THE PRODUCT
2.1 OPERATIONAL CONSTRAINTS
The Product shall have proper grounding; all cables shall be insulated; non-insu-
lated / bare ends shall be absent.
2.2 USAGE PREPARATIONS OF THE PRODUCT
2.2.1 Safety features
While preparing the Product for usage observe it visually and check the absence
of mechanical damage.
Before the operation a user shall:
–train staff to use the Product and checkout equipment, as well as occupational
safety applicable in the field;
–check proper grounding;
–only use fuses recommended by the Manufacturer;
–switch the power off before disconnecting cables and replacing fuses;
follow “Rules for Operation of Customers' Electrical Installations” and
“Safety Rules for Operation of Customers' Electrical Installations” while testing electrical
circuits and insulation resistance of the Product.
2.2.2 Method of the Product’s visual check
Before powering the Product on a user shall:
–сheck visually the integrity of control elements on the front panel;
–сlean any contamination or dust from the front panel with clean cloth, if pre-
sent;
сheck reliability of cable connections to the Product.
2.2.3 Switching the Product on
Once the power is supplied, the Repeater automatically switches on.
2.3 USAGE OF THE PRODUCT
The Product is delivered with the factory settings; the settings may be changed if
necessary.

Course repeater
DR-309
Page 9
2.3.1 Synchronization of compass card and character display readings
Synchronize a card and character display in case of readings mismatch; select
“SYNC”in the main menu and provide an adjustment of readings.
2.3.2 Settings of input and output channels
Select “CH1”in the main menu to set the parameters for the first input channel
and provide the settings of transmission rate, parity bit and number of stop bits.
Select “СH2”in the main menu to set the parameters for the second input channel
and an output channel and provide the settings of transmission rate, parity bit and number
of stop bits.
2.3.3 Settings of data sources
Select “SOUR”in the main menu to provide settings of data sources (Gyro, Mag-
netic, THD).
Individual settings can be provided for every data source: the user can detect input
channel number, set a NMEA sentence type (“HDG”, “HDM”, “HDT”), as well as switch
on / off checksum test mode.
2.3.4 Backlight brightness adjustment
Backlight brightness of card, character and LED displays in the course display
mode (Gyro, Magnetic, THT) is adjusted using “▼” and “▲” buttons. To increase bright-
ness press “▲” button; to decrease it - press “▼”.
Caution! The Product sets the last used level of brightness after powering on.
2.3.5 Selection of input data source
The current data source is displayed on the LED display located in the upper right
part of the Product. Use “F”button to switch to another source of input data in the main
menu mode.
Use the menu to provide settings of every data source.
Caution! The Repeater saves the last selected data source in case of powering off
(on).
2.3.6 Operating mode
The Product can have several operating modes:
1) course display mode is the main one for the Product;

Operating manual
Page 10
2) use the menu operation mode of the Product to set the operating parameters.
When the Product operates in the second (2) mode, data retransmission and dis-
play of course data on a compass card and LED display stops. The backlight brightness
of character display and data source display (Gyro, Magnetic, THD) is set to the maxi-
mum. As soon as the user exits this mode, the brightness and operability are put into
normal status;
3) emergency operation mode to detect emergencies;
4) emulation (test) mode is used to check the Repeater’s system operability.
Once the Product is switched on it immediately transfers to the course display
mode. If the data transmission stops the Product switches over to the emergency mode.
To access the menu use “F”button.
Caution! Once the Product is switched on, it represents the last saved user set-
tings, backlight brightness level and selected source of course data downloaded from the
non-volatile memory.
2.3.7 Course display mode
In the course display mode the Product displays the input data on the card, repeats
these data on the built-in LED and retransmits them via an output channel
RS-232/422.
2.3.8 Main menu mode
The Product’s settings are carried out in the main menu.
To access the menu press and hold “F”button for 3 seconds, until you see “CH1”
on the LED display, see Figure 3.

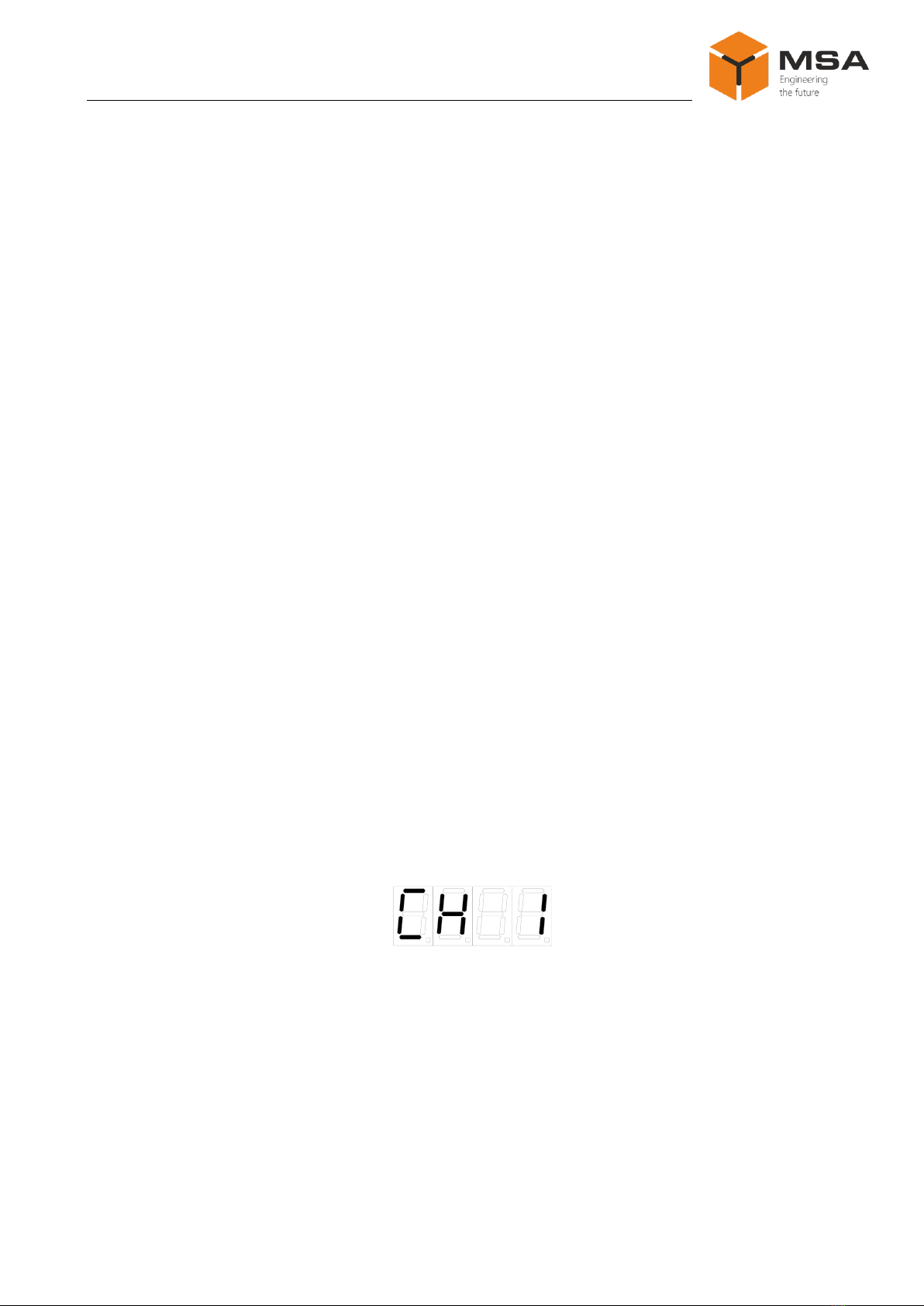

Figure 3 –Main menu access
Description of the control buttons in the main menu mode:
“F”–to access the selected submenu;
“▲” and “▼” –to select the submenu.
Menu sections (submenus) and their description are represented in Table 3.

Course repeater
DR-309
Page 11

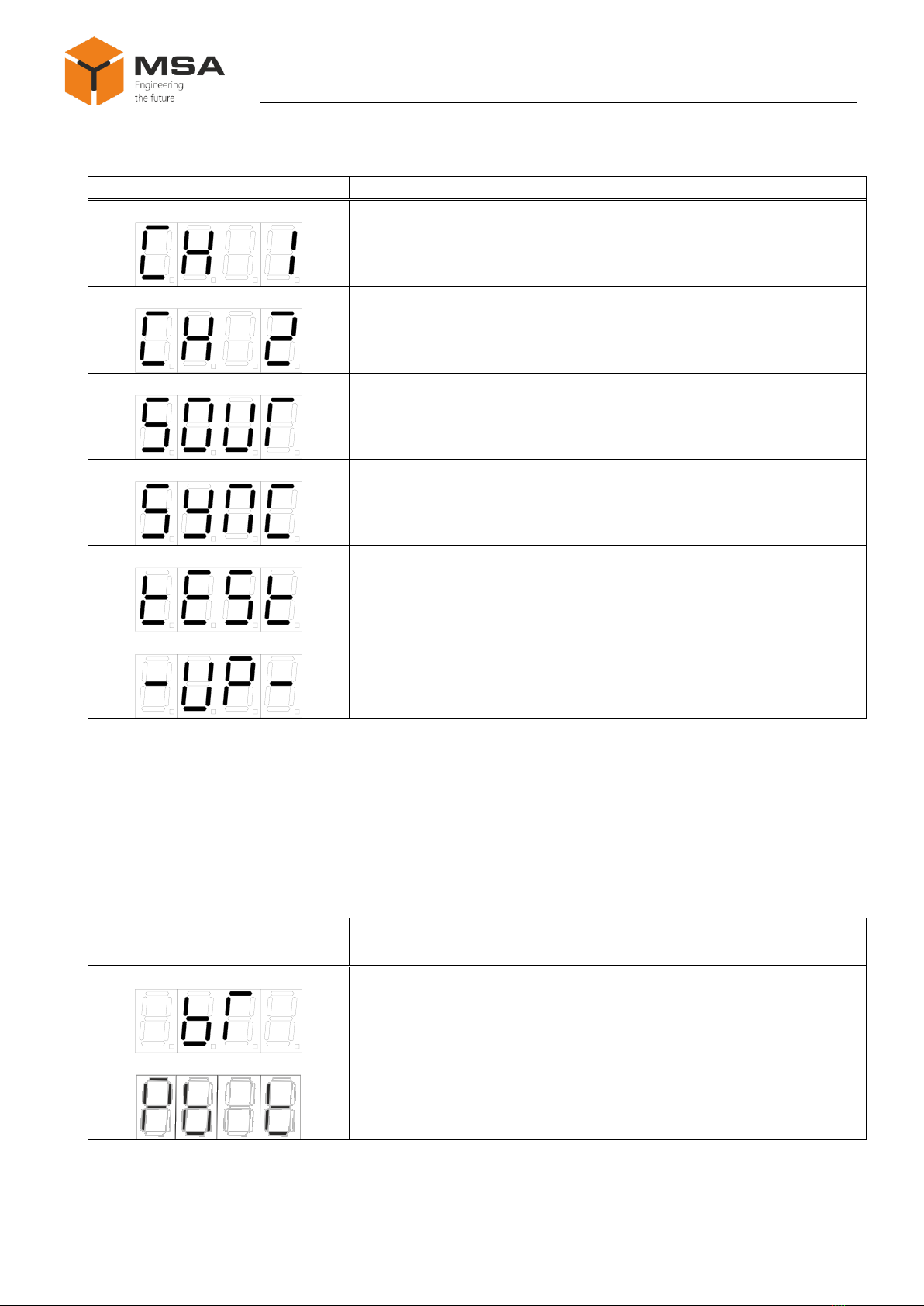

Table 3 –Description of the main menu items
Code of menu mode
Description
“CH1”
Configuration submenu of the first (input) channel
“CH2”
Configuration submenu of the second (input (output)) channel
“SOUR”
Configuration submenu of the data sources
“SYNC”
Synchronization mode of the Repeater’s compass card
“TEST”
Test mode
“-UP-”
Menu exit
2.3.9 Submenu of the first “СH1”and second “CH2”channels
The submenu (“CH1”, “CH2”) ensures configuration of the communication chan-
nels main parameters “CH1”, “CH2”. The first and second channels’menus contain the
same items.
Table 4 –Description of the submenu “СН1”, “СН2”
Submenu code
“CH1”, “CH2”
Description
“ВR”
To select data reception rate.
Possible values (kbit/s):
2.4, 4.8, 9.6, 11.4, 19.2, 28.8, 38.4, 57.6, 76.8, 115.2,
“Pbit”
To select parity bit.
Possible values:
0 –no parity bit, 1 (odd) –odd parity bit,
2 (even) –parity bit

Operating manual
Page 12
Submenu code
“CH1”, “CH2”
Description
“Sbit”
To select stop bit number.
Possible values:
1 –one stop bit, 2 –two stop bits
“-UP-”
Submenu exit “CH1”(“CH2”)
Description of the control buttons in the configuration submenu of channels
“СН1”, “СH2”:
“F”–to access the selected submenu. While selecting parameters –to save
the selected value and exit the submenu;
“▲” and “▼” –to select the submenu.
Caution! Use “F” button to set up (save) the selected value. The Product will exit
the configuration submenu.
2.3.10 Configuration submenu of the data sources “SOUR”

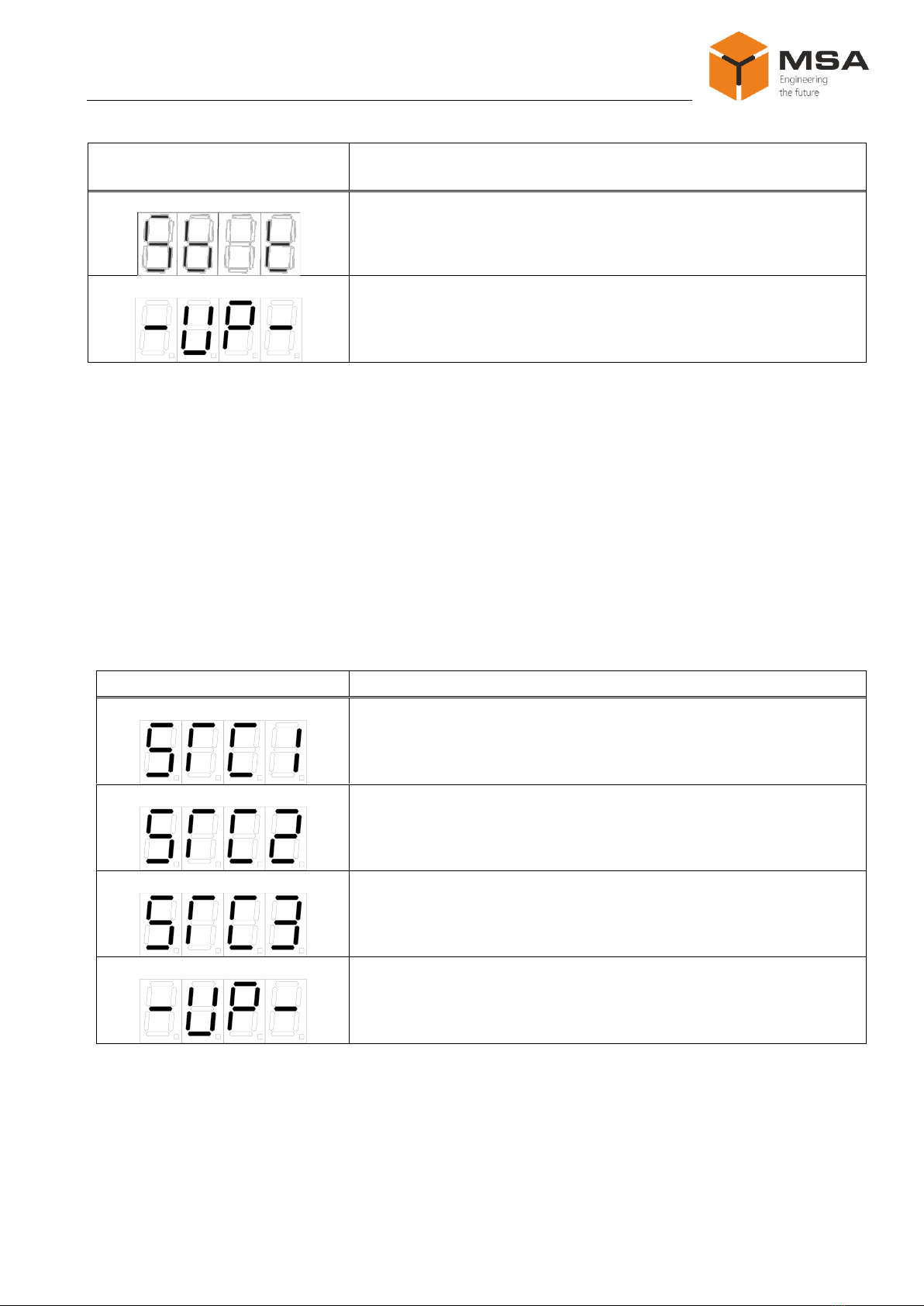

Table 5 –Description of the submenu items “SOUR”
Submenu code “SOUR”
Description
“SRC1”
Configuration submenu of the first source of course data
(Gyro)
“SRC2”
Configuration submenu of the second source of course data
(Magnetic)
“SRC3”
Configuration submenu of the third source of course data (THD)
“-UP-”
“SOUR”submenu exit

Course repeater
DR-309
Page 13
2.3.11 Individual settings submenu “SRC1”, “SRC2”, “SRC3”of course data
sources
Main parameters of every input data source “SRC1”, “SRC2”, “SRC3”are con-
figured in the submenu. Configuration menu items of every course source are the same.

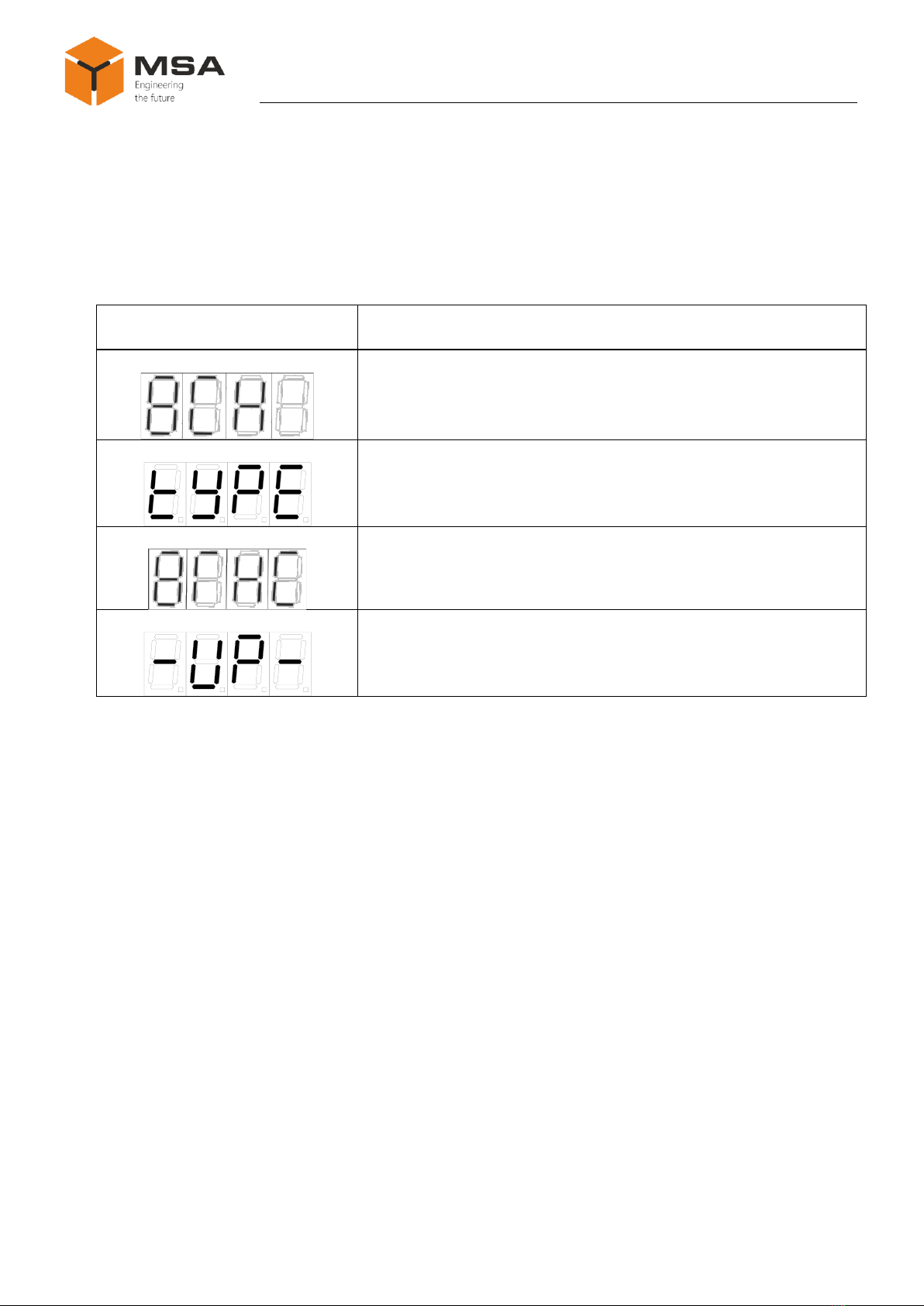

Table 6 –Description of the submenu items “SRC1”, “SRC2”, “SRC3”
Submenu code
“SRC1”, “SRC2”, “SRC3”
Description
“CH”
To select input data channel (whereto the data source is con-
nected)
Possible values:
1 –first channel, 2 –second channel
“TYPE”
To select required NMEA sentence type
Possible values:
1 –“$--HDG”, 2 –“$--HDM”, 3 –“$--HDT”,
“CRC”
Switch on (off) checksum test function of NMEA 0183 sentence
Possible values:
“ON”–checksum test is on, “OFF”–checksum test is off
“-UP-”
“SRC1”submenu exit (“SRC2”or “SRC3”)
Description of the control buttons in the configuration submenu of course data
source “SRC1”, “SRC2”, “SRC3”:
“F”–to access the selected submenu. While selecting parameters –to save
the selected value and exit the submenu;
“▲” and “▼” –to select the submenu.
Caution! Use “F”button to set up (save) the selected value. The Product will exit
the configuration submenu.
2.3.12 Data retransmission
The Product supports a function of data retransmission. The port “Output chan-
nel”, see Figure 1 retransmits only input data of the active channel according to the con-
figured parameters of the selected course data source.

Operating manual
Page 14
Caution! Input “СH2”and output “OUTPUT”settings (transmission rate, parity
bit check, a number of stop bits) comply, as one receiver-transmitter unit is used; there-
fore, retransmission occurs under the settings provided for the second input channel
“СH2”in the configuration submenu of the second channel.
2.3.13 “SYNC”mode to synchronize the compass card
“SYNC”mode allows for synchronizing the data of compass card and character
display in case of their mismatch.
Access the submenu “SYNC”to carry out synchronization. Compass card will be
set to the specific position. Wait until the compass card stops. The character display will
show the previous saved synchronization value. If the readings of character display and
compass card mismatch, set the current value of the compass card using “▲” and “▼”
buttons. Press “F”button. The synchronizing value will be recorded to the non-volatile
memory; The Product will exit the synchronization mode.
Description of the controls in the “SYNC”mode:
“F”–to save the selected values and exit the synchro menu;
“▲” and “▼” –to set the present position (degrees).
2.3.14 “TEST”simulation mode
“TEST”simulation mode ensures emulation of the Product’s operation mode with
no input data. During emulation the character display and compass card represent the
periodic course value. The current mode ensures periodic 1 Hz frequency data transmis-
sion in format:
“$HEHDT, xxx.x, T*hh<CR><LF>”,
where
xxx.x –is the current course value in the simulation mode;
hh –checksum CRC;
“<CR><LF>” – end of line (carriage return and line feed).
Parameters of the output channel “OUTPUT”which provides transmission com-
ply with the settings of the input channel “CH2”.
Select “TEST”in the main menu to switch the simulation mode on and then press
“F”.
Press “F”again to exit the simulation mode.

Course repeater
DR-309
Page 15
2.3.15 Light alarm
2.3.15.1 Emergency operation mode
Once the input data are invalid or not compliant with the configured format or
data are no longer received, the Product switches to the emergency mode.
2.3.15.2 Light signaling
When the emergency is detected, the Product operates in the emergency mode.
Compass card backlight starts flashing; character display shows “----”, see Figure 4.
Figure 4 –Data are absent
Press any button to deactivate the backlight flashing.
After deactivating the Product will still operate in the emergency mode with the
character display showing “----”.
2.3.16 Recovery
To return the Product to normal operation, choose one of the following solutions:
1) fix the equipment which caused the stop in data transmission; restore transmis-
sion of the course data;
2) change the settings in case the current Repeater parameters and data format are
not compliant;
3) switch to the backup data source using “F”button .
Once the emergency is eliminated, the Repeater switches to the course display
mode.

Operating manual
Page 16
3TECHNICAL SERVICE OF THE PRODUCT
3.1 GENERAL DESCRIPTION
The TS shall be provided by the staff acquainted with the Product’s composition,
structure and operation features.
In order to provide safe and reliable operation for the System units, the staff shall
maintain a schedule of the technical service:
- technical service №1 (TS-1) –monthly TS;
- technical service №2 (TS-2) –annual TS.
TS-1 is organized and controlled by a person in charge and carried out by the staff
on the running equipment.
TS-2 is organized and controlled by a person in charge and carried out bythe staff.
The recommended amount of consumables to provide the TS is represented in
Table Table 2.
3.2 SAFETY FEATURES
While carrying out the TS follow the instructions given in 2.2.1 of this OM.
3.3 MAINTENANCE ROUTINE
The list of works for all types of the Technical service is given Table 7. Mainte-
nance routine procedure is given in the CL, represented in Tables 8 and 9.
Table 7 –The list of the TS works
CL №
Work
TS type
TS-1
TS-2
1
Visual check of the Product
+
+
2
Test for the unit operability
–
+
3
Check of completeness, SPTA kit and operational documents
–
+
Notes
1 “+” –work is obligatory.
2 “–” –work is not required.

Repeater course
DR-309
Page 17
Table 8 –CL № 1. Visual check of the Product
To be done
Routine
Man-hours per
1 Product
Visually examine
the Product
1 Check completeness and appearance of the
Product; mechanical damage, paint defects
must be absent; legends are to be read easily;
2 Clean all surfaces by clean cloth;
3 Remove severe contamination, parts of cor-
rosion, oil spots:
–from metal surfaces: by suds, avoiding its
penetration inside the device; all surfaces clean
dry by clean cloth and dry up;
–from LED: by alcohol soaked cloth.
Do not use hard cloth, paper, glass cleaning liq-
uids or chemicals; Do not press hard on the sur-
face while cleaning; Do not spray liquid di-
rectly to the surface of the Product;
4 In case of varnish damage clean it with abra-
sive cloth, then alcohol soaked cloth, cover
with varnish and let dry
1 person
5 minutes
Check reliability of cable and
bus connection to the unit
Make sure that connectors and attaching screws
are fastened tight, provide further fastening if
needed
1 person
5 minutes
Table 9 –CL № 2. Check of the Product operability
To be done
Routine
Man-hours per
1 Product
Check the operability of the
Product
1 power the Product on;
2 start the “TEST”simulation
1 person
5 minutes
Table 10 –CL № 3. Completeness and condition of SPTA kit and operational documents
To be done
Routine
Man-hours per
1 Product
Check the completeness and
condition of SPTA kit and op-
erational documents
1 check presence of SPTA kit and operational
documents are compliant with those listed in
section “Completeness”in the Certificate;
2 check every item in SPTA kit and storage time;
if the kit has been used, recomplete it
1 person
10 minutes

Operating manual
Page 18
3.4 PRESERVATION
The Product and set of operational documents are stored in preserved condition
in Manufacturer’s packaging boxes.
The time of represervation –2 years from the Manufacturer’s commissioning.
The Repeater’s preservation is done in full terms, for 2 years, according to the
relevant regulatory documents.
The represervation is done in heated rooms in the same order as the preservation.
The represerved Product, SPTA kit and documents are placed in package. The
time of storage –2 years.

Repeater course
DR-309
Page 19
4CURRENT REPAIR OF THE PRODUCT
4.1 GENERAL DESCRIPTION
The Repeater’s operability is controlled by the LEDs on the front panel.
To provide diagnostics of the problems and defects, use information in Table 11.
Please contact the Manufacturer’s service centre in case of other defects, which
are not represented in the above mentioned table.
Within the terms of warranty coverage the opening of package is done with the
witness of the manufacturing company representative, who makes the Act of opening.
As soon as the Product is returned to the base facilities, a Manufacturer’s repre-
sentative shall be called in order to make a damage claim.
4.2 CURRENT REPAIR
The personnel can only eliminate defects which are listed in Table 11.
All other defects shall be carried out only by the Manufacturer’s specialists or the
Manufacturer’s representatives.
The Repeater’s malfunction may be caused by mechanical or electrical damage
as well as by invalid settings. Some possible reasons of defects and possible solutions are
represented in Table 11.
Table 11 –Possible problems / defects and troubleshooting
Problem / defect
Possible reasons
To do
The Product doesn’t switch on
Ship power supply is
absent
Provide the ship power supply
Fuse’s malfunction
Replace the fuse
Power cable is not
connected
Connect the power cable
Data are not displayed / absent
Poor connection of
cables between each
other. Invalid set-
tings of ports.
Check the cable connections and data
format; check the settings of ports
Backlight is absent
The minimum
brightness level was
set
Check the brightness level settings
Invalid display of course data
on the card (error)
The Product is not
synchronized
Synchronize the Product

Operating manual
Page 20
5STORAGE
The Product must be stored in packaging inside areas complying with the required
storage conditions (+5…+40 °С) with the concentration of dust, oil, moisture and aggres-
sive impurities in the air within the required limits for the working areas of production
facilities.
After storage or transportation of the Product below +10 °С, it must be unpacked
only in heated premises and left in normal climate conditions for 12 hours beforehand
