MSC COM Express C6-MB-EVA User manual

User Manual
COM ExpressTM Type 6 Carrier
MSC C6-MB-EVA
Evaluation Board
Hardware Rev. 4
Rev. 0.10 2015-02-05

MSC C6-MB-EVA - PRELIMINARY - User Manual
2 / 63
Preface
Copyright Notice
Copyright © 2014 MSC Technologies GmbH. All rights reserved.
Copying of this document, and giving it to others and the use or communication of the
contents thereof, is forbidden without express authority. Offenders are liable to the payment
of damages.
All rights are reserved in the event of the grant of a patent or the registration of a utility model
or design.
Important Information
This documentation is intended for qualified audience only. The product described herein is
not an end user product. It was developed and manufactured for further processing by
trained personnel.
Disclaimer
Although this document has been generated with the utmost care no warranty or liability for
correctness or suitability for any particular purpose is implied. The information in this
document is provided “as is” and is subject to change without notice.
EMC Rules
This unit has to be installed in a shielded housing. If not installed in a properly shielded
enclosure, and used in accordance with the instruction manual, this product may cause radio
interference in which case the user may be required to take adequate measures at his or her
owns expense.
Trademarks
All used product names, logos or trademarks are property of their respective owners.
Certification
MSC Technologies GmbH is certified according to DIN EN ISO 9001:2000 standards.
Life-Cycle-Management
MSC products are developed and manufactured according to high quality standards. Our life-
cycle-management assures long term availability through permanent product maintenance.
Technically necessary changes and improvements are introduced if applicable. A product-
change-notification and end-of-life management process assures early information of our
customers.
Product Support
MSC engineers and technicians are committed to provide support to our customers
whenever needed.
Before contacting Technical Support of MSC Technologies GmbH, please consult the
respective pages on our web site at www.msc-technologies.eu for the latest documentation,
drivers and software downloads.
If the information provided there does not solve your problem, please contact our Technical
Support: Email: [e-mail]
Phone: [phone]

MSC C6-MB-EVA - PRELIMINARY - User Manual
3 / 63
Content
1General Information..................................................................................................... 6
1.1 Revision History........................................................................................................ 6
1.2 Reference Documents.............................................................................................. 6
1.3 Introduction............................................................................................................... 7
2Technical Description................................................................................................... 7
2.1 Key Features............................................................................................................ 7
2.2 Block diagram........................................................................................................... 9
2.3 Positioning of the Connectors, Jumpers and Switches............................................ 10
3Mechanics ................................................................................................................. 12
3.1 Dimensions............................................................................................................. 12
3.2 Assembly notes...................................................................................................... 12
4Hardware................................................................................................................... 13
4.1 Plug-in Position of the COM Express module......................................................... 13
4.2 PCI Express Lanes................................................................................................. 18
4.3 PCI Express x4 Slots.............................................................................................. 19
4.4 PCI Express x1 Slots.............................................................................................. 21
4.5 PCI Express Mini Card ........................................................................................... 22
4.6 PCI Express x16 Graphics Slot............................................................................... 23
4.7 ADD2 Card Slot...................................................................................................... 26
4.8 VGA Interface......................................................................................................... 29
4.9 DVI-D Interface....................................................................................................... 30
4.10 High Definition Multimedia Interface (HDMI)........................................................ 31
4.11 Display Port (DP)................................................................................................. 32
4.12 Embedded Display Port (eDP)............................................................................. 33
4.13 Alternative Embedded Display Port and HDMI Connector................................... 35
4.14 LVDS-Interface.................................................................................................... 36
4.14.1 LVDS EEPROM Socket................................................................................ 37
4.14.2 Backlight Inverter Interface ........................................................................... 38
4.15 Audio................................................................................................................... 39
4.15.1 HDA Connector............................................................................................. 40
4.15.2 SPDIF........................................................................................................... 40
4.15.3 HDA Codec Adapter (not available from Rev.4)........................................... 40
4.16 SATA-Interface.................................................................................................... 41
4.17 mSATA Interface................................................................................................. 42
4.18 USB Topology..................................................................................................... 43
4.18.1 USB Power Supply ....................................................................................... 44
4.18.2 USB Connectors........................................................................................... 44
4.18.3 USB Client Connector................................................................................... 45
4.19 Ethernet............................................................................................................... 45
4.20 LPC Connector.................................................................................................... 45
4.21 GPIO................................................................................................................... 47
4.21.1 GPIO Connector ........................................................................................... 48
4.21.2 SD Memory Card Connector......................................................................... 48
4.22 COM Ports COM3 COM4.................................................................................... 48
4.23 Super IO.............................................................................................................. 49
4.23.1 SIO Configuration ......................................................................................... 50
4.23.2 Parallel Port.................................................................................................. 50
4.23.3 COM Ports COM1 COM2.............................................................................. 50
4.23.4 IrDA .............................................................................................................. 51
4.23.5 PS/2 Connector ............................................................................................ 51
4.23.6 Super IO Fan interface.................................................................................. 52
4.23.7 Super IO Hardware Monitor.......................................................................... 52
4.24 Fan Interface....................................................................................................... 52
4.24.1 Intel Fan interface......................................................................................... 52
4.25 Serial SMB EEPROM.......................................................................................... 53

MSC C6-MB-EVA - PRELIMINARY - User Manual
4 / 63
4.26 Serial I2C-Bus EEPROM..................................................................................... 54
4.26.1 Feature I2C EEPROM................................................................................... 54
4.26.2 User I2C EEPROM....................................................................................... 54
4.27 External SPI BIOS-Flash..................................................................................... 54
4.28 POST-Code Display............................................................................................ 54
4.28.1 Lattice Programming Interface...................................................................... 54
4.29 Feature Connector .............................................................................................. 56
4.30 Power Supply ATX Connector............................................................................. 56
4.31 Power Supply Labor Connector........................................................................... 57
4.32 Battery................................................................................................................. 58
4.33 Beeper ................................................................................................................ 58
4.34 Power Button....................................................................................................... 58
4.35 Reset Button ....................................................................................................... 58
4.36 Sleep Button........................................................................................................ 58
4.37 Clear Event Button.............................................................................................. 58
4.38 LEDs................................................................................................................... 59
4.39 WLAN LEDs........................................................................................................ 59
4.40 DIP Switches....................................................................................................... 60
4.41 Miscellaneous...................................................................................................... 60
4.41.1 Resistors for current measuring.................................................................... 60
4.41.2 Ground Pins.................................................................................................. 60
4.41.3 Power supply current measuring................................................................... 61
4.42 Graphic Port Selection......................................................................................... 62
4.42.1 JILI30 / eDP Selection................................................................................... 63
4.42.2 DDI Port Selection ........................................................................................ 63
Illustrations

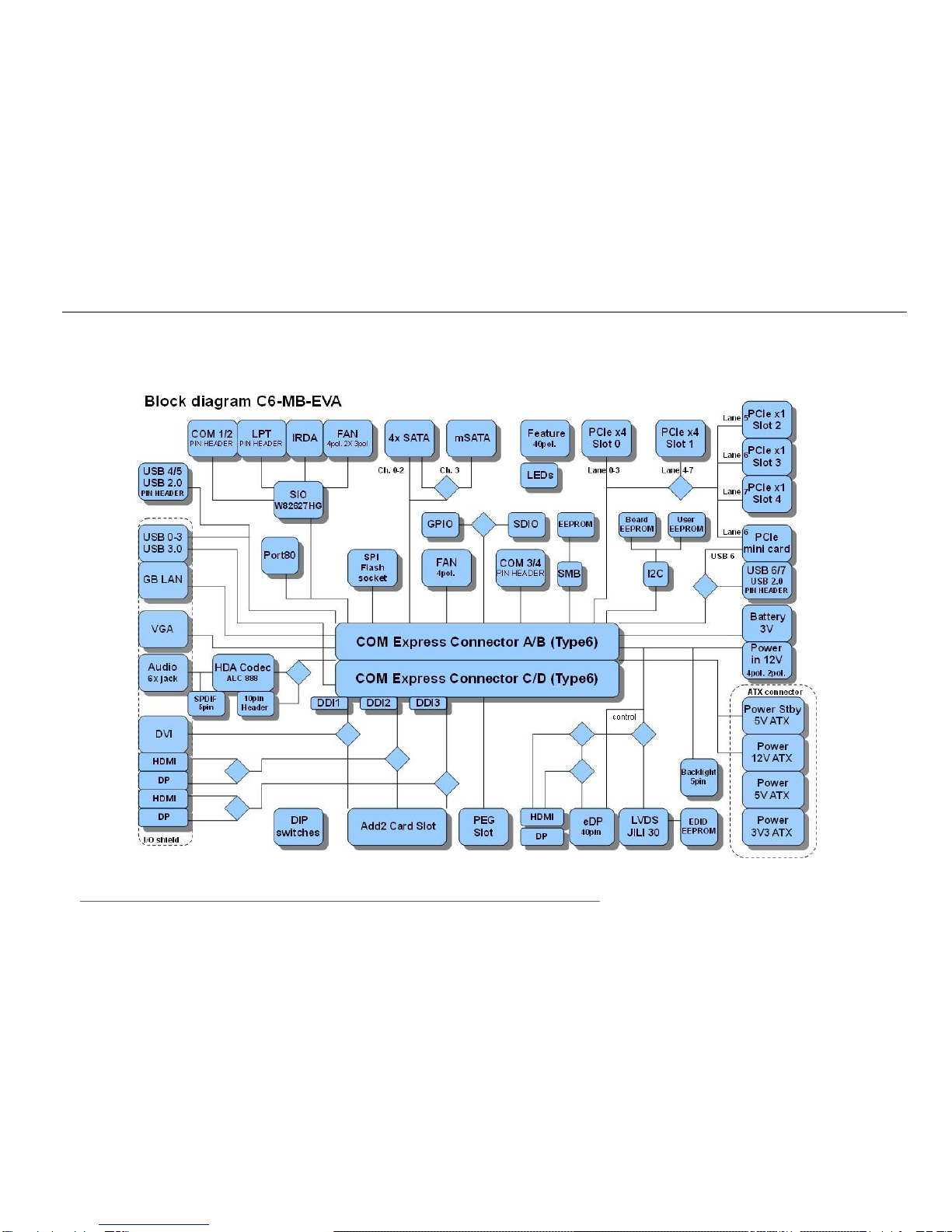

Illustration 1 Block Diagram................................................................................................... 9
Illustration 2 Connectors overview....................................................................................... 10
Illustration 3 Picture............................................................................................................. 11
Illustration 4 Miscellaneous Parts ........................................................................................ 57
Illustration 5 Current Measurement...................................................................................... 61
Illustration 6 Block Diagram Graphics Ports......................................................................... 62
Tables
Table 1 COMExpress Connector Rows A and B................................................................ 15
Table 2 COMExpress Connector Rows C and D............................................................... 17
Table 3 Assignment PCIe Lane to connector reference..................................................... 18
Table 4 PCIe Lane configuration ....................................................................................... 18
Table 5 Pin out PCI Express.............................................................................................. 20
Table 6 Pin out PCI Express.............................................................................................. 22
Table 7 Pin out PCI Express x16 Graphics Slot................................................................. 25
Table 8 Pin out ADD2 Card Slot........................................................................................ 28
Table 8 Pin-out VGA Interface........................................................................................... 30
Table 9 Pin-out DVI-D Interface......................................................................................... 30
Table 11 Pin-out HDMI...................................................................................................... 32
Table 12 Pin-out Display Port............................................................................................ 32
Table 13 Pin-out embedded Display Port .......................................................................... 34
Table 14 Pin-out eDP Backlight Power Supply Connector................................................. 34
Table 15 Pin-out JILI30 LVDS-Interface ............................................................................ 37
Table 16 Pin-out LVDS EEPROM Socket.......................................................................... 38
Table 17 EEPROM Address JP1601................................................................................. 38
Table 18 Pin-out Backlight................................................................................................. 38
Table 19 Pin-out LineOut................................................................................................... 40

MSC C6-MB-EVA - PRELIMINARY - User Manual
5 / 63
Table 20 Pin-out SPDIF..................................................................................................... 40
Table 21 Pin-out HAD Codec Adapter............................................................................... 40
Table 22 Assignment SATA Channel to Connector Reference.......................................... 41
Table 23 Pin-out mSATA socket........................................................................................ 42
Table 24 Assignment USB Ports ....................................................................................... 43
Table 25 Pin-out USB 2.0 pin header................................................................................ 44
Table 26 Pin-out USB 2.0 pin header................................................................................ 44
Table 27 USB Client Connector......................................................................................... 45
Table 28 Pin-out LPC-Slot................................................................................................. 46
Table 29 Pin-out GPIO connector...................................................................................... 48
Table 30 Pin-out COM Ports.............................................................................................. 48
Table 31 SIO Configuration............................................................................................... 50
Table 32 Pin-out LPT Port................................................................................................. 50
Table 33 Pin-out COM Ports.............................................................................................. 51
Table 34 Pin-out IrDA........................................................................................................ 51
Table 35 Pin-out PS/2 Connector...................................................................................... 51
Table 36 Pin-out SIO Fan Interface................................................................................... 52
Table 37 Pin-out Fan Interface .......................................................................................... 52
Table 38 Jumper SMB EEPROM Address......................................................................... 53
Table 39 Jumper Feature I2C EEPROM Address.............................................................. 54
Table 40 Jumper User I2C EEPROM Address .................................................................. 54
Table 41 Jumper BIOS selection....................................................................................... 54
Table 42 POST-Code Selection......................................................................................... 54
Table 43 Pin-out Lattice Programming Interface................................................................ 55
Table 44 Pin-out Feature connector .................................................................................. 56
Table 45 Pin-out Power IN3 connector.............................................................................. 57
Table 46 LEDs Overview................................................................................................... 59
Table 47 DIP Switch Overview.......................................................................................... 60
Table 48 JILI30 / eDP Selection ........................................................................................ 63
Table 49 DDI Port Selection.............................................................................................. 63

MSC C6-MB-EVA - PRELIMINARY - User Manual
6 / 63
1 General Information
1.1 Revision History
Rev.
Date
Description
0.1
26.07.2012
Initial Revision
0.2
10.8.2012
Minor changes
0.3
19.09.2012
Due to new board revision:
The eDP connector X1501 changed from 40 to 30 pin and the
pin assignment at COM ports has changed.
0.4
2012-11-08
Minor changes
0.5
2013-04-15
Adaption to new board revision (LY30E801)
0.6
2013-07-22
SD memory card slot, DIP-switch setting for LY30E801
0.7
2013-11-15
Remarks concerning to LY30E801 added
0.8
2014-03-19
Adaption to new board revision (LY40E801)
0.9
2014-09-05
New covering page
0.10
2015-02-05
Table44 Pin21 corrected
1.2 Reference Documents
[1] COM Express Module Base Specification
COM Express Revision 2.1
Last update: Apr10th, 2012
[2] PCI Local Bus Specification Rev. 2.1
PCI21.PDF
Last update: June 1st, 1995
http://www.pcisig.com
[3] JILI Specification
Jilim120.pdf
Last update: April 7th, 2003
http://www.jumptec.de/product/data/jili/index.html
[4] Serial ATA Specification
Serial ATA 1.0 gold.pdf
Last update: August 29th, 2002 Rev.1.0
http://www.sata-io.org/
[5] IEEE Std. 802.3-2002
802.3-2002.pdf
http://www.ieee.org
[6] Universal Bus Specification
usb_20.pdf
Last update: April 27th, 2000
http://www.usb.org
[7] Digital Video Interface DVI
dvi_10.pdf
Rev. 1.0 April 2nd, 1999
http://www.ddwg.org/

MSC C6-MB-EVA - PRELIMINARY - User Manual
7 / 63
1.3 Introduction
COM Express™, is an open specification from the PICMG (PCI Industrial Computer
Manufacturer Group). It is a module concept to bring PCI Express and other new
technologies like SATA, USB 3.0 and different display interfaces onto a COM (Computer
On Module).
A COM Express™ module is plugged onto an application-specific base board which
provides the necessary I/O connectors and may also contain application-specific
additional logic circuitry.
Typically a COM Express module consists of CPU, chipset, memory, video controller,
Ethernet controller, BIOS Flash, SATA- and USB controller. More I/O controllers and all
I/O connectors are implemented on the base board on to which the COM Express
module can be plugged via one or two 220-pin SMD-connectors. Beside the power
supply also signals for PCIe bus, displays, SATA, USB, LPC etc. are present on these
connectors.
The type of interfaces that is led from the COM Express module to the base board
depends on the type of module that is used. The COM Express specification defines
seven different types which differ in number and pin assignment of the module
connectors.
Thanks to the standardized mechanics and interfaces the system can be scaled
arbitrarily. In spite of the modular concept the systems design is very flat and compact.
COM Express modules require a base-board for successful operation.
The base board described below acts as an evaluation board for COM Express modules
with pin-out Type 6.
2 Technical Description
2.1 Key Features
The MSC C6-MB-EVA COM Express base board is designed as a type 6 carrier board.
Key features include:
Interface for COM Express module type 6 up to basic form factor
Dual 220 pin connector (440 pins)
1 PCIe x4 slot
4 PCIe x1 slots shared with 1 PCIe x4 slot and / or PCIe mini card
PCIe x16 graphics slot (PEG)
VGA interface
LVDS interface (JILI30)
3 Digital Display Interfaces /shared with card slot
1 DVI connector
2 HDMI connectors / 2 DP connectors
1 eDP connector (40pin)
4 USB3.0 root hub interfaces
4 USB2.0 root hub interfaces
4 SATA channels up to 300MB/s
mSATA shared with one standard SATA channel
High definition digital audio codec ALC888 or pin header
6 audio jacks
SPDIF on pin header
GBit Ethernet interface
Feature connector

MSC C6-MB-EVA - PRELIMINARY - User Manual
8 / 63
LPC header
Pin header for GPIOs
SuperIO W83627HG
PS/2, 2x COM (SIO), LPT, IRDA, fan interfaces
Power supply via ATX connector or +12V only
POST display on LPC
Serial EEPROM on I²C-Bus
Serial EEPROM on SMBus
On-board SPI Flash socket
Beeper
2x COM (module)
3V battery
Note: Support for all above features will also depend on the COM Express module being
used. Not all modules support the maximum number of interfaces.

MSC C6-MB-EVA - PRELIMINARY - User Manual
9 / 63
2.2 Block diagram
Illustration 1 Block Diagram

MSC C6-MB-EVA - PRELIMINARY - User Manual
10 / 63
2.3 Positioning of the Connectors, Jumpers and Switches
Illustration 2 Connectors overview

MSC C6-MB-EVA - PRELIMINARY - User Manual
11 / 63
Illustration 3 Picture

MSC C6-MB-EVA - PRELIMINARY - User Manual
12 / 63
3 Mechanics
3.1 Dimensions
Dimension: 243.8 mm x 304.8 mm
Width: 1.6 mm + /-10%
Tolerances of the drill holes: +/- 0.1mm in X and Y
Tolerances of the diameter: + 0.1 mm
3.2 Assembly notes
Use these bolts for mounting different form factors:
COM Express Mini: 4x M2.5 x 5mm bolt
COM Express Compact: 4x M2.5 x 5mm bolt
COM Express Basic: 5x M2.5 x 5mm bolt

MSC C6-MB-EVA - PRELIMINARY - User Manual
13 / 63
4 Hardware
4.1 Plug-in Position of the COM Express module
Socket for a COM Express type 6 module is available on the base board.
Following form factors are supported:
Mini Module
Compact Module
Basic Module
Specification:
Reference: X301
Connector:AMP / Tyco 3-1827233-6
0.5 mm pitch free height 440 pin 5H plug (combination of two 220pin plugs)
Pin-out: Refer to COM Express specification for type 6 module
[1]

MSC C6-MB-EVA - PRELIMINARY - User Manual
14 / 63
Row A
Row B
A1
GND
B1
GND
A2
GBE0_MDI3-
B2
GBE0_ACT#
A3
GBE0_MDI3+
B3
LPC_FRAME#
A4
GBE0_LINK100#
B4
LPC_AD0
A5
GBE0_LINK1000#
B5
LPC_AD1
A6
GBE0_MDI2-
B6
LPC_AD2
A7
GBE0_MDI2+
B7
LPC_AD3
A8
GBE0_LINK#
B8
LPC_DRQ0#
A9
GBE0_MDI1-
B9
LPC_DRQ1#
A10
GBE0_MDI1+
B10
LPC_CLK
A11
GND
B11
GND
A12
GBE0_MDI0-
B12
PWRBTN#
A13
GBE0_MDI0+
B13
SMB_CK
A14
GBE0_CTREF
B14
SMB_DAT
A15
SUS_S3#
B15
SMB_ALERT#
A16
SATA0_TX+
B16
SATA1_TX+
A17
SATA0_TX-
B17
SATA1_TX-
A18
SUS_S4#
B18
SUS_STAT#
A19
SATA0_RX+
B19
SATA1_RX+
A20
SATA0_RX-
B20
SATA1_RX-
A21
GND
B21
GND
A22
SATA2_TX+
B22
SATA3_TX+
A23
SATA2_TX-
B23
SATA3_TX-
A24
SUS_S5#
B24
PWR_OK
A25
SATA2_RX+
B25
SATA3_RX+
A26
SATA2_RX-
B26
SATA3_RX-
A27
BATLOW#
B27
WDT
A28
ATA_ACT#
B28
AC/HDA_SDIN2
A29
AC/HDA_SYNC
B29
AC/HDA_SDIN1
A30
AC/HDA_RST#
B30
AC/HDA_SDIN0
A31
GND
B31
GND
A32
AC/HDA_BITCLK
B32
SPKR
A33
AC/HDA_SDOUT
B33
I2C_CK
A34
BIOS_DIS0#
B34
I2C_DAT
A35
THRMTRIP#
B35
THRM#
A36
USB6-
B36
USB7-
A37
USB6+
B37
USB7+
A38
USB_6_7_OC#
B38
USB_4_5_OC#
A39
USB4-
B39
USB5-
A40
USB4+
B40
USB5+
A41
GND
B41
GND
A42
USB2-
B42
USB3-
A43
USB2+
B43
USB3+
A44
USB_2_3_OC#
B44
USB_0_1_OC#
A45
USB0-
B45
USB1-
A46
USB0+
B46
USB1+
A47
VCC_RTC
B47
EXCD1_PERST#
A48
EXCD0_PERST#
B48
EXCD1_CPPE#
A49
EXCD0_CPPE#
B49
SYS_RESET#
A50
LPC_SERIRQ
B50
CB_RESET#
A51
GND
B51
GND
A52
PCIE_TX5+
B52
PCIE_RX5+
A53
PCIE_TX5-
B53
PCIE_RX5-
A54
GPI0
B54
GPO1
A55
PCIE_TX4+
B55
PCIE_RX4+

MSC C6-MB-EVA - PRELIMINARY - User Manual
15 / 63
A56
PCIE_TX4-
B56
PCIE_RX4-
A57
GND
B57
GPO2
A58
PCIE_TX3+
B58
PCIE_RX3+
A59
PCIE_TX3-
B59
PCIE_RX3-
A60
GND
B60
GND
A61
PCIE_TX2+
B61
PCIE_RX2+
A62
PCIE_TX2-
B62
PCIE_RX2-
A63
GPI1
B63
GPO3
A64
PCIE_TX1+
B64
PCIE_RX1+
A65
PCIE_TX1-
B65
PCIE_RX1-
A66
GND
B66
WAKE0#
A67
GPI2
B67
WAKE1#
A68
PCIE_TX0+
B68
PCIE_RX0+
A69
PCIE_TX0-
B69
PCIE_RX0-
A70
GND
B70
GND
A71
LVDS_A0+
B71
LVDS_B0+
A72
LVDS_A0-
B72
LVDS_B0-
A73
LVDS_A1+
B73
LVDS_B1+
A74
LVDS_A1-
B74
LVDS_B1-
A75
LVDS_A2+
B75
LVDS_B2+
A76
LVDS_A2-
B76
LVDS_B2-
A77
LVDS_VDD_EN
B77
LVDS_B3+
A78
LVDS_A3+
B78
LVDS_B3-
A79
LVDS_A3-
B79
LVDS_BKLT_EN
A80
GND
B80
GND
A81
LVDS_A_CK+
B81
LVDS_B_CK+
A82
LVDS_A_CK-
B82
LVDS_B_CK-
A83
LVDS_I2C_CK
B83
LVDS_BKLT_CTRL
A84
LVDS_I2C_DAT
B84
VCC_5V_SBY
A85
GPI3
B85
VCC_5V_SBY
A86
RSVD
B86
VCC_5V_SBY
A87
eDP_HPD
B87
VCC_5V_SBY
A88
PCIE0_CK_REF+
B88
BIOS_DIS1#
A89
PCIE0_CK_REF-
B89
VGA_RED
A90
GND
B90
GND
A91
SPI_POWER
B91
VGA_GRN
A92
SPI_MISO
B92
VGA_BLU
A93
GPO0
B93
VGA_HSYNC
A94
SPI_CLK
B94
VGA_VSYNC
A95
SPI_MOSI
B95
VGA_I2C_CK
A96
TPM_PP
B96
VGA_I2C_DAT
A97
TYPE10#
B97
SPI_CS#
A98
SER0_TX
B98
RSVD
A99
SER0_RX
B99
RSVD
A100
GND
B100
GND
A101
SER1_TX
B101
FAN_PWNOUT
A102
SER1_RX
B102
FAN_TACHIN
A103
LID#
B103
SLEEP#
A104
VCC_12V
B104
VCC_12V
A105
VCC_12V
B105
VCC_12V
A106
VCC_12V
B106
VCC_12V
A107
VCC_12V
B107
VCC_12V
A108
VCC_12V
B108
VCC_12V
A109
VCC_12V
B109
VCC_12V
A110
GND
B110
GND
Table 1 COMExpress Connector Rows A and B

MSC C6-MB-EVA - PRELIMINARY - User Manual
16 / 63
Row C
Row D
C1
GND
D1
GND
C2
GND
D2
GND
C3
USB_SSRX0-
D3
USB_SSTX0-
C4
USB_SSRX0+
D4
USB_SSTX0+
C5
GND
D5
GND
C6
USB_SSRX1-
D6
USB_SSTX1-
C7
USB_SSRX1+
D7
USB_SSTX1+
C8
GND
D8
GND
C9
USB_SSRX2-
D9
USB_SSTX2-
C10
USB_SSRX2+
D10
USB_SSTX2+
C11
GND
D11
GND
C12
USB_SSRX3-
D12
USB_SSTX3-
C13
USB_SSRX3+
D13
USB_SSTX3+
C14
GND
D14
GND
C15
DDI1_PAIR6+
D15
DDI1_CTRLCLK_AUX+
C16
DDI1_PAIR6-
D16
DDI1_CTRLDATA_AUX-
C17
RSVD
D17
RSVD
C18
RSVD
D18
RSVD
C19
PCIE_RX6+
D19
PCIE_TX6+
C20
PCIE_RX6-
D20
PCIE_TX6-
C21
GND
D21
GND
C22
PCIE_RX7+
D22
PCIE_TX7+
C23
PCIE_RX7-
D23
PCIE_TX7-
C24
DDI1_HPD
D24
RSVD
C25
DDI1_PAIR4+
D25
RSVD
C26
DDI1_PAIR4-
D26
DDI1_PAIR0+
C27
RSVD
D27
DDI1_PAIR0-
C28
RSVD
D28
RSVD
C29
DDI1_PAIR5+
D29
DDI1_PAIR1+
C30
DDI1_PAIR5-
D30
DDI1_PAIR1-
C31
GND
D31
GND
C32
DDI2_CTRLCLK_AUX+
D32
DDI1_PAIR2+
C33
DDI2_CTRLDATA_AUX-
D33
DDI1_PAIR2-
C34
DDI2_DDC_AUX_SEL
D34
DDI1_DDC_AUX_SEL
C35
RSVD
D35
RSVD
C36
DDI3_CTRLCLK_AUX+
D36
DDI1_PAIR3+
C37
DDI3_CTRLDATA_AUX-
D37
DDI1_PAIR3-
C38
DDI3_DDC_AUX_SEL
D38
RSVD
C39
DDI3_PAIR0+
D39
DDI2_PAIR0+
C40
DDI3_PAIR0-
D40
DDI2_PAIR0-
C41
GND
D41
GND
C42
DDI3_PAIR1+
D42
DDI3_PAIR1+
C43
DDI3_PAIR1-
D43
DDI3_PAIR1-
C44
DDI3_HPD
D44
DDI2_HPD
C45
RSVD
D45
RSVD
C46
DDI3_PAIR2+
D46
DDI3_PAIR2+
C47
DDI3_PAIR2-
D47
DDI3_PAIR2-
C48
RSVD
D48
RSVD
C49
DDI3_PAIR3+
D49
DDI3_PAIR3+
C50
DDI3_PAIR3-
D50
DDI3_PAIR3-
C51
GND
D51
GND
C52
PEG_RX0+
D52
PEG_TX0+
C53
PEG_RX0-
D53
PEG_TX0-
C54
TYPE0#
D54
PEG_LANE_RV#
C55
PEG_RX1+
D55
PEG_TX1+

MSC C6-MB-EVA - PRELIMINARY - User Manual
17 / 63
C56
PEG_RX1-
D56
PEG_TX1-
C57
TYPE1#
D57
TYPE2#
C58
PEG_RX2+
D58
PEG_TX2+
C59
PEG_RX2-
D59
PEG_TX2-
C60
GND
D60
GND
C61
PEG_RX3+
D61
PEG_TX3+
C62
PEG_RX3-
D62
PEG_TX3-
C63
RSVD
D63
RSVD
C64
RSVD
D64
RSVD
C65
PEG_RX4+
D65
PEG_TX4+
C66
PEG_RX4-
D66
PEG_TX4-
C67
RSVD
D67
GND
C68
PEG_RX5+
D68
PEG_TX5+
C69
PEG_RX5-
D69
PEG_TX5-
C70
GND
D70
GND
C71
PEG_RX6+
D71
PEG_TX6+
C72
PEG_RX6-
D72
PEG_TX6-
C73
GND
D73
GND
C74
PEG_RX7+
D74
PEG_TX7+
C75
PEG_RX7-
D75
PEG_TX7-
C76
GND
D76
GND
C77
RSVD
D77
RSVD
C78
PEG_RX8+
D78
PEG_TX8+
C79
PEG_RX8-
D79
PEG_TX8-
C80
GND
D80
GND
C81
PEG_RX9+
D81
PEG_TX9+
C82
PEG_RX9-
D82
PEG_TX9-
C83
RSVD
D83
RSVD
C84
GND
D84
GND
C85
PEG_RX10+
D85
PEG_TX10+
C86
PEG_RX10-
D86
PEG_TX10-
C87
GND
D87
GND
C88
PEG_RX11+
D88
PEG_TX11+
C89
PEG_RX11-
D89
PEG_TX11-
C90
GND
D90
GND
C91
PEG_RX12+
D91
PEG_TX12+
C92
PEG_RX12-
D92
PEG_TX12-
C93
GND
D93
GND
C94
PEG_RX13+
D94
PEG_TX13+
C95
PEG_RX13-
D95
PEG_TX13-
C96
GND
D96
GND
C97
RSVD
D97
PEG_ENABLE#
C98
PEG_RX14+
D98
PEG_TX14+
C99
PEG_RX14-
D99
PEG_TX14-
C100
GND
D100
GND
C101
PEG_RX15+
D101
PEG_TX15+
C102
PEG_RX15-
D102
PEG_TX15-
C103
GND
D103
GND
C104
VCC_12V
D104
VCC_12V
C105
VCC_12V
D105
VCC_12V
C106
VCC_12V
D106
VCC_12V
C107
VCC_12V
D107
VCC_12V
C108
VCC_12V
D108
VCC_12V
C109
VCC_12V
D109
VCC_12V
C110
GND
D110
GND
Table 2 COMExpress Connector Rows C and D

MSC C6-MB-EVA - PRELIMINARY - User Manual
18 / 63
4.2 PCI Express Lanes
8 PCIe lanes are defined at the COM Express module.
Some lanes can be routed to various connectors.
Note: The number of PCIe lanes available will depend on the COM Express module used –not all
modules can support 8 PCIe lanes.
PCIe Lane
References
default
References
Change via resistors
References
Change via switch
PCIe Lane 0
X701 Slot 0
PCIe Lane 1
X701 Slot 0
PCIe Lane 2
X701 Slot 0
PCIe Lane 3
X701 Slot 0
PCIe Lane 4
X702 Slot 1
PCIe Lane 5
X801 Slot 2
X702 Slot 1
PCIe Lane 6
X802 Slot 3
X702 Slot 1
X901 Mini PCIe
PCIe Lane 7
X803 Slot 4
X702 Slot 1
Table 3 Assignment PCIe Lane to connector reference
To change PCIe lanes from Slot 1 to Slots 2/3/4 remove resistors and replace them at:
PCIe Lane
Remove (red)
place at (green)
Mini PCIe
PCIe Lane 5
RJ713, RJ714,
RJ715, RJ716
RJ701, RJ702,
RJ707, RJ708
PCIe Lane 6
RJ717, RJ718,
RJ719, RJ720
RJ703, RJ704,
RJ709, RJ710
Don’t move resistors. When
plugging the device, lane 6
switches automatic.
PCIe Lane 7
RJ721, RJ722,
RJ723, RJ724
RJ705, RJ706,
RJ711, RJ712
Table 4 PCIe Lane configuration

MSC C6-MB-EVA - PRELIMINARY - User Manual
19 / 63
4.3 PCI Express x4 Slots
Specification:
References: X701, X702
Connector:FCI 10018784
Pin-out: Refer to PCI express specification
PCIe slots are not hot-plug capable
Pin
Signal
Pin
Signal
A1
PRSNT1#
B1
12V
A2
12V
B2
12V
A3
12V
B3
12V
A4
GND
B4
GND
A5
JTAG_TCK
B5
SMB_CLK
A6
JTAG_TDI
B6
SMB_DAT
A7
JTAG_TDO
B7
GND

MSC C6-MB-EVA - PRELIMINARY - User Manual
20 / 63
A8
JTAG_TMS
B8
3V3
A9
3V3
B9
JTAG_RST#
A10
3V3
B10
3V3_AUX
A11
PE_RST#
B11
WAKE#
KEY
A12
GND
B12
RSVD
A13
REFCLK+
B13
GND
A14
REFCLK-
B14
PET_p0
A15
GND
B15
PET_n0
A16
PER_p0
B16
GND
A17
PER_n0
B17
PRSNT2#
A18
GND
B18
GND
A19
RSVD
B19
PET_p1
A20
GND
B20
PET_n1
A21
PER_p1
B21
GND
A22
PER_n1
B22
PRSNT2#
A23
GND
B23
PET_p2
A24
GND
B24
PET_n2
A25
PER_p2
B25
GND
A26
PER_n2
B26
GND
A27
GND
B27
PET_p3
A28
GND
B28
PET_n3
A29
PER_p3
B29
GND
A30
PER_n3
B30
RSVD
A31
GND
B31
PRSNT2#
A32
RSVD
B32
GND
Table 5 Pin out PCI Express
