Cubi Series

Personal Computer

Cubi B183

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI Cubi 5 10M

008BEU o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation

ii

Contents

Copyright and Trademarks Notice ��iii

Revision History ��iii

Upgrade and Warranty��iv

Acquisition of Replaceable Parts ��iv

Technical Support ��iv

Green Product Features��iv

Environmental Policy�� v

Chemical Substances Information �� v

Battery Information�� v

Safety Instructions��vi

CE Conformity�� viii

FCC-B Radio Frequency Interference Statement �� viii

WEEE Statement ��ix

RoHS Statement ��ix

1. Overview.....................................................................................1-1

Packing Contents�� 1-2

System Overview �� 1-3

2. Getting Started...........................................................................2-1

Safety & Comfort Tips�� 2-2

Hardware Setup �� 2-3

3. System Operations....................................................................3-1

Power Management�� 3-2

Network Connection (Windows 10)�� 3-4

System Recovery (Windows 10)�� 3-7

System Recovery (F3 Hotkey Recovery) (Optional) �� 3-11

Preface

iii

Copyright and Trademarks Notice

registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned

may be trademarks of their respective owners� No warranty as to accuracy or

completeness is expressed or implied� MSI reserves the right to make changes to this

document without prior notice�

Revision History

Version Date

V1�1 2019/ 09

iv

Upgrade and Warranty

Please note that certain components preinstalled in the product may be upgradable

or replaceable by user’s request� To learn more about upgrade limitation, please

refer to the speci󰘰cations in the User’s Manual. For any further information about the

product users purchased, please contact the local dealer� Do not attempt to upgrade

or replace any component of the product if you are not an authorized dealer or service

center, since it may cause the warranty void� It is strongly recommended that you

contact the authorized dealer or service center for any upgrade or replace service�

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of

the product users purchased in certain countries or territories may be ful󰘰lled by

the manufacturer within 5 years at most since the product has been discontinued,

depending on the o󰘲cial regulations declared at the time. Please contact the

manufacturer via http://www�msi�com/support/ for the detailed information about the

acquisition of spare parts�

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor� Alternatively,

please try the following help resources for further guidance� Visit the MSI website for

technical guide, BIOS updates, driver updates and other information via http://www�

msi�com/support/

Green Product Features

◙Reduced energy consumption during use and stand-by

◙Limited use of substances harmful to the environment and health

◙Easily dismantled and recycled

◙Reduced use of natural resources by encouraging recycling

◙Extended product lifetime through easy upgrades

◙Reduced solid waste production through take-back policy

Preface

v

Environmental Policy

◙The product has been designed to enable proper reuse of parts

and recycling and should not be thrown away at its end of life�

◙Users should contact the local authorized point of collection for

recycling and disposing of their end-of-life products�

◙Visit the MSI website and locate a nearby distributor for further recycling

information�

◙Users may also reach us at gpcontdev@msi�com for information regarding

proper Disposal, Take-back, Recycling, and Disassembly of MSI products�

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH

Regulation (Regulation EC No� 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at:

http://www�msi�com/html/popup/csr/evmtprtt_pcm�html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be

disposed of as unsorted household waste� Please use the public

collection system to return, recycle, or treat them in compliance

with the local regulations�

Taiwan:

For better environmental protection, waste batteries should be

collected separately for recycling or special disposal�

California, USA:

The button cell battery may contain perchlorate material and requires special

handling when recycled or disposed of in California�

For further information please visit:

http://www�dtsc�ca�gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced� Replace only with the same or

equivalent type recommended by the manufacturer�

vi

Safety Instructions

◙Read the safety instructions carefully and thoroughly�

◙All cautions and warnings on the equipment or user’s manual

should be noted�

Keep the User’s Guide that comes with the package for future

reference�

Keep this equipment away from humidity and high temperature�

Lay this equipment on a reliable 󰘱at surface before setting it up.

◙Make sure that the power voltage is within its safety range and

has been adjusted properly to the value of 100~240V before

connecting the equipment to the power outlet� Do not disable

the protective earth pin from the plug� The equipment must be

connected to an earthed mains socket-outlet�

◙Always unplug the AC power cord before installing any add-on

card or module to the equipment�

◙Always disconnect the AC power cord or switch the wall socket

o󰘯 if the equipment would be left unused for a certain time to

achieve zero energy consumption�

◙Power Rating

»65W: 100-240V~, 50-60Hz, 19V 3�42A

The ventilator on the enclosure is used for air convection and to

prevent the equipment from overheating� Do not cover the ventilator�

Do not leave the equipment in an unconditioned environment with a

storage temperature above 60OC (140OF) or below 0OC (32OF), which

may damage the equipment�

NOTE: The maximum operating temperature is around 35OC�

Preface

vii

Never pour any liquid into the opening that could damage or cause

electrical shock�

Place the power cord in a way that people are unlikely to step on it�

Do not place anything on the power cord�

◙When installing the coaxial cable to the TV Tuner, it is necessary

to ensure that the metal shield is reliably connected to protective

earthing system of the building�

◙Cable distribution system should be grounded (earthed) in

accordance with ANSI/NFPA 70, the National Electrical Code

(NEC), in particular Section 820�93, Grounding of Outer

Conductive Shield of a Coaxial Cable�

Always keep the strong magnetic or electrical objects away from the

equipment�

If any of the following situations arises, get the equipment checked by

service personnel:

◙The power cord or plug is damaged�

◙Liquid has penetrated into the equipment�

◙The equipment has been exposed to moisture�

◙The equipment does not work well or you can not get it work

according to user’s manual�

◙The equipment has dropped and damaged�

◙The equipment has obvious sign of breakage�

1� The optical storage devices are classi󰘰ed as CLASS 1 LASER PRODUCT.

Use of controls or adjustments or performance of procedures other than those

speci󰘰ed is prohibited.

2� Do not touch the lens inside the drive�

viii

CE Conformity

Hereby, Micro-Star International CO�, LTD declares that this device is

in compliance with the essential safety requirements and other relevant

provisions set out in the European Directive�

FCC-B Radio Frequency Interference

Statement

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules�

These limits are designed to provide reasonable protection against

harmful interference in a residential installation� This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio

communications� However, there is no guarantee that interference will not occur in a

particular installation� If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o󰘯 and on, the

user is encouraged to try to correct the interference by one or more of the measures

listed below:

￭Reorient or relocate the receiving antenna�

￭Increase the separation between the equipment and receiver�

￭Connect the equipment into an outlet on a circuit di󰘯erent from that to which

the receiver is connected�

￭Consult the dealer or an experienced radio/television technician for help�

Notice 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment�

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply

with the emission limits�

This device complies with Part 15 of the FCC Rules� Operation is subject to the

following two conditions:

1� this device may not cause harmful interference, and

2� this device must accept any interference received, including interference that may

cause undesired operation�

MSI Computer Corp.

901 Canada Court, City of Industry, CA 91748, USA

(626)913-0828

www�msi�com

Preface

ix

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on August

13, 2005, products of “electrical and electronic equipment” cannot be

discarded as municipal waste anymore and manufacturers of covered

electronic equipment will be obligated to take back such products at the

end of their useful life�

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, de󰘰ned by speci󰘰cation JIS C 0950, mandates

that manufacturers provide material declarations for certain categories of electronic

products o󰘯ered for sale after July 1, 2006.

http://www�msi�com/html/popup/csr/cemm_jp�html

http://tw�msi�com/html/popup/csr_tw/cemm_jp�html

India RoHS

This product complies with the “India E-waste (Management and Handling) Rule 2011”

and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers in concentrations exceeding 0�1 weight % and 0�01

weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule�

Turkey EEE regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine restriction of hazardous substances

The equipment complies with requirements of the Technical Regulation, approved

by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057,

in terms of restrictions for the use of certain dangerous substances in electrical and

electronic equipment�

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular

30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous

substances in electronic and electric products�

1

Overview

Congratulations for purchasing the Cubi Series Personal Computer� This

system is your best PC choice� With the fantastic appearance, it can easily

be set anywhere� The feature packed platform also gives you an exciting PC

experience�

1-2

Packing Contents

Cubi B183 AC/DC Adapter AC Power Cord

User Manual &

Quick Guide (Optional)

VESA Mount Kit

(Optional)

* Please contact us immediately if any of the items is damaged or missing�

* The illustrations are for reference only and your packing contents may slightly vary

depending on the model you purchased�

Overview

1-3

System Overview

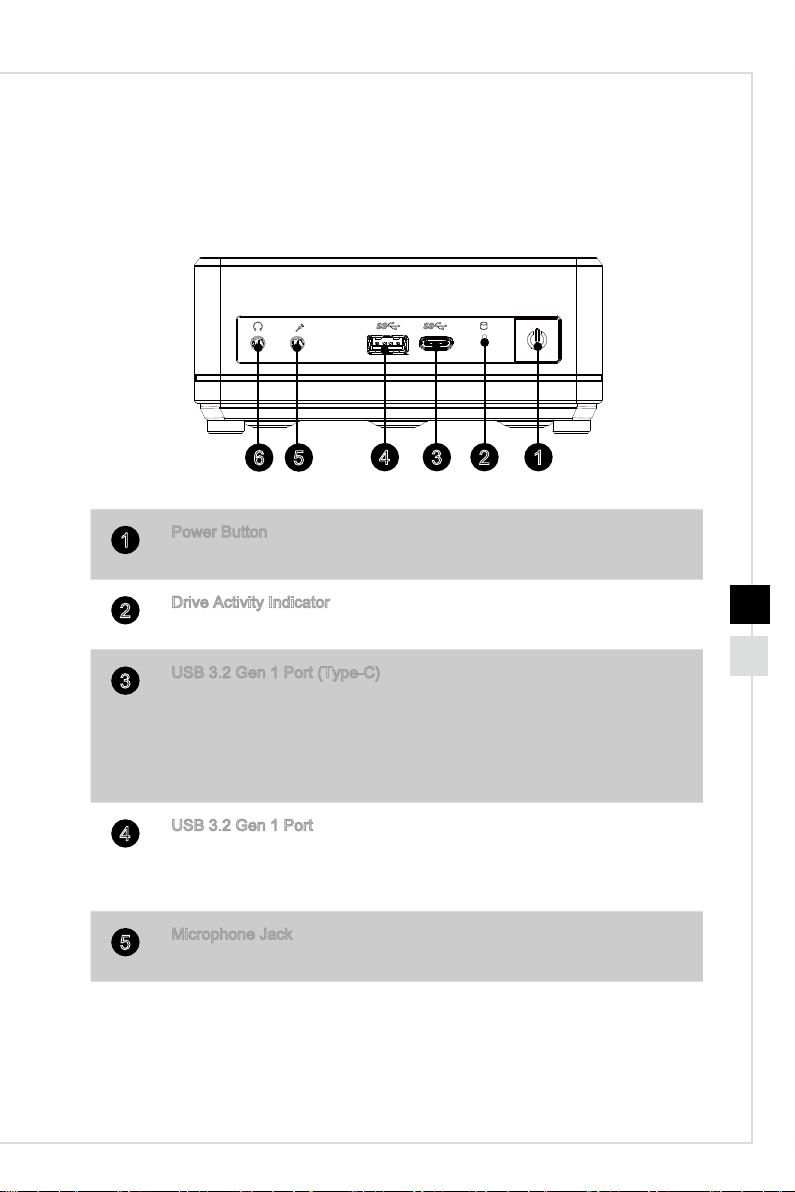

hFront View

3 124

56

1Power Button

Press the power button to turn the system on and o󰘯.

2Drive Activity Indicator

LED blinks when the system is accessing the internal storage drives�

3USB 3�2 Gen 1 Port (Type-C)

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives,

video cameras, etc�

The slim and sleek USB Type-C connector features reversible plug

orientation and up to 5V/3A power supply for external devices�

4USB 3�2 Gen 1 Port

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives,

video cameras, etc�

5Microphone Jack

This connector is provided for microphones�

1-4

6Headphone Jack

This connector is provided for headphones or speakers�

Important

Use a shielded USB 3�2 cable (at least 8” or 20cm long) when connecting a USB 3�x

device to the USB 3�2 port of this product so as to avoid wireless interference�

Overview

1-5

hRight Side View

1

2

1Kensington Lock Port

This PC provides a Kensington lock port, which allows users to secure

the PC in place with a key or some mechanical PIN device and attached

through a rubberised metal cable. The end of the cable has a small loop

which allows the whole cable to be looped around a permanent object, such

as a heavy table or other similar equipment, thus securing the PC in place.

2Power Button Switch Cable Connector (optional)

With a power button switch cable, you can power on/ o󰘯 the device easier.

Remove the cover from the connector and connect the power button switch

cable to this connector. (The cable is not included.)

1-6

hRear View

356 421

1Power Jack

The AC/DC adapter converts AC power to DC power for this jack� Power

supplied through this jack supplies power to the PC� To prevent damage

to the PC, always use the supplied power adapter�

2USB 2�0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such

as keyboard, mouse, or other USB-compatible devices� It supports up to

480Mbit/s (Hi-Speed) data transfer rate�

3USB 3�2 Gen 1 Port

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives,

video cameras, etc�

Overview

1-7

4LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local

Area Network (LAN)� You can connect a network cable to it�

GreenYellow/ Green

LED Color LED State Condition

Green O󰘯 LAN link is not established�

On (steady state) LAN link is established�

On (blinking) The computer is communicating with

another computer on the LAN�

Green O󰘯 10 Mbit/sec data rate is selected�

On 100 Mbit/sec data rate is selected�

Yellow On 1000 Mbit/sec data rate is selected�

5HDMI-Out Port

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/

video interface capable of transmitting uncompressed streams� HDMI

supports all TV format, including standard, enhanced, or high-de󰘰nition

video, plus multi-channel digital audio on a single cable�

6DisplayPort

DisplayPort is a digital display interface standard� This connector is used

to connect a monitor with DisplayPort inputs�

Important

Use a shielded USB 3�2 cable (at least 8” or 20cm long) when connecting a USB 3�x

device to the USB 3�2 port of this product so as to avoid wireless interference�

1-8

2

Getting Started

2-2

Safety & Comfort Tips

The Personal Computer System is a portable platform that allows you to work

anywhere� However, choosing a good workspace is important if you have to work with

your PC for a long period of time�

1� Your work area should have enough illumination�

2� Choose the proper desk and chair and adjust their height to 󰘰t your posture when

operating�

3� When sitting on the chair, sit straight and keep a good posture� Adjust the chair’s

back (if available) to support your back comfortably�

4� Place you feet 󰘱at and naturally on the 󰘱oor, so that your knees and elbows have

the proper position (about 90-degree) when operating�

5� Put your hands on the desk naturally to support your wrists�

6� Avoid using your PC in a place where discomfort may occur (such as on the bed)�

7� The Personal Computer System is an electrical device� Please treat it with great

care to avoid personal injury�

MSI Cubi 5 10M 008BEU User manual

Popular Desktop manuals by other brands
