Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
Monitor Modern MD271CP
Documentation Quick Start Guide
Registration Card
Accessories
Stand
Stand Base with Screw(s)
Power Cord
Power Adapter
Cables HDMI Cable (Optional)
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this monitor and should not be used with
other products.

4Getting Started
Installing the Monitor Stand
1. Leave the monitor in its protective foam packaging. Align the stand to the monitor
groove. Push the stand towards the monitor groove until it locks in place.
2. Connect the base to the stand and tighten the base screw to secure the base.
3. Make sure the stand assembly is properly installed before setting the monitor
upright.
⚠
Important
∙ Place the monitor on a soft, protected surface to avoid scratching the display panel.
∙ Do not use any sharp objects on the panel.
∙ The groove for installing the stand bracket can also be used for wall mount. Please
contact your dealer for proper wall mount kit.
2
1

5
Getting Started
Adjusting the Monitor

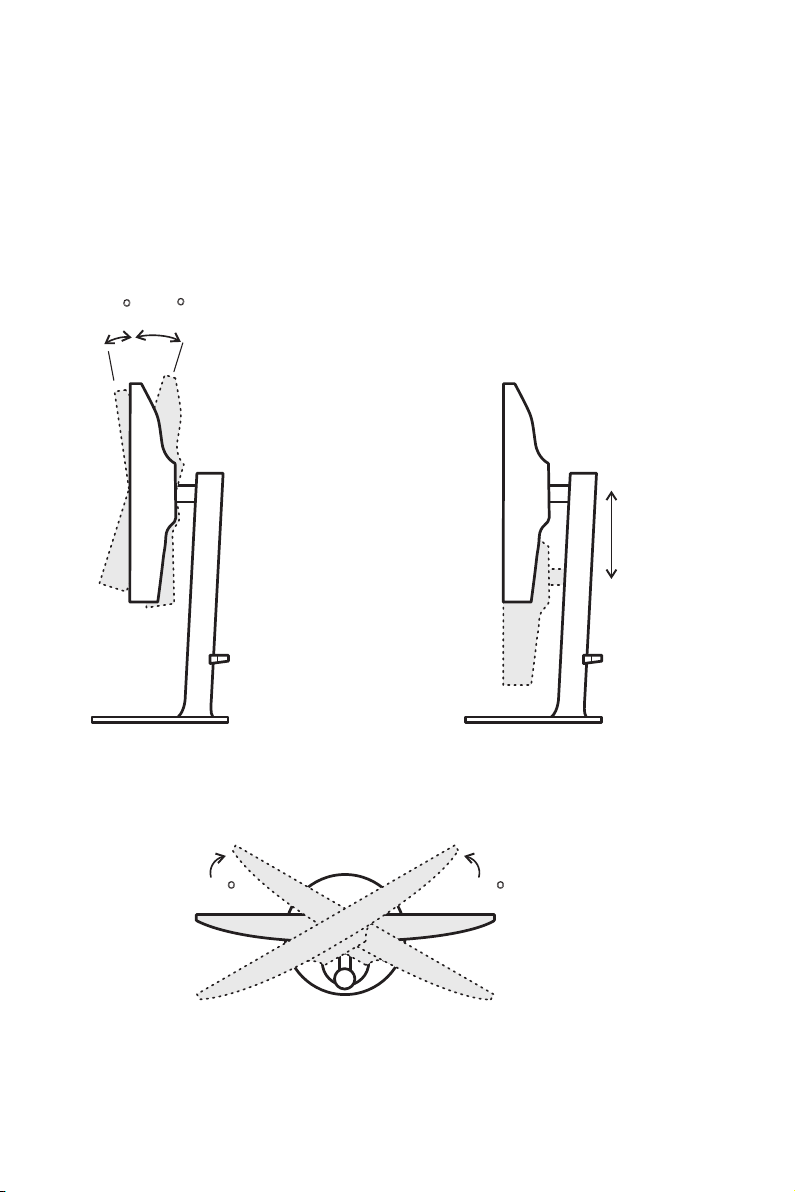

This monitor is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙ Avoid touching the display panel when adjusting the monitor.
∙ Please slightly tilt the monitor backwards before pivoting it.
-5 O20O
30 O
30 O
110m
m

6Getting Started
Monitor Overview
1 3
5
4 6
2
7

7
Getting Started

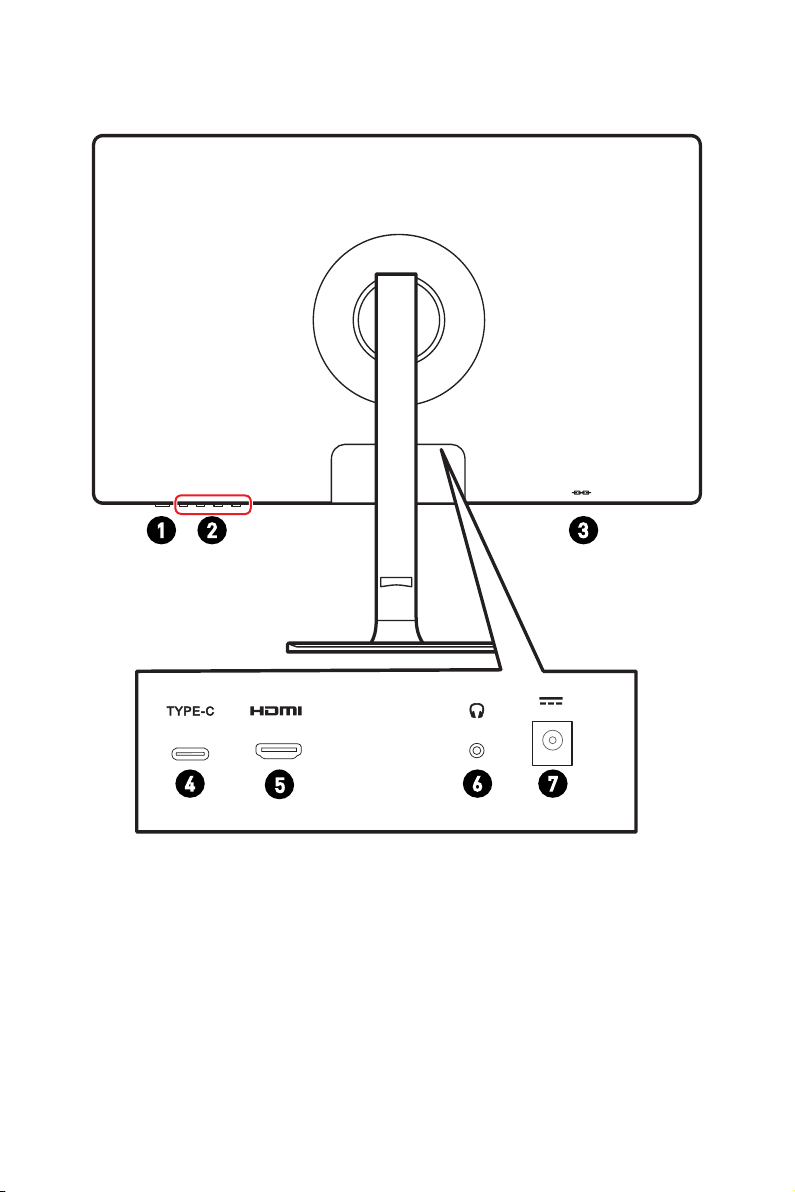

1Power Button
2OSD Keys
3Kensington Lock
4USB Type-C Port
This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A
(15W) power delivery. It only carries video signals and doesn’t support data
transmission function.
5HDMI Port
6Headphone Jack
7Power Jack

8Getting Started
Connecting the Monitor to PC
1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.

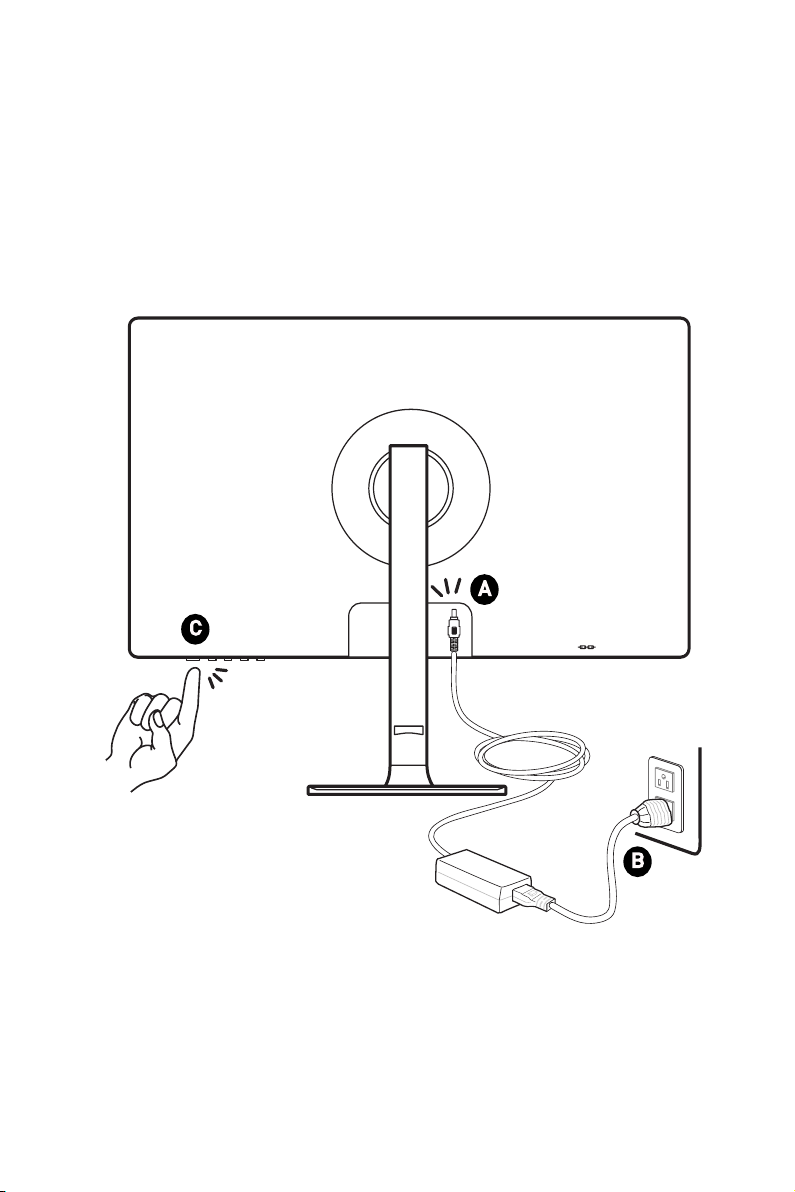

3. Connect the power cord to the monitor power jack. (Figure A)
4. Plug the power cord into the electrical outlet. (Figure B)
5. Turn on the monitor. (Figure C)
6. Power on the computer and the monitor will auto detect the signal source.
B
C
A

9
OSD Setup
OSD Setup
This chapter provides you with essential information on OSD Setup.
⚠
Important
All information is subject to change without prior notice.
OSD Keys
The monitor comes with a set of OSD Keys that help to control the On-Screen Display
(OSD) menu.
ME
ME
OSD Key Hot Key (When OSD is OFF) OSD Setup (When OSD is ON)
M
Activating the OSD Main Menu Returning to the previous menu
Exiting from the OSD Main Menu
Used as the designated shortcut
hotkey
Navigating through function menus
and items
Adjusting function values
E
Activating the auto adjustment
function that automatically sets
the horizontal position, vertical
position, clock and focus (for VGA
signals only)
Confirming the selection

10 OSD Setup
OSD Setup Menus

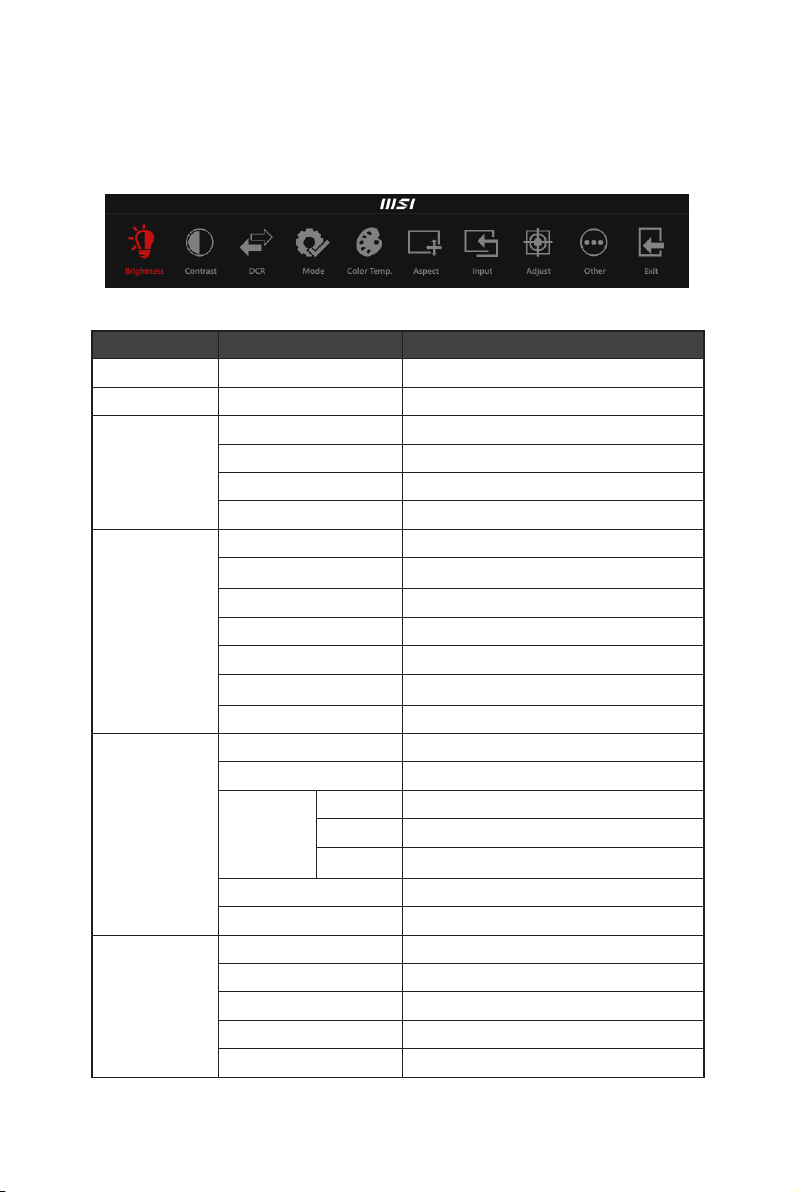

Press the M key to launch the On-Screen Display (OSD) main menu and use the OSD
keys to tune the desired function to suit your personal preferences.
1st Level Menu 2nd/3rd Level Menu Description
Brightness 0-100 Adjusting display brightness
Contrast 0-100 Adjusting display contrast
DCR ON Activating dynamic contrast
OFF Deactivating dynamic contrast
Return Returning to the previous menu
Exit Exiting from this function menu
Mode Standard Normal work mode
Movie Movie mode
FPS FPS game mode
RTS RTS game mode
EyeSaver Eye protection mode
Return Returning to the previous menu
Exit Exiting from this function menu
Color Temp. Warm Warm color temperature
Cool Cold color temperature
User R (0-100) Fine-tuning of Red color temperature
G (0-100) Fine-tuning of Green color temperature
B (0-100) Fine-tuning of Blue color temperature
Return Returning to the previous menu
Exit Exiting from this function menu
Aspect Auto Auto adjusting the picture aspect ratio
16:9 Picture in 16:9 mode
4:3 Picture in 4:3 mode
Return Returning to the previous menu
Exit Exiting from this function menu
