The 815EPT Pro and 815EPT Pro-R (MS-6337, V5.X) ATX mainboard
are high-performance computer mainboard ba ed on Intel® 815EP/815E
(re erved upon reque t) chip et . The MS-6337 UMB (Univer al Motherboard)
i optimized to upport the whole erie of new generation Intel® Pentium® III
(FC-PGA/FC-PGA2) proce or for high-end bu ine /per onal de ktop
market .
The Intel® 815E chip et integrate a Di play Cache SDRAM controller
that upport a 32-bit 133MHz SDRAM array for enhanced integrated 3D
graphic performance. It i a highly-flexible chip et which i de igned to extend
the ba ic graphic /multimedia PC platform up to the main tream performance
de ktop platform.
The Intel 815E/EP chip et contain two component : the 82815EP
Memory Controller Hub (MCH) and the 82801BA I/O Controller Hub 2 (ICH2).
The MCH integrate a 66/100/133-MHz, P6 family y tem bu controller , AGP
(2X/4X) di crete graphic card, 100/133-MHz SDRAM controller, and a high
peed accelerated hub architecture interface for communication with the ICH2.
The ICH2 integrate an UltraATA/100 controller, 2 USB ho t controller with a
total of 4 port , LPC interface controller, FWH interface controller, PCI inter-
face controller, AC97 digital link, integrated LAN controller, and a hub inter-
face for communication with the MCH.
Thi chapter contain the following topic :
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Component Guide 1-6
Key Feature 1-7
MSI Special Feature 1-8

Chapter 1
1-2
Mainboard Specifications
CPU
!Support Socket370 for the whole erie of new generation Intel® Pentium®
III(FC-PGA/FC-PGA2) proce or .
!Support 500MHz, 550MHz, 600MHz, 633MHz, 667MHz, 700MHz, 733MHz,
800MHz, 866MHz, 933MHz, 1GHz, 1.1GHz, 1.13GHz and up to 1.2GHz.
Chipset
!Intel® 815E chip et (re erved upon reque t/with VGA port) or
Intel® 815EP chip et ( tandard/without VGA port)
- 544 BGA
- AGP 4x/2x univer al lot
- Support 66/100/133MHz FSB
!Intel® ICH2 chip et.
- AC97 Audio upport
- 2 full IDE channel , up to ATA100
- Low pin count interface for SIO
- 2 USB ho t controller /4 USB port
Main Memory
!Support four 168-pin DIMM ocket .
!Support a maximum memory ize of 256MB or 512MB SDRAM.
Slots
! One CNR (Communication Network Ri er).
!One AGP (Accelerated Graphic Port) 2x/4x lot
(One AGP Pro lot for 815EPT Pro-R)
!Six PCI 2.2 32-bit Ma ter PCI Bu lot . All PCI lot can be u ed a
ma ter.
!Support 3.3v/5v PCI bu Interface.
On-Board IDE
!An IDE controller on the ICH2 chip et provide IDE HDD/CD-ROM with
PIO, Bu Ma ter and Ultra DMA 66/100 operation mode .
!Can connect up to four IDE device .
!ATA RAID 0.1 upported by Promi e PDC20265R.

Introduction
1-3
On-Board Peripherals
!On-Board Peripheral include:
- 1 floppy port upport 2 FDD with 360K, 720K, 1.2M,
1.44M and 2.88Mbyte .
- 2 erial port (COM1/COM2)
- 1 parallel port upport SPP/EPP/ECP mode
- 4 USB port (Rear * 2 / Front * 2)
Note: One front USB port provides USB PC to PC Networking Function.
Audio
! ICH2 chip integrated
! Support 2 Channel Audio or 4 Channel Audio (for 815EPT Pro-R)
BIOS
!The mainboard BIOS provide Plug & Play BIOS which detect the
peripheral device and expan ion card of the board automatically.
!The mainboard provide a De ktop Management Interface(DMI) function
which record your mainboard pecification .
Dimension
!ATX Form Factor
Mounting
!6 mounting hole .

Chapter 1
1-4
Mainboard Layout
BATT
+
ICH 2
Intel 815E/EP
chipset
J2ATX
Power Supply
JFP1
PSFAN
CPUFAN
JBAT2
JMDM1
JWOL1
J7
FWH
PCI Slot 6
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
Promise
PDC20265R
GL620USB-A
SYSFAN
DIMM 3
DIMM 1
DIMM 4
DIMM 2
CNR
SW1
USB
Top : port 1
Bottom:
port 2
Top : Para lle l Po r t
Bottom:
COM 1
COM 2 (or VGA port
/reserved)
Top : mou se
Bottom: ke board
CDIN
AC'97
Codec
MODEMIN
AUXIN
Top :
Game
port
Bottom:
Line-Out
Line-In
Mic
SOCKET 370
FDD
JUSB1
J14
LED 4LED 1
LED 5
LED
2
LED
3
AGP Slot
COM B
(reserved)
815EPT Pro (MS-6337 V5.X) ATX Mainboard
* Please note that Intel® 815E chipset (with VGA port) is
reserved upon request.

Introduction
1-5
815EPT Pro-R (MS-6337 V5.X) ATX Mainboard
* Please note that Intel® 815E chipset (with VGA port) is
reserved upon request.
BATT
+
ICH 2
Intel 815E/EP
chipset
J2ATX
Power Supply
JFP1
PSFAN
CPUFAN
JWR2
JBAT2
JMDM1
JWOL1
J7
J10
FWH
PCI Slot 6
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
IDE 4
IDE 3
Promise
PDC20265R
GL620USB-A
SYSFAN
DIMM 3
DIMM 1
DIMM 4
DIMM 2
CNR
SW1
USB
Top : port 1
Bottom:
port 2
Top : Para lle l Po r t
Bottom:
COM 1
COM 2 (or VGA port
/reserved)
Top : mou se
Bottom: ke board
CDIN
AC'97
Codec
MODEMIN
AUXIN
Top :
Game
port
Bottom:
Line-Out
Line-In
Mic
SOCKET 370
FDD
AGP Slot Pro
JUSB1
J14
LED 4LED 1
LED 5
LED
2
LED
3
COM B
(reserved)

Chapter 1
1-6
Quick Components Guide
Component Function Reference
SW1 Overclocking Jumper See p. 2-4
JWR ATX 20-Pin Power Connec or See p. 2-9
JWR2 ATX 12V Power Connec or See p. 2-10
JKBMS1 Mouse & Keyboard Connec ors See p. 2-11
USB Connec ors Connec ing o USB devices See p. 2-12
LPT1 Parallel Por Connec or See p. 2-13
COM 1 & COM 2 Serial Por Connec ors See p. 2-14
VGA DB 15-Pin Connec ing o VGA moni or See p. 2-14
FDD Floppy Disk Drive Connec or See p. 2-15
IDE1~ IDE2 Hard Disk Connec ors See p. 2-16
IDE3 & IDE4 (Op ional) IDE RAID Connec ors See p. 2-17
JFP1 Case Connec or See p. 2-18
LED5 DIMM Power LED See p. 2-20
JWOL1 Wake On LAN Connec or See p. 2-21
JMDM1 Wake On Ring Connec or See p. 2-22
CPUFAN/SYSFAN/PSFAN Fan Power Connec ors See p. 2-23
CD_IN CD-In Connec or See p. 2-24
JAUX Aux Line-In Connec or See p. 2-24
MDM_IN Modem-In Connec or See p. 2-25
J7 Fron Panel Connec or See p. 2-26
JUSB1 USB Fron Connec or See p. 2-27
J14 D-Bracke TM Connec or See p. 2-30
JBAT2 Clear CMOS Jumper See p. 2-31
J2 TOP TECH. III See p. 2-32
AGP/AGP PRO Slo Connec ing o AGP (Pro) cards See p. 2-33
PCI Slo s Connec ing o expansion cards See p. 2-33
CNR Connec ing o expansion cards See p. 2-33

Introduction
1-7
Key Features
!ATX Form Factor
!CPU: Socket370 for the whole erie of new generation Intel® Pentium®
III(FC-PGA/FC-PGA2) proce or
!Memory: four 168-pin DIMM ocket /maximum memory ize of 256MB
or 512MB SDRAM
!Slot: 1 AGP/AGP PRO lot, 1 CNR lot, 6 PCI lot
!I/O: 2 erial port , 1 parallel port, 4 USB port , 1 floppy port, 3 Audio/1
Game port
!USB Interface: USB 1.1 PC to PC Networking
!2 IDE RAID connector (Optional)
!Fuzzy Logic III overclocking utility
!D-LED - 4 LED embedded in the mainboard
!PC Alert III y tem hardware monitor
!Audio: 2 Channel S/W audio integrated or optional 4 Channel Audio
(for 815EPT Pro-R)
!LAN Wake up Function
!Modem (External/Internal) Ring Wake up Function

Chapter 1
1-8
PC Alert III
The PC AlertTM III i an utility you can find in the CD-ROM di k. The
utility i ju t like your PC doctor that can detect the following PC hardware
tatu during real time operation:
* monitor CPU & y tem temperature
* monitor fan peed( )
* monitor y tem voltage
* monitor cha i intru ion
If one of the item above i abnormal, the program main creen will be immedi-
ately hown on the creen, with the abnormal item highlighted in red. Thi will
continue to be hown,until u er di able the warning.
MSI Special Features
Note: Items shown on PC Alert III vary depending on your systems status.

Introduction
1-9
Features:
!Network Management
- Monitoring & remote control
!Ba ic Sy tem Utilitie
- Scandi k & Defragment to maintain your HDD
!3D Graphic De ign
- Enable a more friendly u er interface
!Sofware Utilitie
- SoftCooler Optimized Cooling

Chapter 1
1-10
T.O.P Tech
The T.O.P TechTM i a extended en ing device that can 100% accu-
rately detect the CPU temeprature. You can find out the temperature on BIOS
etup menu. The PC AlertTM al o provide the information.
CPU temperaure on Setup menu
↑ ↓ → ←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F :Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Current CPU1 Temp. 40°C/104°F
Current CPU2 Temp. 30°C/86°F
Current CPUFAN1 Speed
4200Rpm
Current CPUFAN2 Speed
6124Rpm
CPU1 Vcore 1.64V
CPU2 Vcore 1.98V
3.3V 3.31V
V 4.9 V
12V 11.64V
CMOS Setup Utility - Copyright(C) 1984-2000 Award Software
PC Health Status
Item Help
Menu Level !

Introduction
1-11

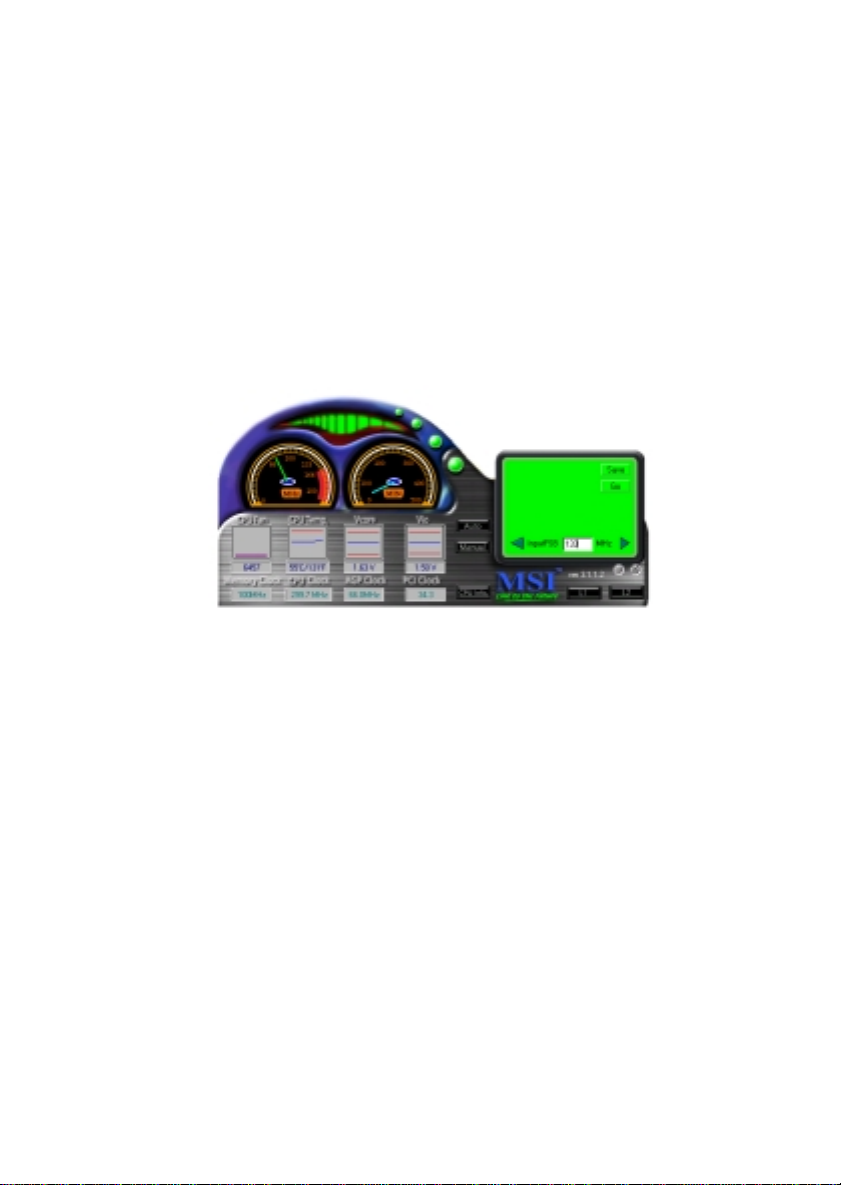

Fuzzy LogicIII
The Fuzzy Logic III utility allow u er to overclock the CPU FSB
(Front Side Bu ) frequency in the Window environment. Select the CPU
frequency you prefer and click Go to apply the frequency or click Save
allowing the y tem to run at the pecified frequency each time when the
y tem i powered on.
Features:
!Di play Current Sy tem Statu
- CPU Fan
- CPU Temp.
- Vcore
- Vio
- Memory Clock
- CPU Clock
- AGP Clock
- PCI Clock
!Adju t CPU FSB Frequency

Chapter 1
1-12
D-LED & D-Bracket
The D-LED u e graphic ignal di play to help u er under tand their
y tem. Four LED embedded in the mainboard provide up to 16 combination
of ignal to debug the y tem. The 4 LED can debug all problem that fail the
y tem, uch a VGA, RAM or other failure . Thi pecial feature i very
u eful for the overclocking u er . The e u er can u e the feature to detect if
there are any problem or failure .
To facilitate u er  operation, the 815EPT Pro & 815EPT Pro-R mainboard
are additionally equipped with D-Bracket connector for diagno i of y tem
problem through external LED . An optional D-Bracket cable would be nec-
e ary for thi function. Plea e refer to D-BracketTM
Connector: J14 in Chapter 2.
Definition of the LED ignal for D-Bracket are the
ame a D-LED a hown below.
Diagnostic LED

!
"
D-LED D-Bracket Description


System Power ON
- The D-LED will hang here if the processor is damaged or
not installed properly.


Early Chipset Initialization



Memory Detection Test
- Testing onboard memory size. The D-LED will hang if
the memory module is damaged or not installed properly.


Decompressing BIOS image to RAM for fast booting.


Initializing Keyboard Controller.


Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
Red Green
 !"

!"

Introduction
1-13
D-LED D-Bracket Description


Processor Initialization
- This will show information regarding the processor (like
brand name, system bus, etc)


Testing RTC (Real Time Clock)


Initializing Video Interface
- This will start detecting CPU clock, checking type of video
onboard. Then, detect and initialize the video adapter.


BIOS Sign On
- This will start showing information about logo, processor
brand name, etc.


Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended
memory above 1MB using various patterns.


Assign Resources to all ISA.


Initializing Hard Drive Controller
- This will initialize IDE drive and controller.


Initializing Floppy Drive Controller
- This will initializing Floppy Drive and controller.


Boot Attempt
- This will set low stack and boot via INT 19h.


Operating System Booting
 !"

!"
