MSI 915P Combo User manual

i
English/French/Germanversion
G52-M7058X5
MS-7058 (v1.X) ATX Mainboard
915P/G Combo

ii
Manual Rev: 1.1
Release Date: June 2004
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-StarInternational
MS-7058
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation

iii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered
trademarks of AMD Corporation.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows®98/2000/NT/
XP are registered trademarks of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade-
marks of NVIDIA Corporation in the United States and/or other countries.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology
Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory
Card International Association.
RevisionHistory
Revision Revision History Date
V1.0 First release for PCB 1.X June 2004
with Intel 915P/G & Intel ICH6/ICH6R
V1.1 Multi-lingual version June 2004

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equip-
ment from overheating. Do not cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V be-
fore connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical
shock.
11. If any of the following situations arises, get the equipment checked by a service
personnel:
hThe power cord or plug is damaged.
hLiquid has penetrated into the equipment.
hThe equipment has been exposed to moisture.
hThe equipment has not work well or you can not get it work according to
User’s Manual.
hThe equipment has dropped and damaged.
hThe equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage
temperature above 600 C (1400F), it may damage the equipment.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.
hVisit the MSI homepage & FAQ site for technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw & http://www.msi.
com.tw/program/service/faq/faq/esc_faq_list.php
hContact our technical staff at: [email protected]

v
CONTENTS
FCC-B Radio Frequency Interference Statement ........................................................ ii
Copyright Notice ........................................................................................................... iii
Revision History............................................................................................................ iii
Safety Instructions ...................................................................................................... iv
Technical Support ........................................................................................................ iv
English version .................................................................................................. E-1-1
1. Getting Started ............................................................................................ E-1-3
2. Hardware Setup.......................................................................................... E-2-1
3. BIOS Setup .................................................................................................. E-3-1
French version ................................................................................................... F-1-1
1. Getting Started ............................................................................................ F-1-3
2. Hardware Setup.......................................................................................... F-2-1
3. BIOS Setup .................................................................................................. F-3-1
German version .................................................................................................... G-1

E1-1
Getting Started
915P/G Combo
User’s Guide
English

F1-2
Carte Mère ATX 7058 ATX

E1-3
Getting Started
Chapter 1. Getting
Started
Thank you for choosing the 915P/G Combo (MS-7058) v1.X
ATX mainboard. The 915P/G Combo mainboard is based on Intel®
915P/G and Intel®ICH6/ICH6R chipset for optimal system efficiency.
Designed to fit the advanced Intel®Pentium Prescott LGA775
processor, the 915P/G Combo mainboard delivers a high perfor-
mance and professional desktop platform solution.
Getting Started

E1-4
7058 ATX Mainboard
Mainboard Specifications
CPU
hSupports Intel®Pentium 4 Prescott LGA775 processors in LGA775 package.
hSupports up to Pentium 4 3XX, 5XX & 7XX sequence processor or higher speed.
hSupports Intel Hyper-Threading Technology.
(For the latest information about CPU, please visit http://www.msi.com.tw/program/
products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipset
hIntel® 915P/G chipset
- Supports FSB 533/800MHz.
- Supports PCI Express x16 interface.
- Supports DDR2 400/533 memory interface.
- Integrated graphics controller (for 915G only).
hIntel®ICH6/ICH6R chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 Serial ATA ports with transfer rate up to 1.5Gb/s.
- 1 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 Compliant.
- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID (for ICH6R only).
- Integrated AHCI controller (for ICH6R only).
Main Memory

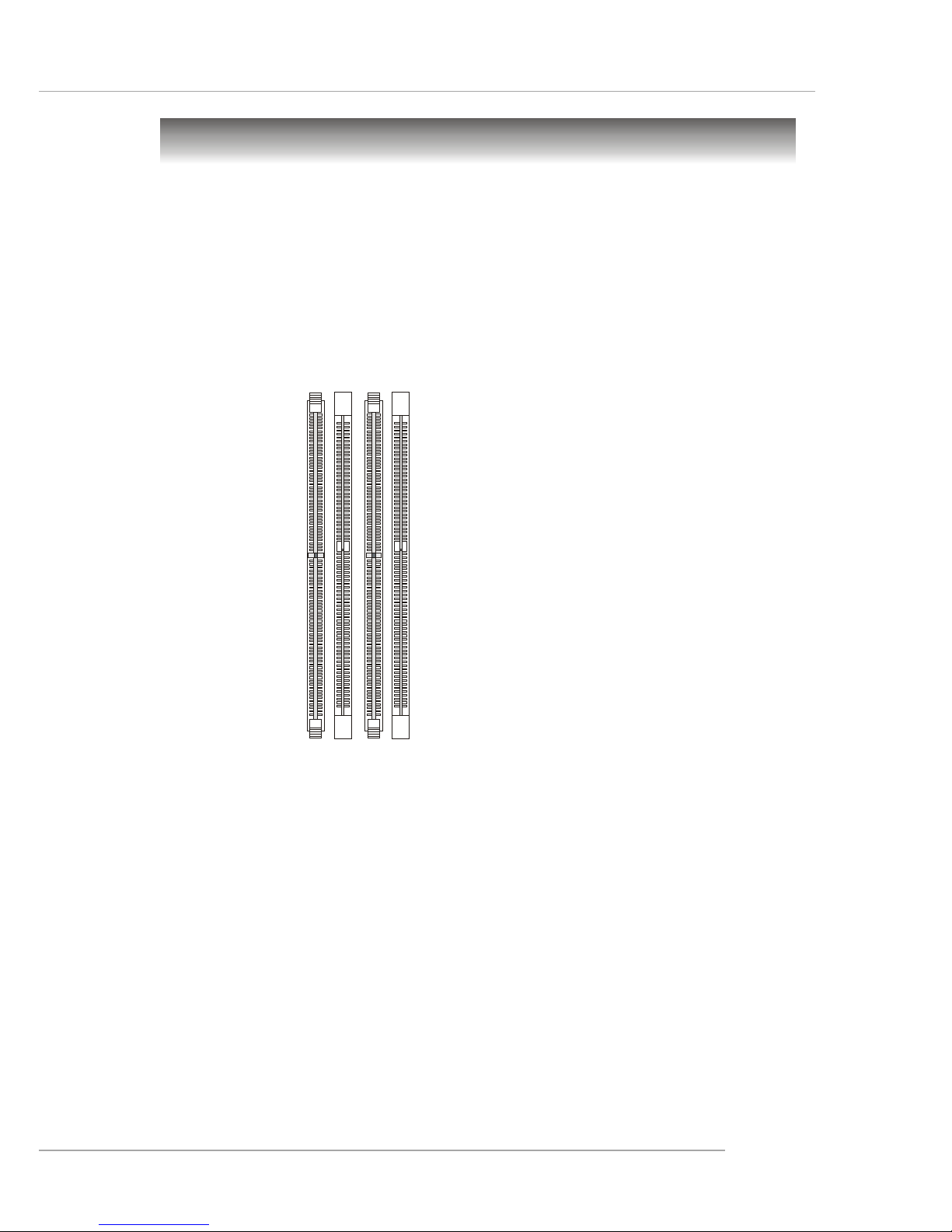

hSupports two DDR1 SDRAM & two DDR2 SDRAM memory modules.
hSupports up to 2GB memory size.
hSupports Dual channel DDR1 & DDR2 memory architecture.
hSupports DDR2 533/400MHz and up.
(For the updated supporting memory modules, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_trp_list.php.)
Slots
hOne PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant).
hTwo PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant).
hThree 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
hOne Ultra DMA 66/100 IDE controllers integrated in ICH6/ICH6R.
- Supports PIO, Bus Master operation modes.
- Can connect up to Two Ultra ATA drives.
hSerial ATA 150 controller integrated in ICH6/ICH6R.
- Up to 150MB/sec transfer speed.
- Can connect up to four Serial ATA devices.
- Supports AHCI controller with SATA Raid 0, Raid 1 and Matrix Raid (for ICH6R
only).
- Supports SATA hot plug (for ICH6R only).

E1-5
Getting Started
VIA6410 IDE Raid Controller (Optional)
hTwo Ultra DMA 66/100/133 IDE Controllers.
hSupports RAID 0, 1 and 0+1.
hConnect up to 4 Ultra ATA 133 devices.
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 VGA port (for 915G only, Optional)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 Line-In / Line-Out / MIC-In / Rear Speaker Out / Center-Subwoofer Speaker Out
/ SPDIF-Out optical and coaxial audio port
- 8 USB ports (Rear * 4/ Front * 4)
- 1 RJ-45 LAN jack (Optional)
LAN (Optional)
hRealtek® 8100C / 8110S (Optional)
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s, 100Mb/s and 1000Mb/s (1000Mb/s for 8100S only).
- Compliance with PCI 2.2.
- Supports ACPI Power Management.
hMarvell 8053 (Optional)
- PCI Express bus Spec 1.0a compliant.
- X1 PCI Express interface with 2.5 GHz signaling.
- 10/100/1000 IEEE 802.3 compliant.
Audio
hAzalia link controller integrated in Intel®ICH6/ICH6R chipset.
h8-channel audio codec CMedia CMI9880L.
- Compliance with Azalia 1.X Spec.
- Support Multi-Streaming function.
- Support Universal Audio Jack (only Front Audio Jack).
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral
devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function which
records your mainboard specifications.
Mounting and Dimension
hATX Form Factor: 24.4 cm (W) x 30.5 cm (L)
h9 mounting holes

E1-6
7058 ATX Mainboard

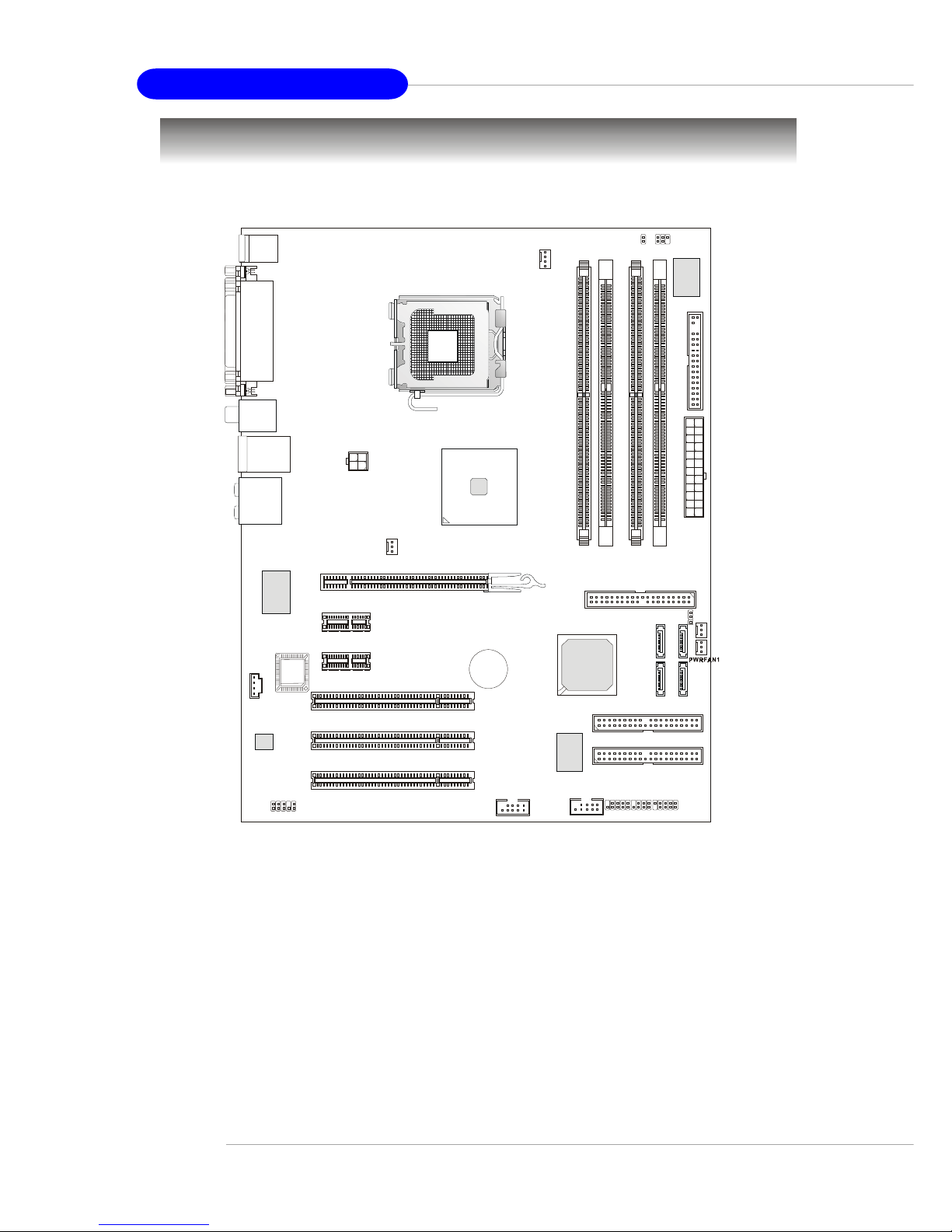

Mainboard Layout
915P/G Combo (MS-7058) v1.X ATX Mainboard
NBFAN1
SYSFAN1
CPUFAN1
Intel
915P/G
JPW1
SATA2
SATA1
SATA4
SATA3
JCD1
T:
M:
B:
Line-In
Line-Out
Mic
T:RS-Out
M:CS
B:SPDIF Out
-Out
Winbond
W83627THF
VIA
VT6410
ICH6/
ICH6R
BATT
+
DIMM1
DIMM3
DIMM4
DIMM2
PCI 3
PCI 2
PCI 1
PCI_E3
PCI_E2
PCI_E1
IDE 3
IDE1
FDD1
IDE 2
JFP1
JC11
JBAT1
JIR11
JFP2JDB1JAUD1 JUSB1 JUSB2
Top : mouse
Bottom: keyboard
T:
B:USBport
SPDIFOut
ATX1
BIOS
T: LAN jack
B: USB ports
Top : Parallel Port
Bottom:
COMA
VGAport(Optional)
CMI
9880L

E2-1
Hardware Setup
Chapter 2. Hardware Setup
This chapter tells you how to install the CPU, memory modules,
and expansion cards, as well as how to setup the jumpers on the
mainboard. Also, it provides the instructions on connecting the periph-
eral devices, such as the mouse, keyboard, etc.
While doing the installation, be careful in holding the compo-
nents and follow the installation procedures.
Hardware Setup

E2-2
MS-7058 ATX Mainboard

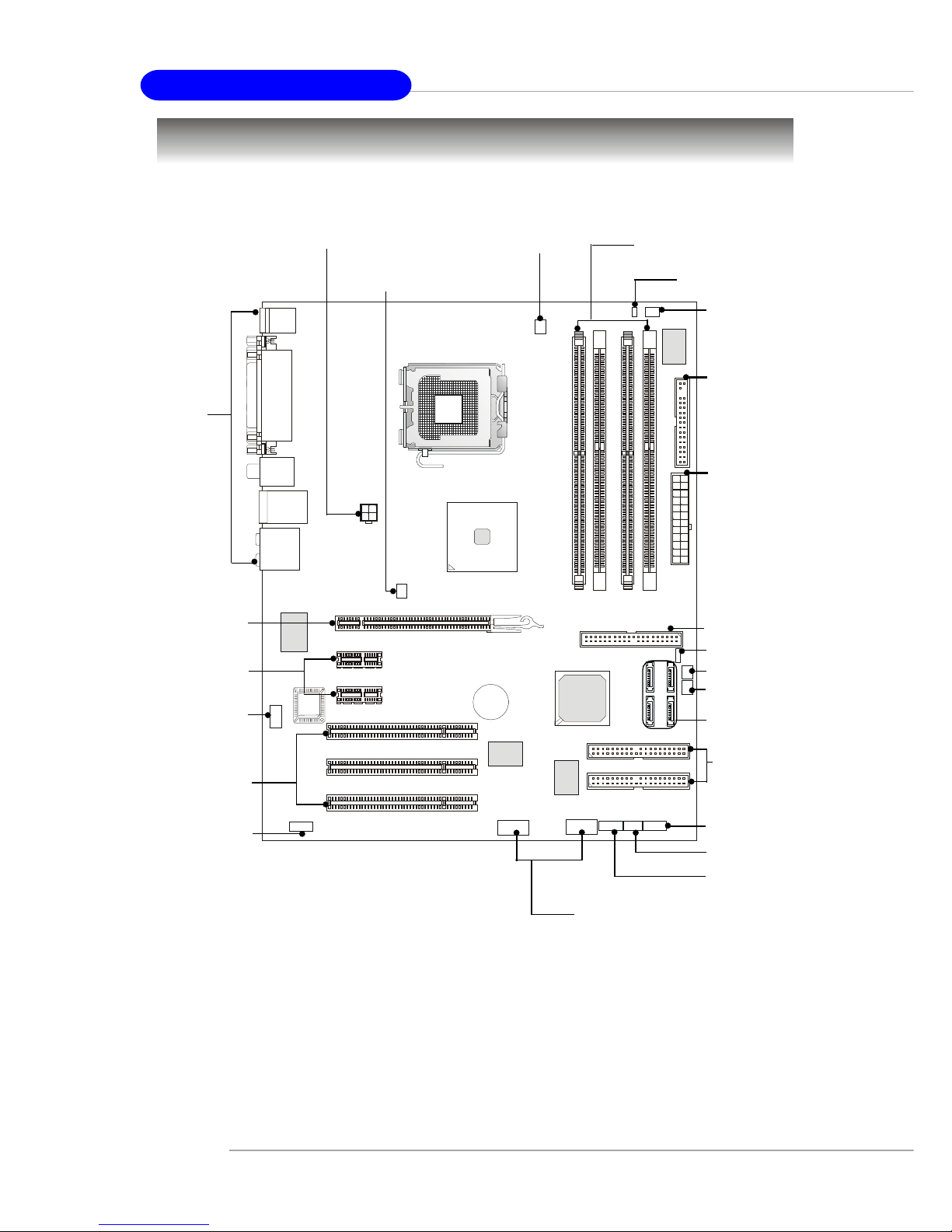

Quick Components Guide
BATT
+
DDR DIMMs, p.2-7
IDE2, IDE3,
p.2-15
JFP2, p.2-17
Back Panel
I/O, p.2-10
CPUFAN1, p.2-9
ATX1, p.2-9
JFP1, p.2-17
PCI Slots 1~3,
p.2-22
JUSB1, JUSB2, p.2-19
JAUD1, p.2-18
SATA1~SATA4,
p.2-16
JDB1, p.2-20
IDE1,p.2-15
SYSFAN1,p.2-14
JCI1, p.2-20
JIR1, p.2-19
FDD1, p.2-14
JBAT1,p.2-22
JPW1, p.2-9
PCI Express x1,
p.2-22
PCI Express x16,
p.2-22
JCD1, p.2-18
PWRFAN1,p.2-14
NBFAN1, p.2-9

E2-3
Hardware Setup
Central Processing Unit: CPU
The mainboard supports Intel®Pentium 4 Prescott processor. The mainboard
uses a CPU socket called LGA775. When you are installing the CPU, make sure to
install the cooler to prevent overheating. If you do not have the CPU cooler,
contact your dealer to purchase and install them before turning on the computer.
For the latest information about CPU, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_cpu_support.php.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from
overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply or
unplug the power supply’s power cord from grounded outlet first to
ensure the safety of CPU.
Overclocking
This motherboard is designed to support overclocking. However, please
make sure your components are able to tolerate such abnormal setting,
while doing overclocking. Any attempt to operate beyond product speci-
fications is not recommended. We do not guarantee the damages
or risks caused by inadequate operation or beyond product
specifications.

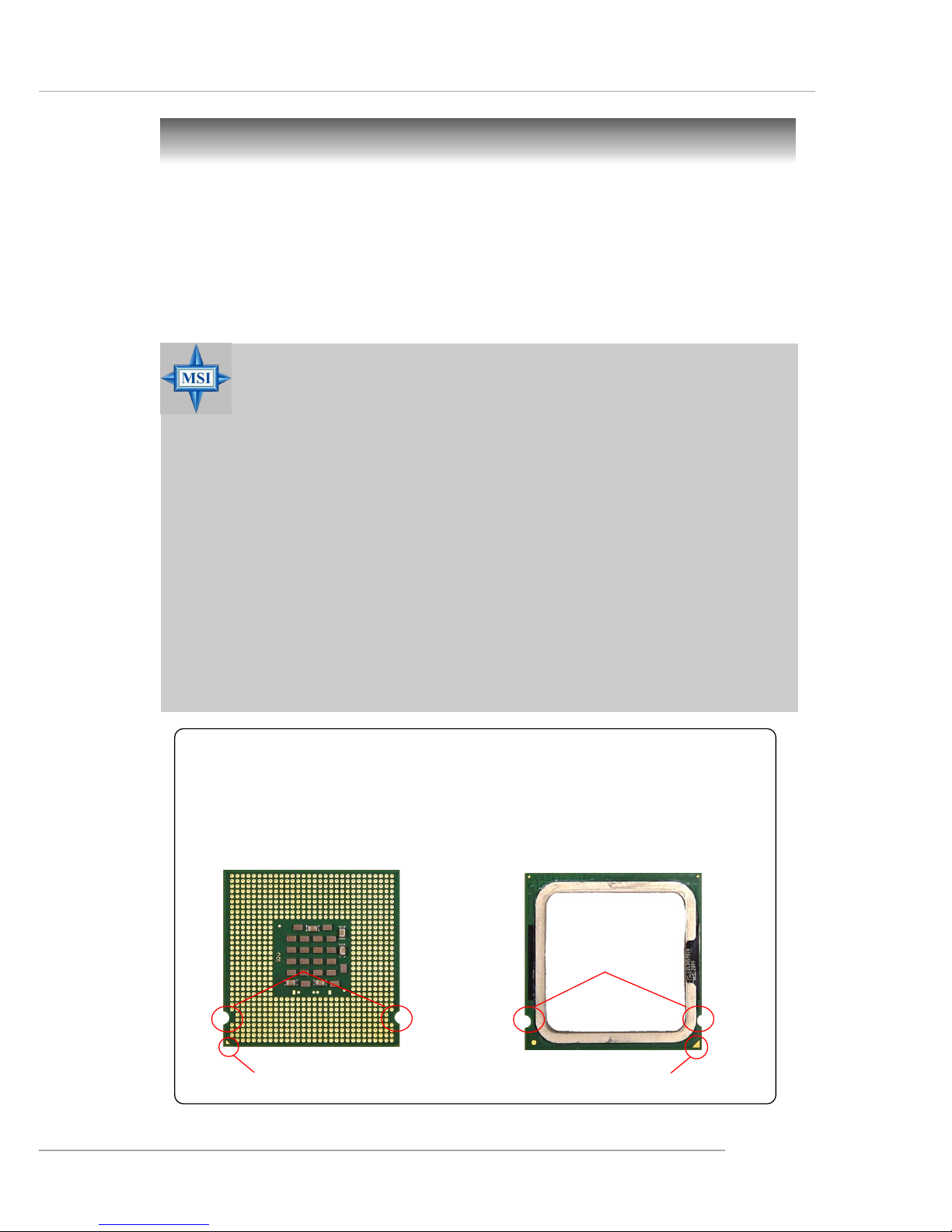

Introduction to LGA 775 CPU The surface of LGA 775 CPU.
Remember to apply some sili-
cone heat transfer compound on
it for better heat dispersion.
Yellow triangle is the Pin 1 indicator
The pin-pad side of LGA 775
CPU.
Yellow triangle is the Pin 1 indicator
Alignment Key Alignment Key

E2-4
MS-7058 ATX Mainboard

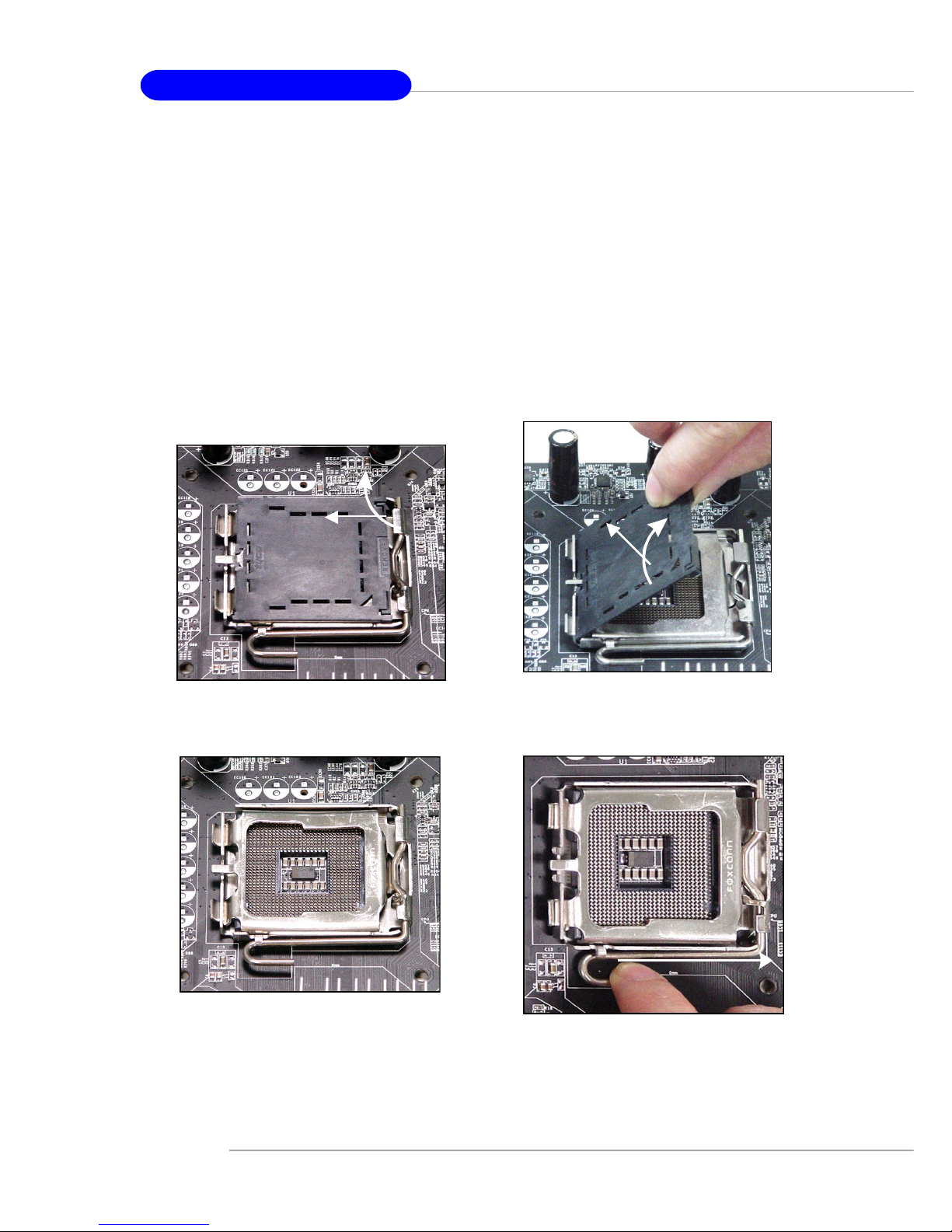

2. Remove the cap from lever hinge
side (as the arrow shows).
1. The CPU has a plastic cap on it to
protect the contact from damage.
Before you install the CPU, always
cover it to protect the socket pin.
3. The pins of socket reveal.
CPU & Cooler Installation
When you are installing the CPU, make sure the CPU has a cooler at-
tached on the top to prevent overheating. If you do not have the cooler, contact
your dealer to purchase and install them before turning on the computer. Meanwhile,
do not forget to apply some silicon heat transfer compound on CPU before installing
the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation
will cause the damage of your CPU & mainboard.
4. Open the load lever.

E2-5
Hardware Setup
6. After confirming the CPU direction
for correct mating, put down the
CPU in the socket housing frame.
Be sure to grasp on the edge of
the CPU base. Note that the align-
ment keys are matched.
8. Cover the load plate onto the
package.
7. Visually inspect if the CPU is
seated well into the socket. If not,
take out the CPU with pure vertical
motion and reinstall.
alignment
key
5. Lift the load lever up and open the
load plate.

E2-6
MS-7058 ATX Mainboard
10. Align the holes on the mainboard
with the heatsink. Push down the
cooler until its four clips get
wedged into the holes of the
mainboard.
12.Turn over the mainboard to con-
firm that the clip-ends are cor-
rectly inserted.
11. Press the four hooks down to fas-
ten the cooler. Then rotate the lock-
ing switch (refer to the correct di-
rection marked on it) to lock the
hooks.
9. Press down the load lever lightly
onto the load plate, and then se-
cure the lever with the hook under
retention tab.
locking
switch
MSI Reminds You...
1.Confirm if your CPU cooler is firmly installed before turning on your
system.
2.Do not touch the CPU socket pins to avoid damaging.
3. Whenever CPU is not installed, always protect your CPU socket pin
with the plastic cap covered (shown in Figure 1) to avoid damaging.
4. Please note that the mating/unmating durability of the CPU is 20 cycles.
Therefore we suggest you do not plug/unplug the CPU too often.

E2-7
Hardware Setup
Memory
The mainboard provides 2 slots for 184-pin DDR1 DIMM (Double In-Line Memory
Module) modules and 2 slots for 240-pin DDR2 DIMM, which supports the memory
size up to 2GB.
Since DDR2 modules are not interchangeable with DDR1 and the DDR2 stand-
ard is not backward compatible, you should always install DDR2 memory module in
DDR2slot(DIMM1&DIMM3),andDDR1memorymoduleinDDR1slot(DIMM2&DIMM4).
Wrong installation may cause damage of mainboard. Meanwhile, you are not able to
boot up your system if you install DDR1 & DDR2 memory modules simultaneously.
For the updated supporting memory modules, please visit http://www.msi.
com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.
DIMM1~DIMM4
(from left to right)
DIMM1 & DIMM3 are for DDR2 memory module
DIMM2 & DIMM4 are for DDR1 memory module
Introduction to DDR2 & DDR1 SDRAM
DDR2 is a new technology of memory module, and its speed is the top limit of
current DDR1 technology. DDR2 uses a 1.8V supply for core and I/O voltage, com-
pared to 2.5V for DDR1, and requires 28% less power than DDR1 chips. DDR2 truly
is the future of memory, but will require some changes as the technology is not
backwardly compatible and only motherboards specifically designed for DDR2 memory
will be able to support these chips.
DDR2 incorporates new features at the chip level that give it better signal
integrity, thereby enabling higher clock speeds.
DDR2 modules have 240 pins, versus 184 pins on a DDR1 module, and the
length of DDR2 module is 5.25”. DDR2 modules have smaller and tighter spaced pins.
The height of DDR2 modules varies, but they will typically be less than 1.3” in height.
DDR1 SDRAM is similar to conventional SDRAM, but doubles the rate by
transferring data twice per cycle. It uses 2.5 volts, and requires 184-pin DIMM modules.

E2-8
MS-7058 ATX Mainboard
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will
only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt Notch
MSI Reminds You...
You can barely see the golden finger if the module is properly in-
serted in the socket.
Memory Module Population Rules
Install at least one DIMM module on the slots. Each DIMM slot supports up to a
maximum size of 1GB. Users can install either single- or double-sided modules to
meet their own needs. While using dual-channel DDR function, it is available for you
to install memory modules with different sizes (for both DDR1 & DDR2 module), which
will run in “asymmetric mode”. However, it is strongly recommended that you install
same-size memory modules for better performance, which runs in “interleaved mode”.
Please refer to the following table for the available memory populations.
Other combination may cause damage to your mainboard.
DIMM1 (DDR2) DIMM2 (DDR1) DIMM3 (DDR2) DIMM4 (DDR1) System Density
(Orange) (Green) (Orange) (Green)
128MB~1GB 128MB~1GB*
128MB~1GB 128MB~1GB*
128MB~1GB 128MB~1GB*
128MB~1GB 128MB~1GB*
128MB~1GB 128MB~1GB 256MB~2GB **
128MB~1GB 128MB~1GB 256MB~2GB **
*: single-channel **: dual-channel

E2-9
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting
the power supply connector, always make sure that all components are installed
properly to ensure that no damage will be caused.
PIN SIGNAL
13 +3.3V
14 -12V
15 GND
16 PS-ON#
17 GND
18 GND
19 GND
20 Res
21 +5V
22 +5V
23 +5V
24 GND
PIN SIGNAL
1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PWROK
9 5VSB
10 +12V
11 +12V
12 NC
Pin Definition
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
ATX 24-Pin Power Connector: ATX1
This connector allows you to connect an ATX 24-pin power supply. To
connect the ATX 24-pin power supply, make sure the plug of the
power supply is inserted in the proper orientation and the pins are
aligned. Then push down the power supply firmly into the connector.
You may use the 20-pin ATX power supply power supply
as you like. If you’d like to use the 20-pin ATX power supply, please
plug your power supply along with pin 1 & pin 13 (refer to the image
at the right hand). There is also a foolproof design on pin 11, 12, 23
& 24 to avoid wrong installation.
ATX1
1
12
24
13
pin 12
pin 13
JPW1
1
3
42
MSI Reminds You...
1. These two connectors connect to the ATX power supply and have to
work together to ensure stable operation of the mainboard.
2. Power supply of 350 watts (and above) is highly recommended for
system stability.
3. ATX 12V power connection should be greater than 18A.
