Quick Start
Thank you for purchasing the MSI®B450 GAMING PRO CARBON AC motherboard.
This Quick Start section provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations. Please link to
the URL to watch it with the web browser on your phone or tablet. You may have even
link to the URL by scanning the QR code.

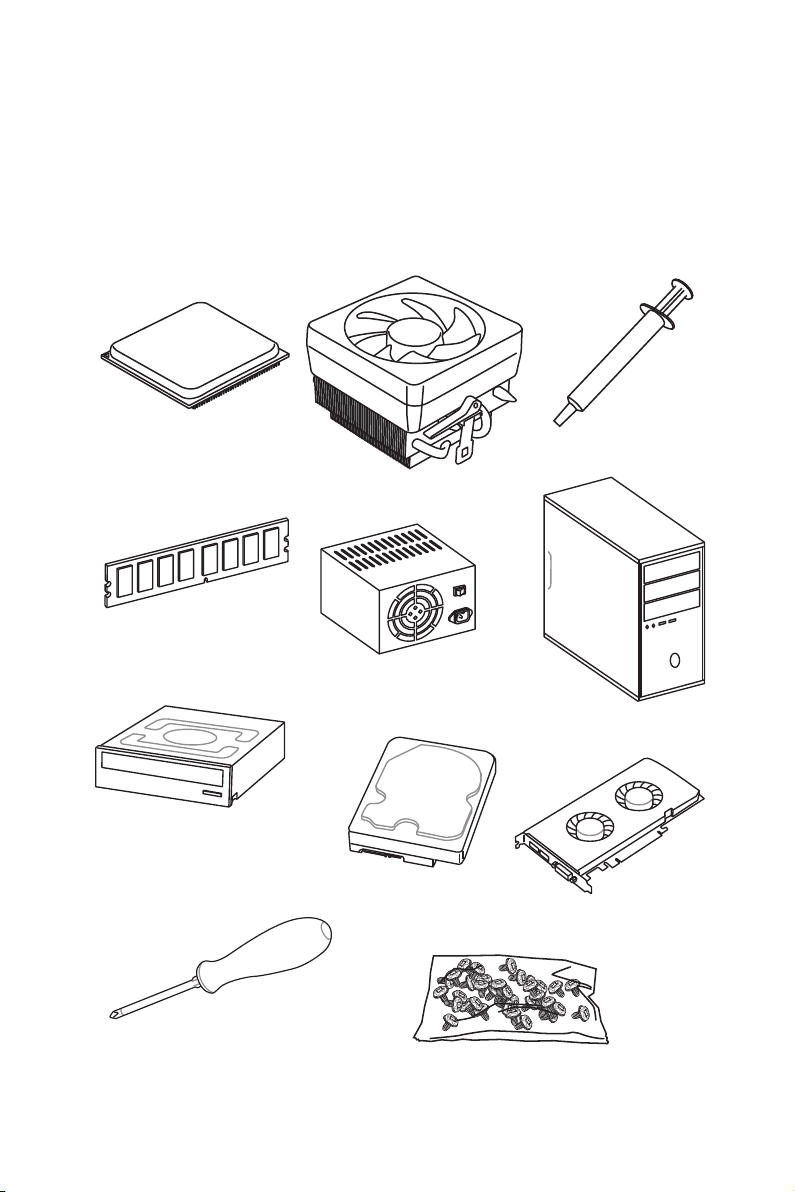

Preparing Tools and Components
AMD®AM4 CPU
CPU Fan

2Quick Start

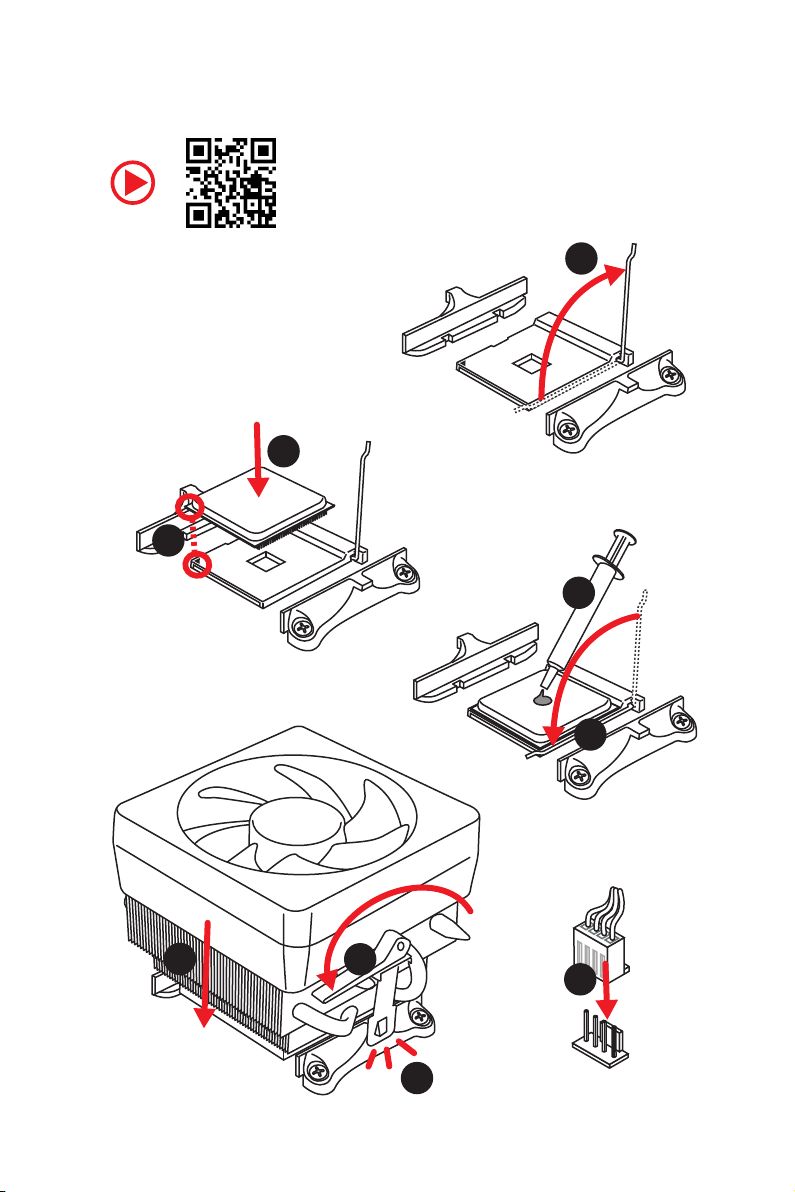

Installing a Processor
1
2
3
6
4
5
7
8
9
https://youtu.be/Xv89nhFk1vc

3
Quick Start
1
23
Important
If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.

4Quick Start

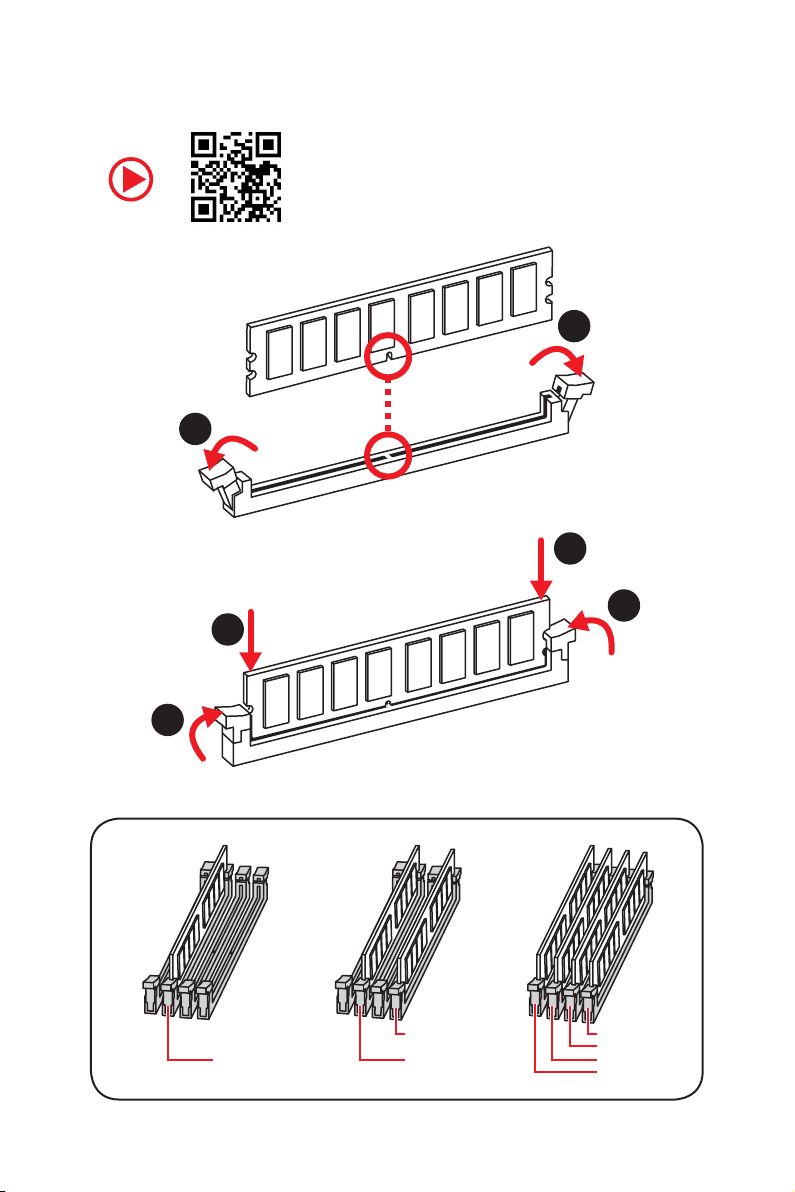

Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
1
1
2
2
3
3

5
Quick Start

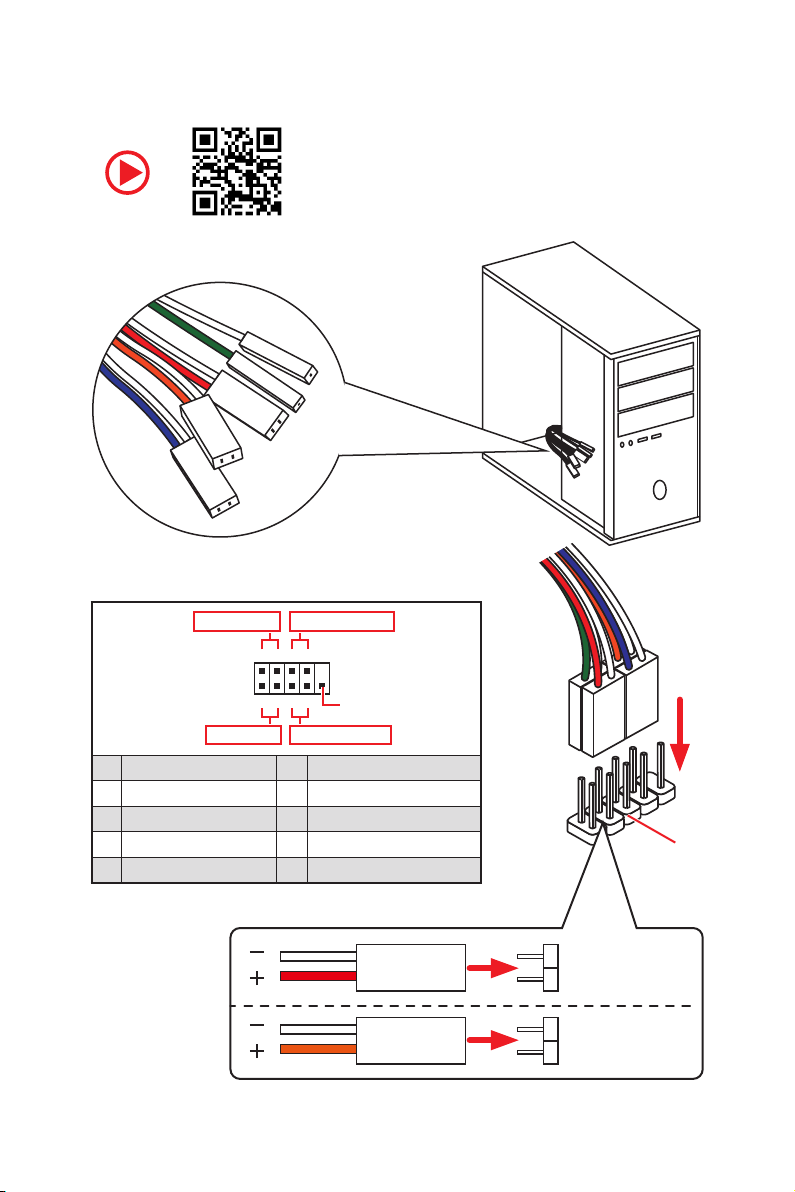

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

6Quick Start
BAT1

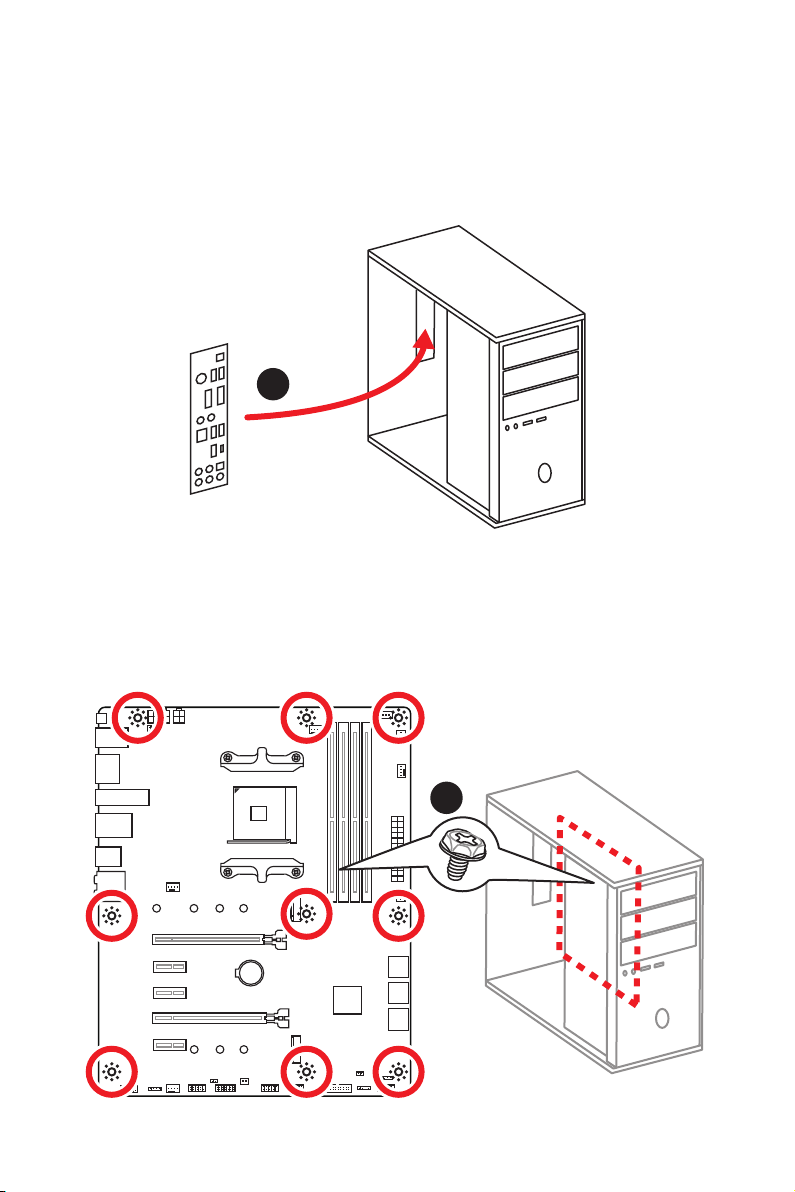

Installing the Motherboard
1
2

7
Quick Start

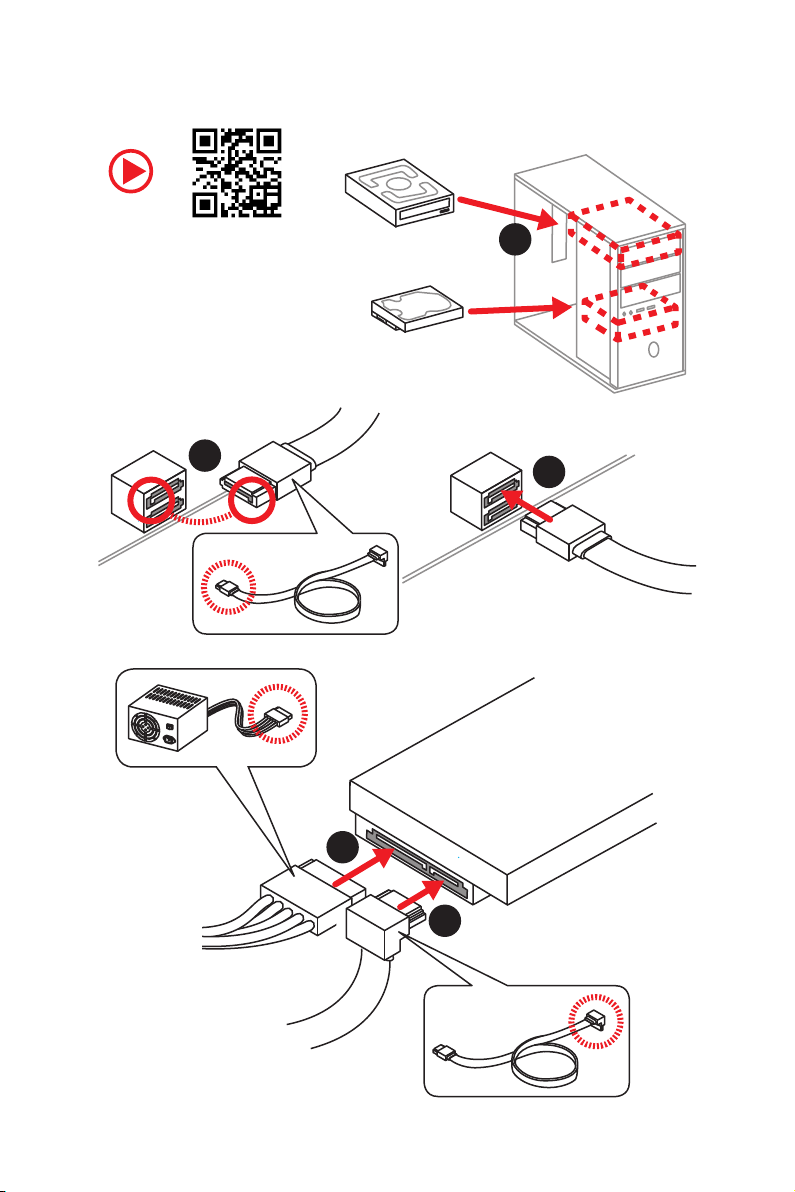

Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
23
4
5

8Quick Start
1
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6

9
Quick Start
Connecting Peripheral Devices

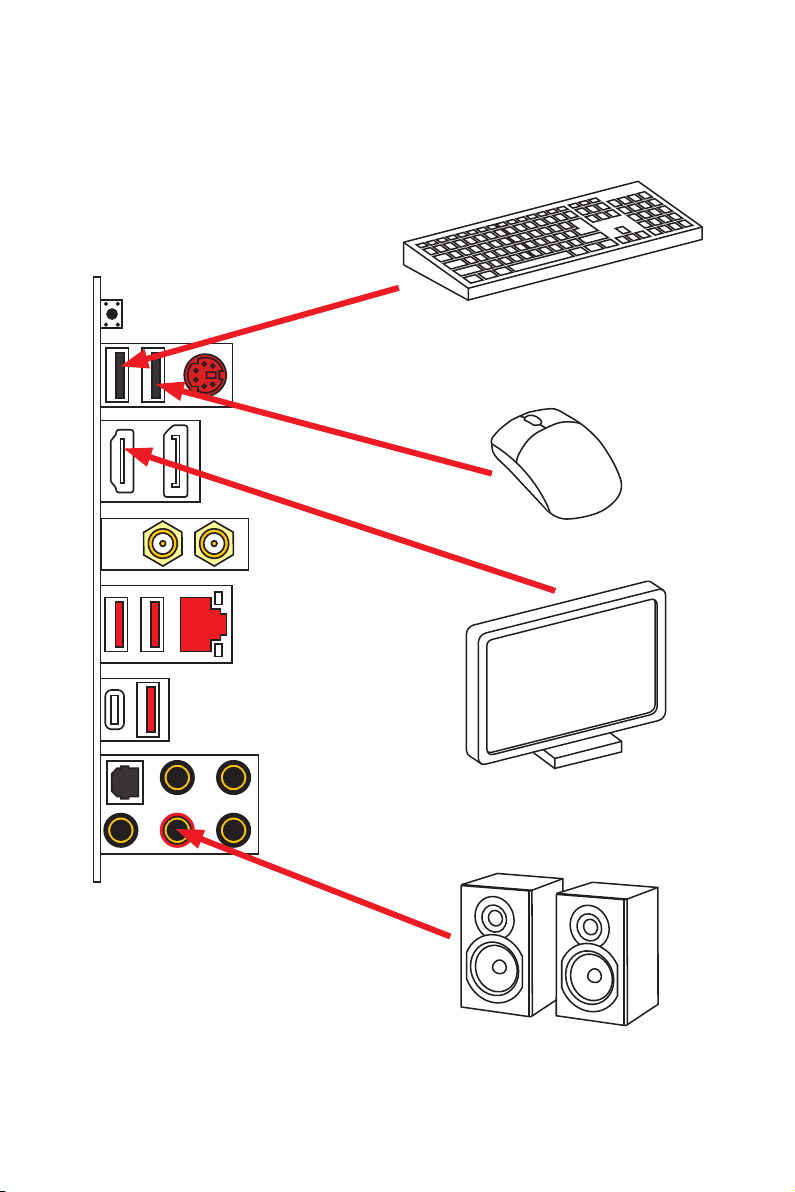

Processor with integrated graphics

10 Quick Start
Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1
CPU_PWR2

11
Quick Start

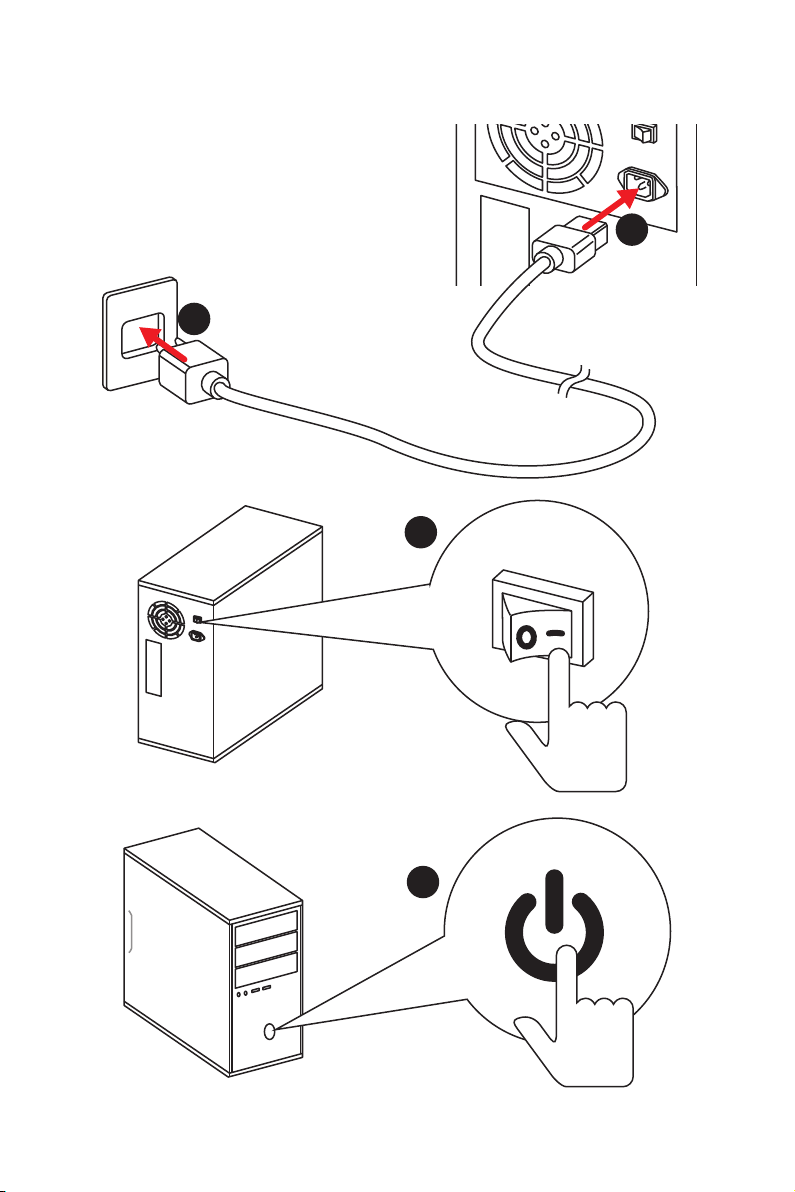

Power On
1
4
2
3

12 Contents
Contents
Quick Start ............................................................................................................. 1
Preparing Tools and Components.......................................................................... 1
Installing a Processor............................................................................................. 2
Installing DDR4 memory ........................................................................................ 4
Connecting the Front Panel Header....................................................................... 5
Installing the Motherboard..................................................................................... 6
Installing SATA Drives............................................................................................. 7
Installing a Graphics Card...................................................................................... 8
Connecting Peripheral Devices .............................................................................. 9
Connecting the Power Connectors....................................................................... 10
Power On............................................................................................................... 11
Safety Information............................................................................................... 15
Specifications....................................................................................................... 16
JCORSAIR1 Connector Specification ................................................................... 21
Package contents ................................................................................................ 22
Block Diagram .................................................................................................... 23
Rear I/O Panel ..................................................................................................... 24
LAN Port LED Status Table................................................................................... 24
Audio Ports Configuration.................................................................................... 24
Realtek Audio Console ......................................................................................... 25
Overview of Components .................................................................................... 28
Processor Socket.................................................................................................. 30
DIMM Slots............................................................................................................ 31
PCI_E1~5: PCIe Expansion Slots.......................................................................... 32
M2_1~2: M.2 Slots (Key M) ................................................................................... 33
SATA1~6: SATA 6Gb/s Connectors ....................................................................... 34
JFP1, JFP2: Front Panel Connectors................................................................... 34
CPU_PWR1~2, ATX_PWR1: Power Connectors ................................................... 35
JUSB1~2: USB 2.0 Connectors............................................................................. 36
JUSB3: USB 3.1 Gen1 Connector ......................................................................... 36
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors................................... 37
JAUD1: Front Audio Connector ............................................................................ 37
JCI1: Chassis Intrusion Connector....................................................................... 38
JCOM1: Serial Port Connector ............................................................................. 38
JTPM1: TPM Module Connector........................................................................... 39

13
Contents
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 39
JRGB1~2, JRAINBOW1: RGB LED connectors..................................................... 40
JCORSAIR1: CORSAIR Connector ........................................................................ 41
EZ Debug LED....................................................................................................... 42
BIOS Setup ........................................................................................................... 43
Entering BIOS Setup............................................................................................. 43
Resetting BIOS...................................................................................................... 44
Updating BIOS....................................................................................................... 44
EZ Mode ................................................................................................................ 46
Advanced Mode .................................................................................................... 48
SETTINGS.............................................................................................................. 49
Advanced............................................................................................................... 49
Boot....................................................................................................................... 54
Security................................................................................................................. 54
Save & Exit............................................................................................................ 56
OC.......................................................................................................................... 57
M-FLASH .............................................................................................................. 61
OC PROFILE.......................................................................................................... 62
HARDWARE MONITOR.......................................................................................... 63
Software Description........................................................................................... 64
Installing Windows®10......................................................................................... 64
Installing Drivers .................................................................................................. 64
Installing Utilities ................................................................................................. 64
APP MANAGER ..................................................................................................... 65
LIVE UPDATE 6...................................................................................................... 66
COMMAND CENTER ............................................................................................. 68
GAMING APP......................................................................................................... 72
X-BOOST ............................................................................................................... 77
MYSTIC LIGHT....................................................................................................... 79
MYSTIC LIGHT PARTY ........................................................................................... 83
SMART TOOL......................................................................................................... 87
RAMDISK............................................................................................................... 89
GAMING LAN MANAGER ...................................................................................... 90
Nahimic 3.............................................................................................................. 92
RAID Configuration.............................................................................................. 95
Using AMD RAID Controller BIOS Configuration Utility....................................... 95
Initialize Disks ...................................................................................................... 97

14 Contents
Create Arrays........................................................................................................ 98
Delete Arrays........................................................................................................ 99
Swap Arrays........................................................................................................ 100
Manage Spares ................................................................................................... 101
Change the Controller Options........................................................................... 102
Booting the system from an array...................................................................... 102
Pausing the boot sequence for warning messages........................................... 102
Change the Staggered Spinup Count ................................................................. 103
Using UEFI to create a 2.2TB RAID .................................................................... 104
Installing RAID Driver......................................................................................... 105
Troubleshooting ................................................................................................ 106
Regulatory Notices............................................................................................ 107

15
Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

16 Specifications
Specifications
CPU
Supports AMD®Ryzen 1st and 2nd Generation/ Ryzen™
with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega
Graphics Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB*
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz
(by A-XMP OC MODE)
yDual channel memory architecture
ySupports non-ECC UDIMM memory
ySupports ECC UDIMM memory (non-ECC mode)
* Please refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with AMD®Ryzen™ 1st and 2nd
Generation processors
Supports x8 speed with AMD® Ryzen™ with Radeon
Vega Graphics processors
Supports x4 speed with AMD®Athlon™ with Radeon™
Vega Graphics Processors
y1x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*/ **
y3x PCIe 2.0 x1 slots*
* M2_2 slot will be unavailable when installing device in any one of PCI_E2,
PCI_E3, PCI_E4 and PCI_E5 slots.
** PCI_E4 will run x1 speed when installing devices in any one of PCIe 2.0x1
slots.
Onboard Graphics
y1x DisplayPort, supports a maximum resolution of
4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz,
1920x1200 @60Hz*
y1x HDMI™ 1.4 port, supports a maximum resolution of
4096x2160 @30Hz, 2560x1600 @60Hz*
* Only support when using AMD®Ryzen™ with Radeon™ Vega Graphics/ Athlon™
with Radeon™ Vega Graphics Processors
* Maximum shared memory of 2048 MB
Multi-GPU ySupports 2-Way AMD®CrossFire™ Technology
Audio
Realtek®ALC1220 Codec
y7.1-Channel High Definition Audio
ySupports Optical S/PDIF output
Continued on next page

17
Specifications
Continued from previous page
Storage
AMD® B450 Chipset
y4x SATA 6Gb/s ports
y1x M.2 slot (M2_2, Key M)*
Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
y1x M.2 slot (M2_1, Key M)**
Supports PCIe 3.0 x4 (AMD®Ryzen 1st and 2nd
Generation/ Ryzen™ with Radeon™ Vega Graphics) or
PCIe 3.0 x2 (AMD®Athlon™ with Radeon™ Vega Graphics)
and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
y2x SATA 6Gb/s ports**
* M2_2 slot will be unavailable when installing device in any one of PCI_E2,
PCI_E3, PCI_E4 and PCI_E5 slots.
** SATA5 and SATA6 ports will be unavailable when installing a M.2 device in
M2_1 slot.
RAID
ySupports RAID 0, RAID 1 and RAID 10 for SATA storage
devices
ySupports RAID 0 and RAID 1 for M.2 NVMe RAID
USB
AMD®B450 Chipset
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
on the back panel
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port
on the back panel
2x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB 3.1 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB 2.0 connectors)
AMD®CPU
2x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the
back panel
LAN 1x Intel®I211AT Gigabit LAN controller
WiFi & Bluetooth
Intel®Dual Band Wireless-AC 9260
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,
5GHz) up to 1.73 Gbps speed.
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,
BLE,4.2, 5.0
1 x M2_3 slot with E key (Wi-Fi mode)
Continued on next page

18 Specifications
Continued from previous page
Back Panel
Connectors
y1x Flash BIOS Button
y1x PS/2 keyboard/ mouse combo port
y2x USB 2.0 Type-A ports
y1x DisplayPort
y1x HDMI™port
y2x WiFi Antenna connectors
y1x LAN (RJ45) port
y2x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen2 Type-A port
y1x USB 3.1 Gen2 Type-C port
y5x audio jacks
y1x Optical S/PDIF OUT connector
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y1x 4-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y1x USB 3.1 Gen1 connectors (support additional 2 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y1x 4-pin water-pump-fan connector
y4x 4-pin system fan connectors
y1x TPM module connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x Serial Port connector
y1x Clear CMOS jumper
y1x 2pin LED Power connector
y2x 5050 RGB LED strip 12V connectors (JRGB1~2)
y1x WS2812B Individually Addressable RGB LED strip 5V
connector (JRAINBOW1)
y1x CORSAIR connector (JCORSAIR1)
Continued on next page

19
Specifications
Continued from previous page
I/O Controller NUVOTON NCT6797 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.1, SM BIOS 2.8
yMulti-language
Software
yDrivers
yAPP MANAGER
ySUPER CHARGER
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yRAMDISK
yX-BOOST
yGAMING APP
yMYSTIC LIGHT
yGAMING LAN MANAGER
yNahimic Audio
yOpen Broadcaster Software (OBS)
yCPU-Z MSI GAMING
yNorton™Internet Security Solution
yGoogle Chrome™, Google Toolbar, Google Drive
Continued on next page

20 Specifications
Continued from previous page
Special Features
yAudio
Audio Boost
Nahimic 3
Voice Boost
yStorage
Twin Turbo M.2
yCooling
Extended heastink
Pump Fan
GAMING Fan Control
yLED
Mystic Light
Mystic Light Extension
Mystic light SYNC
EZ DEBUG LED
yProtection
M.2 Shield
PCIe Steel Armor
PCIe Steel Slot
yPerformance
Multi GPU-CrossFire Technology
DDR4 Boost
CORE Boost
GAME Boost
USB with type A+C
AMD Turbo USB 3.1 Gen 2
Continued on next page
