MSI H110I PRO User manual

1
<󸙗󳽙 1> Contents
Contents
Safety Information...........................................................................................2
Specifications...................................................................................................3
Rear I/O Panel ................................................................................................. 5
LAN Port LED Status Table................................................................................5
Overview of Components ................................................................................ 6
CPU Socket.........................................................................................................7
DIMM Slots .........................................................................................................8
PCI_E1: PCIe Expansion Slot .............................................................................8
SATA1~4: SATA 6Gb/s Connectors.....................................................................9
JFP1, JFP2: Front Panel Connectors.................................................................9
M2_2: M.2 Slot..................................................................................................10
JPWR1~2: Power Connectors..........................................................................11
JUSB1: USB 2.0 Connector ..............................................................................11
JUSB2: USB 3.1 Gen1 Connector.....................................................................12
JAUD1: Front Audio Connector ........................................................................12
JCOM1: Serial Port Connector.........................................................................12
CPUFAN, SYSFAN1: Fan Connectors ...............................................................13
JCI1: Chassis Intrusion Connector ..................................................................14
JBAT1: Clear CMOS (Reset BIOS) Jumper.......................................................14
BIOS Setup.....................................................................................................15
Entering BIOS Setup.........................................................................................15
Resetting BIOS .................................................................................................16
Updating BIOS ..................................................................................................16
Software Description..................................................................................... 17
Installing Windows®7/ 8.1/ 10.........................................................................17
Installing Drivers..............................................................................................17
Installing Utilities.............................................................................................17
Thank you for purchasing the MSI®motherboard H110I PRO.
This User Guide gives information about board layout, com-
ponent overview and BIOS setup.

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60C (140F), it may
damage the motherboard.

3
Safety Information Specifications
Specifications
CPU Supports 6th Gen Intel®Core™i3/i5/i7 processors, and Intel®
Pentium®and Celeron®processors for Socket LGA1151
Chipset yIntel®H110 Chipset
Memory
y2x DDR4 memory slots, support up to 32GB
Supports DDR4 2133 MHz*
yDual channel memory architecture
ySupports Intel®Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on
compatible memory.
Expansion Slots y1x PCIe 3.0 x16 slot
Onboard Graphics
y1x HDMI™port, supports a maximum resolution of
4096x2160@24Hz, 2560x1600@60Hz
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz
Storage
Intel®H110 Chipset
y4x SATA 6Gb/s ports
y1xM.2 slot
supports PCIe 2.0x4 standard, 4.2cm/6cm/8cm length M.2
PCIe-interface SSD cards
USB
yIntel®H110 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the
back panel, 2 ports available through the internal USB
connector)
6x USB 2.0 (High-speed USB) ports (4 ports on the
back panel, 2 ports available through the internal USB
connectors)
Audio yRealtek®ALC887 Codec
y7.1-Channel High Definition Audio
LAN 1x Realtek®RTL8111H Gigabit LAN controller
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y4x USB 2.0 ports
y1x DVI-D port
y2x USB 3.1 Gen1 ports
y1x HDMI™port
y1x LAN (RJ45) port
y3x audio jacks
Continued on next page

4Specifications
Continued from previous page
Internal
Connectors
y1x 24-pin ATX main power connector
y1x 4-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y1x 4-pin system fan connector
y1x Front panel audio connector
y2x Front panel connectors
y1x Serial Port connector
y1x Chassis Intrusion connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT5563 Controller Chip
Hardware
Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yMini-ITX Form Factor
y6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
BIOS Features
y1x 64 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Software
yDrivers
yCOMMAND CENTER
yLIVE UPDATE 6
yFAST BOOT
ySUPER CHARGER
yM-CLOUD
yRAMDISK
yIntel®Small Business Basics
yNetwork Genie
yIntel®Extreme Tuning Utility
yNorton™Security
yGoogle Chrome™,Google Toolbar, Google Drive
yCPU-Z

5
Specifications Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
PS/2
LAN
USB 3.1 Gen1
USB 2.0DVI-DUSB 2.0
Line-in
Line-out
Mic in
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

6Overview of Components
Overview of Components
CPUFAN
JPWR2
PCI_E1
DIMM1
SYSFAN1
DIMM2
JUSB2
JUSB1
JCOM1
JFP1
JFP2
JAUD1
JPWR1
SATA1
SATA2
SATA3
SATA4
JBAT1
CPU Socket
JCI1
Top view
Bottom view
M2_2

7
Overview of Components Overview of Components

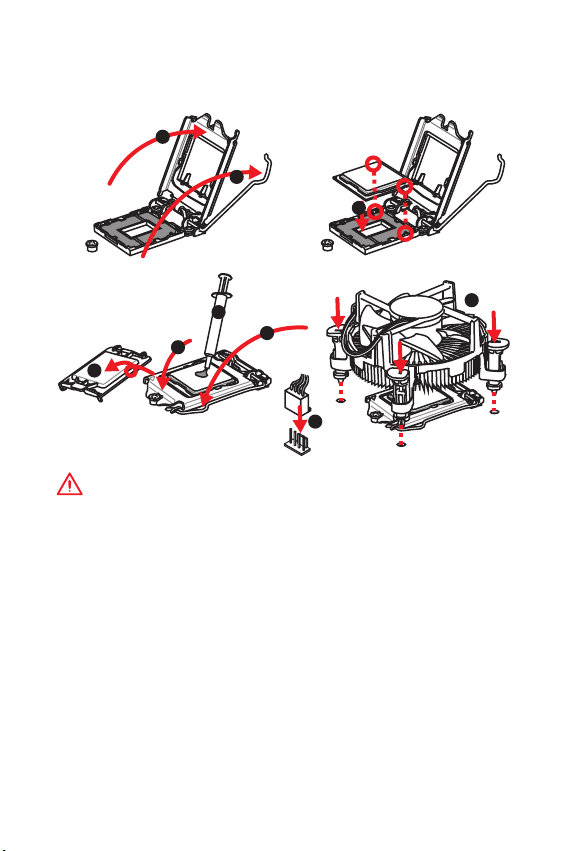

CPU Socket
Please install the CPU into the CPU socket as shown below.
Important
y Always unplug the power cord from the power outlet before installing or removing
the CPU.
y Please retain the CPU protective cap after installing the processor. MSI will deal
with Return Merchandise Authorization (RMA) requests if only the motherboard
comes with the protective cap on the CPU socket.
y When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
y Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
y Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to
apply an even layer of thermal paste (or thermal tape) between the CPU and the
heatsink to enhance heat dissipation.
y Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
y If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
1
4
6
5
78
9
3
2

8Overview of Components
DIMM Slots
Please install the memory module into the DIMM slot as shown below.
Important
y Due to chipset resource usage, the available capacity of memory will be a little less
than the amount of installed.
y Please note that the maximum capacity of addressable memory is 4GB or less
for 32-bit Windows OS due to the memory address limitation. Therefore, we
recommended that you to install 64-bit Windows OS if you want to install more than
4GB memory on the motherboard.
PCI_E1: PCIe Expansion Slot
PCI_E1: PCIe 3.0 x16 slot
Important
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card󾙓s documentation to check for any necessary additional hardware or software
changes.
123
2

9
Overview of Components Overview of Components
SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA3 SATA2
SATA4
SATA1
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cable has identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
12
10 9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

10 Overview of Components

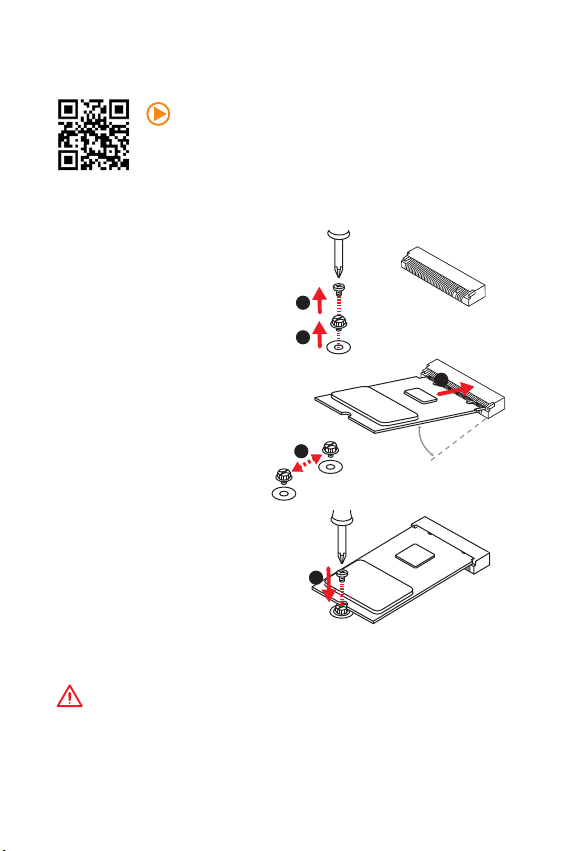

M2_2: M.2 Slot
1. Remove the screw from the
base screw.
2. Remove the base screw.
3. Tighten the base screw into
the hole of the distance to
the M.2 slot as the length
your M.2 module.
4. Insert your M.2 module into
the M.2 slot at a 30-degree
angle.
5. Put the screw in the notch
on the trailing edge of your
M.2 module and tighten it
into the base screw.
Video Demonstration
Watch the video to learn how to Install M.2 module.
http://youtu.be/JCTFABytrYA
Installing M.2 module
Important
Before you install the motherboard into the case, make sure the M.2 module has
been installed properly.
30
1
4
5
3
2
