MSI MS-6340 User manual

MSI
MICRO-STAR INTERNATIONAL
MS-6340 Micro-ATX Mainboard
Version 5.0
G52-MA00450
i

Manual Rev: 5.0
Release Date: October 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in
order to comply with the emission limits.
VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER
AU RESEAU.
Micro-Star International MS-6340
For Home or Office Use
Tested to comply
with FCC Standard
ii

Edition
October 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-
STAR INTERNATIONAL. We take every care in the preparation of
this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we reserve
the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
AMD, Athlon and Duron are registered trademarks of AMD Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 98SE/ME/2000/XP and Windows NT are registered trademarks of
Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
5.0 First Release for PCB5.X October 2001
iii

Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by
a service personnel:
• The power cord or plug is damaged
• Liquid has penetrated into the equipment
• The equipment has been exposed to moisture
• The equipment has not work well or you can not get it work
according to User’s Manual.
• The equipment has dropped and damaged
• If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C
(1400F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
iv

CONTENTS
Chapter 1: INTRODUCTION
1-1
Mainboard Features --------------------------------------------------- 1-2
Mainboard Layout----------------------------------------------------- 1-4
Quick Components Guide-------------------------------------------- 1-5
Chapter 2: HARDWARE SETUP
2-1
Central Processing Unit: CPU---------------------------------------
2-2

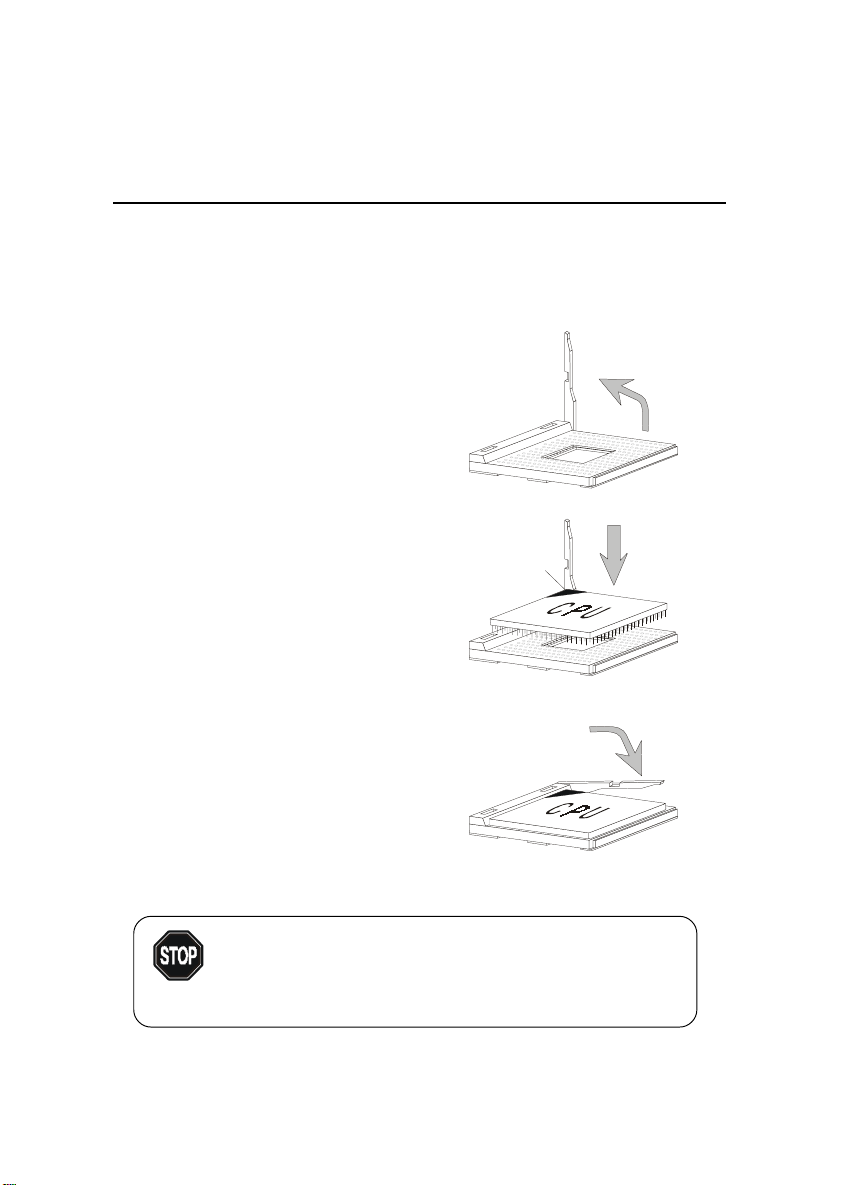

CPU Installation Procedures----------------------------------- 2-2
CPU Core Speed Derivation Procedure----------------------- 2-3
Memory-----------------------------------------------------------------
2-4

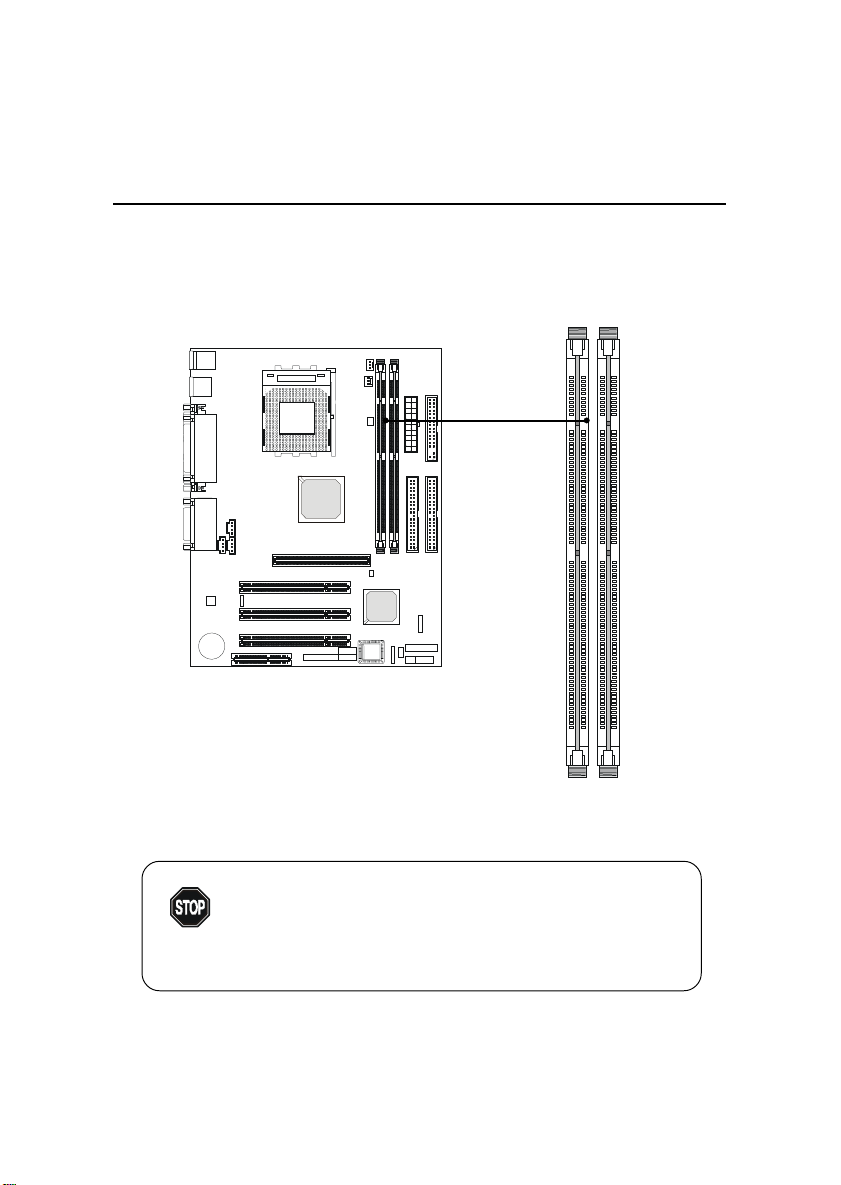

Memory Installation Procedures-------------------------------- 2-5
Memory Population Rules--------------------------------------- 2-6
Power Supply-----------------------------------------------------------
2-7
ATX 20-pin Power Connector: JWR1------------------------- 2-7
Back Panel--------------------------------------------------------------
2-8
Mouse Connector: JKBMS1------------------------------------ 2-8
Keyboard Connector: JKBMS1--------------------------------- 2-8
v

Serial Port Connectors: COM A & COM B------------------- 2-9
Parallel Port Connector: LPT1---------------------------------- 2-10
Joystick/Midi Connectors---------------------------------------
- 2-11
Audio Port Connectors------------------------------------------- 2-11
USB Connectors-------------------------------------------------- 2-12
Connectors--------------------------------------------------------------
2-13
Fan Power Connectors: C_FAN/S_FAN---------------------- 2-13
Case Connectors: JFP1 & JFP2--------------------------------- 2-14
Floppy Disk Connector: FDD----------------------------------- 2-16
Hard Disk Connectors: IDE1 & IDE2------------------------- 2-17
IrDA Infrared Module Connectors: J8 & J10----------------- 2-18
Wake-Up On LAN Connector: JWOL1----------------------- 2-19
Modem Wake Up Connector: JMDM1------------------------ 2-20
USB Front Connectors: USB3 & USB4----------------------- 2-21
CD-In/AUX Line-In/Modem-In Connector: JCD/JAUX/
J_PHN--------------------------------------------------------------
2-22
Front Panel Audio Connector: JAUD2------------------------ 2-23
Chipset FAN Power Connector: J11--------------------------- 2-25
Jumpers------------------------------------------------------------------ 2-26
vi

Clear CMOS Jumper: JBAT1----------------------------------- 2-26
CPU FSB Frequency Jumper: J6------------------------------- 2-27
Slots----------------------------------------------------------------------
2-28
AGP (Accelerated Graphics Port) Slot------------------------
- 2-28
PCI Slots----------------------------------------------------------- 2-28
CNR (Communication Network Riser) Slot------------------ 2-28
PCI Interrupt Request Routing---------------------------------- 2-29
Chapter 3: AWARD®BIOS SETUP 3-1
Entering Setup---------------------------------------------------------- 3-2
Getting Help------------------------------------------------------------ 3-2
The Main Menu-------------------------------------------------------- 3-3
Standard CMOS Features--------------------------------------------- 3-5
Advanced BIOS Features--------------------------------------------- 3-7
Advanced Chipset Features------------------------------------------- 3-11
Integrated Peripherals------------------------------------------------- 3-16
Power Management Setup-------------------------------------------- 3-20
PnP/PCI Configurations-----------------------------------------------
Frequency/Voltage Control-------------------------------------------
3-26
3-28
Load Fail-Safe/Optimized Defaults---------------------------------- 3-29
Set Supervisor/User Password--------------------------------------- 3-30
vii

-
Chapter 4: INSTALLING DRIVERS 4-1
Overview---------------------------------------------------------------- 4-2
Driver Installation for Windows®98SE & ME-------------------- 4-3
Driver Installation for Windows®2000----------------------------- 4-5
Driver Installation for Windows®NT 4.0---------------------------
4-7
Glossary G-1
viii

Introduction
1-1
Chapter 1.
Introduction
Thank you for purchasing the MS-6340 (v5.X) Micro-ATX motherboard.
The mainboard, based on VIA®KT133A (VT8363A & VT82C686B)
chipset, is a high-performance computer mainboard designed for AMD®
Duron™/Athlon™/Athlon XP processor in the 462 pin package that pro-
vides a cost-effective, high energy efficient and high quality desktop
platform solution.
This chapter includes the following topics:
Mainboard Features 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
1

Chapter 1
1-2
Mainboard Features
CPU
zSocket A for AMD®PGA Duron™/Athlon™/Athlon XP processor
zSupports 800MHz~1.4GHz or higher processor
Chipset
zVIA®KT133A VT8363A chipset (552 BGA)
- FSB @200MHz/266MHz
- AGP 4x and PCI Advanced high performance memory controller
- Supports PC100/133 SDRAM technology
zVIA®VT82C686B chipset (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2 and IR)
- Dual bus Master IDE Ultra DMA33/66/100
- Integrated Hardware Sound Blaster
- Direct Sound AC97 Audio
- ACPI
- Supports 4 USB Ports
Clock Generator
z100MHz/133MHz clocks are supported. (200MHz/266MHz Internal
System Bus)
MainMemory
zSupports four memory banks using two 168-pin unbuffered DIMM
zSupports a maximum memory size of 1GB (32M x 8)
zSupports 3.3v SDRAM DIMM
Slots
zOne AGP (Accelerated Graphics Port) slot
- AGP specification compliant
- Supports AGP 2.0 1x/2x/4x
zOne CNR (Communication Network Riser) slot
zThree 32-bit Master PCI Bus slots
zSupports 3.3v/5v PCI bus Interface

Introduction
1-3
On-BoardIDE
zAn IDE controller on the VIA®VT82C686B chipset provides IDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation
modes.
zCan connect up to four IDE devices
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (2 Rear Connectors/USB Front Pin Header)
- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR
- 1 Audio/Game port
Audio
zChip Integrated
-Direct Sound AC97 Audio
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
zThe mainboard provides a Desktop Management Interface (DMI) func-
tion which records your mainboard specifications.
Dimension
zMicro ATX Form Factor: 19.2cm x 24.4cm
Mounting
z6 mounting holes

Chapter 1
1-4
SOCKET 462
VIA
VT8363A
Chipset
VT82C686B
AGP Slot
BATT
+
USB4
JAUD2 USB3
J6
ATX
PowerSupply
JFP1
JFP2
J8
JWOL1
JMDM1
BIOS
PCI Slot 1
PCI Slot 2
PCI Slot 3
IDE1
Codec
IDE2
DIMM2
DIMM1
CNR
JBAT1
USB
ports
To p : P a ra l l e l P o r t
Bottom:
COM A &
COM B
To p : m ou s e
Bottom: keyboard
JCD
S_FAN
C_FAN
J11
JAUX
J_PHN
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD
J10
Mainboard Layout
MS-6340 (V5.X) Micro-ATX Mainboard

Introduction
1-5
Quick Components Guide
Component Function Reference
DIMM1~2 Installing SDRAM modules See p. 2-4~2-5
Socket 462 Installing CPU See p. 2-2~2-3
C_FAN Connecting to CPUFAN See p. 2-13
S_FAN Connecting to SYSTEM FAN See p. 2-13
ATX Power Supply Installing power supply See p. 2-7
IDE1 & IDE2 Connecting to IDE hard disk drive See p.2-17
FDD Connecting to floppy disk drive See p.2-16
USB3 & USB4 Connecting to USB interfaces See p. 2-21
PCI Slot 1~3 Installing expansion cards See p. 2-28
AGP Slot Installing AGP cards See p. 2-28
CNR Slot Installing expansion cards See p. 2-28
JMDM1 Connecting to modem module See p. 2-20
JWOL1 Connecting to LAN card See p. 2-19
JBAT1 Clearing CMOS data See p. 2-26
JFP1 & JFP2 Connecting to case See p. 2-14
J8 & J10 Connecting to IR modules See p. 2-18
JAUD2 Connecting to audio connector See p. 2-23
J11 Connecting to chipset’s fan See p. 2-25
J6 Setting CPU FSB frequency See p. 2-27

Hardware Setup
2-1
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo-
nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
This chapter contains the following topics:
Central Processing Unit (CPU) 2-2
Memory 2-4
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-26
Slots 2-28
2
Chapter 2. Hardware Setup

Chapter 2
2-2
Central Processing Unit: CPU
The mainboard operates with AMD®DuronTM/Athlon™/Athlon XP
processor. The mainboard uses a CPU socket called Socket 462 for easy
CPU installation. The CPU should always have a Heat Sink and a cooling
fan attached to prevent overheating.
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
CPU Installation Procedures
2. Look for the cut edge. The
cut edge should point
towards the lever pivot. The
CPU will only fit in the
correct orientation.
Open Lever
Cut edge
Sliding
Plate
Close
Lever
Overheating will seriously damage the CPU
and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
WARNING!

Hardware Setup
2-3
The mainboard CPU bus frequency can be set through BIOS setup.
If CPU Clock = 100MHz
Core/Bus ratio = 7
then CPU core speed = Host Clock x Core/Bus ratio
= 700MHz
CPU Core Speed Derivation Procedure
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or
risks caused by inadequate operation or beyond product
specifications.
WARNING!

Chapter 2
2-4
Memory
The mainboard supports a maximum memory size of 1 GB. It provides two
168-pin unbuffered DIMMs (Double In-Line Memory Module) sockets.
There are two kinds of DIMM specifications supported by this
mainboard: PC133 and PC100. If you use 100MHz CPU Bus
Frequency, you can use PC100 or PC133 DIMM Spec. If you
use 133 MHz CPU bus frequency, only PC133 DIMM Spec is
recommended.
WARNING!
DIMM Slots
(DIMM 1~2)

Hardware Setup
2-5
A. How to install a DIMM Module
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at each side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRAM
Memory Installation Procedures

Chapter 2
2-6
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be installed.
3. This mainboard supports Table Free memory, so memory can be installed
on DIMM 1 or DIMM 2 in any order.
4. Supports 3.3 volt DIMM.
5. The single-/double-sided memory modules supported by each DIMM slot
are shown below:
Memory Population Rules
SDRAM DIMM Module Combination
Socket Memory Module Total Memory
DIMM 1
(Bank0 & Bank1)
S/D 32MB ~ 512MB
DIMM 2
(Bank2 & Bank3)
S/D 32MB ~ 512MB
Maximum System Memory Supported 32MB ~ 1GB
S (Single Side) D (Double Side)

Hardware Setup
2-7
Power Supply
ATX 20-pin Power Connector: JWR1
This connector supports the power button on-board. Using the ATX power
supply, functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
PIN DEFINITION
Warning: Since the mainboard has the instant power on function,
make sure that all components are installed properly before
inserting the power connector to ensure that no damage will be
done.
ATX
Power Connector
11
20
10
1
Other manuals for MS-6340
1
Table of contents
Other MSI Motherboard manuals

MSI
MSI X299 XPOWER GAMING AC User manual

MSI
MSI G31P Neo2 Series User manual

MSI
MSI X299 XPOWER GAMING AC User manual

MSI
MSI MS-9803 User manual

MSI
MSI K8N NEO4-F - Motherboard - ATX User manual

MSI
MSI MS-6319 User manual

MSI
MSI MS-7021 User manual

MSI
MSI PRO X670-P WIFI User manual

MSI
MSI MAG B460 TOMAHAWK User manual

MSI
MSI 7D96-003R User manual
